Axema VAKA-CALL Master 4G User manual

Axema Access Control AB | Box 90215 | 120 23 Stockholm, Sweden | 08-722 34 40 | [e-mail] | www.axema.se
VAKA-CALL Master 4G
Manual (En)
Updated 2018-11-17

VAKA-CALL Master 4G
IP telephony and 4G subscriptions 3
Installation and configuration 3
General settings 4
Network and connection settings 5
Entry phone network settings 5
Line types 5
VoIP settings 6
User account 6
Advanced 6
Connecting one door 7
Connection multiple doors 7
VAKA administration 8
Add tags and phone numbers 8
Always show name list in the entry phone 9
2 (9) Manual (En) VAKA-CALL Master 4G

IP telephony and 4G subscriptions
IP-telephony and 4G subscriptions can be made at https://registrering.axema.se/.
Installation and configuration
1. The C10 is supplied with a cable and two connectors, one should be
connected below the module and the other in the TCP/IP2 connector. The
C10 can be mounted on any door controller in the system with intercom.
2. The C11 is mounted without a cable in any door controller where intercom is
desired.
3. Log in as installer in the VAKA software
4. VAKA will automaticaly detect the new hardware and a dialog ( New
hardware detected ) will appear.
5. Click on the dialog and follow the instructions to install the module.
6. New hardware can also be installed under Settings - Installation - Installation
of Reader / Module .
3 (9) Manual (En) VAKA-CALL Master 4G

General settings
The main entry phone settings are made under the generals tab .
Calling time
Setting for how long the Door Entry Phone tries to reach the reciever of the call.
Talk time
Setting for how long an established call can last.
Door opening
Setting for what button (DTMF-tone) that is used to unlock the door.
Use [5] to answer calls
If an analogue line is used, this function must be activated. In the case, the receiver
needs to press "5" to open the call.
Ending of call
Selects a button that the receiver can use to disconnect the call.
Prolonging of on-going call
Select a button to prolong an on-going call. When seven seconds remains, a tone
indicates that there's a possibility to prolong the call.
Phone number
When this function is activated it's possible to use the phone number of the receiv-
ers, including a leading zero.
Quick dial numbers
Select the length of the quick dial numbers
4 (9) Manual (En) VAKA-CALL Master 4G

Network and connection settings
Entry phone network settings
Configuration of the network settings required for the entry phone master module,
IP address, gateway, netmask and DNS server IP addresses The network settings
depend on the network in which the system run.
lThe C10 and the door controller should sit in the same sub net.
lWhen using the B60 WAN, the gateway is (most likely) 10.0.0.101.
lIf internet is avaliable,
lGoogle DNS is a public service and is free to use.
DNS server 1, 8.8.8.8
DNS server 2, 8.8.4.4
Line types
External SIP server
Is used for IP-telephony for public telephone networks to call fixed- and/or cell
phones
5 (9) Manual (En) VAKA-CALL Master 4G

VoIP settings
VOIP settings are only needed when using external SIP-serv-
ers
User account
Enter the credentials supplied by the IP telephony provider
Account ID (optional)
For example, the account phone number
For Telavox, Account ID is the same as User name.
Account Registrar URL
For Telavox , sip.telavox.se
Account Proxy Server
Left blank
Username
Account phone number, Telavox phone numbers start with "u".
Password
Supplied by the IP telapony provider
Advanced
Normally no configuration of advanced settings are required.
User Agent (advanced settings)
Configuration when using a STUN serve Information is supplied by the IP telephony
provider.
6 (9) Manual (En) VAKA-CALL Master 4G

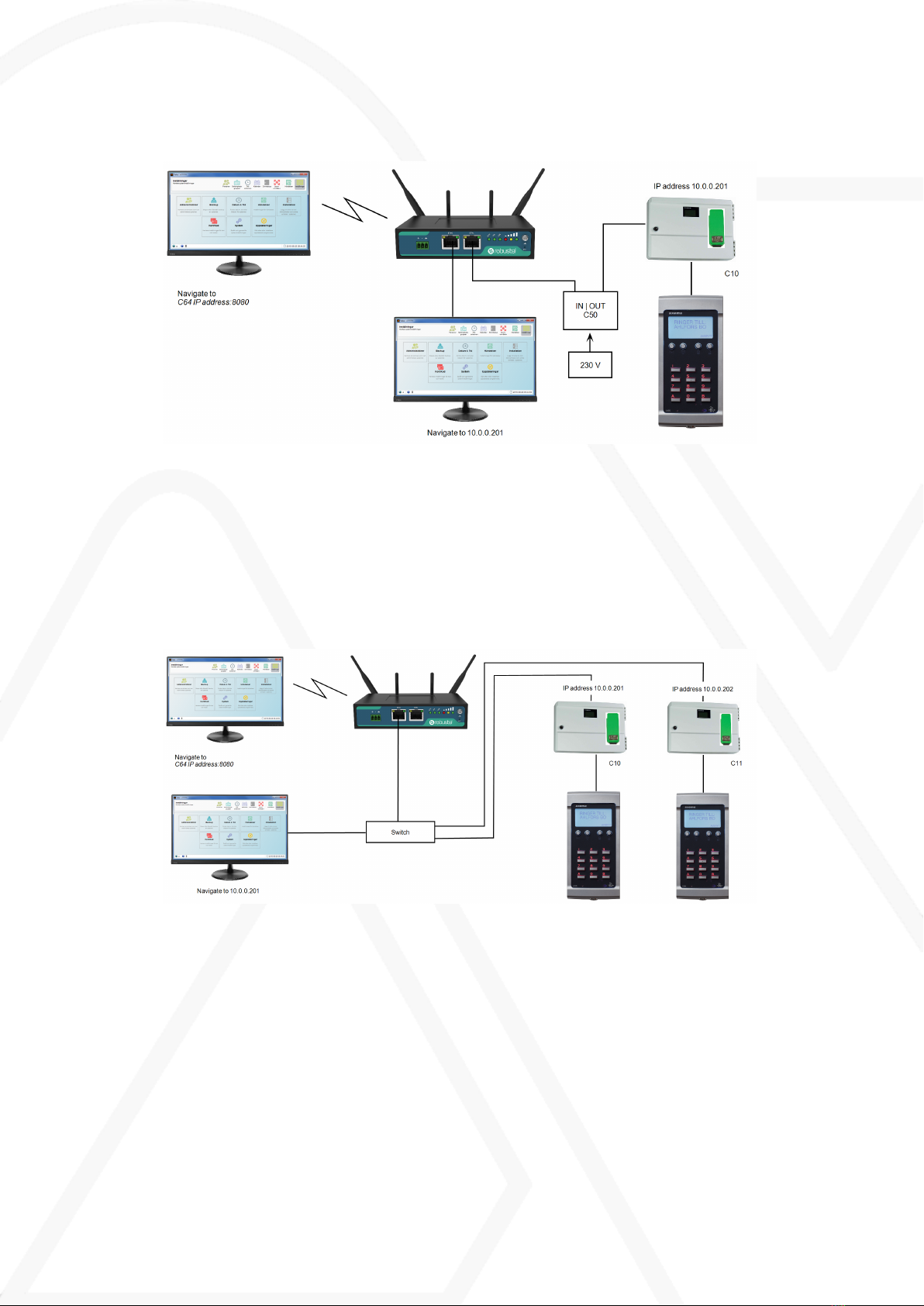

Connecting one door
If the controller is powered using a transformer instead of C50 PoE injector, the
controller is connected directly to the router.
Connection multiple doors
Additional doors can be connected to the switch in the same way and be supplied
with a C11.
If a PoE switch is not used, the door controllers have to be powered locally
7 (9) Manual (En) VAKA-CALL Master 4G

VAKA administration
VAKA can be administrated locally or via internet.
When administrating VAKA locally, connect the computer to the router or switch (if
available) and navigate to the connection point (10.0.0.201 by default).
When administrating VAKA over the internet, navigate to the router's IP adress fol-
lowed by :8080 from any computer. The IP adress is supplied by Anyway Wire-
less with the SIM-card.
VAKA credentials
Username admin
Password password
Add tags and phone numbers
1. Log in to VAKA VAKA administration
2. Select the tab Settings and click on Entry phone
3. Select Persons for Name list shows:
4. Go to the tab Persons and click on Add .
5. Select Organization group/ Phone number , enter an apartment number and
click on Save .
6. Select the organization group in the left field and click on Add followed by
Person
7. Enter a name (Last name First name), phone number and id. Id is the
tag number (8 digits after A on the tag)
8. Click on Add... by Access groups: and select Full access
9. Repeat point 4 to 8 for all persons.
10. Go to the Access groups tab and double click on Full access
11. Select Time schedule Always next to Time schedule: and check Time group
8 (9) Manual (En) VAKA-CALL Master 4G

Always (Time group 1)
12. Select the Entry phone tab and check Allow calling
Always show name list in the entry
phone
1. Navigate to the Doors tab in VAKA.
2. Double click on the door in the left field
3. Select the Terminals tab and click on A66
4. Select Name list (Entry phone) next to Standard view:
5. Click on OK and then Save
