Master Operating Instructions
secuENTRY
ENTRY 7711 Keypad PIN
Contents index
Dear Customer,
Thank you very much for deciding on the ENTRY 7711 Keypad PIN.
The system was developed in Germany according to the most
modern technical capabilities and fulls the latest high safety
requirements.
Using the ENTRY 7711 Keypad PIN, you can unlock and lock the
door with a 6-digit user code*. The ENTRY 7711 Keypad PIN can be
tted to house and interior doors. The keypad can be installed
up to approx. four metres from the locking unit, depending on
preference and conditions.
The ENTRY 7711 Keypad PIN is setup and operated using the
free smartphone app secuENTRY KeyApp*. The transmission is
wireless, the keypad uses the modern Bluetooth 5.2 standard.
We hope you enjoy your new keypad!
*The keypad can only be used together with a secuENTRY prole cylinder
(available separately). The BURG-WÄCHTER KeyApp is required for the setup.
Please note:
As this keypad is an optional accessory for a secuENTRY
prole cylinder, it is recommended to install the cylinder
rst. You will nd the relevant instructions included in
the prole cylinder set. These instructions assume that
a secuENTRY cylinder has already been installed and do
not cover the installation steps.
Important:
Please read the entire operating instructions before you
start the installation.
Foreword
!
!
en
English 2
Further languages at:
www.burg.biz
en

2 I Englsih secuENTRY HOME 5000 CYL
Set contents
IENTRY 7711 Keypad PIN
II Screwdriver Tx8
III Dowels (3x)
IV Screws (3x)
VAdhesive pads (4x)
VI Quick Start Guide plus
warranty and
disposal instructions
Keypad power supply 2x Mignon LR6 AA Alkaline
Permitted ambient conditions -15 °C/+50 °C / up to 95 %
relative humidity (non-condensing)
Radio standard Bluetooth 5.2
Range Approx. 4 m
Weather protection class (IP class) IP53
Blocking times After an incorrect code is entered 3x, 1 minute,
thereafter always 3 minutes
Fig.2
Fig.3
Technical details
QR code/Administrator code
QR
QR code (I) and security code (SCD) (II) are
required for integrating the keypad into the
BURG-WÄCHTER KeyApp (Fig.2).
Attention:
The QR code and the security code are not
stored by BURG-WÄCHTER. Recovery is not
possible if the codes are lost. Please store the
sticker shown to the right in a safe place.
In
addition, it is recommended that you take a
photo of the sticker and archive it digitally.
!ON button Activates the keypad. Provided that the connected secuENTRY cylinder
supports the function, an entry "Opened" (ON button) or "Closed"
(CLOSE button) is generated in the history. This allows for the "Open"
and "Close" operations to be dierentiated in the history.
CLOSE button
Error message The two LEDs next to the X symbol will illuminate if an invalid number
combination is entered or if general errors occur.
Battery status
The system monitors the keypad and cylinder battery voltage. The
user is alerted as soon as the battery voltage reaches a critical range.
Batteries must be changed as soon as possible after the battery status
symbol illuminates.
Cylinder status When the number combination entered is correct, the cylinder status
symbol will illuminate and the door can be unlocked or locked.
Status LED The LEDs illuminate one after the other in a clockwise direction when
the keypad is in programming mode (see chapter below).
ENTRY 7711 Keypad PIN
The ENTRY 7711 Keypad PIN can be used to operate electronic secuENTRY cylinders from
BURG-WÄCHTER. Communication between the keypad and the prole cylinder is 128-bit AES
encrypted.
Operation on the illuminated keypad is carried out via push-buttons. Consequently, the keypad can
be easily operated even in poor lighting conditions.
The ENTRY 7711 Keypad PIN enables the door to be opened and closed with the aid of a 6-digit PIN
code. There are one million possible number combinations for generating the code.
The integrated tamper protection locks the entry for one minute after three incorrect entry
attempts. From the fourth incorrect entry, the keypad is locked for three minutes each time.
The keypad is splash-proof on all sides according to IP53 certication.
ON button
CLOSE button Cylinder status
Battery status
Entry prompt
Status LED Status LED
I
II
Fig.1
III III
IV
V
VI

3 I Englsih secuENTRY HOME 5000 CYL
Fig.5
Fig.4
Fig.7 Fig.8
Fig.6
To setup the ENTRY 7711 Keypad PIN,
you must rst download the secuENTRY
KeyApp. This can be found in the App
Store and Google Play Store (Fig.4).
Once you have successfully registered,
you can start setting up the ENTRY
7711 Keypad PIN. Open the main menu
(Fig.5).
Tap on the menu item
"secuENTRY setup" (Fig.6).
In the following menu, tap on "Device
Setup" (Fig.7). From here you can add
and setup secuENTRY units to the app.
Use the selection menu displayed and
tap on "secuENTRY KeyPad" to setup
your secuENTRY keypad (Fig.8).
A list of any keypads that have already
been registered is displayed.
Add a new keypad by tapping on the
"+" in the top right-hand corner (Fig.9).
secuENTRY
KeyApp
1
2
3
5
4
6
Fig.9
ENTRY 7711 Keypad PIN commissioning
Fig.10
Fig.12
Fig.14
Fig.11
Fig.13
A prompt will appear asking you to
scan the QR code provided using your
smartphone camera. The QR code is on
the sticker enclosed in the packaging
(see small g.).
Tap on "SCAN QR-CODE" (Fig.10). You
may be asked to conrm the app's
access to the camera. The camera's
picture window will then open (Fig.11).
Scan the QR code.
A message appears containing data
about your keypad, conrm this with
"OK" at the bottom right (Fig.12).
The following window gives you the
option of assigning a name to the
keypad. If you have several keypads in
use, it is recommended that you name
the keypad in such a way that you can
directly recognise where the keypad is
located or attached. Conrm the name
with "OK" (Fig.13).
Your ENTRY 7711 Keypad PIN is now fully
setup. It will now appear in the list of
setup keypads (Fig.14).
7
8
9
10
11
P
I
II
QR

4 I Englsih secuENTRY HOME 5000 CYL
Connecting ENTRY 7711 Keypad PIN and secuENTRY prole cylinder
Fig.15
Fig.24
Fig.21
Fig.17 Fig.18
Fig.16
Fig.25
Fig.22
Fig.23
Once you have successfully registered
the ENTRY 7711 Keypad PIN in the
KeyApp, you can start connecting
the keypad and a previously installed
secuENTRY cylinder. Open the main
menu (Fig.15).
Tap on the menu item
"secuENTRY setup" (Fig.16).
Press and hold the CLOSE button for
ve seconds (II) (Fig.23) until the signal
LEDs on the keypad illuminate one
after the other in a clockwise direction
(Fig.25).
The keypad is now in programming
mode. The next steps are carried out on
the smartphone again.
Attention:
For the following step, the smartphone,
keypad and cylinder must be in direct
proximity to each other.
Tap on the button
"LED BLINK FAST, CONTINUE" (Fig.26).
If the link is successful, you will receive
a completion message, which you
conrm with "OK" (Fig.27).
The keypad and cylinder are now
successfully connected.
Activate the keypad with the ON button
(Fig.23).
Enter the safety code (SCD) supplied.
The safety code can be found on the
sticker (I) enclosed with the keypad
(Fig.24).
This takes you to the menu illustrated
(Fig.21). Briey lay the smartphone
aside and set the keypad to program-
ming mode using the following steps.
First, remove the battery protection
strip from the keypad (Fig.22).
In the following menu, tap on "Device
Setup" (Fig.17). From here you can add
and setup secuENTRY units to the app.
Use the selection menu displayed and
tap on "secuENTRY KeyPad" to display
setup secuENTRY keypads (Fig.18).
Tap the keypad entry that is to be
assigned to a cylinder (I) (Fig.19).
Then tap on "Allocate a Lock" (II)
(Fig.19).
A list of available secuENTRY cylinders
appears (Fig.20).
Select the required cylinder (I) and
conrm with "CONTINUE" (II) (Fig.20).
1
2
8
12
11
9
10
4
3
5
6
7
Fig.19 Fig.20
I
I
II
II
!
5 seconds
QR
I
II
Fig.26
Fig.27
14
13

5 I Englsih secuENTRY HOME 5000 CYL
Opening the secuENTRY cylinder using the keypad
Activate the keypad by pressing either
the ON key or the CLOSE key (I) (Fig.28).
Provided that the connected
secuENTRY cylinder supports the
function, an entry "Opened" (ON button)
or "Closed" (CLOSE button) is generated
in the history. This allows for the
"Open" and "Close" operations to be
dierentiated in the history.
Note: For further details on the
history function, please refer to the
master operating instructions for the
respective cylinder.
Type in your 6-digit administrator code
or user code (II) (Fig.28).
Note: For further details on the subjects
of administrator and user codes, please
refer to the master operating instruc-
tions for the respective cylinder.
When the number combination entered
is correct, the cylinder status symbol
( ) will illuminate and the door can
be unlocked (Fig.29) or locked (Fig.30).
Note: Depending on the door stop, the
direction of rotation may be reversed.
1
2
I
II
I
Fig.28
!
!
3
3
!
Fig.30
Fig.29
QR
ENTRY 7711 Keypad PIN installation
ENTRY 7711 Keypad PIN installation - function test prior to installation
The installation of the ENTRY 7711 Keypad PIN is explained below.
There are two options to choose from for installation. The ENTRY 7711 Keypad PIN wall bracket
can either be screwed or adhered directly to the wall.
Prior to installation, please read the installation instructions carefully.
!
1
2
ATTENTION:
The distance between the cylinder and
the keypad can be up to a maximum
of four metres. This distance may
vary, however, depending on external
conditions. In order to ensure that
the keypad functions correctly in the
desired position, we recommend
testing it rst before installation.
Place the keypad in the desired
installation location (Fig.31).
Enter your administrator or user code
and check that the cylinder is activated
(Fig. 32).
Note: The administrator code, if you
haven't already changed it, can be
found on the sticker enclosed with
the secuENTRY cylinder (Fig.33). The
master operating instructions for your
secuENTRY cylinder describe how to
create a user code.
If the cylinder activates, the signal
strength is sucient and the keypad
can be installed in the desired location.
If not, try again with a shorter distance
between cylinder and keypad.
Fig.33:
QR code sticker for
secuENTRY cylinder
Factory-assigned
administrator code
max. 4 m
!
Fig.31
Fig.32

6 I Englsih secuENTRY HOME 5000 CYL
ENTRY 7711 Keypad PIN installation - screw mounting
1
3
4
5
2
Drill three holes according to the
dimensions shown in the illustration.
Use a 6 mm diameter drill bit (Fig.34).
Insert the dowels supplied into
the holes and screw in the screws
provided (Fig.35).
Remove the screw from the bottom of
the keypad using the Tx8 screwdriver
supplied with the keypad and pull
the battery compartment downwards
(Fig.36).
Place the keypad on the screw heads
as shown in the illustration (Fig.37).
Insert the battery compartment back
into the housing and screw it tight
(Fig.38).
61 mm
40 mm
Ø 6 mm Fig.34
Fig.35
Fig.36
Fig.37
Fig.38
ENTRY 7711 Keypad PIN installation - adhesive mounting
1
2
Clean the surface to which the keypad
is to be attached (Fig.39).
Attach the enclosed adhesive pads to
the positions shown in the illustration
and peel o the backing strips (Fig.40).
Mount the keypad on the wall in the
desired position (Fig.41).
Press the keypad against the wall for
approx. one minute (Fig.42).
Attention:
Only press the outer edges of the
housing. To avoid damage to the
electronics, do not press within the
keypad area.
Fig.39
Fig.40
Fig.41
Fig.42
3
4
!
!1 Min.

7 I Englsih secuENTRY HOME 5000 CYL

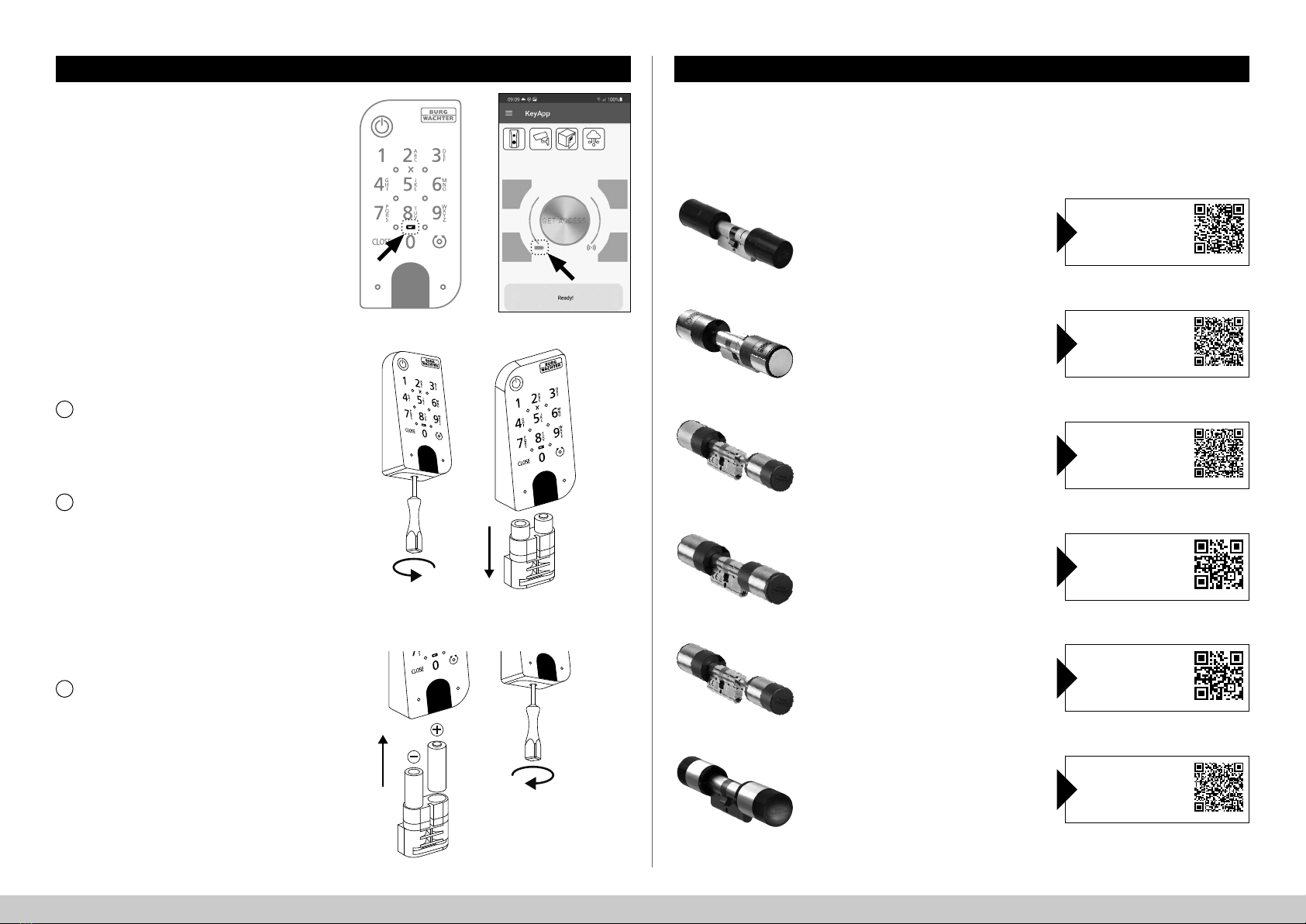

Battery status display and replacing the batteries
The system monitors the keypad and
cylinder battery voltage. The user is
alerted as soon as the battery voltage
reaches a critical range. Batteries must
be changed as soon as possible after
the battery status symbol illuminates
on the keypad (Fig.43).
Tip: It is recommended that the
batteries in the cylinder and keypad
are always replaced at the same time.
Nonetheless, the battery status of the
cylinder can be checked separately
at any time. This can be found on the
main screen of the secuENTRY KeyApp
(Fig.44).
Instructions on replacing the batteries
are given below:
Remove the screw from the bottom of
the keypad using the Tx8 screwdriver
supplied with the keypad and pull
the battery compartment downwards
(Fig.45).
Remove the old batteries and dispose
of them appropriately.
Tip: Instructions for proper disposal can
be found on page 8 of this manual.
Insert two new batteries.
Make sure that the polarity is correct
according to the drawing (Fig.46).
Insert the battery compartment back
into the housing and screw it tight
(Fig.46).
!
!
2
3
1
Fig.45
Fig.46
Fig.44
Fig.43
Fig.47
Fig.48
Fig.49
Fig.50
Fig.51
Fig.52
Whether for one front door, several doors or a complete locking system: Simply congure your
individual unit with the secuENTRY modular system .
The ENTRY 7711 Keypad PIN is designed to complement the following secuENTRY cylinders and
secuENTRY add-on components:
secuENTRY Cylinder
ENTRY Home 5000 CYL
secuENTRY Cylinder
ENTRY 7100 CYL
secuENTRY Cylinder
ENTRY 7116 DUO
secuENTRY Cylinder
ENTRY 7600 CYL
Note: available from Q3/2022!
secuENTRY Cylinder
ENTRY 7650 CYL
Note: available from Q1/2023!
secuENTRY Cylinder
ENTRY 7000 CYL
Compatibility with other secuENTRY products
Article number:
4003482500002
Further info available
on our website:
www.burg.biz
Article number:
4003482572405
Further info available
on our website:
www.burg.biz
Article number:
4003482571507
Further info available
on our website:
www.burg.biz
Article number:
4003482506004
Further info available
on our website:
www.burg.biz
Article number:
4003482506509
Further info available
on our website:
www.burg.biz
Article number:
4003482571309
Further info available
on our website:
www.burg.biz

8 I Englsih secuENTRY HOME 5000 CYL
Fig.53
Fig.54
Fig.55
Fig.56
secuENTRY Cylinder
ENTRY 7010 TWIN
secuENTRY Cylinder
ENTRY 7030 HALF
secuENTRY Add-on
ENTRY Home 7071 RELAY
secuENTRY Add-on
ENTRY Home 7171 RELAY
Note: available from Q4/2022!
Article number:
4003482571408
Further info available
on our website:
www.burg.biz
Article number:
4003482571606
Further info available
on our website:
www.burg.biz
Article number:
4003482571804
Further info available
on our website:
www.burg.biz
Article number:
4003482501719
Further info available
on our website:
www.burg.biz
In order to deliver a awless and high quality product to you and to better assist you in case of
service or repair, it is necessary that faulty or defective devices along with the valid administrator
code and the QR code(s) be presented to your dealer together with the original documentation.
When returning goods due to your right of withdrawal, all parts of the appliance must also be in
their factory settings. Failure to comply with this will invalidate the warranty.
Dear customer,
Please help to reduce waste. Should you intend to dispose of this device at any time, please
remember that many components of this device contain valuable materials that can be recycled.
Printing and typesetting errors as well as technical changes reserved.
Please note that electrical and electronic devices as well as batteries must not be
disposed of with household waste but rather apart from it or separately. Please obtain
information on the collecting points for electrical waste from the responsible authority
of your city/municipality.
BURG-WÄCHTER KG hereby declares that this device complies with Directives 2014/53/
EU, (RED) 2014/30/EU, (EMC) and 2011/65/EU (RoHs) .
The complete text of the EU Declaration of Conformity is available at the following
Internet address: www.burg.biz
Warranty
Disposal of the device

www.burg.biz
BURG-WÄCHTER KG
Altenhofer Weg 15
58300 Wetter
Germany
www.burg.biz
secuENTRY
ENTRY 7711 Keypad PIN
BD Master Operating Instructions ENTRY 7711 Keypad PIN EN HBG/SWI 040422
