Axioma QALCOSONIC F1 Parts list manual

Axioma LEZ UAB
ULTRASONIC WATER METER
QALCOSONIC F1
TECHNICAL DESCRIPTION, INSTALLATION AND USER INSTRUCTIONS
PLF1V04
KAUNAS

PEF1IP68V04 2017 11 20
2
Content
SAFETY INFORMATION.............................................................................................................................................3
1. APPLICATION FIELD .........................................................................................................................................3
2. TECHNICAL DATA .............................................................................................................................................5
3. OPERATING PRINCIPLE ...................................................................................................................................8
4. MARKING AND SEALING..................................................................................................................................8
5. INSTALLATION...................................................................................................................................................8
6. OPERATION......................................................................................................................................................11
7. VERIFICATION..................................................................................................................................................19
8. TRANSPORTATION AND STORAGE REQUIREMENTS................................................................................19
9. WARRANTY ......................................................................................................................................................19
Annex A................................................................................................................................................................20
Annex B.................................................................................................................................................................22
Annex C.................................................................................................................................................................27
For EU Customers only - WEEE Marking
The device is classified as waste electronic equipment in terms of the European Directive 2012/19/EU
(WEEE). Marking of electrical and electronic equipment in accordance with Article 14 (2) of Directive
2012/19/EU
This symbol on the product indicates that it must not be disposed of as unsorted municipal waste. It must be
handed over to the applicable take-back scheme for the recycling of electrical and electronic equipment.
Observe all local and applicable laws. For more detailed information about the recycling of this product,
please contact your local municipal office.

PEF1IP68V04 2017 11 20
3
SAFETY INFORMATION
Before beginning installation works you must to read this document and follow its instructions.
The meter is powered from the battery (3.6 V), risk factors during the meter installation and service fluid
flowing within flow sensor with inner pressure up to 2,5 MPa and temperature up to 90 0C.
Only qualified technical personnel may install and maintain water meters. Personnel must be familiar
with appropriate technical documentation and general safety instructions. It is necessary to follow
general safety requirements during installation and maintenance process.
Safety guarantees at installation and service of meter is:
- Reliable insulation of electrical circuits,
- Hermetic fitting of primary flow and temperature sensors into the pipeline,
- Reliable fastening of water meter at installation.
Warning! Mounting of the sub-assemblies of water meter is permissible only after ensuring of
absence of fluid and pressure in the pipeline.
Caution: If this equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
The meter can be used at ambient temperature: 5 oC ... +70 oC
Storage and transportation temperature: -25°C ... +70 °C (drained flow part)
1. APPLICATION FIELD
Ultrasonic water meter QALCOSONIC F1 is desighed for measurement of cold and hot water consumption in
households and blocks of flats well as industry.
The meter corresponds to essential requirements of the Technical Regulation requirements Annexes I and
MI 001. The meter complies with the requirements of European Standards EN ISO 4064 and requirements
of OIML R49-1.

PEF1IP68V04 2017 11 20
4
Structure of the meter type number (corresponding to the order code):
Temperature class:
Code
T30
1
T30/90
2
T90
3
End connections and overall length (L):
Code
G ¾ L =105mm
11
G ¾ L =110mm
01
G ¾ L =165mm
02
G 1 L =105mm
12
G 1 L =110mm
13
G 1 L =130mm
03
G 1 L =190mm
04
G 1 ¼ L =260mm
05
G 2 L =300mm
06
DN20 L =190mm
4F
DN25 L =260mm
5F
DN40 L =300mm
6F
DN50 L =270mm
07
DN65 L =300mm (brass housing)
08
DN65 L =300mm (steel housing)
8S
DN80 L =350mm ( brass housing )
09
DN80 L =350mm ( steel housing )
9S
DN80 L =300mm ( brass housing )
19
DN100 L =350mm ( brass housing )
10
DN100 L =350mm ( steel housing )
1S
DN100 L =360mm ( brass housing )
20
Communication module:
Code
None
0
M-bus
1
CL
2
RF modulis 868 MHz
4
MODBUS RS485
5
LON
6
MiniBus
7
Type
Meter QALCOSONIC F1 –- - - --
The ratio Q3/Q1( R )
Code
R 250
1
R 400
2
Permanent flow rate Q3,
m3/h
Code
Permanent flow rate Q3,
m3/h
Code
1,6
1
16
6
2,5
2
25
7
4
3
40
8
6,3
4
63
9
10
5
100
0
Temperature measurement function
Kodas
No
0
Yes
1

PEF1IP68V04 2017 11 20
5
2. TECHNICAL DATA
Permanent flow rate Q3, flow rate ratio Q3/Q1(R), overload flow rate Q4, minimum flow rate Q1, transitional
flow rate Q2, threshold value in m3/h , end connections type, overall length ( L) and pressure losses class ΔP are
presented in 1.1 table.
1.1 Table
Q3,
m3/h
R
Q3/Q1
Q4,
m3/h
Q1,
m3/h
Q2,
m3/h
Threshold
value,
m3/h
Joining to the
pipeline
(Thread –G,
flange–DN)
Overall
length L,
mm
ΔP
(bar x 100)
1,6
R250
2
0,0064
0,01
0,003
G3/4“
105,110,
165
ΔP 63 arba ΔP 25
G1“
105,110
ΔP 63 arba ΔP 25
G1“ or DN20
190
ΔP 25
G3/4“
105,110,
165
ΔP 63
2,5
R250
3,125
0,01
0,016
0,005
G1“
105,110
ΔP 63
G1“
130
ΔP 25
G1“ or DN20
190
ΔP 25
2,5
R400
3,125
0,0063
0,01
0,003
G3/4“
105,110,
165
ΔP 63
G1”
105,110
ΔP 63
G1“ or DN20
190
ΔP 25
4
R250
5
0,016
0,026
0,008
G1“ or DN20
190
ΔP 63 arba ΔP 25
G1“
130
ΔP 63
4
R400
5
0,01
0,016
0,005
G1“
130
ΔP 63
G1“ or DN20
190
ΔP 63 arba ΔP 25
6,3
R250
7,875
0,0252
0,04
0,012
G1“ or DN20
190
ΔP 63
G1 1/4“ or DN25
260
ΔP 25
6,3
R400
7,875
0,016
0,026
0,008
G1“ or DN20
190
ΔP 63
10
R250
12,5
0,04
0,064
0,02
G1 1/4“ or DN25
260
ΔP 63
G2“ or DN40
300
ΔP 25
10
R400
12,5
0,025
0,04
0,012
G1 1/4“ or DN25
260
ΔP 63
16
R250
20
0,064
0,1
0,03
G2“ or DN40
300
ΔP 63
DN50
270
ΔP 25
16
R400
20
0,04
0,064
0,02
G2“ or DN40
300
ΔP 63
25
R250
31,25
0,1
0,16
0,05
DN50
270
ΔP 63
DN65
300
ΔP 25
25
R400
31,25
0,063
0,1
0,03
DN50
270
ΔP 63
40
R250
50
0,16
0,26
0,08
DN65
300
ΔP 63
DN80
300, 350
ΔP 25
40
R400
50
0,1
0,16
0,05
DN65
300
ΔP 63
63
R250
78,75
0,252
0,4
0,12
DN80
300, 350
ΔP 63
DN100
350, 360
ΔP 25
63
R400
78,75
0,16
0,26
0,08
DN80
300, 350
ΔP 63
100
R250
125
0,4
0,64
0,2
DN100
350, 360
ΔP 63
100
R400
125
0,25
0,4
0,12
DN100
350, 360
ΔP 63
Temperature classes: T30 (0,1...30 ºC)
T30/90 (30...90 ºC)
T90 (0,1...90 ºC)
Flow profile sensitivity class: U5 D3 (for DN65, DN80, DN100)
U0 D0 (for other sizes of meters)
Mechanical environment class: M1
Electromagnetic environment class: E2
Ambient temperature: 5 ºC...+70 ºC
Environmental class: B
Transportation conditions: -25 ºC...+65 ºC
Relative humidity: < 98 % (condensing)
Reverse flow: allowed, displayed, but not measured

PEF1IP68V04 2017 11 20
6
Firmware version 0.08
Behavior of the meter, when the flow rate exceeds the maximum Q value
Q ≤ 1,2Q4linear
Q > 1,2Q4limit 1,2Q4 , The error „Maximum
allowable value of flow rate is exceeded“
is registered and duration of error is
calculated.
Protection class of calculator enclosure IP65
Protection class of flow sensor enclosure IP65 (IP67, IP68 - by special ordering)
Volume measurement unit’s m3
Resolution of a displaying device 0,001 m3
Displaying range 99999,999 m3
The maximum permissible error (MPE), on volumes delivered at flow rate between the transitional flow rate Q2
(included) and the overload flow rate Q4(included) is:
- When water temperature ≤ +30 ºC 2 %
- When water temperature > +30 ºC 3 %
The maximum permissible error (MPE), on volumes delivered at flow rate between the minimum flow rate Q1
(included) and the transitional flow rate Q2(excluded) for water having any temperature is: 5%
Maximum admissible working pressure 16 bar (MAP 16), 25 bar (MAP 25)
Pulse inputs (additional):
Number of pulse inputs 2
Measurement unit’s m3
Pulse value programmable
Type of pulses IB by LST EN1434-2
Maximum permissible frequency of input pulses 3 Hz
Maximum permissible voltage of input pulses 3,6 V
Condition of maintenance of high level 3,6V via 3,3Mresistor
Display (LCD):
The device is equipped with 8-digits LCD (Liquid Crystal Display) with special symbols to display
parameters, measurement units and operation modes
The following information can be displayed: integral and instantaneous measured parameters, and archive
data, and device configuration information listed in p.6.3.
Display resolution of volume: 00000,001 m3
If internal battery is discharged or disconnected - all integral values and archive data are stored for at least
15 years and can be accessed by connecting the working condition of the battery power.
Data registration and storage:
Every hour, day and month values of the measured parameters are stored in memory of the meter
All data from archive can be read only by means of the remote reading (see p.6.5)
In addition data logger records of monthly parameters can be seen on the display (see p. 6.3.1)
Following hourly, daily and monthly parameter values are recorded in water meter memory:
Total volume (possibility for special ordering)
Forvard volume
Revers volume (possibility for special ordering)
Integrated pulse value in pulse input 1
Integrated pulse value in pulse input 2
Maximum flow rate value and date
Maximal temperature and date (if used)
Minimal temperature and date (if used)
Operating time without an error
Total error code
Time when the flow rate exceeded 1.2 Q4
Time when the flow rate was less than Q1
Data logger capacity:
up to 1480 h –for hourly records.
up to 1130 days - for daily records,
up to 36 last months - for monthly records,
Archive data storage time not less than 36 months
Storage time of measured integrated parameters even if device is disconnected from power supply
not less than 16 years.

PEF1IP68V04 2017 11 20
7
External communication modules and interfaces
Optical interface
Integrated into the front panel of calculator. It is designed for data reading via M-bus protocol and
parameterizing of the meter. It is activated by a button (After 5 minutes of the end of the communication or after
pressing the button - automatically switch off).
Optional plug in communication modules:
M-Bus module
CL
LON
MODBUS RS485
RF-module 868 MHz
MiniBus
Communication modules are designed for data reading via M-bus protocol and parameterization of the
meter. If meter is powered from internal battery - the total working time of serial communication interface is limited
up to 200 minutes per month ( for protection of the battery against premature discharge). Unused limit of
communications are summarized. The interface is blocked after the expiration of a limit and only after change of
the hour, the new time limit of communications will be given (for 16 seconds for each next hour).
Pulse outputs: 2 (OB-normal mode, OD-test mode)
Type: open collector, permissible current up to 20mA,
voltage up to 50V.
Pulse duration: 125 ms –in the normal operating mode,
1.2 ms –in the test mode
Pulse values on pulse output device in the operating mode as specified in the table below:
Permanent flow rate Q3, m3/h
1,6 ... 6,3
10 ... 100
Pulse value, l/pulse
1
10
Temperature measurement (additionaly, by special order)
Temperature measuring ranges 0 oC....60 oC(by special order 0 oC....180 oC)
Temperature sensor type: Pt500 by EN60751
2-wire connection method, cable length: up to 5 m
Power supply (one of following, dependently on meter configuration):
-AA battery 3,6 V 2,4 Ah (Li-SOCl2) battery, exploatation time at least 16 years (if pulse outputs are used
for at least 11 years),
-12…42 V DC or 12...36 V 50/60Hz AC external power supply, used current 20 mA and back up battery AA
3,6 V (Li-SOCl2) , exploatation time at least 16 years (without reading data through digital interfaces).
Mechanical data :
Dimensions of flow sensors According to Annex B
Dimensions of calculator, not more than 117 mm x 44 mm x 89,5 mm
Weight:
End connections (and overall length)
Weight of meter, not more than, kg
G3/4“ (105, 110 mm)
0,7
G3/4“ (165 mm)
0,7
G1“ (105,110, 130 mm)
0,8
G1“ (190 mm)
0,9
DN20 (190 mm)
2,5
G1 ¼“
3,2
DN25
5,6
G2“
3,7
DN40
6,8
DN50
8,5
DN65
10,5
DN80
13,5
DN100
14

PEF1IP68V04 2017 11 20
8
3. OPERATING PRINCIPLE
The flow measuring principle is based on ultrasonic measurement method. The ultrasonic signal along the
measuring section moves many times before, and the flow downstream between the ultrasonic sensors have to
perform transmitter and receiver functions. From the resulting time difference the flow rate is calculated.
The calculator calculates the volume of water integrating the measured flow rate during the time and indicates the
data in display.
Water meter calculator provides all the necessary measurement and data storage functions. Below are the most
important:
- High stability in measuring water volume and detection characteristics of overload;
- Calculation of the maximum values and their storage in archive;
- Storage of data required for reporting annually and monthly date to be determined; set day parameter values
- Archive data storage time 36 months, including the calculated volume and tariff register;
- Detection of errors and leakage detection;
- Displaying of values of parameters ( optional) and displaying of faults
- Verification and service functions.
4. MARKING AND SEALING
4.1.Marking
Marking of Calculator
There are following information on the front panel of the calculator of the meter - manufacturer’s trade
mark ,distributor’s logo (if applicable), type of meter, EC-type examination certificate number, serial number, year of
manufacture, electromagnetic and mechanical environmental class, permanent flow Q3and ratio R(Q3/Q1),
maximum admissible working pressure and voltage level for external power supply, end connections of the flow
sensor.
Marking of Flow sensors
There are following information on the flow sensor:
Arrow for indication of a flow direction on flow sensor brass body.
Addiotional metal label is attached to the steel body of the meter flow sensors DN65/DN80/DN100. On the
label is the following information: Nominal diameter DN; serial number; year of manufacture; manufacturer’s trade
mark and arrow for indication of a flow direction.
4.2.Security seals
Sealing of Calculator
The following water meter calculator sealing is provided:
- Manufacturer’s adhesive seal-sticker on the access to the adjustment activation jumper (see Annex C,
Fig.C1, pos.1).
-Manufacturer’s adhesive seal-sticker on the fixer of the cover protecting electronic module (see
Annex C, Fig.C1, pos.2).
- After installation the cover of the calculator are sealed with 2 hanged mounting seals (see Annex C,
Fig.C1, pos.3)
Sealing of flow sensors
The following water meter flow sensor sealing is provided:
- Manufacturer’s adhesive seal-sticker on the bolts of the cover (see Annex C, Fig.C2,a; b; c and d)
- Manufacturer’s hanged seals on ultrasonic transducers by steel body (see Annex C, Fig.C2,e)
The meter must be sealed to ensure that after the installation, it is not possibility of dismantle, remove or
altering the meter without evident damage on the meter or the seal.
5. INSTALLATION
5.1. Basic requirements
Before installing the device:
- check if all parts listed in the documentation are available,
- check if there are no visible mechanical defects,
- check if there are valid labels of manufacturer and certification authority.

PEF1IP68V04 2017 11 20
9
Only qualified personnel may install the equipment, following the requirements listed in this document, in
technical documentation of other system components and in water meter installation project
It is forbidden to wire signal cables nearby (less than 5 cm) with power cables or cables of other
devices. It is forbidden to change length of a cable.
5.2.1. Electrical wiring
5.2.1.Connection of external power supply
If the meter is powered from the external power source, it is required by means of tweezers remove a
protective knoll from not used sealant hole of calculator, put throught the cable and strengthen, as shown in Annex
A in Figure A1. Connect as shown in the diagram.
5.2.2. Connection of additional communication modules and pulse input / output devices
In the bottom, right-hand corner of the calculator, communication module can be installed and must be
connected. Connector of the communication module is set in a calculator connector. The module is fastening with
two screws. Connection of the communication module (except the module RF):
By means of tweezers remove a protective knoll from not used sealant hole of calculator
Run the wire through the hole and fix as shown in Annex A. Connect a wire to the module under the
scheme specified on the module.
After that it is needed to connect the power supply into an empty battery slot and battery holder.
It is prohibited to mont the signal lines near (less than 5 cm) power cables or other devices cables.
5.3 Mounting
Water meter may be installed in heated premises, working ambient temperature shall be not more
than 70 ° C.
Mounting of calculator
Calculator can be mounted in several different ways:
- Direct mounting on ultrasonic flow sensor housing (turning every 90º):
a) On the flow sensor with a thread connection
b) On the flow sensor with flange connection
-On the wall:

PEF1IP68V04 2017 11 20
10
- Panel mounting on standard DIN-rail:
 Important: It is forbidden to attach the calculator directly to a wall if there is a risk that on walls can be
condensed humidity or temperature of a surface of a wall can fall lower than 5 °. In this case, it is
recommended to attach the calculator so that between it and wall surfaces there was an air gap not
less than 5 cm.
Mounting of flow sensors
Sizes and mounting dimensions of flow sensors are provided in Annex B.
Requirements for flow sensor installation in pipeline:
- For water meters with flow sensors DN65…DN100 necessary straight pipelines lengths are:
upstream straight pipeline length must be not less 5 x DN and downstream straight pipeline length must
be not less 3 x DN ( flow profile sensitivity class U5 D3)
- For water meters of other sizes no requirements for straight pipeline length in upstream and downstream
directions ( flow profile sensitivity class U0 D0)
Avoid the flow sensor installation near after the pumps which can cause cavitations.
Flow sensor can be mounted both vertically and horizontally in pipelines or on an incline.
Necessary condition in normal working mode: pipeline must be under pressure and fully filled with water.
The location and position of the flow sensor must be selected in such a way as to reduce the risk of
accumulation of air bubbles in the zone of ultrasonic sensors (Fig. 5.1).
a) Permissible installation position b) The installation position is prohibited.
(the air bubbles may accumulate)
Fig.5.1. Mounting Position of the flow sensors qp 3,5 m3/h... qp 60 m3/h
The direction of the sensor installation (is indicated with the arrow on the label of flow sensor) must match with the
flow direction in pipeline.
Before installing the flow sensor, rinse the pipe well; mount the spacer for this purpose.
The flange gaskets must match with the pipe diameter. During the installation gasket must be exactly
centered with the center of the pipe cross-section to avoid sticking out gaskets inside the pipe.
5.4. Setting up the jumpers (J)
The connector J is on the calculator plate pulse input / output connection terminals (Figure A1). Joining or
leaving open the connector contacts, you can choose the normal or verification (test) mode, activate the pulse
inputs or outputs:

PEF1IP68V04 2017 11 20
11
5.5. Verification of installation and set-up
After installing the water meter, let measured fluid flow through the flow sensor. If the water meter (calculator
and flow sensor) is installed correctly, measured parameter value of flow rate should be indicated on the display. If
measured parameter values are not displayed correctly, it is necessary to verify the installation.
5.6. Sealing
After installation the case and cover of the calculator are sealed with 2 hanged seals (see Annex C, Fig.C1, pos.3)
The meter must be sealed according to ensure that after the installation, it is not possibility of dismantle, remove or
altering the meter without evident damage on the meter or the seal.
6. OPERATION
6.1. Control
The LCD information can be displayed using control button which is on the top of the calculator
6.2. Display function
The calculator of water meter is equipped with 8-digits LCD (Liquid Crystal Display) with special symbols to
display parameters, measurement units and operation modes.
Destination of the special symbols:
→
- the flow is flowing forward (right direction)
←
- the flow is flowing backwards
arrow is not displayed
- the flow does not flow
Destination of the other symbols are described in sections 6.3.1...6.3.3
The following information can be displayed:
- integral and instantaneous measured parameters,
- archive data and set day data,
- device configuration information,
Permanently display shows the amount of water consumtion. Other data sequentially displayed in the
indicator using the control button.
Jumper is not set (contacts are
opened)
Jumper is set (contacts are connected)
NORMAL MODE
VERIFICATION (TEST) MODE
The first pulse output is active
( terminals 52,53)
The first pulse intput is active
(terminals 52,53)
( In „TEST“ mode the jumper must be removed)
The second pulse output is active
(terminals 50,51)
The second pulse intput is active
(terminals 50,51)
( In „TEST“ mode the jumper must be removed)
Control button

PEF1IP68V04 2017 11 20
12
6.3. Meniu structure
The menu structure in a normal operating mode is presented in the Fig 6.1. Integral parameters values
(1.2) or–if at least one error has been detected –error codes (1.1) are displayed if the button has not been
activated for more than 60 seconds. After 60 seconds past the LCD is automaticly switching to permanent display
mode (p. 6.3.1).
Fig. 6.1.The menu structure.
The menu structure in a normal operating mode is presented in the Fig 6.1. Integral parameters values
(1.2) or–if at least one error has been detected –error codes (1.1) are displayed if the button has not been
activated for more than 60 seconds. After 60 seconds past the LCD is automaticly switching to permanent display
mode (p. 6.3.1).

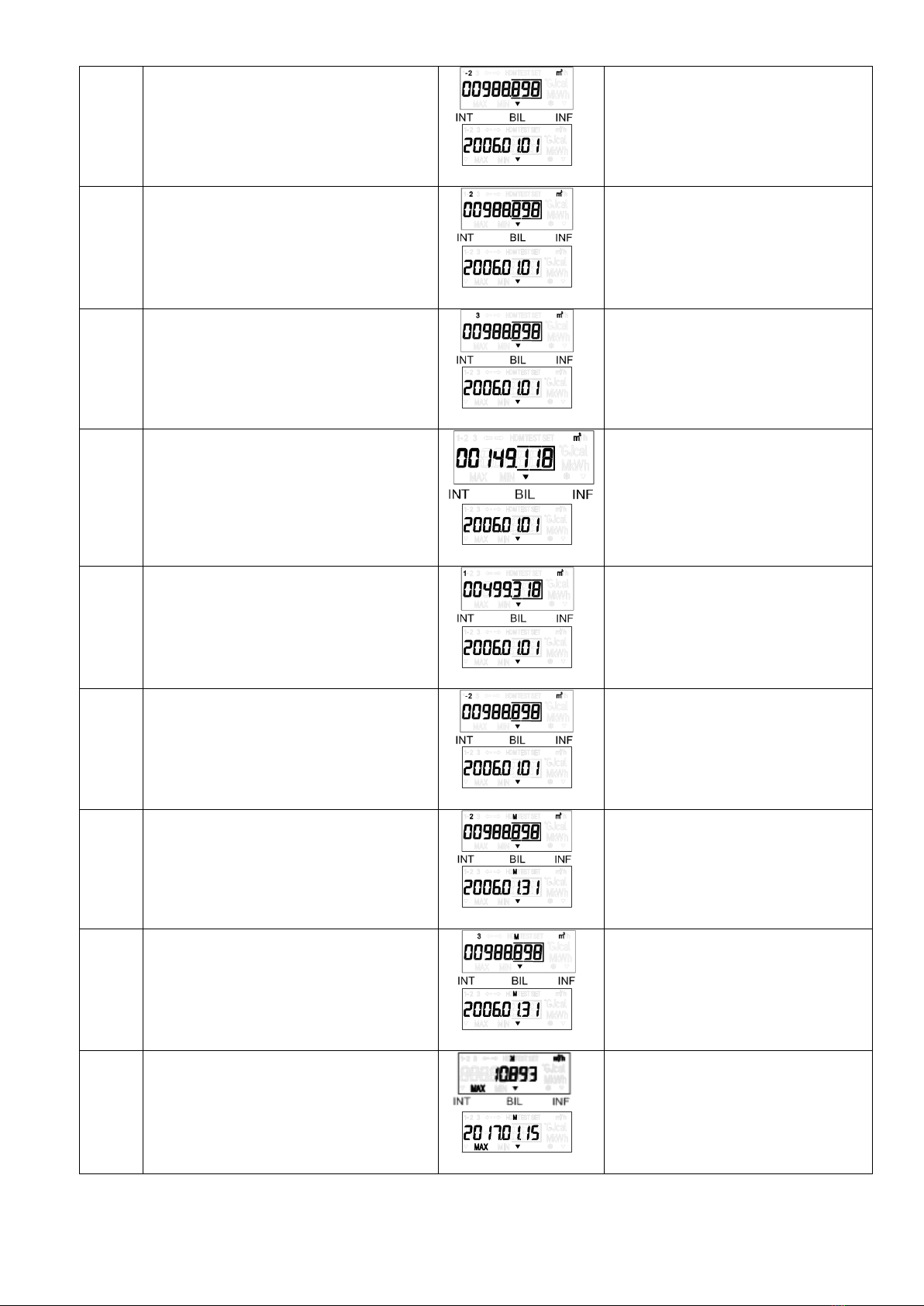

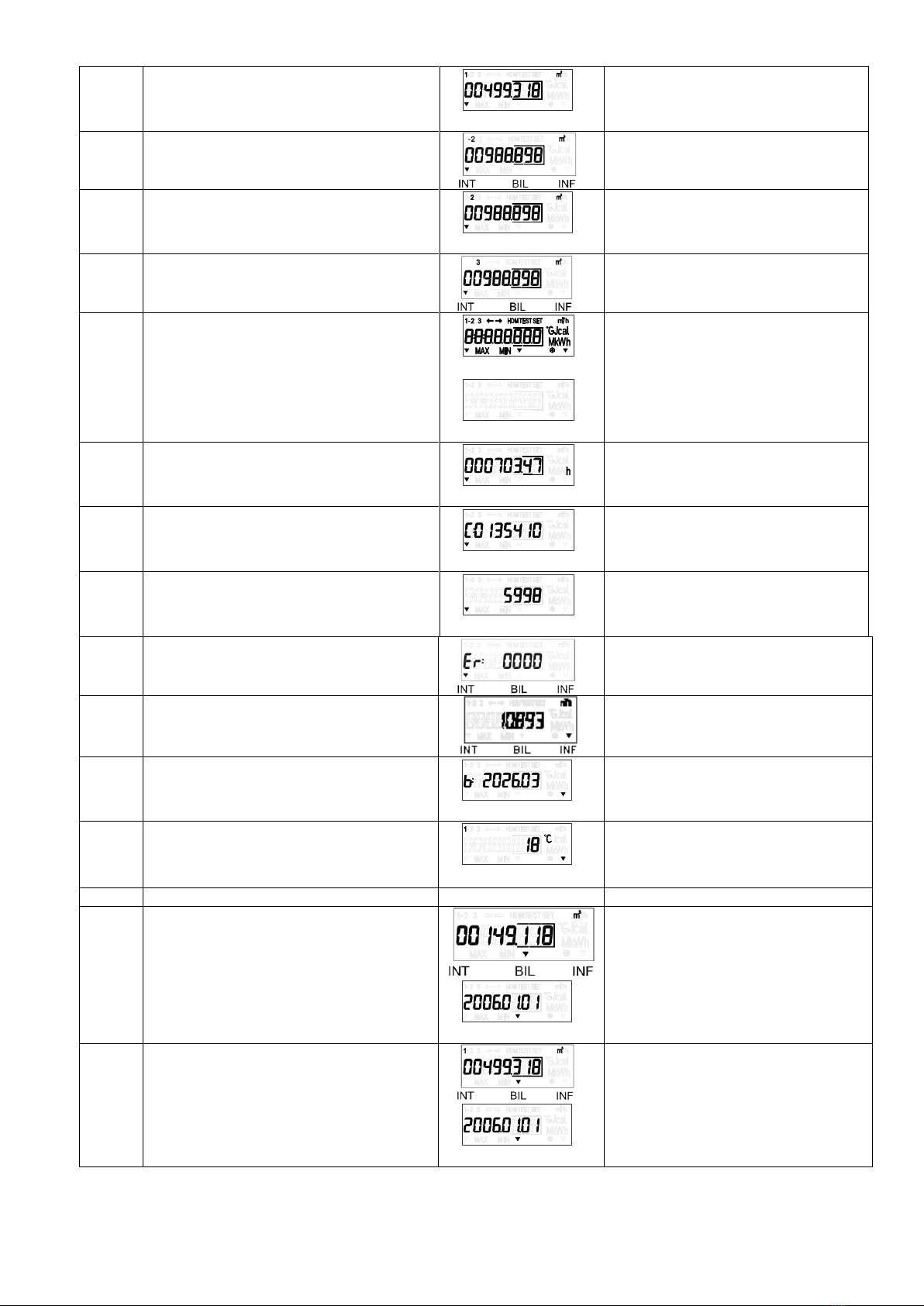

6.3.1. Viewing the readings in normal mode (Users menu)
Remark: Here the full list of shown parameters is represented. For the specific meter it can be reduced
ID
Parameter
Value
Description
1.1
Error code with data stamp of starting of
error
Displayed only when an error occurs in
meter work
INT INF BIL
INT INF BIL
INT INF BIL
All three displays, will be displayed
in turns in one second interval .
Description of Error codes is
presented in p. 6.3.3
1.2
Volume
INT INF BIL
Total volume –if revers volume
mode is activ

PEF1IP68V04 2017 11 20
13
1.3
Forvard volume
INT INF BIL
If revers volume mode is activ
1.4
Revers volume
Possibility for special ordering
1.5
Volume of 1-st additional pulse input
INT INF BIL
1.6
Volume of 2-nd additional pulse input
1.7
Segment test
INT INF BIL
INT INF BIL
Changes each 1 second
1.8
Working hours without error
INT INF BIL
1.9
Customer number
INT INF BIL
Corresponds to a wire transmission
via MBus protocol
1.10
Control number
INT INF BIL
1.11
Error code
If parameter 1.1 not indicated
1.12
Flow rate
1.13
Next replacement date of the battery
INT INF BIL
1.14
Temperature of water (if used)
INT INF BIL
2.1
Volume on set day with date stamp
INT INF BIL
Total volume on set day –if revers
volume mode is activ.
Changing with date stamp every 1
second
2.2
Forvard volume on set day with date
stamp
INT INF BIL
If revers volume mode is activ.
Changing with date stamp every 1
second

PEF1IP68V04 2017 11 20
14
2.3
Revers volume on set day with date
stamp
INT INF BIL
Possibility for special ordering.
Changing with date stamp every 1
second
2.4
Volume of 1-st additional pulse input on
set day with date stamp
INT INF BIL
Changing with date stamp every 1
second
2.5
Volume of 2-nd additional pulse input
on set day with date stamp
INT INF BIL
Changing with date stamp every 1
second
2.6
Volume of previous month with date
stamp
INT INF BIL
The same as in p 2.6.
Changing with date stamp every 1
second
2.7
Forvard volume of previous month with
date stamp
INT INF BIL
Total volume of previous month –if
revers volume mode is activ.
Changing with date stamp every 1
second
2.8
Revers volume of previous month with
date stamp
INT INF BIL
If revers volume mode is activ.
Changing with date stamp every 1
second
2.9
Volume of 1-st additional pulse input of
previous month with date stamp
INT INF BIL
Possibility for special ordering.
Changing with date stamp every 1
second
2.10
Volume of 2-nd additional pulse input of
previous month with date stamp
INT INF BIL
The same as in p 2.6.
Changing with date stamp every 1
second
2.11
Maximum flow rate of previous month
with date stamp
INT INF BIL
Changing with date stamp every 1
second

PEF1IP68V04 2017 11 20
15
2.12
Maximum temperature of previous
month with date stamp (if used)
INT INF BIL
INT INF BIL
Changing with date stamp every 1
second
2.13
Minimum temperature of previous month
with date stamp (if used)
INT INF BIL
INT INF BIL
Changing with date stamp every 1
second
2.14…
2.294
The data of previous months with date
stamp (up to 36 previous months)
By analogy
ID 2.6 ... 2.13
During installation of the meter, it is
possible to choose: to display the
data of the previous month only, to
display the data of the last two
months or to display the data of all
36 previous months *
3.1
Flow rate
3.2
Temperature (if used)
INT INF BIL
3.3*
Next replacement date of the battery
INT INF BIL
3.4*
Real time calendar
INT INF BIL
3.5*
Real time clock
INT INF BIL
3.6*
Yearly set day
INT INF BIL
3.7*
Monthly set day
INT INF BIL
3.8*
1st pulse input/output configuration
Input:
INT INF BIL
Output:
Inputs/outputs:
Can be configured for a quantity of
water (m3) only. Maximum pulse
resolution is displayed 0.00001 m3.
3.9*
2nd pulse input/output configuration
Similarly to 3.8, only
„1“,changes in the „2“
3.10*
Customer number
INT INF BIL
Are transferred on telegram Mbus

PEF1IP68V04 2017 11 20
16
3.11
Software version number
3.12
Serial number
3.13*
MBus adress
INT INF BIL
3.14
Working hours without error
INT INF BIL
3.15*
Battery operation time
INT INF BIL
* Configuration is possible via optical interface and in conjunction with the special configuration programme in
a test mode, when jumper is set ( see p.6.4).
In the same way it is possible to switch off indication of irrelevant parameters.
6.3.2. Viewing the readings in TEST mode (Service menu)
The menu structure in a test mode is presented in the Fig 6.2
4.54.4 4.6 4.7 4.84.1 4.34.2
4.9
Short press
Long press
Fig. 6.2. Menu structure in a test mode
Viewing the readings in verification (test) mode ( Service menu):
ID
Parameter
Value
Remark
4.1
High-resolution integrated volume
INT INF BIL
4.2
Number of pulses of 1st pulse input
INT INF BIL
4.3
Number of pulses of 2nd pulse input
4.4
High-resolution flow rate
INT INF BIL

PEF1IP68V04 2017 11 20
17
6.3.3. Error codes
Error code may consist from up to 4 symbols.
Code
Description
1st digit
0- no error, normal operation
1- air in the measuring section
2- flow flows in an reverse direction
4- flow rate greater than 1.2∙Q4(are displayed q=1,2 Q4)
2nd digit
0- no error, normal operation
4- short circuit
C- open circuit
3rd digit
0 - normal operation
1 –leakage (q > 0 more then 24 h)
2 -burst (q > 0,2*Q3more then > 0,5 h)
4- the battery was disconnected
4th digit
0 - no error, normal operation
1 - warning –ending battery life (less than 6 months left)
8- electronics failure
Active error codes are added and simultaneously displayed, if it is detected more than one error
3 - corresponds errors 2 + 1
5 - corresponds errors 4 + 1
7 - corresponds errors 4 + 2 + 1
9 - corresponds errors 8 + 1
A - corresponds errors 8 + 2
B - corresponds errors 8 + 2 + 1
C - corresponds errors 8 + 4
D - corresponds errors 8 + 4 + 1
E - corresponds errors 8 + 4 + 2
F - corresponds errors 8 + 4 + 2 +1
In a case when value at least one digit of error code is ≥ 8 - calculation of thermal energy and summation
of volume of water and operation time without errors are stoping
In the case of the flow sensor error "4" - duration of time, "when the flow rate q> 1.2 ∙ Q4" is registered in
addition.
6.4. Activation of test (verification) mode
Destination of contacts of connector J
The 2-line,10-pole connector is on the calculator plate between temperature sensors and pulse input /output
terminals (see fig.A1, Annex A). Destination of contacts of connector J is presented in fig. 6.3.

PEF1IP68V04 2017 11 20
18
Fig. 6.3. Destination of contacts of connector J
Activation of test (verification) mode
In test mode it is possible to achieve precise results within short measuring time.
For activation of Verification (Test) mode you must opening device and set up jumper on the connector (J)
contacts as shown in Figure 6.4.
Fig. 6.4. Test mode activation
For working in this mode, the calculator can not be closed.
When the jumper “J” is set, the device enters test mode – label “TEST” appears on the LCD, calculation
process is stopped and all integral parameter values are saved in the memory. After return to normal mode, the
original values from before the test are displayed again.
The readings of meter in verification (test) mode are presented in p. 6.3.2
LCD resolution in verification mode „TEST“ is 00,000001 m3
Volume pulse values in verification mode „TEST“ are presented in Table 6.1
6.1 table
Permanent flow rate Q3,m3/h
Volume pulse value, l/pulse
1,6
0,002
2,5
0,004
4
0,005
6,3; 10
0,02
16; 25; 40
0,05
63; 100
0,2
Ending of verification mode
Remove jumper J to leave test mode and return to normal mode. After leaving test mode, previously
recorded integral parameter values are displayed.
6.5. Remote data reading
6.5.1. For data transmission from meter it can be used optical interface (EN 62056-21). The optical head is
placed on the calculator and is connected to interface of reading device.
In addition for remote reading of data can be used two pulse outputs, or one of the following
communication modules:
M-Bus
CL (Current loop)
RF-module 868 MHz

PEF1IP68V04 2017 11 20
19
LON
MODBUS RS485
MiniBus
The pulse outputs are active when the corresponding contacts of connector (J) are open (see Fig. 6.3)
All communication interfaces does not affect the measured parameters and their calculation, and therefore
can be replaced by another type without removing of verification seal.
Data collection from meters can be realized via PC, via telephone modem, via GSM modem, via Internet,
and so on.
7. VERIFICATION
Metrological control of meter parameters is performed according to requirements defined in EN 4064.
8. TRANSPORTATION AND STORAGE REQUIREMENTS
Packed meters may be transported in any type of covered vehicle. Equipment should be anchored reliably
to avoid shock and possibility to shift inside vehicle.
Meters should be protected against mechanical damage and shock.
No aggressive chemical substances should be stored together because of corrosion hazard.
9. WARRANTY
Manufacturer gives the warranty that meter parameters will meet the technical requirements, listed in the
paragraph 2 of this document, if transportation, storage and operation conditions will be followed.
Warranty period - 12 months from bringing into operation, but not more than 18 months from manufacturing
date.
Manufacturer’s address:
UAB “Axioma LEZ ”, Kulautuvos g. 45a, Kaunas LT-47190, Lithuania
tel. [phone]; fax. [phone].

PEF1IP68V04 2017 11 20
20
Annex A
Fig.A1. Electrical wiring diagrams
V1-additional pulse input / output 1, V2 –additional pulse input / output 2,
T- additional temperature sensor (if used)
