Axion 16-3903 User manual

16-3903
PORTABLE7"LCD MONITORAND DVDPLAYER
Owner sManual
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

Content
A.Introduction............................................................................1
B.CautionsandWarnings........................................................ 1
C.Contents............................................................................... 3
D. Poweringandinstallation ..................................................... 3
E.Controls,Indicators,andConnectors ................................... 4
F. Loading andPlaying aDisc.................................................. 5
G. Setup.................................................................................. 6
H.BasicOperation....................................................................15
I. Menu ....................................................................................16
J. Display................................................................................ 16
K. Playing Audio CDS ..........................................................22
L. PlayingMP3Discs ........................................................... 24
M.PlayingJPGfile....................................................................26
N.ConnectingtoaTVoranothermonitor.................................28
O.Specifications......................................................................29
P.Rechargeable BatteryInstallationand Use ......................... 29
Q. Troubleshooting ................................................................. 32
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

Notice:
1.This Productincorporates copyright protection technology that is pro-
tectedby methodclaims of certain U.S. Patents andotherintellectual
property rights ownedby Macrovision Corporationandother rights own-
ers. Use ofthiscopyright protectiontechnologymust be authorizedby
MacrovisionCorporation,andisintendedforhomeandotherlimitedview-
inguses onlyunless otherwise authorized byMacrovision Corporation.
Reverse engineeringor disassemblyis prohibited.
2.Apparatus Claims ofU.S. PatentNos. 4,631,603;4,577,216; 4,819,
098 and 4,907,093 licensed for limited viewinguses only.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

1
A.Introduction
Thankyou for choosingthe 16-3903 portable DVD player. The main
featuresincludea7" Wide Screen(16:9AspectRatio) LiquidCrystal
Display(LCD)monitorandaDVD player. The unit applies the latest
state ofthe art electronics and is designed for use in hotels, offices
oryourhome.The unit is constructed toprovideyearsofreliable,
trouble-free service, and is compact so that you can take itwithyou
anywhereand is designed forquickand easyinstallation.Please read
theentire instructionmanual suppliedwith thisproductprior to using.
Thedocumentation will assist youininstalling thesystem properlyto
obtain thebest equipment performance. Please savethismanual for
later use.
B. Cautions and Warnings
1. Placement
Toprevent fireorelectric shock,donotexpose this appliance to
rain or moisture.Donot place the set on an unstable cart, stand,
tripod, bracket ortable toprevent it fromfalling. Keeptheunit away
from strongmagnets,heatsources,directsunlight, excessive dust.
Ifthe unit is brought directlyfrom a cold to a warm location, mois-
ture maycondense inside the unit. When you move it from a cold
toa warm location, wait forabout one hourbefore operating the
unit, or removethe discandleave theunitturnedonuntilthemois-
ture evaporates.
2. Installation
Ensure that the 7 portable DVD player isinstalled in accordance
with the instructions and illustrations provided in this manual.
3. Caution
Do not push objects ofany kindinto the unit throughopenings;
do not spill or sprayliquid ofanykind on or in the system (this
mayresult in a fire or electric shock). Do not place anything
heavy onthe unit. Toensure proper ventilation and proper
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

2
operation,never cover or blocktheslots and openings with acloth
orothermaterial.Keepthe unit awayfroman open flame such
asfire, candleetc. It ishazardousto replacethe battery incorrectly.
Replacethe batteryonly with thesame or equivalenttype, in order
toprotecttheenviromnent,pleasedispose the battery properly.Do
notuse the unitin temperatures higher than 95degrees Fahren-
heit or 35 degrees Celsius.
4.Disassemble
Do not attempt to disassemble the cabinet. There is ariskofelec-
tricshock and/orexposure to LaserRadiation. Contact qualified
service personnel ifyour system needs repair.
5.Cleaning Unit
Whencleaning,makesurethesystem isunplugged fromthepower
source. Donotuseliquid cleaners or aerosolcleaners. Usea cloth
lightly dampenedwith waterfor cleaningtheexterior ofthe system
only.
6. Disc
Do not use irregularlyshaped discs such asheart orstar-shaped
discs as theymay cause the unittomalfunction.Donotstickpaper,
tapeor glue on the disc. Do not expose thedisc to direct sunlight
or heat sources. Do not touchthe surface ofdisc. Handle thedisc
by itsedge. Cleanthedisc bywipingthedisc from the center out
with acleaning cloth. Removethe disc from the unit and store it in
its case after playing. Some playbackoperationsofdiscs maybe
intentionally fixed bysoftwareproducers. Since this unitplays discs
according to the disc contentsthesoftwareproducers designed,
some playbackfeatures maynot be available. Also refer to the in-
structionssuppliedwiththediscs.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

3
C. Contents
1. 1 x 7’’ LCDMonitor &DVD Player Combo
2. 1 xRemote Control with battery(CR2025)
3. 1xAudio/Video Cable
4. 1 xAC to DCAdapter
5.1 XCigaretteLighterAdapter
6. 1x Instruction Manual
7. 1 X Rechargeable Battery
D. Powering and installation
1. Powering the system indoors (Refer to Figure 2)
Plugone end ofthe AC to DC adapter into the DC 9V jackon the
rightsideofthe main unit, then plugthe otherend intothe120VAC
powerreceptacle.
2. Powering the systemin a car
Plug oneendofthe cigarettelighteradapterintothe DC9V jackon
theunit, then plugtheother end intothe cigarette lighter socket.
Figure2
Figure1
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

4
E. Controls, Indicators, and Connectors
1. UnitView (Refer to Figure3)
Figure 3
1)LCD Panel Shut Off Switch
2) Wide Button
3) Stop Button
4) Previous Button
5) NextButton
6) Play Button
7) MENUButton
8) UpButton
9) RightButton
10) OK Button
11) DownButton
12) LeftButton
13)AVSWin/outButton
14)AudioJack
15)Video Jack
16)HeadphoneJack
17) Volume Up/DownControl
18) Brightness Up/Down Control
19)PowerOn/Off Switch
20) PowerLED
21) Remote Control Sensor
22) Open Button
23) Charge LED
24)DC9V Input Jack
25) NTSC/PALSwitch
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

5

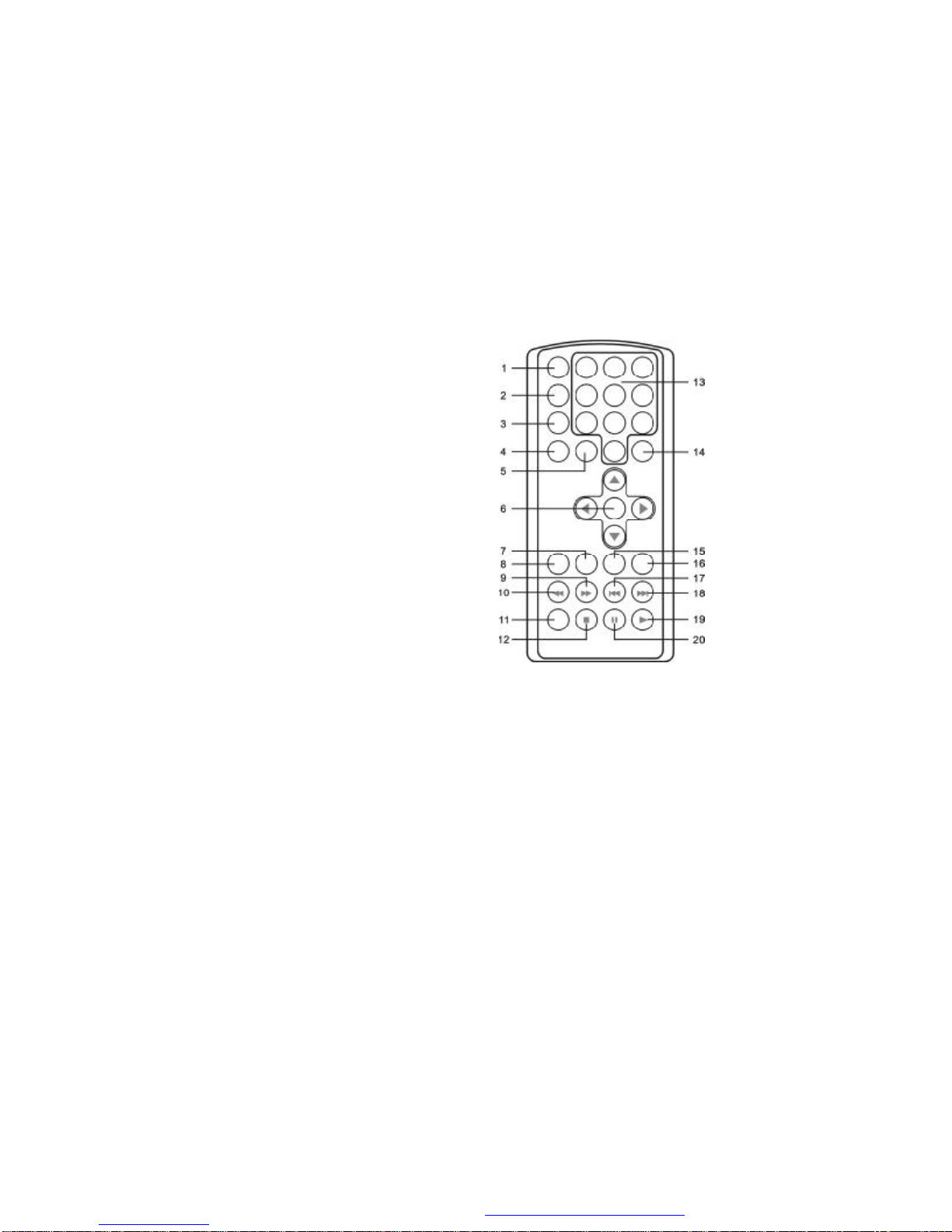

2. Remote ControlView (Refer to Figure4)
1) DisplayButton
2) AngleButton
3) Subtitle Button
4) AudioButton
5) Zoom Button
6) UP/DOWN/LEFT/RIGHT/
ENTER Buttons
7) Return Button
8) A-BButton
9) Forward Button
10) Reverse Button
11)Slow Button
12) Stop Button
13) Numeric Keypad
14) Setup Button
15)MenuButton
16) Repeat Button
17) SKIP- (Previous) Button
18) SKIP+(Next) Button
19) Play Button Figure4
20)Pause Button
F. Loading and Playing a Disc
a.After connecting powerto theunit, poweron “DVDplayer with the
power switch. The powerindicator will light.
b. Open the disc traybypressing OPEN, and place adiscinto the
traywith the label side facingup.
c.Close thetrayby pressing the “PRESS button.Theunit will load
the disc and start playing.
d.Rotate BRIGHTNESS andVOLUME toadjust theLCD’sbright-
nessand the DVD player’s volume.
e. To stopplaying adisc,pressSTOP.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

6
G. Setup
Press ‘SETUP’to displaythe Main screenofthe Setup Menu on the
screen.Press ‘SETUP’again toexittheSetupMenuand the unitwill
resume it’s last playbackmode.

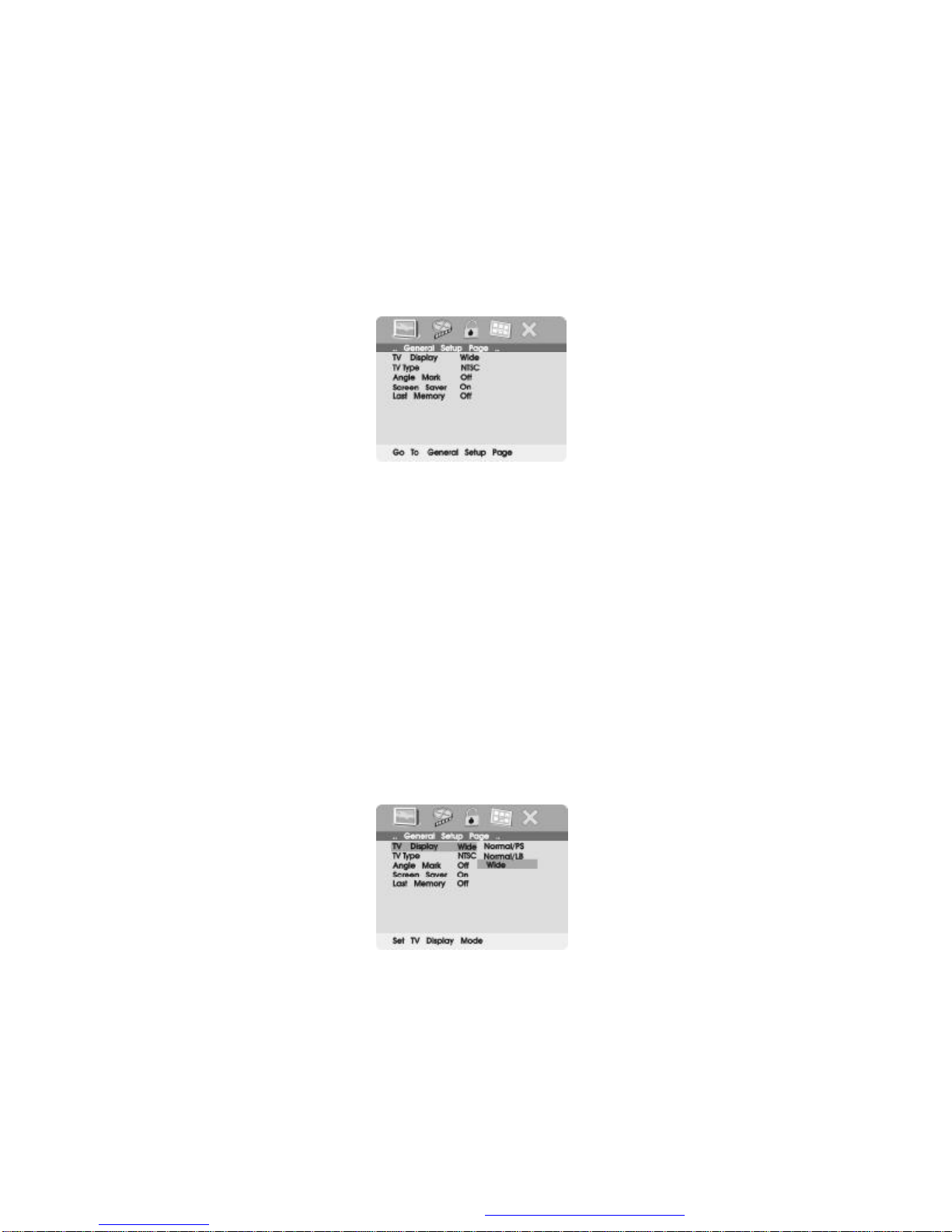

Main SetupMenu Screen
1) Press “SETUP , the ‘General Setup Page’will display on screen.
a).Select ‘TV Display’usingthe UP/DOWNbutton, andthen press
RIGHTtoenterthe submenu.Selectthe TVdisplaymode on the
screenusingUP/DOWN, and pressENTERto confirm the
setting. Press LEFT to return.
*Normal/PS:Whentheplayerisconnectedto anormal TV,and
a widepicture is shown on the full screen.
*Normal/LB:When the playeris connectedto anormalTV, and
a widepictureisshown onthe screenwith a blackstripatboth
the top and bottom of the screen.
*Wide: Whenthe player is connected to a wide screen TV,a
wide picture is shown on the full screen.
TV DisplayScreen Display
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

7
b).Select ‘TV Type’using theUP/DOWNbutton, and then press the
RIGHT button toenterthe submenu.Choose TVType usingtheUP/
DOWN buttonandthenpressENTER toconfirmthesetting. Press
the LEFT button to return.
TV TypeScreenDisplay
NTSC: The standard TV system used in the USA, Canada, Japan and
manyother countries.
PAL: The standard system used in Europe, Africa and the Middle East,
amongother places.
c).Select ‘AngleMark’usingthe UP/DOWNbuttton, and then pressthe
RIGHTbutton to enterthesubmenu. Choose Angle Markon or off
using the UP/DOWNbutton and then press ENTER to confirmthe
setting. Press the LEFT button to return.
AngleMark Screen Display
*On:Thescreenwillshow the angle mark icon.(*If an angle option is
available).
* Off:The screen will not display theAngle Mark
NOTE: Not all discs contain abovefeatures. The abovefeatures are
discdependent.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

8
e). Select ‘Last Memory’byUP/DOWNbutton.and then press the
RIGHT buttonto enter the submenu. Choose Last Memoryon or
off usingthe UP/DOWN button and then press ENTER to confirm
the setting. Press the LEFT button to return.

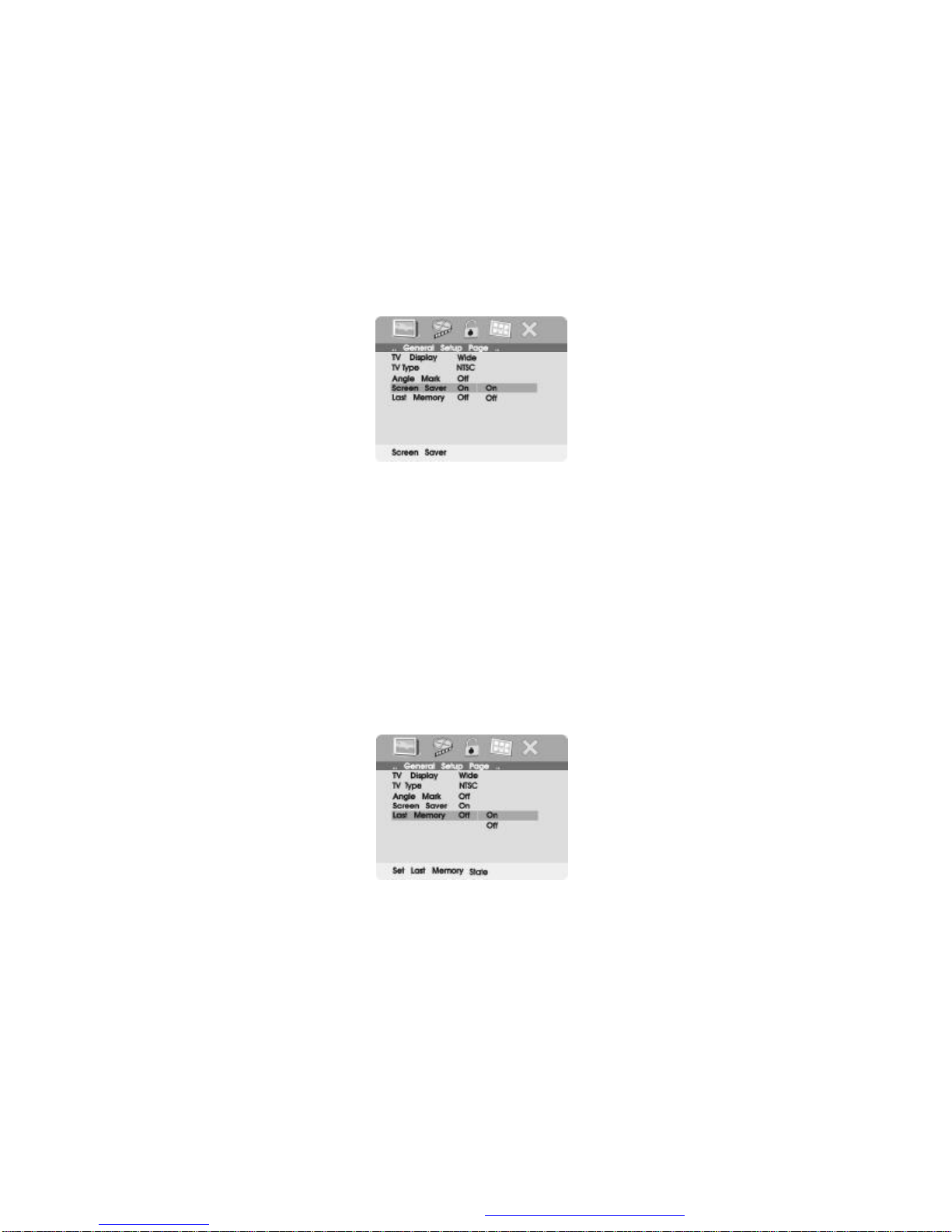

Last MemoryScreen Display
*On: The unit will return to the last position on the disc.
*Off: Theunit will not return to the last position on the disc.
d).Select ‘Screen Saver’usingthe UP/DOWN button,and then press
theRIGHTbuttonto enterthesubmenu.ChooseScreenSaveron or
offusingthe UP/DOWNbuttonand thenpressENTERto confirm the
setting. Press the LEFT button to return.
ScreenSaver ScreenDisplay
*On:Enables screensaver
*Off:Disables screen saver(off)
*NOTE: The DVD playerwill enter the Screen Savermode after ap-
proximatelyfive minutes ifthe same image remains onthe screen.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

9
Note: The Last position memoryfunction onlyeffect for OPEN
operation.
2) Select “VideoQuality Setup byusingtheLEFT/RIGHT button, press
ENTER to enterthevideoquality setuppage.
Video QualitySetup Screen Display
a).Select ‘Brightness’by usingtheUP/DOWNbutton, then pressEN-
TERyoucanchange theBrightnessbypressing the LEFT/RIGHT
button.Toexit ‘Brightness’setting, pressENTER againtoreturn
themainMenu.
Brightness Screen Display
b). Select ‘Contrast’by using the UP/DOWN button,thenpressENTER
you can adjust the Contrastby pressingtheLEFT/RIGHTbutton.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

10
ContrastScreen Display
Toexit ‘Contrast’Setting,pressENTER againto return the main Menu.
c).Select ‘Hue’byusingthe UP/DOWN button, then press ENTER you
canadjust theHue by pressingtheLEFT/RIGHT button.
HueScreenDisplay
Toexit ‘Hue’Setting, press ENTERagainto return the main Menu.
d).Select ‘Saturation’byusing the UP/DOWNbutton,thenpress ENTER
youcanadjust the Saturation by pressing the LEFT/RIGHTbutton.
Saturation Screen Display
To exit ‘Saturation’setting, press ENTER again to returnto the main
Menu.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

11

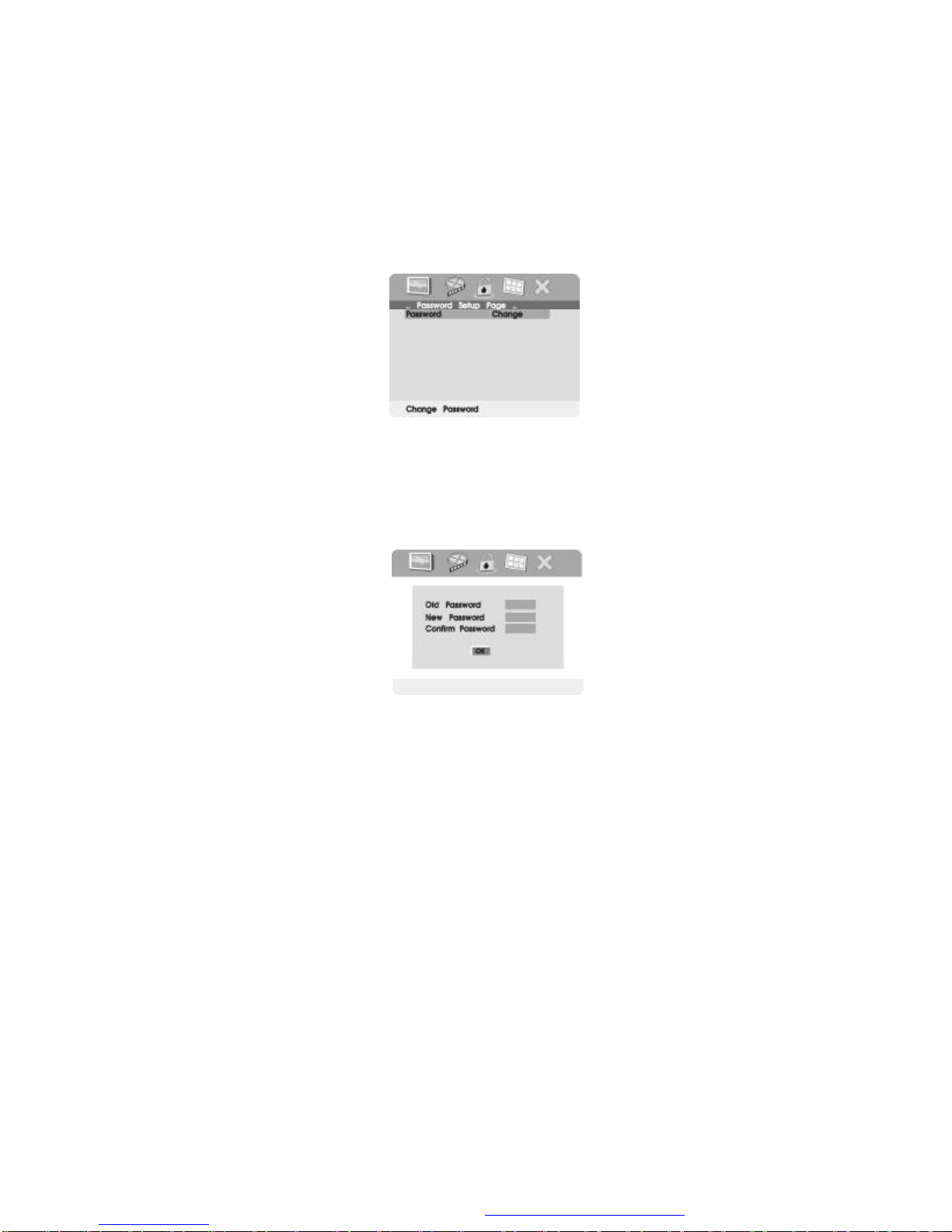

3).Select “Password using the LEFT/RIGHTbutton,thenpressthe
RIGHT button to enterthesubmenu.
Password Setup Page Screen Display
Press ENTER to enter the Password Change Page.Input the Old
Password ortheDefault Password, theNewPassword, andthe Con-
firmedNewPassword. Press ENTER to confirm the change.
Password Change Page ScreenDisplay
Note: The default password is 3308.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

12

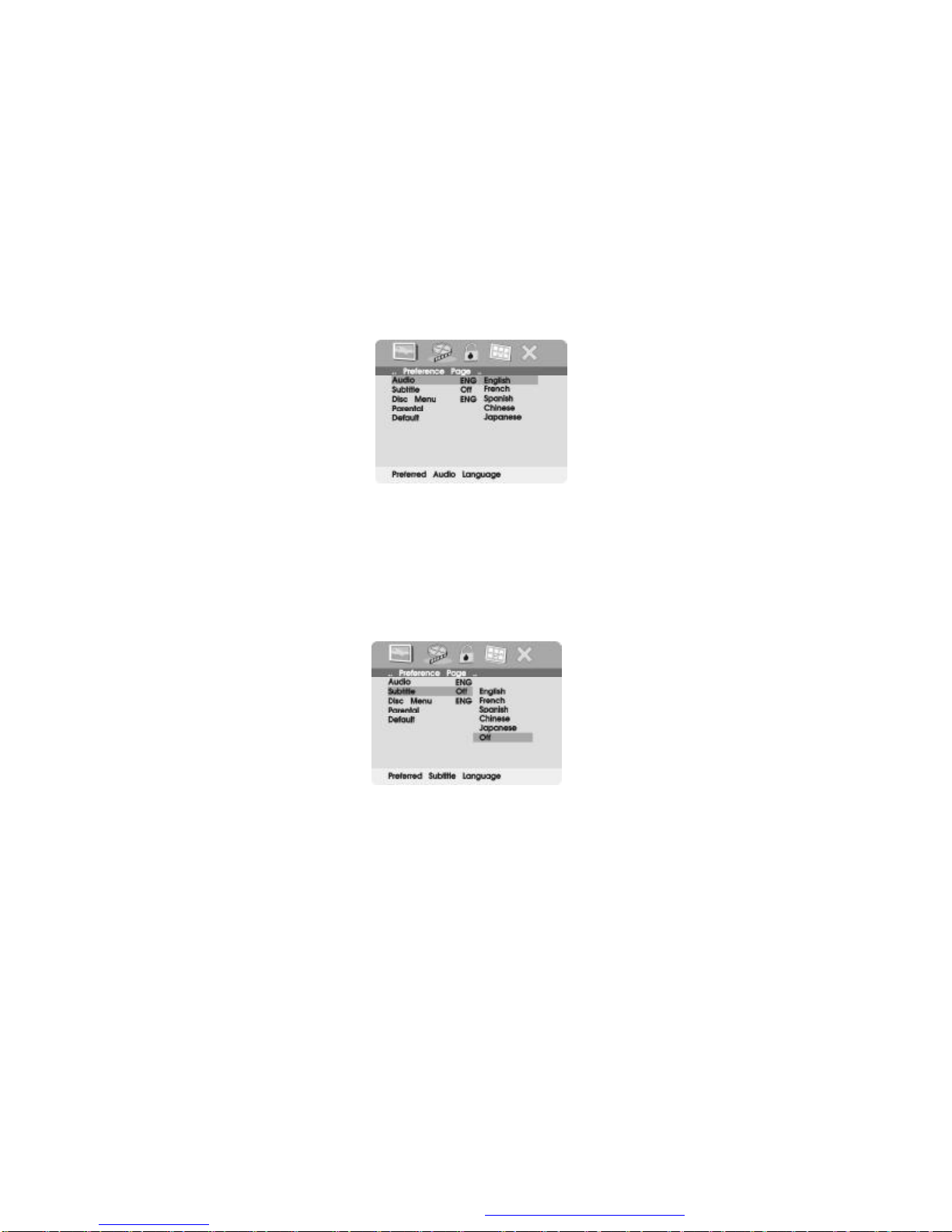

4).With nodisc inside the player select ‘Preference Page’usingthe LEFT /
RIGHTbuttons, thenpress ENTERto enterthe preference page.
a. Select ‘Audio’usingthe UP/DOWN button, thenpress RIGHTto
enterthe submenu. Selectthe audio languageyou desireusingthe
UP/DOWNbutton, thenpressENTERtoconfirm the setting. Press
LEFT toreturn.
PreferenceAudioLanguage
b. Select ‘Subtitle’theusing UP/DOWNbutton, then press RIGHT to
enterthe submenu.Selectthe desired subtitle languageorSubtitle
Offusing the UP/DOWNbutton, thenpressENTER to confirm the
setting. Press LEFT to return.
PreferenceSubtitleLanguage
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

13
c. Select ‘Disc Menu’usingtheUP/DOWN button,then pressRIGHTto
enterthesubmenu.SelecttheDiscMenu Languageyou desire using
theUP/DOWNbutton,thenpressENTERto confirmthesetting.Press
LEFT toreturn.
PreferenceDisc MenuLanguage
Note: Language and subtitle selection isonly available for discs that
arerecorded in the abovelisted languages.If the selected,language
is notavailable,the playerwill playand displayon thescreen the origi-
nalrecorded language containedin thedisc.
d. Select ‘Parental’using the UP/DOWNbutton,thenpressRIGHT to
enter thesubmenu.
Parental PreferenceScreenDisplay
Select the parental level you desireusingtheUP/DOWN button for
discs with lock-out function or multiplerating levels. Theseare listed
fromthe lowestlevel (1Kid Safe)to the highestlevel (8Adult). Entera
4digitpassword,thenpressENTER to confirmthe parentallevel
setting.
NOTE: The levelof8Adult isthe factorydefault.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

14
e.Select ‘Default’usingtheUP/DOWN button, then press RIGHTtoen-
terthesubmenu. PressENTER to make thesettingreturnto thefac-
tory-set mode.
NOTE: The parental setting isnotaffected bythedefault reset
function.
Loading FactorySetting
NOTE: TheDefault Password is 3308.This passwordis always ef-
fectiveevenafteryou haveselected your ownpasswordand changed
it. Toavoid the possibilityofothers usingthe defaultpasswordto set
the parentallevelandchangethe password, you canrecord this
defaultpasswordin anotherareaand deleteit fromthismanual. Some
discscan be limited dependingonthe age ofuserswhile some discs
cannot.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

15
H. Basic Operation Turnthe uniton/off
Remove/load the disc
Start Play/Execute item or setting
Play at 1/2, 1/4,1/8 or 1/16times speed
Still Picture
(1time) Stopatthepresentplaying point /
(2 times) Stop playing
Go tothe next chapter, trackor scenedur-
ing play back
Gobacktothe previous chapter, trackor
scene duringplay back
Scan forwardat 2,4,8,16or 32times speed
Scanbackwardat2,4, 8, 16 or32times
speed
Used forMenu Navigation
Execute item or confirm setting
Select item or setting
Return
Display the mainmenu ofthe disc
Repeat playingtitle, chapter, or track
RepeataspecificportionfrompointAtopoint
B ofthe disc
Display information(title, chapter, track,
time, etc.).
Changethe viewingangles on thescene
Select the subtitle languageand turn it on/
off
Selecttheaudio language
Enlargean imageto 2, 3, or 4 times the
original size.
Displaythe setup menuto selectandset
items, and exit the setup menu.
POWER
OPEN
PLAY
SLOW
PAUSE
STOP
NEXT
PREVIOUS
FORWARD
REVERSE
LEFT/RIGHT/UP/DOWN
ENTER
NUMBERS
RETURN
MENU
REPEAT
A-B
DISPLAY
ANGLE
SUBTITLE
AUDIO
ZOOM
SETUP
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

16
I.Menu
A DVD is divided into sections called titlesandchapters. When you
play a DVD,aroot menu ofthedisc will appearonthescreen ofyour
TV orMonitor. Thecontentsof themenu varyfrom disc todisc.Press
MENU duringplaybackto display the menu. Some DVDs onlyallow
you to select disc playbackoptionsusingtheDVD root menu.
J.Display
1. PLAYINGTIME AND REMAININGTIME
a. Duringplaybackpress the ‘DISPLAY’button to displaythe cur-
rent Title Number (1), the total Number ofTitles (2), the current
ChapterNumber (3), thetotal Numberof Chapters (4), andthe
Playing elapsedTimefor thetitle (5). Theheadingwill disappear
automaticallyafter 3 seconds ifDISPLAYbuttonis not pressed.
Title, Chapter Number, and TimeScreenDisplay
b.Press ‘DISPLAY’again todisplay the RemainingTime ofthe title.
The headingwill disappear automaticallyin 3 seconds.
Title Remaining TimeScreenDisplay
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

17

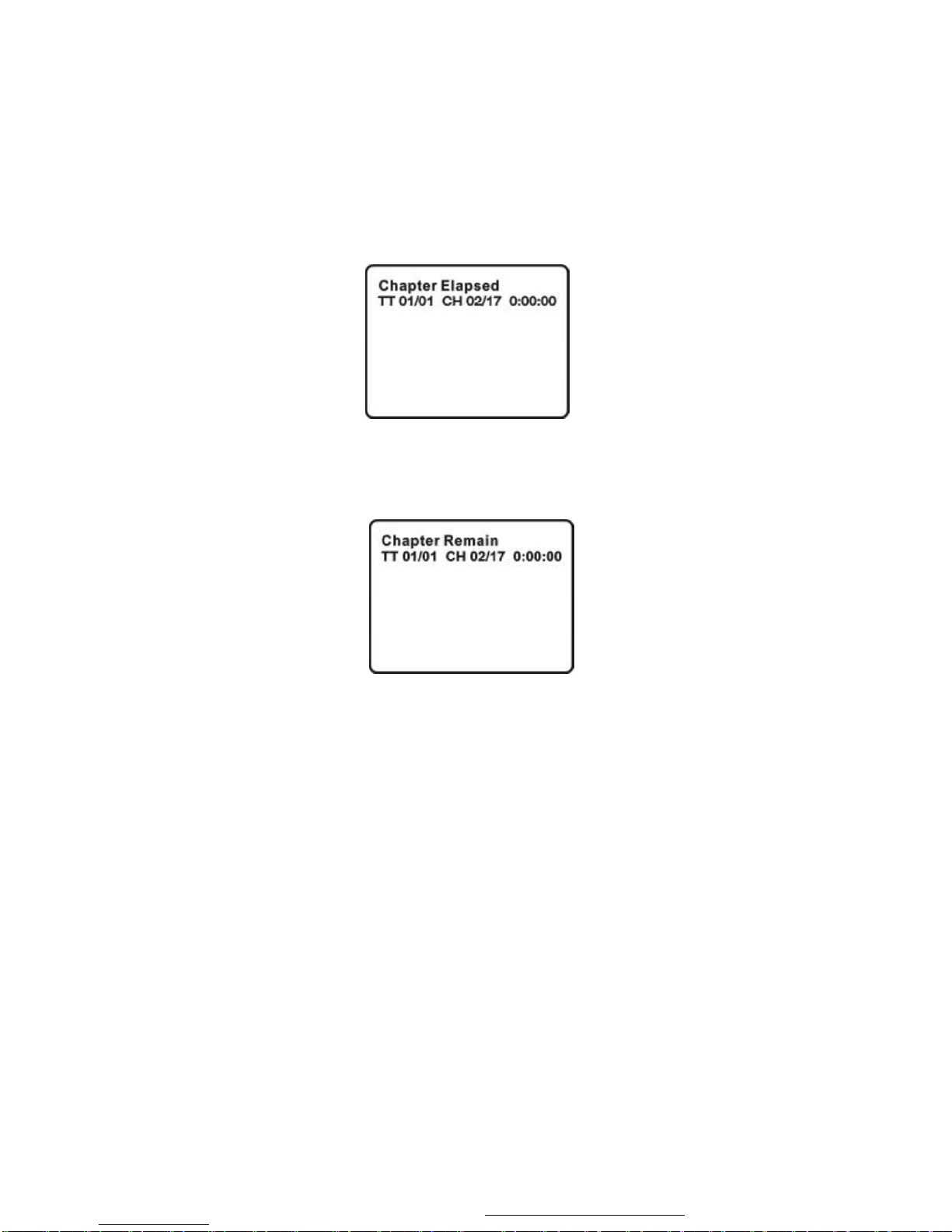

c.Press ‘DISPLAY’a3rdtime todisplaythe Elapsed Time forthe
chapter. The headingwill disappear automaticallyin3 seconds.
Chapter ElapsedTime ScreenDisplay
d. Press ‘DISPLAY’a 4th time to displaythe RemainingTime forthe
chapter. The headingwill disappear automaticallyin3 seconds.
Chapter Remaining TimeScreen Display
e.Press ‘DISPLAY’a 5thtime to exit, ‘DisplayOff’will be displayed
and will disappear automatically in 3 seconds.
2. ANGLE
Duringplayback ofadisc,press‘ANGLE’todisplaythe availableangles
fordiscscontainingmulti-angles*, with the current angle number (1)
andthetotal numberof angles(2) displaying.Press‘ANGLE’toselect
another angle, then press again to exitandreturn tothe normal
viewing angle.The angledisplaywill disappearautomatically if the
‘ANGLE’button is not pressed again within 3seconds.
*NOTE: Notall discscontain this feature.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com
