AXITEC AXIstorage Li SH Series User manual

AXITEC Energy GmbH & Co. KG, Otto-Lilienthal-Str. 5, 71034 Böblingen, Germany, [phone], www.axitecsolar.com
Installation Instruction
AXIstorage Li SH
for SMA Sunny Boy Storage 3.7 / 5.0 / 6.0

V 2 1 0 1 0 1 EN S e i t e 2 | 28
Inhalt
1 Safety.....................................................................................................................................................4
1.1 Important notes on this manual....................................................................................................4
1.1.1 Purpose..................................................................................................................................4
1.1.2 Target group..........................................................................................................................4
1.1.3 Storage ..................................................................................................................................4
1.2 Symbol explanations .....................................................................................................................5
1.2.1 Explanations regarding safety instructions and warnings.....................................................5
1.2.2 Explanation of pictograms and symbols................................................................................6
1.3 Battery application area................................................................................................................7
1.3.1 Appropriate use.....................................................................................................................7
1.3.2 Perilous misuse......................................................................................................................7
1.4 Main hazards.................................................................................................................................8
1.5 Qualification of the users ..............................................................................................................8
1.6 Personal protective equipment (PPE) ...........................................................................................9
1.7 Emergency instructions.................................................................................................................9
1.7.1 Measures in case of fire ........................................................................................................9
1.7.2 Measures after gases or liquids have escaped......................................................................9
1.7.3 Measures after electrical shock.............................................................................................9
2 Product description............................................................................................................................ 10
2.1 Important information about the product................................................................................. 10
2.1.1 Conformity.......................................................................................................................... 10
2.2 Scope of delivery ........................................................................................................................ 11
2.3 Technical data ............................................................................................................................ 12
2.3.1 Performance features......................................................................................................... 12
2.3.2 Dimensions and weight of Energypack .............................................................................. 12
2.3.3 Compatible inverters.......................................................................................................... 12
2.3.4 Supply, interfaces, connections.......................................................................................... 12
2.3.5 Ambient conditions ............................................................................................................ 13
2.4 Status und SOC Anzeige ............................................................................................................. 13
3 Commissioning ................................................................................................................................... 14
3.1 Safety Instructions...................................................................................................................... 14
3.2 Installation.................................................................................................................................. 14
3.2.1 Transport............................................................................................................................ 14
3.2.2 Choice of installation site ................................................................................................... 14
3.2.3 Mounting............................................................................................................................ 15

V 2 1 0 1 0 1 EN S e i t e 3 | 28
3.3 Assembly .................................................................................................................................... 15

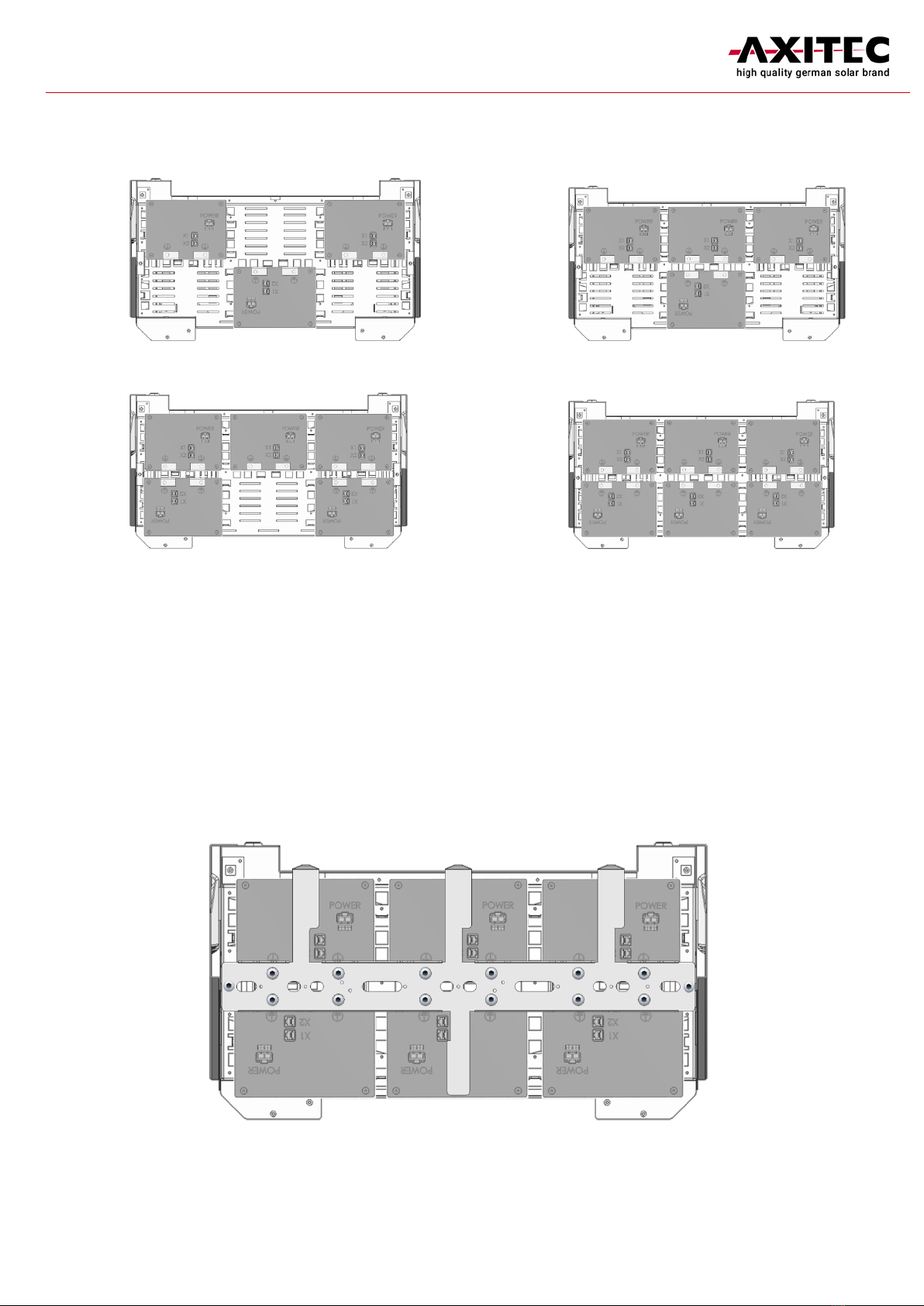

3.3.1 Installing AXIstorage Li SH –Installation of Energypacks................................................... 15

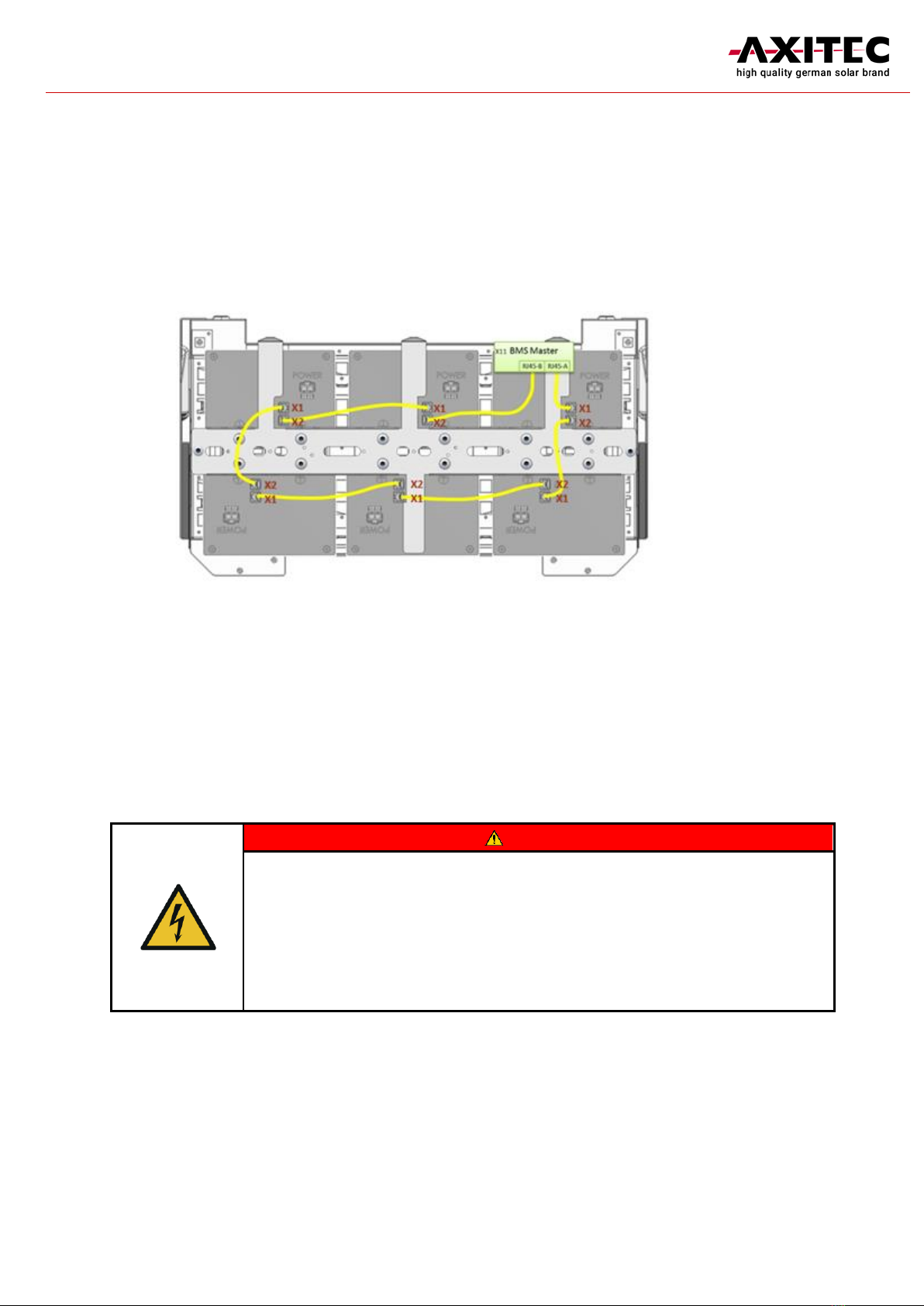

3.3.2 Connect Energypacks next to each other in series ............................................................ 18
3.3.3 Closing the housing of the battery system......................................................................... 19
3.3.4 Subsequent installation of additional battery modules..................................................... 20
3.3.5 Disposal measures.............................................................................................................. 20
3.4 Connecting the inverter ............................................................................................................. 21
3.4.1 SMA Sunny Boy Storage 3.7 / 5.0 / 6.0............................................................................... 21
3.5 Putting the AXIstorage Li SH system into operation .................................................................. 22
4 Repair ................................................................................................................................................. 22
5 Decommissioning, storage ................................................................................................................. 22
5.1 Safety regulations....................................................................................................................... 22
5.2 Storage conditions...................................................................................................................... 23
5.2.1 Storage period.................................................................................................................... 23
5.2.2 Physikcal conditions ........................................................................................................... 23
5.2.3 Cleaning.............................................................................................................................. 23
6 Packing and transport ........................................................................................................................ 23
7 Disposal .............................................................................................................................................. 24
8 Further directories.............................................................................................................................. 25
8.1 BMS Master, DC-DC converter and relay in AXIstorage Li SH.................................................... 25
8.2 Assignment BMS master inverter interface ............................................................................... 25
8.3 Setting the system voltage with SMA SB Storage ...................................................................... 26
8.4 Glossary...................................................................................................................................... 26
8.5 List of abbreviations ................................................................................................................... 27
8.6 List of tables ............................................................................................................................... 27
8.7 List of figures .............................................................................................................................. 27
9 Addresses, identification and notes................................................................................................... 28

V 2 1 0 1 0 1 EN S e i t e 4 | 28
1Safety
Before installing the battery system, read these instructions carefully.
Please follow the safety and warning instructions carefully to avoid damage to persons, objects and the
environment.
1.1 Important notes on this manual
1.1.1 Purpose
This document describes the installation of an AXIstorage Li SH battery system in combination with SMA
Sunny Boy Storage 3.7/5.0/6.0 or Kostal PLENTICORE plus.
1.1.2 Target group
The installation instructions are intended exclusively for qualified electricians.
1.1.3 Storage
This manual is part of the battery. For a safe installation, the manual must be accessible to the installers.
Keep this manual near the battery.
Pass this manual on to the next owner of the battery.
CAUTION
Risk of burns if you fail to adhere to the safety instructions.
During operation, heat can be generated by live parts, overload,
arc or short circuit. Touching hot surfaces can cause minor burns.
Read the operating instructions carefully before
using the Energypack.

V 2 1 0 1 0 1 EN S e i t e 5 | 28
1.2 Symbol explanations
1.2.1 Explanations regarding safety instructions and warnings
Safety Instructions are universally valid and can be found in a safety chapter or at the beginning of a
chapter.
Warnings are placed directly before behavioral guidelines. They help you to avoid dangers during an
upcoming operation. They consist of the following elements:
Warning
triangle
indicates all hazards with regard to death or injury along with a signal
word.
Signal word
DANGER
denotes a hazard with a high degree of risk. Failure to avoid exposure
to it will result in death or serious injury.
WARNING
denotes a hazard with a medium degree of risk. Failure to avoid
exposure to it will result in death or serious injury.
CAUTION
denotes a hazard with a low degree of risk. Failure to avoid exposure
to it will result in a minor injury.
ATTENTION
indicates hazard concerning objects. Failure to avoid exposure to it will
result in damage to property.
Type and
source of the
danger
states the nature of the danger and what causes it
Consequence
indicates what can happen if you do not follow the warning
Call for action
describes what you must do to protect yourself
from the danger
Additional
symboles,
pictograms
can be used in addition to the warning triangle. Warning signs (yellow)
indicate the danger. Prohibition signs (red) and mandatory signs (blue)
represent remedial measures.
Table 1: Warnings.

V 2 1 0 1 0 1 EN S e i t e 6 | 28
1.2.2 Explanation of pictograms and symbols
Symbols
Declaration
General warning sign.
Note additional information.
Warning of electrical voltage.
Warning of dangers from batteries that are being charged.
Warning of flammable substances.
Hot surface warning.
Warning of hand injuries.
No access for persons who have pacemakers or implanted defibrillators.
Manual lifting prohibited.
General commandment sign
Note additional information.
Adhere to instructions.
Use foot protection.
Use hand protection.
Do not dispose of batteries with household garbage.
Table 2: Explanation of the symbols used

V 2 1 0 1 0 1 EN S e i t e 7 | 28
1.3 Battery application area
1.3.1 Appropriate use
The AXIstorage Li SH is a battery system. It serves as an energy storage device within an electricity
storage system for private households and small businesses. It enables you to temporarily store self-
produced electricity, e.g. from photovoltaic - or CHP (cogeneration of heat and power) plants. The
electricity can later be used when needed.
In a battery system, 3 to 6 Energypacks can be connected to one another in series.
Axitec Energy GmbH & Co.KG is not liable for personal injury and/or material damage due to improper
use of the energy storage system.
The battery system is a self-contained unit which is only functional after proper installation with an
approved inverter.
A maximum of 6 Energypacks can be connected serially in the AXIstorage Li SH battery system.
In order to avoid dangers such as water pipe bursting, the Energypack must be stored at least 15 cm
above the floor. Proper installation of the AXIstorage Li SH fire pump ensures that the active electrical
components are at least 15 cm above the floor.
The AXIstorage Li SH battery system may:
only be used with Energypack.
only be used with compatible inverters.
only be used in closed rooms.
only be used in an undamaged condition and in accordance with the operating
instructions.
Any other usage is not intended.
1.3.2 Perilous misuse
Do not use the battery system with other Energypacks.
Do not use the battery system outside its performance limits.
Do not install the battery system in rooms at risk of flooding.
Do not connect the battery system to devices not approved for this purpose.
Do not open Energypack. The Energypack may only be opened by trained
service personnel.

V 2 1 0 1 0 1 EN S e i t e 8 | 28
1.4 Main hazards
You can expect zero danger from the battery under normal conditions. The battery corresponds to the
state of the art in science and technology. However, it is obviously impossible to completely exclude
risks if the battery is misused or in the event of technical failure. In case of lithium-ion batteries, these
generally include fire, explosion, chemical burns and electric shock.
The product-specific risk of hazards is elevated by
Water (e.g. flooding)
Heat exposure (> 70 °C)
Failure or malfunction of the control system due to electromagnetic radiation
Touching live components may cause an electric shock when Energypacks are connected in series. The
electric shock can have thermal or muscle paralyzing effects. The latter can lead to ventricular
fibrillation, cardiac arrest or respiratory paralysis, or death.
Overload, short circuit or arcing can cause a lithium-ion fire with thermal runaway. People can be hit by
electrolyte or molten material. In the event of fire, there is a risk of suffocation due to lack of oxygen
and a risk of poisoning due to toxic fumes.
1.5 Qualification of the users
Only the electricians qualified by the Axitec Energy or the Axitec Energy itself may work with the battery
system.
Do not leave the children unattended or allow them to be near the battery system.
High currents have effects on medical implants.
People with implants must be careful not to be in the direct vicinity of the
battery during operation.
Electric shock
Fire
People with implants

V 2 1 0 1 0 1 EN S e i t e 9 | 28
1.6 Personal protective equipment (PPE)
Use foot protection and hand protection during assembly.
1.7 Emergency instructions
1.7.1 Measures in case of fire
Do not inhale smoke and vapors.
Report a lithium-ion fire to the fire department.
If possible: Close the doors.
If possible: Cool the Energypack with water. Avoid contact with the extinguishing water!
1.7.2 Measures after gases or liquids have escaped
Escaping gases can cause respiratory problems.
Ventilate immediately or go out into the fresh air, in more extreme cases, call a
doctor immediately.
Skin contact may cause skin irritation.
Wash skin thoroughly with soap and water.
Eye contact may cause irritation to the eyes.
Immediately rinse eyes thoroughly with water for 15 minutes, then consult a
doctor.
1.7.3 Measures after electrical shock
Ensure that the system is at zero voltage.
For unconscious patients: Ensure respiration and cardiovascular function. If
necessary, initiate cardiopulmonary resuscitation immediately.
For responsive patients: Cool burn injuries and cover them by dressing the
wound.

V 2 1 0 1 0 1 EN S e i t e 10 | 28
2Product description
2.1 Important information about the product
Overall view
Figure 1
Overall view of battery system.
2.1.1 Conformity
The following standards, laws and guidelines were taken into account during the development of the
Energypack:
EU directive with CE labelling obligation
Low Voltage Directive 2014/35/EU
EMC Directive 2014/30/ EU
Legal requirements
UN transport test (lithium systems)
Standards and user guidelines
DIN EN 60730
DIN EN 62619

V 2 1 0 1 0 1 EN S e i t e 11 | 28
Installation kit:
A B C D E F
2.2 Scope of delivery
AXIstorage Li SH system housing
Installation kit (in system housing) is included:
7 RJ45 patch cables A
12 screws M5x10 B
3 Dummy sockets, power plugs C
2 PG connections D
▪1 Three-hole cable bushing E
▪1 Single-hole cable bushing F
ATTENTION
Not included with the system housing
Installation instructions
This can be downloaded at www.axitecsolar.com in the download area.
3 to 6 Energypacks
The number of Energypacks must be ordered separately depending on the
selected performance and may only be installed / put into operation by
qualified electricians.

V 2 1 0 1 0 1 EN S e i t e 12 | 28
2.3 Technical data
2.3.1 Performance features
Modules in series
3
4
5
6
Energy content
(nom./usable)
9,7 kWh /
7,5 kWh
12,9 kWh /
10 kWh
16,1 kWh /
12,5 kWh
19,3 kWh /
15 kWh
Nominal voltage
155 V
207 V
258 V
310 V
End-of-charge voltage
170 V
227 V
284 V
340 V
Final discharge voltage
134 V
179 V
224 V
268 V
Capacity (nom.)
62,7 Ah
62,7 Ah
62,7 Ah
62,7 Ah
Charging current
(continuous.)
29 A
29 A
29 A
29 A
Disscharge current
Peak
40 A
40 A
40 A
40 A
Discharge power Peak
6,2 kW
8,3 kW
10,3 kW
12,4 kW
Discharge capacity
(max.)
4,6 kW
6,2 kW
7,7 kW
9,3 kW
Dimensions (B x H x T)
751 mm
x 870 mm
x 423 mm
751 mm
x 870 mm
x 423 mm
751 mm
x 870 mm
x 423 mm
751 mm
x 870 mm
x 423 mm
Weight
107 kg
129 kg
151 kg
173 kg
Discharge operating
temperature
-15 to 55 °C
-15 to 55 °C
-15 to 55 °C
-15 to 55 °C
Load operating
temperature
0 to 45 °C
0 to 45 °C
0 to 45 °C
0 to 45 °C
Storage temperature
-20 to 60 °C
-20 to 60 °C
-20 to 60 °C
-20 to 60 °C
Battery chemistry
Li-Ion NMC
Discharge depth
80 % DOD [in relation to nom. capacity]
Full Cycles
5 000 or 3 000 (for residual capacity of 60 % or 80 %)
2.3.2 Dimensions and weight of Energypack
Dimensions (W x H x D): 546.1 mm x 216,8 mm x 155.25 mm
Weight: 22 kg
2.3.3 Compatible inverters
SMA Sunny Boy Storage 3.7 / 5.0 / 6.0 (CAN)
KOSTAL PLENTICORE plus (RS-485)
2.3.4 Supply, interfaces, connections
The AXIstorage Li SH is supplied with the following connections:
+ DC cable: AWG8 red (American standard for wire cross section)
- DC cable: AWG8 black
Cable for grounding: AWG8 yellow-green
Communication cable, either CAN or RS-485
Table 3: Structure of warnings

V 2 1 0 1 0 1 EN S e i t e 13 | 28
All cables have a length of about 40 cm.
NOTE: Extension of the power cables must not exceed the following lengths:
6 mm2cable cross section: 5 m
10 mm2cable cross section: 8 m
The Energypack has one socket which contains (+) and (-) as power contacts and two RJ45 sockets which
contain CAN bus and status and signal lines:
1 socket with power contacts (+) and (-)
1 RJ45 sockets with CAN bus connection for monitoring and control of the
Energypacks by the higher-level controller (X1)
1 RJ45 socket for connecting a further Energypack (X2)
2 M5 threads for connecting the grounding
2.3.5 Ambient conditions
Operation exclusively inside buildings (air-conditioned and non air-conditioned interiors):
Temperature: 0 … 50 °C
Relative humidity: 5 ... 85 %
Height: 0 ... 2000 m above sea level.
Temperature Storage:-20 … 60 °C
2.4 Status und SOC Anzeige
During operation 6 LED fields indicate the status and SOC of the battery system.
Status LED
10 Sekunden
Erklärung
green –lights up
unloading
green - flashing
(0,5 s on and 1 s off)
ready (Batterie relay energized –waiting for charging or
discharging)
green –flashing slowly
(1s on 5 s off)
Standby (battery system relay open)
blue –lights up
loading
blue - flashing
(0,5 s on und 1 s off)
Diagnosis or shutdown of the battery system
blue –flashing slowly
(1s on 5 s off)
System start, relay test or software update
red –flashing fast
(0,2 s on 0,2 s off)
System error - System has disconnected battery from
inverter
red –flashing
(0,5 s on und 1 s off)
Error during start-up of the battery system - battery
remains disconnected
Table 4: Overview LED status codes

V 2 1 0 1 0 1 EN S e i t e 14 | 28
3Commissioning
3.1 Safety Instructions
The installation may only be carried out by qualified electricians according to IEC 60204-1 (International
Electrotechnical Commission).
The housing including electronics weighs 41 kg. One Energypack weighs 22 kg. Heavy lifting can cause a
disturbance of the musculoskeletal system.
Lifting the AXIstorage Li SH cover (11 kg) and base (30 kg) separately
If and as necessary, do not lift the AXIstorage Li SH base alone or be sure to use
transport aids.
Risk of crushing and abrasions when lifting and inserting the Energypack.
Use foot and hand protection.
3.2 Installation
3.2.1 Transport
If the installation site is difficult to access, it is recommended that the base and the hood of the system
housing be carried to the installation site separately:
Open the packaging of the AXIstorage Li SH system housing.
Unscrew 2 screws (hexagon socket, SW4) at the front of the bottom of the system housing
Remove the hood from the system housing base.
Carry the hood and base to the installation site individually.
The Energypacks should be transported to the installation site in their original packaging.
3.2.2 Choice of installation site
The battery system can be mounted upright on the floor.
It is recommended that the inverter is installed on the floor against a wall, where it can be mounted
centrally above the battery system. The inverter should be mounted at least 20 cm above the battery
system. At a distance of up to 30 cm, the cables already attached to the AXIstorage Li SH can be used.
Leave space of at least 30 cm free to the left and right of the battery system to get to the DC disconnect
switch to ensure sufficient air circulation.
To prevent the battery system from tipping over, it can be secured to the installation wall with two
screws (not supplied). Two fixing points are provided in the system housing for this purpose.
Four fixing points are provided in the system housing for wall mounting. Since the battery system can
weigh up to 173 kg, it must be checked in advance whether the wall and fastening material are suitable
to support the load in the long term.

V 2 1 0 1 0 1 EN S e i t e 15 | 28

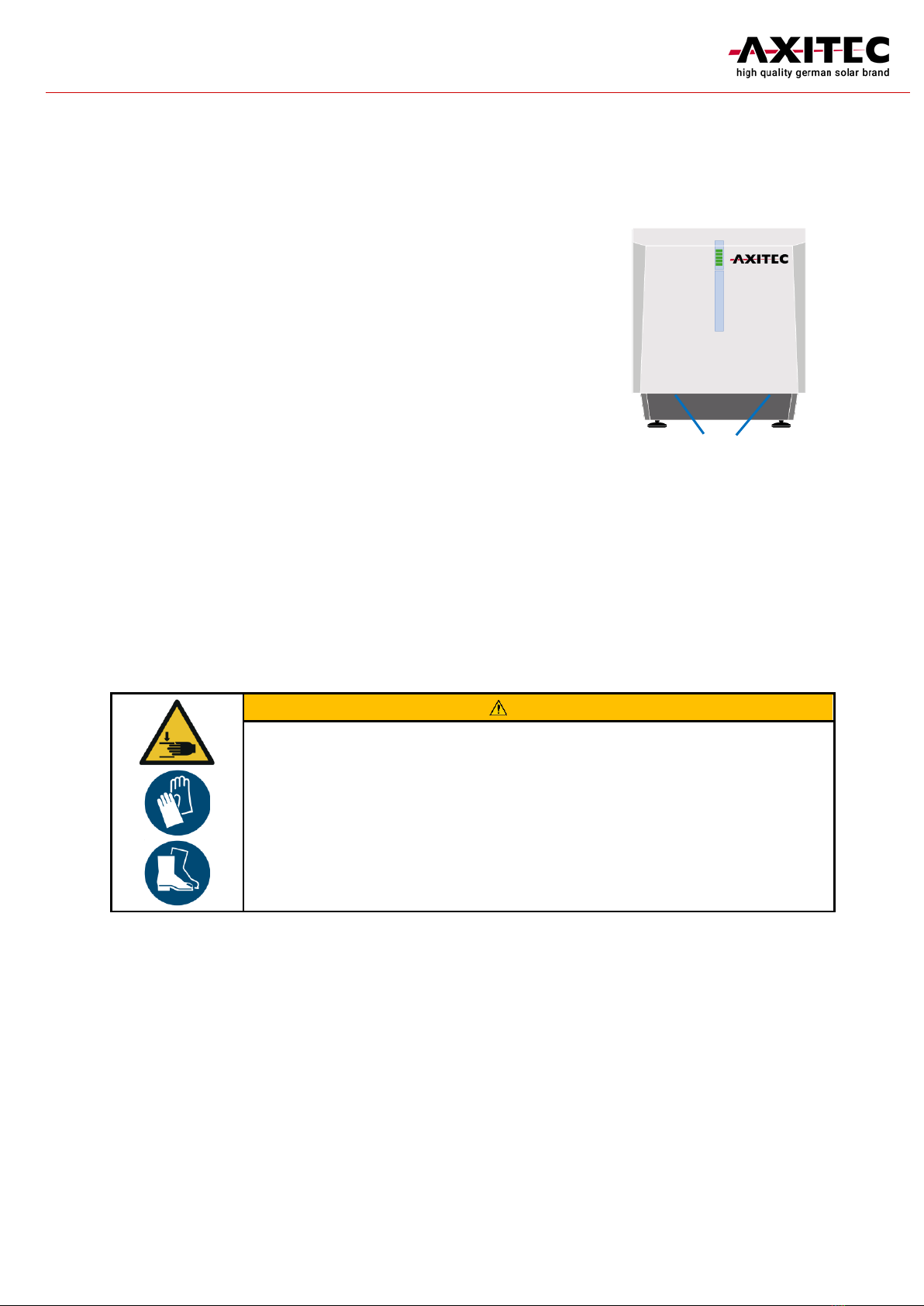

3.2.3 Mounting
The installation location for the battery system and the inverter have been determined.
Recommended mounting:
1. Install the wall bracket of the inverter.
Hook the inverter into its bracket.
Unscrew the cover of the connection area.
If not already done, remove the cover from the battery system
housing:
Unscrew 2 screws (hexagon socket, SW4) on the front
underside.
Remove the cover from the base.
Position the base of the battery housing at the intended installation location (and screw it on if
necessary).
3.3 Assembly
3.3.1 Installing AXIstorage Li SH –Installation of Energypacks
Safety Instructions
CAUTION
Risk of crushing due to improper installation.
Falling or improper insertion of the module can cause slight bruising and abrasions
to hands and feet.
Wear protective clothing.
Screws M5 (SW4)

V 2 1 0 1 0 1 EN S e i t e 16 | 28
CAUTION
Ergonomic hazards due to heavy lifting.
Lifting the Energypack can cause a disturbance of the musculoskeletal system.
Should it be necessary, be sure not to lift the module alone.
Use a lifting aid, when necessary.
ATTENTION
Incorrect installation due to damaged or contaminated Energypack.
Only faultless modules may be mounted. The housing must be undamaged. The contact points must
be undamaged and clean.
Perform a visual inspection.
Clean the contact points with a dry cloth if necessary.
The Energypack may only be inserted into the AXIstorage Li SH battery system provided for this purpose.
✓The power storage system is securely installed.
✓The main switch of the power storage system is off.
✓The Energypacks should have a similar voltage
✓Inverter is not yet connected or switched off
1. Make sure that the DC disconnector of the AXIstorage Li SH is set to "off".
2. Loosen the two screws H and I, with which the hold-down is fixed on the left and right,
and lift up the downholder.
3. Unpack and insert the Energypack.
H
I

V 2 1 0 1 0 1 EN S e i t e 17 | 28
Figure 2: Insert 3 to 6 Energypacks
NOTE: For best cooling, we recommend that you install the battery modules as shown in
Figure 2.
4. Screw the downholder to the right and left of the base of the system housing.
5. Screw each Energypack with two screws (M5) to the downholder/grounding support.
For example, refer to Figure 3.
Figure 3: Energypacks fixed to the grounding support
with 3 Energypacks with 4 Energypacks
with 5 Energypacks with 6 Energypacks

V 2 1 0 1 0 1 EN S e i t e 18 | 28
6. Use the patch cables to connect the BMS master (left of the two RJ45 sockets) with the
installed Energypack.
For example, refer to
Figure 4.
Figure 4: Connect the Energypack to the BMS master using the patch cables
7. connect the last battery module to the left RJ45 socket (RJ45-B) in the BMS master.
3.3.2 Connect Energypacks next to each other in series
WARNING
Electric shock from live parts.
Touching live components may cause electrical shock, which may create intense
heat or paralyze muscles. The latter can lead to ventricular fibrillation, cardiac
arrest or respiratory paralysis, or death.
Never touch the contacts.

V 2 1 0 1 0 1 EN S e i t e 19 | 28
1. Remove the safety cover of the "Power" sockets.
Figure 5: Power path with switching devices and BMS
2. Insert the power plug for the respective Energypack until it clicks into place. For example,
refer to Figure 5.
3. Check by pulling the power plugs to make sure that the latching is engaged.
4. If there are less than 6 Energypacks: Fit the power plugs not required with the dummy
sockets Csupplied.
5. Feed the power cables (red and black) as well as PE (yellow-green) through the left hole in
the basic housing and fix them with the supplied PG screw connection.
NOTE: Feed the cables first through the union nut of the PG gland and then through the
outer housing.
6. Lead the communication cable through the right hole and fix it with the supplied cable
gland.
3.3.3 Closing the housing of the battery system
1. Position the housing hood (with display) in front of the
housing base and plug the cable for the display on the
board into the hood.
2. Insert the hood into the guide at the top and close it at
the bottom with the two M5x10 hexagon socket screws
(SW4) which were unscrewed in 3.2.3.
Screws M5 (SW4)

V 2 1 0 1 0 1 EN S e i t e 20 | 28
3.3.4 Subsequent installation of additional battery modules

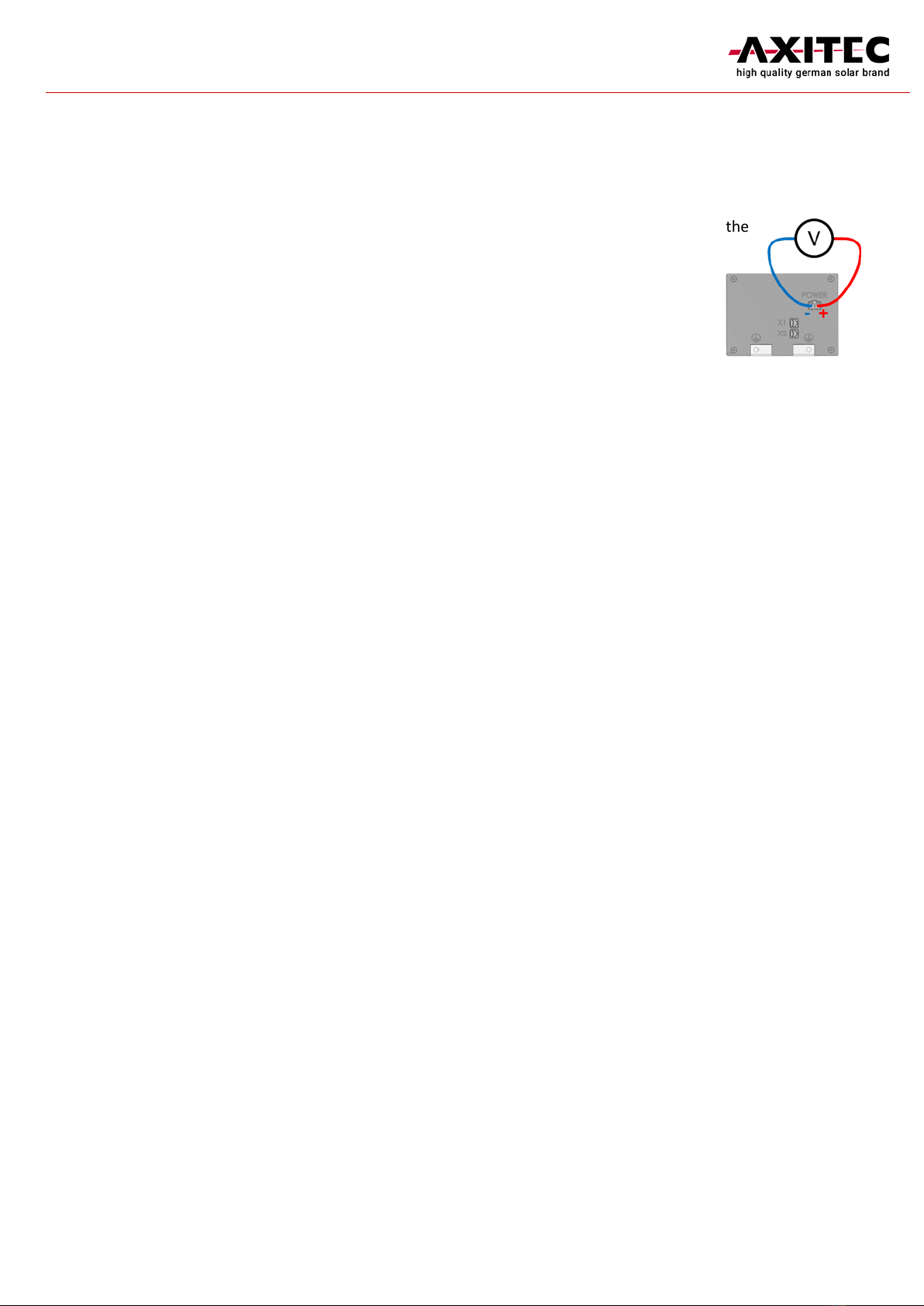

1. check the voltage of the modules. This should be between 46 V and 56 V.
2. adjust the voltage of the battery system to ±1 V for the new modules (see also Appendix
8.3: Adjusting the system voltage with SMA SB Storage). An exactly adjusted module
voltage avoids system voltage adjustment and allows immediate access to the
entire capacity.
3. disconnect the inverter and switch off Hyperion.
4. Install new modules. See chapter 3.3 Installation.
5. put the system into operation. See chapter 3.4.
3.3.5 Disposal measures
Dispose of transport packaging for recycling in accordance with the statutory provisions.
It is recommended to keep not required parts (patch cables, dummy plugs, screws) together with the
installation instructions near the battery system.
Before removing defective Energypacks, the power socket must be taped with insulating tape after
removing the power plug.
