Axminster Craft AW16BM User manual

AW16BM
Bench Morticer
Code 107675
Original Instructions
AT: 10/03/2022
BOOK VERSION: 5

INDEX OF CONTENTS
2
EU Declaration of Conformity 02
What’s Included 03
General Instructions for 230V Machines 04
Specific Safety Instructions for Morticers 04
Assembly 05-06
Specification 07
Illustration and Parts Description 07-08-09
Setting up the Machine 10-11-12-13
Optional Accessories 14
Maintenance 15

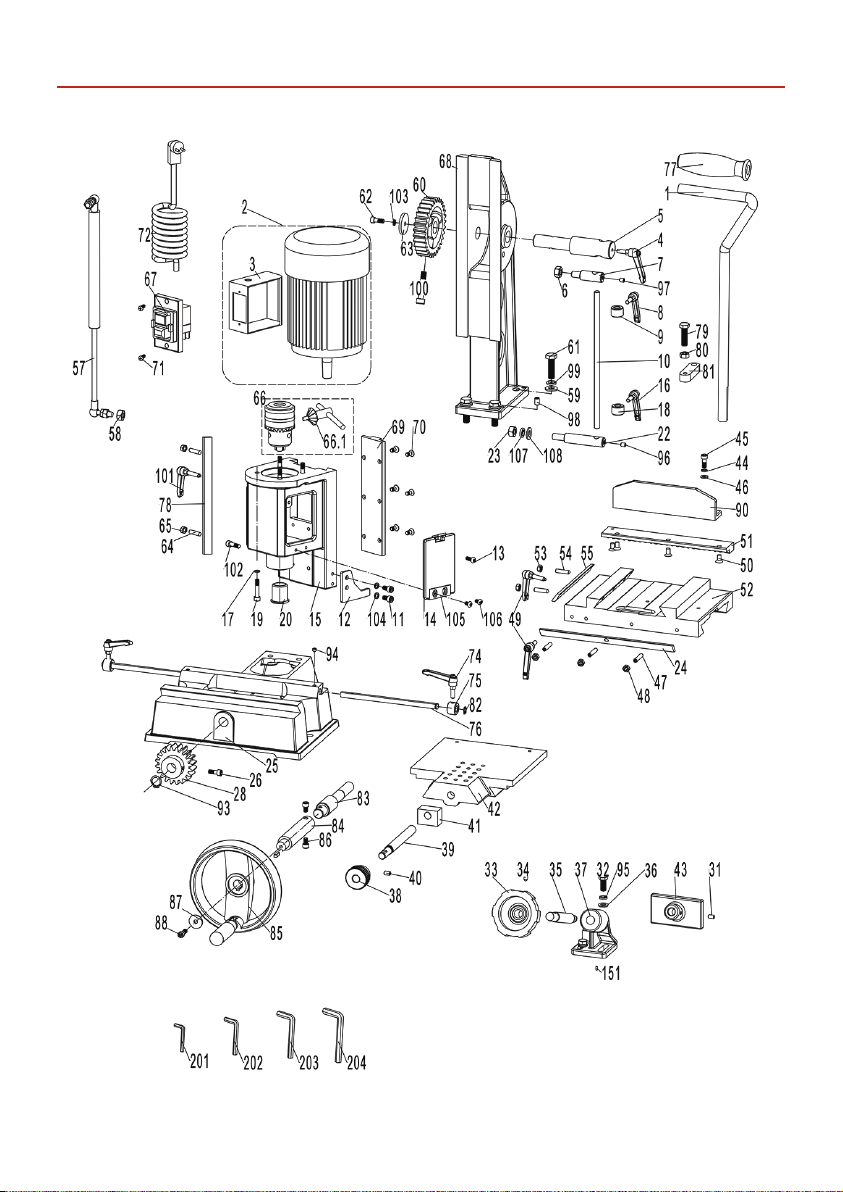

Exploded Diagrams/Lists 16-17-18
Wiring Diagram 18
Notes 19
EU DECLARATION OF CONFORMITY
Fully read manual
and safety instructions
before use
Eye protection
should be worn
Ear protection
should be worn
HAZARD
Motor gets hot
Dust mask
should be worn
The symbols below advise the correct safety procedures when using this machine.
Cert No: MS3816
Axminster Tool CentreLtd
Axminster Devon
EX13 5PH UK
axminstertools.com
Type Bench Morticer
Model AW16BM and conforms to the machinery example for which the
EC Type-Examination Certificate No AM 50476859
has been issued by Laizhou Tongtailai Machinery Co.,Ltd.
at: No. 2666 Shuangfeng Road Chengguo Dongfeng Laizhou 261437,Shandong
and complies with the relevant essential health and safety requirements.
2006/42/EC
2006/95/EC
EN 61029-1:2009+A11
06/42/EC - Annex I/05.2006
declares that the machinery described:-
This machine complies with the following directives:
EU Declaration of Conformity
Signed
Andrew Parkhouse
Operations Director Date: 13/08/2020

WHAT’S INCLUDED
3

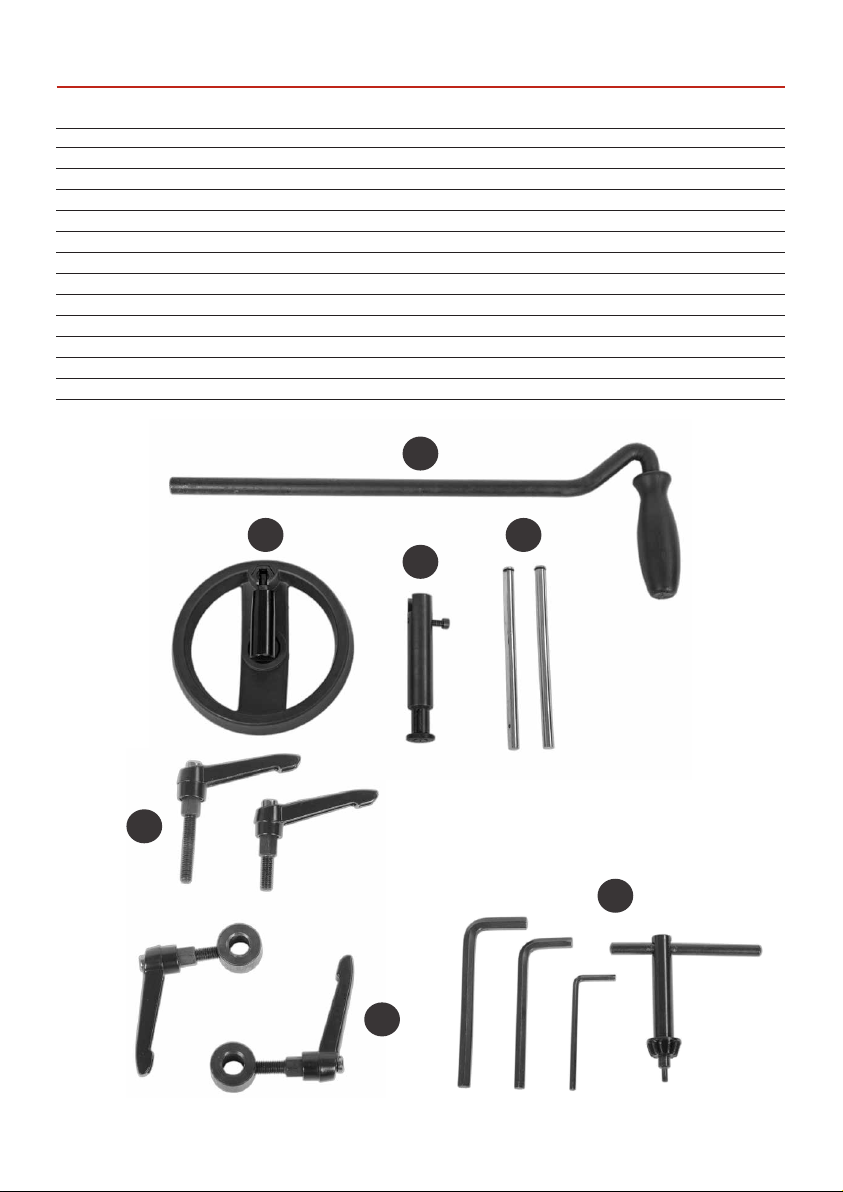

Quantity Item Part
1 AW16BM Bench Morticer
1 Operating Lever A
1 Saddle Operating Wheel B
1 Operating Wheel Shaft C
2 Distance Stop Rods D
Bag 1
2 M6 x 30mm and M6 x 16mm Lift and Shift Handles E
2 Ring Collar Clamps with Lift and Shift Handles F
Bag 2
1 13mm Chuck Key, 6,5,3mm Allen Keys G
1 Instruction Manual
A
B
C
D
E
F
G

4
GENERAL INSTRUCTIONS FOR 230V MACHINES
SPECIFIC SAFETY INSTRUCTIONS FOR MORTICERS
The following will enable you to observe good working
practices, keep yourself and fellow workers safe and main-
tain your tools and equipment in good working order.
Mains Powered Tools
•Tools are supplied with an attached 13 Amp plug.
•Inspect the cable and plug to ensure that neither are
damaged. Repair if necessary by a suitably qualified
person.
•Do not use when or where it is liable to get wet.
Workplace
•Do not use 230V a.c. powered tools anywhere
within a site area that is flooded.
•Keep machine clean.
•Leave machine unplugged until work is about to
commence.
•Always disconnect by pulling on the plug body
and not the cable.
•Carry out a final check e.g. check the cutting tool
is securely tightened in the machine and the
correct speed and function set.
•Ensure you are comfortable before you start work,
balanced,not reaching etc.
•Wear appropriate safety clothing, goggles, gloves,
masks etc.Wear ear defenders at all times.
•If you have long hair wear a hair net or helmet to prevent
it being caught up in the rotating parts of the machine.
•Consideration should be given to the removal of rings
and wristwatches.
•Consideration should also be given to non-slip
footwear etc.
•If another person is to use the machine, ensure they are
suitably qualified to use it.
•Do not use the machine if you are tired or distracted.
•Do not use this machine within the designated safety
areas of flammable liquid stores or in areas where there
may be volatile gases.
•Check cutters are correct type and size,are
undamaged and are kept clean and sharp, this will
maintain their operating performance and lessen the
loading on the machine.
•OBSERVE…. make sure you know what is
happening around you and USE YOUR COMMON SENSE.
WARNING!! KEEP TOOLS AND
EQUIPMENT OUT OF REACH OF
YOUNG CHILDREN
KEEP WORK AREA AS
UNCLUTTERED AS IS PRACTICAL.
UNDER NO CIRCUMSTANCES
SHOULD CHILDREN BE ALLOWED
IN WORK AREAS.
1. Ensure that the morticer is firmly fixed to its base as the
force exerted through the operating handle could be
enough to over-balance the machine.
2. Ensure that the operating handle is returned to the
upright position after cutting a mortise.
3. Mortice chisels have very sharp ends, handle them with
great care.
4. Make sure that the timber is held firmly down against
the table by using the table clamp. This prevents the
possibility of the timber being pulled upwards as the
mortice chisel is withdrawn from the hole.

5
ASSEMBLY
Please take some time to read the section entitled
“Illustration and Parts Description” to identify the
various parts of your machine so that you are familiar
with the terminology we will use to enable you to set
up and operate your Morticer safely and correctly.
Place the machine onto a suitable surface, at a height that
will enable you to work comfortably and to ensure that

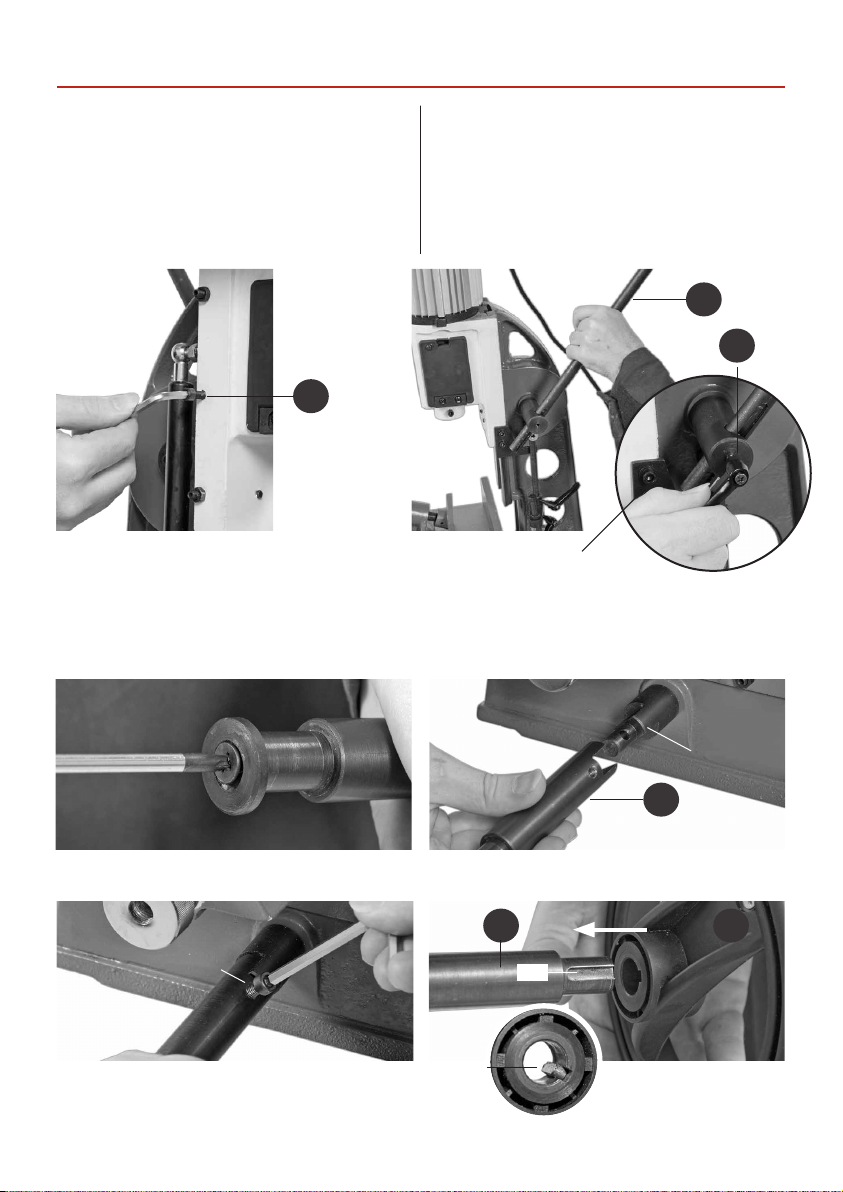

Locate the operating wheel Shaft (C), remove the phillips screw, clamping washer and M6 x 23mm caphead screw and
place them safely aside (See figs 3 and 5). Slide the machined cutout onto the transverse table shaft mechanism, line up
the pre-drilled hole with the one in the table shaft mechanism and secure them in position using a 5mm allen key and
the M6 x 23mm caphead screw you removed earlier (See figs 4 and 5).
Rack and pinion assembly
Remove the phillips screw and clamping washer.
Secure the wheel shaft (C) to the table
shaft using the M6 caphead screw. Slide the operating wheel (B)
onto the operating shaft (C).
Locating
key
Slot
Slide the machined cutout onto the
transverse table shaft mechanism.
Table shaft
mechanism
Fig 1.
Fig 3.
Fig 2.
Fig 4.
Fig 6.
A
C
C B
E
a
Fig 5.
M6 Caphead
screw
there is adequate room on either side for the size of timber
you plan to use. Once you are happy, bolt the morticer
down. Loosen the locking caphead screw (a) to raise the
morticer’s head assembly. Locate the operating lever (A)
and the M6 x 16mm lift and shift handle (E), introduce the
operating lever through the rack and pinion assembly,
then secure the lever in place using the M6 lift and shift
handle (E) (See fig 2).

6
ASSEMBLY

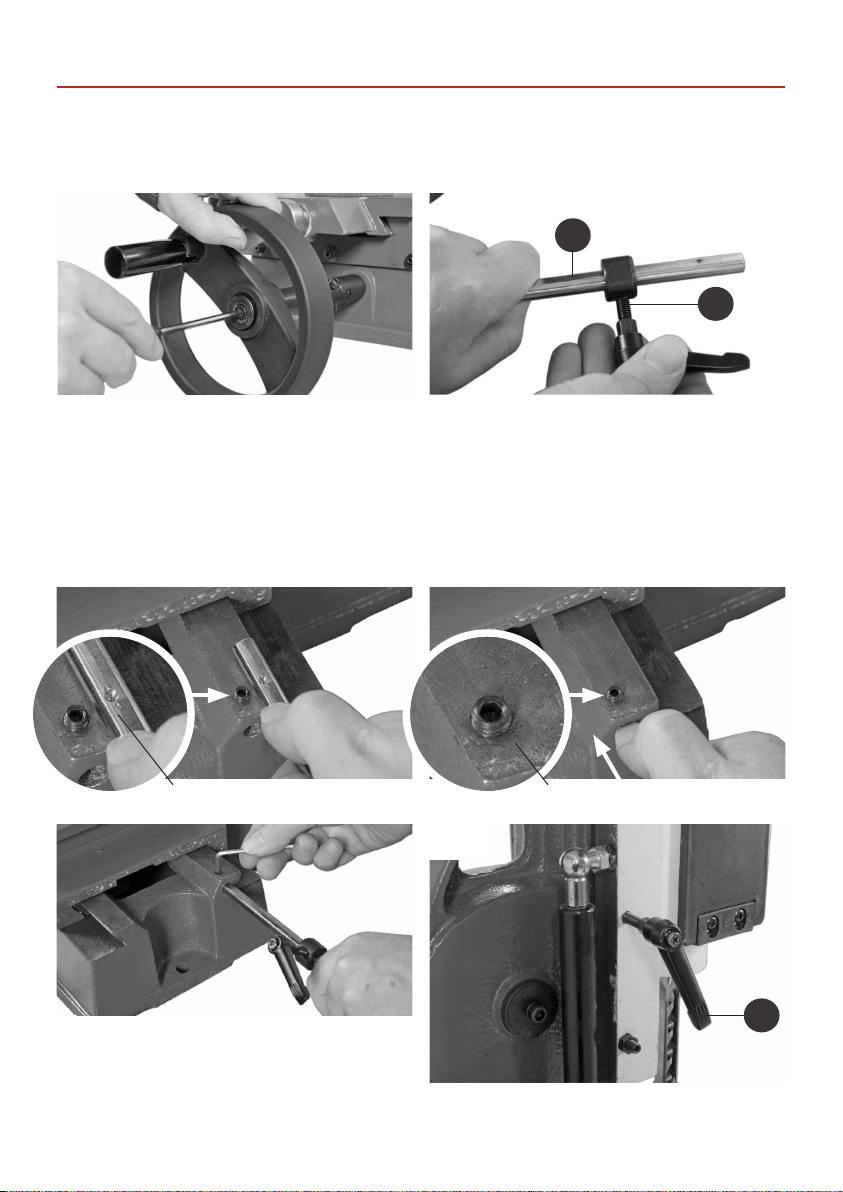

Locate the operating wheel (B), slide it on to the operating wheel shaft (C) as shown in fig 6 (Note: Make sure the
locating key engages into the shaft’s machined slot). Secure using the phillips screw and clamping washer you
removed earlier (See fig 7).
Move the table to the left by turning the operating wheel (B), thus revealing the grub screw beneath. Locate one of the
two distance stop rods (D) and a ring collar clamp (F), slide the ring collar clamp (F) onto the distance stop rod (D) and
lightly tighten by turning the lift and shift handle, see fig 8 on the previous page. Line up the countersink mark on the
rod (D) with the grub screw, (make sure the grub screw is raised fully) slide the rod (D) into the pre-drilled hole to the
end of casting and tighten the grub screw (See figs 9,10 and 11) repeat for the opposite side.
Remove locking caphead screw (a) (see page 5), that locks
the morticers head assembly and replace it with the M6 x
30mm lift and shift handle (E) (See fig 12).
Secure the operating wheel (B) using the phillips screw
and clamping screw.
Slide the ring collar clamp (F) onto the distance stop rod
(D) and lightly tighten.
Countersink mark Grub screw
Fig 7.
Fig 9.
Fig 11.
Fig 8.
Fig 10.
C
F
E
Fig 12.

7
SPECIFICATION
ILLUSTRATION AND PARTS DESCRIPTION
Motor
Operating lever
Rack and pinion rise
and fall mechanism
M6 x 16mm lift
and shift handle
NVR switch assembly
Off
On
Depth stop assembly
Chisel clamping bolt
Chuck access doors
Head rise stop
Chisel mounting flange
Headbox casting
Mortice depth stop
Hollow chisel
Distance stop
assembly
Table clamp assembly
Worktable gib
strip adjuster
Crossfeed table
control knob
Transverse table
control wheel
Code 107675
Model AW16BM
Rating Workshop
Power 550 W
Voltage 230 V
Chisel Stroke 100 mm
Centre of Chisel to Back Fence 55 mm
Max Height of Timber with 12.7mm Chisel and Bit
110 mm (160 mm with optional spacer block)
Max Chisel Size Softwood 16 mm
Max Chisel Size Hardwood 16 mm
Overall L x W x H 520 mm x 580 mm x 640 mm
Weight 42 kg

8

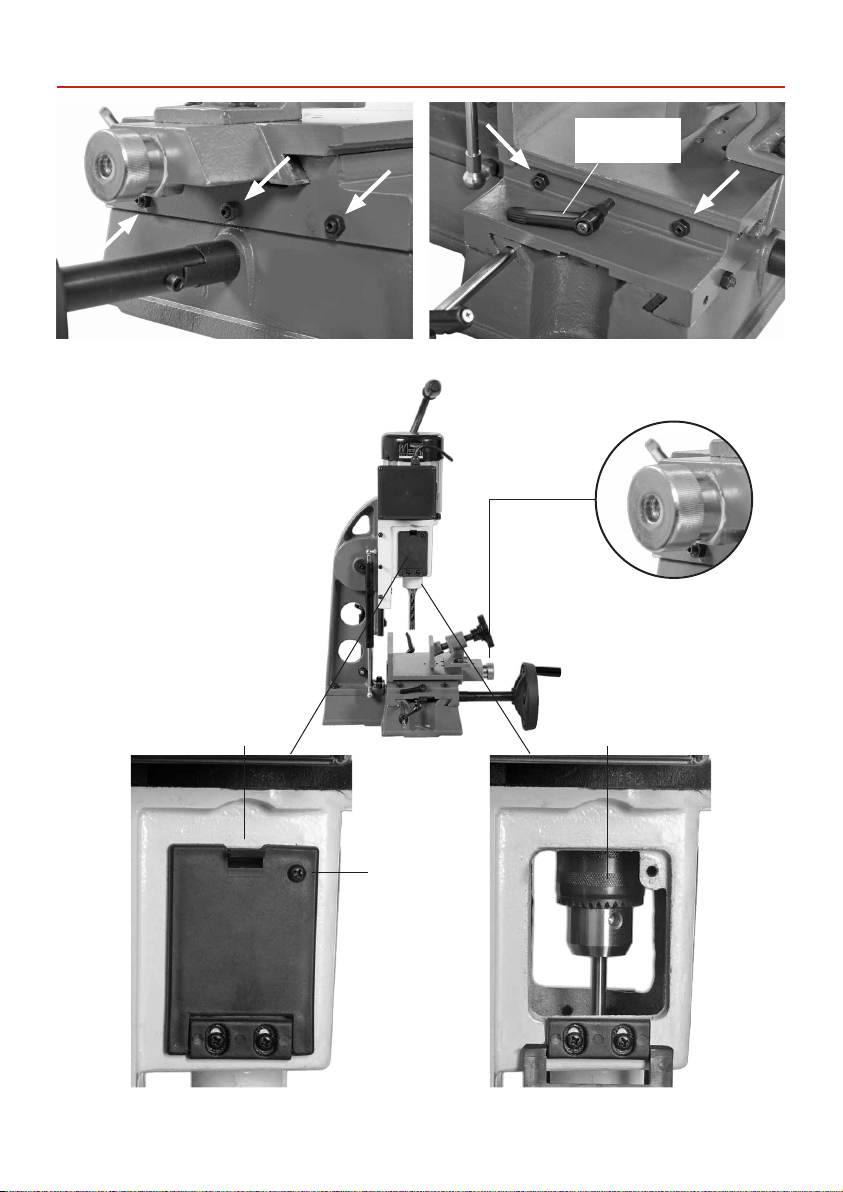

ILLUSTRATION AND PARTS DESCRIPTION
Transverse gib strip adjusters Table gib strip adjusters
Table fine feed control knob
Auger mounting chuckDoor catch
Chuck door
securing screw
Lift and shift
handle lock

9
ILLUSTRATION AND PARTS DESCRIPTION
Operating lever
Locking bolt
Lift and shift handle lock
Headbox support
column
Table
Table clamping
assembly
Headbox gib
strip adjusters
Chuck access door
Motor
Base casting
Adjustment grub screw, one
to each corner for squaring
up the support column
Fence Distance stop assembly
Gas powered
head return
strut

10
SETTING UP THE MACHINE
Initial Set up
Introduce the chisel into the adaptor collar, press the auger up into the chuck, tighten the chuck and withdraw the chuck
key. Gently pinch the chisel in place by finger tightening the clamping bolt. (See figs A,B)
Setting the Chisel Auger Clearance
The old rule of thumb for chisel auger clearance was
known as “the one penny width”. This was achieved by
introducing a penny between the locating shoulder of the
chisel and the adaptor face, with the auger locked in place
and with the chisel pulled hard down on the auger. The
penny was then removed and the chisel pushed up to the
adaptor face and locked in place, this established the “one
penny width” between the chisel and the auger, which for
general timbers and mortice sizes is quite adequate.
Fig A. Fig B.
Clamping bolt
Chuck key
Hollow Chisel
Traditional morticers normally had a cross pin in the auger
mounting mandrel, to prevent the auger being pushed
back up into the chisel. The mounting method on the

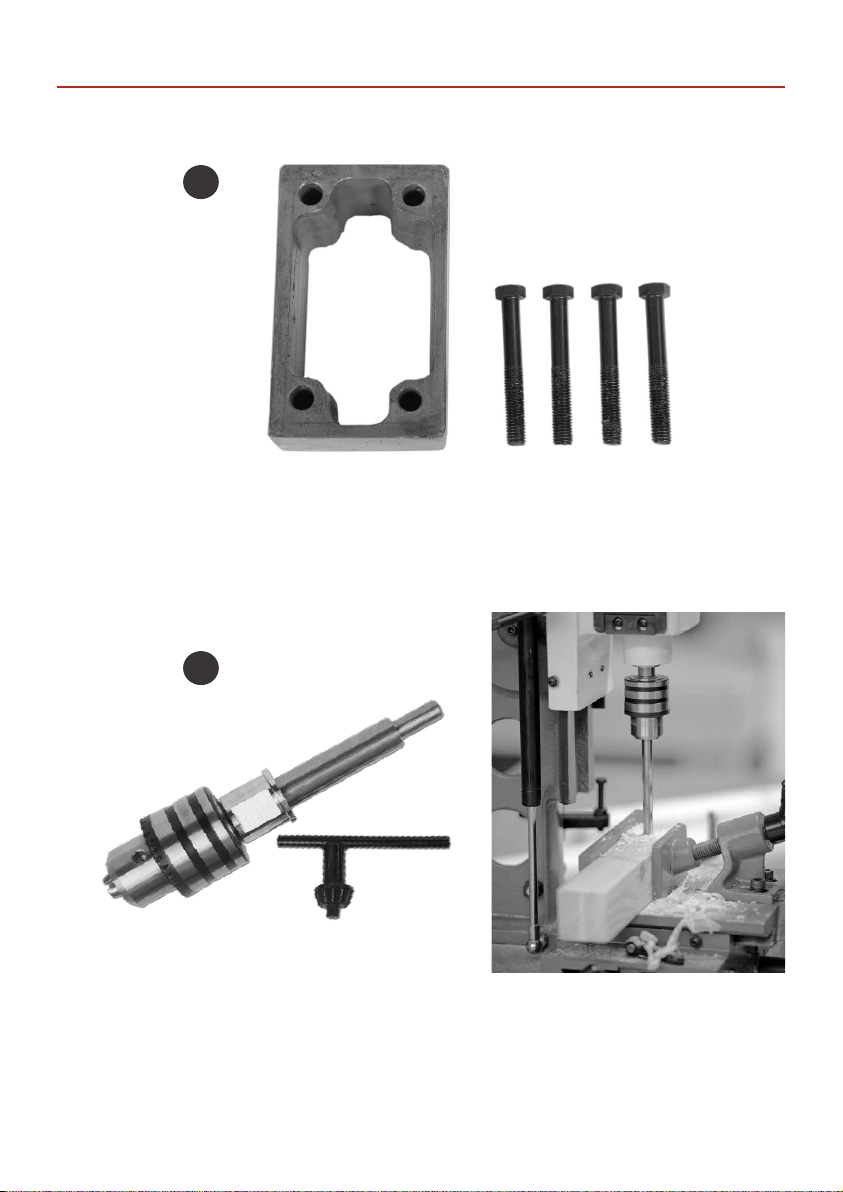

newer morticers is a chuck. It is well worth taking the extra
time and care to prepare your augers to give the correct
‘reach’ when ‘bottomed’ out in the chuck. This will prevent
the auger being pushed back towards the chisel and
altering the clearance setting. (See fig C)

11
SETTING UP THE MACHINE
Setting the chisel auger clearance
General Notes
The mortise will generate a lot of ‘grip’ on the chisel,
especially the first cut, or if the timber is a little green.
Make sure you use the table clamp assembly to help
control the timber during the raise operation of the
morticer.
Setting the chisel Square
When the chisel is tightened in the machine it must
normally be square to the back fence. The easiest way to
achieve this is to bring the headbox down to bring the
chisel as close to the table as possible, set a square against
the back fence and set the side of the chisel against the
square and clamp tight. (Remember to have the chip
ejection slot in the chisel to the side from which you will
cut the mortice).
Quick Setting of the Mortice Depth
Put a mark on an easily accessible end of the workpiece to
be mortised, at the depth you require. Pull the headbox
Fig C.
down, and put the end of the timber against the chisel.
Position the headbox so that the chisel points or the
auger point are at the depth required, raise the depth stop
collar to the underside of the headbox and tighten gently.
Recheck the depth of the chisel point, if it is satisfactory
tighten securely, if not it can be gently ‘nudged’ down the
column with the headbox, then tighten. Reposition the
operating handle to give the most comfortable position
and purchase on the lever, over the full distance of the
movement you have just set.
Headbox Rise Adjustment
Coupled with the depth stop on the same assembly is the
head box rise limiter. This limits the rise of the headbox /
chisel to a convenient distance above the work by the use
of a locking collar positioned above the stop finger on the
side of the headbox. The travel of this assembly is then
restricted to your chosen setting rather than having to
return it to the top of the slide each time.

12
SETTING UP THE MACHINE
Fig A. Fig B.
Hinged depth stop
To make fine adjustment, adjust the height of the bolt
Before After
Ring collar clamp
a
H
b
Depth Stop Assembly

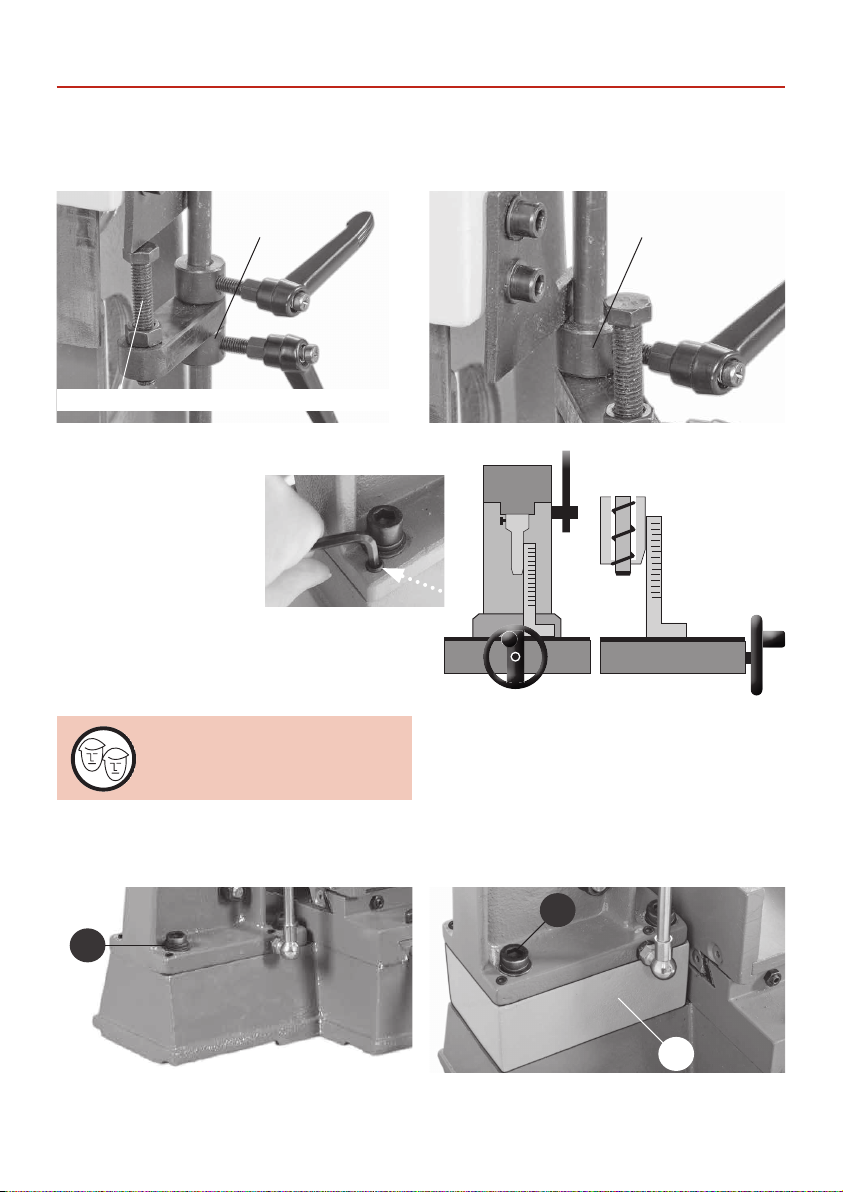

The hinged depth stop can be using to adjust the depth of the morticer (See fig A). The ring collar clamp can also be
used as a depth stop (See fig B).
YOU MAY REQUIRE ASSISTANCE AS
THE HEADBOX SUPPORT COLUMN
IS HEAVY
Optional: Raiser Block Kit Assembly
Support Column Leveling Grub Screws
Place an engineer square against
the side of the mortice chisel,
check it’s square. If adjust is
required adjust the grub screws
to each corner of the support
columns base until the chisel is
perpendicular to the worktable.
Re-postion the square to the front
face of the chisel and repeat the procedure.
Nip-up the four M10 bolts to the columns base to secure.
The headbox support column can be raised by fitting the
optional raiser block (H) beneath it. Remove the four M10
bolts (a) that secures the support column and place them
and the column safely to one side. Locate the raiser block
(H) and the four M10 long bolts, washers/spring washers
(b).Line up holes in the raiser block (H) with the holes in
the base casting, replace the headbox support column on
top, line up the holes and secure in position using the four
M10 long bolts (b), washers/spring washers.Llightly tighten
ready for the next step.
Engineer’s
square
Mortice
chisel

13
SETTING UP THE MACHINE

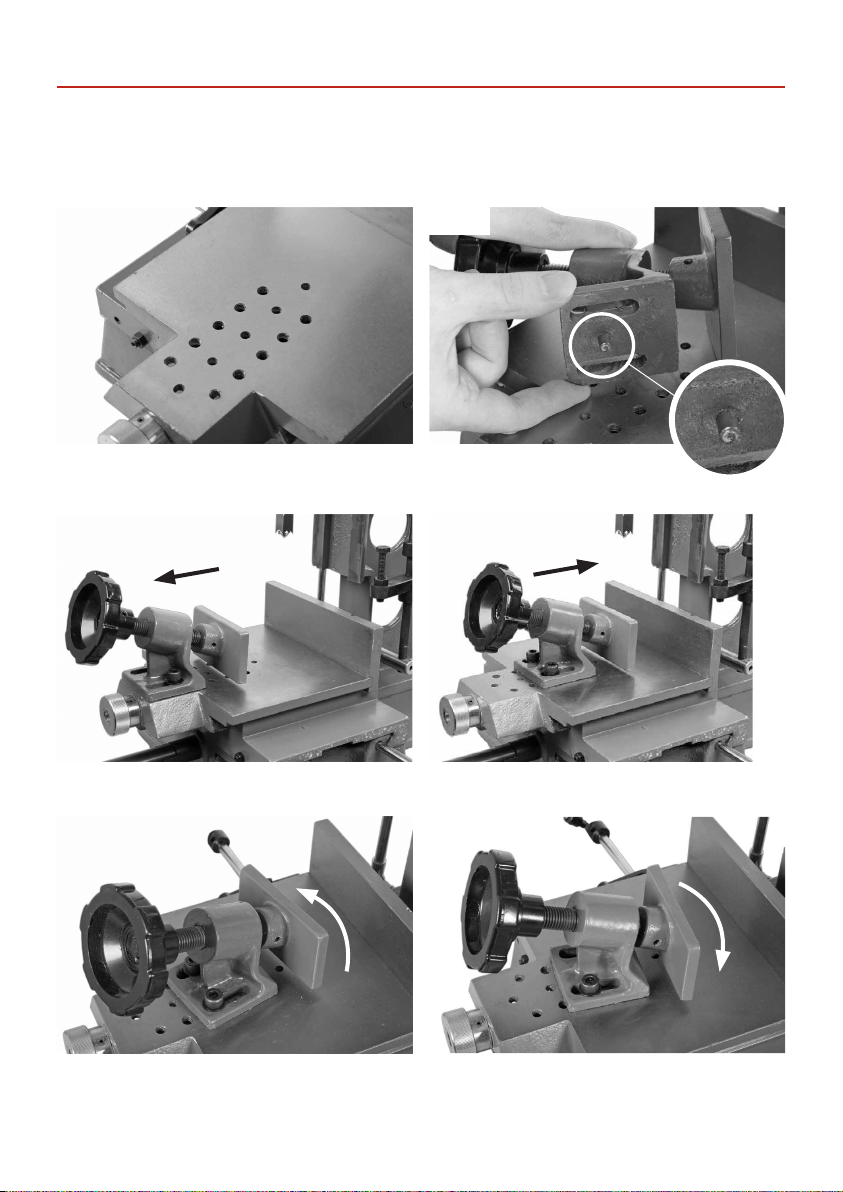

Table Clamp Assembly
The table clamp can be adjusted to accommodate different sizes of timber using the pre-drilled holes in the table
(See figs 13,15 and 16). To the base of the clamp there is pin which slots into the centre holes in the table to prevent
movement (See figs 13 and 14). The clamp can also be pivoted to clamp uneven shapes (See figs 17 and 18).
The table has pre-drilled holes which allows the clamp to
be repositioned.
To the base of the clamp is a pin
that slots into the centre holes in the table.
The table clamp can be adjusted to accommodate different sizes of timber.
The clamp can be pivoted to clamp uneven shapes.
Fig 13.
Fig 15.
Fig 17.
Fig 16
Fig 18.
Fig 14.

14
OPTIONAL ACCESSORIES
Headbox support column Raiser Block Assembly (Order no: 950175)
You can turn your morticer into a pillar drill by attaching a drill chuck and adaptor.
Drill Chuck and Adaptor (Order no: 400287)
M10 x 78mm bolts
H
I

15
MAINTENANCE
There is very little maintenance required on your morticer.
Keep it clean
Make sure the rack and pinion gears do not become
clogged with chips/sawdust.
Lightly spray oil on all exposed metal surfaces if the
machine is going to stand idle for any length of time. Keep
the chisels and augers sharp.
There are full ranges of mortice chisels and sharpening sets listed on our website.
Once a month
Blow/suck the motor to remove any debris that might
have lodged in the fan cover.
Oil the chuck and exercise it over its full range to ensure
the oil coats all moving parts.

16
EXPLODED DIAGRAMSLISTS

17
EXPLODED DIAGRAMSLISTS
NO. SIZE DESCRIPTION QTY
1 Operating handle 1
2 Motor 1
3 Switch box 1
4 Handle 1
5 Operating shaft 1
6 M10 Hex nut 1
7 Shaft 1
8 Handle 1
9 Setting Collar 1
10 Guide column 1
11 M6x12 Screw 2
12 Localiser 1
13 M5x16 Screw 2
14 Cover 2
15 Headbox Casting 1
16 Handle 1
17 6 Spring washer 4
18 Setting Collar 1
19 M6x25 Screw 4
20 Chisel Bushing 1
22 Shaft 1
23 M10 Hex nut 1
24 Drift 1
25 Base 1
26 M6x25 Screw 1
28 gear 1
31 M6x10 Screw 1
32 M8x20 Hexagon head
bolt
2
33 Handwheel 1
34 M6x10 Screw 1
35 Lead screw 1
36 8 Flat washer 2
37 Connecting bend 1
38 Table control knob 1
39 Lead screw 1
40 M6x10 Screw 1
41 Nut block 1
42 Worktable 1
43 Clamp plate 1
44 6 Spring washer 2
45 M6x20 Screw 2
46 6 Flat washer 2
47 M6x30 Screw 3
48 M6 Hex nut 3
49 Handle 1
50 M6x12 Screw 4
51 Horizontal rack 1
52 Sliding table 1
53 M6 Hex nut 3
54 M6x30 Screw 3
55 Drift 1
57 Screw 1
58 M8 Horizontal rack 2
59 10 Sliding table 4
60 Hex nut 1
61 M10x30 Screw 4
62 M6x16 Drift 1
63 6 Washer 1
64 M6x25 Screw 2
65 M6 Hex nut 2
66 Drill chuck 1
66.1 Chuck key 1
67 Switch 1
68 Column 1
69 Rack 1
70 M6x12 Screw 6

18
EXPLODED DIAGRAMSLISTS
EXPLODED DIAGRAMSLISTS
71 ST4x12 Screw 2
72 Plug 1
74 Handle 2
75 Setting collar 2
76 Distance stop rod 2
77 Grip sleeve 1
78 Drift 1
79 Hex bolt 1
80 Nut 1
81 Locating block 1
82 9 C-ring 2
83 Gear shaft 1
84 Connecting shaft 1
85 Handle 1
86 Screw 2
87 Washer 1
88 Screw 1
90 Fence 1
93 16 C-ring 1
94 M6x6 Screw 2
95 8 Spring washer 2
96 M6x8 Screw 1
97 M6x8 Screw 1
98 M8x12 Grub screw 4
99 10 Spring washer 4
100 M8x45 Screw 1
101 Handle 1
102 M6x20 Screw 1
103 6 Spring washer 1
104 6 Spring washer 2
105 Hinge plate 2
106 M5x10 Screw 4
107 10 Spring washer 1
108 10 Flat washer 1
151 5X16 Key 1
152 6X14 Pin 1
201 S3 Allen wrench 1
202 S4 Allen wrench 1
203 S5 Allen wrench 1
204 S6 Allen wrench 1

19
NOTES

For more information visit axminstertools.com/3years
Axminster Tools, Axminster Devon EX13 5PH
axminstertools.com
The packaging is suitable for recycling.
Please dispose of it in a responsible manner.
Do not dispose of electric tools together with household waste material.
By law they must be collected and recycled separately.
EU Countries Only
The Axminster guarantee
Buy with confidence from Axminster!
So sure are we of the quality, we cover all parts and labour free of charge for three years!
