Axxess ASWC-1 User manual

METRA. THE WORLD’S BEST KITS.™
© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
1-800-221-0932 metraonline.com
REV. 5/20/2013 ASWC-INST10
INSTALLATION INSTRUCTIONS ASWC-1
Kit Features
• OneInterfacedoesitall-Noadditionalinterfacesneeded
• Designedtobecompatiblewithallmajorradiobrands
• Autodetectsvehicletype,radioconnection,andpresetscontrols
• Abilitytodualassignsteeringwheelcontrolbuttons
• Canbemanuallyprogrammedformostvehicles
• Memoryretainssettingsevenafterbatterydisconnection
orinterfaceremoval
• Connectionplacementsareallorganizedbehindtheradio
• Micro“B”USBupdatable
interFace components
•ASWC-1Interface•12-pinharnesswithmale3.5mm
connector•Female3.5mmconnectorwithBrownand
Brown/Whitewires•12k-ohmresistor
tools required
•Cuttingtool•Crimpingtool•Tape
Axxess Steering Wheel Control
Interface Installation Manual
ASWC-1
US.PAT.NOS.8014920and8214105

Table of Contents
Preface .............................................................................................. 3
Overview
– IntroductiontotheASWC-1InterfaceandWiringHarness..............4-5
ASWC-1
– Section1:Installation ....................................................................6-7
– Section2:Programming ................................................................8-9
– Section3:Troublshooting
 AutoDetectMode...................................................................... 10
 ManualProgramming...........................................................10-13
 ChangingRadioType ............................................................13-14
 ManualRadioTypeProgramming ......................................... 14-15
– Section4:Remapping
 RemappingSWCButtons........................................................... 16
 ResettingOriginalSWCSettings ................................................ 17
ASWC-1 Legend
– VehicleLEDFeedback..................................................................... 18
– RadioLEDFeedback..................................................................18-19
– ButtonAssignment(remapping/manualprograming)....................... 19
– DualAssignmentInstructions.....................................................20-21
Caution: Metra recommends disconnecting the negative battery terminal
before beginning any installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before reconnecting the battery or
cycling the ignition.
Note: Refer to the instructions included with the aftermarket radio.
2

What you need to know before you begin
1) Knowthecorrectyear,make,andmodelofyourvehicle.
2) Besurethattheradioyouareinstallingiscompatiblewiththe
Axxesssteeringwheelcontrol(ASWC-1)interface(refertothe
aftermarketradioowner’smanual).
3) GototheAxxesswebsite(axxessinterfaces.com)andclickonthe
linkentitled“ASWC-1VEHICLEINSTRUCTIONS”,whichislocated
ontherightsideofthescreeninthemiddle.Onceyouputyour
vehicleinformationin,clickthe“SUBMIT”button.Thiswilltakeyou
toanotherpage,whereyouwillthenclickonthelinkundertheword
“DOCUMENTS”.Thiswillprovidethevehiclespecificinstructions
foryourvehicle.Printthisdocumentsoyouhaveitwithyouinthe
vehicleduringtheinstallasitisthebest,andmostrecent
sourceofinformation.
Note: Even though we have done extensive research and testing (to
verify that the steering wheel control wires we list are correct) it is still
your responsibility to verify the steering wheel control wires with a
multimeter. If you find a discrepancy please notify our Tech Department
at 1-800-253-TECH. Please be in the vehicle when you call, with access
to the interface and vehicle wiring.
Preface
3

4
Introduction to the ASWC-1 Interface
and Wiring Harness

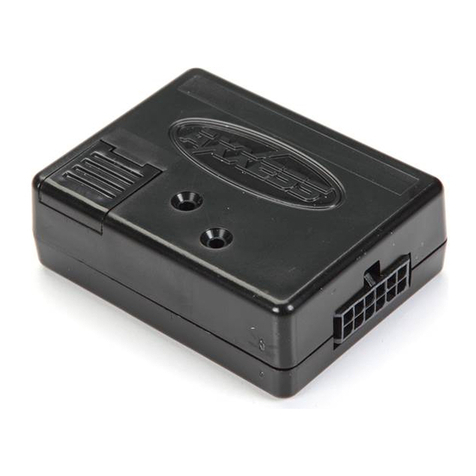

OnthetopoftheASWC-1interfacetherearethreepointsofinterest:
1) TheProgramming LED–Flashesrapidlywheninautodetectmode,
flashesslowlyinmanualprogrammingmode.
2) TheReset Button–Holddownbuttonfor3secondstostartauto
detectmode;holddownlongerthen10secondstostartmanual
programmingmode.
3) TheSlide Cover(USBPortCover)–Openthisuptoreveal
theUSBupdateport.UsingastandardMicro“B”toUSBcableor
Metra’sUSB-MINI-CABupdatecableyoucanmakesureyoualways
havethelatestupdatedinventory.
Overview
USBPortCover ResetButton ProgrammingLED

5
Overview
Pin-1 Pink
Pin-2 White/Green
Pin-3 Yellow/Green
Pin-4 Green/Orange
Pin-5 Gray/Red
Pin-6 Black
Pin-7 Blue/Pink
Pin-8 Black/Green
Pin-9 Red(tip of 3.5mm
connector)
Pin-10 White (ring of 3.5mm
connector)
Pin-11 Gray/Blue
Pin-12 Red
BelowarethewirecolorsfortheASWC-1.PleasevisittheAxxess
websiteatwww.axxessinterface.comfordetailedinformationonyour
specificvehicleandforwhatcolorwire(s)tousewiththeASWC-1
interface.

6
Section 1: Installation
Onceyouhavecollectedorprintedouttheinformationsheetonyour
particularvehiclefromtheAxxesswebsite(www.axxessinterface.com)
you’rereadytoinstalltheASWC-1.
Installing the ASWC-1
1) ConnecttheBlackwireoftheASWC-1toground.Youmayusethe
samegroundingpointastheaftermarketradio.
2) ConnecttheRedwireoftheASWC-1toa12-voltaccessorywire, 
onethatturns“On”and“Off”withtheignitionkey.
3) LocatethecorrectSWCwire(s)inthevehicle’sradioprimaryor
secondaryharnessasdescribedinthevehicleinformationsheet
foundontheAxxesswebsite.Connectthecorrectwirecolor(s)from
theASWC-1tothesteeringwheelcontrolwire(s)inthevehicle.
Note: Metra recommends that the wire(s) are soldered for the
best and most secure connection. T-Taps or scotch locks are not
recommended due to the higher chance of an intermitted connection
or change in resistive values.

7
Section 1: Installation
4) IfyouareusinganEclipse,Kenwood,MetraOE,oranewer
JVCradio,plugtheincludedfemale3.5mmconnectorwiththe
BrownandBrown/Whitewiresintothemale3.5mmconnector
oftheASWC-1harness.
•  For Kenwood and select JVC: ConnecttheSWCwire(normally
Blue/Yellow)totheBrownwireoftheASWC-1.Isolateandtape
theBrown/Whitewire,itwillnotbeused.
Note: Some newer Kenwood radios will auto detect as a JVC. If
this is the case, you can use a 12k-ohm resistor (included) in line
between the Blue/Yellow and Brown wire of the female 3.5mm
jack during programming only. Or you can manually set the radio
type which is in the radio programming section of this manual.
•  For Eclipse:ConnecttheEclipseSWCwires(normallyBrown
andBrown/Black)totheBrownandBrown/Whitewiresof
theASWC-1.BrowngoestoBrownandBrown/Whitegoesto
Brown/Black.Sometimesthisisreversed,reversethewiresif
needed.
•  For Metra OE: ConnecttheSWCKey1wire(Gray)totheBrown
wireoftheASWC-1.
5) Forallotherradios,pluginthemale3.5mmconnectorofthe
ASWC-1intothebackoftheaftermarketradio,designatedfor
anexternalSWCcontrolinterface.Ifindoubtwherethe3.5mm
connectoroftheASWC-1goespleaserefertotheaftermarket
radiomanual.Onceallconnectionshavebeenmade,pluginthe
aftermarketradioifnotdonealready.

8
TheASWC-1canbeprogrammedintwoways.(1)Itcandoitbyitself
throughAutoDetectMode,or(2)itcanbemanuallyprogrammedin
non-datavehicles.Itisstronglyrecommendtostartwiththe
AutoDetectModefirst.
Auto Detect Mode: Overview
TheASWC-1hastheabilitytoautodetectcertainvehiclesandtoknow
whataftermarketradioitisconnectedto.Thevehicleinfosheetfromthe
Axxesswebsite(www.axxessinterface.com)willindicateifyourvehicle
willlikelybeautodetectedandwhataction,ifany,isrequiredbyyoufor
thisprocesstotakeplace.
FortheAutoDetectfeaturetoworkthereare3possibleactions,however
onlyoneactionwillberequiredbyyoudependingonyourvehicle:
• Turntheignitiononandnootheractionisrequired.
• Turntheignitionon,pressandholdthe“VolumeUp”buttononthe
steeringwheel.
--- Or ---
• Turntheignitionon,pressandreleasethe“VolumeUp”button
repeatedlyonthesteeringwheel.
Asstatedbefore,onlyoneoftheseactionswillneedtobedone
dependingonyourvehiclefortheAutoDetectfeaturetowork.
PleaserefertothevehicleinfosheetprovidedontheAxxesswebsite.
Auto Detect Mode: Steps
1) Completeconnectionstothevehicleandtheaftermarketradio.
IfthisisthefirsttimetheASWC-1isbeinginstalledinavehicle:
Section 2: Programming

9
2) Turntheignitionon;theLEDwillstartflashingredrapidlywhichmeans
theASWC-1islookingforthevehicleandtheradio.Gotostep4.
--- Or ---
IftheASWC-1wasinstalledinavehiclepreviously:
2) Turntheignitionon,theLEDwillflashonce,thengoout.
3) Holddowntheresetbuttonfor3secondsandthenreleaseit.
4) Performactionrequiredforyourparticularvehicleasnotedinthe
vehicleinfosheet.
5) AfteracoupleofsecondstheLEDshouldstopflashingandnotlight
upfor2seconds.Atthispointdonotpushanybuttons.
6) Afterthe2secondstherewillbeaseriesof7Greenflashes,some
shortandsomelong.
7) TheLEDwillpauseforanother2secondsthenflashRedupto11
times(refertoASWC-1ledgend).
8) Thisistheendoftheautodetectionstage.IftheASWC-1detected
thevehicleandtheradiosuccessfullytheLEDwilllightupsolid.
9) ForvehicleswithOEBluetoothbuttonspleasepress“Hangup”
or“Pickup”onyoursteeringwheelcontrolaftertheLEDonthe
ASWC-1goessolid.IftheOEBluetoothbuttonsareabletobeused,
theLEDwillgooutafter3seconds.YourOEBluetoothbuttonsare
nowprogrammedtoyouraftermarketradiosBluetoothbuttons
(aftermarketradiomusthaveBluetoothcapabilities).
Tip: If the LED does not light up solid refer to the
troubleshooting section.
10)Makesurethesteeringwheelcontrolbuttonsfunctioncorrectlyin
thevehicleandenjoy.
Section 2: Programming

10
Auto Detect Mode
SoyoutriedtheautodetectfeatureandattheendtheLEDdid
notstaysolid“red”.Insteaditstartedflashing,meaningthattheASWC-1
didnotdetectthevehicle.
Followthesestepstodeterminewhatmayhavehappened:
1) Verifythatyouhave12-voltaccessoryandagoodgroundto
theASWC-1.Sometimesthefactorygroundisnotsufficient,a
chassisgroundishighlyrecommended.IfyourvehiclehasaSWC
referencegroundwire,chassisgroundthataswell,alongwithyour
aftermarketradio.
2) Validateusingthevehicleinformationsheet(Axxesswebsite)that
thecorrectsteeringwheelcontrolwire(s),inthevehicle,were
connectedtothecorrectwire(s)totheASWC-1.
3) Confirmthatthe3.5mmconnectorisconnectedtoyourradio
securelyandinthecorrectlocation.
4) Ifusingthefemale3.5mmconnectorinEclipse,Kenwood,
selectJVC,orMetraOEradiosverifythattheradio’sSWCwireis
connectedtothecorrectwiretotheASWC-1.
Manual Programming Auto Detect Mode
IfyourvehicleisnotlistedforautodetectionbytheASWC-1onthe
Axxesswebsite,www.axxessinterface.com,youcanmanuallyprograma
non-datavehiclebythefollowingsteps(haveASWC-1legendavailable).
Section 3: Troubleshooting

11
Note: Not every radio will have all the possible SWC commands
on the steering wheel. Aftermarket radios that do not have Bluetooth
will not recognize the PTT (Push To Talk) or “On/Off Hook”
commands; however those buttons can be manually programmed
to do other commands in some cases. Please refer to the radio
owner’s manual or wireless remote for specific commands that the
radio will recognize.
1) Completeconnectionstothevehicleandtotheaftermarketradio,
makesurethe3.5mmconnectorisconnected.
IfthisisthefirsttimetheASWC-1isbeinginstalledinavehicle:
2) Turntheignitionon;theLEDwillstartflashingrapidly.
3) After10secondstheASWC-1willgointotheLEDfeedbackmode.
AftertheseriesofLEDflashestheLEDwillstayinaslowconstant
flashstate.Gotostep4.
--- Or ---
IftheASWC-1hasbeeninavehiclebefore:
2) Pressandholdtheresetbuttondownformorethen10seconds.
3) Afterthe10secondstheLEDwillbeginaslowconstantflash.
4) Atthispointpressandholdthe“VolumeUp”buttononthesteering
wheelfor7secondsuntiltheLEDgoessolidred.Nowreleasethe
“VolumeUp”buttonandtheLEDgoes“Off”.“VolumeUp”hasnow
beenprogrammed.
Section 3: Troubleshooting

12
5) Nowpressandholdthe“VolumeDown”buttonuntiltheLED
goessolidred.ReleasethebuttonandtheLEDwillturn“Off”.
The“VolumeDown”hasnowbeenprogrammed.
6) AtthispointgototheASWC-1LegendButtonAssignment
(remapping/manualprogramming)section,page19,andcontinue
with“SeekUp/Next”button.
7) Youcanendthishalfoftheprogrammingin2ways:
(1) Afterthelastbuttononyoursteeringwheelhasbeen
programmed(youdonothavetogothroughthewholelist)hold
downthe“VolumeUp”buttonforatleast
10seconds.TheLEDwillgointoaslowconstantblinkmode.
--- Or ---
(2) Afterthe18thbuttonisprogrammedorskippedtheLEDwill
gobacktotheslowconstantblinkmode.
Note: If at any time an error is made hold down the reset button
on the ASWC-1 for 10 or more seconds. This will restart the
manual programming. Go back to Step 4 and start again.
8) Pressandholdthe“VolumeDown”buttonfor5secondstillthe
LEDstartstoflashquickly.
9) Releasethe“VolumeDown”button.
10) After4secondsoftheLEDflashingquicklytheLEDwillgoout
for2seconds.
Section 3: Troubleshooting

13
11) ThentheLEDwillflash,upto11times,dependingonwhatradio
theASWC-1thinksit’sconnectedto.
12) Makesurethenumberofflashesmatchwhatradioyouhave
installed.RefertotheChangingRadioTypesection,pages13-14.
13) IftheLEDflashesmatchtheradiothenholddownthe“Volume
Down”buttonuntiltheLEDgoessolidred.
14)Programmingforthevehicleandtheradioisnowcomplete.Testout
thesteeringwheelcontrolfunctionstomakesureitworkscorrectly.
Changing Radio Type
IftheLEDflashesdonotmatchtheradioyouhaveconnected,youmust
manuallyprogramtheASWC-1totellitwhatradioitisconnectedto.
1) Tomanuallyprogramtheaftermarketradio,pressandholdthe
“VolumeDown”buttononthesteeringwheelcontroluntiltheLED
goessolidred,thenrelease“VolumeDown”.
2) AtthispointEclipseisprogrammed.IfyouareusinganEclipseradio
gotostep3.Ifyouareusingadifferentradiogotostep4.
3) Pressandhold“VolumeDown”for5seconds.TheLEDwillflash
oncethengosolidredindicatingtheprogramminghasfinished.
Goenjoyyourradio.
4) IfyouhaveadifferentradiothenEclipse,presstheVolumeUp
buttonagaintilltheLEDgoessolidred,thenrelease“VolumeUp”.
YouhavenowprogrammedKenwood.
Section 3: Troubleshooting

14
5) Hereisthecharttoshowhowmanypressesofthe“VolumeUp”
buttonisneededforwhichradioyouaretryingtoprogram:
6) Oncetheradiomanufacturerhasbeenselectedhold
“VolumeDown”foratleast5seconds.TheLEDwillflashthe
numberoftimeswhichradiowasselectedthentheLEDwillremain
ontoindicatetheASWC-1hasfinishedprogramming.
Manual Radio Type Programming
Ifonlychangingtheradiotypeisneededthenfollowthisprocedurebelow.
1) Withinthefirst25secondsofturningthekeyon,pressandhold
thecar’s“VolumeDown”button.
2) After15secondsofholding“VolumeDown”,theASWC-1’s
redLEDwillgoon.
Section 3: Troubleshooting
1 Eclipse
2 Kenwood
3 Clarion“Type1”
4 SonyandDual
5JVC
6 PioneerandJensen
7 Alpine
8 Visteon
9 Valor
10 Clarion“Type2”
11 MetraOE

15
3) Releasethe“VolumeDown”andtheLEDwillgo“Off”.Wearenow
inradioprogrammingmode.
4) Pressandreleasethe“VolumeUp”buttonforthedesiredradio
number(pleaserefertotheASWC-1legend).Foreachpressthe
redLED.Itwillgo“On”andthen“Off”whenreleasedforfeedback.
5) Whenthedesiredradiotypehasbeenreached,Pressthe
“VolumeDown”button.
6) TheLEDwillgoonandwillremainon(approximately3seconds).
The ASWC-1 is internally computing and storing this new
information.
7) TheLEDwillgo“Off”indicatingitiscompleted.
Note: If at any time the user fails to press any button for a period
of 10 seconds or more, this programing mode will abort.
Section 3: Troubleshooting

16
Remapping the SWC (Steering Wheel Control) Buttons
OnceyouhavetheASWC-1programmedyoucanthenchangethe
steeringwheelcontrolbuttonassignment(s).Suchas,programingthe
“SeekUp”buttonasa“Mute”function.Followthestepsbelowto
remaptheSWCbuttons:
1) IdeallyhavetheASWC-1visible,soyoucanseetheLEDflashesto
confirmbuttonrecognition.
2) Turning“Off”theradioisrecommended.
3) Withinthefirst20secondsofturningtheignitionon,pressandhold
downthe“VolumeUp”buttonforatleast20seconds.
4) TheLEDwilllightupsolidred.Release“VolumeUp”andtheLED
willgoout.“VolumeUp”hasnowbeenprogrammed.
5) FollowthelistintheButtonAssignmentsection,page19,
toreferencetheorderofwhatbuttonsneedtobepressedand/or
howtobypassabutton.
6) Afterthelastbuttonisprogrammedonyoursteeringwheel(you
donothavetogothroughthewholelist),holddownthe“Volume
Up”buttonforatleast10secondsthentheLEDwillgoout.
--- Or ---
Afterthe18thbuttonisprogrammedorskippedtheLEDwillgooutand
theremappingiscompleted.
Section 4: Remapping

17
Resetting Orginal SWC Settings
Ifforanyreasonafterremappingthesteeringwheelcontrolsyou
wanttorevertbacktotheoriginalsteeringwheelcontrolsettings,
followthesesteps:
1) Withinthefirst20secondsofturningtheignitionon.Pressandhold
downtheoriginal“VolumeDown”button(notthe“VolumeDown”
buttonyoujustremapped)foratleast25seconds.
2) TheLEDwillturnonthenreleasethe“VolumeDown”buttonandthe
LEDwillturn“Off”.
3) Theoriginalsteeringwheelcontrolsettingswillberestored.
Section 4: Remapping

18
For A and B:
Short flashesrepresentthesteeringwheelcontrolwire(s)that
arenotconnectedtothevehiclefromtheASWC-1.
Long flashesrepresentwire(s)thatareconnectedtothevehicle.
A. Vehicle LED Feedback (IndicatedbyGreenLED)
1stLEDflashistheWhite/GreenwireontheASWC-1
2ndLEDflashistheOrange/GreenwireontheASWC-1
3rdLEDflashistheGreen/OrangewireontheASWC-1
4thLEDflashistheGray/RedwireontheASWC-1
5thLEDflashistheBlack/GreenwireontheASWC-1
6thLEDflashistheGray/BluewireontheASWC-1
7thLEDflashisthePinkwireontheASWC-1
B. Radio LED Feedback (IndicatedbyRedLED)
1stLEDflashisforEclipse
2ndLEDflashisforKenwood
3rdLEDflashisforClarion(“Type”1)
4thLEDflashisforSonyandDual
5thLEDflashisforJVC
6thLEDflashisforPioneerandJensen
7thLEDflashisforAlpine*
8thLEDflashisforVisteon
9thLEDflashisforValor
10thLEDflashisforClarion(“Type”2)
11thLEDflashisforMetraOE
ASWC-1 Legend

19
C. Button Assignment(remapping/manualprogramming)
ASWC-1 Legend
1.VolumeUp
2.VolumeDown
3.SeekUp/Next
4.SeekDown/Prev
5.Source/Mode
6.Mute
7.PresetUp
8.PresetDown
9.Power
10.Band
11.Play/Enter
12.PTT(PushToTalk)
13.OnHook
14.OffHook
15.FanUp
16.FanDown
17.TempUp
18.TempDown
Note: Not all radios will have all of these commands. Please refer to the
radio owner’s manual or contact the radio vendor directly for specific
commands recognized by that particular radio.
If the next function on the list is not on the steering wheel press the
“Volume Up” button for 1 second, until the LED comes on, then release the
button. This tells the ASWC-1 that the function is not available will move on
to the next function.
*Note (section B): If the ASWC-1 flashes 7 times and you do not have an
Alpine radio connected to it that means that the ASWC-1 did not see any
radio connected. Verify the 3.5mm connector is connected to the SWC
input on the radio.

20
Dual Assignment Instructions
Note: Seek up and Seek down are already set to Preset up and
Preset down for long press.
1) Turnontheignitionbutdonotstartthevehicle.
2) Pressandholddownthesteeringwheelbuttonthatyouwantto
assignalongpressfunctionto,forabouttensecondsuntiltheLED
rapidlyflashesgreen.AtthispointreleasethebuttonandtheLED
willgosolidgreen.
3) PressandreleasetheVOLUMEUPbuttonthenumberoftimes
correspondingtothenewbuttonnumberyouselected(seechart
below).ThegreenLEDwillblinkrapidlywhentheVOLUMEUPis
pressedandbacktosolidgreenwhenreleased.(Caution,ifmore
thantensecondselapsesbetweenaVOLUMEUPbuttonpress,this
procedurewillabort,andtheLEDwillgooff).Gotothenextstep
whentheVOLUMEUPbuttonhasbeenpressedthedesired
numberoftimes.
4) Tostorethelongpressbuttoninmemory,pressthebuttonthatyou
assignedalongpressbutton(thebuttonhelddowninstep1).The
LEDwillnowgooffindicatingithasbeenstored.
Note: These steps must be repeated for each button you would like
to assign dual purpose action to.
Toresetabuttonbacktoitsoriginaluse,repeatstep1above.Then
presstheVOLUMEDOWNbutton.TheLEDwillgooffandthelongpress
mappingforthebuttonwillbeerased.
