Ayra oso 240b mkii User manual

1
192-channel DMX controller
User manual

2
Introduction
Thank you for purchasing this Ayra DMX controller. This unit was designed to control DMX lighting
fixtures, especially intelligent lighting fixtures. The unit is capable of sending out a maximum amount of
192 DMX channels, spread over 12 fixtures with 16 channels each. The device can store up to 6
chases, which gives you the opportunity to create your own lightshows and adjust them to the music
that you are playing.
Safety precautions:
- Always read the user manual, as it may contain important information about safety regulations, use
of the product and maintenance.
- Keep this unit dry and do not expose it to moist environments or direct contact with water or any
other fluids.
- When any fluid is spilled into the unit, disconnect it from the power supply immediately.
- Do not open this unit. There are no user serviceable parts inside. When the product does not function
properly, contact your local dealer or a technician.
- Do not modify the unit, as this may void your warranty.
- Keep the unit away from any magnetic fields while functioning.
- Keep the unit away from heat sources such as open fire and heating systems
- Handle this device with care. Exposure to shocks, vibration and direct impact may cause damage
and malfunction.
- This unit should be used by, or under the supervision of an adult. This unit is not suitable for children.
- Do not use the unit when the ambient temperature exceeds 45 degrees Celsius.
- When this unit will not be used for a longer period of time, disconnect it from the power supply.
- Always check your local power supply with the power requirements of this unit. When you suspect
that the power outlet is not suitable for this device, do not connect it.
Box contents
1x OSO 240B MKII DMX controller
1x user manual
1x USB LED gooseneck light
1x power adapter
NOTICE:
Always check the box contents for any optical signs of damage. When in doubt, contact your local
dealer and do not use the device.
If any of the above described parts is missing, contact your local dealer.

3
Features
This DMX controller has an output of 192 DMX channels max. These channels are spread over 12
fixtures, each with a maximum of 16 channels. This way, you are able to select and deselect
connected fixtures, to change settings and/or values.
The unit is designed for intelligent DMX fixtures, such as movingheads, scanners, lighting effects and
static (RGB) LED lighting which consume several DMX-channels.
The unit has the capability to store up to 240 scenes, spread over 30 banks with 8 scenes each. Each
scene may contain an unlimited number of channels with certain values.
Saved scenes can be recalled to create chases. Chases consist of a certain selection of steps,
carefully placed after each other in a continuous loop. This way it is possible to configure effects as
movement and color-changing with your lighting fixtures. Each chase may contain up to 240 steps,
composed of the stored scenes, in any order. Multiple chases can be activated at the same time, this
creates opportunities to activate or de-activate groups of lighting fixtures with certain chases.
The unit is equipped with a joystick, with pan and tilt movement. The pan and tilt movement can be
patched to the X and Y controls of your intelligent DMX devices, for easy programming.
Re-assignable channels give you the opportunity to combine certain DMX-channels, to control them
with just one fader. This can be practical for dimmer functions, RGB color mix and strobe-functions.
This way it becomes possible to combine DMX fixtures that have a different DMX-channel setup.
While running a chase, it is possible to select automatic or music controlled speed adjustment.
Manual speed adjustment is possible with the Speed and Fade time faders. The Speed fader
determines the time it takes to switch from one step to another. The Fade time fader determines the
time it takes from one value to change to another value. Instead of using the Speed fader, it is
possible to use the Tap Sync function, by tapping this button to the beat of the music.
Music controlled speed adjustment is possible in two separate ways. The controller has a built-in
microphone, which senses music and responds by selecting the proper speed for your chases. With
every beat, the unit will change steps in a chase.
Fixtures whose values are already determined in a chase, can be adjusted on-the-fly. This might be
helpful if you wish to correct a color of one or a few fixtures. Just simply select the fixtures you wish to
adjust, change the values and the programmed values will be overruled.

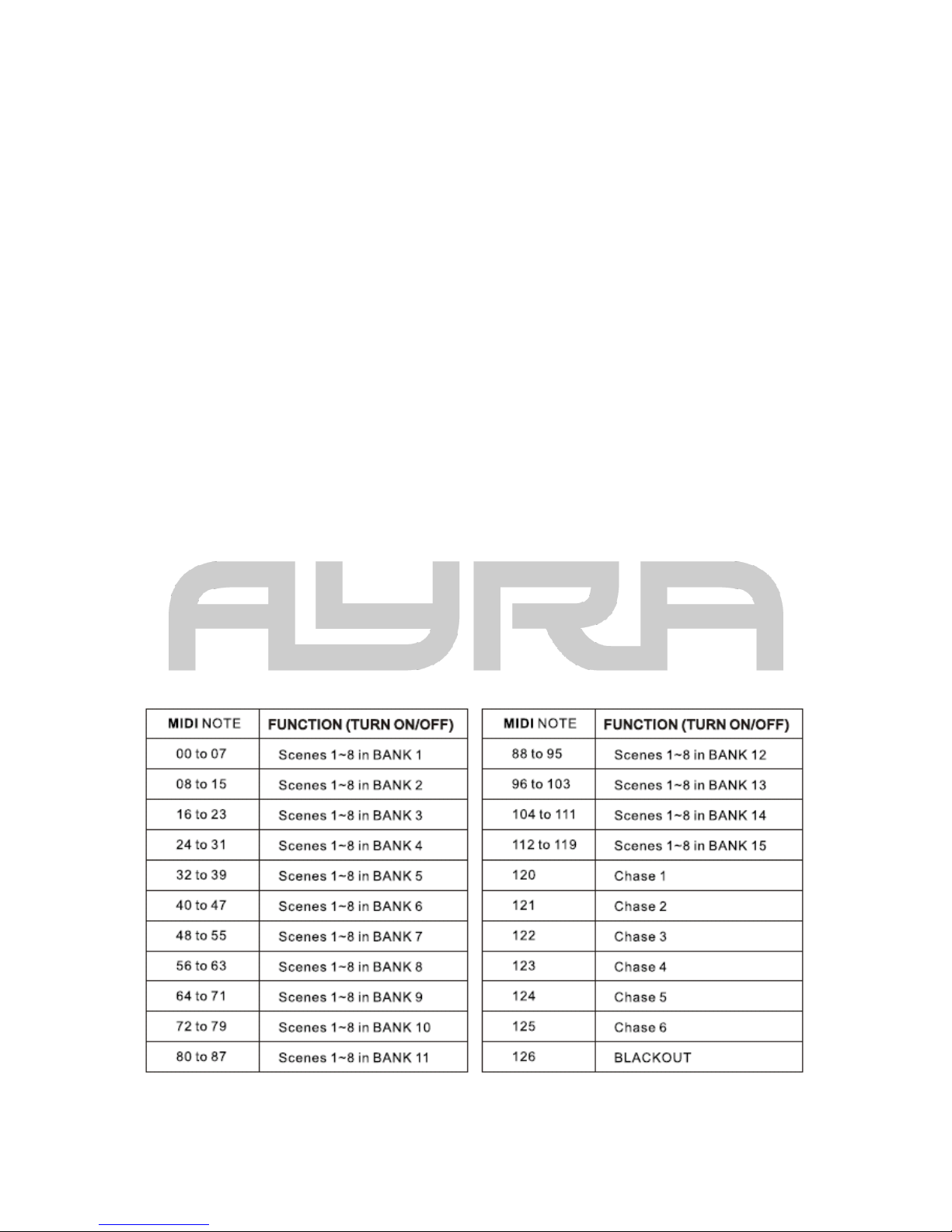

The unit is MIDI compatible, so it is possible to connect external MIDI devices to control functions of
the controller. It has a MIDI input port, which makes it possible to trigger banks and scenes using MIDI
signals.
Any other functions will be explained later on in this manual.

4

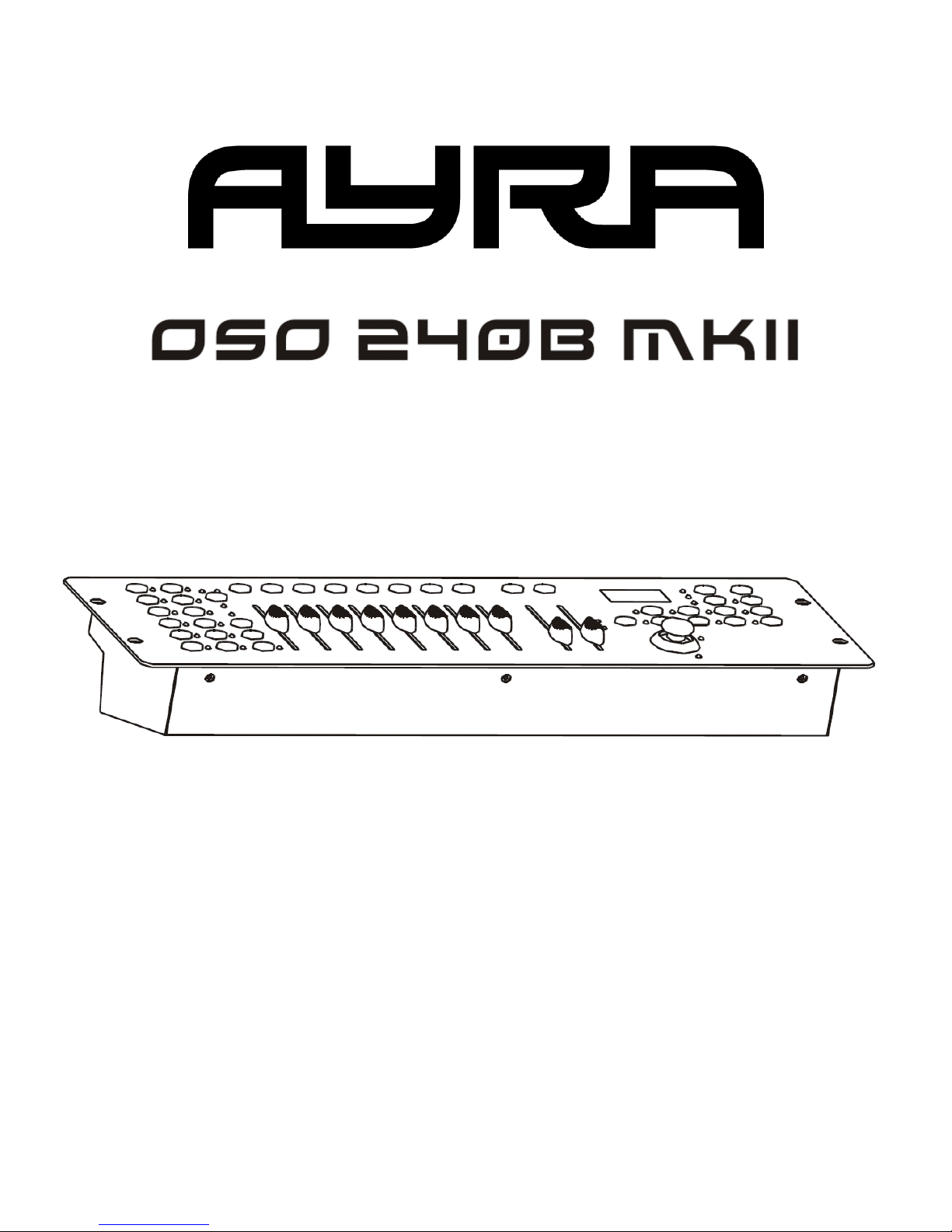

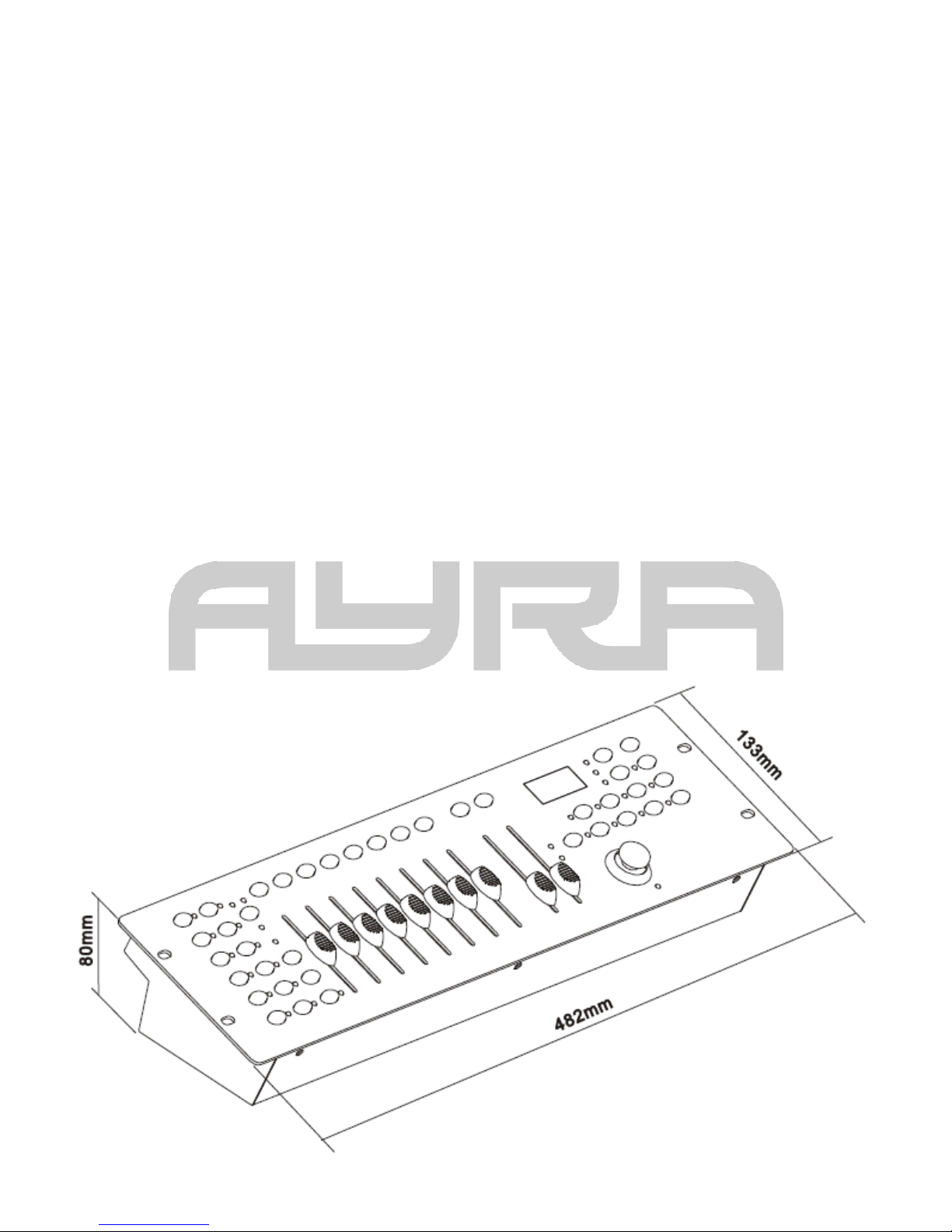

Product overview
1. Scanner select button: Select the fixture you wish to operate with the faders
2. Scanner indicator LEDs: Indicates if a scanner is active or not
3. Scene select buttons: 8 scene buttons, representing storing locations for sceens
4. Channel faders: Sliders to adjust the DMX-values of each channel. 8 faders
5. Page A indicator LED: Indicates channel 1-8 on page A
6. Page B indicator LED: Indicates channel 9-16 on page B
7. Page select button: Toggle between page A and B to change channels 1-8 and 9-16
8. Program button: used to enter the programming mode
9. Music/bank copy button: Used to activate the music mode. Used to copy values and scenes
while programming
10. LCD display window: displays values such as chase- and scenenumbers, and/or speed
values and DMX values
11. Mode indicator LEDs: operating mode status LED (music, manual, auto)
12. Bank up button: Scroll up in the bank selection
13. Bank down button: Scroll down in the bank selection
14. Tap display button: tap-sync during playback, toggles DMX-values to % while programming
15. Blackout button: Blocks all output and sets all values to 0
16. MIDI/Rec button: activates external MIDI control to trigger scenes and banks
17. Assign LED: indicates that the controller is in Channel assign mode
18. Auto/Del button: used to activate the auto mode, used as delete button while programming
19. Chase buttons: used to activate or de-activate chase 1-6
20. Speed fader: adjust the hold time of a scene or step in a chase
21. Fade time fader: adjust the speed of valuechange between two scenes in a chase
22. Fine button: Activates 16-bit movement if applicable, for X and Y channels, for fine
movement optimalisation
23. Reverse LED: indicates reverse channel function (to invert channel values, for pan and/or tilt)
24. Pan/Tilt joystick: Used to change the values of selected X/Y channels on one or several
fixtures
25. Mode button
26. Override button

5

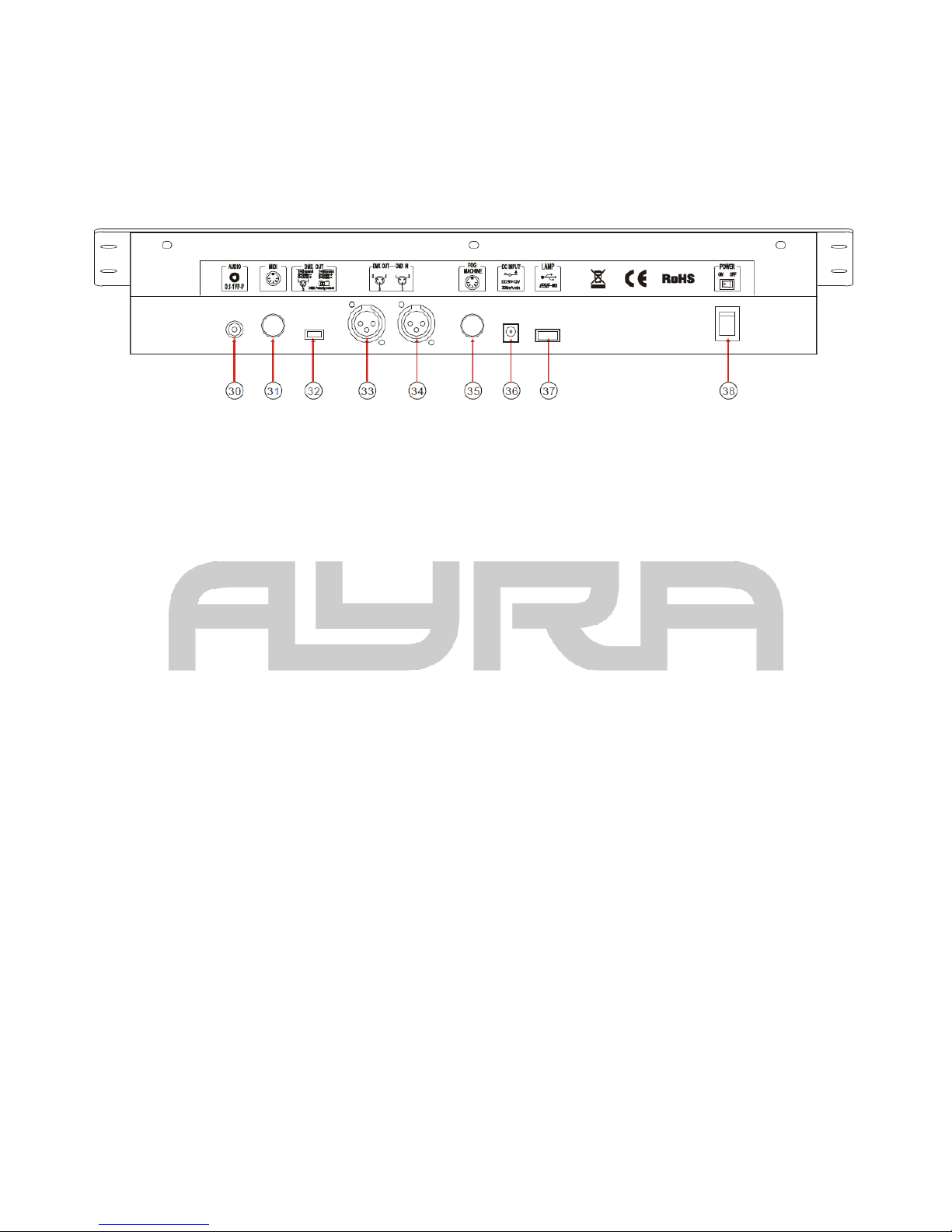

27. Fog machine button: Activates the fog machine (NOTE: not all fog machines work with
this function)
28. Fog machine ready indicator
29. Fog machine heating indicator
30. Audio input jack: direct audio input from a line signal audio source, connected with 6.35mm
jack
31. MIDI input port: 5-pin DIN connector for external MIDI signals

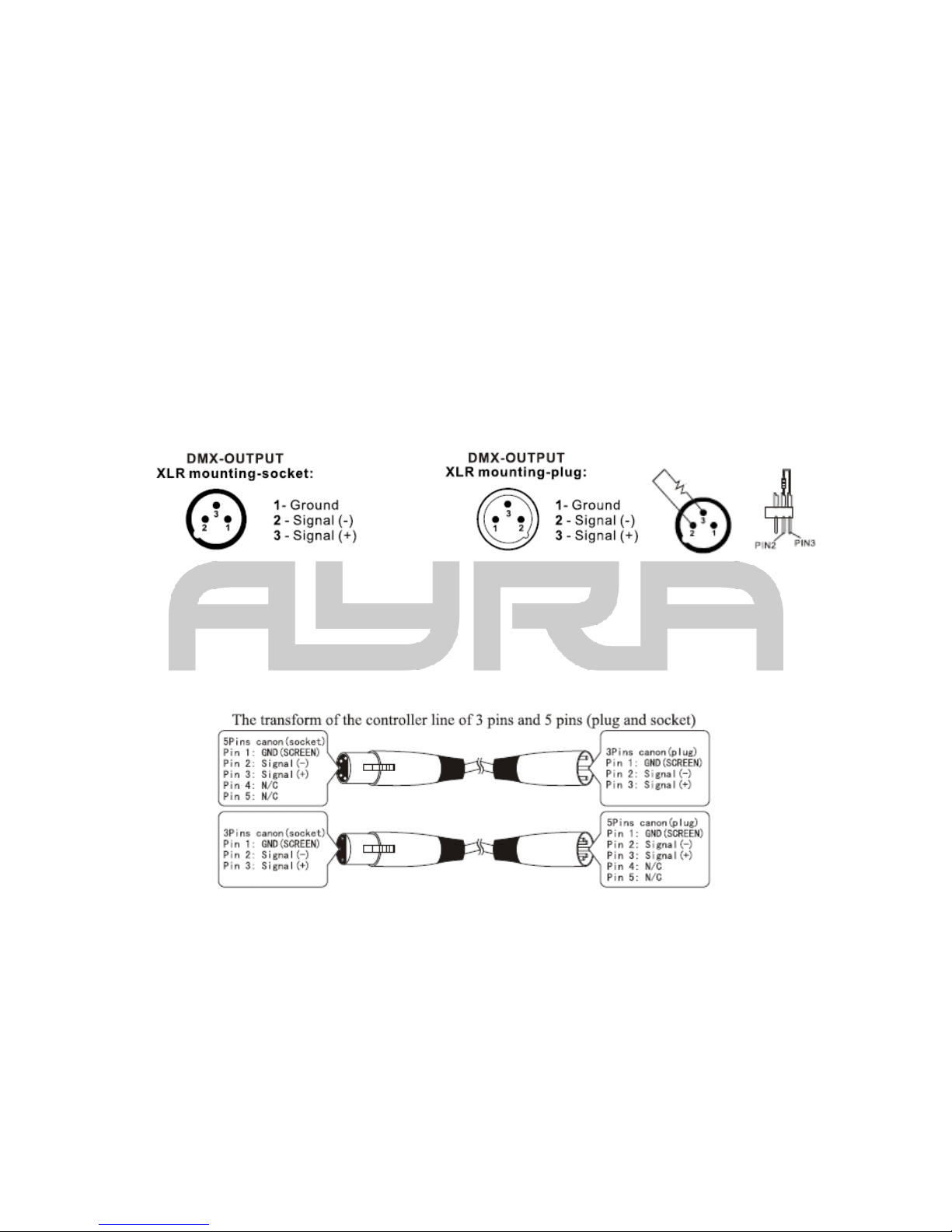

32. DMX polarity switch: switches the polarity of your XLR 3-pin connector (for Martin protocol)
33. DMX output connector: 3-pin XLR connector
34. DMX input connector: For File Dump data exchange only, using a 3-pin XLR connector
35. Fog machine input: 5-pin DIN connector for fog machines (NOTE: not all fog machines
work with this function)
36. DC input: Connector for the included power supply
37. USB lamp socket: USB connector, to power the included LED gooseneck light. Not suitable
for any kinds of data transmission!
38. ON/OFF switch: switches the power on or off.

6
Common terms
Blackout: A state where all DMX values are set to 0, causing all output to be blocked from your
lighting fixtures. The functions on your controller will be still operating
Fixture: Also called scanner, a term which describes a lighting device, such as a movinghead,
scanner, lighting effect or LED-projector.
DMX-512: An industry standard for digital communication between lighting controllers and lighting
fixtures, used in the entertainment sector.
Programs: also called chases, a term which indicates a series of scenes or steps, put together in
order, continuously looping.
Scene: A static lighting pattern, saved as a preset
Sliders: Also known as faders, in this case describing knobs which move in a vertical direction, used
to determine certain values of channels
Scanner: See: fixture. Used to describe a fixture with pan and tilt functionality (movement)
MIDI: A music industry standard for data-communication between musical devices, such as
keyboards. In this case used for triggering scenes and banks
Stand alone: Refers to the ability of a fixture to operate without any controlling device connected. In
most cases, an automatic program or music activated show must be selected.
Fade time: Determines the time it takes for one value to change to another value in a chase
Speed: Determines the time it takes for one step in a chase, to go to another step in a chase
Shutter: A mechanical device in a lighting fixture, capable of blocking the output of a fixture while
leaving the light source on
Patching: The process of assigning several DMX-channels to one fader for easy operation.

7
Programming and configuration
Setting up the system
Place the unit on a solid surface, or mount it in a 19 inch flightcase/rack. Connect the included DC
power supply at the rear of the panel and plug it into a suitable wall outlet or power distribution box.
Plug in the DMX-cables from the controller to all your fixtures and daisy-chain every fixture you wish to
connect.

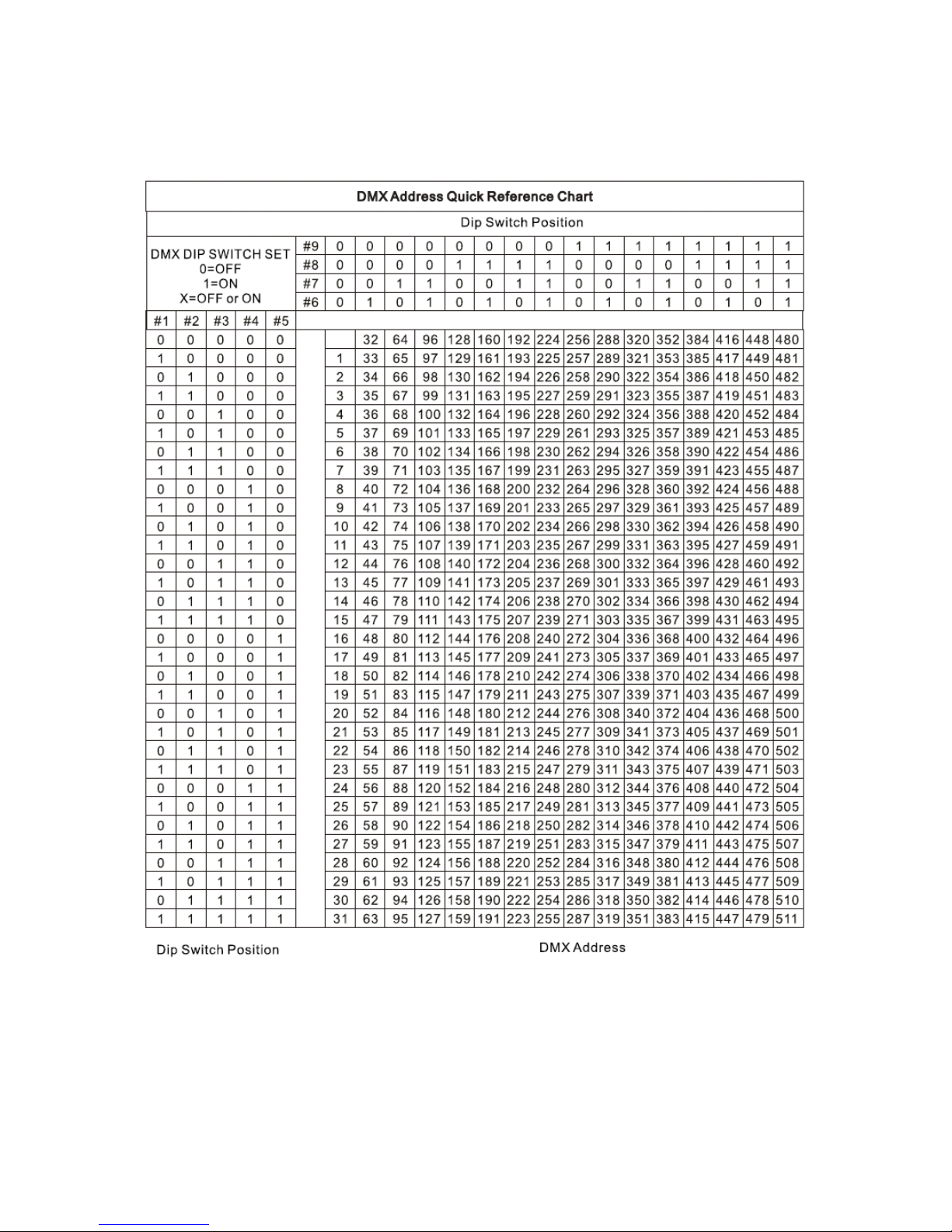

Make sure that every fixture has the right DMX-address for optimal programming benefits. The device
has 12 fixtures, with 16 channels each. Thus, if you wish to address every fixture to a fixture button,
you need to select the following addresses:

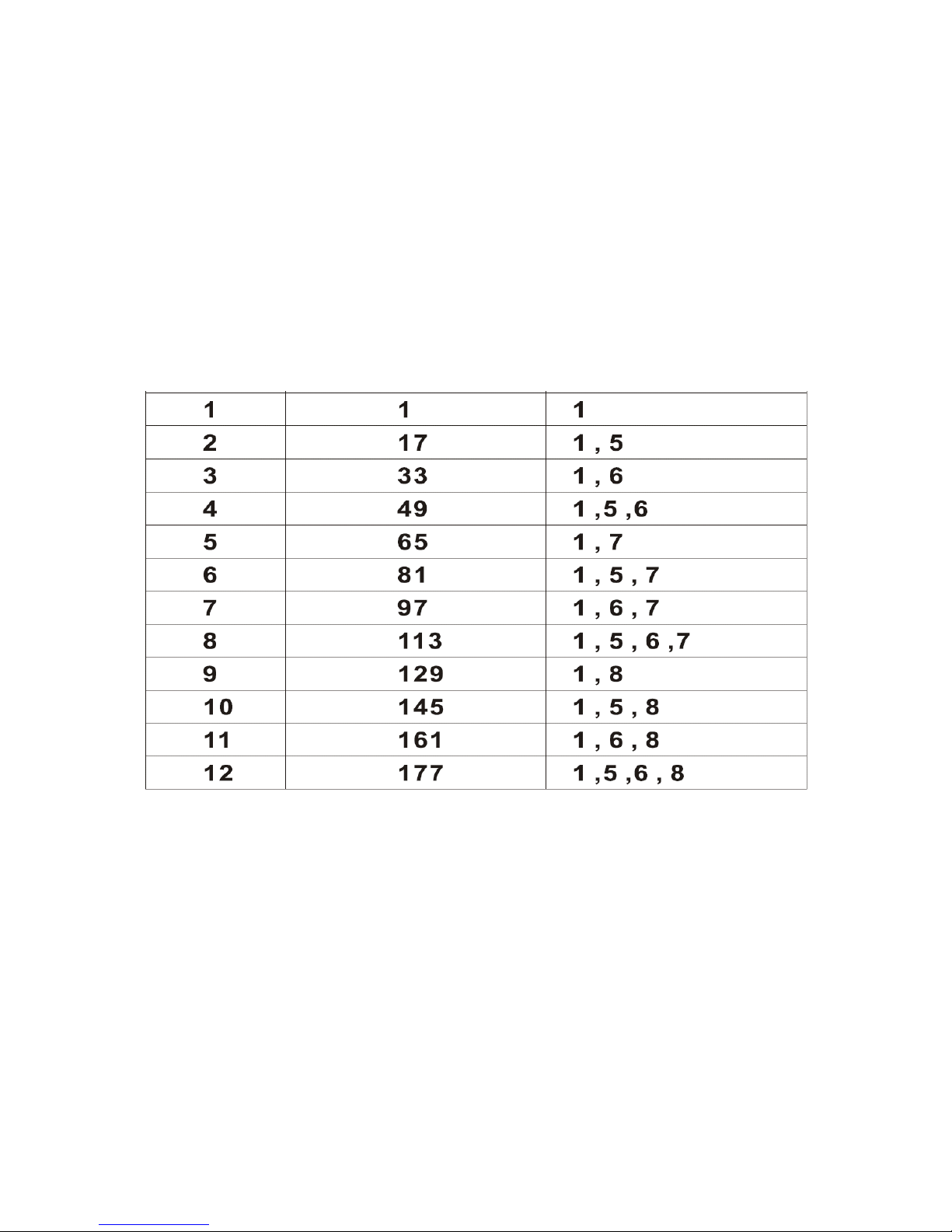

Fixture DMX-address Dipswitch settings
NOTE: The last column describes the dipswitches you would have to turn on to select the right DMX
address. Some fixtures require DMX dipswitch 10 to be turned ON, to activate the DMX mode.
NOTE: For DMX fixtures with a LED display for the DMX addressing, you don’t need to use the DMX
dipswitch settings.
Joystick assignment
- Press and hold the Program button until the corresponding LED blinks
- Press and hold Fine & Mode buttons together (2 times) to access the Channel Assignment mode.
The Assign LED will light up.
- Press a Scanner number, for the fixture you wish to apply the joystick to (pan and tilt)
- Use the Bank UP/DOWN buttons to select Pan and Tilt wheel and the Pan/Tilt LED will turn on.
- Press Tap/Display button to switch pages, if necessary.
- Press and hold MODE button, then press the Scene button to select the DMX channel you wish to
apply pan and tilt for.
- Press and hold Fine and Mode buttons to exit the assignment mode.

8
NOTE: The joystick can be reassigned to an output on another DMX channel. Press Auto/Del and
Mode buttons at the same time to delete the assignment
NOTE: You can re-assign the DMX channel to all controller fader channels
Reverse review
- Press and hold Fine & Mode buttons together to access the wheel assignment mode
- Press a Scanner button to select a scanner
- Press and hold Fine & Mode buttons (2 times) to exit the assignment mode
Joystick reverse
- Press and hold Fine & Mode buttons together to access the wheel assignment mode
- Press a Scanner button to select a scanner
- Press and hold Fine & Mode buttons to exit the assignment mode
Copy scanner
It is possible to copy the programming values of one scanner to another scanner. This way, it makes it
easier to create synchronized lightshows, without having to add the separate values each time.
- Press and hold Scanner button 1
- Press Scanner button 2
- Release Scanner button 1
- Release scanner button 2
- All Scanner LED indicators will flash, indicating that the copy was successful.
Reverse channel output
It is possible to reverse certain channel values. This way, you are able to invert certain pan and tilt
values, without having to invert the values manually.
- Press and hold the Program button until the LED blinks
- Press and hold Fine & Mode buttons together to access the channel assignment mode
- Press the scanner button of which you wish to invert a channel
- Use the Bank Up/Down buttons to select pan and tilt
- Press the Tap/Display button to switch pages, if needed
- Press and hold the Mode button, then press the corresponding Scene button to select the DMX
channel of which you wish to invert the channel
- Press and hold the Fine & Mode buttons 2 times to exit
Fade time assign
It is possible that you want to change the Fade Time behavior of the controller. This way, you are able
to only affect the pan and tilt channels of your fixtures, instead of all channels. This way, color
changes, gobo changes and macro’s will move very fast and direct, while your movements will go
smoother.
- Turn off the controller
- Hold the Mode and Tap Display buttons simultaneously
- Turn on the controller
- Press the Tap Display button to toggle between two modes (ALL CH / ONLY X/Y)
- Press Mode and Tap Display buttons to save the settings. All LEDs will blink to confirm the change.

9
Manual operation
The manual mode provides direct access to all scanners. This way, you are able to move and change
attributes by using the channel faders and/or joystick.
- Press the Auto Del button repeatedly until the Manual LED is lit
- Select a Scanner button
- Move faders and/or joystick as you wish
- Select Page A (1-8) or Page B (9-16) to change values for all channels in a fixture
- Tap Display button: Change the values on the display between 0-255 (DMX) and 0-100 (%)
NOTE: all changes made in manual mode are temporary and will not be recorded.
Review a scene or chase
It is possible to load a scene or step (from a chase) to use as example for your lighting setup in live
operation mode. For example, if you already have a scene with correct positioning of pan and tilt
values (for example in a fan), you can recall a scene to load these values. All you have to do is apply
correct gobo and color settings.
Recall a scene
- Select one of the 30 banks by using the Bank UP/DOWN buttons
- Select a scene (1-8)
- load the scene and apply changes
Reload a chase
- Press any of the 6 Chase buttons
- Press the Tap Display button to view the step number on the display
- Press the Bank UP/DOWN buttons to review all scenes in the chase
Creating a scene
A scene is a static lighting state, stored into a location for later recall. Scenes are stored in banks, up
to 8 scene can be stored in a bank. So in total, there are 240 scene storing locations available.
- Press the Program button until the LED blinks
- Position Speed and Fade Time faders all the way down
- Select the Scanners you wish to include in this scene
- compose a certain look by changing channel values
- Tap the MIDI/Rec button
- choose a bank (01-30) for storage
- Tap one of the Scene buttons (1-8) to store the scene
- Repeat steps as much as necessary (select scanners –store scene)
- to exit the Program mode, hold the Program button.
NOTE: Deselect the Blackout button if it’s lit.
NOTE: Access channel 9-16 on a fixture with Page A/B buttons
NOTE: There are only 8 scenes available in every bank
NOTE: All LEDs will flash as a confirmation when a scene is stored successfully. After this, the LED
display will show the scene number and bank which is used now.
TIP: Press the Fine button when you are programming, so values will only increase or decrease by ‘1’.
SHORTCUT: [Program][Scanners][Faders/Wheels][Bank][Scene][Program]

10
Running a program
NOTE: A ‘Program’ in this manual is described as a series of scenes inside a bank, placed after each
other in a continuous loop. It is comparable to a Chase, but has a logical order and only consists of the
scenes that are stored in that bank.
- Use the Bank UP/DOWN buttons to change Program banks
- Press the Auto/Del button until the Auto LED turns on
- Adjust the Program speed with the Speed fader
- Adjust the loop rate with the Fade Time fader
- Alternitavely, you are able to tap the Tap Display button twice. The time between these two
determine the speed.
Review a program
- Press and hold the Program button until the LED blinks
- Use the Bank UP/DOWN buttons to select the Program bank to review
- Press Scene buttons to review each scene individually
Editing a program bank
- Press and hold the Program button until the LED blinks
- Use the Bank UP/DOWN buttons to change Program banks
- Select the desired fixture with the Scanners button
- Adjust and change fixture values with the faders and joystick
- Press the MIDI/REC button to prepare the save
- Select the desired Scene button to save the scene to
Copy a program bank
- Press and hold the Program button until the LED blinks
- Use Bank UP/DOWN buttons to change Program banks
- Press the MIDI/REC button to prepare the copy
- Use the Bank UP/DOWN buttons to select the destination Program bank
- Press the Music Bank Copy button to execute the copy. All LEDs will blink
- All 8 scenes of the Program bank are copied to the new location.
NOTE: This will override any saved scenes in the bank you selected!
Create a chase
NOTE: A chase consists of multiple scenes, arranged in a chosen order by the programmer. Up to 240
scenes can be added to a single chase.
NOTE: A step in a chase consists of a scene, stored in the Program Banks
- Press the Program button until the LED blinks
- Press the chase (1-6) you wish to select
- Change the Bank if necessary, to locate a scene
- Select the scene you wish to insert
- Tap the MIDI/REC button to store the scene to this step
- Repeat the steps above to add additional steps (change bank –tap MIDI/REC)
- Press and hold the Program button to save the chase
