OPERATION MANUAL
Model:8903/8904/8906
ANEMO-PSYCHROMETER
&
BTU-PSYCHROMETER
Model:
8902
8911
8912

Thank you very much for purchasing
this Anemo-Psychrometer.
This unique meter design with 7 H.V.A.C
&R must parameters in 1. The meter
designed as battery operated for Humidity
,Air temp., Dew Point, Wet Bulb, Air
Velocity, Air Volume & BTU (8912).
The sensor is built in the remote fan and
is specially protected by tunable cap.
While in operation, please turn on the cap
to get accurate temperature and humidity
reading.
The psychrometer is a micro processor-
based design. A must device for HVAC
engineers use. No need to whirl the
meter or refer to the chart. Easy to get
wet bulb, dew point and BTU(8912)
quickly!
Features :
1
INTRODUCTION
Big LCD digit display
Professional remote vane
Metric& Imperial selectable
Handheld size, easy to carry
Low battery indication
Fast response &
Tripod mountable for long time use
Dew Point calculated in seconds
Wet Bulb calculated in seconds
Microprocessor circuitry for reliability
Sleep and non-sleep selectable
Powered by 4 AAA batteries or 9VDC
adaptor
Back light for dark places
Accurate reading
Tunable cap to protect sensor
Up to 8 velocity memory (only 8911)

2
The meter x 1
Remote vane x1
Battery x 4 (AAA size )
Operation manual x1
Hard carry case x1

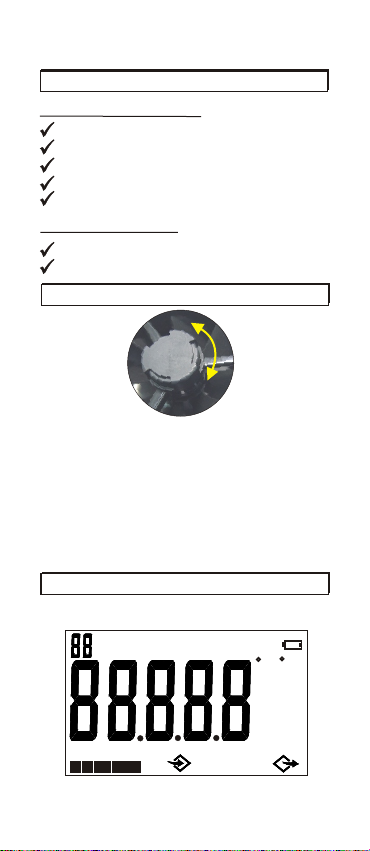

This package contains:
MATERIAL SUPPLIED
REMINDER
1. Rotate the cover before measurement
to ensure the measured data is correct.
.
Important:
AC to DC 9V adaptor
RS232 cable & CD
Optional accessory:
2. The fan and meter are sold as a kit and
are well calibrated.
When you need to replace the fan,
please see page 16 for the details of
fan replacement.
CONTROLS AND INDICATORS
LCD DISPLAY
DPWBA VOLVG CAPMAXMIN
%RH
m/s ft/m
cfm
Btu/hKw
CF
M/m
3
REC HOLD WAITSTART
LDWinch
cm2
2
AREA

3

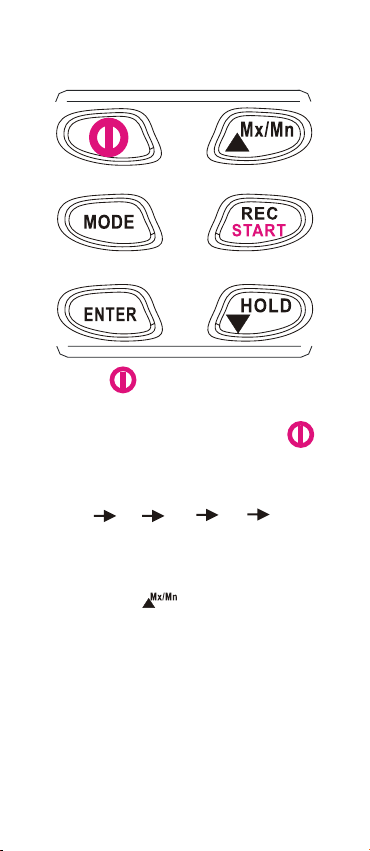

KEY PAD
1.Power :
-Turn on the meter with auto-sleep mode.
-Turn off the meter at any mode.
-When the meter is off, pressing more
than two sec. to enter units selection.
2.MODE:
-Pressing to select different modes.
Temp. DP WB RH Velocity.
-Pressing longer to select VOL and CAP.
3.ENTER:
- To confirm the setting & calibration.
4.Mx/Mn/Up :
-Pressing to view MAX/MIN/AVG value.
-Press to select the value of each digit
in cycle.
5.REC/START:
- In velocity mode, pressing this key to
store the current velocity reading into
memory (8911only)
- To start measuring volume or capacity
(8912 only) without waiting.

4
6.HOLD/Down :
- In basic modes pressing this key to
hold the current reading, then pressing
this key again to unlock the holding.
- Pressing to select the setting digit.
7.Power + :
- When the meter is off, pressing more
than two sec. to enter non-sleep mode.
8.Power + + :
- Pressing more than two seconds to
enter RH calibration mode.
9.ENTER+ :
- Pressing to turn on/off the backlight.
%RH
Ft/m
cfm
Btu/h
F
C
%RH
m/s
Kw
M/m
3
POWER ON/OFF & UNIT SELECT
Press to turn on the meter with
auto-sleep mode. Press again to turn
off the meter at any mode.
Or
cm inch
When in unit selection mode, press
or to select the unit, then,
press to save and meter will be
powered on automatically.
When the meter is off, pressing
more than two seconds to enter units
selection mode.
BASIC MEASUREMENT
Please refer to below table of the basic
measured parameters of each model

8902 89128911
Basic Measure
Air temp.
Humidity
Dew Point
Wet Bulb
Air Velocity
Vel with
average
Air Volume
Capacity
Extend Measure
8902 89128911
Sum of
Volume
Sum of
Capacity
5
m/s
REC
When power on, the air temperature
is the default value to show on the LCD.
To review the other basic parameters,
just press key then each parameter
will be display in turn.

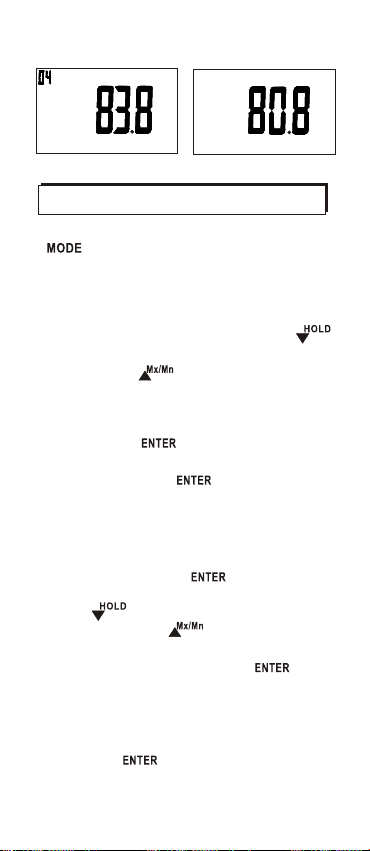

Velocity with memory (8911 only)
In velocity mode, press to store
value into memory. A record number will
be displayed on the top-left of the LCD.
The max. record is 8 points.(Fig.A)
While in basic mode, press for over
2 seconds to enter extend measurement
mode. For 8912, also press key to
switch between volume and capacity.
(Fig.A)

MAX
%RH
DP MIN
F
6
From the meter is powered on, air temp.,
dew-point, WBT, humidity & velocity will
be temporarily saved in meter, so, to
press could view the average value
minimum value and maximun value in
turns. Press again to back to normal
mode. The data will be re-counted once
the meter is powered off and turn on
again.

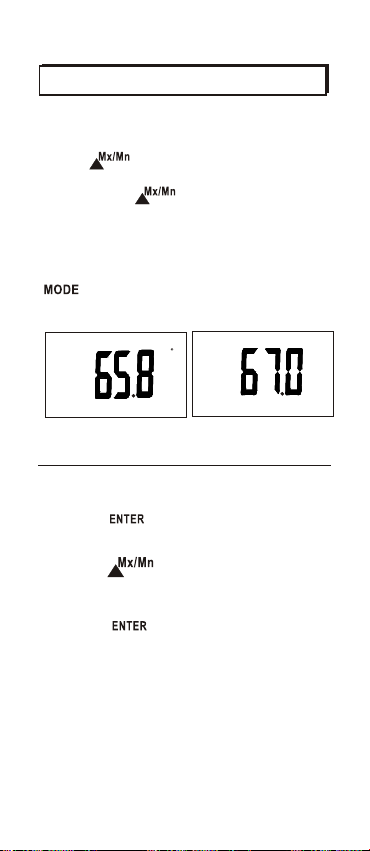

MAX, MIN & AVG.
When in Max./Min./Avg. mode, pressing
key to display the parameters you
need. (Fig. B, Fig. C)
(Fig. C)
(Fig. B)

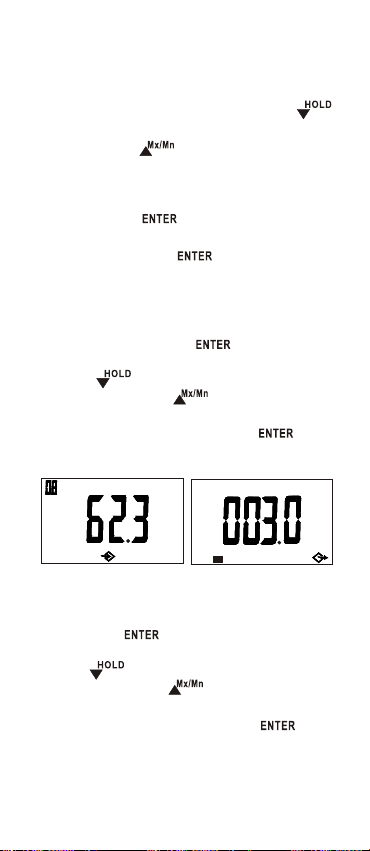

Checking velocity memory(8911 only)
While the 8911 is in velocity mode and
with record in memory (up to 8 points),
pressing key to review average
value (at moment, the meter is in hold
mode).
Pressing key to view the minimum
/maximun value of memorised velocity
in turns.(Fig.D & Fig. E)
Pressing key again to exit above
average/ min. /max. review and back to
normal.
The memorized record will be deleted
after the meter is powered off and turn
on again.

7
AIR VOLUME: OUTLET SIZE
While in normal mode, long pressing
key to enter air volume mode.
To measure the volume, the outlet size
need to be input first. There are three
choice to enter the size:
- Length & Width:
This is the default choice. Press
key to select the setting digit first,
then press key to select the
appropriate value ( 0~9). When select
the value, the value will show from 0
to 9 in cycle. After entering length,
short press to enter width setting.
Repeat the procedure of length setting,
then short press again to finish
the size setting and enter next step.
(Fig.F)
AVG
Ft/m
HOLD
MIN
Ft/m
HOLD
(Fig.E)
(Fig.D)
- Diameter:
While in default outlet setting mode
(length), pressing key for over
two seconds to choose diameter setting.
Press key to select the setting digit
first, then press key to select the
appropriate value ( 0~9)
After selection, short press again
to finish the size setting and enter next
step. (Fig. G)
- Area:
While in diameter setting mode,
pressing key for over two seconds
to enter area setting.

VOL
cm
L
VOL
cm
W
VOL
cm
D
2
VOL
cm
AREA
(Fig. F)
(Fig. G) (Fig. H)
8
AIR VOLUME: MEASUREMENT
After short pressing to finish and
leave size setting, there are 20 second
waiting time for you to put the vane
to the grill.
Press key to select the setting digit
first, then press key to select the
appropriate value ( 0~9)
. After selection, short press again
to finish the size setting and enter next
step. (Fig. H)
Note: Refer to page 13 for the range
of each size input mode.
During the 20 second waiting time, the
count down number displayed on top-
left corner and meter also beeps when
time is up.(Fig. I)
If no need to wait for 20 seconds, just
pressing key to start measuring
the volume right away.
VOL
WAIT
m/s (Fig. I)

After starting measuring the volume,
the meter will automatically count the
volume for 60 seconds to give a average
value. (Fig. J) During this 60 second
time, the vane should move along the
whole outlet to cover each area so the
measured data could be more accuracy.
The count down number displayed on
the top- left corner as a reminder and
meter also beeps when 60 sec is up.
VOL
M/m
3
(Fig. J)
VOL
AVG
M/m
3
(Fig. K)
START
After time is up, 60 seconds average
volume will display on the LCD as Fig K.
9
After measuring more than one outlet
volume, you could press key to
review the sum of all outlets. Pressing
key to review the last outlet volume.
If there are more than one outlet, you
could press key again to repeat
the procedure from outlet size input.
You could measure outlet as many as
you need.
CAPACITY: OUTLET SIZE
While in normal mode, long pressing
to enter air volume, then short
press to enter capacity mode.
To measure the capacity, put the vane
on the Inlet, then press to count
the 60 second average Temp. & RH%
( Fig. L)count down will show on left-top
corner of LCD and meter beeps after 60
second is up. Then, the meter enter
outlet size setting automatically. (Note 1)

CAP
%RH
There are three choice to enter the size:
cm
CAP
W
(Fig. L) (Fig. M)
WAIT
10
- Length & Width:
This is the default choice. Press
key to select the setting digit first,
then press key to select the
appropriate value ( 0~9). When select
the value, the value will show from 0
to 9 in cycle. After entering length,
short press to enter width setting.
Repeat the procedure of length setting,
then short press again to finish
the size setting and enter next step.
- Diameter:
While in default outlet setting mode
(length), pressing key for over
two seconds to choose diameter setting.
Press key to select the setting digit
first, then press key to select the
appropriate value ( 0~9)
After selection, short press again
to finish the size setting and enter next
step. (Fig. N)
(FIg.M)
- Area:
While in diameter setting mode,
pressing key for over two seconds
to enter area setting.
Press key to select the setting digit
first, then press key to select the
appropriate value ( 0~9)
. After selection, short press again
to finish the size setting and enter next
step. (Fig. O)

CAPACITY: MEASUREMENT
After short pressing to finish and
leave size setting, there are 90 or 20
second (note 1)waiting time for you to
put the vane to the grill.
During above waiting time, the count
down number displayed on top-left
corner and meter also beeps when
time is up.(Fig. P)
CAP
WAIT
m/s
(Fig. P)
If no need to wait for 90 or 20 seconds,
just pressing key to start measuring
the capacity right away.
Note 1:
If you have many outlet to
measure, while you start to
measure the second one,
the waiting time will adjust
to 20 sec automatically.
90 sec.is the buffer for
sensor to stable. No matter
in inlet or outlet, suggest to
After starting measuring the capacity,
the meter will automatically count the
capacity for 60 seconds to give an
average value. (Fig. Q)
11
move the vane along the grill to get accuracy value.
cm
D
2
cm
AREA
(Fig. N) (Fig. O)
D
AREA
CAP CAP
During this 60 second time, the vane
should move along the whole outlet to
cover each area so the measured data
could be more accuracy. The count
down number displayed on the top- left
corner as a reminder and meter also
beeps when 60 sec is up.
After time is up, 60 seconds average
volume will display on the LCD as Fig R.

CAP
(Fig. Q)
CAP
AVG
(Fig. R)
START
If there are more than one outlet, you
could press key again to repeat
the procedure from outlet size input.
You could measure outlet as many as
you need.
After measuring more than one outlet
volume, you could press key to
review the sum of all outlets. Pressing
key to review the last outlet
capacity.
Kw
Kw
If you would like to measure more than
1 inlet, please wait for 10 minute and
allow the humiduty sensor to return to
the humidity room or help it by home
ventilation.
12
LOW-BATTERY
Two level low battery indication:
-Level 1: Battery indicator will flash when
meet level 1. In this situation, the meter
will work normal however users should
prepare new batteries.
-Level 2: Battery indicator will always
display on the LCD while meet lever 2.
In this situation, users need to change
batteries immediately.
1. Open the battery cover on the rear
side.
2. Remove the expired batteries.
3. Insert new 4pcs AAA batteries and
make sure the batteries are inserted
with correct polarity, put on the cover.

AC TO DC ADAPTOR
The compatible AC to DC adaptor is
9V at least 200mA.
13
cm
inch
L/W/D
000.0~999.0
AREA
000.0~999.9
00000~99999
00000~99999
AVAILABLE SIZE RANGE
Please refer to below input size range.
Please be reminded that in metric L/W/D
, the value after decal is not selectable.
RS232 SOFTWARE
Interface of RS232
Software
We have compatible software and
cable which is design for the meter,
please contact with your supplier for
the details.
VXXX.XMPS(FTM):TXXX.XC(F):HXX.X%:
dXXX.XC(F):wXXX.XC(F):
vXXXXX.XCMM(CFM):
UXXXXX.XKW(BTU)
NOTE: Last parameter (capacity) is for
8912 only.
B.Format: Tx. ASCII code by every sec.
while meter is on
A.9600 bps, 8 data bits, no parity.

14
C.Format for error value:
E01 Probe didn't connected;
E02 Under flow;
E03 Over flow. See more in page
The unit for error code is Nul.
V010.5MPS:TE02Nul:H66.7%:
dE04Nu:wE04Nul:v00020.5CMM.
EX:
The x here means one of {0|1|2| |9|-}
st
Where: The 1 value is velocity, the
nd rd
2 value is Air temp., the 3 value is
th
Humidity, the 4 value is Dew Point,
th
the 5th value is Wet bulb, the 6 value
is AIR Volume, the 7th value is Capacity.
TROUBLESHOOTING
1. Power on but no display
a)Make sure the time of pressing
key is more than 0.1 second.
b)Check the batteries are in place and
in good contact with correct polarity.
c)Replace a new battery and try again.
d)Move away the battery for one minute
andput back again.
2. Display disappear
a)Check whether the low battery
indicator displayed before Display
disappear, if yes, replace a new battery.
b)Turn on the meter by pressing +
key to disable auto power off
function for long time using.
3. E1
a)The probe is disconnected or damaged.
4. E 2
a)The value is underflow.

15
5.E 3
a)The value is overflow.
4.E4
a)The original data that is relative to this
value error.
5.E5
a)Out of meter display range.
6.E6
a)the value is not calculated completely.
7.E 11
a)Humidity Calibration error.
SPECIFICATION
TEMPERATURE : -20 to 60 (-4 to 140 )
Accuracy.：+0.6 (+1 ) ,
Resolution :0.1 (0.1 )
RELATIVE HUMIDITY : 0 to 100% RH
Accuracy ：+3% at 10 to 90%RH (cal. temp.)
+5% at other range
Resolution : 0.1%
DEW POINT : -68 to 70 (-90 to 158 )
Resolution：0.1
WET BULB TEMPERATURE :
-22 to 70 (-7.6 to 158 )
Resolution : 0.1
AIR VELOCITY : 0.6 to 32 m/s (118 to 6299 ft/m)
Accuracy：+(2% of reading+0.2 m/s)
Resolution : 0.1
3
AIR VOLUME : 0 to 99999 m /s (0 to 99999 cfm)
Accuracy：
Resolution :0.1 ( 0 - 9999.9 ) or 1 (10000 - 99999)
O O O
C C F
O O
C F
O O
C F
O O
C F
OC
O O
C F
OC
+2% of full scale

16
Power:4 x 1.5V AAA battery or
9V >200mA adaptor.
ADDITIONAL FEATURE :
BTU CAPACITY : 0 to 99999 BTU/H (KW) (8912)
Resolution : 0.1 ( 0 - 9999.9 ) or 1 (10000 - 99999)
Dimension : (HxWxD)
3 3
Vane：170 x 77 x 40 mm ; Meter：175 x 70 x 33 mm
FAN REPLACEMENT
If users have more than one set anemo-
meters or users change a new fan for
his old meter, user should input the
RH% calibration data which enclosed
with each fan. The data will be recorded
in a slip of paper and ship with fan, please
keep the paper well for future use.
There are two calibration data need to
be inputted. First value is "Slope, S" and
the second value is "Intercept, Z"
Slope(value S)
1. While the meter is off, press
+ + at the same time for
2 seconds to enter humidity slope
calibration mode. LCD will display
current saved S value and the last
digit will flash to indicate the value
is ready for edit.
2. If the saved S value is different from
your paper, press key to move
to the digit which you want to edit
and then use key to change
the value.
3. Press key to save new input
S value and then meter will enter
second value input automatically.

17
Intercept (value Z)
1. While press key save the S
setting, the meter will enter intercept
input automatically. The last digit
will flash to indicate the Z value is
now ready for edit.
2. If the last saved Z value is different
from your paper, press key to
move to the digit which you want
to edit and then use key to
change the value.
3. Press key to save new input
Z value and then meter will be back
to normal RH value mode.
Important Note: While setting Z value,
only input 3 digits after decimal point, so
user need to round off the 4th digit.
Important Note: While setting the slope,
only input 5 digits after decimal point, so
user need to round off the 6th digit.
User should also input two digits before
decimal.
Example:
a. If the S value is 8.239678, user
should input 08 23968
b. If the S value is 11.23968, user
should input 11 23968
c. If the S value is 0.2396838, user
should input 00 23968 (Fig. S)
(Fig. S)

Proof of purchase is required for
warranty repairs. Warranty is void if the
meter has been opened .
The meter is warranted to be free from
defects in material and workmanship
for a period of one year from the date
of purchase. This warranty covers
normal operation and does not cover
battery, misuse, abuse, alteration,
tampering, neglect, improper maintenance
or damage resulting from leaking batteries.
WARRANTY
Authorization must be obtained from the
supplier before returning items for any
reason. When requiring a RA (Return
Authorization) , please include data
regarding the defective reason, the
meters are returned along with good
packing to prevent any damage in
shipment and insured against possible
damage or loss.
RETURN AUTHORIZATION
18
(Fig. T)
Example:
a. If the Z value is -928.8683, user
should input 09 28868
User should also input four digits before
decimal. All the Z is a negative value but
LCD will not appear the negative icon.
b. If the Z value is -1928.868, user
should input 19 28868
c. If the Z value is -89.68482, user
should input 00 89685 (Fig. T)

Accuracy, the Zenith of
Measuring / Testing Instruments !
More products available !
Hygrometer/Psychrometer
Thermometer
Anemometer
Sound Level Meter
Air Flow meter
Infrared Thermometer
K type Thermometer
K.J.T. type Thermometer
K.J.T.R.S.E. type Thermometer
pH Meter
Conductivity Meter
T.D.S. Meter
D.O. Meter
Saccharimeter
Manometer
Tacho Meter
Lux / Light Meter
Moisture Meter
Data logger
Temp./RH transmitter
Wireless Transmitter ..........
2010.05 modify
