Azoi Kito User manual

Kito
User Manual
Part Number: 15-0001-00
Release Date: 29 September 2015

Instructions for Use AZOI_KITO_IFU_v1.33
AZOI/FM/IFU/018 Rev 01 AZOI Proprietary and Confidential Page 2of 35
Table of Contents
1About Kito............................................................................................................................ 5
2Important Information.......................................................................................................... 5
2.1 Safety ....................................................................................................................................... 5
2.2 Intended Use............................................................................................................................5
2.3 Contraindication ...................................................................................................................... 5
3Unpacking ............................................................................................................................ 6
3.1 Package Contents.....................................................................................................................6
3.1.1 Device Unpacking ...............................................................................................................6
3.2 System Requirements for App installation .............................................................................. 6
3.3 Know your Device ....................................................................................................................7
3.4 Charge your Device..................................................................................................................8
4Get Started........................................................................................................................... 8
4.1 Setup........................................................................................................................................ 8
4.2 Install the App.......................................................................................................................... 9
4.3 Create an Account....................................................................................................................9
4.4 Pair your Device.....................................................................................................................10
4.5 Do a Test Reading...................................................................................................................10
4.6 Remove Kito...........................................................................................................................11
5Your Health Data ................................................................................................................ 12
5.1 Know your Vitals....................................................................................................................12
5.2 The Dashboard.......................................................................................................................13
5.3 Readings by Type ...................................................................................................................14
5.3.1 Heart Rate.........................................................................................................................14
5.3.2 SpO2 .................................................................................................................................16
5.3.3 Respiration........................................................................................................................16
5.3.4 Skin Temperature..............................................................................................................17
5.3.5 ECG ...................................................................................................................................17
5.4 Share Reports ........................................................................................................................18
5.4.1 Single Address...................................................................................................................18

Instructions for Use AZOI_KITO_IFU_v1.33
AZOI/FM/IFU/018 Rev 01 AZOI Proprietary and Confidential Page 3of 35
5.4.2 Multiple Addresses ...........................................................................................................18
5.4.3 Automatically to specified address...................................................................................18
6Important Settings.............................................................................................................. 18
6.1 Adding Multiple Users ...........................................................................................................18
6.2 Security and Privacy...............................................................................................................18
6.3 Configure Alerts.....................................................................................................................19
6.4 Sync Fitbit™ ...........................................................................................................................19
7Care ................................................................................................................................... 19
7.1 Cleaning .................................................................................................................................19
7.2 Storage...................................................................................................................................19
7.3 Maintenance..........................................................................................................................19
8Caution .............................................................................................................................. 19
9Troubleshooting ................................................................................................................. 21
9.1 Error Messages ......................................................................................................................21
9.2 Potential Problems and Solutions..........................................................................................21
10 Specifications .............................................................................................................. 23
11 Deactivate ................................................................................................................... 27
11.1 Unpair .................................................................................................................................... 27
11.2 Uninstall.................................................................................................................................28
11.3 Disposal..................................................................................................................................28
12 International Standards and Compliances..................................................................... 28
12.1 Compliance to Standards.......................................................................................................28
12.2 Electromagnetic Emissions ....................................................................................................29
12.3 Electromagnetic Immunity ....................................................................................................30
12.4 Guidelines and Manufacturer’s Declaration – Electromagnetic Immunity ...........................31
13 FCC Statement ............................................................................................................. 32
14 Recommended separation distance .............................................................................. 33
15 Declaration and Disclaimers ......................................................................................... 34
16 Acronyms .................................................................................................................... 35

Instructions for Use AZOI_KITO_IFU_v1.33
AZOI/FM/IFU/018 Rev 01 AZOI Proprietary and Confidential Page 4of 35
About Azoi
We, at Azoi, have been working on “monitoring technology” which would enable people to track
their health. We intend to provide consumers an easy and accessible way to measure their critical
vitals in a home environment. Azoi’s team includes experts in sensor technology, product design,
application development and quality assurance to ensure that the delivered product conforms to the
prescribed requirements.
Manufacturer Information
Azoi Inc.
440 North Wolfe Road
Sunnyvale, CA 94085
Assembled By
OnCore Manufacturing Services (Suzhou) Inc.
Building 5#, No. 42 Dongfu Rd.
Suzhou Industrial Park, Suzhou, P.R.C. 215123
EU Representative
Marc Eylmann
1000deals Salesforce UG (haftungsbeschränkt)
Dammwiesenstr. 25, 22045 Hamburg, Germany
www.azoi.com
For any assistance, write to Azoi at [e-mail].

Instructions for Use AZOI_KITO_IFU_v1.33
AZOI/FM/IFU/018 Rev 01 AZOI Proprietary and Confidential Page 5of 35
1About Kito
Welcome and thanks for your purchase!
We are glad that you are a part of the Kito family now.
Kito is a hand-held medical device that measures body vitals in adults. It measures human skin
temperature, oxygen saturation of arterial hemoglobin (SpO2), respiration rate, heart rate and
electrocardiographic activity (ECG).
Kito uses a 1 Lead ECG mechanism to capture ECG; an NTC thermistor based sensor to measure skin
temperature; and reflective SpO2 technology to measure blood oxygen saturation. Heart rate is
calculated using the ECG values. Respiration rate is derived from the ECG and Photoplethysmography
(PPG) values. Kito connects to the Kito mobile app through Bluetooth Low Energy (BLE)
technology. The recorded measurements are displayed in the Kito mobile app and stored on a
secure Azync Cloud Platform. For indoor use only and non-water resistance.
2Important Information
2.1 Safety
If you are a patient with a chronic illness or other medical conditions, please consult your doctor
before using Kito. Please note that use of Kito is not a replacement for regular check-ups with your
doctor. The user manual will guide you to operate Kito and understand your readings.
2.2 Intended Use
Kito is a portable, handheld, non-invasive device for measuring body vitals. It is intended to measure
skin temperature, oxygen saturation of arterial hemoglobin (SpO2), respiration rate, heart rate and
electrocardiographic activity. The device is intended to be used by adults in a dry, clean and stable
environment to track their own vitals and make informed lifestyle decisions pertaining to their
health. The device allows the user to check present measurements, view previous measurements
and share the data with person(s) of their choice.
2.3 Contraindication
Kito does not detect or diagnose medical conditions. The readings displayed or stored by Kito should
not be used for any specific clinical diagnosis, self-medication, medical checkup substitution, and
making critical medical decisions.
Kito should not be used while charging, with cold or wet hands, in a dusty environment, or while
moving. Kito is not waterproof.

Instructions for Use AZOI_KITO_IFU_v1.33
AZOI/FM/IFU/018 Rev 01 AZOI Proprietary and Confidential Page 6of 35
3Unpacking
3.1 Package Contents
The package contains the Kito device and a Quick Start Guide along with the charger and a USB 2.0
cable as accessories.
3.1.1 Device Unpacking
Open the box from the slide flap.
Take out the transparent plastic cover.
Take out Kito and put aside the white tray.
Remove the Quick Start Guide to access the charger tray.
Take out the charging cable.
Remove the desiccant package and the charger.
3.2 System Requirements for App installation
Kito application’s system prerequisites are:
iOS
iOS 7 or higher
Apple ID to access the App store
Android
Android 4.3 or higher
Play store ID
Additionally, your mobile device must natively support Bluetooth Low Energy and have internet
connectivity.

Instructions for Use AZOI_KITO_IFU_v1.33
AZOI/FM/IFU/018 Rev 01 AZOI Proprietary and Confidential Page 7of 35

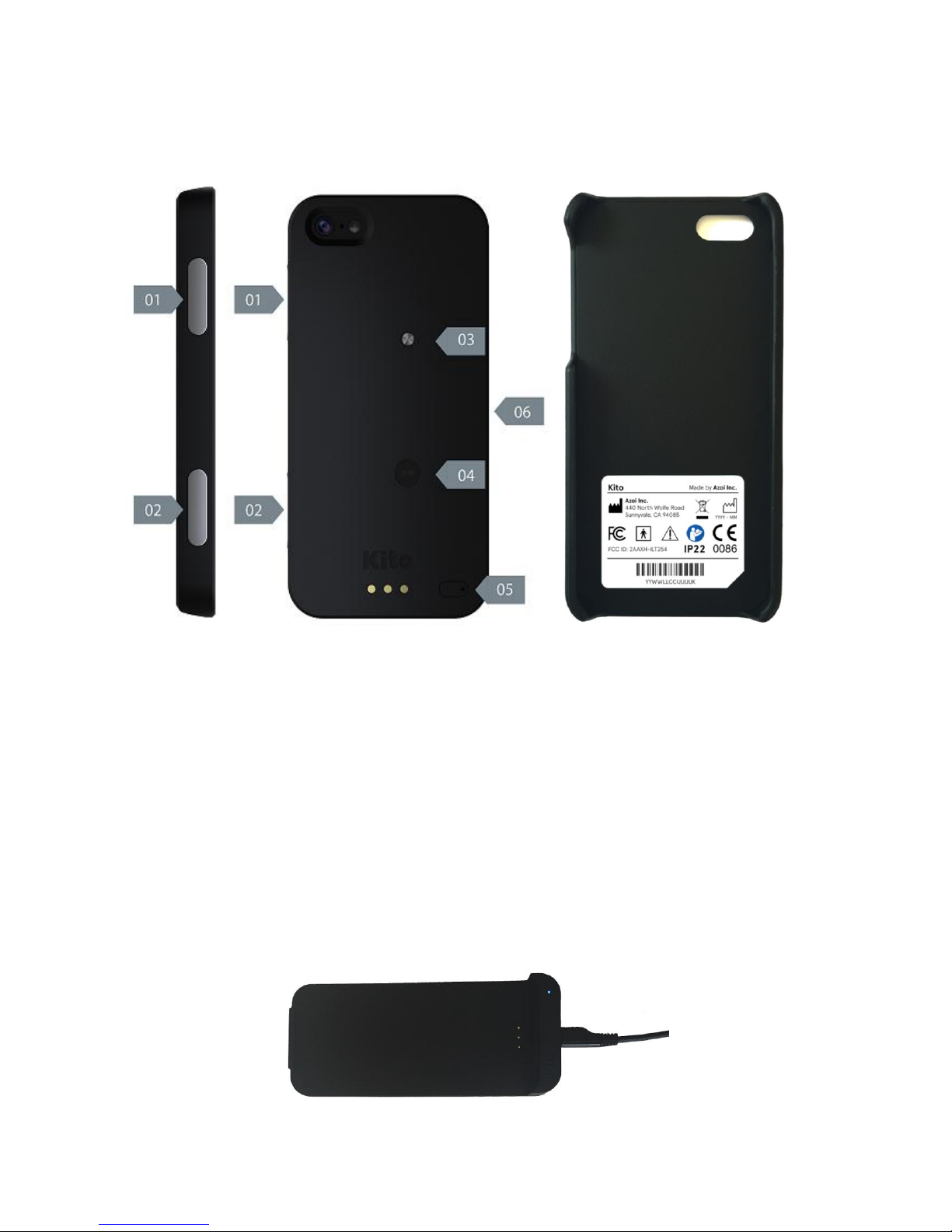

3.3 Know your Device
Kito Device
Details:
01 and 02 –ECG Electrode 1 and Electrode 2
03 –Skin Temperature Sensor
04 –Blood Oxygen Saturation Sensor
05 –Switch
06 –Polycarbonate Body

Instructions for Use AZOI_KITO_IFU_v1.33
AZOI/FM/IFU/018 Rev 01 AZOI Proprietary and Confidential Page 8of 35
Kito Charger
3.4 Charge your Device
Figure 1: Put Kito vertically on the base of
the charger ensuring that the charging
contacts at the bottom meet.
Figure 2: Press gently at the top to firmly
secure the device.
Connect the USB cable and turn ON the power supply. If you see a Blue light on the charger, Kito is
charging.
Indications
The Switch (05) has a light which indicates the Kito battery level. Please refer to the following table to
understand the indications:
Kito Light
Continuous Light
Kito is active and the battery is sufficiently charged.
Blinking Light
Kito is active, but the battery is too low to measure the
vitals.
Charger
Light
Blue Light
Charger is connected to the power source and is
charging Kito.
White Light
Kito is fully charged.
4Get Started
4.1 Setup
Note: For Android users, Kito will work as a stand-alone unit. Please keep Kito in close proximity to
your mobile device.

Instructions for Use AZOI_KITO_IFU_v1.33
AZOI/FM/IFU/018 Rev 01 AZOI Proprietary and Confidential Page 9of 35
Secure Kito onto the back of your mobile device as shown in the illustration. Begin with inserting the
right side of your phone towards the side with the electrodes.
Gently push your phone into the Kito cradle. Make sure your phone and Kito are firmly clasped
together.
Note: Please charge the device completely before using it.
4.2 Install the App
Download and install “Kito” app from the App Store or GooglePlay store. After successful installation,
the Kito icon ( ) will show up on you screen. Tap the icon to launch the Kito app.
4.3 Create an Account
For the first time usage, you need to Sign-Up for creating your Kito account. To try Kito on the go, tap
“Try It!” But before going any further, you will need to pair Kito with the app. Please see the pairing
process (Pair your Device).

Instructions for Use AZOI_KITO_IFU_v1.33
AZOI/FM/IFU/018 Rev 01 AZOI Proprietary and Confidential Page 10 of 35
After you have successfully paired Kito, follow the on-screen instructions to create your Kito account.
Information such as Gender, Age, Weight and Height helps Kito determine the ideal range of body
vitals for you. To add a new user, tap and Sign-Up to create another Kito account.
4.4 Pair your Device
Kito communicates with the Kito app via Bluetooth Low Energy technology. To use Kito, you need to
pair it with the Kito app. Turn ON the Switch and follow on-screen instructions.
Note: Please turn Bluetooth ON from the “Settings” menu on your mobile device for pairing.
You need to pair Kito with the Kito app only for the very first time. For subsequent usage, pairing is
not required unless you use Kito with a different mobile device or change Kito.
4.5 Do a Test Reading
Press the Switch to turn ON Kito. Next, tap “Check-Up” and hold Kito with both hands as shown in
the illustration to start taking a reading.

Instructions for Use AZOI_KITO_IFU_v1.33
AZOI/FM/IFU/018 Rev 01 AZOI Proprietary and Confidential Page 11 of 35
The White LED on the Power Switch glows for 30 seconds after you turn it ON. You can take a reading
within these 30 seconds. If that period has lapsed, you need to turn the switch ON again to record a
reading.
When taking a reading:
Hold Kito gently; do not apply pressure on the indicated points.
Keep your shoulder and arms relaxed.
Do not take readings while you are in a state of motion.
Do not take readings while your mobile device is being charged or immediately after
charging it. Charging generates heat and this may affect your readings.
In case of any temporary interruption like a call, the Kito app goes in the background mode and
resumes app dashboard when the interruption ends.
After the recording duration ends, you can see your Reading Card which shows the measured values
corresponding to each body vital. Tap an individual vital to see its graphical representation.
To save the readings to your account, tap “Save” at the top-right corner of the dashboard. You can
review the saved readings later from your timeline. Please see the section Your Health Data for more
details.
You can choose to discard the current reading and take a reading again.
4.6 Remove Kito
To remove Kito, use your thumbs to apply pressure on the corners of the Kito device and push it
outwards.

Instructions for Use AZOI_KITO_IFU_v1.33
AZOI/FM/IFU/018 Rev 01 AZOI Proprietary and Confidential Page 12 of 35
Use your fingers to pull out the phone from the space created at the top corner.
5Your Health Data
5.1 Know your Vitals
Before proceeding further, let us quickly understand what the vitals measured by Kito mean:
Heart Rate - Heart Rate is the number of times your heart beats in a minute and is an important
indicator of cardiovascular fitness. The Heart Rate of a healthy adult in a relaxed state, lies in the
range of 60 to 100 beats per minute.
Skin Temperature - Skin Temperature majorly depends on the surrounding air temperature and time
spent in an environment. External factors such as chilly winds and humidity can cause changes in the
skin temperature.
Electrocardiogram (ECG) - ECG, alternatively known as EKG, is a test that records the heart's
electrical activity. In simple terms, the heart's activity is captured and plotted on a waveform graph.

Instructions for Use AZOI_KITO_IFU_v1.33
AZOI/FM/IFU/018 Rev 01 AZOI Proprietary and Confidential Page 13 of 35
Blood Oxygen Saturation (SpO2) - SpO2 is a percentage of Oxygen Saturation in the blood. For an
adult, the blood oxygen level should ideally range from 95 to 100 percent in a relaxed state.
Respiration - The Respiration Rate is the number of breaths taken per minute. Normal Respiration
Rate for an adult in a relaxed state, ranges from 12 to 18 breaths per minute. Take a deep breath and
read on.
Note: A more detailed explanation regarding the vitals can be found in the Kito mobile app. Go to
Settings ( )and tap “About Vitals” for additional information.
5.2 The Dashboard
Dashboard is your personalized space to take a new reading, look up the existing readings, and
modify default settings.
Timeline: The Dashboard timeline displays dates of the current month sequentially along a line. You
can slide the timeline to move back and forth and review older readings. The dots adjacent to
the dates expand and shrink based on the number of readings taken during a day- a larger dot
denotes multiple reading records.
Reading Card: One reading card holds the details of a single reading. Reading cards corresponding to
the date selected in the timeline, will be visible at the bottom of your screen. If you have taken

Instructions for Use AZOI_KITO_IFU_v1.33
AZOI/FM/IFU/018 Rev 01 AZOI Proprietary and Confidential Page 14 of 35
multiple readings on a single day, the latest reading will be visible and the rest of the reading
cards will remain collapsed under the Reading Card area.
Share Readings: To share readings, tap “Share” and select the Reading Cards you would like to send
via email. You can share up to 20 readings via email.
Settings: Tap Settings ( )to set a reminder, edit your Profile, sync Fitbit™, apply a security
lock, register email addresses to share reports, apply ECG Filter, alter the measurement unit for
the temperature vital and upgrade Firmware.
Note: Kito and the mobile device must be sufficiently charged before upgrading the firmware. Once
you initiate the firmware upgrade, you will not be able to access the application until the
firmware installation is complete.
5.3 Readings by Type
The graphical representation of readings helps you compare your readings taken over a course of
time. Tap a vital of your preference to see its corresponding graph after you have taken a reading. To
review an older reading, go to the Dashboard and select the date for which you want to look up the
readings. Tap individual reading cards to expand and view the details.
5.3.1 Heart Rate
Tap Heart Rate to plot heart rate value on the chart. Here, the X-axis (horizontal) corresponds to the
hours/day/month units, and the Y-axis (vertical) corresponds to the measuring unit for Heart Rate
which is BPM.

Instructions for Use AZOI_KITO_IFU_v1.33
AZOI/FM/IFU/018 Rev 01 AZOI Proprietary and Confidential Page 15 of 35
The values on Y-axis show the range for Heart Rate.
Note: The range shown in the application is only a reference and may not apply to everyone. Consult
your doctor to know the appropriate range for you.

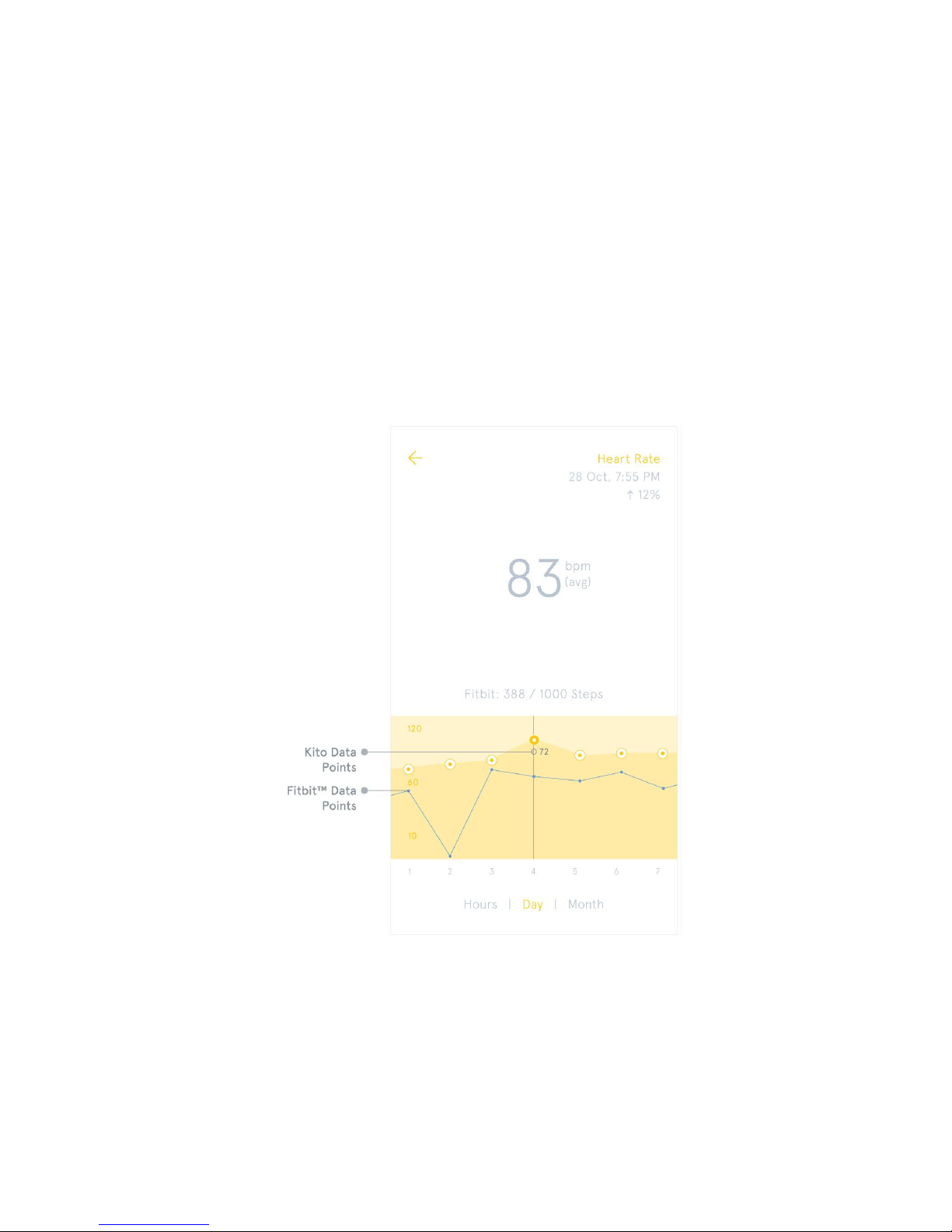

The point plotted on the graph denotes a single reading. The reading which you are reviewing will be
displayed at the center of the screen.
The value in percentage at the top-right of your screen represents the percentage difference
between your latest reading and the one being reviewed.
The app overlays the information received from Fitbit™ over its own reading of vitals to indicate how
your daily activity is affecting your vitals.
The line graph which is a series of data points connected by lines, illustrates Fitbit™ data. For each
Fitbit™ step count data, you can see the corresponding vital statistics taken from Kito overlaid on the
graph.
Similarly, you review the graphs for rest of the vitals.

Instructions for Use AZOI_KITO_IFU_v1.33
AZOI/FM/IFU/018 Rev 01 AZOI Proprietary and Confidential Page 16 of 35
5.3.2 SpO2
5.3.3 Respiration

Instructions for Use AZOI_KITO_IFU_v1.33
AZOI/FM/IFU/018 Rev 01 AZOI Proprietary and Confidential Page 17 of 35
5.3.4 Skin Temperature
5.3.5 ECG
ECG represents the electrical activity of the heart as measured by Kito’s electrodes.

Instructions for Use AZOI_KITO_IFU_v1.33
AZOI/FM/IFU/018 Rev 01 AZOI Proprietary and Confidential Page 18 of 35
This is what you will typically see in an ECG display. The X-axis (horizontal) corresponds to the time in
seconds, and Y-axis (vertical) corresponds to the amplitude or voltage in millivolts (mV). The graph
highlights a repeating pattern of a tiny wave, followed by a sharp dip, a tall and a sharp spike,
followed by a moderate sized wave. This wave pattern represents a single cardiac cycle.
To enhance the ECG graph, you can apply filter to remove noises from the ECG signal. Go to Settings,
tap “ECG Filter” switch to toggle it ON or OFF.
Accurate ECG interpretation is complex and involves interpretation of several other parameters in
tandem. Hence, we recommend that you show your ECG results to an expert in the relevant medical
field for an in-depth analysis and interpretation of the results.
5.4 Share Reports
You can share any reading(s) via email. The application presents your readings in a pdf file with one
reading per file.
5.4.1 Single Address
Go to Dashboard, and select a date from your timeline to review the Reading Cards that you want to
send. Tap Share and select your preferred Reading Cards. Tap Next, add the email address and send
the report.
5.4.2 Multiple Addresses
To share the reports with multiple recipients, follow the procedure explained above and add multiple
email addresses.
5.4.3 Automatically to specified address
You can register the email addresses of the people to whom you want to automatically send your
data after each reading through “Share Reports”, located under Settings in the app.
Go to Settings, tap “Share Reports” and swipe “Allow Access” to toggle the automatic access ON/OFF.
Register the email addresses by adding them to the list.
6Important Settings
6.1 Adding Multiple Users
Kito supports multi-user access for up to four users per device. All users will have access only to their
own individualized dashboards. Tap on the home screen to add a new user. To access an existing
user’s dashboard, tap the username.
6.2 Security and Privacy
Your readings are continuously synced with and stored on a secure cloud storage system if your
phone is connected to the internet. To secure your Kito account, you can lock your dashboard to
prevent other users from accessing your readings. Go to app Settings, swipe “Security Lock” to toggle
the dashboard security lock ON/OFF.

Instructions for Use AZOI_KITO_IFU_v1.33
AZOI/FM/IFU/018 Rev 01 AZOI Proprietary and Confidential Page 19 of 35
6.3 Configure Alerts
Kito provides a way to set personalized reminders to take readings. You can set reminders for weekly
or daily alerts.
6.4 Sync Fitbit™
The Kito application overlays the information received from Fitbit™ on its own reading of vitals to
indicate how your daily activity is affecting your vitals. It plots your Fitbit™ step count and Kito’s vital
statistics on the same graph.
Note: There is a limited support for this functionality; only iOS 7 and later versions are supported.
7Care
7.1 Cleaning
Handle Kito with care. Always ensure that your skin is clean and dry when using the device. It is
recommended that you clean the device using an alcohol-based sanitizer (containing 70% alcohol)
before using it for the first time and before offering it to someone else for use.
7.2 Storage
Store the device in a clean and dry location. Keep out of the reach of infants and kids.
7.3 Maintenance
The battery and the device can maintain their stated performance for up to 2 years. Do not try to
repair the device by yourself. Refer to the troubleshooting section to fix the problems you may
encounter during usage. You can write to us at [e-mail] in case of further queries.
8Caution
Do not wash the device with water or any other chemicals.
Do not completely drain the device battery.
Do not expose the device to extreme moisture.
Do not expose the device in a Magnetic Resonance Imaging ambience.
Do not expose the device to strong shocks or vibrations.
Do not cover the sensors or the electrodes in any way.

Instructions for Use AZOI_KITO_IFU_v1.33
AZOI/FM/IFU/018 Rev 01 AZOI Proprietary and Confidential Page 20 of 35
Do not try to open or repair the device by yourself.
Do not use device with lotion or cream on skin.
Do not charge the device with any other charger apart from the one received with the
device.
Do not use the device while it is being charged.
Do not use the device when battery is critically low.
Do not use the device under direct sunlight.
Do not use the device with injured fingers or body parts.
Do not keep the device uncharged for more than six months.
Do not use the device with pacemaker or defibrillator.
Do not use the device if you are suffering from Parkinson
Do not use the device after device lifetime (i.e. 2 years)
Do not store the device in following conditions/locations:
Direct sunlight
High temperature
High humidity
Wet or damp locations where water may get on the unit
Dusty locations
Near fires or open flames
Locations with Strong vibrations
Near strong electromagnetic fields
