Azuretec WR500G Series User manual
15VDC
Tel: +886-2-29101997
Fax:+886-2-29103996
Email:[email protected]
www.azuretec.com / www.azuretec.com.tw
Figure 4 Fundamental connection of ODU
LED indicator (Power)
Connect PoE to the ODU by SFTP cable
CAT.5 Cable (cross over cable to NIC or
straight through cable to Hub/Switch)
LED indicator
WR500G Series
90°Sector Antenna-integrated
Outdoor Radio
Installation Guide
Help you to set the outdoor radio
correctly and quickly.
Version 2.0
Thank you for purchasing this product. Upon receiving the package,
please check whether the unit is completed with the following
components:
zODU (Outdoor Unit)
zPoE (Power over Ethernet)
zPower Adapter
zPower Cord
zMounting Kit
zSFTP Cable(Optional)
zProduct CD
zQuick Installation Guide
Standard installation involves the following steps

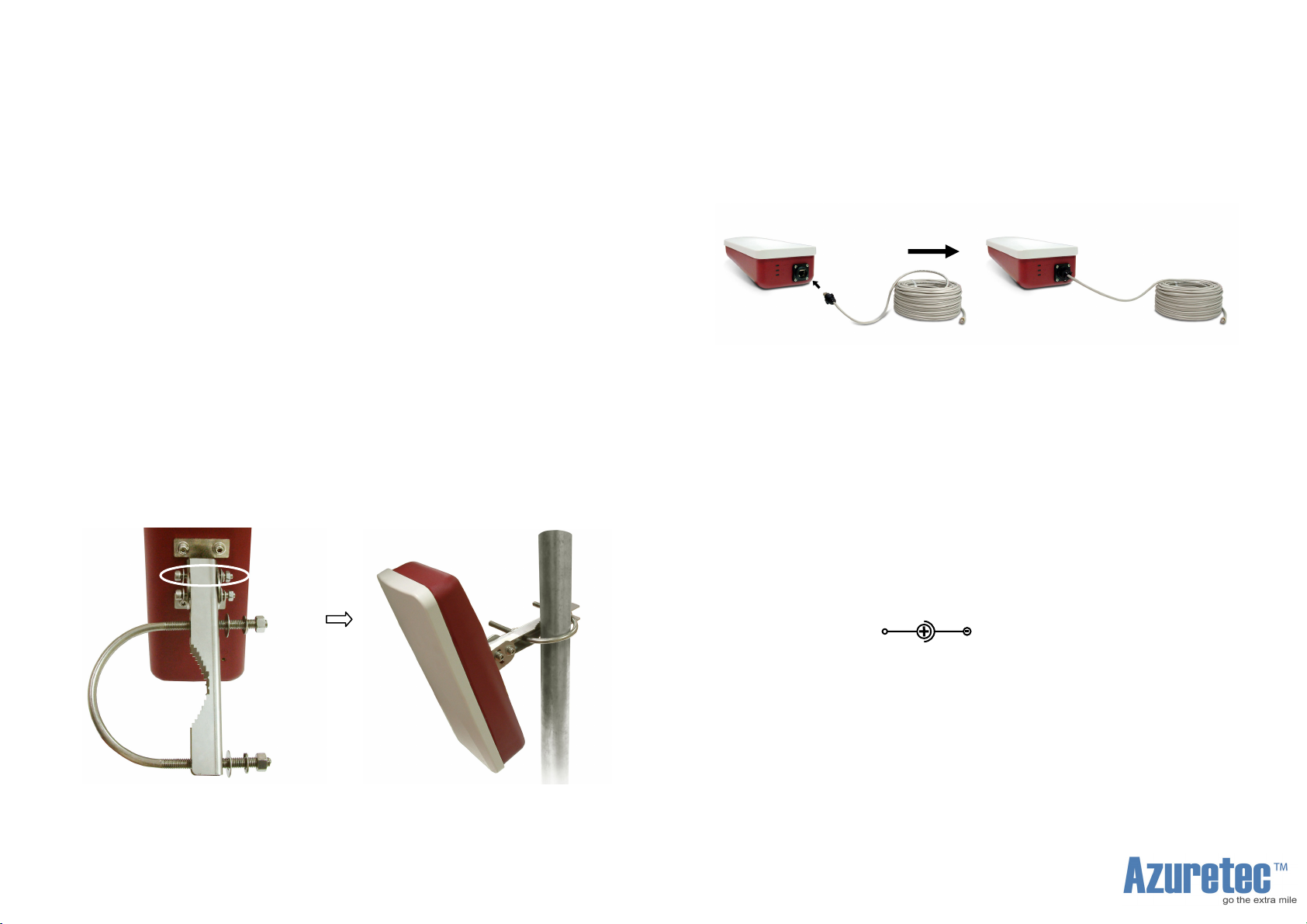

Step1. Setup the mounting kit to the ODU (Figure 1) and mount the ODU in the
proper position.
Figure 1 ODU’s Mounting Figure 2 completed figure
Note:you can change the antenna’s angle of elevation vertically by adjust
the screw marked in figure 1.
Step2. Connect the SFTP cable to the ODU and lock the connector. (Figure 3)
Figure 3 cable’s mounting
Step3. Connect the other side of SFTP cable to the RJ-45 port of PoE marked
“To ODU”.
Step4. Connect the port of PoE marked “RJ-45” to the server by cross over
CAT.5 cable. (You also can connect to the switch / hub by straight CAT.5
cable)
Step5. Connect the circle connector of DC 15V power adapter to the power jack
of PoE. The polar of the circle connector is:
Step6. Connect the power adapter to the outlet.
Step7. When these connections of ODU are finished, you may need to verify the
alignment of the antennas as well as install the ODU utility to setup the
detail information.
※Please consult the user manual for more information
