OWNER’S MANUAL
EN
MIK0134-0135
!"#$%&'($')(%*+,%'-)$.")+"/$,"*!0+//1$2!0-*!$3*(%$+(!4$")#$5!!6$'%$0-*$0+%+*!$*!0!*!),!7
I. SAFETY INSTRUCTIONS:
1. Read this instruction manual carefully and keep it for future reference. The producer is
not responsible for damages caused by innapropriate use and handling of the device.
2. Before connecting the device to power supply socket, make sure the voltage
indicated on the appliance corresponds to the voltage in the power supply socket.
3. DO NOT plug / unplug this device from mains supply with wet hands.
4. Protect this device from water, moisture and humidity.
5. Protect this product from dust, sources of heat and extreme temperatures. Avoid
+(')8$")#$(%-*')8$%&'($#!9',!$')$!)9'*-).!)%$:'%&$(%*-)8$."8)!%',$3!/#7
6. When you disconnect the power cord of the device, grasp and pull the plug, never the
cord / cable.
7. Keep the device and its cord/cable away from heat, water, moisture, sharp edges
and any other factor which may damage the appliance or its cord.
8. Do not dismantle the casing, as it may pose the risk of electric shock.
9. Do not dissasemble the device. Do not attempt to repair the product yourself.
In case of damage, contact with an authorized service point for check-up / repair.
10. Unplug the power cord from power supply if the product is not in use.

13
OWNER’S MANUAL MIK0134-0135
EN
II. PRODUCT DESCRIPTION:

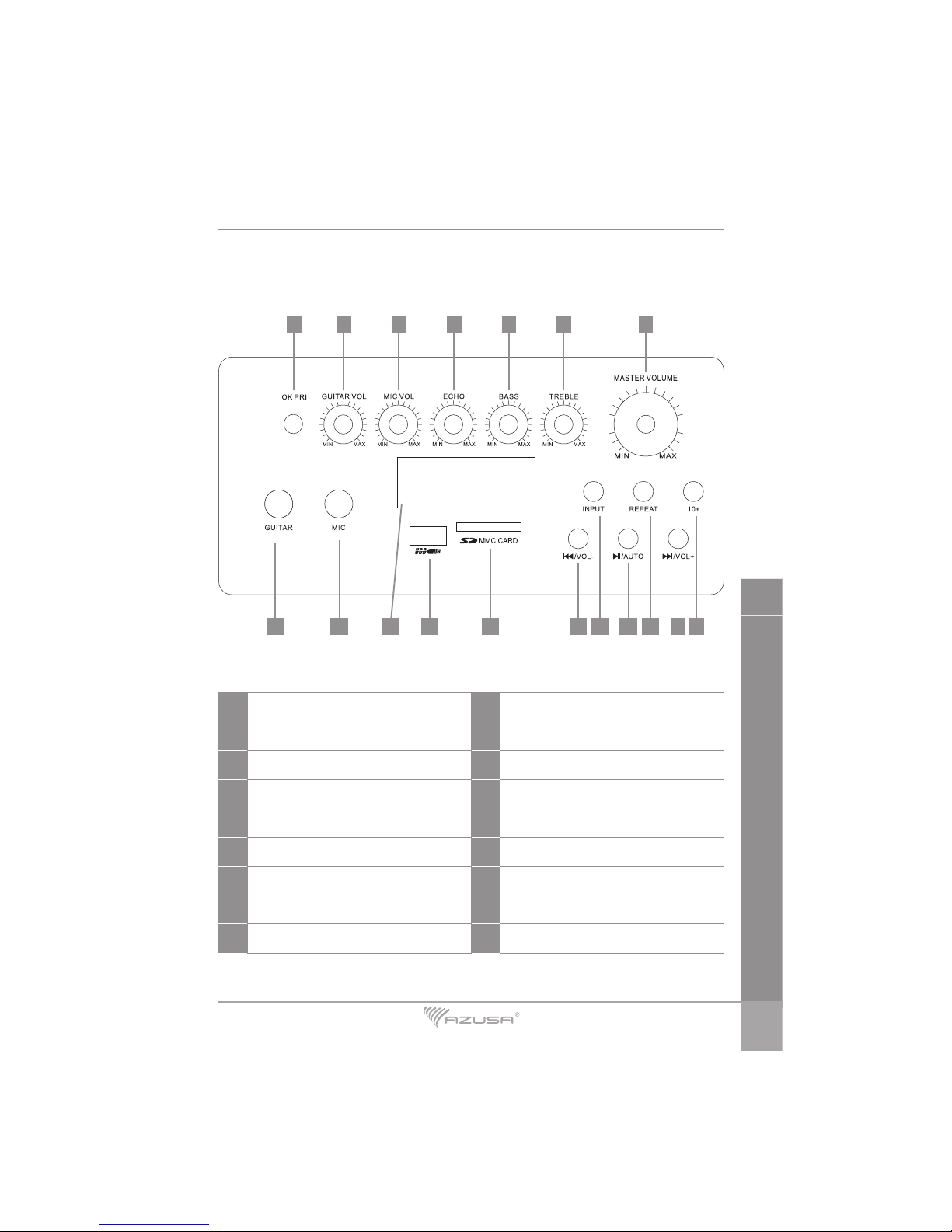

1. Front panel
1OK PRI key 10 Repeat key
2Guitar volume control knob 11 Play / Pause & FM scan key
3MIC volume control knob 12 INPUT button (Mode key) - input signal
source selection
4Echo control knob 13 Previous & FM channel – key
5Bass control knob 14 SD card slot
6Treble control knob 15 USB port
7Master volume control knob 16 Display
810+ key 17 MIC jack
9Next & FM channel + key 18 Guitar jack
1 2 3 4 5 6 7
13 12 11 10 9 814151718 16

14
OWNER’S MANUAL
EN
MIK0134-0135
2. Back panel
19 Audio input 22 DC12V external battery input
20 Full battery indicator 23 Power switch
21 Charging indicator 24 AC 230V input
AUX INPUT
FULL
CHARGING
BATTERY 12V INPUT
ON/DC
ON/AC
OFF
(CHARGING)
~220V- 240V 50 / 60 Hz
MIK0134
19 20
21
22
23
24

15
OWNER’S MANUAL MIK0134-0135
EN
19
20
21
22
23
24
25
MIK0135
19 Audio input 23 Power LED
20 DC12V external battery input 24 AC 230V input
21 Full battery indicator 25 Power switch
22 Charging indicator

16
OWNER’S MANUAL
EN
MIK0134-0135
3. Remote control
1Mute key 8FM auto scan & play / pause
2Numerical keys 9Volume key (up and down)
3Record key 10 Next folder select key
4Previous folder key 11 Repeat folder key
5Repeat key 12 Mode key-To select input signal source
6FM channel (previous and next key) 13 Standby key
7FM tuner-&EQ mode key
1
2
3
4
5
6
7
9
10
11
12
13
8

17
OWNER’S MANUAL MIK0134-0135
EN

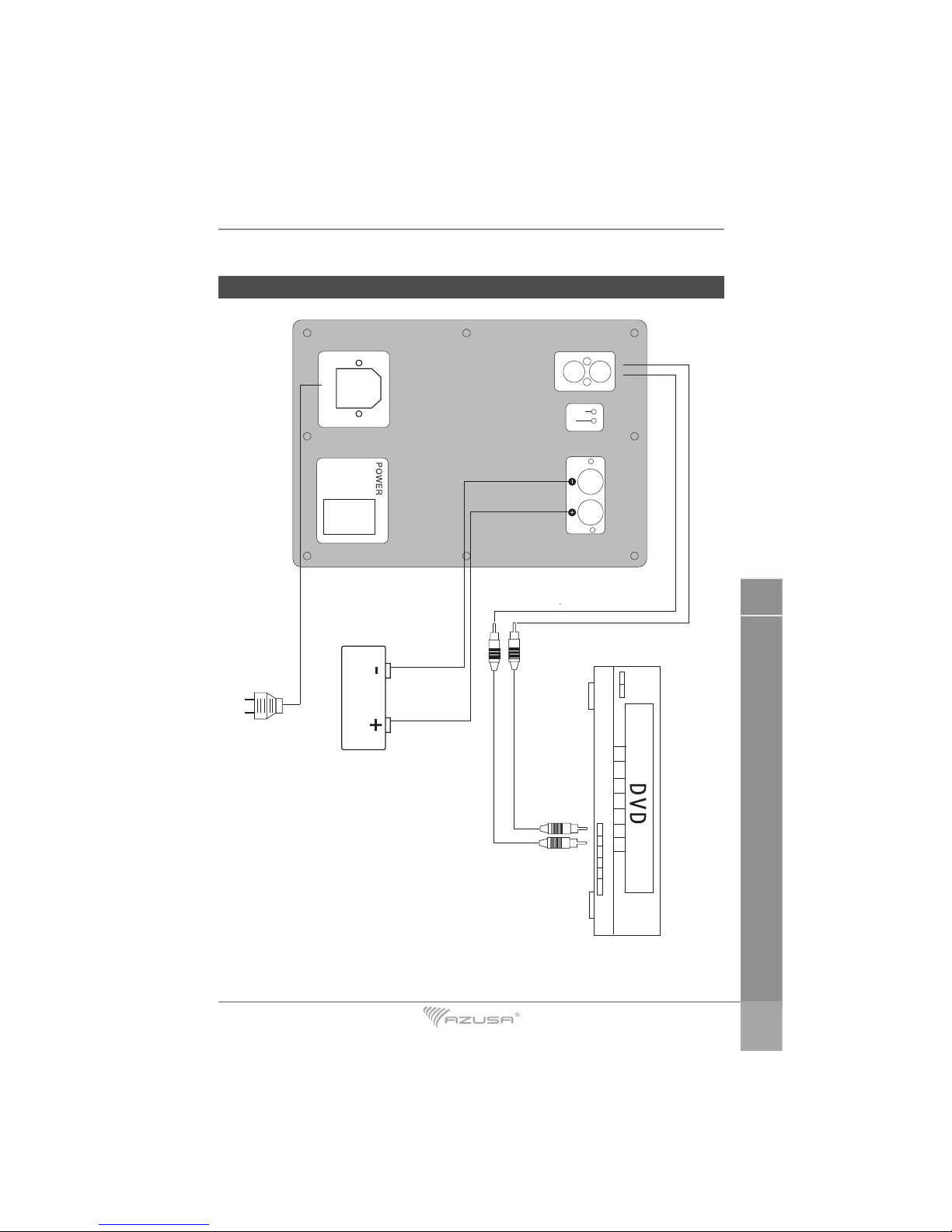

III. SYSTEM CONNECTION:
MIK0134
Signal Wire
AC Input
DC 12 V External battery
AUX INPUT
FULL
CHARGING
BATTERY 12V INPUT
ON/DC
ON/AC
OFF
(CHARGING)
~220V- 240V 50 / 60 Hz

18
OWNER’S MANUAL
EN
MIK0134-0135
MIK0135
Signal Wire
DC 12 V External battery
DC 15 V / 2 A Input

19
OWNER’S MANUAL MIK0134-0135
EN
IV. OPERATION:
1. Turn on the unit, connect to sound source and play.
2. lnsert USB / SD card to read Mp3 tracks.
Press MODE button to select USB / SD card source input or FM radio.
3. When using the KARAOKE, please plug your wired microphone cable or turn on the
wireless microphone, and adjust the Mic volume.
V. POWER SUPPLY INSTRUCTIONS:
1. When operating on AC power, please put the power switch at ON/AC position.
2. When recharging, the blue indicator is on; both indicators light when full recharged.
3. When operating on battery, please put the switch at ON/DC position.
4. Please recharge the unit only under voltage indicated on the device.
5. To protect the battery, please full recharge every time after using up.
6. Turn the unit off if it is not used.
VI. BLUETOOTH OPERATION:
1. Turn the power on.
2. ;*!(($ %&!$ <=>?@A$ 2+%%-)4$ +)%'/$ B@?$ ')#',"%-*$ C"(&!($ ')$ *!#4$ :&',&$ .!")($ %&!$
speaker is in bluetooth mode.
3. Turn on the Bluetooth function on your phone and search for external devices.insert
4. Connect with the speaker. The device will make a sound signifying successful
connection.
VII. TECHNICAL SPECIFICATIONS:
!"#$%&' !"#$%&(
Power 80 W 40 W
Impedance 4 Ohm 4 Ohm
Input sensitivity 95 ± 3 dB 93 ± 3 dB
Frequency response 40 Hz ~ 20 kHz 50 Hz ~ 20 kHz
S/N ratio >= 71 dB >= 71 dB
Harmonic distortion < = 0.7% (1W) < = 0.7% (1W)
Drive unit 1” + 15” 1” + 12”
Wireless mic frequency 261.8 Mhz / 239.4 MHz 261.8 Mhz / 239.4 MHz
FM frequency 87.50 - 108.00 MHz 87.50 - 108.00 MHz
Voltage ~ 220 – 240 V; 50 / 60 Hz ~ 100 – 240 V; 50 / 60 Hz

20
OWNER’S MANUAL
EN
MIK0134-0135
D6!,'3,"%'-)($"*!$(+2E!,%$%-$,&")8!$:'%&-+%$)-%',!7
The Lechpol company declares that product MIK0134 / MIK0135 is consistent with the essential
requirements and other relevant provisions of directive 1999/5/EC. The proper declaration for
download from www.lechpol.eu
