b-mola BM100 User manual
NCCO
Operation Manual
WARRANTY CARD ATTACHED
0201
■ The following symbols are the types of instructions that must be followed:
Do not drag the power line to move the unit.
Do not damage the power line or the plug.
Do not use power source other than 110-240V~ 50-60Hz.
Do not put fingers, metal, or any other objects into air inlet / outlet or gap.
Do not touch power plug with wet hand.
Do not place the unit at a place where it is easily
got wet by water or other liquid.
PROHIBITION MANDATORY
Do not disassemble, repair, or modify the unit on your own.
V2.210510.U5
WARNING
WARNING
WARNING
PRECAUTION
■In order to avoid injury of operatives or others, please follow safety instructions.
These 2 symbols below are classified as according to the risk or degree of injury
caused by incorrect operation:
Safety Instructions Basic Information
Please Follow Instructions Below
CONTENT
Basic Information
02-05
06-11
12-13
14-16
Getting Started
Care & Maintenance
Other Information
PRECAUTION
0403
When any of the following situations occur, please stop operating the
unit
and
disconnect the power supply immediately.
Please regularly clean the plug.
Make sure disconnect the power supply before maintaining the
unit
.
Please insert the power plug completely into the power socket.
Please pull out the power plug at the hand plug position.
WARNING
Basic Information
NCCO Technology
PRECAUTION
Do not place the unit in the following places:
Do not use gasoline or other volatile mixed solvents to wipe the unit.
Do not operating the unit while smoking pesticide is used.
Do not block the air inlet or outlet by placing clothes, books or other obstacles.
Do not sit, stand or lean on this product.
■Do not approach the unit with ignited cigarettes, incense and others.
■Do not spray flammable materials such as insecticides or air fresheners
around this product.
NCCO Technology's Characteristics
About Intelligent Power-Off Protection System
Indoors
As dust falls on the floor, it is recommended to place the unit on a flat surface in the room.
Placing the unit on a dry, solid, level surface, and ensure the unit is provided with reasonable space
of at least 15 cm from any objects, in order to operate effectively.
·In the direct sunlight; blown by air conditioner; high temperature
area. (Otherwise, it may cause deformation, aging, discoloration
or reduction of service life.)
·Distance over 1 meter to objects such as televisions and radios.
(Otherwise, it may lead to image disorders and lost of sound.)
(Otherwise, it may affect the operating performance.)
(Otherwise, it may lead to image disorders
and lost of sound.)
→Please plug into other power outlets.
(Otherwise, the unit may be malfunctioned.)
Patented NCCO Air Purification Technology Brings Fresh and Clean Air
Placing Area Guideline
0605
Control Panel:
Installation Procedures:
Disconnect the power supply, hold the two
buckles at the bottom of the Front Cover, to
take off the Front Cover.
Illustration Diagram:
M
N
A B C
Panel
Air Inlet
Right Air Outlet
HEPA Filter
HEPA Filter Frame
NCCO Reactor
Pre-filter
Power Cord Inlet
Left Air Outlet
Back
Cover
Control Panel Power Cord
Basic Information
Main Parts & Components
Remove all packaging materials before usage.
*Activated only after the unit has connected with Air Quality Monitor.
*If the connection between unit and external device has been disconnected, the Air Quality Indicator
will be extinguished after 30 seconds.
*Unit supports 802.11 b/g/n 2.4Ghz Wifi. If there is any connection problem, please contact your router
supplier for problem solution.
D E F G HIJ
Static Filter
(Optional)
Install the upper NCCO Reactor and HEPA
Filter Frame in sequence into unit. A clicking
sound would be heard to indicate a successful
filters installation. The installation steps of the
lower filters are the same as the upper one.
First, put Static Filter on HEPA Filter and then
install Static Filter and HEPA Filter into HEPA
Filter Frame. Then, put Pre-filter on HEPA FIlter
Frame.
Power Cord Coupling
K L
Getting Started
First-time Operation
1. Remove all packaging materials, use a soft dry
cloth to clean all the parts then re-assemble
parts back together.
2. Placing the unit on a dry, solid, level surface,
and ensure the unit is provided with reasonable
space of at least 15 cm from any objects, in
order to operate effectively.
3. Check power sockets and any extension cords
to confirm compliance with unit requirements.
Ensure that the unit is plugged in before usage.
4. The unit is installed a sensor, if filters have not
been properly installed, the unit wouldn't
operate.
5. When the unit is turned on for the first time,
warm air and mineral smell may be released
from the air outlet. This is normal as catalytic
oxidation is taking place inside the NCCO Reactor,
and completely harmless to human body.
07 08
Increase Speed: Press the Increase Speed button, and each click will increase the fan speed.
When the air speed is at ‘10’, simultaneously press the Air Speed Increase Button and Air
Speed Reduce Button to enter into ‘SS’ Mode.
It is recommended to select ‘SS’ mode to treat seriously contaminated area in a short period
of time.
Exit the ‘SS’ Mode: Press the Air Speed Reduce Button to switch into Air Speed Mode with air
speed at ‘10’.
ON: Sound should be heard indicating Power On after the unit has been connected with
power supply. Press ON / OFF Button to turn on unit.
OFF: Press ON / OFF Button again to turn off unit.
Note: When the unit is running, long press the button to reset WIFI Mode.
Default Setting: The default air speed is at ‘03’. Every time the unit got disconnected from power
supply, when it’s turned back on, the air speed will be reset to default value.
Memory Function: If user presses the ON / OFF Button to turn off the unit and then turns it
back on, the unit would remain the same operation status as last usage.
Reduce Speed: Press the Reduce Speed button, and each click will reduce the fan speed.
Please make sure all the Filters are fully installed.
5
Increase Speed Reduce Speed
Operating Instructions Operating Instructions
Control Panel Buttons:
First, align the four pins on the Front Cover with the four holes on the unit. Then, slightly push the
Front Cover, the magnetic parts will attract the Front Cover towards to unit body. The installation
of Front Cover is completed.
*Activated only after the unit has connected with Air Quality Monitor.
*If the connection between unit and external device has been disconnected, the Air Quality Indicator
will be extinguished after 30 seconds.
*Unit supports 802.11 b/g/n 2.4Ghz Wifi. If there is any connection problem, please contact your router
supplier for problem solution.
Getting Started Getting Started
1009

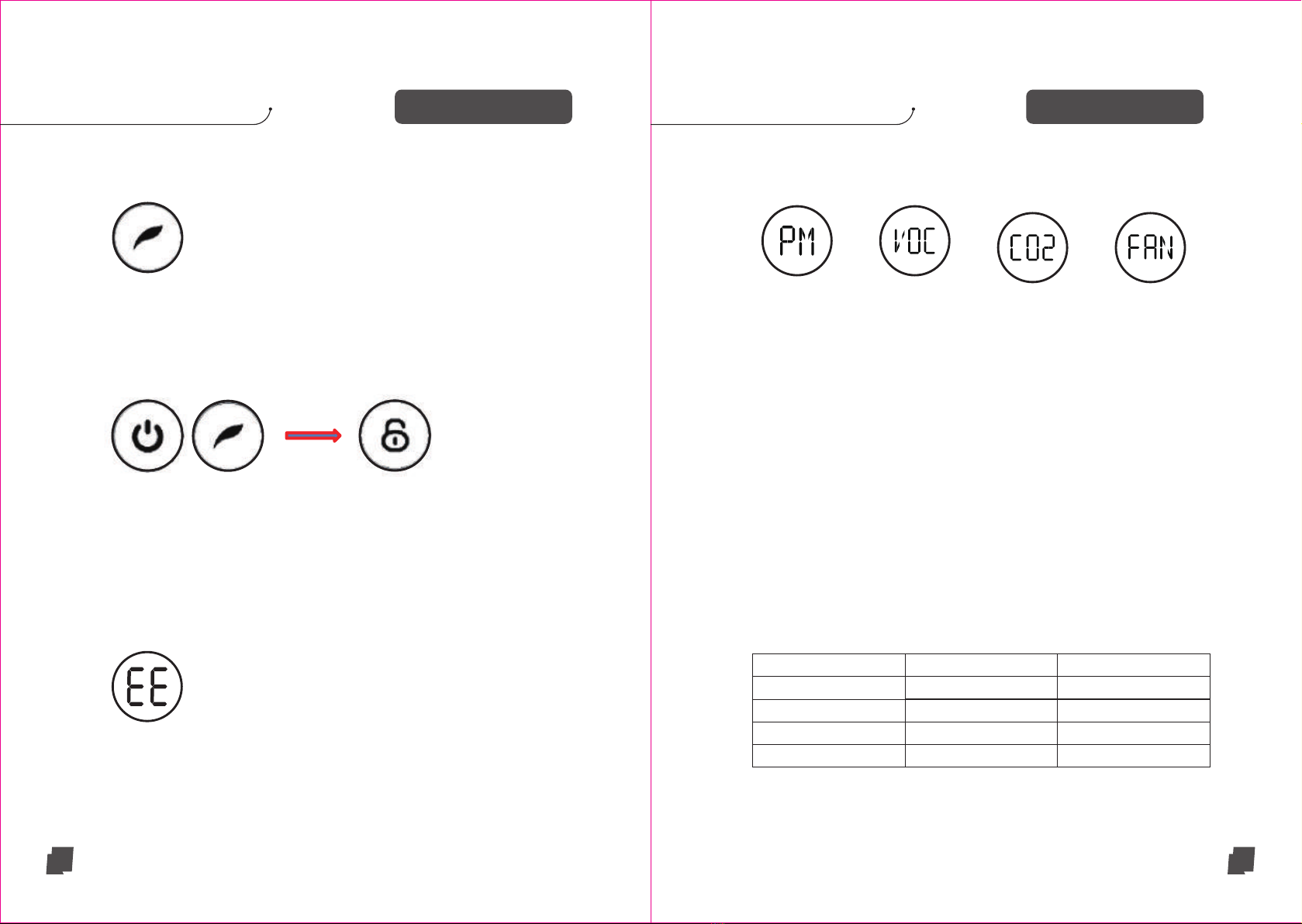

Press the Eco Button to enter into Eco Mode and press one more time to exit Eco Mode.
It is recommended to select Eco Mode during sleep time.
If ‘EE’ is displaying on Display Screen, the unit is not operating and making ‘DiDi·DiDi’
sound, it means NCCO Reactor and / or HEPA Filter not being installed properly.
Method: Disconnect the unit with power supply and open cover to re-install filters.
When the unit is running, simultaneously press the ON / OFF Button and Eco Mode Button for 5
seconds, where there is crystal ring coming from the unit and the Lock Mode icon is illuminated.
At that time, the unit enters into Lock Mode. If user wishes to exit Lock Mode, simultaneously
press the ON / OFF Button and Eco Mode Button for 5 seconds again.
Note: Under Lock Mode, pressing any button is failed to operate the unit.
Operating Instructions Operating Instructions
(*The following function will be activated only after the unit operated with our Air Quality Monitor.)
With our Air Quality Monitor, the unit can automatically monitor the current air quality and
adjust its operation mode based on the concentration of air pollutants.
Air Speed
3
5
7
10
Air Quality
Excellent
Good
Medium
Poor
Colour
Green
Blue
Yellow
Red
User can choose to display the concentration of desirable air pollutants.
When user chooses the desirable air pollutants displayed at External Device, the Display Screen
at the unit will display [PM / VOC / CO2]. After 5 seconds, the Screen will display the concentra-
tion of PM2.5 / TVOC / CO2. The concentration display will maintain for 55 seconds until all
indicators at Control Panel have been extinguished or there is further control. For example, if the
concentration of CO2 is 400ppm, the Display Screen will display [400]; if the concentration of
PM2.5 is 10 / 1/ 0.01 μg/m3, the Display Screen will display [010 / 001 / 0.01].
When the unit has been connected with External Device, user can press the Eco Mode Button to
switch the display of the concentration of air pollutants or the air speed. The Display Screen at
the unit will display [PM / VOC / CO2 /FAN] first. After 5 seconds, the Screen will display the
concentration of PM2.5 / TVOC / CO2 and the air speed. The data display will maintain for 55
seconds until all indicators at Control Panel have been extinguished or there is further control.
Getting Started Getting Started
(*The following function will be activated only after the unit operated with our Air Quality Monitor.)
1211

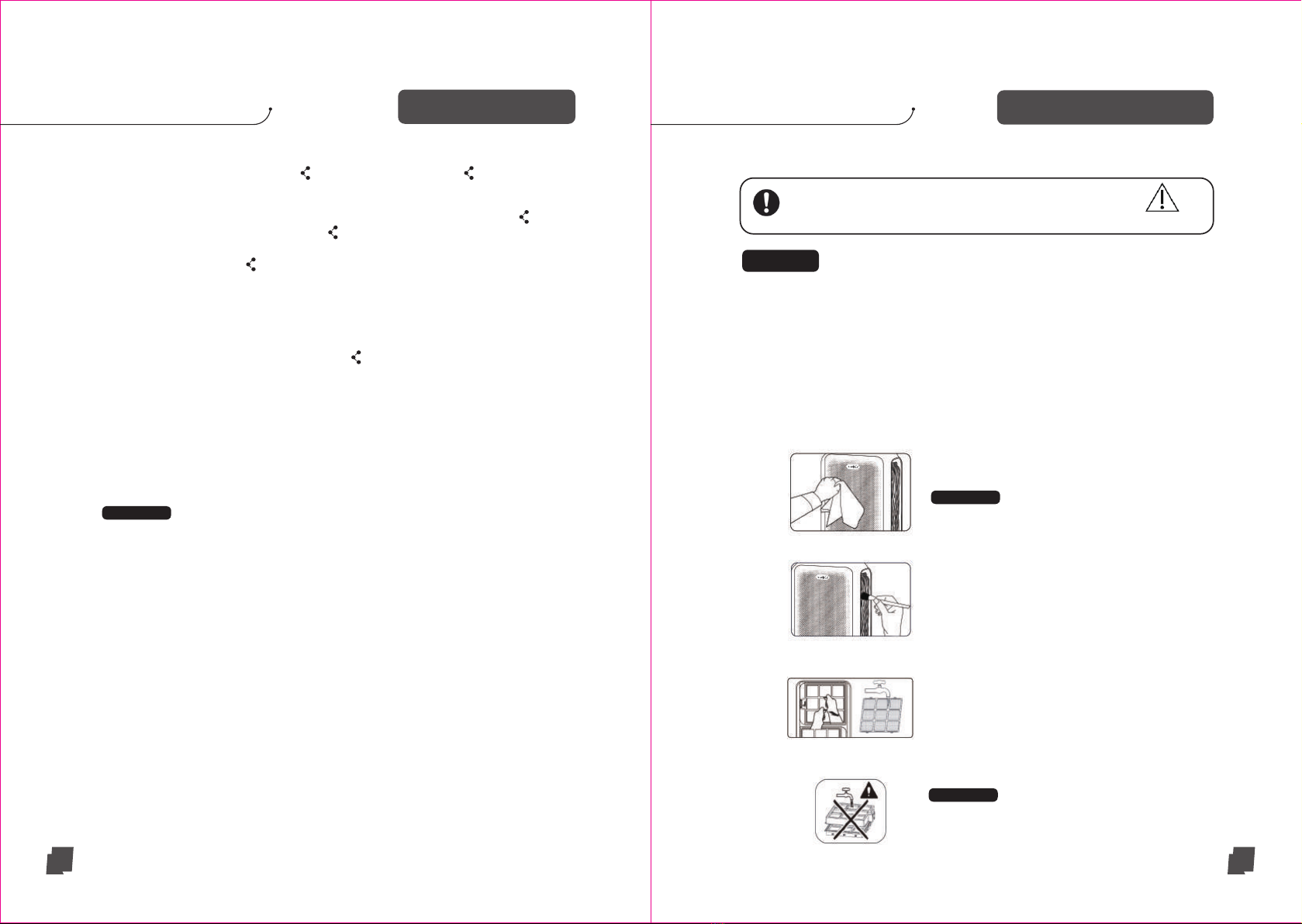

Always disconnect the power supply of the unit before any maintenance
or care process is carried out (except replacing filters). (Otherwise the
unit might still be running and could cause an electrical shock or injury)
■ Please follow the instructions to clean the unit with detergent cloth.
■ During maintenance, do not touch the disassembled parts.
(Otherwise could cause stumble or parts damaged.)
■ Do not operate the unit if Filters have not been installed, since this could cause irreversible
damage to the unit.
■ If the HEPA Filter is not replaced periodically as indicated in instructions, it may seriously
affect the efficiency of the NCCO Reactor.
1
Cleaning Air Inlet And Outlet
Clean the air inlet and outlet with a soft brush or vacuum
cleaner.
2
Cleaning Pre-filter
Pre-filter can be cleaned with water.
Make sure it is dried out before usage.
3
4■ Do not rinse or soak Static Filter, HEPA Filter or NCCO
Reactor with water.
Cleaning Unit Body
Use dry and soft cloth to clean the unit.
■ Damp cloth can be used to clean the surface of the unit.
Do not use abrasive materials.
Operating Instructions Cleaning Instructions Care & Maintenance
WARNING
The unit is equipped with a special protection feature: It will stop operating with all indicating
lights off for 30mins, after every 8 hours’ non-stop operation. 30mins later the unit resume
operating automatically. Press Power Button can awake the unit at any time.
Once after the unit runs for 1 minute without receiving any further operation instructions, all
indicating lights and the Fan Speed Display will be shown 50% of brightness, while other
functions remained. To wake up, press any button on the control panel.
First, long press the button for 5 seconds to enter into Auto Mode, where Auto Icon flashes
quickly. Then, press the button again, where flashes slowly to indicate user shall connect the
unit with External Device. Next, press the RF Connecting Button at the External Device. If the
connection is successful, the will be illuminated steadily. If the unit did not receive the connecting
order, it will automatically exit Auto Mode.
(1)If user wishes to change Auto Mode into Manual Mode, when the unit has been woken up
and not in Eco Mode,user can press the Air Speed Increase / Reduce Button to enter into
Manual Mode (The air speed will be increased / reduced simultaneously) or long press the
Eco Mode Button for 5 seconds. At that time, is extinguished and the unit enters into
Manual Mode. User is able to control the unit via Control Panel.
(2)When the unit is connecting with External Device, long press the Eco Mode Button for 5
seconds to enter into Auto Mode.
(3)When the connection between unit and External Device has been disconnected (e.g. the
External Device automatically turns off due to the low power supply), user shall long press
the Eco Mode Button for 5 seconds to exit Auto Mode.
Getting Started
13
Care & Maintenance
Filter Replacement &
Maintenance
14
Can HEPA Filter be washed with water?
HEPA Filter is made of composite material, water would seriously affect
the purification effect.
Q2
A
The air quality has not improved even after the unit has been turned on for
a long time.
If the unit is used in a severely polluted area, the treatment process will take
longer. It is recommended to use the HIGH FLOW MODE or extend the opera-
tional time until the pollution diminishes.
Q3
A
The unit emits an unusual smell or smog. (e.g. smoke, flame, or burning)
Turn off the unit and disconnect it from power supply right away. Call the
customer service center immediately or contact with a qualified agent.
Q4
A
Q5
A
Why does the unit would release mineral smell during the first time operation?
It’s normal as catalytic oxidation is taking place inside of the NCCO Reactor,
the smell is harmless to human body, and it would disappear after a period of
operating time, please feel free to use it.
Q6
A
Q1 ‘EE’ is displaying on Display Screen, the unit is not operating and making
‘DiDi·DiDi’ sound.
Please check if filters have been properly installed. If not, please re-install them.
A
Other Intormation
FAQs
1. Filter lifetime will vary depends on environment, amount of usage and location of
the unit.
2. To maintain optimal operating condition of the unit, only use the recommended
filter.
3. It is recommended to clean Pre-filter regularly.
4. Turn off unit but maintain power supply when replacing filters.
5. Please follow HEPA Filter Surface Color Changing Indicator to dispose HEPA
Filter.
* The filters cleaning and replacement cycle may vary depending on the operating area.
** If HEPA Filter has not been replaced periodically, or it has been damaged, the surface
of NCCO Reactor is covered with dust or oily substances after disassembling, the remov-
al capacity of NCCO Reactor may be badly reduced and should be replaced.
Filters
Pre-filter
Static Filter
NCCO Reactor
Cycle
/
Every 3 - 6 Months
Every 6 - 12 Months *
Substantial**
Method
Cleaning
Replacement
Replacement
Substantial
HEPA Filter
No replacement needed Replacement is
recommended Replacement is needed
Why is there flashing of "HP" light on the screen, with Red light indicating on the
body?
When the HEPA timer reaches 3,000 hours, the display on the machine will
show "HP", and a red light will be turned on to remind the user for checking
and changing the HEPA filter.
(1)Make sure the machine is turned ON and running.
(2)Remove the HEPA filter(s) (some models may have more than one HEPA
filter, remove them ALL).
(3)After the HEPA filter(s) is taken out, the machine will make a warning sound
continuously, and "EE" is displayed on screen.
(4)Put in a new set of HEPA filter(s).
(5)The "EE" should disappear immediately, and the "HP" and red light should
be off. The machine should be back to normal.
1615
The unit does not operate. Check if the unit is correctly connected to its power supply.
Turn on the unit.
‘EE’ is displaying on Display Screen,
the unit is not operating and making
‘DiDi·DiDi’ sound.
No air is blowing through air outlet. Check if the unit is correctly connected to its power supply.
Check if the power cord interface is in good service condition.
Check if the filters have been correctly installed.
Re-install all filters.
The unit makes an abnormal
noise.
The unit emits an unusual smell
or smog. (e.g. smoke, flame, or
burning)
The unit may malfunction. Call the customer service center
for advice or consult with a qualified agent.
Make sure the air inlet and outlet are not blocked by
external objects.
Remove all adjacent objects that block the air inlet
and outlet.
Turn off the unit and disconnect it from power supply.
Call the customer service center immediately or contact
with a qualified agent.
The air quality is not yet improved
after a long time operation.
The Filter may require cleaning and replacement.
If the unit is used in a seriously polluted area, the treatment
process would take longer than normal. It is recommended
to operate the unit with high airflow mode until the pollution
diminishes.
The airflow from air outlet
becomes slow.
Make sure all packaging materials are removed.
Make sure all packaging materials are removed.
Filter may be blocked.
Replace the filter. (See section "filter cleaning and
maintenance" of this manual)
Other Intormation
Trouble Shooting Other Intormation
Product Specification
Rated Voltage
Rated Frequency
Airflow
Volume
(m3/hr)
Power
Supply
Power
Consumption
(W)
Noise Level
(dB)
Product
Dimension
(L x W x H)
(mm)
Net Weight
(kg)
Treatment
System
Active Oxygen
Generator
Pre-filter
NCCO Reactor
Sterilization
Remove dust and hair
Remove odour and decompose harmful
pollutants such as formaldehyde and VOCs.
HEPA Filter Remove dust, hair and airborne particles such as
allergens and pollen, bacteria, viruses and fungus.
Static Filter Remove small particles larger than 10μm and
cigarette smoke.
16
35
40
<80
230
280
37
50
54
Lowest
Highest
Turbo
Lowest
Highest
Turbo
Lowest
Highest
Turbo
Mode
Mode
Mode
340（L）x 200（W）x 550（H）
8.5
110-240V~
50-60Hz
Other manuals for BM100
1
Table of contents
Other b-mola Air Cleaner manuals
b-mola
b-mola NCCO1701 User manual
b-mola
b-mola BM10 User manual
b-mola
b-mola BM150 User manual
b-mola
b-mola BM20 User manual
b-mola
b-mola BM50 User manual
b-mola
b-mola NCCO1802 User manual
b-mola
b-mola BM100 User manual
b-mola
b-mola BM300 User manual
b-mola
b-mola NCCO1702/DMA User manual
b-mola
b-mola NCCO1701 User manual
