B.Pro TS-H1 Quick guide

Translation of the original operating instructions

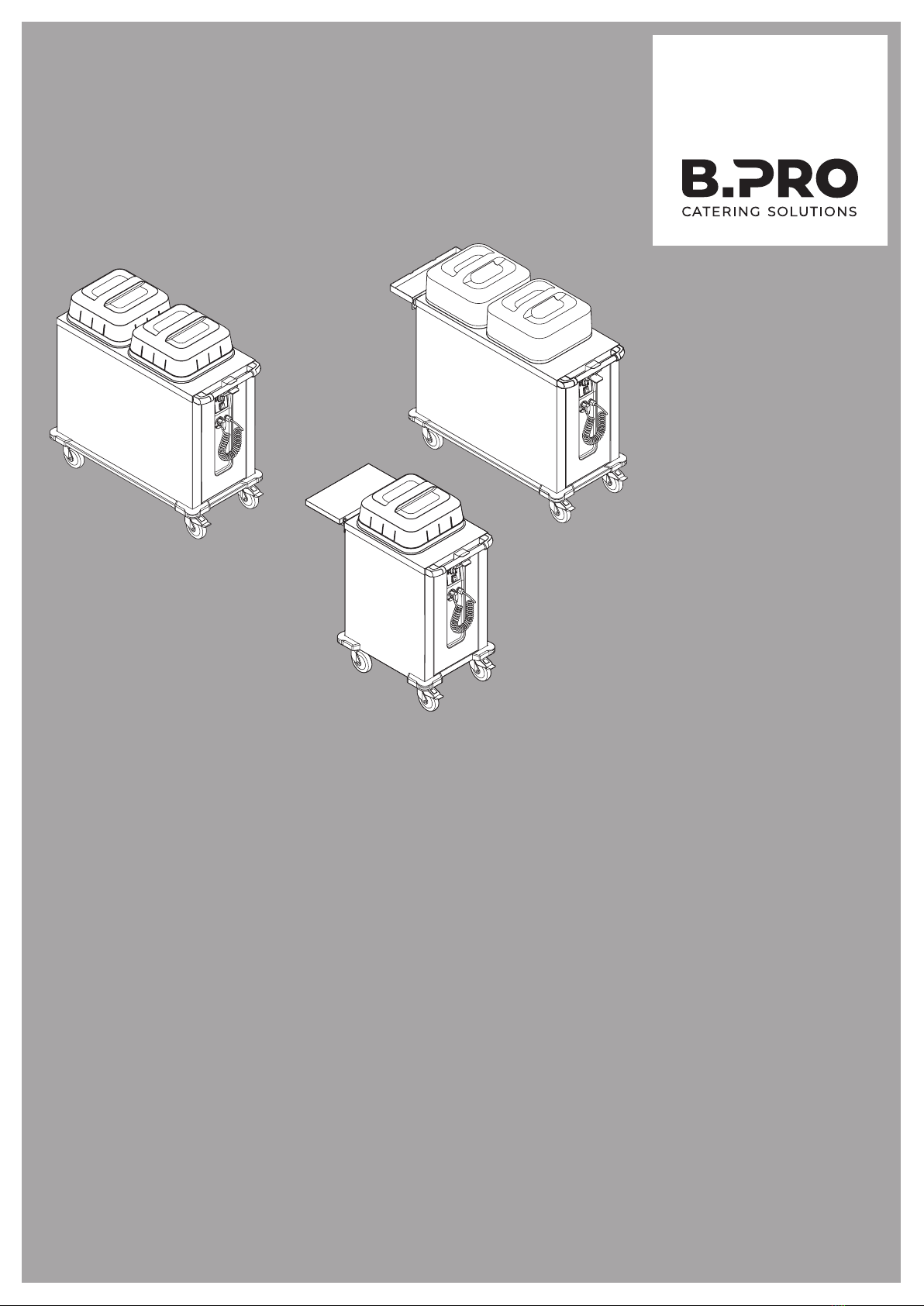

PLATE DISPENSER
TS-H1/H2/UH2

2
Mobile Plate Dispenser OPERATING INSTRUCTIONS
These instructions are protected by copyright. None of this information may be reproduced,
distributed, used to the advantage of our competitors, or made accessible to third parties either
completely or in part.
Subject to modifications due to technical improvements.
Translation of the original operating instructions. Target group: operating personnel, kitchen di-
rectors.
)Important note on special features or special cases.
LExplanatory information in chapters or sections containing instructions.
ªCross reference to a chapter, section or external document.
9Requirement which must be fulfilled before the subsequent steps can be carried out.
Action or activity which must be carried out.
Unit model XYZ
A section identified in this way applies only to a particular unit model or unit option.
Signal word!
Type and source of danger
Possible consequences of non-compliance with warnings.
Measures to avoid hazards and the consequences thereof.
The signal word (caution, warning, danger) indicates the level of danger.
Caution warns of possible minor bodily injury or damage to property.
Warning warns of possible serious bodily injury.
Danger warns of possible highly severe/fatal bodily injury.
Copyright
Technical changes
Product documentation
Typographical
conventions
Warnings
General information

3
Mobile Plate Dispenser OPERATING INSTRUCTIONS
Contents
About this product Scope of application 7
Conditions of use 7
Product features 7
Safety General information 9
About this product 9
Transport 10
Commissioning 10
Operation 11
Shutting down 14
Cleaning and care 14
Maintenance 15
Repairs 15
Standards and guidelines 16
Product marking 16
Transport Checking for/reporting transport damage 17
Scope of delivery 17
Unpacking 17
Disposing of packaging material 17
Commissioning Prerequisites for operation 18
Initial start-up 18
Adjusting guide rods to the plate diameter 18
Testing distribution height of stacked items 19
Setting the distribution height of stacked items 20
Mounting retaining clip for hooded cover 21
Connecting unit 22
Operation Unit overview 23
Operating controls– overview 24
Applications – overview 24
Setting the setpoint temperature 25
Hooking hooded cover into retaining clip 25
Loading the unit 26
Removing hooded cover from retaining clip 26
Folding fold-down shelf up/down 28
Moving unit to a new location 29
Traversing ramps, recesses, inclined surfaces 30
Heating dishes and keeping them warm 30
Removing dishes 31
Shutting down Shutting unit down 32

4
Mobile Plate Dispenser OPERATING INSTRUCTIONS
Troubleshooting Operation indicator does not illuminate 33
Operation indicator lit, but dishes are not heated/kept warm suciently 33
Operation indicator lit, but unit interior remains cold 33
The unit always heats at the maximum temperature, regardless of the control setting 33
Plates are too large or small for the stacking well 33
Corrosion of stainless steel parts 34
The unit has external damage 34
Cleaning and Care Stainless steel 35
Cleaning frequency 35
Cleaning methods 35
Cleaning agents 36
Cleaning unit 36
Removing/installing plate stacking well 37
Cleaning cleaning drawers 39
Maintenance Having unit regularly maintained 40
Checking castor brakes 40
Having periodical electrical safety inspection carried out 40
Checking connection cable and mains plug 40
Repairs Authorised persons 41
Fault description 41
Replacing components 41
Spare parts 41
Address 42
Disposal Disposing of unit 43
Technical data General data 44
Electrical data 45
Environment 45
Ordering information TS-H1 18-33 plate dispenser 47
TS-H2 18-33 plate dispenser 47
TS-UH2 18-33 plate dispenser 47
Operating instructions 47
PC hooded cover for plate dispenser 47
EPP hooded cover for plate dispenser 47
GN container for hanging in GN hanging frame 47
B.PRO microfibre cleaning cloth 47
DeepClean Stainless Steel cleaning and care agent 47

5
Mobile Plate Dispenser OPERATING INSTRUCTIONS
Standards, guidelines,
rules, regulations Standards 48
Directives for CE marking/EU declaration of conformity 48
Rules, regulations 48

6
Mobile Plate Dispenser OPERATING INSTRUCTIONS

7
Mobile Plate Dispenser OPERATING INSTRUCTIONS
The heated mobile plate dispenser is designed for the following applications:
• Storage/stocking up of dry dishes
• Provision/distribution of dishes
• Heating and temperature maintenance of dry dishes
The unit may only be used for drying dishes.
The unit must not be used to store, heat up or transport food.
The storage and transport of flammable goods or those which negatively affect food are not per-
missible.
The heated mobile plate dispenser is particularly suitable for catering in social facilities (clinics,
retirement homes, day care centres), hotels, the food service industry (banquets, party services)
and in company catering (canteens, dining halls).
It is forbidden to transport persons with or on the unit or its attachments. The unit may not be
used as a substitute for a ladder or as climbing frame (for children). There is a danger of tipping.
The unit must not be used to transport or store dangerous or toxic substances/liquids.
Environment
The unit may be used when the ambient temperature is between +15 °C and +38 °C and at nor-
mal humidity (without condensation).
The unit has been developed for use up to 2000 m above sea level.
Instruction of third parties
If the unit is lent to third parties, these persons must be instructed in the safe handling of the unit
and possible dangers must be pointed out.
General information
The heated mobile plate dispenser is made of stainless steel. The stainless-steel surface is
micro-polished.
The unit designation contains an abbreviation of the unit model. The first two letters designate
the unit type ("TS" refers to Tellerspender = plate dispenser).
A hyphen is followed by additional features typical for the unit.
The unit is enclosed by a housing cover.
The stacking wells are covered with hooded covers. A retaining clip on the push handle is used
to mount one EPP hooded cover or two PC hooded covers.
Scope of application
Conditions of use
Product features
About this product

8
Mobile Plate Dispenser OPERATING INSTRUCTIONS
Operation
Stacked items are stacked on a stacking platform. The distribution height of the stacking plat-
form can be set by hooking and unhooking springs.
The unit is equipped with four steering castors, two of which have castor brakes.
A safety push handle allows easy movement of the unit. Sturdy
corner guards protect the unit from damage.
A unit with a type designation which contains -UH (e.g. TS-UH2 plate dispenser) is fitted with
convection heating. A unit with a type designation which contains -H (e.g. TS-H1 plate dispenser)
is fitted with static heating.
The temperature control is based on a mechanical capillary-tube thermostat.
The desired setpoint temperature in the unit can be set continuously via a rotary knob below the
push handle. The setting "7" corresponds to a temperature of about +60 °C.
The unit has an On/Off switch.
Overload protection prevents the unit from overheating.
The plate dispensers are suitable for menu plates with a diameter between 180 and 330mm and
square plates between 180 x 180 and 280 x 280 mm.
The guide rods in the stacking well can be adjusted to the plate diameter.
The stacking well of the plate dispenser is equipped with 4 guide rods. The plate tube can be
optionally equipped with 4 additional guide rods to hold smaller dishes or dishes of different
shapes securely.
Cleaning
A model with a cleaning drawer is available as an option to simplify cleaning.
The stacking well can be removed for thorough cleaning.

9
Mobile Plate Dispenser OPERATING INSTRUCTIONS
The unit has been built to state-of-the art standards. All the requirements necessary to ensure
safe operation have been met. Nevertheless, residual risk does exist when operating the unit.
The safety precautions and warnings in these operating instructions are there to help you protect
yourself against these hazards.
Safety precautions
Carefully read and observe the safety precautions in this chapter.
The owner is responsible for ensuring that safety precautions in these operating instructions are
observed.
Warnings
Observe the warnings with the danger symbol (warning triangle) in the text.
Operating instructions
These operating instructions must be read carefully prior to commissioning.
The owner is responsible for ensuring that all users have read these instructions before using the
unit.
Store these operating instructions in a location which is always accessible to operating person-
nel.
Cleaning and maintenance
Disconnect the unit from the power supply before cleaning or maintenance work or replacing
parts. Keep the mains and/or unit plug in a suitable place where it is protected from moisture,
damage and dirt while carrying out work.
Scope of application
The unit may only be used for the applications specified.
The owner is responsible for ensuring appropriate and proper use of the unit.
Conditions of use
The unit may only be operated under the permissible ambient conditions.
Users of the unit must be instructed in its operation and must have understood these operating
instructions.
General information
About this product
Safety

10
Mobile Plate Dispenser OPERATING INSTRUCTIONS
Upright transport position
Transport the unit in an upright position only.
Transport with a truck or delivery vehicle
The unit may only be transported in a truck or delivery vehicle which features a loading ramp.
The loading ramp must not exceed an angle of inclination of 10°.
Only transport the unit when the castor brakes are released. Secure the unit to prevent it from
moving around. It is not permitted to transport the unit using on the castor brakes to secure it.
Secure the unit against vertical movement during transport. Use padded locking bars.
Protective films
Pull off any protective films when unpacking the unit. Otherwise, a fire could occur.
Adjusting guide rods
The guide rods must be correctly set to the size of plate being used. Otherwise there is a danger
of the plate stack tipping and plates slipping through between the guide rods and being dama-
ged.
The guide rods become hot during heating. Use protection such as pot holders or protective
gloves when handling hot guide rods.
Distribution height of stacked items
The distribution height of stacked items must be adjusted to current needs when commissio-
ning. If the stacking platform is set too high, the stacked items may tip over. Stacked items which
tip over can cause injuries. If the stacking platform is adjusted too low, the stacked items must
be removed in an ergonomically unfavourable position.
The unit interior can become hot during heating. Before setting the distribution height of the sta-
cked items, ensure that the unit interior has cooled down.
The springs for setting the distribution height of stacked items must be unhooked and hooked in
symmetrically. Otherwise there is a danger of the springs being loaded unevenly. Heavily loaded
springs are subject to increased wear. The springs must be attached in such a way that the start
of the spring is not pointing to the well centre.
Location
Never operate the unit next to equipment which emits large amounts of steam, such as a dish-
washer. Steam can cause moisture condensation on the unit.
When the unit is connected to the mains, there is a danger of the moisture film causing a short-
circuit or an electric shock.
Transport
Commissioning

11
Mobile Plate Dispenser OPERATING INSTRUCTIONS
Commissioning after storage
When the unit is brought from a cold storage room into a kitchen, moisture contained in the
room air condenses on the surface and inside of the unit. When the unit is connected to the
mains, there is a danger of the moisture film causing a short-circuit or an electric shock.
Do not operate the unit until it has reached room temperature.
Mains connection
The mains voltage and frequency specified on the rating plate must match the corresponding
values for the mains socket outlet.
The unit must not be used if the insulation on the mains cable or the mains plug is damaged.
The mains plug is only to be plugged in or unplugged when the unit is switched off. Otherwise,
the unit's electrical system and the mains socket outlet may become damaged.
Only unplug by pulling on the mains plug housing.
General Information
The user must be aware of the hazards that the unit presents and be able to assess them.
The unit may only be used by persons whose physical, sensory or mental abilities are not sub-
ject to any restrictions relevant to operating the unit.
The unit may only be used when it is in proper working order.
If there is damage, secure the unit against accidental use and have repairs carried out immedia-
tely by one of the authorised service points listed under Repairs.
Warning signs
The following warning signs are mounted to the unit:
Warning sign Meaning – Mounting position
"Warning: hot surface" in compliance with DIN4844-2
Replace any illegible, damaged or missing warning signs immediately.
Distribution height of stacked items
The distribution height of stacked items set during commissioning may need to be adjusted. If
the stacking platform is set too high, the stacked items may tip over.
Operation

12
Mobile Plate Dispenser OPERATING INSTRUCTIONS
Stacked items which tip over can cause injuries. If the stacking platform is adjusted too low, the
stacked items must be removed in an ergonomically unfavourable position.
The unit interior can become hot during heating. Before setting the distribution height of the sta-
cked items, ensure that the unit interior has cooled down.
The springs for setting the distribution height of stacked items must be unhooked and hooked in
symmetrically. Otherwise there is a danger of the springs being loaded unevenly. Heavily loaded
springs are subject to increased wear. The springs must be attached in such a way that the start
of the spring is not pointing to the well centre.
The stacking well is not suitable for use outside the unit body.
Loading
Do not place synthetic dishes in the stacking unit. The stacking unit and/or the synthetic dishes
can be damaged.
Plates with a diameter between 180 and 330mm and square ones measuring between
180x180 and 280x280mm may be used in the plate dispenser with 4 guide rods for each
stacking well. If smaller plates are used, there is a danger of the plate stack tipping and plates
slipping through between the guide rods and being damaged.
The same risk is present if the guide rods were not adapted to the diameter of the currently sta-
cked plates. For this reason, the guide rods must be re-adapted to the new plate size each time
the plate diameter is changed.
Load-bearing capacities
When loading, observe the information on maximum quantities of dishes specified in the tech-
nical data and the upper weight limit. Otherwise, the stacking unit or stacked items may tip over
and/or be damaged. Stacking units or stacked items which tip over can cause injuries
Loading of attached parts
Unit model with fold-down shelf
The fold-down shelf mounted on the short side is designed to store dishes and/or trays and may
not be loaded with heavy objects.
The permissible surface load is 25 kg.
Sitting on the folding table is not permitted.

13
Mobile Plate Dispenser OPERATING INSTRUCTIONS
Unit model with mounting frame for GN container
The mounting frame attached to the short side is designed to hold one or more GN containers
and may not be loaded with heavy objects.
The permissible surface load is 25 kg.
Sitting on the mounting frame is not permitted.
Hooded covers
If the unit is heated for a longer period without a hooded cover, a large amount of heat is lost. Al-
ways cover the unit with a hooded cover while heating. The hooded cover may only be removed
briefly to insert or remove dishes.
Only screw the hooded cover upward out of the retaining clip during removal until it can easily be
pulled forward out of the retaining clip.
Unit model with cleaning drawer
A large amount of heat is lost during heating if the cleaning drawer is missing. The cleaning dra-
wer must therefore always be inserted during heating.
Hot unit parts and objects
The unit top and interior and the cleaning drawer (optional) and objects (dishes) in the unit be-
come hot during operation (up to about +110°C) and can cause burns.
Protection (e.g. with pot holders or protective gloves) must be used when handling hot objects.
Access to temperature control
If the unit is freely accessible to guests and unsupervised, it must be positioned in such a way
that the temperature control cannot be adjusted by unauthorised persons. The unit side with the
temperature control can be turned to a wall, for example.
Castor brakes
Always secure the unit from rolling away by applying the castor brakes. The unit can cause inju-
ries and damage to property if allowed to roll away accidentally.
Change of location
Unplug the mains plug before each change of location. If you do not, the power connection
cable or the customer-supplied mains socket outlet can be damaged.
The unit should be pushed only, never pulled.
Always push the unit with two hands on the tube of the push handle. Depending on the weight of
the unit, if you push it with just one hand it is possible you would not be able to apply the brakes
quickly enough.

14
Mobile Plate Dispenser OPERATING INSTRUCTIONS
Be careful not to trap your hands (risk of crushing) between the unit and walls or other objects,
such as cabinets.
Avoid subjecting the castors to excessive load to minimise the risk of damage to the castors:
• Do not move the unit when the castor brakes are locked
• Avoid impacts
• Pull the unit carefully over thresholds or steps (without using excessive force)
If the unit is on a sloped surface, it must be secured by extra means, such as wheel chocks, in
addition to applying the castor brakes to prevent it from rolling away accidentally.
The unit can be tilted to an angle of 10° when stationary before it is at risk of tipping over. You
may only cross sloped surfaces with an incline <10°.
The unit may swerve out to the side when being pushed over a sloped surface. Two people (one
at each side of the unit) are required to move the unit over ramps or recesses.
Disconnecting the mains plug
Insert and remove mains plug only while unit is switched off, as otherwise the unit electrical sys-
tem and the mains socket outlet can be damaged.
Only unplug the mains plug by pulling on the mains plug housing.
Mains plug
Switch the unit off and unplug the mains plug before cleaning. Water penetrating into the unit
can cause a short-circuit. If this happens, there is a risk of electric shock.
Hygiene
You must comply with the specifications in Regulation (EC) no. 852/2004 and your national hygi-
ene regulations.
Cleaning frequency
Clean the unit exterior after each use. Clean the unit interior if necessary.
Cleaning methods
Use approved cleaning methods only.
Do not use steam jet units, high-pressure cleaners, water sprayers or similar cleaning devices.
General information on cleaning agents
Do not use metal parts for cleaning. Metal parts can damage the unit and/or lead to corrosion.
Do not use pointed or sharp objects for cleaning. They can damage the unit.
Do not use scouring agents. Scouring agents scratch surfaces.
Shutting down
Cleaning and care

15
Mobile Plate Dispenser OPERATING INSTRUCTIONS
Cleaning agents for synthetic parts
Do not use scouring agents. Scouring agents scratch surfaces.
Do not use the following cleaning agents or cleaning agents containing the following substances
(material damage!):
• Ethyl alcohol, isopropyl alcohol and higher alcohols
• Acetone
• Benzene
• Turpentine
• Acetic ester
Hot unit parts and objects
The unit top, unit interior and any objects located inside (dishes) become hot during operation
(risk of burns!).
Allow the unit to cool for at least 20 minutes before cleaning.
Periodical electrical safety inspection
Have a qualified electrician carry out a periodical electrical safety inspection at least once every
six months in accordance with the DIN VDE 0702 series of standards.
Connection cable and mains plug
Check the connection cable and mains plug for mechanical damage and signs of excessive
deterioration at least once every six months in accordance with DGUV Regulation 3 (formerly
BGVA3) or equivalent national regulations.
Castor brakes
Check that castor brakes work effectively on a regular basis.
If brakes do not lock effectively, have the defective castor(s) replaced immediately by one of the
service points listed under Repairs.
Authorised persons
The unit may only be repaired by the following service points:
• In-house, B.PRO-trained professionals
• External, B.PRO-trained customer service
• B.PRO service
The warranty will be invalidated if the unit is repaired by anyone else.
Maintenance
Repairs

16
Mobile Plate Dispenser OPERATING INSTRUCTIONS
Observe the applicable standards, guidelines and safety regulations.
The owner is responsible for compliance with the applicable standards, guidelines and safety
regulations.
The unit is fitted with a rating plate. The warranty is voided if the rating plate is removed.
Standards and guidelines
Product marking

17
Mobile Plate Dispenser OPERATING INSTRUCTIONS
Transport
)The unit must be checked for any damage incurred during transport (visual inspection) imme-
diately after delivery.
Document any damage incurred during transport (description of defect) on the waybill in the
presence of the carrier.
Have the carrier confirm the damage (signature).
Keep the unit and send a complaint to B.PRO about the damages and include the waybill.
– or –
Do not accept the unit and have the carrier return it to B.PRO.
)This procedure ensures that damage claims are handled correctly. The unit recipient must
provide suitable proof if transport damage is reported at a later point in time.
The scope of delivery contains the following as standard:
• Unit
• Retaining clip for hooded cover
• Operating instructions
The exact scope of delivery and model of the unit is to be taken from the delivery documentati-
on.
Open the transport packing at the designated opening points. Do not rip or cut it!
Check the scope of delivery.
Remove any protective film from the unit.
)Packaging materials are recyclable.
Recycle packaging materials in a proper, environmentally responsible manner as per appli-
cable statutory requirements.
Checking for/reporting
transport damage
Scope of delivery
Unpacking
Disposing of packaging
material

18
Mobile Plate Dispenser OPERATING INSTRUCTIONS
Commissioning
9Unit has reached room temperature
9There are no signs of defects or visible damage to the unit
9The following settings carried out correctly and adapted to the new situation if necessary
9Any existing protective film is completely removed
)The insulation material may emit slight fumes or faint odours as it becomes hot on initial start-
up. For this reason, we recommend heating the unit empty for approx. 2 hours before the
initial use.
9The unit is switched off
Caution!
Damage to the unit's electrical system.
The unit's electrical system may suffer damage if the unit is not designed for the available mains
voltage or frequency.
Before connecting, make sure that the mains voltage and mains frequency on the rating plate
correspond with those for the mains socket outlet.
Ensure that no objects which are sensitive to heat are located inside the unit or on the unit
top.
Connect the mains plug to the socket outlet.
Switch on unit with the On/O switch.
The operation indicator illuminates.
Set rotary knob to the highest level.
Heat unit approx. 2 hours.
Switch o unit with the On/O switch.
The operation indicator goes out.
Clean the unit after it cools down.
ªChapter "Cleaning and Care"
LThe plate dispenser guide rods can be adjusted to the specific diameter of the plates used.
We recommend using the plates to be used to test which setting range is most suitable.
Prerequisites for
operation
Initial start-up
Adjusting guide rods to
the plate diameter

19
Mobile Plate Dispenser OPERATING INSTRUCTIONS
Pull the guide rod upward (1.).
4.
1.
2.
3.
Turn the guide rod toward the centre of the tube (2.) if the diameter is to be reduced
– or –
Turn the guide rod toward the housing cover (3.) if the diameter is to be increased.
Lower the guide rod (4.) and insert it in the corresponding guide hole in the unit bottom.
Lock the guide rod's transport securing device
LThe distribution height of stacked items is adjusted using springs, which are used to mount
the stacking platform at the top of the unit housing.
LIndividual springs can be hooked/unhooked to adjust the distribution height of stacked items
if necessary.
LThe unit is supplied from the factory with fully hooked springs. We recommend testing the
distribution height of stacked items using this spring setting and making adjustments if ne-
cessary.
)If a dierent type of stacked item is to be stacked at a later time and it is necessary to change
the distribution height of stacked items, either unhooked springs must be hooked in or additi-
onal springs unhooked.
)The distribution height of stacked items is correctly adjusted when the top plate is positioned
above the unit cover.
Place 11 plates on the stacking platform.
If the top plate does not extend above the upper side of the unit or several plates extend abo-
ve the upper side of the unit, remove all plates and change the spring setting.
ªSection "Setting the distribution height of stacked items"
Retest the distribution height of stacked items after changing the spring setting.
If necessary, repeat the spring setting change and testing of the distribution height of stacked
items until the correct setting is achieved.
Testing distribution height
of stacked items

20
Mobile Plate Dispenser OPERATING INSTRUCTIONS
LIndividual springs are hooked and unhooked to adjust the distribution height of stacked
items.
LThe unit is supplied from the factory with fully hooked springs.
)The following always applies to setting the distribution height of stacked items:
– The springs must be unhooked and hooked in symmetrically.
– The springs must be unhooked from the inside outward; i.e. start with the central spring
when unhooking the springs.
– The number of springs hooked into both setting sides may differ by a maximum of 1
spring.
Caution!
Sharp spring end.
The sharp start of the spring can cause injuries to arms, hands and fingers if fitted incorrectly.
When fitting the springs, you must ensure that the start of the spring on both sides does not
point to the centre of the well.
)If a dierent type of stacked item is to be stacked at a later time and it is necessary to change
the distribution height of stacked items, either unhooked springs must be hooked in or additi-
onal springs unhooked.
Ensure that the unit interior has cooled down.
Completely remove the stacked items.
On the lower attachment section, hook in o unhook one of the inside springs at each of the
two opposite setting sides.
Test distribution height of stacked items and hook in or unhook additional springs if necessa-
ry.
Setting the distribution
height of stacked items
