B-Tech montlogic BT7581 Instruction Manual

B-TECH AUDIO VIDEO MOUNTS
www.btechavmounts.com
CONTENTS
INSTALLATION TOOLS REQUIRED
FEATURES
BT7581
FLAT SCREEN CEILING MOUNT
FOR SMALL SCREENS
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 1 Mount
PLEASE KEEP THIS FOR FUTURE REFERENCE
Installation Safety Notes.......................................................................................................................2
Parts List..............................................................................................................................................4
Installation Instructions.........................................................................................................................6
Product Dimensions............................................................................................................................11
B-Tech Contact Details.......................................................................................................................12
Pencil
Drill
Crosshead
screwdriver
8mm (1/3") masonry bit
or 3mm (1/8") wood bit
●Designed for flat screen up to 23” (58cm) / 10kg (22lbs)
●Fits screens with VESA mounting patterns:
50 x 50mm, 75 x 75mm and 100 x 100mm
●Fixed ceiling drop of 205mm (8”)
●Features +/- 90° tilt and 360° swivel
●Post installation screen levelling
●Cover plate included for smart installation
●Simple installation
●All mounting hardware included

2
INSTALLATION SAFETY INSTRUCTIONS
CAUTION: This ceiling mount is intended for use only with the maximum
weights indicated. Use with projectors heavier than the maximum indicated
may result in instability causing possible injury.
Do not attempt to install this product until all instructions and warnings have been read and
properly understood. Please keep these instructions for future reference.
B-Tech International Limited, its distributors and dealers are not liable or responsible for
damage or injury caused by improper installation, improper use or failure to observe these
safety instructions. In such cases, all guarantees will expire.
General
B-Tech International Ltd recommends that a professional AV installer or other suitably qualified
person install this product. Great care must always be taken during installation as most AV
equipment is of a fragile nature, possibly heavy and easily damaged if dropped.
If you do not fully understand the instructions or are not sure how to install this product safely,
then please consult a professional for advice and/or to install this product for you. Failure to
mount this product correctly may cause serious injury or death both during installation and at
any time thereafter.
Do not mount any AV equipment that exceeds the specific weight limit of the product you are
installing. This weight limit will be clearly stated on each product and its packaging and will
vary from product to product.
Product location
Please pay careful attention to where this product is located. Some ceilings are not suitable for
installation.
If located in a public or frequently populated area ensure that the product is out of the
immediate reach of people. If any AV equipment is to be suspended over the likely path or
location of people then great care should be taken to secure all parts of the installation from
falling.
When drilling holes in ceilings it is essential to avoid contact with electrical cables and water or
gas pipes contained within. Use of a good quality live wire detector and hidden object locator is
therefore recommended. Only drill into structures when you are sure it is safe to do so.
Fixing hardware
It is highly recommended that all wall fixing screws be used where supplied and that the
purpose of all other fixing hardware is fully understood. In some cases more AV equipment
fixing hardware will be supplied to accommodate different models of equipment and set up
configurations.
The installer must be satisfied that any supplied fixing hardware is suitable for each specific
installation. If any fixing screws or included hardware are deemed not sufficient for a safe
installation then please consult a professional or your local hardware store.
Hazard limitation
When routing cables take advantage of any built in cable management features that the
product might provide and ensure that all cables are tidy and secure. Check to see that any
moving aspect of the product can do so unhindered by any cabling.
Some products have moving parts and the potential to cause injury through the crushing or
trapping of fingers or other body parts.
Particular attention to the nature of moving parts is required especially when assembling
installing and adjusting during set up.
Immediately after installations double-check that the work done is safe and secure. Double-
check all necessary fixings are present and are of ample tightness.
It is recommended that periodic inspections of the product and its fixing points are made as
frequently as possible to ensure that safety is maintained. If in doubt consult a professional AV
installer or other suitably qualified person.

3
CS
Společnost B-Tech International Ltd. doporučuje provést instalaci tohoto produktu prostřednictvím odborného
instalátora AV či jinak způsobilé osoby. Společnost B-Tech International Ltd, její distributoři a prodejci nenesou
odpovědnost za škody nebo zranění způsobená nevhodnou instalací. Tento výrobek je nutno umístit do vhodné
konstrukce a používat jen po uvedenou maximální výšku.
DE
B-Tech International Ltd. empfiehlt, dass dieses Produkt durch einen qualifizierten AV-Techniker oder eine
andere Person mit geeigneter Qualifikation installiert wird. B-Tech International Ltd, ihre Distributoren und
Händler können nicht für durch fehlerhafte Montage verursachte Beschädigung oder Verletzung haftbar bzw.
verantwortlich gemacht werden. Dieses Produkt muss auf eine geeignetem Untergrund montiert werden und darf
nur bis zum angegebenen Höchstgewicht verwendet werden.
ES
B-Tech International Ltd. recomienda que un instalador de audio y video profesional u otra persona debidamente
cualificada instalen este producto. B-Tech International Ltd, sus distribuidores y concesionarios no se hacen
cargo ni se responsabilizan de ningún daño o lesión provocados por una instalación inapropiada. Este producto
se debe montar en una estructura adecuada y se debe utilizar soportando solamente hasta el peso máximo
indicado.
FR
B-Tech International Ltd. recommande de confier l’installation de ce produit à un installateur AV professionnel ou
à une autre personne dûment qualifiée. B-Tech International Ltd, ses distributeurs et ses revendeurs ne
sauraient être tenus responsables de tout dégât ou de toute blessure résultant d’une installation incorrecte. Ce
produit doit être monté sur un support approprié et utilisé dans la limite du poids maximum indiqué.
IT
B-Tech International Ltd. consiglia di affidare l’installazione di questo prodotto a un installatore specializzato o ad
altra persona adeguatamente qualificata. B-Tech International Ltd, i suoi distributori e rivenditori non accettano
alcuna responsabilità nei riguardi di eventuali danni o infortuni causati da un’errata installazione. Questo prodotto
deve essere fissato a una struttura idonea e utilizzato unicamente sino al peso massimo indicato.
NL
B-Tech International Ltd. adviseert om dit product te laten installeren door een professionele AV-installateur of
andere hiervoor gekwalificeerde persoon. B-Tech International Ltd, haar distributeurs en dealers zijn niet
aansprakelijk of verantwoordelijk voor schade of letsel die is veroorzaakt door onoordeelkundige installatie. Dit
product moet worden gemonteerd aan een geschikte constructie, waarbij het aangegeven maximum gewicht niet
mag worden overschreden.
PL
Firma B-Tech International Ltd. zaleca, aby ten produkt byłinstalowany przez profesjonalnych instalatorów AV
lub inny odpowiednio przeszkolony personel. Firma B-Tech International Ltd, jej dystrybutorzy i dealerzy nie
ponosząodpowiedzialności za uszkodzenia lub obrażenia ciała powstałe w wyniku nieprawidłowej instalacji.
Niniejszy produkt musi byćzamontowany na odpowiedniej powierzchni, a podczas użytkowania nie wolno
przekraczaćpodanego maksymalnego obciążenia.
PT
A
B-Tech International Ltd. recomenda que a instalação deste produto seja efectuada por um instalador de AV
profissional ou outra pessoa devidamente habilitada. A B-Tech International Ltd. e os seus distribuidores e
concessionários não são responsáveis por danos ou lesões causados por uma instalação incorrecta. Este
produto tem de ser montado numa estrutura adequada e utilizado somente até ao peso máximo indicado.
RU
Компания B-Tech International Ltd. рекомендует, чтобы установка данного изделия производилась
инженером по установке аудио-видеотехники или другим специалистом ссоответствующей
квалификацией. Компания B-Tech International Ltd., ее дистрибьюторы идилеры не несут ответственности
за повреждения или травмы, полученные врезультате неправильной установки. Данное изделие должно

BT7581
PARTS LIST
4
Suitable for
loads up to
10kg (22lbs)
Supplied
pre-assembled
1
2
2
3
4
5
6
7
8
9
10
11
12
13

5
PLEASE KEEP THIS FOR FUTURE REFERENCE
A3
A2
A1
14 15 16
C
AB
FLAT SCREEN INTERFACE KIT
(FOR ATTACHING MOUNT TO
BACK OF FLAT SCREEN)
WALL FIXING KIT
(FOR FIXING MOUNT TO WALL)

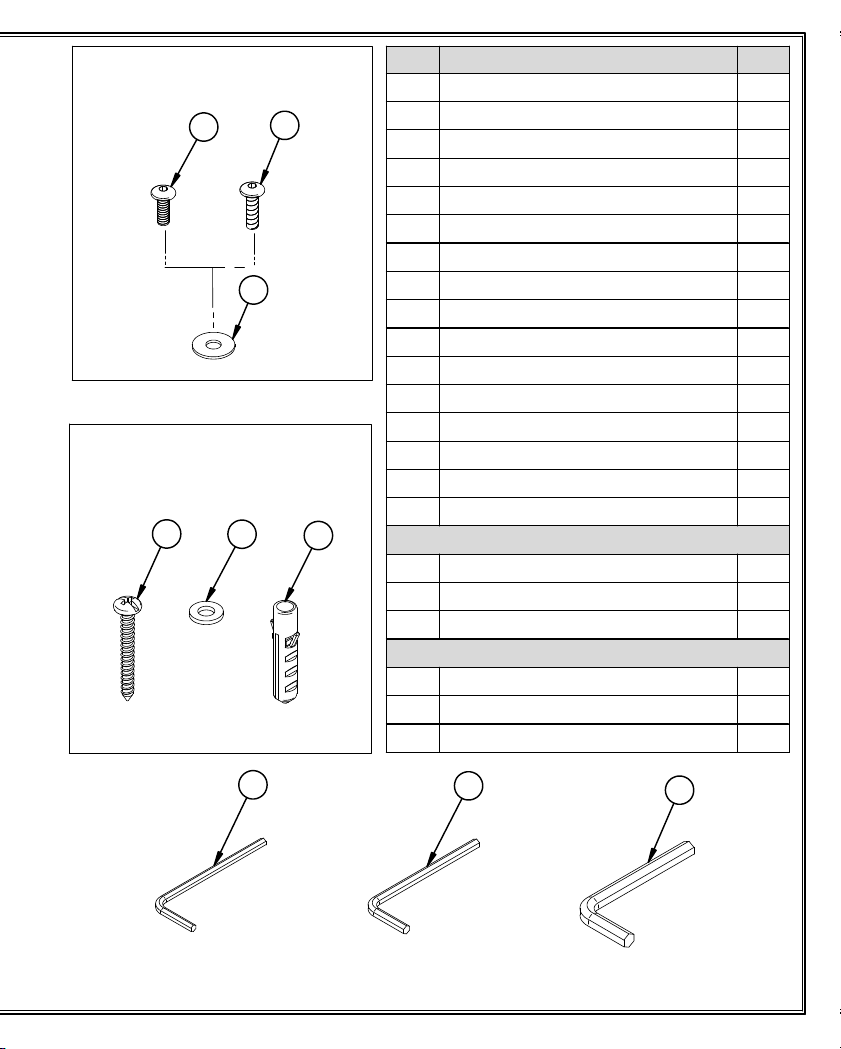

REF PART NAME QTY
1 CEILING PLATE 1
2 COVER PLATE 2
3 M8 NUT 1
4 M8 SPRING WASHER 1
5 SPACER 1
6 LONG EXTENSION ROD 1
7 BALL JOINT 1
8 M6 x 6mm GRUB SCREW 2
9 M6 x 10mm GRUB SCREW 2
10 M8 FEMALE ADAPTOR 1
11 INTERFACE PLATE 1
12 M8 x 20mm HEX SCREW 1
13 SECURITY CABLE 1
14 2.5mm HEX KEY (FOR PART A & B) 1
15 3mm HEX KEY (FOR PARTS 8 & 9) 1
16 5mm HEX KEY (FOR PART 12) 1
INTERFACE KIT
A M4 X 12mm HEX SCREW 4
B M4 X 15mm HEX SCREW 1
C M5 METAL WASHER (FOR PART B) 1
FIXING KIT
A1 M5.5 X 40mm WOOD SCREW 2
A2 M6 METAL WASHER (FOR PART A1) 2
A3 NO.8 WALL PLUG (FOR PART A1) 2

6
INSTALLATION INSTRUCTIONS

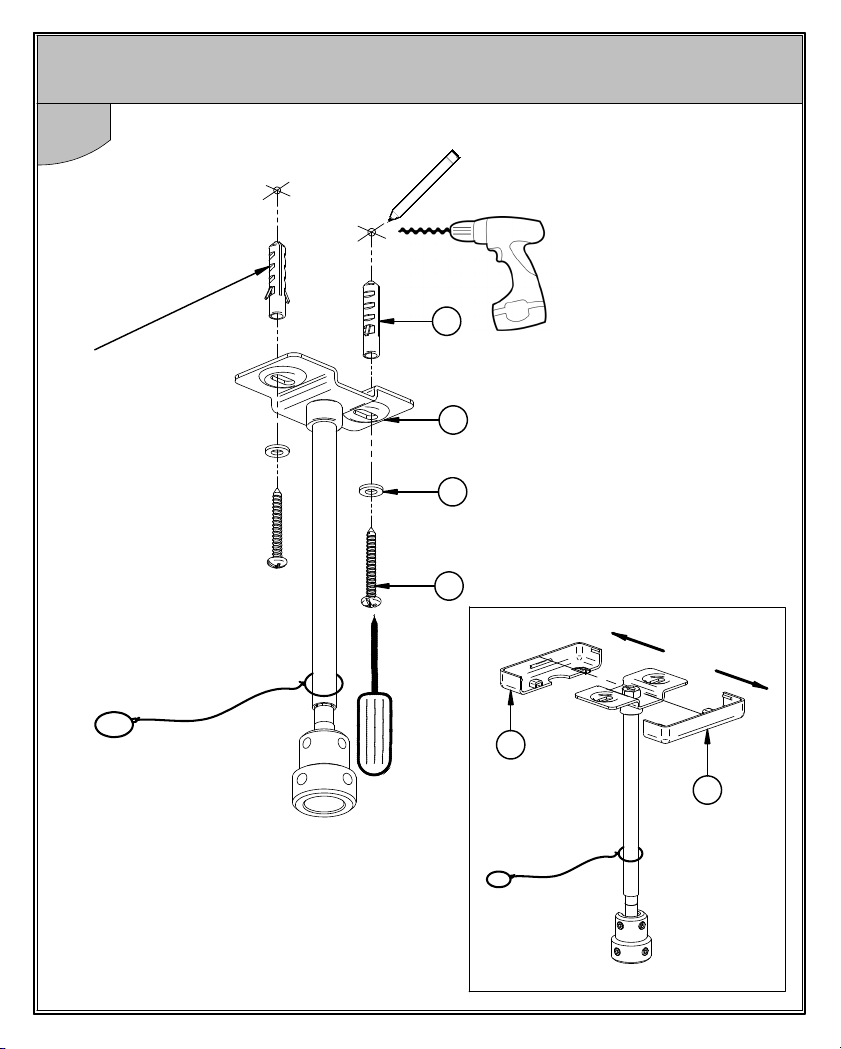

1Remove the cover plates, then fix the ceiling plate to the ceiling.
2
2
ONLY USE
PART A3
WHEN FIXING
TO CONCRETE
CEILINGS
A1
A2
A3
1

7

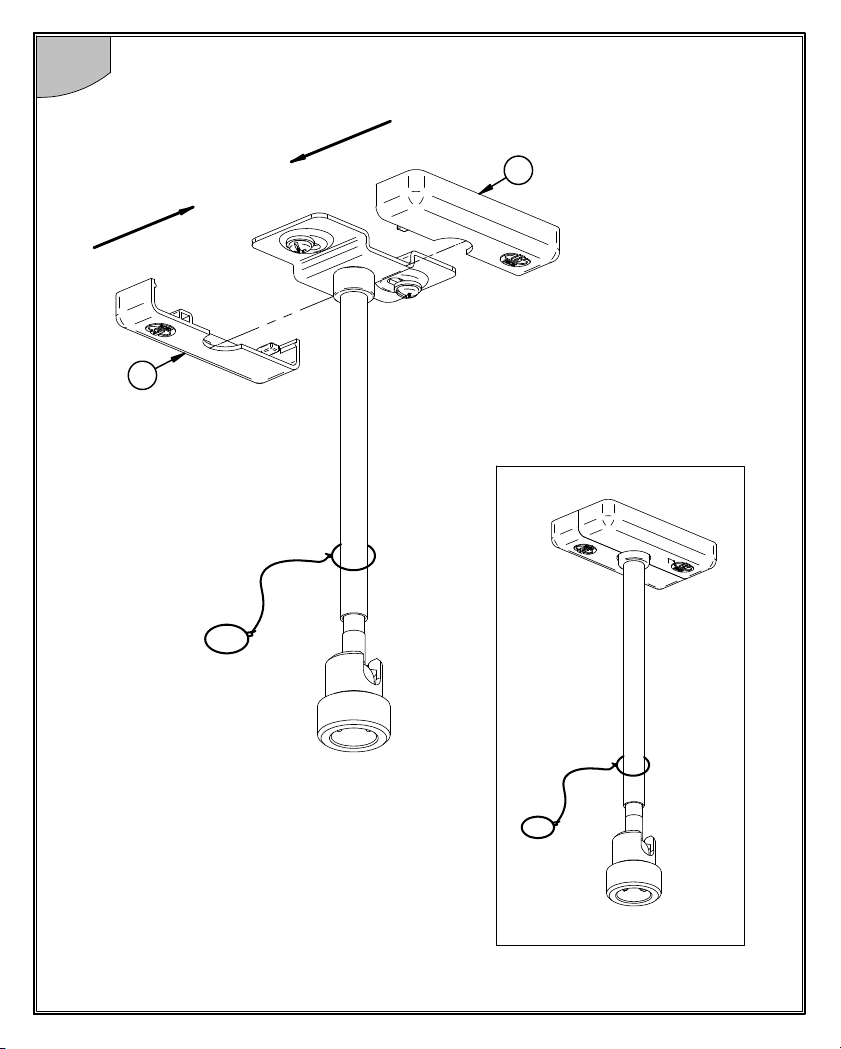

2Re-attach the cover plates.
2
2

8
3
4

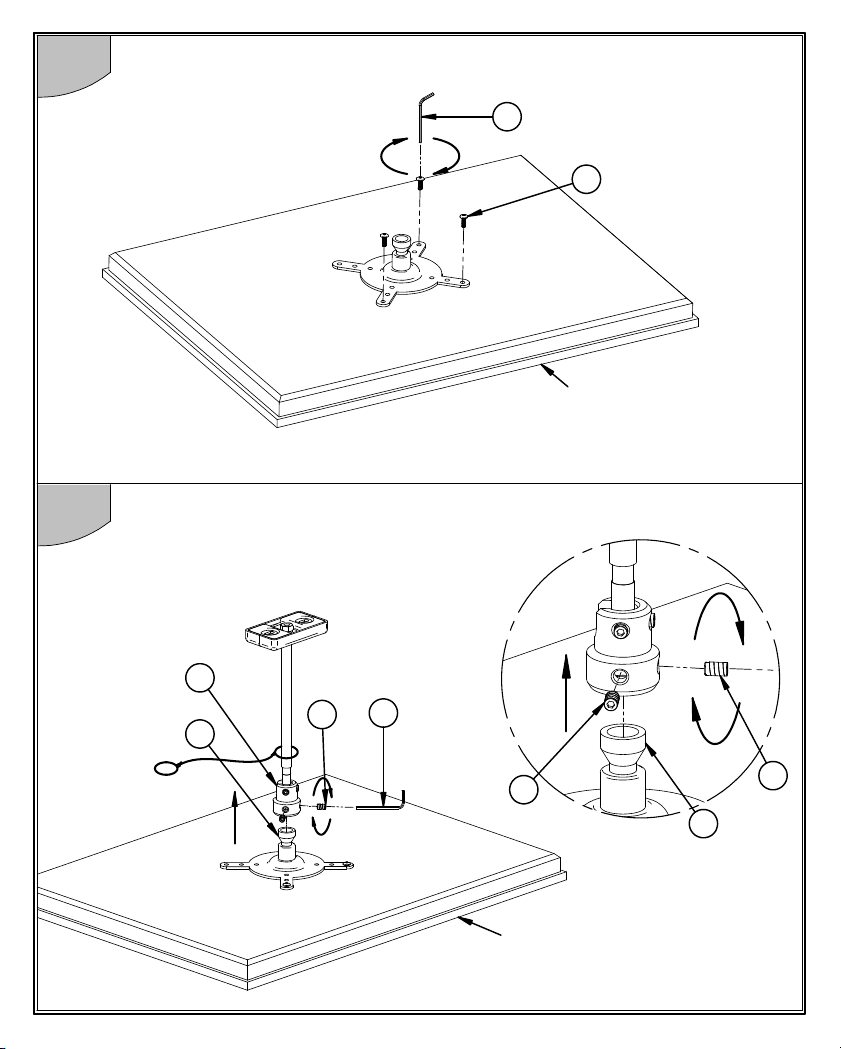

Attach interface plate to the flat screen using 3 interface screws (parts A).
TOP
BOTTOM
FLAT
SCREEN
14
A
TOP
BOTTOM
FLAT
SCREEN
Connect the adaptor to the ball joint and secure using parts 9.
9
10
7
15
9
9
10

9
5Place cable loop over vacant screw hole, secure in place using parts B
and C.
14
FLAT
SCREEN
FLAT
SCREEN
B
C
13
13
14
B
B
C
13
11
14
B
13

10

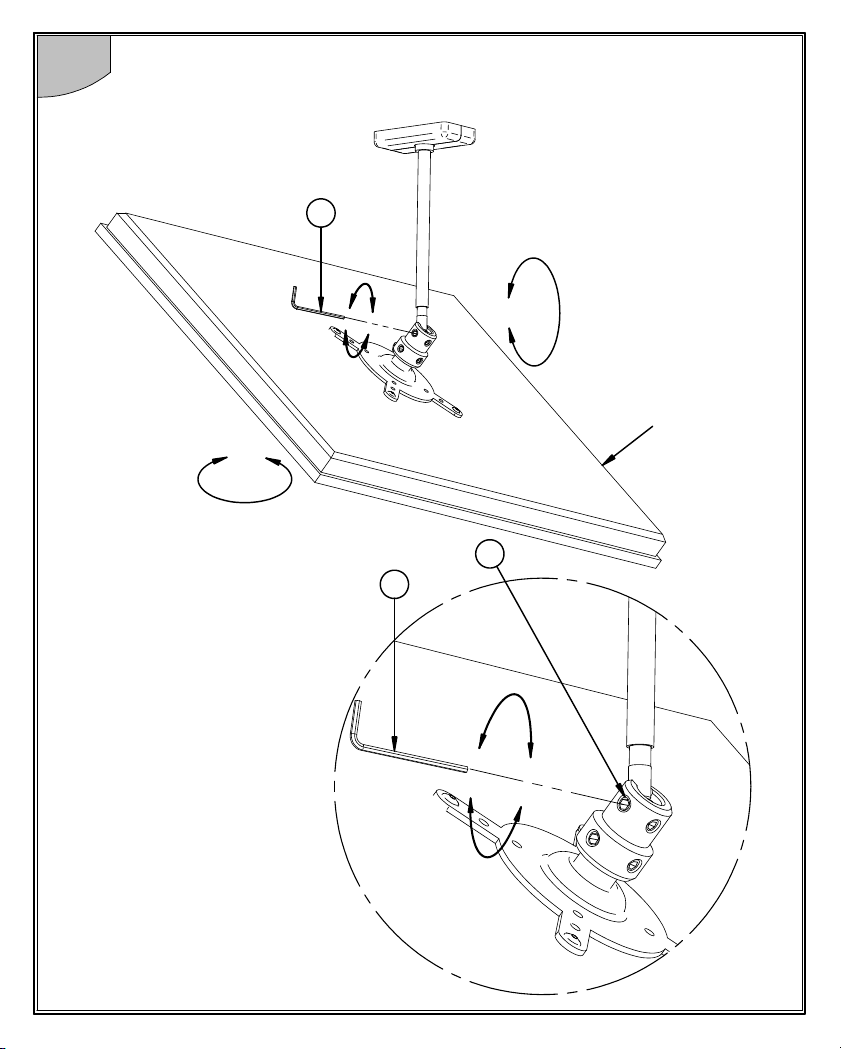

6Adjusting the screen.
15
8
90°
360°
FLAT
SCREEN
15

11
BT7581
PRODUCT DIMENSIONS
THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO
LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.
88mm
3.5"
INTERFACE PLATE
74mm
2.9"
45mm
1.8"
45mm 1.8"
59mm
2.3"
6.5mm 0.3"
14.5mm
0.6"
255mm 10"
92mm
3.6"
12mm
0.5"
50mm
2"
100mm 3.9"
75mm 3" 50mm 2"
50mm
2"
75mm
3"
100mm
3.9"
115mm 4.5"
115mm
4.5"
CEILING PLATE
205mm 8.1"
263mm 10.4"
