Babboe E-Power User manual

E-Power

Fold out this page to show the overview
of all screws
Usage Instructions:
Double check that all nuts and bolts have been well tightened.
Do not start riding the Babboe before you have checked if the brakes and gears
The brake cables and gear cables will stretch during regular usage of the bike.
Check regularly to ensure that the brakes and gears still function properly.
If required, readjust the brakes and gears
(see instructional videos on www.bakfietsen.com) or visit your bike mechanic or
bike repair shop to have them re-adjusted.
Perform regular maintenance on your Babboe. You can find maintenance suggestions
on www.bakfietsen.com
The frame number required for bicycle insurance is printed at the top or bottom of
the frame on the round part of the crank set (where the crank arm is attached to
the frame).
You can find the warranty conditions on www.bakfietsen.com
For questions or complaints, please contact [email protected]
Please keep this manual in a safe place.
Warning:
Correct assembly of the Babboe is essential. Babboe B.V. and its
agentsdo not take any responsibility for any damage or injuries that
may result from incorrect assembly.

Overview
of parts
ABCDEFGH
4x 4x 30x 2x 2x 2x 4x
2x
Nr.01 Seat Post and Saddle
Nr.02 Front Lights (x2)
Nr.03 Corner Mountings
(x2)
Nr.04 Corner Hinges
(x2)
Nr.05 Left Side Panel
Nr.06 (Front Panel )
Nr.07 (Bottom Panel)
Nr.08 (Rear Panel)
Nr.09 (Bench Seat) (x2)
Nr.10 Right Side Panel
Nr.11 (1 small hole) – Seat Belt (x2)
Nr.11A (2 small holes) – Seat Belt (x2)
Nr.12 Sidebars (x2)
Nr.13 Back Light
Nr.14 Front Wheel (x2)
Nr.15 Plastic Ties
Nr.16 Mudguards (x3)
Nr.17 Bike Pedals (x2)
Nr.18
Toy Bar and Protective
Tubes
Nr.19 Chassis
Nr.20 Rear Frame and Stem with Handle Bars

Attention before you start

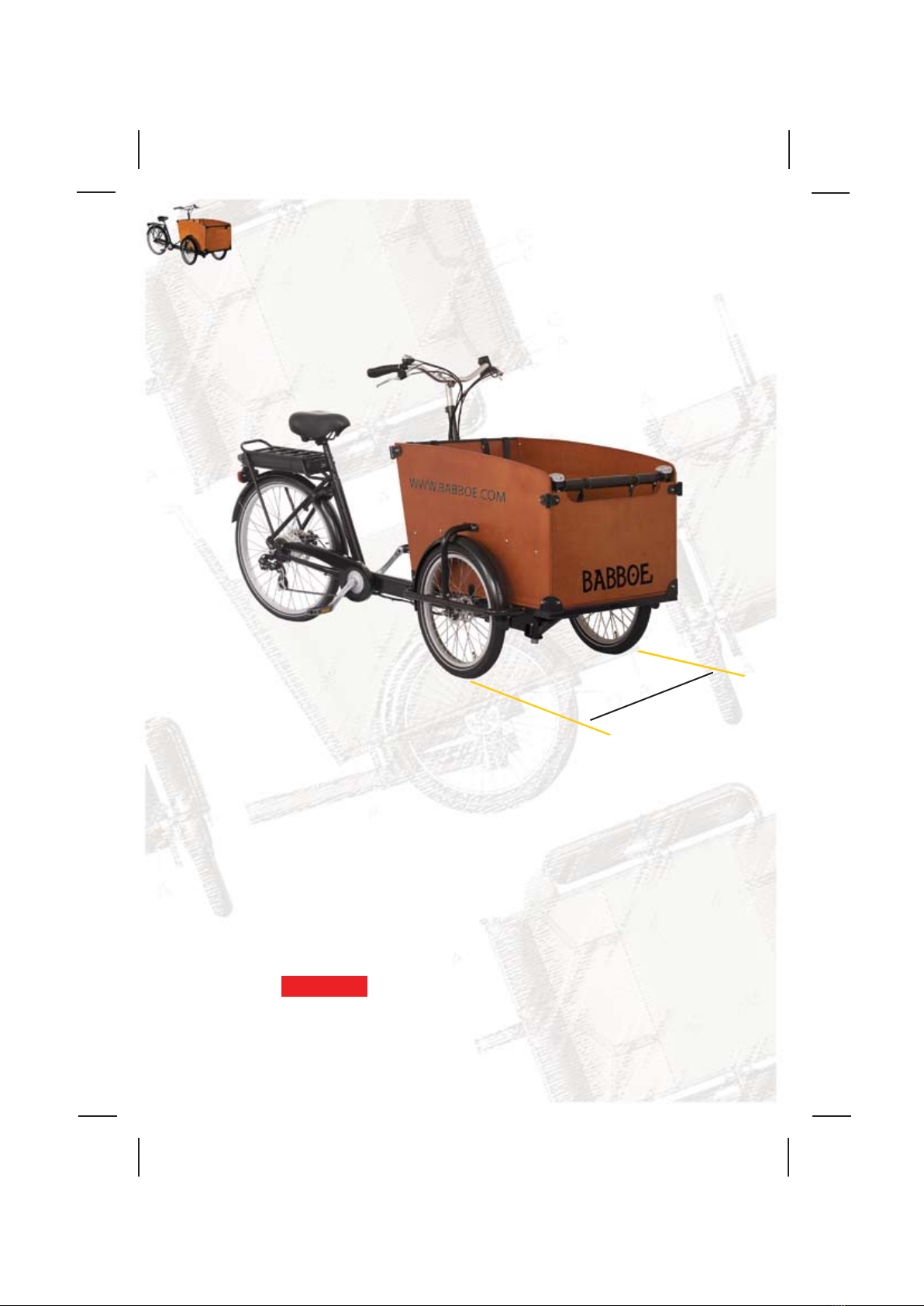

Assemble the Babboe outside or in a room with a door, which
is wider than 35 inches (88 cm).
The Babboe is 35 inches wide while an average door is only
31 inches wide.
Attention:
Correct assembly of the Babboe is essential. Babboe B.V. and
its agent, Wheel Happy Ltd, do not take any responsibility for
any damage or injuries that may result from incorrect
assembly.
35 inches (88 cm) !
Unfold both this page and the last page of the instruction
manual so all parts and the position of all bolts are always
visible!
You will need the following tools before your start:
• Phillips Screwdriver
• The Babboe Toolkit (located in the shipment to you)
o 2 open ended spanners of 0.70 inch (12 mm)
o 0.39 inch (10mm) open- ended spanner
o 0.59 inch (15mm)open-end spanner
o 2 inbus keys of 0.20 inch (5mm) and 0.24 inch (6mm)

Important:
The battery should be fully charged the rst time.
Leave the battery to charge for at least six hours
until the four lights 1are lit. Push the orange
button labelled “push” on the front of the battery
to check how much the battery has been charged.
Charging will automatically stop when the battery is
fully charged.
3
Part 1: Important information about
the Babboe E-Power:
Babboe E-Power
Congratulations on the purchase of your Babboe E-Power, the family bike with
assisted pedalling. Please carefully read this instruction manual. You will nd
information about how to best main- tain your bike and how to
use the battery to maximize its lifetime. Contact Babboe at
[email protected].uk, if you
have a question that is
not answered in this
manual.
The Battery:
Before rst use:
The Babboe E-Power comes with the pictured charger for the Protanium ® Lithium
Polymeer battery. The Protanium battery that comes with your Babboe E-Power can
only be charged with this charger. Using another charger will impact the capacity of
your battery and will end the warranty on the battery.
In daily use:
The battery does NOT have to be completely empty
before you recharge it. We advise you to ALWAYS
recharge the battery after use, irrespective of the duration
of your trip. That way the battery will stay in top condition.
This is how you charge the battery:
1. Plug the charger into a power point (220V). You will
need to use a UK adaptor on an electrical plug.
2. Insert the small plug of the charger into the
connection on the battery.
3. Charging starts immediately.
Indication of battery capacity:
0 indication lights lit - 0% battery capacity
1 indication light lit - 10% ~ 30% battery capacity
2 indication lights lit - 30% ~ 60% battery capacity
3 indication lights lit - 60% ~ 85% battery capacity
4 indication lights lit - 85% ~ 100% battery capacity
1
2
2

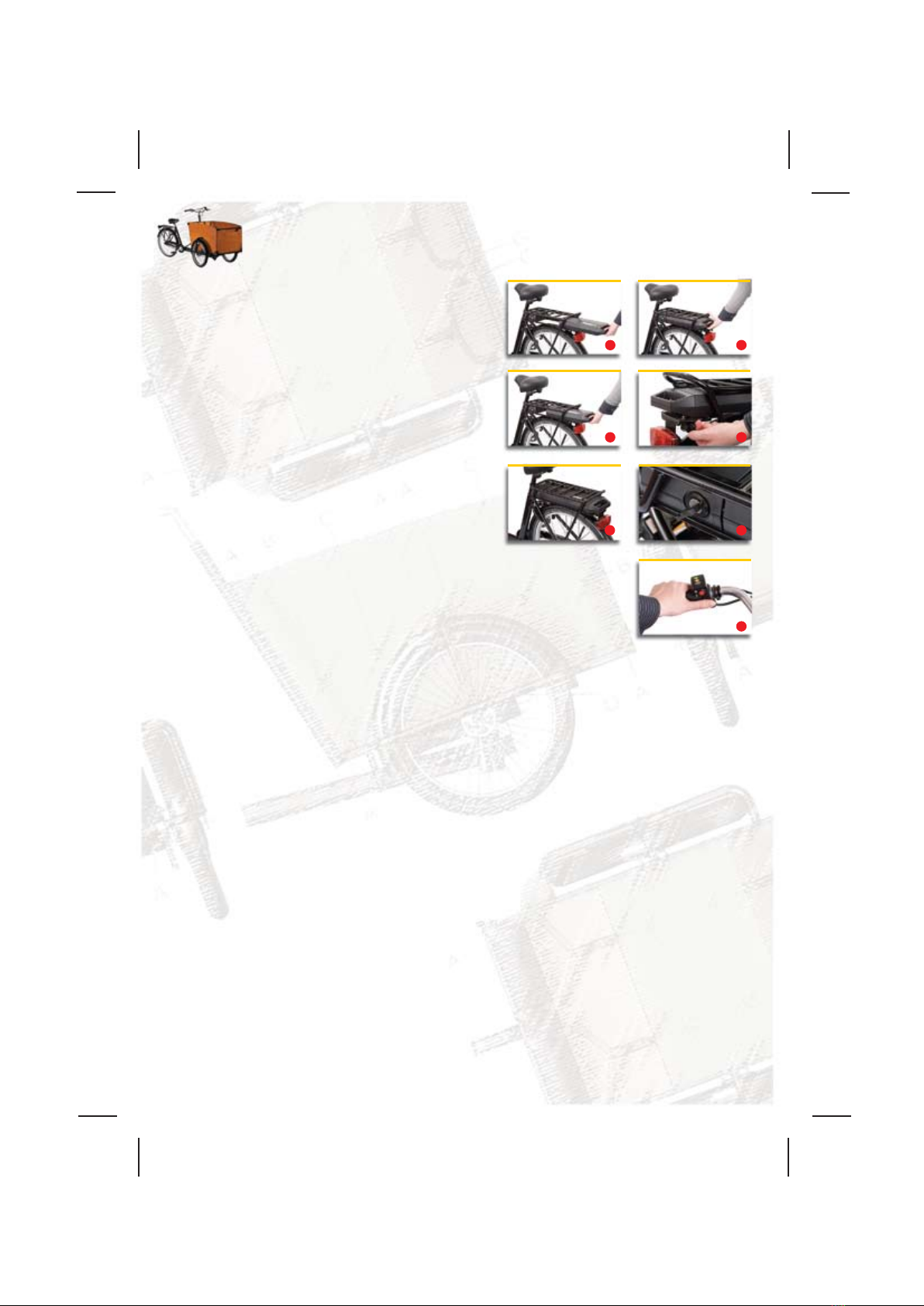

Inserting the battery before use
Step 1
Insert the battery in the rails below the
luggage carrier with the handle sticking
outwards.
Step 2
Slide the battery forwards along the rails.
Step 3
Slide the battery all the way to the front along
the rails.
Step 4
Lock the battery by using the key to turn the
peg into the battery’s jacket. Make sure that
the peg ts well into the battery’s jacket.
Step 5
Remove the key from the lock and place it in
the ignition hole of the battery which is on
the side of the battery.
Step 6
Turn the power on by turning the key clockwise to the “on”
position (red dot).
Step 7
Push the red button of the regulator on the handle bars. If the
battery is switched on, the indication lights for the battery
capacity will light up. Assisted pedalling has now been activated.
Assisted pedalling
Standard assistance
Your Babboe E-Power is equipped with assisted pedalling. Sensors in the crank arm send signals to
the engine. The engine is activated when the pedals are turning forwards. Assisted pedalling is
active up to a speed of 9.3 miles per hour (15 km per hour). The engine is de-activated when you
exceed 9.3 miles per hour.
Additional assistance using the mountain gear
By using the mountain gear (lever on the regulator which is located on the handle bars) you will
activate additional assistance up to a speed of 14 miles per hour (22.5 km per hour) on a at road.
This makes cycling on the Babboe E-Power in a hilly terrain a fantastic experience. When using
the mountain gear the engine is de-activated when you exceed 14 miles per hour. You can cycle
faster, but the engine will then no longer assist you.
Hand brakes with safety switches
The hand brakes have safety switches which de-activate the engine as soon as you use the brakes
even, if you brake only lightly.
Maintenance of the engine
The engine does not require any maintenance and cannot be opened. We advise you to lubricate
the axis of the engine once a year without opening the engine. Use an acid-free oil or high quality
bicycle oil.
Maintenance of the battery
The battery does not require any maintenance, but has to be charged regularly. The battery’s
performance is impacted by long-term storage or use in extreme conditions. Do not expose the
battery to very low (below 0°C) or very high temperatures for example in a garage. Keep the
battery at room temperature when not using it for longer periods of time. This will considerably
extend the battery’s lifetime.
Storage
You should fully charge the battery at least once every two months when not using the Babboe
for long periods of time. This is very important. If you don’t do this, the battery can get damaged.
12
34
56
7

For Attention
• Only use the supplied charger to recharge the battery of the Babboe E-Power. If you
use a different charger the battery can be damaged which can lead to dangerous
situations.
• The warranty is no longer valid, if a fault is caused by the use of a different charger.
Babboe reserves the right to terminate the warranty, if the battery is
charged incorrectly.
• It is prohibited to dismantle the Protanium battery or charger or to modify either of
them in any way.
• Only use the Protanium battery at temperatures between 0°C and 40°C.
• To avoid damage, only store the Protanium battery at temperatures between -20°C
and 60°C. The lifetime of the battery can be significantly reduced, if the battery is
stored for prolonged periods at temperatures below or above these limits.
• Avoid contact between the battery and water or any other liquids. The warranty is
no longer valid, if water or other liquids enter the Protanium battery. If water or
other liquids enter the battery, immediately remove the battery to avoid an explosion
or electrical shock.
• Do not place the battery directly next to a flame or other heat source. The battery
can explode, if it becomes too hot.
• Make sure that the space where the battery is charged is well ventilated.
• Remove the battery from the power point as soon as it has been fully charged.
• Do not use the Protanium charger to charge Ni-Cd or Ni-Mh batteries.
• We strongly advise you to charge the Protanium battery only during daytime and
only under supervision.
Liability
1. Babboe / Protanium and Babboe’s UK agent, Wheel Happy Ltd, are not liable for any
accidents or damage resulting from incorrect use of the battery or charger.
2. Follow your local regulations on waste disposal when discarding the battery
Battery warranty
Model warranty period Protanium battery BP-L2410EB is 6 months (24 V, 10 Ah).
Charger warranty
Model warranty period BPC-L7S02A (30 V, 2 A) is 24 months.
POLICY FOR REPLACEMENT AND RESPONSIBILITIES
When purchasing the Babboe E-Power, the following limited warranty applies to the
battery. This limited warranty overrides all other warranty conditions.
THIS IS THE ONLY WARRANTY, THERE ARE NO OTHER WARRANTIES. EVERY OTHER
WARRANTY THAT IS CONSIDERED APPLICABLE ACCORDING TO LAW, INCLUDING BUT
NOT LIMITED TO THE IMPLICIT WARRANTY ON SELLABILITY AND THE IMPLICIT
WARRANTY ON BEING FIT FOR PURPOSE, IS EXPLICITLY LIMITED TO THE APPLICABLE
DURATION OF THIS LIMITED LIABILITY.

For Attention
Only the person who originally purchased this product can make a claim on the
warranty. No registration is required. This warranty will grant you specic legal rights
which can vary from country to country. The Protanium battery (24 volt, 10 Ah) comes
with six (6) months free replacement warranty. Bar exceptions, Babboe / Protanium
will, based on its own judgement, replace or repair any part of a battery during the
six (6) months after the date of purchase, if investigation shows that the materials or
production of the battery was faulty. Registration is not required to be eligible for
warranty on a Protanium battery. (This is repeated) If you want to make a claim on
this warranty, please email us on [email protected].uk.
YOUR ACCEPTANCE OF REPAIR AND/OR REPLACEMENT AS DESCRIBED IN THIS
DOCUMENT IS A PRE-CONDITION FOR THE CONTRACT THAT IS ENTERED WHEN
PURCHASING THE BABBOE / PROTANIUM PRODUCT. UNDER NO CIRCUMSTANCES IS
BABBOE / PROTANIUM or WHEEL HAPPY LTD LIABLE FOR ANY ACCIDENTAL DAMAGE,
SPECIAL DAMAGE, RESULTING DAMAGE OR PENALTIES OR FOR ANY COSTS,
COMPENSATIONS, LEGAL ASSISTANCE, EXPENSES, LOSSES OR DELAYS CAUSED BY
DAMAGE, INTERRUPTIONS OR DEFECTS TO ANY PRODUCT, INCLUDING BUT NOT
LIMITED TO CLAIMS RELATED TO LOSS OF PROFITS. THIS WARRANTY IS EXCLUSIVE
AND OVERRIDES ALL OTHER WARRANTIES OR CONDITIONS, WRITTEN OR ORAL,
EXPLICIT OR IMPLICIT.
WARRANTY CONDITIONS
1) The Babboe / Protanium battery has been designed for transportation of people
and recreational use of a Babboe / Protanium electrical (family) bike. The battery
has not been designed for improper use such as stunts and jumps. The warranty is
no longer valid, if the bicycle is used as a rental bike, if it is sold or donated, if more
than one person is riding the bike and, if the bicycle is used for stunts and jumps.
2) The warranty is no longer valid if Babboe / Protanium discovers damage that has
been caused by repairs done by someone else than a bicycle mechanic or repair
shop authorised by Babboe / Protanium, or if Babboe / Protanium discovers
damage caused by abuse, alterations, improper use, regular wear and tear,
insucient maintenance or an accident.
3) The customer is at all times responsible for correct installation of the battery and
proper maintenance of the bicycle. This warranty is no longer valid if damage is
caused by incorrect installation of the battery or incorrect use of the battery
or charger.
4) Specications can be altered without the need for prior warning.

31
Part 2: Construction Manual:

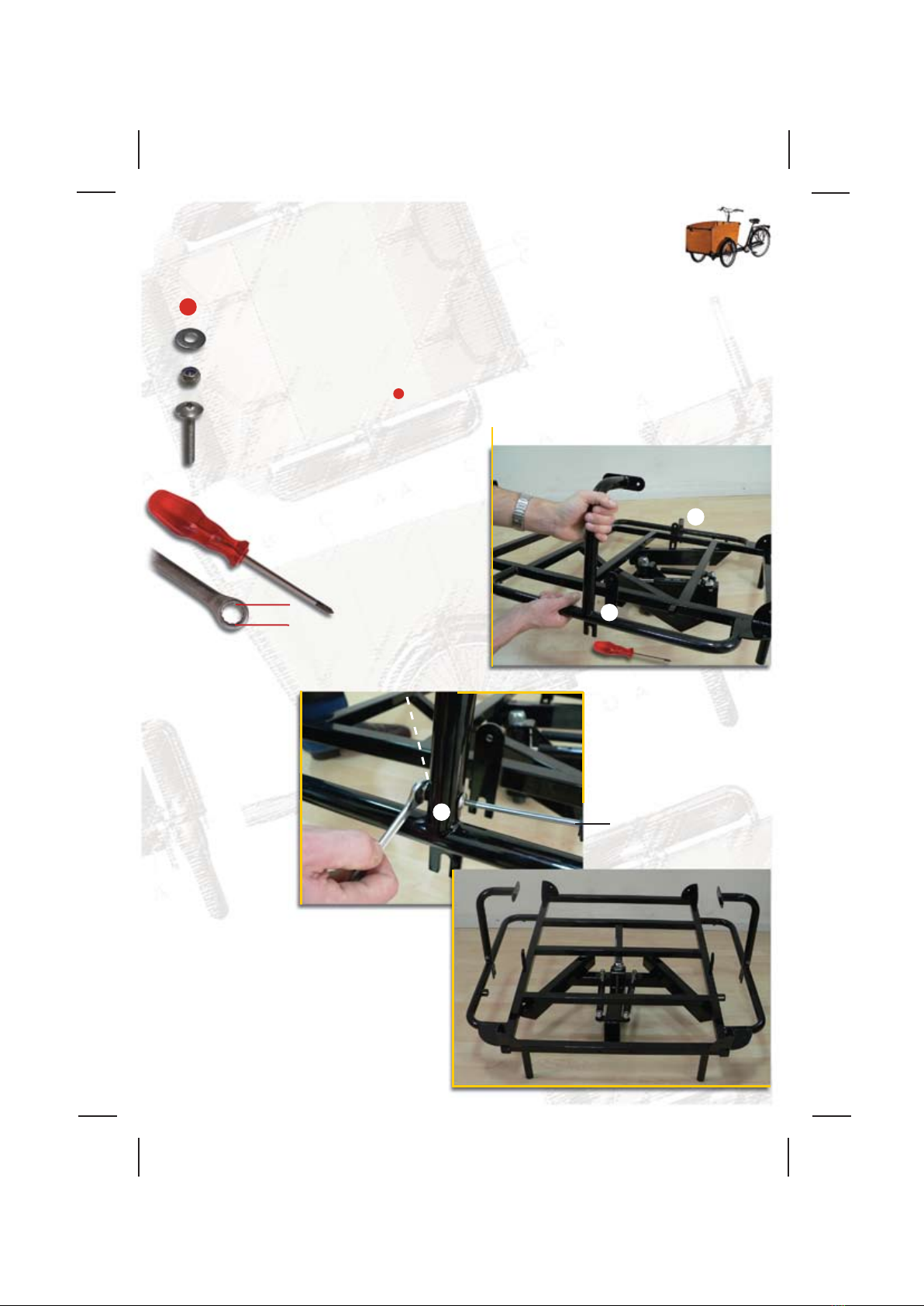

1. Assembling the sidebars
F
2x Slide the sidebars (No. 12 – both bars are identical) over the
tubes (A) on top of the frame. Use nuts and bolts to attach the
sidebars (B).
Only screw the nuts nger tight. Further tightening should only
be done when all the panels of the box have been put in place.
B
A
10 mm
F
Place a washer before the nuts.
Result
Nr.12
Nr.19
A
Screwdriver

22. Attaching the mudguards
Slide the mudguards (Nr. 16) onto the chassis. Use the bolt
at the top of the side bars to attach the mudguards to the
sidebars (A).
Use the bolts that are already in the chassis to attach a
mudguard on each side (B).
B
A
A
Result
Nr.16
Attention: To ensure the mudguards
are well aligned with the wheels you
should only tighten the screws after
the wheels have been inserted.

3
3. Inserting the wheels
Place the chassis upside down. Put the front wheels (Nr. 14) in the
chassis and place the brake arm (A) in the hinge (B) in the chassis.
Tighten the bolts (C). Place the chassis upright.
Attention: The locknut, which is used to attach the
wheel (C), can stay in the black cover.
BA
C
15 mm
Result

44. Attaching rear frame to the chassis
C
A
H
2x
17 mm
2x
B
Slide the tube of the rear frame (A) into the chassis (B). Use rings
on both sides of the bolt.
Important: Only screw the nuts nger tight for now (C). Use a
0.67-inch (17 millimetres) open- or box-end spanner.
Attention: Add the nut and screw tight again after a couple of
weeks
1. Put the washer on the
bolt.
2. Stick the bolt through
the frame.
3. Put the second washer
on the bolt.
4. Add the nut and screw
nger tight.
Result

5
5. Attaching the rear panel to the stem
with handlebars
B
A
2x
10 mm
C
4x Attach the rear panel of the box to the stem with handlebars
using 4 bolts and use the same bolts to attach the seat belts
(Nr. 11) as shown on the picture (A). Make sure that the nuts
are pointing outwards (B).
Suggestion: You only have to attach one or even no seats
belt, if you are planning to use one or two baby or toddler
seats. If you are planning
to use just one seat then
we recommend you place
it on the right-hand side
of the box so larger
children can climb into
the box by themselves
from the left-hand side
(pavement side).
Result
Nr.11
Nr.11
Nr.11

66. Mounting the stem with handlebars onto
the rear panel
A
E
2x
10 mm
B
C
2x
E
C
Mount the stem with handlebars onto the chassis using the
bolts (E). Attention: The cables should not be turned
around the stem (A). Attach the rear panel to the frame
using the bolts (C).
Attention: Only screw the two nuts and bolts (C) nger
tight. They should only be further tightened when all
panels of the box have been put in place.
E
Important: : When the stem with handlebars has
been mounted, the rear frame should be held
straight. Only then should the large nuts (H) be
screwed as tightly as possible.
Suggestion 1: When aligning the rear
frame make sure that the seat post is
aligned with the stem.
Suggestion 2: Make sure that one person
is carefully aligning the rear frame while
another person tightens the bolts as
much as possible.
Result
Suggestion 3: Tighten the bolts again
after having used the Babboe a
few times.

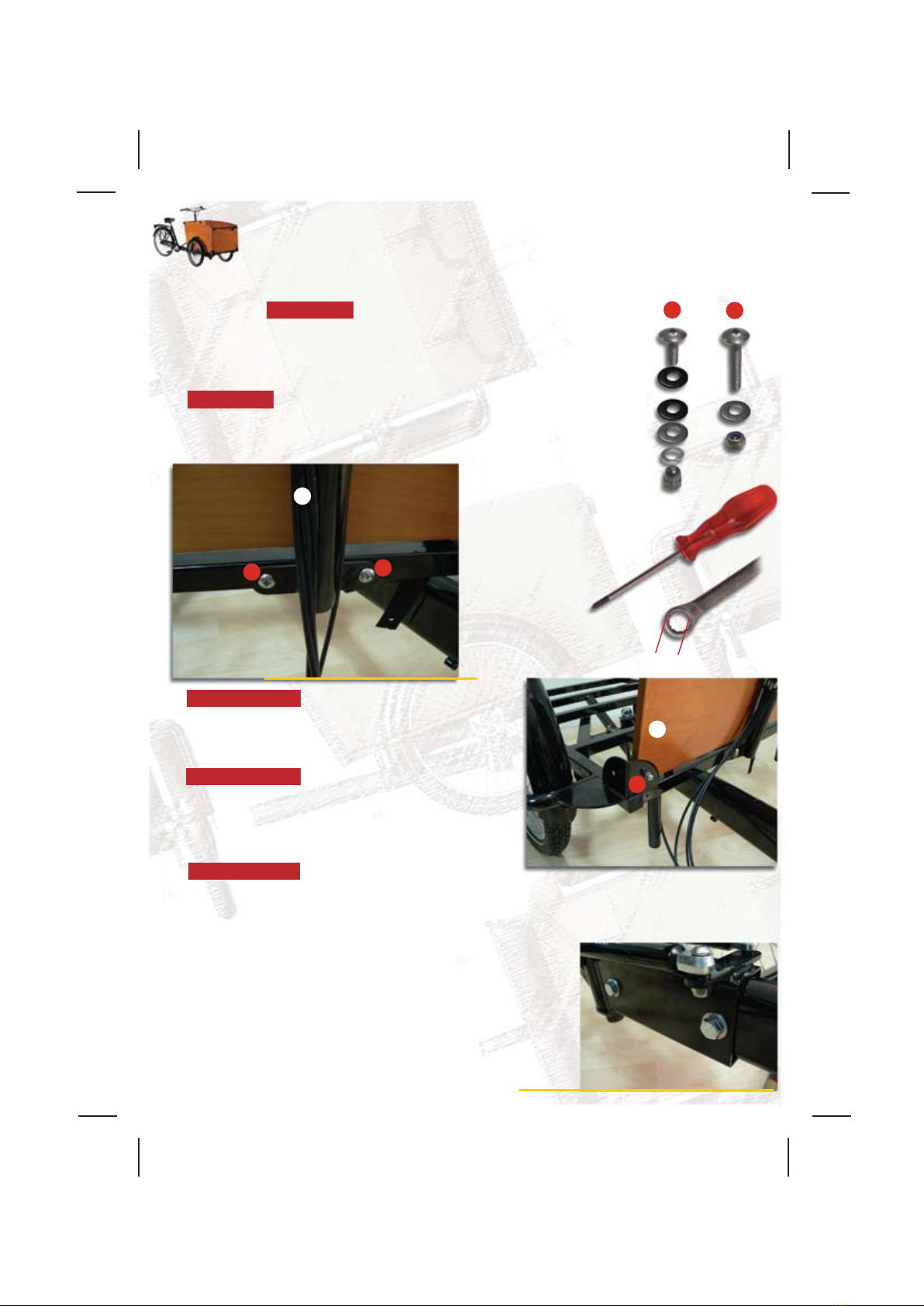

7. Attaching the brake cables to the front wheels
The cables have been pre-assembled and only have to be inserted.
F
E
E
7
F
1. Check if the cables are properly inserted in their holders (A1/A2).
2. Lead the long cable (sticker L) of the left front brake around the
outside of the tilt stopper (B) (Tilt Stoppers: Handles underneath the
bike that prevent the user from over-steering.) and lead it through
hinge (C) which is used for the brake arm as well. Insert the adjust-
ment bolt (F) in the slot of the brake arm (G) and hang the cable end
in the calliper (or black metal hook hanging from the hub brake) (E).
To do this you should push the calliper (black metal hook) towards
the cable.
3. Lead the short cable of the right front brake on the
inside of the tilt stopper and lead it
through hinge C (which is also used for
a brake arm.
4. Use the plastic ties (Nr. 15) to attach
the cables to the tilt stoppers.
strakker stellen
losser stellen
1
1
A1
Topside
A2
Bottom Side
Suggestion: The brakes can be
tightened and loosened using the
adjustment bolt screw (F).
First release the cable end so the
adjustment bolt can be removed
from the slot of the brake arm.
Turn the adjustment screw outwards
to tighten the brake (to the right in
the picture F below). Turn the
adjustment screw inwards to loosen
the brake. When you are nished put
the cable end in the calliper (black
metal hook) again.

88. Attaching bottom and side panels
B
A
10 mm
C
10x D 2x
C
Insert bolt D from the inside
through the panel behind the
wheel.
Nr.12
C
D
Result
Place the bottom panel (Nr. 07) horizontally on the chassis.
Attention: It does not need to be attached!
Insert the side panels and attach them to the sidebars and
other parts.
Attention: Make sure that the nuts are inserted from the
outside (C).
Attention: Only tighten nuts
and bolts when they have all
been inserted!!
If the foam protective tubes around
the iron bars are missing you can
also use felt strips or window strips.

9

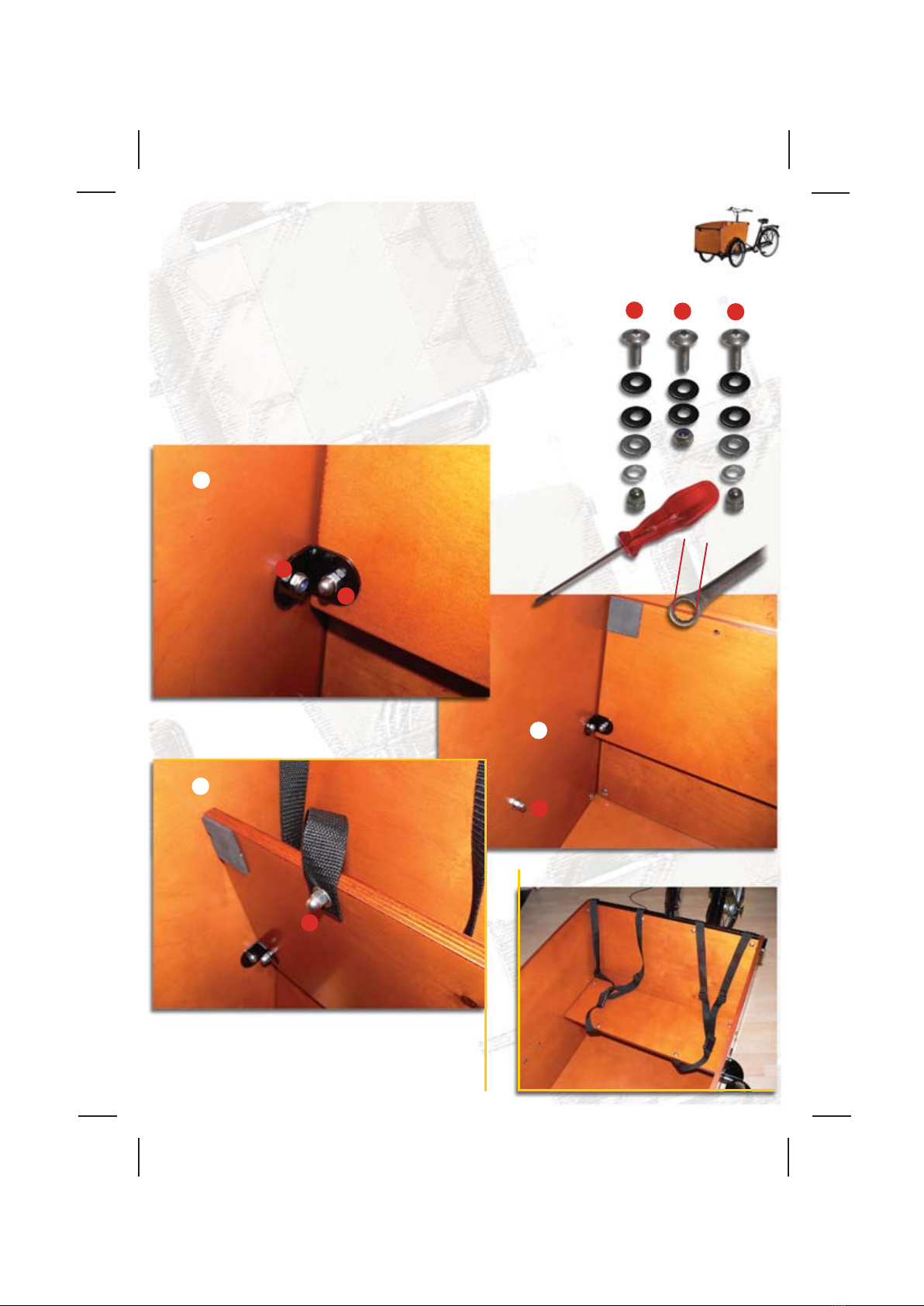

9. Attaching the two wooden benches
1
C
6x
10 mm
2
B
4x
A
4x
A
B
C
C
Result
3
1. Attach the two corner hinges (Nr. 4) to each of the wooden benches
(Nr. 9) using bolts C. First attach the rear bench
(the one closest to the handle bars). Insert the bolts
from the inside. Then attach the front bench.
2. Attach the nuts on which the benches rest on the
inside of the box.
3. Attach the seat belts underneath the rear bench.

10
10. Mounting the front panel
3
10 mm
C
8x G 4x
2x
12
4
Nr.11A
C
C
C
G
Nr.6
1. Attach the seat belts (Nr. 11A) to the toy bar (Nr. 18). Make
sure that the nuts are facing upwards.
2. Attach the toy bar to the front panel. Make sure that the nuts
will be on the outside of the box.
3. Insert the front panel into the frame A. Make sure that the
nuts are facing outwards.
4. Attach the seat belts to the front
bench. Make sure that the nuts
are facing downwards.
C
C
G
C
Nr.03
Place the additional corner ttings (Nr.03) on the
top corners of the front end of the box. These will
be required to attach the rain tent, which is an
optional accessory that needs to be ordered
separately.
IMPORTANT:
YOU SHOULD NOW TIGHTEN ALL THE NUTS AROUND THE BOX.
To make sure that you don’t forget any of the nuts we advise you to start from
step 1 in this manual. This way you are sure not to forget any.

11 11. Attaching the pedals
15 mm
12. Attaching the saddle
Nr.17 (2x)
Nr.1
Screw the seat onto the narrow end of the seat post (Nr. 1). Insert the
seat post into the frame. Tighten the seat post clamp using its quick
release lever.
Attach the pedals (Nr. 17) to the crank arms.
Important: First tighten the pedals by hand as much as you can. Then
nish tightening using the open-ended spanner of 0.59 inch (15mm).
Attention: Turn the right hand pedal to the right when attaching it.
Attention: Turn the left hand pedal
to the left when attaching it.

12

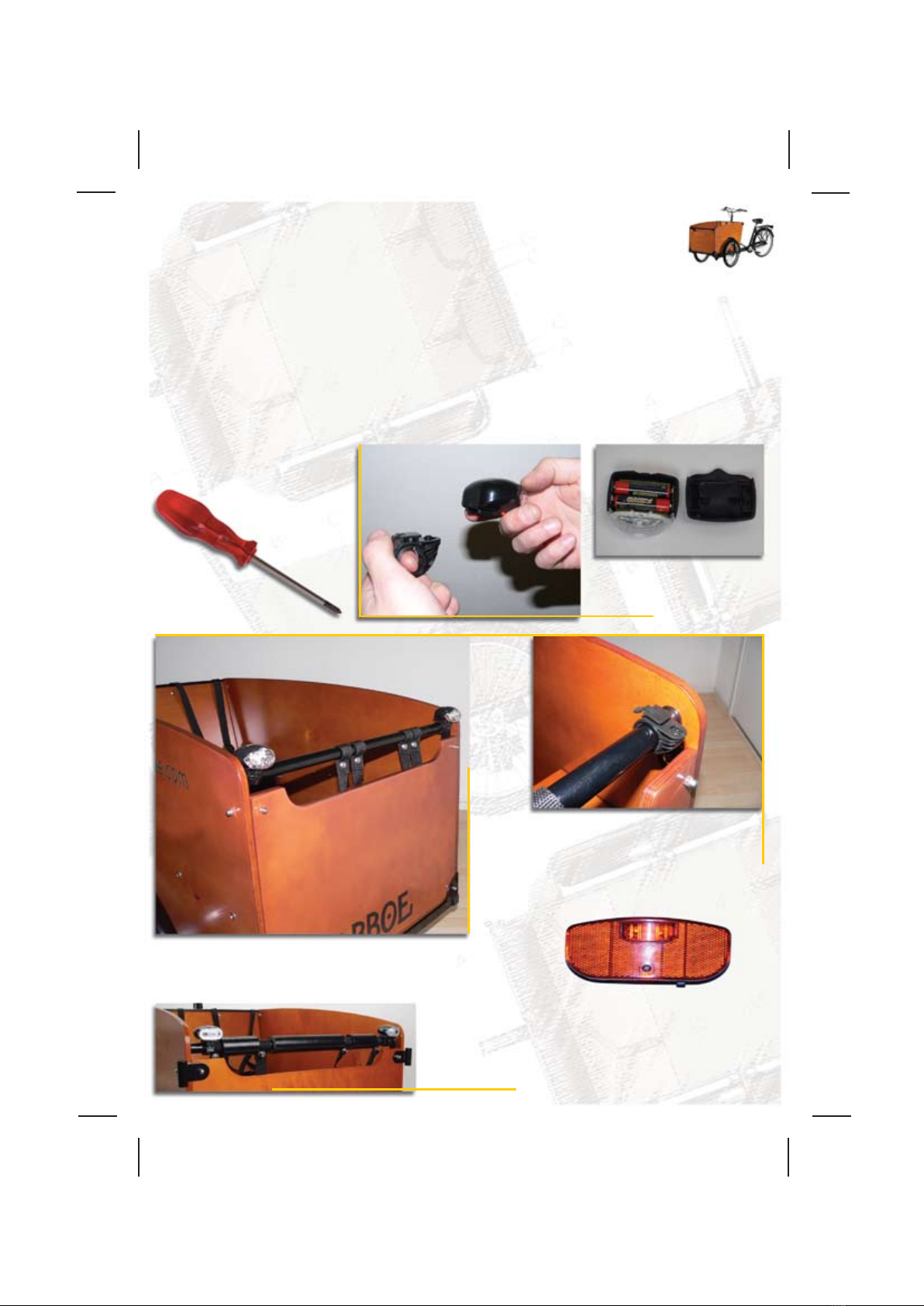

13. Attaching the lights and the foam
protective tubes
Rear light: Attach the rear
light to the luggage carrier.
Nr.13
Nr.02 (2x)
Front lights: Slide each light (Nr.02) o its clip. Open each clip.
If required, remove the protective tube when attaching the clips onto
the toy bar. Insert the batteries into both front lights and into the
rear light. Attach the clips onto the toy bar with the screw facing
towards the front. Slide the lights back onto the clips.
Place the foam protective tubes around
the toy bar and make sure that the seat
belts cannot move sideways.
