Baby Love ODYSSEY LX1065T Series User manual

ODYSSEY
TWIN UMBRELLA LAYBACK STROLLER
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
Series LX1065T
INSTRUCTION BOOK
MAXIMA

ALWAYS FOLLOW THE MANUFACTURERS INSTRUCTIONS.
READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY AND USE
OF THIS STROLLER.
THE CORRECT USE AND MAINTENANCE OF THIS PRODUCT IS
ESSENTIAL.
• USE GREAT CARE WHEN USING THE STROLLER ON STAIRS,
ESCALATORS, TRAVELATORS OR OTHER MOVING SURFACES.
• IT IS RECOMMENDED TO REMOVE THE CHILD FROM THE STROLLER
BEFORE GOING UP OR DOWN STAIRS OR ESCALATORS.
• DO NOT LIFT THE STROLLER BY THE ARM BAR (If Supplied)
BECAUSE IT MAY DISENGAGE.
• DO NOT ALLOW CHILDREN TO STAND ON THE SEAT.
• DO NOT HANG BAGS OR GOODS FROMTHE HANDLE AS THIS
COULD CAUSE THE STROLLER TO TIP OVER.
• DO NOT LEAVE THE STROLLER AND ITS ACCESSORIES NEAR AN
OPEN FIRE OR EXPOSED FLAME.
• DO NOT PLACE MORE THAN 4 KG IN THE BASKET, OR 1KG IN THE
CANOPY POCKET (IF SUPPLIED).
IMPORTANT NOTES:
02 www.babylove.com.au
IMPORTANT NOTES
www.babylove.com.au

WARNINGS: TO AVOID INJURY OR DEATH:
ALWAYS APPLY THE BRAKES WHENEVER THE STROLLER IS
STATIONARY.
• DO NOT LEAVE CHILDREN UNATTENDED.
• SECURE THE CHILD IN THE HARNESS AT ALL TIMES.
• DO NOT CARRY EXTRA CHILDREN OR BAGS ON THIS STROLLER.
• MAKE SURE CHILDREN ARE CLEAR OF ANY MOVING PARTS IF
YOU ADJUST THE STROLLER.
• DO NOT USE ANY ACCESSORIES OTHER THAN THOSE
APPROVED FOR USE WITH THIS STROLLER BY BRITAX.
• IT IS UNSAFE TO USE ACCESSORIES NOT APPROVED FOR USE
WITH THIS STROLLER.
• THE MAXIMUM WEIGHT OF THE CHILD USING EACH SEAT ON THIS
STROLLER IS NOT TO EXCEED 17 KG.
This CAUTION Symbol is shown at certain steps in
this Instruction Manual to highlight the danger of
being injured by moving parts.
CAUTION
FOR IMPORTANT NOTES AND WARNINGS ON ACCESSORIES -
REFER TO THEIR INDIVIDUAL SECTIONS IN THIS BOOK. THE
MAXIMUM WEIGHT VARIES FOR EACH ACCESSORY.
03
www.babylove.com.au
WARNINGS

04
The SMART lifting technique
This technique can be used to pick up small light loads from low levels.
Size up the Load
• Assess the load (size, shape and weight).
• Assess whether the load needs to be moved;
• Where is it going to be placed” Check that there are no obstructions;
• Assess whether mechanical or human assistance is required.
Move the Load as close to the body as possible
• A load is heavier to lift or carry if it is not close to the body.
• The whole hand should be used to ensure a firm grip.
Always bend your knees
• Maintain balance.
• Keep feet apart and in a comfortable position.
• Minimise lower back bending.
• Bend knees preferable at as large an angle as possible but not at a
right angle - use a semi squat in preference to a full squat.
Raise the load with your legs
• Achieve the lift smoothly and without jerkiness.
• Maintain the normal curvature of the spine to allow the force of the
load to be distributed evenly from the spine to the pelvis.
Turn your feet in the direction that you want to move the load
• Avoid unnecessary bending, twisting and reaching.
• Change direction by turning your feet and not your back.
• To set the load down, squat down, keep your head up and let your legs
do the work.
Remember to ‘THINKTALL’ chest lifted, shoulders relaxed, chin
tucked in and head level.
www.babylove.com.au
MANUAL HANDLING TECHNIQUES

05

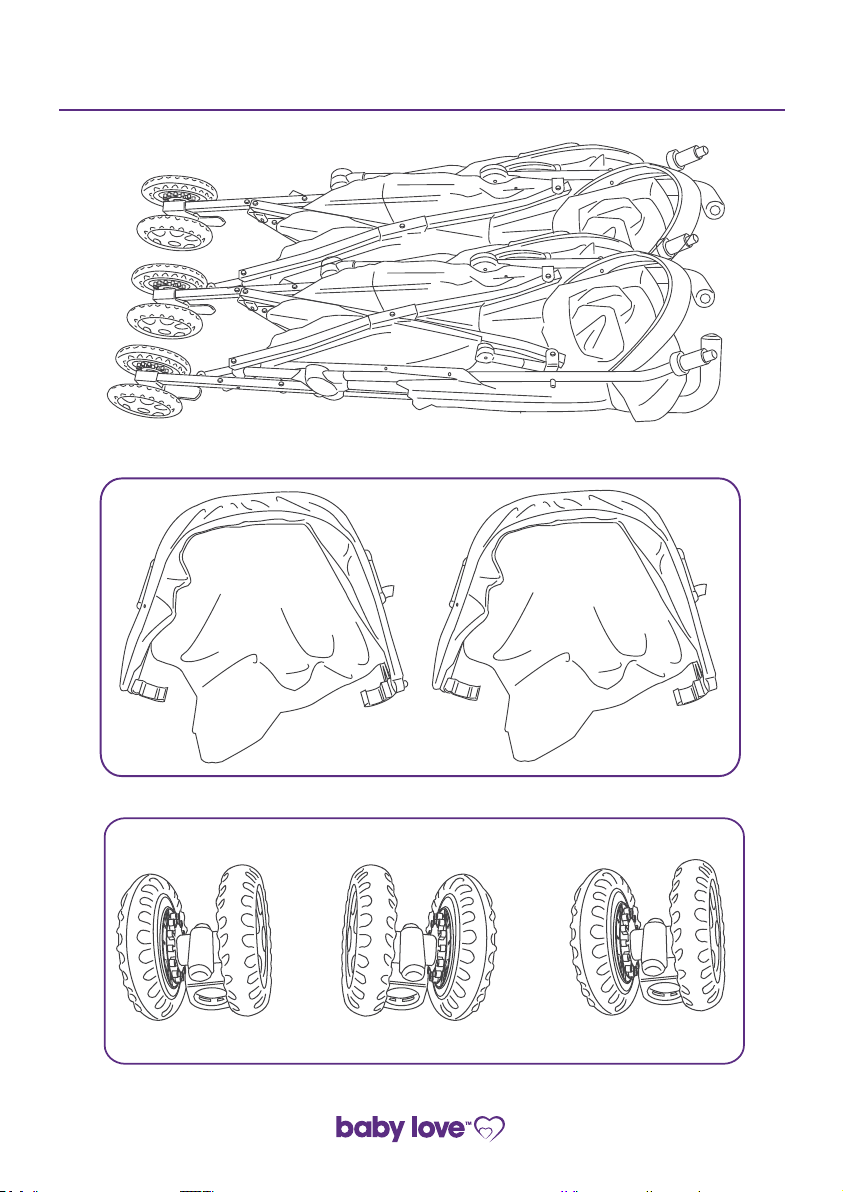

A1 x Stroller Frame, Seat & basket
B2 x Canopies
C3 x Sets of Front Wheels
www.babylove.com.au
PARTS LIST

IMPORTANT NOTES:
PLEASE REFER TO PAGE 4 FOR SMART LIFTING TECHNIQUES.
• RELEASE THE STORAGE LATCH WITH DUE CARE AND OPEN THE
FRAME.
• WHEN OPENING THE STROLLER, BE AWARE OFTHE DANGER OF
BEING INJURED BY MOVING PARTS AND LOCKING DEVICES
DURING THE PROCESS. KEEP ALL HANDS AND LIMBS CLEAR OF
THESE PARTS.
• THERE IS POTENTIAL FOR FINGERS OR PARTS OF THE BODY TO BE
INJURED WHEN THE STROLLER IS BEING UNFOLDED, DUE CARE
SHOULD BE EXERCISED.
• KEEP CHILDREN CLEAR OF THE STROLLER WHEN UNFOLDING THE
STROLLER.
• OPEN THE STROLLER SLOWLY AND BE CAREFUL WHEREYOU
PLACEYOUR HANDS. KEEPINGYOUR HANDS ON THE HANDLE IS
THE BEST WAY TO UNFOLD THE STROLLER.
www.babylove.com.au
06
1. OPENING THE STROLLER

07
AStand the stroller upright. Hold the stroller handle with one hand and
with the other hand release the storage latch.
www.babylove.com.au 07
1. OPENING THE STROLLER

B Holding the handles, lower the front legs towards the floor. The stroller
is now partially open.
CAUTION
CTo fully open the frame, continue to hold the handles. Place one foot on
the lower locking bar peg and push down until the locking hinge clicks
into place.
CAUTION
www.babylove.com.au
08
1. OPENING THE STROLLER

DThe frame is fully opened and locked. Check that both the upper hinge
and lower locking bar are fully engaged before using the stroller.
ATake each front swivel wheel assembly and push it onto each of the
front legs until it clicks into place. Check that each wheel is fully
engaged and secured by pulling against it.
BTo remove each front swivel wheel assembly, Use long nose pliers and
squeeze both sides of the inner tube and pull wheel assembly out.
www.babylove.com.au
1. OPENING THE STROLLER
2. ASSEMBLING AND REMOVING THE
FRONT SWIVEL WHEELS
09

ATo lock the swivel wheels, lift the locking clip up.
To allow the wheels to swivel, push the locking clip down on the front
of each wheel.
PLEASE NOTE: Always lock the swivel wheels when using the stroller
on rough surfaces as this will minimise wheel wobble.
The swivel wheels should only be locked when the wheels are in the
trailing position (wheels under frame).
www.babylove.com.au
3. USING THE FRONT SWIVEL WHEELS
10

WARNING: ALWAYS APPLY THE BRAKES WHEN THE
STROLLER IS STATIONARY.

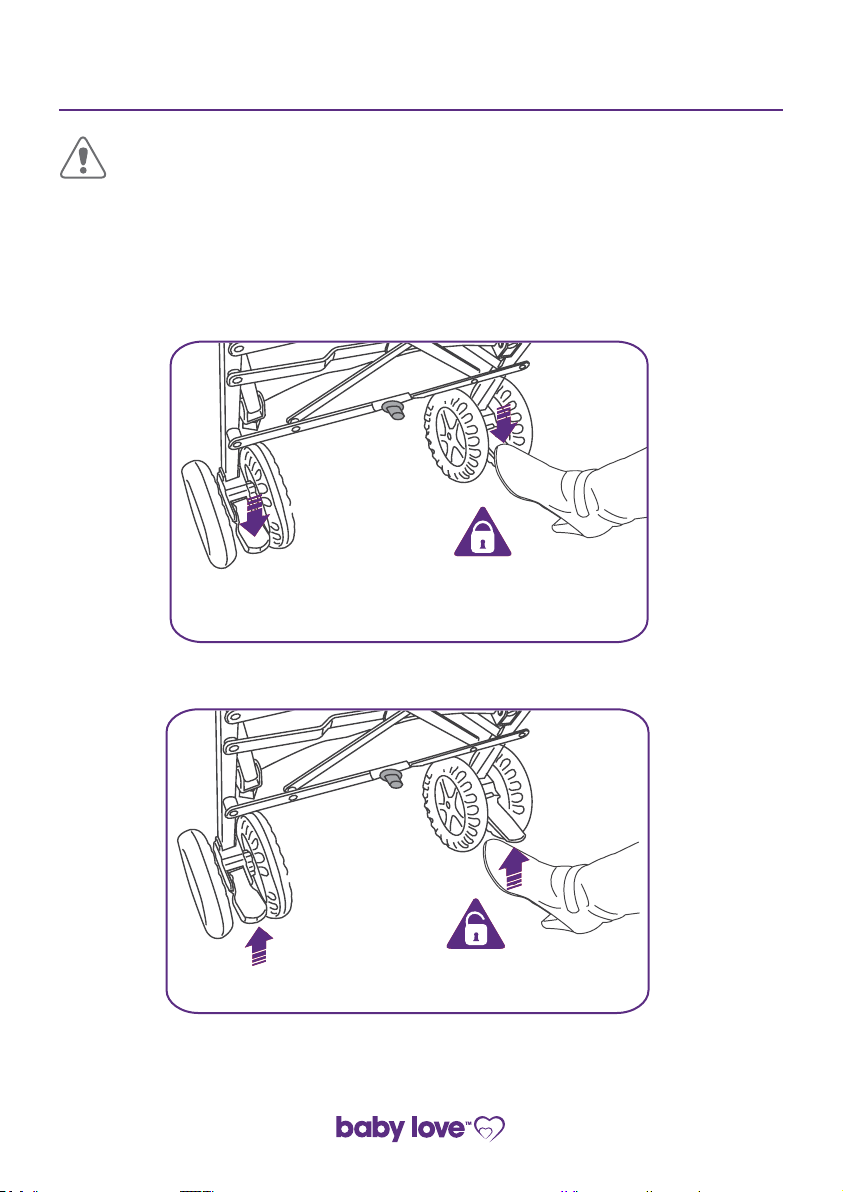

A To lock the brakes fully, push down on each brake lever using your foot.
Push the stroller backwards and forwards a few times to make sure the
brakes are locked. If not locked, repeat the procedure.
BTo release the brakes, lift each brake lever using your foot.
www.babylove.com.au
4. USING THE BRAKES
11

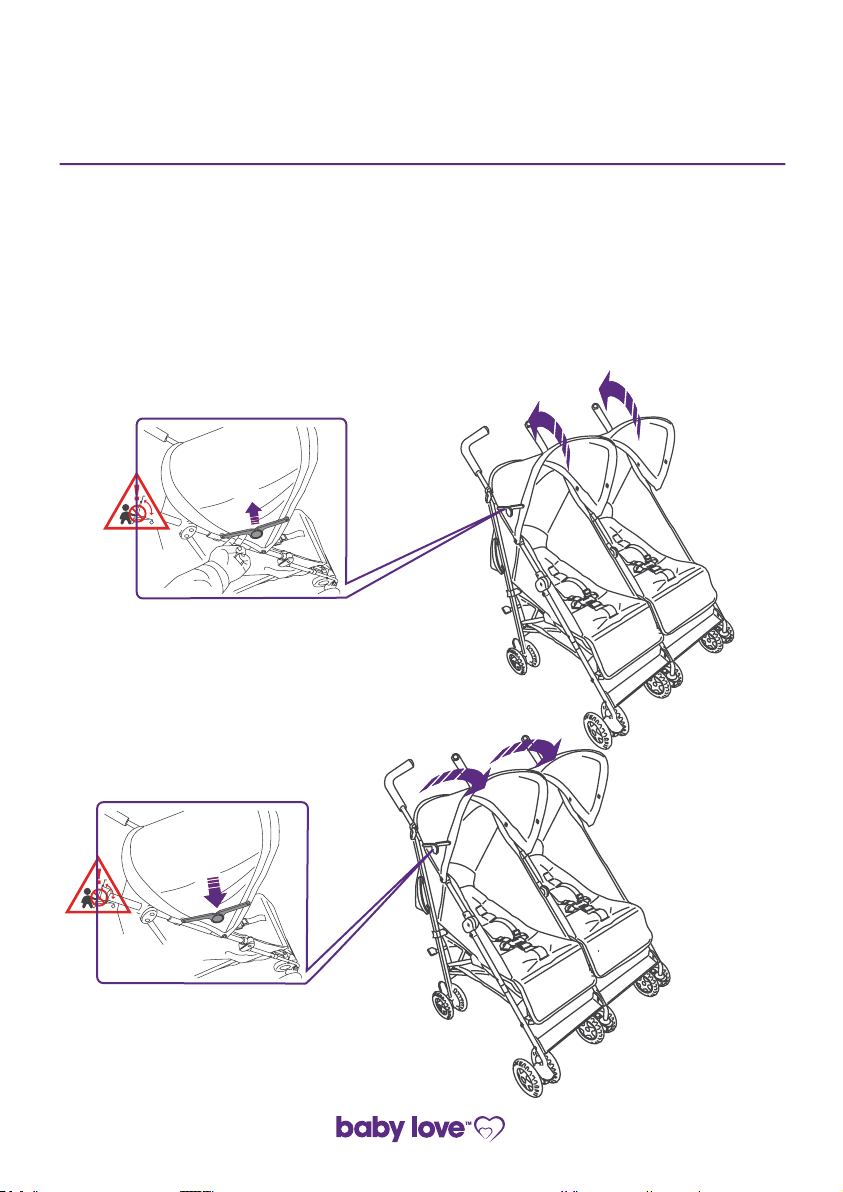

ALower the leg support by pressing up on the release latches located on
both sides of the leg support and then push the leg support down.
IMPORTANT NOTES:
• THE LEG SUPPORT FEATURE IS PROVIDED FORYOUR CHILD'S
COMFORT.
• THE LEG SUPPORT IS NOT DESIGNED TO SUPPORT EXTRA WEIGHT.
• DO NOT ALLOW CHILDREN TO STAND OR SIT ON THE LEG SUPPORT.
IT WILL DISENGAGE IF EXTRA WEIGHT IS APPLIED.
• IF LEG REST DISENGAGES SIMPLY LIFT UP AGAIN TO RESET LEG
SUPPORT.
www.babylove.com.au
5. ADJUSTING THE LEG SUPPORTS
12

BRaise the leg support by lifting it until the release latches lock into
place.
www.babylove.com.au
5. ADJUSTING THE LEG SUPPORTS
13

WARNINGS:
• THE UPRIGHT POSITIONS ARE NOT SUITABLE FOR USE WITH
CHILDREN LESS THAN 6 MONTHS OLD.
• THE LOWEST RECLINE POSITION SHOULD BE USED TO
TRANSPORT BABIES. THE BACKREST CAN BE ADJUSTED TO A
MORE UPRIGHT POSITION AS THE CHILD GROWS OLDER AND IS
ABLE TO SUPPORT ITS HEAD WITHOUT ASSISTANCE.
PLEASE NOTE: IF THE CHILD IS SITTING IN THE SEAT, SUPPORT THE
BACKREST AS IT RECLINES. IFYOU HAVE DIFFICULTY ADJUSTING
THE BACKRESTYOU MAY NEED TO REMOVE THE CHILD FROM THE
SEAT TO ALLOWYOU TO RAISE OR LOWER THE BACKREST WITH
EASE.
www.babylove.com.au
6. ADJUSTING THE BACKRESTS
14
ATo lower the backrest, lock the brakes (Refer to Section 4). Locate the
backrest adjusters on both sides of the stroller. Push both grey latches
on the adjusters down to release the locking mechanism and slide the
adjusters back towards the rear of the stroller to the desired layback
position.

BTo raise the backrest, hold the backrest along the bottom edge with
both hands and lift to select a more upright seating position.
www.babylove.com.au
6. ADJUSTING THE BACKRESTS
BTo raise the backrest, hold the backrest along the bottom edge with
both hands and lift to select a more upright seating position.
15

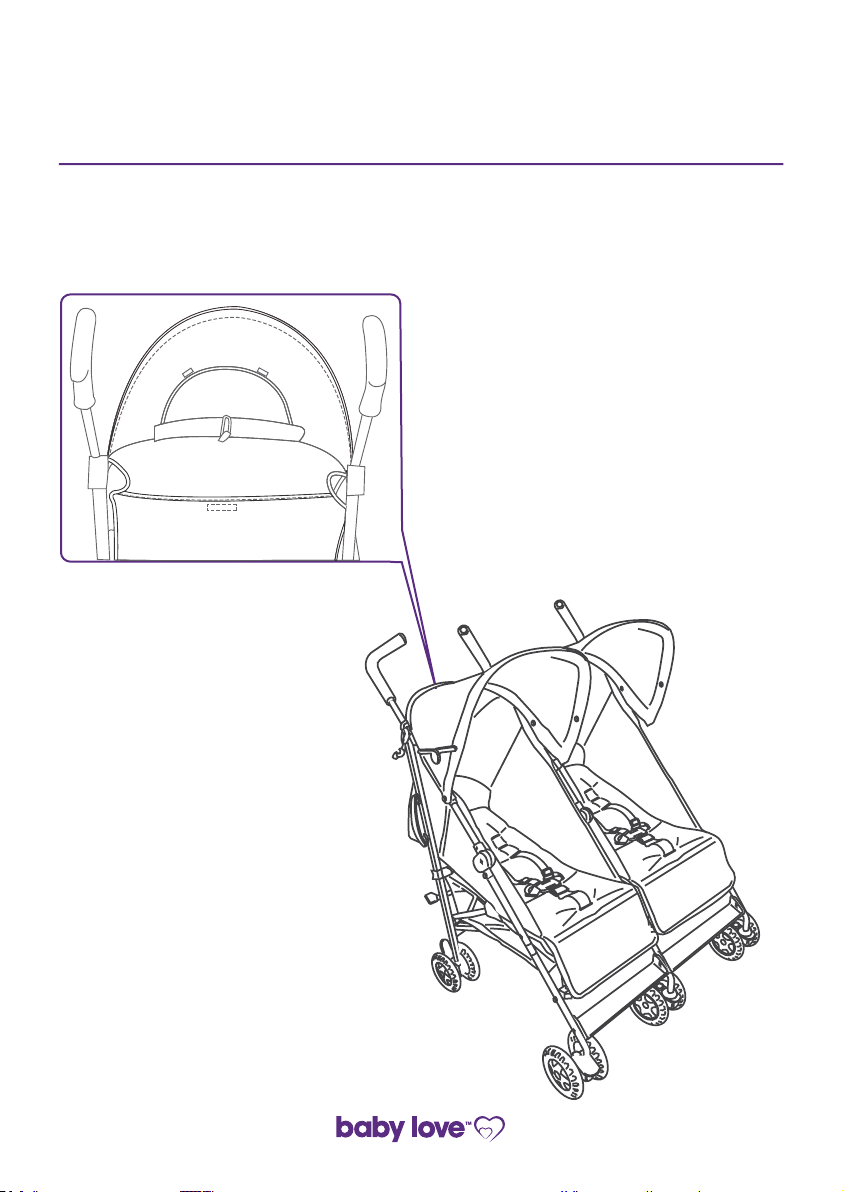

APlace the canopy on the stroller frame and push the canopy clips on
the sides of the canopy onto the stroller frame until they snap into
place.
The sun is very strong. DO NOT LEAVEYOUR CHILD EXPOSED TOTHE
SUN. The canopy or hood on this product will not give your child total
protection from the harmful rays of the sun.
IMPORTANT NOTE:
BTo prevent the canopy slipping down, attach the hook and loop tabs
around the stroller frame.
A
www.babylove.com.au
7. ATTACHING AND USING THE
CANOPIES
16
MAXIMA
B

C To fold the canopy, place two fingers under the bar of the canopy
tension brackets (located on each side of the canopy), push the bar up,
then push the canopy backwards.
DTo open the canopy, pull the canopy forward, then lock the canopy
tension brackets by placing two fingers on top of the tension bracket
bar and push down to lock into place.
CAUTION
C
CAUTION
D
www.babylove.com.au
7. ATTACHING AND USING THE
CANOPIES
17
MAXIMA
MAXIMA

E To open the canopy window, pull the canopy window flap away from
the canopy. Roll the canopy window flap up and secure with the elastic
loop and toggle.
www.babylove.com.au
7. ATTACHING AND USING THE
CANOPIES
18
MAXIMA

• A five point harness is provided to restrain your child.
• Buckle tongues separate for added safety.
• To reconnect buckle tongues and to secure the child in the harness
please follow the steps below carefully.
• ENSUREYOUR CHILD IS SECURED WITH A CORRECTLY ADJUSTED
HARNESS.
• THE ADJUSTED HARNESS SHOULD CLOSELY FIT THE CHILD.
• NEVER LEAVE THE HARNESS BUCKLED WHEN NOT FITTED TO A
CHILD IN THE STROLLER, BECAUSE THE HARNESS CAN FORM
LOOPS WHICH MAY POSE A STRANGULATION HAZARD.
• WHEN HARNESS IS NOT IN USE, DISCONNECT SHOULDER
STRAPS FROM THE WAIST STRAPS AND BUCKLE TO PREVENT
STRANGULATION.
WARNING: USE THE HARNESS AT ALL TIMES.
AAlways apply the brakes to the stroller when placing the child in the
stroller. Slip one shoulder strap over each shoulder. Position crotch
strap between legs.
PLEASE NOTE: ENSURE THE STRAPS ARE NOT TWISTED AS THEY
MAY BECOME UNCOMFORTABLE FOR THE CHILD.
www.babylove.com.au
8. SECURING YOUR CHILD IN THE
HARNESS
19

BPosition the shoulder strap tongue (A) on the top of the waist buckle
tongue (B) on both sides.
Shoulder straps
A
B
A
Buckle
housing
C
Crotch strap
Waist
strap
Waist
strap
B
CPush both buckle tongues (A+B) into the buckle housing (C) until the
buckle tongues lock into position.
Buckle
housing
A B
+A B
+
C
Crotch strap
Shoulder strap Shoulder strap
Waist
strap
Waist
strap
www.babylove.com.au
8. SECURING YOUR CHILD IN THE
HARNESS
