Baby Love URBANLITE SH608 Series User manual

URBANLITE
TRAVEL SYSTEM STROLLER
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
Series SH608
INSTRUCTION BOOK

ALWAYS FOLLOW THE MANUFACTURERS INSTRUCTIONS.
READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY AND USE
OF THIS STROLLER.
THE CORRECT USE AND MAINTENANCE OF THIS PRODUCT IS
ESSENTIAL.
• USE GREAT CARE WHEN USING THE STROLLER ON STAIRS,
ESCALATORS,TRAVELATORS OR OTHER MOVING SURFACES.
• IT IS RECOMMENDED TO REMOVETHE CHILD FROM THE STROLLER
BEFORE GOING UP OR DOWN STAIRS OR ESCALATORS.
• DO NOT LIFT THE STROLLER BY THE ARM BAR (If Supplied)
BECAUSE IT MAY DISENGAGE.
• DO NOT ALLOW CHILDREN TO STAND ON THE SEAT.
• DO NOT HANG BAGS OR GOODS FROM THE HANDLE AS THIS
COULD CAUSE THE STROLLER TO TIP OVER.
• DO NOT LEAVE THE STROLLER AND ITS ACCESSORIES NEAR AN
OPEN FIRE OR EXPOSED FLAME.
• DO NOT PLACE MORE THAN 4 KG IN THE BASKET, OR 1KG IN THE
CANOPY POCKET (IF SUPPLIED).
IMPORTANT NOTES:
02 www.babylove.com.au
IMPORTANT NOTES
www.babylove.com.au

WARNINGS: TO AVOID INJURY OR DEATH:
ALWAYS APPLY THE BRAKES WHENEVER THE STROLLER IS
STATIONARY.
• DO NOT LEAVE CHILDREN UNATTENDED.
• SECURE THE CHILD IN THE HARNESS AT ALL TIMES.
• DO NOT CARRY EXTRA CHILDREN OR BAGS ON THIS STROLLER.
• MAKE SURE CHILDREN ARE CLEAR OF ANY MOVING PARTS IF
YOU ADJUST THE STROLLER.
• DO NOT USE ANY ACCESSORIES OTHER THAN THOSE
APPROVED FOR USE WITH THIS STROLLER BY BRITAX.
• IT IS UNSAFE TO USE ACCESSORIES NOT APPROVED FOR USE
WITH THIS STROLLER.
• THE MAXIMUM WEIGHT OF THE CHILD USING THIS STROLLER
IS NOT TO EXCEED 20 KG.
This CAUTION Symbol is shown at certain steps in
this Instruction Manual to highlight the danger of
being injured by moving parts.
CAUTION
FOR IMPORTANT NOTES AND WARNINGS ON ACCESSORIES -
REFER TO THEIR INDIVIDUAL SECTIONS IN THIS BOOK. THE
MAXIMUM WEIGHT VARIES FOR EACH ACCESSORY.
03
www.babylove.com.au
WARNINGS

04
The SMART lifting technique
This technique can be used to pick up small light loads from low levels.
Size up the Load
• Assess the load (size, shape and weight).
• Assess whether the load needs to be moved;
• Where is it going to be placed” Check that there are no obstructions;
• Assess whether mechanical or human assistance is required.
Move the Load as close to the body as possible
• A load is heavier to lift or carry if it is not close to the body.
• The whole hand should be used to ensure a firm grip.
Always bend your knees
• Maintain balance.
• Keep feet apart and in a comfortable position.
• Minimise lower back bending.
• Bend knees preferable at as large an angle as possible but not at a
right angle - use a semi squat in preference to a full squat.
Raise the load with your legs
• Achieve the lift smoothly and without jerkiness.
• Maintain the normal curvature of the spine to allow the force of the
load to be distributed evenly from the spine to the pelvis.
Turn your feet in the direction that you want to move the load
• Avoid unnecessary bending, twisting and reaching.
• Change direction by turning your feet and not your back.
• To set the load down, squat down, keep your head up and let your legs
do the work.
Remember to ‘THINKTALL’ chest lifted, shoulders relaxed, chin
tucked in and head level.
www.babylove.com.au
MANUAL HANDLING TECHNIQUES

05
C1 x Canopy
D1 x Arm bar
www.babylove.com.au
PARTS LIST

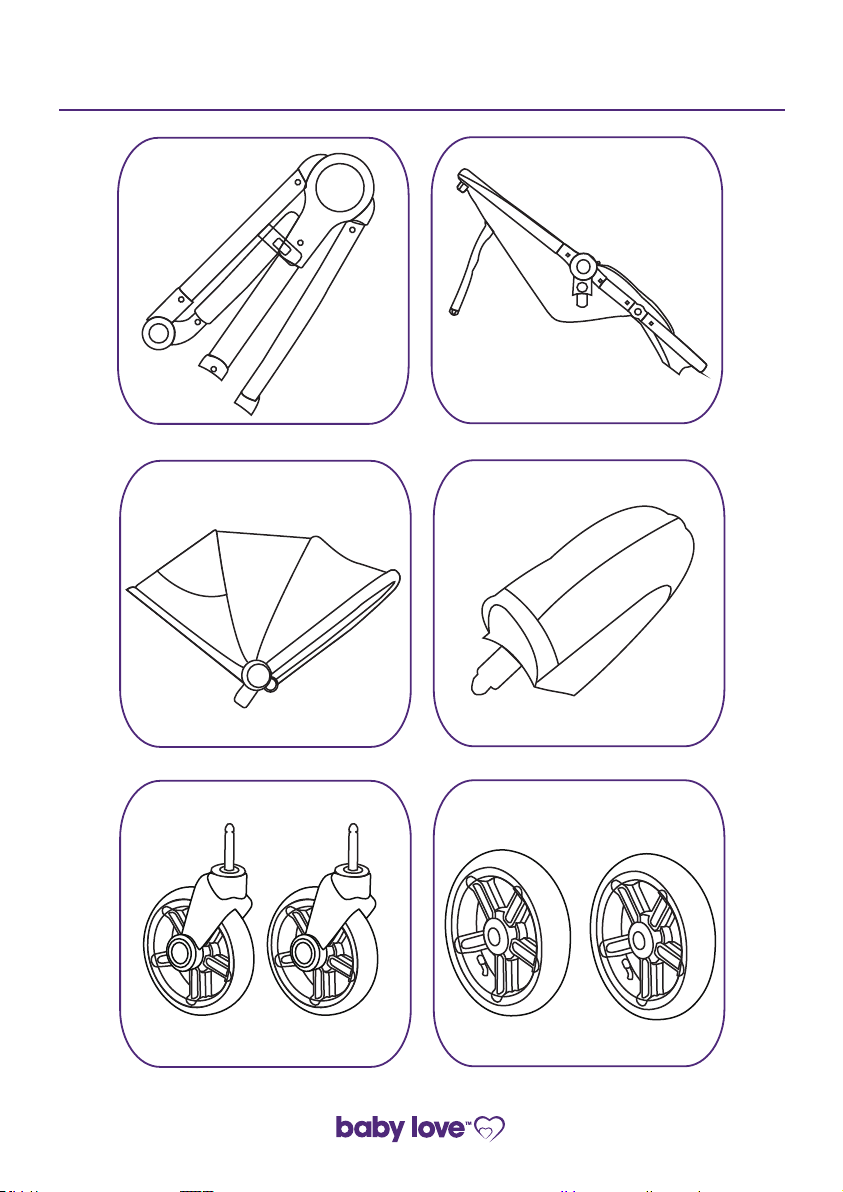

A1 x Frame
B1 x Seat Assembly
E2 x Front wheels
F2 x Rear wheels

www.babylove.com.au
06
I2 x Car Seat Receivers
for Snap N’ Go Infant Carrier
PARTS LIST
G1 x Reversible Insert
H1 x Set Shoulder Harness
Pads

www.babylove.com.au 07
IMPORTANT NOTES:
PLEASE REFER TO PAGE 4 FOR SMART LIFTING TECHNIQUES.
• RELEASE THE STORAGE LATCH WITH DUE CARE AND OPEN THE
FRAME.
• WHEN OPENING THE STROLLER, BE AWARE OF THE DANGER OF
BEING INJURED BY MOVING PARTS AND LOCKING DEVICES
DURING THE PROCESS. KEEP ALL HANDS AND LIMBS CLEAR OF
THESE PARTS.
• THERE IS POTENTIAL FOR FINGERS OR PARTS OF THE BODY TO BE
INJURED WHEN THE STROLLER IS BEING UNFOLDED, DUE CARE
SHOULD BE EXERCISED.
• KEEP CHILDREN CLEAR OF THE STROLLER WHEN UNFOLDING THE
STROLLER.
• OPEN THE STROLLER SLOWLY AND BE CAREFUL WHEREYOU
PLACEYOUR HANDS. KEEPINGYOUR HANDS ON THE HANDLE IS
THE BEST WAY TO UNFOLD THE STROLLER.

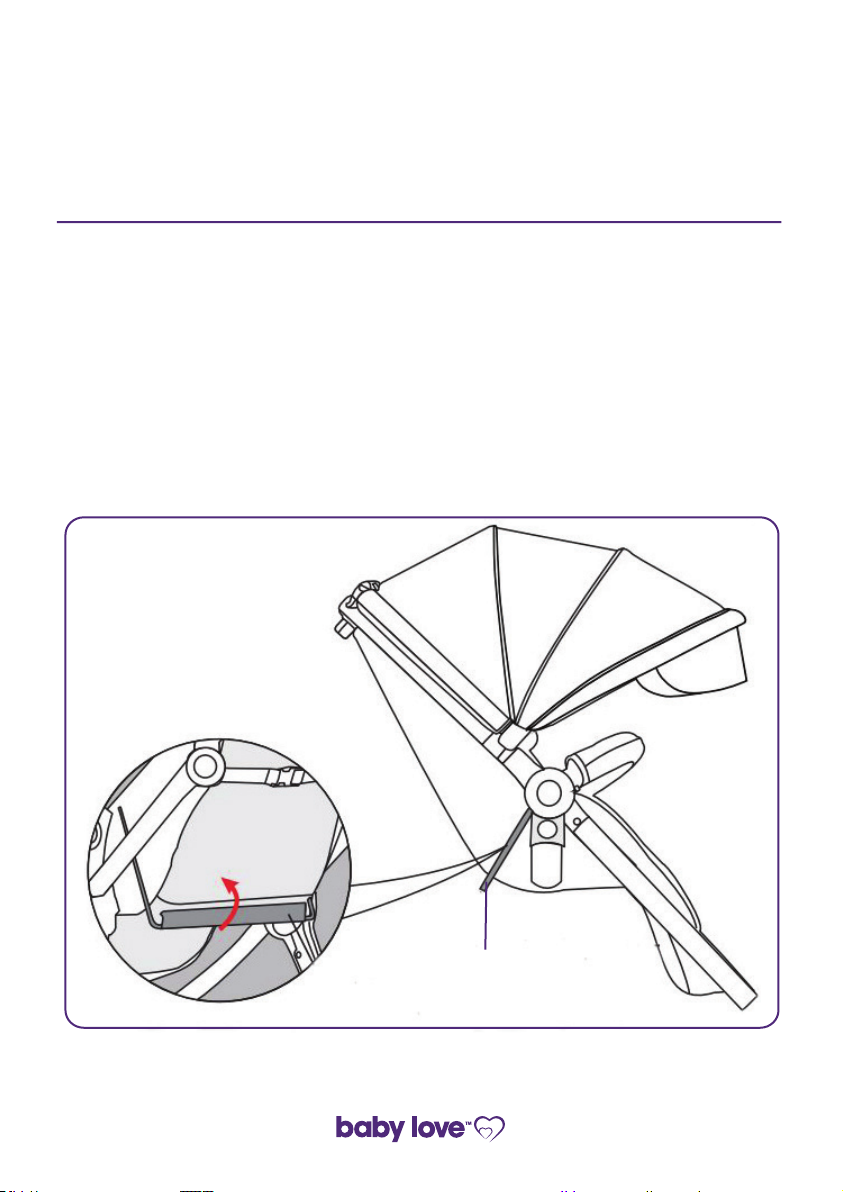

ARelease the storage latch located on the rear leg.
1. OPENING THE STROLLER
Storage
latch
A

www.babylove.com.au
08
CAUTION
BOpen the frame as shown by the arrows until you hear a ‘click’ which
indicates the frame is fully opened and locked. Squeeze in and hold the
buttons on the inside of the handle and rotate the handle completely
up. Push down on the stroller handle to confirm that the frame is
locked.
1. OPENING THE STROLLER
click
B
B

www.babylove.com.au 09
A Take each front swivel wheel assembly and push it into each of the
front leg mouldings until you here a ‘click’ which indicates the wheel is
locked in. Pull on the wheel assembly to confirm it is securely
assembled.
BTo remove each front swivel wheel assembly, press the black quick
release button on the side of front leg mouldings.
2. ASSEMBLING AND REMOVING THE
FRONT SWIVEL WHEELS
click Quick release
Button

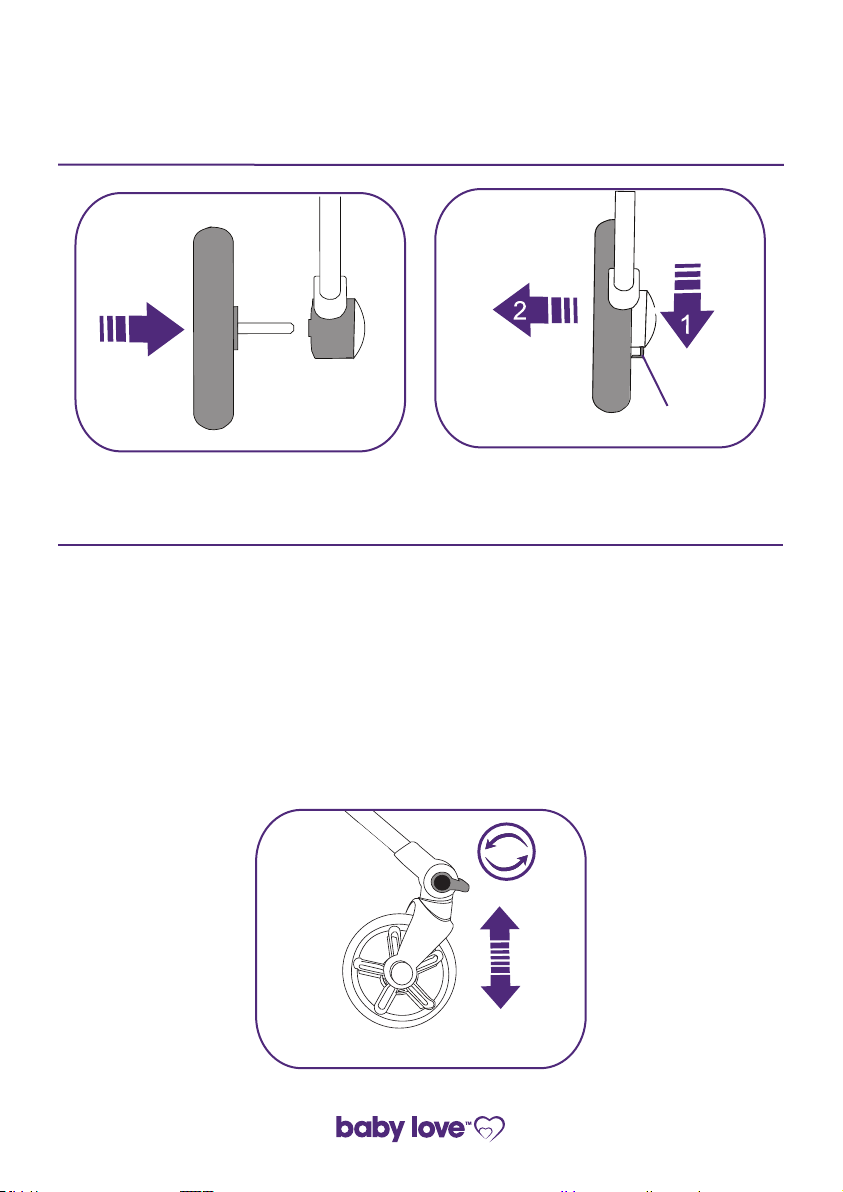

A To fit the rear wheels, insert each wheel axle into the moulding and
push in until locked.You should hear a ‘click’ which indicates the wheel
has locked in. Pull on the wheel to make sure it is engaged. Repeat the
process if not locked in.
BTo remove the wheels, pull the metal latch downwards on the
underneath of the brake moulding to release the wheel, and then pull
wheel off.
3. ASSEMBLING AND REMOVING THE
REAR WHEELS
A B
2
1

www.babylove.com.au
10
3. ASSEMBLING AND REMOVING THE
REAR WHEELS
ATo lock the swivel wheels, push the locking clip down.
To allow the wheels to swivel, lift the locking clip up on the front
of each wheel.
PLEASE NOTE: Always lock the swivel wheels when using the stroller
on rough surfaces as this will minimise wheel wobble.
The swivel wheels should only be locked when the wheels are in the
trailing position (wheels under frame).
4. USING THE FRONT SWIVEL WHEELS
A B Metal Latch
A B

www.babylove.com.au 11
5. ATTACHING THE STROLLER SEAT TO
THE STROLLER FRAME IN THE
FORWARD FACING POSITION
ATo secure the seat support bar, raise the seat support bar into the
upright position and lift the large fabric flap and place it over the seat
support bar and secure with the hook and loop.
THE SEAT SUPPORT BAR ON THE UNDERNEATH OF THE SEAT UNIT
MUST BE SECURED BEFORE ATTACHING THE SEAT UNIT TO THE
STROLLER FRAME.
IMPORTANT NOTE:
Seat
Support
Bar

5. ATTACHING THE STROLLER SEAT TO
THE STROLLER FRAME IN THE
FORWARD FACING POSITION
AHold the stroller seat over the frame and align the stroller seat
mouldings on both sides over the frame connection sockets in the
middle of the frame.
ALWAYS REMOVEYOUR CHILD FROM THE STROLLER SEAT BEFORE
INSTALLING, REMOVING OR CHANGING THE SEAT DIRECTION.
IMPORTANT NOTE:
CPull up on both sides of the stroller seat to make sure it is securely
locked into the stroller frame.
PLEASE NOTE: See Page 13 for Step B & Step C illustrations.
BInsert the stroller seat mouldings into the frame connection sockets
and push down until both seat mouldings until you hear a ‘click’ which
indicates the seat mouldings have locked in.
CAUTION
Frame
connection
sockets
Stroller
seat
mouldings
CAUTION
12 www.babylove.com.au

CAUTION
click
B C
CAUTION
5. ATTACHING THE STROLLER SEAT TO
THE STROLLER FRAME IN THE
FORWARD FACING POSITION
13
www.babylove.com.au

www.babylove.com.au
ALWAYS REMOVEYOUR CHILD FROM THE STROLLER SEAT BEFORE
INSTALLING, REMOVING OR CHANGING THE SEAT DIRECTION.
IMPORTANT NOTE:

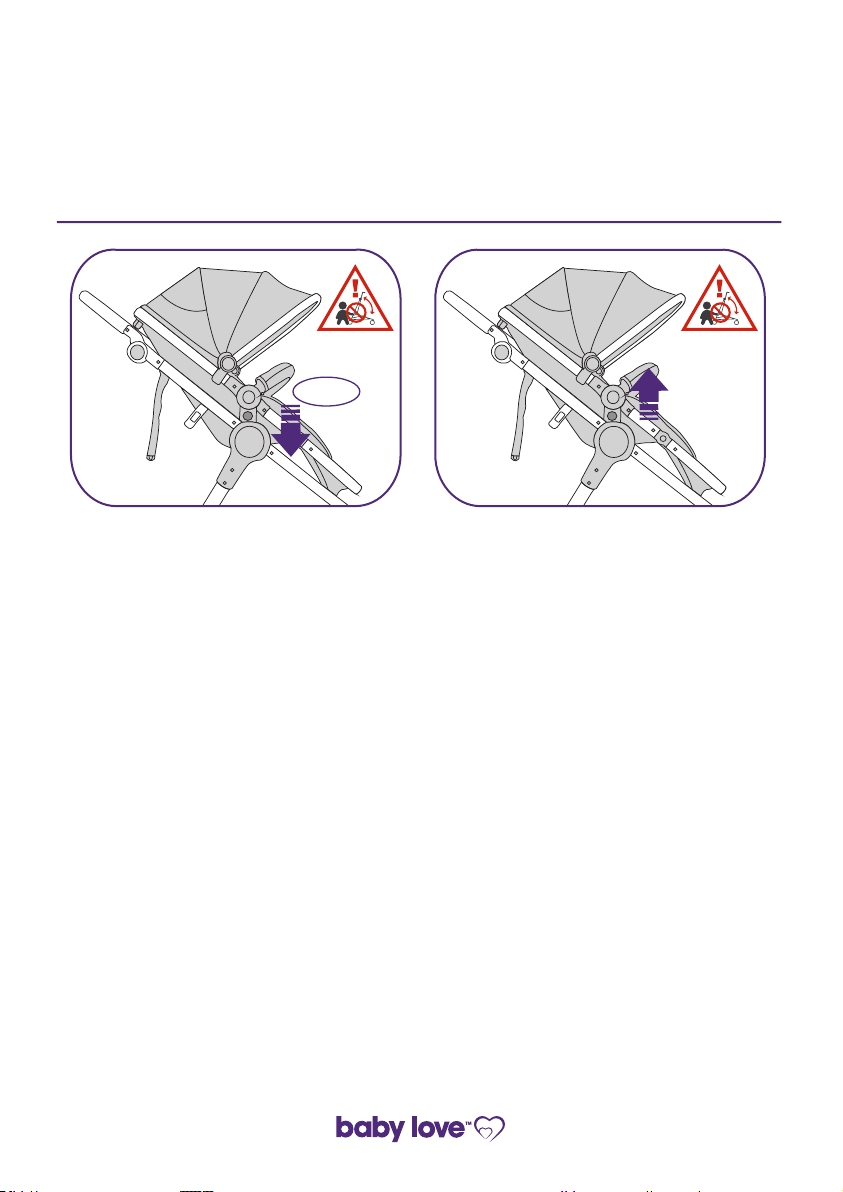

APress in and hold the red quick release button on both sides of the
stroller seat mouldings and lift the stroller seat out of the frame
connection sockets.
CAUTION
Frame
connection
sockets
Stroller
seat
mouldings
CAUTION
Quick
release
button
A A
6. REMOVING THE STROLLER SEAT
FROM THE STROLLER FRAME
14

www.babylove.com.au 15
7. ATTACHING THE STROLLER SEAT TO
THE STROLLER FRAME IN THE
REARWARD FACING POSITION
AHold the stroller seat over the frame and align the stroller seat
mouldings on both sides over the frame connection sockets in the
middle of the frame.
ALWAYS REMOVEYOUR CHILD FROM THE STROLLER SEAT BEFORE
INSTALLING, REMOVING OR CHANGING THE SEAT DIRECTION.
IMPORTANT NOTE:
BInsert the stroller seat mouldings into the frame connection sockets
and push down until both seat mouldings until you hear a ‘click’ which
indicates the seat mouldings have locked in.
CPull up on both sides of the stroller seat to make sure it is securely
locked into the stroller frame.
PLEASE NOTE: See Page 16 for Step B & Step C illustrations
CAUTION
CAUTION
Stroller
seat
mouldings
Frame
connection
sockets
A A

www.babylove.com.au
16
7. ATTACHING THE STROLLER SEAT TO
THE STROLLER FRAME IN THE
REARWARD FACING POSITION
B C
CAUTION
click
CAUTION

www.babylove.com.au 17
8. ATTACHING AND USING THE
CANOPY
The sun is very strong. DO NOT LEAVEYOUR CHILD EXPOSED TO THE
SUN. The canopy or hood on this product will not give your child total
protection from the harmful rays of the sun.
IMPORTANT NOTE:

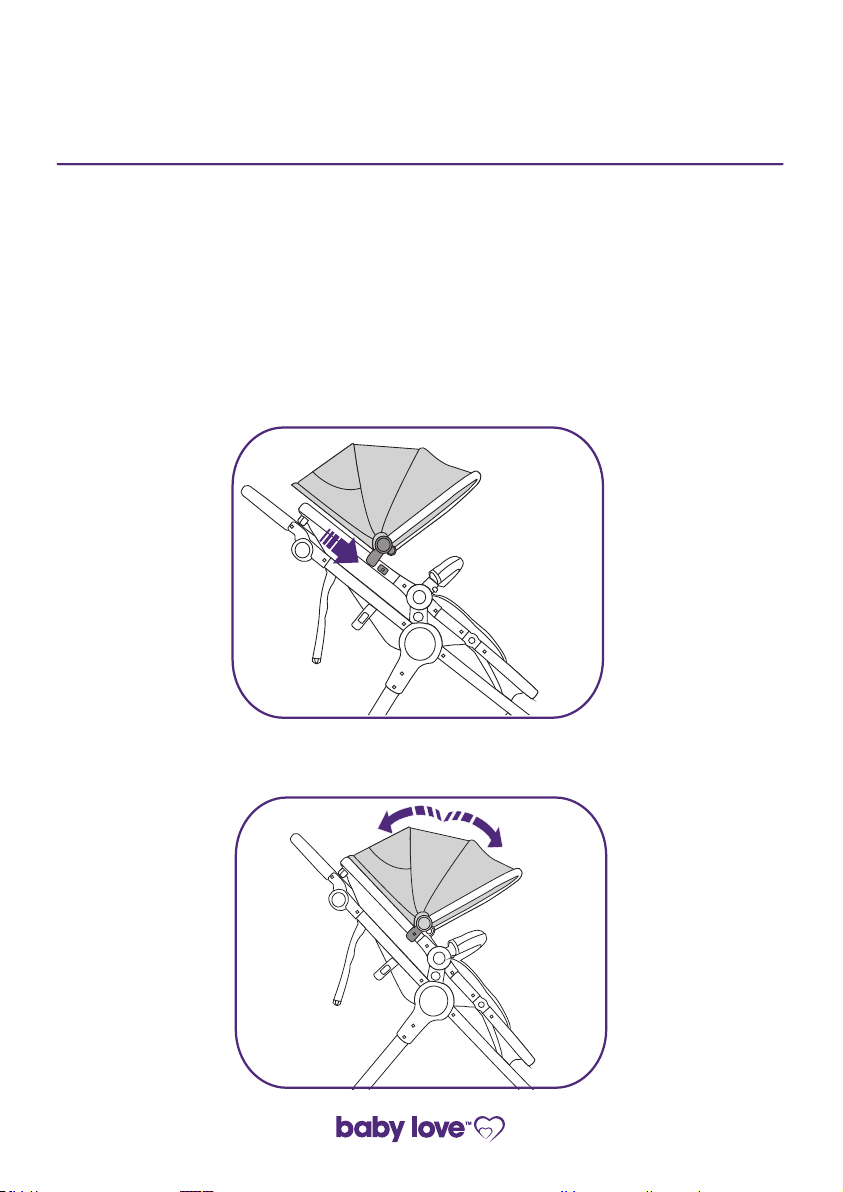

ATo attach the canopy, slide the canopy mouldings (as indicated by
arrow) into the frame mouldings until they lock together.
BTo adjust the canopy, open by pulling forward, or close by pushing it
backward.

www.babylove.com.au
18
8. ATTACHING AND USING THE
CANOPY
C To increase the canopy length, open the zipper to access extra canopy
section.
D To use the peek a boo window, lift the canopy window flap up.
ETo remove the canopy, slide the canopy mouldings (as indicated by
arrow) out of the frame mouldings.
C C
Zipper
D E

www.babylove.com.au 19
9. ATTACHING AND REMOVING THE
ARM BAR
WARNING: WHEN A CHILD IS INTHE STROLLER
KEEP THE ARM BAR ATTACHED TO THE ADAPTORS AT ALL
TIMES.
AAlign the arm bar pins with the frame mouldings on both sides of the
stroller seat and insert until you hear a ‘click’.
B To assist with putting a child in the stroller, release the arm bar on one
side, press the red quick release tab located underneath the frame
moulding and pull the arm bar out. Rotate the arm bar clear of the
stroller. Lock the arm bar back into position after fastening the child in
the harness.
CTo remove the arm bar, press the red quick release tabs located
underneath both frame mouldings and lift the arm bar off the stroller
seat .
click Quick release tab
A B/C

www.babylove.com.au
20
10. FITTING THE REVERSIBLE INSERT
AND SHOULDER PADS

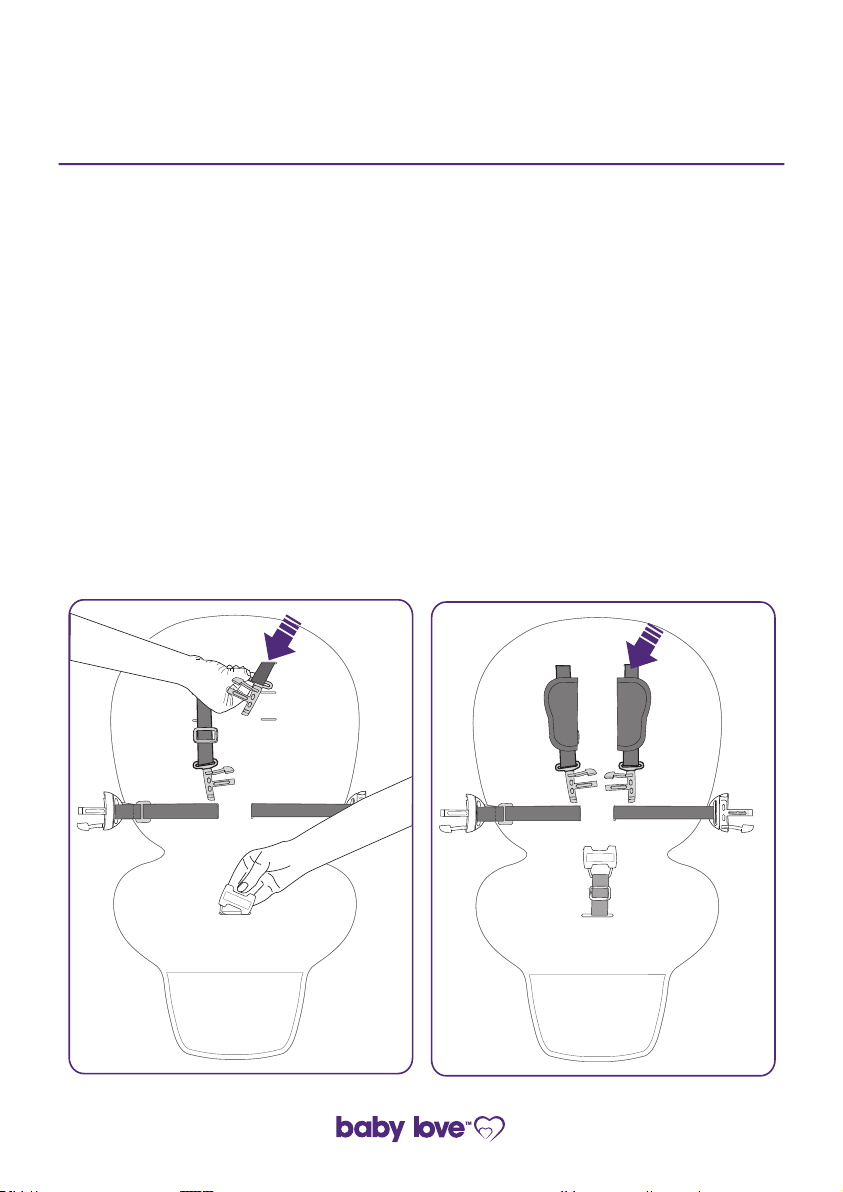

APlace the insert on the stroller seat and thread the harness shoulder
straps through the corresponding slots in the seat insert. Thread the
harness waist straps through the lower slots in the back of the seat
insert. Pull the crotch buckle through the lower slot in the seat liner.
To remove the insert, perform the above actions in the reverse order
BTo attach the shoulder pads, release the harness buckles and slide the
shoulder pads onto the shoulder harness.
IMPORTANT NOTE:
ENSURE THAT THE SHOULDER STRAPS ARE FITTED THROUGH THE
APPROPRIATE HARNESS SLOTS TO SUITYOUR CHILD’S SEATED
SHOULDER HEIGHT.
