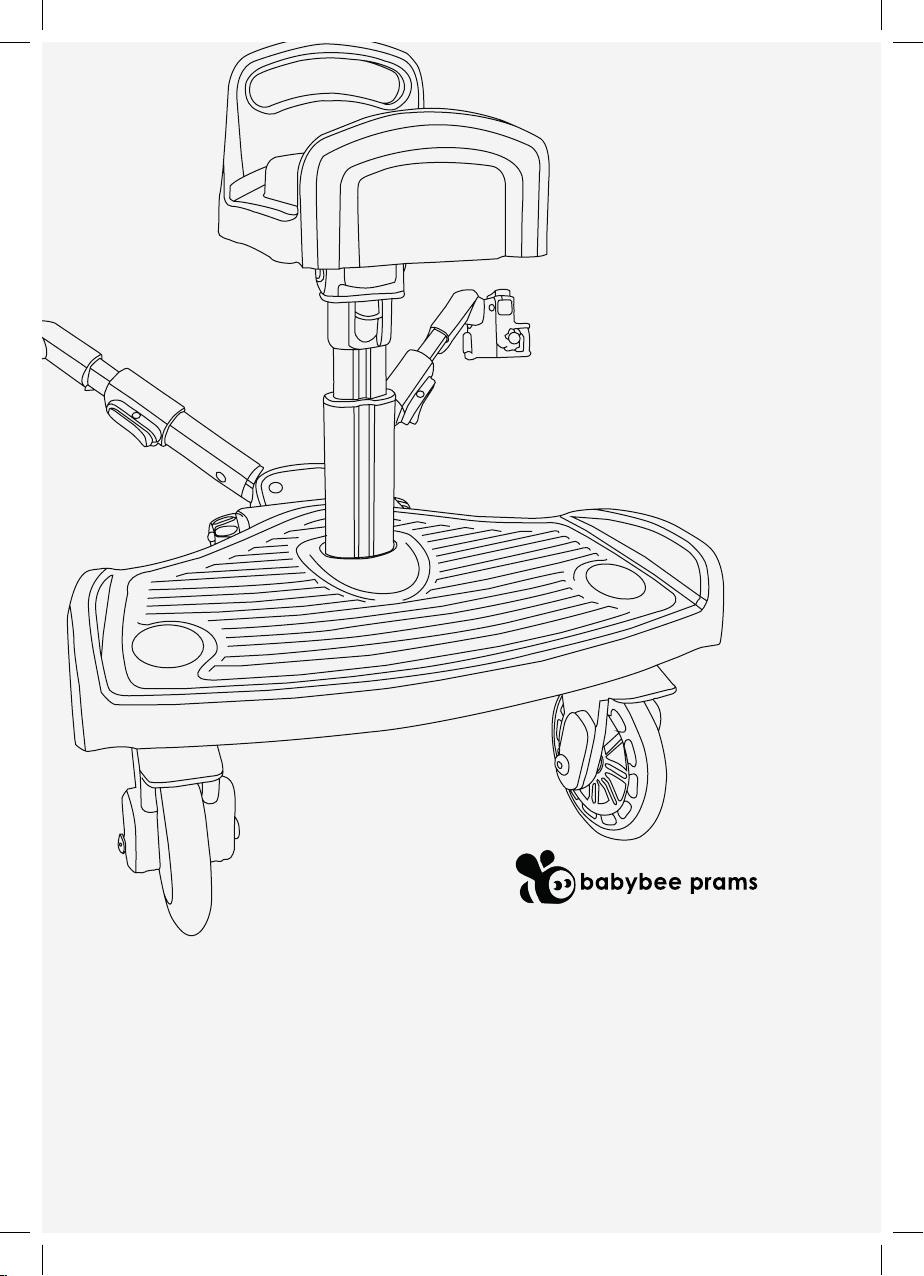

Babybee Orbit Board v2 User manual

Orbit Board v2
ride on buggyboard
www. babybeeprams.com.au
Please keep this manual for future reference
babybee prams

2
Hello!
Thanks for choosing the babybee Orbit Board v2. Before you get
started, there’s a few quick things we’d like you to note:
Warranty
The Orbit Board includes a
12 month warranty, to cover
against faults in materials and
workmanship when used under
normal conditions, according
to our manuals and technical
specications.
Support
If at any stage you require any
assistance with setup or use,
please rst refer to our After
Sales Support page on our
website which has a variety of
instructional videos and FAQ’s.
Safety rst
03
What’s in the box
04
Step One: Install the wheels 05
Step Two: Connect the buggyboard to your pram 06
Step Three: Adjusting the arm length 07
Step Four: Adjust the board angle 08
Step Five: Seat installation 09
Step Six: Seat height adjustment 10
Maintence Guide 11
Using your
Orbit Board v2
Enjoy the ride,
From all of us at babybee

3
Safety first
MUST READ BEFORE INSTALLATION AND USE
1 This product is suitable for
children 2+ years of age.
Every child is different,
please assess whether your
child is safe and secure
either sitting or standing
before walking with the
Orbit Board in use.
2 To prevent injury from
choking or suffocation,
carefully remove and move
out of reach all protective
packaging. Never leave
your children unattended
with the Orbit Board or
packaging.
3Keep children clear from
the Orbit Board whilst you
are attaching or adjusting it.
4 Always apply the stroller
brake before attaching
the Orbit Board, loading or
unloading your child.
5The Orbit Board is designed
for children’s use only, one
child at a time.
6Children must sit on the seat
only (not sit on the board).
7The Orbit Board is not a toy
and should not be played
with.
8Only use with models of
strollers and accessories
approved for use by
babybee prams.
9Do not use unauthorized
spare parts.
10 Do not use on public
transport.
11 Do not use if any part of
the Orbit Board is broken or
damaged.
12 When seated, ensure your
child’s feet are clear of the
ground, wheels and brake.
13 Always hold on to your
stroller while the Orbit Board
is in use to avoid instability.
14 Ask your child to get off
when using on steep or
unstable surfaces and up or
down curbs.
15 Do not allow your child to
play with the stroller brake
or wrist tether strap.
The safety of your family is our number one priority. Please take note
of the following safety warnings:

4
What’s in the box
Removable seat
Board
(including x 2 attachment clamps)
Wheels x 2

5
Removable seat
Install the wheels
Insert each wheel pin into
the wheel hub located
on the underside of the
board. You should hear an
audible “click”. Give each
wheel a good tug to ensure
it’s securely in place.
Wheel removal
To remove the wheels,
simply press the button
located on the underside of
the board, on the inner side
of the wheel hub, and pull
wheel out.
Step One
1

6
Connect the
Orbit Board to
your pram
Step Two
Thread the plastic
corrugated straps around
each side of the frame and
into the side clasp. You’ll
hear it as it fastens. Pull tight
to ensure the Orbit Board
stays rmly in place while in
use.
To release the straps, simply
press the top of the clasp
slightly where the strap
slides in and you will be
able to pull the strap out
completely.
WARNING: The arms of
the Orbit Board must go
underneath the brake bar
so that is still fully functional
whilst the Orbit Board is
attached.
1

7
Adjusting the arm
length
Step Three
If you need to adjust the
arm length, simply press
and hold the lever on the
side of the arm and extend
or retract it to your required
length.
1

8
Adjust the board
angle
Step Four
To adjust the angle of the
board, twist the two knobs
located at the front of the
board in the direction of
the “unlock” symbols. Keep
twisting until the arms move
freely.
Angle the board so that the
brake can be used freely
without obstruction and so
that the board is as at as
possible, it will remain on
a slight angle to allow the
strollers brake to engage.
Then tighten the two knobs
in the direction of the “lock”
symbols until tight.
Firmly press on the board to
ensure it’s secure and will
not move when your child
stands on it.
1
2
3

9
1
Seat installation
(optional)
Step Five
If you wish to use the seat,
insert the seat tube into the
seat hub, located on the
topside of the board, until
you hear an audible “click”.
Pull on the seat to ensure it
is rmly connected.
To remove the seat, press
the button located on the
underside of the seat hub
and pull the seat up.

10
Seat height
adjustment
Step Six
If you need to adjust the
seat height, press down
on the button located
underneath the seat, and
rotate the seat forward.
Once the seat has been
rotated forward, the seat
tube can be lengthened or
shortened depending on
the height of your child
simply by sliding it to the
correct position (note: you
may need to pull/push
quite rmly).
Once you’ve found the
correct height, rotate the
seat back to a horizontal
position and give it a good
tug to ensure it’s securely in
place.
Note: your child’s feet
should sit at on the
board with knees slightly
bent when using the seat
attachment.
1
2
3

11
Your Orbit Board has many
moveable parts, therefore
friction will occur and over time
it may become scratched, rusty
or dusty. We strongly suggest
giving it a wipe from time to
time, this will help your Orbit
Board last longer and keep it
operating at its best.
Maintence Guide
- Please be aware that weather
conditions such as humidity,
snow, and beach use will also
affect the product’s exterior.
- To clean your Orbit Board,
use warm water with a gentle
cleaning detergent and dab
clean. Always dry after cleaning
or allow to air dry completely.

Contact
[email protected].au
babybee prams
@babybeeprams
Version: September 2017
Information is correct at time of printing yet subject to change. Please download the
current manual from our website.
www.babybeeprams.com.au
