BaByliss PRO BAB7880U User manual

BAB7880U
PROFESSIONAL HIGH-TORQUE
SUPER MOTOR TRIMMER

PROFESSIONAL HIGH-TORQUE SUPER MOTOR
TRIMMER
This heavy-duty trimmer features a choice of 2 interchangeable
Japanese steel blades with zero gap adjustment for precision and
control. Long-life lithium battery and super fast charging guarantees
sustained performance for the ultimate in precision detailing. A high-
torque brushless motor delivers high power performance for clean,
close cutting.
FEATURES
• High power cord or cordless control
• Precision engineered Japanese steel blades with super sharp V
cutting angle
• Interchangeable 30mm and 40mm zero gap adjustable cutting blades
• Lithium technology for sustained power performance
• High-torque brushless motor for long-lasting power and speed
• Absolutely balanced for superior handling
• 6mm and 10mm comb guides
• Robust all metal housing design
• Charging and storage stand
• Oil and cleaning brush

SAFETY CAUTIONS
• Original instructions. Read these safety precautions
carefully before using the unit! This appliance should
only be used as described within this instruction
booklet. Please retain for future reference.
IMPORTANT CHILD SAFETY
• ALWAYS keep out of the reach of very young children
(during and after use).
• This appliance should not be used, cleaned or
maintained by children.
• Always take extra care if used on children or near
children.
• Do not use on very young children.
IMPORTANT SAFETY
• WARNING! Do not use this appliance near bathtubs,
showers, basins or other vessels containing water.
• Do not immerse the appliance in water or other liquids.
• Keep the appliance dry.
• UK Only: Do not use this appliance in the
bathroom.
• Outside the UK: If using the appliance in a
bathroom, unplug after use as the proximity of water
can be dangerous even if the appliance is switched
off. For additional protection the installation of a
residual current device (RCD) with a rated residual
operating current not exceeding 30mA is advisable in

the electrical circuit supplying the bathroom. Ask your
installer for advice.
• The appliance’s charging stand and/or adaptor must
be kept away from sources of water so that they do not
fall into the water.
• CAUTION! Keep the power cord and the appliance
dry. For appliances with a removable power supply
unit, remove the power cord before cleaning.
• Always inspect the appliance before use for noticeable
signs of damage. Do not use if damaged or if the
appliance has been dropped. In the event of damage
contact the Conair Customer Care Line (refer to ‘UK
After Sales Service’ section for further information).
• Do not use the appliance if the charging adaptor or lead
is damaged. In the event of damage, discontinue use
immediately. If the charging adaptor or lead is damaged,
it must be replaced by the manufacturer. Return the
appliance to the Customer Care Centre (refer to ‘UK
After Sales Service’ section for further information). No
repair must be attempted by the consumer.
• Only use the attachments supplied with this appliance.
• WARNING! For the purposes of recharging the battery,
only use the detachable charging supply unit provided
with this appliance - (CA80M). This symbol
indicates there is a detachable power supply for means
of charging.
• Do not leave the appliance unattended when switched
on.

• Do not leave the appliance plugged in for more than
24 hours.
• Unplug immediately if any problems occur during use.
• Do not place the appliance on any surface whilst in
operation.
• Special care is required when using the appliance close
to the ears, eyes and face.
• This appliance may be used by children aged from 8
and older and people with reduced physical, sensory or
mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction on the
safe use of the appliance and understand the hazards
involved. Children must not play with the appliance.
• This product contains a lithium ion rechargeable
battery that is not to be removed from the appliance
for charging. The batteries in this appliance are non-
replaceable. Batteries must be disposed of safely at
the end of life. Please take to a recycling centre for
safe disposal. If the battery leaks, avoid touching it and
dispose of it at a recycling centre.
• The supply terminals are not to be short circuited.

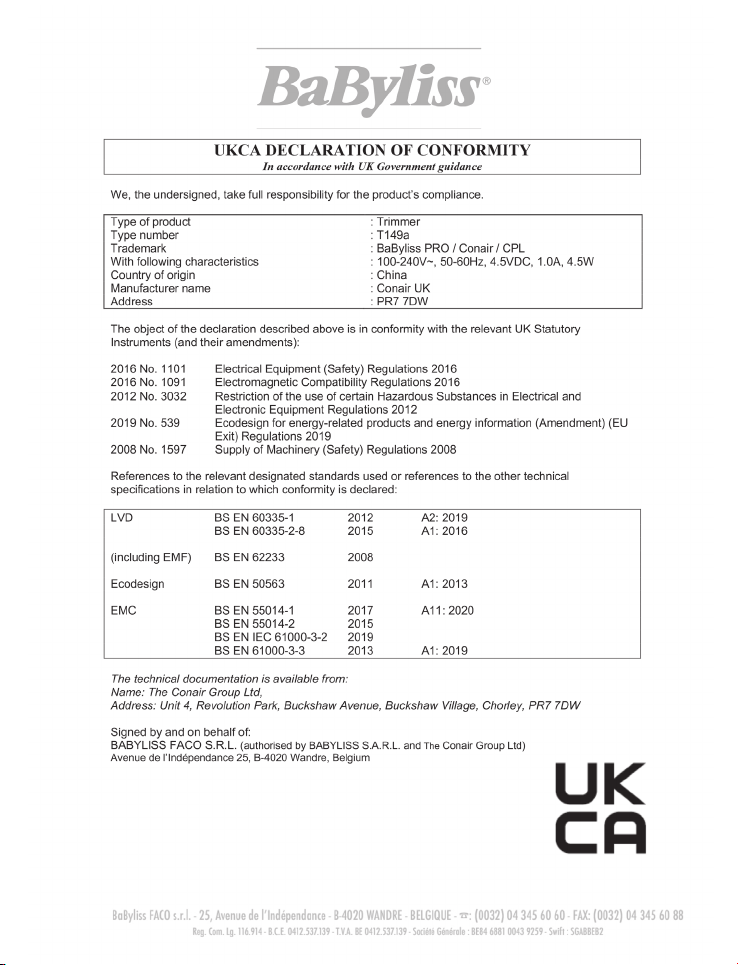

• This product complies fully with all appropriate EU
and UK Legislation and the standards relevant to this
type and class of appliance. We are an ISO9001:2015
certied company that continually evaluates our
Quality Management System performance. If you have
any queries regarding product safety and compliance,
please contact the Conair Customer Care Line (refer to
‘UK After Sales Service’ section).

WEEE - END-OF-LIFE ELECTRICAL AND
ELECTRONIC EQUIPMENT
In everybody’s interest and to actively participate in
protecting the environment and human health:
• Do not discard your products with your unsorted
household wastes.
• The WEEE (Waste electrical and electronic equipment)
must be collected separately.
• Use the return and collection systems dedicated to
the WEEE available in your area. In this way, some
materials can be recycled, re-used or recovered.
• By ensuring this product is disposed of properly, you
will help prevent potential negative consequences for
the environment and human health due to possible
content of hazardous substances.
For more detailed information about the disposal of this
product, please contact your local household waste
disposal service.
INSTRUCTIONS FOR USE
• Charging the appliance - Before using the appliance for the rst
time, charge the battery continuously for 3 hours. Maximum battery
capacity will only be reached after 3 completed charging and
discharging cycles.
• Plug the charging adapter into a suitable mains power socket
and switch on. The red LED indicator light will ash when
correctly connected to the mains power and will continuously
ash until the battery has fully charged. When the battery is fully
charged the LED indicator light will stop ashing but remain on.

NOTE: Always place the trimmer in the base with the ‘I/0’ switch in
the OFF position.
• When the clipper is running low on charge, the LED indicator light
will ash, warning there is approximately 3 minutes of battery use
remaining. A 3 hour charge will provide approximately 85 minutes
use. A 30 minute quick charge will provide approximately 30 minutes
use.
• If the charging light starts to ash rapidly (more than 4 ashes per
second) then the appliance is faulty. If this happens then please stop
charging and remove the adapter from the mains and contact the
Conair Customer Care Line. (See ‘UK After Sales Service’ section for
further information).
• Preserving the batteries - In order to maintain the optimum capacity
of the rechargeable batteries, the appliance should be recharged for
3 hours approximately every 3 months.
• Using the trimmer on the mains - ensure that the trimmer is switched
off. Plug into a suitable mains socket. Wait for approximately a
minute, and then switch on.
IMPORTANT: Do not use the trimmer in this mode for more than 20
minutes.
USE OF THE COMB GUIDES
This trimmer is supplied with 2 comb guides.
No.1 - 6mm
No.2 - 10mm
To attach a comb, hold it by the sides and clip it over the teeth of the
blade. To remove the comb, simply push off.

ZERO GAP ADJUSTMENT TOOL
IMPORTANT! Only ever attempt to zero gap the blades using the
adjustment tool, following the instructions very precisely.
The adjustment tool is required to adjust the blades to zero gap, to
achieve a closer, more precise cut.
Regular Zero Gap
REGULAR ZERO GAP
ZERO GAP
Step 1.
Before placing the blade into the adjustment tool, use the screwdriver
provided to loosen the tension screws, without removing them
completely from the blade holder.

Step 2.
Place the blade into the adjustment tool in the side labelled ‘Zero Gap’.
Step 3.
Push the blade guide up as far as the adjustment tool allows, so the
moving blade sits closely with the top of the adjustment tool. The
blades will now be ush with each other.
Step 4.
Using the screwdriver, tighten the tension screws to hold the blade in
place.
blade
guide

Step 5.
Remove the blade from the adjustment tool by gently pushing the
blade from the opposite side.
REGULAR - Resetting the blade for regular use
Step 1
Before placing the blade into the adjustment tool, use the screwdriver
provided to loosen the tension screws, without removing them
completely from the blade holder. Place the blade into the adjustment
tool in the side marked Regular.
The tool will automatically push the moving blade down to its regular
postion.

Step 2.
Tighten the tension screws to hold the blade in place.
Step 3.
Remove the blade from the adjustment tool by gently pushing the
blade from the opposite side.
CLEANING AND MAINTENANCE
To maintain correct performance, the blades must be regularly cleaned
and oiled. They are removable for easy cleaning.
•
With the trimmer facing you, push the blade up and away from the
trimmer to remove.
• Brush away the hair from the blades and the interior of the cutting
head with the cleaning brush.
• It is recommended to oil the blades every time that the trimmer is
used, using the oil provided. Never use any other product: this oil
was formulated for high speed trimmers, it does not evaporate or
slow down the blades.
• After cleaning click the blade frame back in place.

TECHNICAL DATA
Vibration and noise levels
Adaptor CA80M
Vibrations < 2.5 m/s²
LpA (dB(A)) < 70
UK GUARANTEE
This BaByliss PRO appliance is guaranteed for professional use for 2
years and is only valid within the United Kingdom.
Exclusions
This guarantee will no longer be valid meaning that The Conair Group
Ltd will not be liable to repair or replace your product where:
1.) The appliance has been used on a voltage supply other than that
which is marked on the product, or advised within this instruction
booklet.
2.) The appliance has been purchased from an unauthorised stockist*.
3.) Repairs or alterations have been attempted by unauthorised
persons.
4.) The failure of the appliance is a direct result of misuse.
5.) The failure is a result of not following the instructions for use.
This guarantee does not cover any cosmetic damage due to misuse
of the product nor any damage to persons or property that occurs
because of product misuse.
*unauthorised stockists include, but are not limited to online auction
sites, private sellers and those selling second hand goods, refurbished
products etc.

Please contact the Conair Customer Care Line on 03705 133 191
(09:00 to 17:00 Monday to Friday) or e-mail [e-mail] for
further information on authorised stockists.
It is important to retain your proof of purchase. We recommend
attaching your receipt to this page.
Even where a refund may be applicable, no refund will be provided
without a valid receipt or proof of purchase, we will only be able
to offer a repair or replacement service. Please note this does
not apply if the product was purchased directly from The Conair
Group Ltd.
Guarantees on replacement products run from the original purchase
date or date of delivery, whichever is later, and not from the date of
replacement.
This guarantee is an additional benefit and does not affect your
statutory rights as a consumer.
If you have any queries regarding this guarantee please contact the
Conair Customer Care Line on 03705 133 191 (09:00 to 17:00 Monday
to Friday) or e-mail [e-mail].

UK AFTER SALES SERVICE
For further advice on using the appliance or should you need to return
your product, please contact the Conair Customer Care Line on
03705 133 191 (09:00 to 17:00 Monday to Friday) or e-mail your enquiry to
[e-mail].
Return address:
Customer Care Centre
Conair Logistics
Unit 4, Revolution Park
Buckshaw Avenue
Buckshaw Village
Chorley
PR7 7DW
Please enclose your returns number, name and address details, together
with a copy of proof of purchase and details of the fault.
Please note this Instruction Booklet is not the guarantee.
SAFE DISPOSAL
The symbol on the product or on its packaging indicates that this
product may not be treated as household waste. Instead it should be
handed to an appropriate collection point for the recycling of Electrical
and Electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for
the environment and human health, which could otherwise be caused
by inappropriate waste handling of this product. For more detailed
information about the recycling of this product, please contact your
local council ofce or your household waste disposal service.

IB-17/292B
