Babysense V24r us User manual

Second Camera is supplied

only with model V24R_2US

Video Baby Monitor

User Manual

Wireless Digital Video Baby Monitor

Watch, Listen and Talk to Your Baby

For any product related queson please contact us at [email protected]

or Toll Free Number (833) 568-2229

www.babysensellc.com

Model: V24R_US (Video Baby Monitor with one cameras)

V24R_2US (Video Baby Monitor with two cameras)

1. Warnings and Safety Instructions

Follow these safety precautions to prevent ﬁre, injury or damage to the product.

Read and keep instructions: It is very important that you read all the safety and operating instructions

before the Babysense video monitor is operated.

Please retain your purchase receipt as you will need to produce it if warranty service is required.

IMPORTANT:

• Babysense Video monitor is a high quality electronic device which must be handled with care: Do

not handle roughly, drop or throw.

• This product is designed for indoor use only.

• Water and moisture: The product should not be exposed to rain, moisture, dripping or splashing.

Never use or place the product in or near moisture or water.

• This product cannot replace responsible adult supervision. Your video monitor is designed to

be an aid and should not be used as a substitute for responsible and proper adult supervision of a child.

• Power source: This product should only be used with the AC power adapters supplied by the

manufacturer, as included in this package.

• Ventilation: This product should not be used on a bed, sofa, rug or similar surface that may block

the ventilation or speaker openings, or be placed in an enclosed area, such as a bookcase or drawer

that may impede air ﬂow. Never cover the product with clothes, towels, blankets

or any other item.

• This product is not a toy and should be kept out of children's reach.

• Caution: This product contains small parts. Exercise care when unpacking and assembling the

product and keep the small parts away from children.

•Strangulation Hazard: Children can become entangled in cords. Make sure the Baby Unit, Parent

Unit and mains adaptor cables are kept out of reach of your baby and other young children at all

times, at least 6 feet away. To avoid possible danger from power cords, the cords should be

secured and never be hung on or near the crib. Never place the Baby Unit or Parent Unit inside

your baby's cot, bed or playpen.

• Risk of suffocation: Keep all packaging materials and protective foils out of reach of children.

• Keep away from sources of heat: This unit should not be exposed to direct heat sources such

as a candle, stove, radiator, heat register or other appliance that emits heat.

The unit should not be left in direct sunlight. 1

• Battery: Before you use the product, we recommend you fully charge the battery in the Parent Unit,

so that it continues to work if you disconnect it from the power supply to carry it to another location.

• Installation location: The installation location plays an important role in ensuring proper operation.

Therefore, maintain a distance of at least 5 feet from other electronic equipment, such as

microwave ovens or Wi−Fi routers, otherwise they could cause interference. If this occurs, move the

baby and parent units to another location.

• Damage requiring service: This product should be serviced by qualiﬁed personnel only.

• Do not try to open and repair the product. If you have any problems with the product, please contact

the authorized distributor.

• In case of unusual noises or smells, originating from the device, immediately disconnect the product

from the power outlet and contact authorized distributor.

• If the product becomes dirty, use a lightly damp soft cloth to wipe surfaces, taking care to not allow

water into any openings.

IMPORTANT: Babysense Video Monitor is designed only for hearing the baby’s voice and seeing the

images of the baby. This product is not a medical device and should not be used as a substitute for

responsible adult supervision. It is important that you regularly check on your baby personally.

1.1 Safety Instructions for AC Power Adapter

• The adapter should not be exposed to direct heat sources such as a candle, stove, radiator, heat

• During continual use, the power adapters may become warm to the touch. This is normal and should

not be a concern.

• Examine intactness of the power cord and its plug.

• The adapter must be handled with care: Do not handle roughly, drop or throw.

• Once removing the power adapter from the wall outlet, hold and pull from the receptacle. Do not pull

on the cable itself or bend the cable as that will put additional stress on the cable and could lead to damages.

• Do not touch the power adapter with wet hands or allow liquids to spill on it.

• Make sure the mains adaptor cables are kept out of reach of your baby and other young children at all

times. To avoid possible danger from power cords, the cords should be secured and never be

hung on or near the crib.

• Do not replace the plugs or cable on your power adapter.

This product should only be used with the AC power adapters supplied by the manufacturer,

as included in this package.

• Never cut, damage or bend the power cord.

• Do not put any objects on top of the power cord, which could cause overheating, damage,

inﬂammation and electrocution.

• Do not leave the power adapter connected to the wall outlet when it is not plugged into the Baby or

Parent unit.

WARNING:

• Do not replace the power cord with non-original substitutes. Improper connection may cause

electrocution.

• Do not place the AC adaptor cable in a high wear and tear location. Never use a frayed or

compromised cord.

• Intended for indoor use only.

1.2 Safety Instructions for Li-ion battery

• Do not attempt to repair or adjust any of the electrical or mechanical functions of the unit.

• Do not dismantle, cut, open, crush, bend, puncture, or shred cells or batteries.

• If a battery leaks, do not let the battery liquid touch skin or eyes. If this happens, immediately ﬂush the

affected areas with water, and seek medical assistance.

• The battery should not be exposed to direct sunlight or heat sources such as a candle, stove, radiator,

heat register or other appliance that emits heat.

• Do not modify, remanufacture, attempt to insert foreign objects into the battery, or immerse or

expose it to water or other liquids. Batteries may explode if damaged.

• Use only the battery supplied (built-in) with the product. Improper use, or use of unapproved batteries

may present a risk of ﬁre, explosion, or other hazard, and may invalidate any approval or warranty.

• If you believe the battery is damaged, remove product from the charger and stop using the product.

Never use a damaged battery.

1.3 Information on disposal of battery and product

• Always dispose of your battery and product at the end of their life in an environmentally responsible way and in

accordance with your local waste disposal requirements. All cardboard and paper packaging materials

should be recycled in accordance with your local council waste regulations.

Thank you for choosing Babysense Video monitor from Hisense Ltd.

FCC STATEMENTS:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1)This device may not cause harmful interference.

(2)This device must accept any interference received, including interference that may cause undesired

operation.

NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interfer-

ence by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

- Consult the dealer or an experienced radio/TV technician for help.

NOTE 2: Any changes or modiﬁcations to this unit not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

IC STATEMENTS:

This device complies with Industry Canada license-exempt RSS standard(s):

Operation is subject to the following Two conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation

of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts

de licence.

L'exploitation est autorisée aux deux conditions suivantes:

(1) l'appareiI ne doit pas produire de brouillage, et

(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage

est susceptible d'en compromettre le fonctionnement.

2. Pack Contents

• Parent Unit x 1;

• Baby Unit x 1; (x 2 in model V24R_2US - Monitor with two cameras)

• AC Power Adapter x 2; (x 3 in model V24R_2US - Monitor with two cameras)

• Li-ion Battery (Pre-installed in Parent Unit) x 1;

• User Manual x 1;

• Set for wall mounting x 1 (x 2 in model V24R_2US - Monitor with two cameras)

3. Product Overview

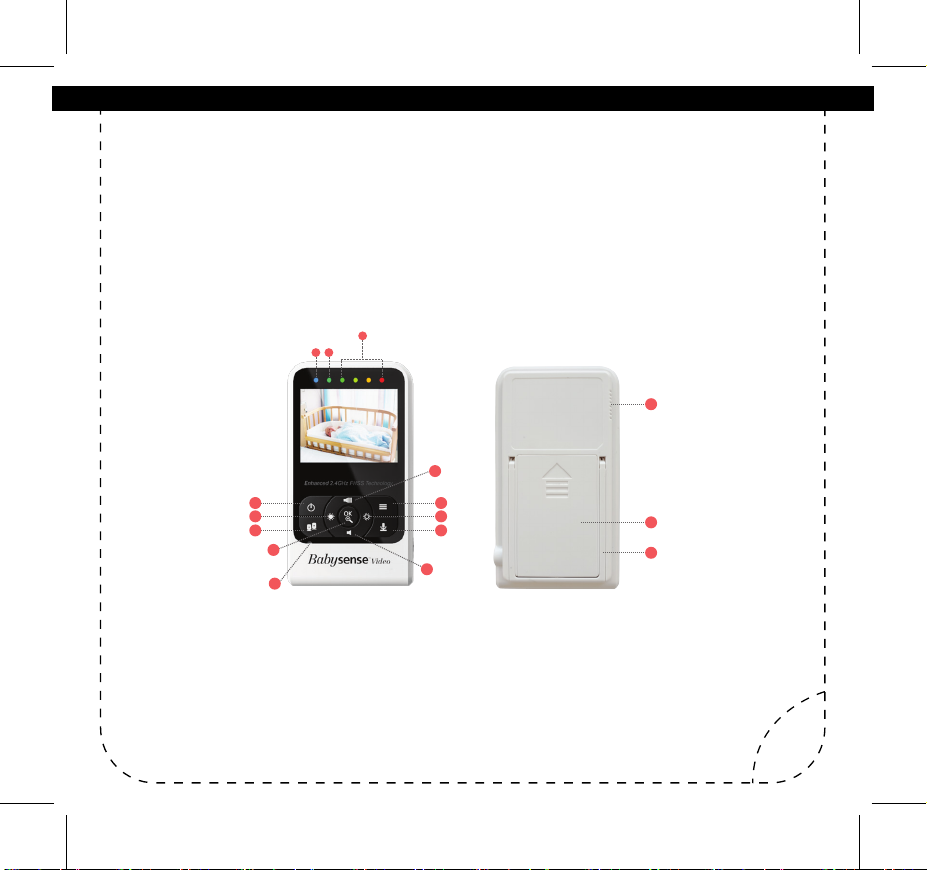

3.1 Parent Unit overview

1. Power ON/OFF / SLEEP Bu�on

2. Charging LED

3. Power LED

4. Volume level LEDs

5. TALK Bu�on

6. OK & ZOOM IN/OUT Bu�on

7. VOLUME UP Bu�on

8. MENU Bu�on

9. VOLUME DOWN Bu�on

10. Microphone

11. Brightness DOWN bu�on

12. Brightness UP bu�on

13. Camera Switch bu�on

14. Speaker

15. Ba�ery Compartment

16. Stand

11 12 15

2 3

3.2 Baby Unit overview

3.3 Icons overview

20. Power LED

21. Night Light

22. Microphone

23. Temperature Sensor

24. Speaker

25. DC Jack

26. PAIR Bu�on

17. Infrared LEDs

18. Wide Angle / Zoom Lens -

Not included - sold separately

19. Light sensor (Night Vision)

------- Signal

------- Night Light

------- Volume

------ Brightness

------ Lullaby

-------- Night vision

--------- ECO

------ Camera

----- Zoom ------- Temperature

-------- Battery

----- Talk to baby

78F

4. Operating the monitor

• The Baby Unit should be placed at least 5 feet away from the baby's crib on a ﬂat surface.

Alternatively, it can be wall-mounted.

• Never place the Baby Unit inside the crib, bed or playpen.

• Make sure the unit, cords and mains adaptor are out of reach of the baby and other young children.

To avoid a strangulation hazard, the power cords should be secured and never be hung on or

near the baby.

• Place the baby monitor in a place where the air can circulate freely and avoid blocking ventilation and

speaker openings.

• Aim the camera(s) to best optimize the viewing area: Select a location for the camera that provides a

clear view of the area you want to monitor, which is free from dust, and is not in line-of-sight to a

strong light source or direct sunlight. Avoid installing the camera where there are thick walls or

obstructions between the camera and the monitor.

• To use your Parent Unit and Baby Unit together, you must be able to establish a radio link between

them. The range will be affected by environmental conditions:

- Any large metal object, like a refrigerator, a mirror, a ﬁling cabinet, metallic doors or reinforced

concrete between the baby and parent Unit may block the radio signal.

- The signal strength may also be reduced by other solid structures, like walls, or by radio or electrical

equipment, such as TV, computers, cordless or mobile phones, ﬂuorescent lights or dimmer switches.

- Use of other 2.4GHz product, such as wireless networks (Wi-Fi routers), Bluetooth systems, or

microwave ovens, may cause interference with this product, so keep the baby monitor away at least

5ft (1.5m) from these types of products, or turn them off if they appear to be causing interference.

Note: If you place the Parent and Baby Units too close together you will hear a high pitched noise

called "feedback", this is normal. The units are designed to be located in separate rooms.

4.1 Turning ON the Baby Unit

• Connect the Baby Unit (Camera) Power Adapter to the DC-Jack on the back of the Baby Unit.

• Plug the AC power adapter into the wall outlet.

• The unit will power on automatically and the green power LED will light up.

• Unplug the Baby Unit to turn it off.

NOTE: Only use the AC power adapter included in this package.

4.2 Turning ON the Parent Unit

* Only use the AC adapter included in this package.

* The parent unit is supplied with a pre-installed rechargeable Li-ion battery (3.7V 950mAh). Whenever

possible, connect the Parent Unit to the adapter plugged into the mains, in order to keep the battery

charged.

• Connect the adapter plug into the DC-jack on the right side of the Parent Unit.

• Plug the AC adapter into the wall outlet.

• Press and hold the power key on the top left of the keypad of the Parent Unit.

• Once the Parent Unit is turned on, the power LED will light up and “Babysense Video”

image will display on the LCD.

4.3 Charging the Parent Unit

• Connect the power adapter to the Parent Unit;

• Plug the adapter into the wall outlet.

• Charging LED on the Parent Unit will light in RED.

• When unit is turned on, the charging LED will light in RED and battery charging icon (changing

bars) will appear at the top right corner of the LCD screen.

• It takes approximately 8 hours to fully charge the battery.

• Full battery indicator (4 ﬁxed bars) will appear at the top right corner of the LCD screen, indicating the

battery is fully charged.

Note: Before the ﬁrst use or after a long product storage, it is recommended to fully charge the Parent

Unit battery prior to operating the monitor.

5. OSD (On-Screen-Display) mode operation

5.1 Parent Unit Screen ON/OFF (Audio only mode)

• Press the POWER button (1) to turn the LCD screen ON/OFF.

5.2 Volume adjustment

• Press the UP button (7) to increase the volume.

• Press the DOWN button (9) to decrease the volume.

5.3 Brightness adjustment

• Press the LEFT button (11) to decrease the brightness.

• Press the RIGHT button (12) to increase the brightness.

5.4 Scan Mode - Automatic switching between the paired Baby Units

NOTE: This function is only available when two or more cameras are paired.

You can set the SCAN (loop) mode and each paired Baby Unit will be displayed on the screen for 10

seconds and then the screen will automatically change to the next paired Baby Unit.

• Press and hold the CAMERA SWITCH button (13) to activate the automatic SCAN mode. A loop sign

will appear next to the camera number on the top of LCD screen.

• Press the CAMERA SWITCH button (13) to deactivate the Scan mode and switch manually to the

next paired Baby Unit.

5.5 Digital zoom & Pan / Tilt

• Press and hold OK/ZOOM button (6) for approx. 2 seconds to operate Zoom in/out.

• At the Zoom mode, press the LEFT button (11) RIGHT button (12) UP button (7) and DOWN (9)

button to Pan/Tilt the image.

• During Digital Zoom mode, the zoom icon will be displayed on top of the LCD screen.

Note: To adjust Volume/Brightness, ﬁrst exit the Zoom mode before operating it.

5.6 Talk To Baby

• Press and hold the TALK button (5) on the Parent Unit to talk to your baby or partner in the baby’s

room via Baby Unit.

• A microphone icon will be displayed on the bottom of the LCD screen while this function is in use.

• Release the button when you are ﬁnished talking.

Note: While the “Talk To Baby” function is in use, there is no possibility to hear the sounds

from the Baby Unit. Releasing the talk key, allows hearing the sounds from

the baby's room again.

5.7 Infrared Night Vision (Automatic)

• The infrared night vision function allows the camera to pick up images of your baby or the monitored

area in dark or low light conditions.

• In this mode, only black and white colors will be displayed on the Parent Unit screen.

• When the camera is in night vision mode, the icon will be displayed on top of the LCD screen.

• The optimum image is obtained up to 6 feet distance between baby unit and object.

6. Menu Operation

6.1 Pairing the Baby Unit with Parent Unit

Baby Unit is paired to the Parent Unit when supplied. There is no need to pair the units again unless the

Baby Unit loses its link with the Parent Unit. To renew the pairing of your units or pair a new/additional

Baby Unit, follow the procedure below:

Note: Before you begin pairing, be sure to have the Baby and Parent Units side by side and turned on.

• Press the MENU/EXIT button (8) and the menu screen will be displayed on the Parent Unit.

• Press the LEFT button (11) or RIGHT button (12) until the PAIR icon is highlighted in red

and then press OK (6) to conﬁrm.

• Press the LEFT button (11) or RIGHT button (12) to select the desired camera to pair.

Press OK button (6) to start the pairing.

• While the camera icon & LED are ﬂashing, press and hold the PAIR button (26) in the back of Baby Unit.

• Once paired, an image from the paired camera will display on the screen.

• If unsuccessful, please repeat above steps.

• Press the MENU/EXIT button (8) to Exit.

Note: If there is more than one camera to be paired, repeat the above steps for each camera individually.

3.2 Baby Unit overview

3.3 Icons overview

6.2 ECO Setting

This mode allows you to control the sound level from your baby’s room to automatically activate the

sound and video transmission on your Parent Unit. When using the ECO function, the sound and video

transmission will stop (standby mode) if the Baby Unit does not register any sound within 30 seconds.

While in standby mode, the LCD screen turns off. Once the Baby Unit registers a sound, louder than the

set sensitivity level, it will automatically start transmitting the signal (sound and video) to the Parent

Unit and the LCD screen will turn on.

Note: ECO default setting is OFF in the supplied product.

To change the ECO level, please follow the following instructions:

• Press the MENU/EXIT button (8) and the menu will be displayed on the Parent Unit.

• Press the LEFT button (11) or RIGHT button (12) until the ECO icon is highlighted in red and then

press OK (6) to conﬁrm.

• Press the LEFT button (11) or RIGHT button (12) to select the desired level (HIGH, MID, LOW, OFF).

• Press OK (6) to conﬁrm.

• Press the MENU/Exit button (8) to Exit.

Note: ECO-LOW Low sensitivity level - higher sound level is required to reactivate the transmission

ECO-MID Medium sensitivity level - medium sound level is required to reactivate the transmission

ECO-HIGH High sensitivity level - low sound level is required to reactivate the transmission

OFF Constant transmission – no standby mode.

Note: When ECO function is on, a ECO indicator will be displayed on top of the LCD screen.

Note: To view a video signal on your parent unit when ECO function is on,

brieﬂy press the power key.

6.3 Temperature Unit Setting

• Press the MENU/EXIT button (8) and the menu screen will be displayed on the Parent Unit.

• Press the LEFT button (11) or RIGHT button (12) until the Temperature icon is highlighted in red and

then press OK (6) to conﬁrm.

• Press the LEFT button (11) or RIGHT button (12) to select between C˚ or F˚ .

• Press OK (6) to conﬁrm.

• Press the MENU/EXIT button (8) to Exit.

Note 1: Temperature indicator will be displayed on top of the LCD screen.

Note 2: The temperature default setting is F˚ (Fahrenheit ).
