Backyard Discovery EAGLES NEST ELITE User manual

Made in China
INS-1902329B or 2300163-A-EAGLES NEST ELITE-ENG 09/29/22
Please visit www.backyarddiscovery.com
For the most up to date assembly manual, to register your set, or to order replacement parts
Para obtener instrucciones en español, visite www.backyarddiscovery.com
Model # 1902329B or 2300163
EAGLES NEST ELITE
MANUFACTURED BY:
Backyard Discovery
3305 Airport Drive, Pittsburg, KS 66762
800-856-4445
Swing Set
Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: [phone]
J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands Phone: [phone]
WARNING
Adult Assembly Required.
Not suitable for children under 36 months due to small parts.
FOR DOMESTIC USE ONLY. INTENDED FOR OUTDOOR USE.
The assembly manual must be retained
since it contains important information

Safe Play Zone
SAFE PLAY HEIGHT: 17'-7" [5.4 m]
MAXIMUM FALL HEIGHT: 6'-11" [2.1 m]
General Information:
Your set has been designed and engineered for children only and for residential use only.
A maximum of 150 lbs. per child is recommended for play activities designed for individual use.
A maximum of 120 lbs. per child is recommended for play activities designed for multiple child use.
A maximum of 9 children is recommended for this swing set.

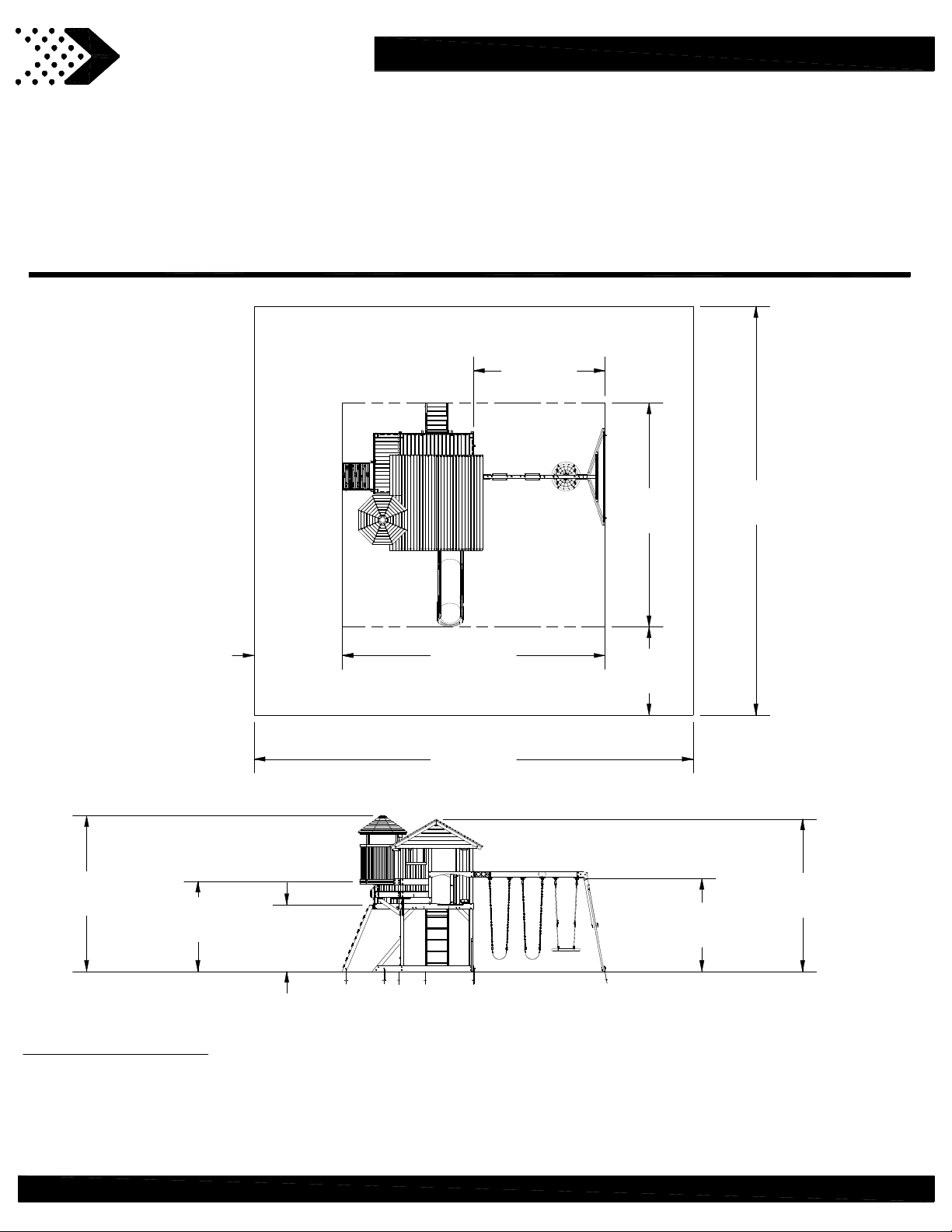

Owner's Manual Basic Setup Dimensions & Assembly Notes
Place the set on level ground, not less than 6'-7" [2 m] from any structure or obstruction such
as a fence, garage, house, overhanging branches, laundry lines, or electrical wires.
•While assembling unit, take time before and after each phase to make sure fort is level. If fort is not level,
assembly will be difficult and improper assembly may result. Extra care must be taken to insure the fort is square.
•The safe play area refers to a zone extending 6'-7" [2 m] beyond the play product on all slides, including the space
above the play product.
30'-5"
[9.3 m]
32'-8 3/8"
[10 m]
6'-7"
[2 m]
16'-8 1/8"
[5.1 m]
19'-6 7/8"
[6 m]
9'-9 5/8"
[3 m]
6'-7"
[2 m]
6'-8 5/8"
[2 m] 4'-11 5/8"
[1.5 m]
6'-11"
[2.1 m]
11'-4 1/8"
[3.5 m]
11'-7"
[3.5 m]
2

H100194 BOLT WH
5/16 x 2-1/2
(x2)
PRE-ASSEMBLY - SORTING PARTS
It is critical for ease of assembly that you take the time to sort and organize the wood and hardware.
WOOD PARTS:
• Organize wood parts by the three-digit, alpha-numeric number stamped on each board (ex. P01).
• If there are multiple boards with the same stamped number, stack those pieces together.
• Stamps can be found on the flat surface of the boards or on the end of the boards.
• Allow yourself plenty of room - the wood pieces can take up a significant amount of space.
NOTE: CARTONS ARE NOT ORGANIZED BY BOARD NUMBER.
HARDWARE PARTS:
• We recommend that you have a separate table to organize the hardware.
• Hardware bags are printed with a seven-digit, alpha-numeric part number.
• You can organize your hardware by part number or group by hardware type (i.e. bolts, nuts, etc.).
• During assembly you only need to reference the last four digits of the number.
STEP 1
3

PRE-ASSEMBLY - TOOLS REQUIRED
Cordless Drill or
Electric Drill
Drill Attachments:
Phillips Head
Open End Wrenches 1/2" & 9/16"
Phillips Screw Driver
1/8", 3/16", 3/8" & 7/16"
Drill Bits
3/8" Drive Ratchet, 1/2" &
9/16" STD Sockets 1/2" & 9/16" Deep
Sockets
Claw Hammer Rubber Mallet - Optional
Tape Measure
Square
Level 24"
STEP 2
4

PRE-ASSEMBLY - CHOOSE YOUR ASSEMBLY METHOD
There are several types of assembly instructions available to you.
1. Printed Assembly Manual included with your set
2. BILT APP - 3D interactive instructions
3. Combination of the Printed Manual and BILT APP (Note: Step numbers can differ between the two
methods)
STEP 3
5

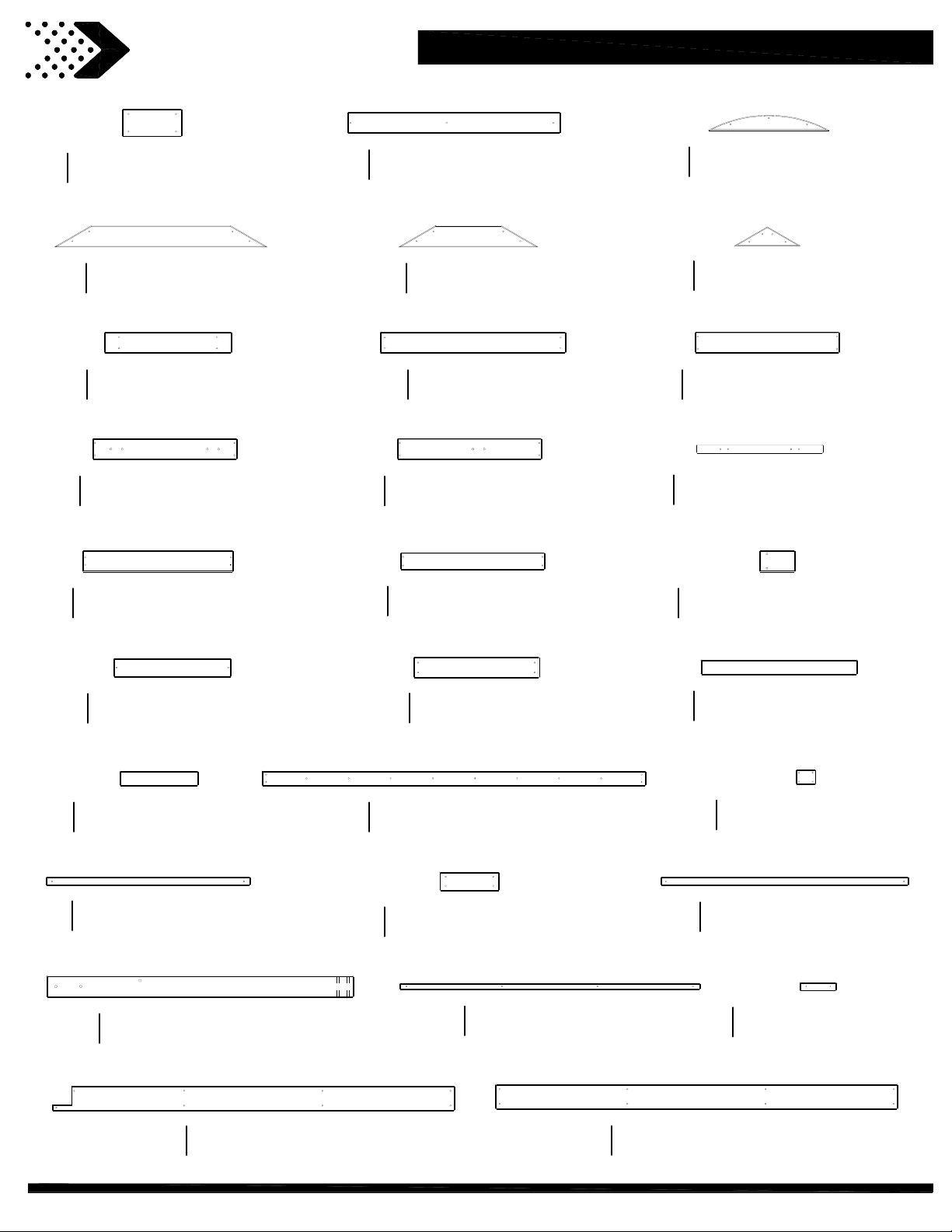

Parts Identification Wood Components (Not to Scale)
SWING BEAM - W4L12838
3 3/8"x5 1/4"x89 1/2" (86x134x2274)
A1
(x1)
SB 9" BLOCK - W4L08962
3 3/8"x5 1/4"x9" (86x134x228)
A2
(x1)
POST - W4L12809
3"x3"x89 5/8" (76x76x2275)
B1
(x1)
POST - W4L12811
3"x3"x59" (76x76x1500)
B4
(x1)
POST - W4L12812
3"x3"x69 3/4" (76x76x1771)
B5
(x1)
POST - W4L08475
3"x3"x53 7/8" (76x76x1370)
B8
(x1)
POST - W4L08476
3"x3"x53 7/8" (76x76x1370)
B9
(x1)
POST - W4L08484
3"x3"x47 1/4" (76x76x1201)
B10
(x1)
POST - W4L08487
3"x3"x13 5/8" (76x76x345)
B12
(x1)
POST - W4L12826
3"x3"x53 7/8" (76x76x1370)
B14
(x1)
POST - W4L12810
3"x3"x29 3/8" (76x76x746)
B15
(x2)
POST - W4L08553
3"x3"x53 7/8" (76x76x1370)
B16
(x1)
POST - W4L08696
3"x3"x33 7/8" (76x76x860)
B17
(x2)
POST - W4L12828
3"x3"x33 7/8" (76x76x860)
B19
(x1)
POST - W4L08746
3"x3"x33 7/8" (76x76x860)
B21
(x1)
ANGLE SUPPORT - W4L08458
1 3/8"x3 3/8"x18 3/4" (36x86x475)
E1
(x6)
POST - W4L08522
3 3/8"x1 3/8"x53 7/8" (86x36x1370)
E2
(x2)
LEFT RAIL - W4L12830
1 3/8"x3 3/8"x64 3/4" (36x86x1645)
E3
(x1)
RIGHT RAIL - W4L12831
1 3/8"x3 3/8"x64 3/4" (36x86x1645)
E4
(x1)
FLOOR SUPPORT - W4L12807
1 3/8"x3 3/8"x54 3/8" (36x86x1382)
E6
(x2)
END SUPPORT - W4L11379
1 3/8"x3 3/8"x44 1/8" (36x86x1120)
E50
(x1)
ANGLE BRACE - W4L08494
1 3/8"x3 3/8"x38 1/2" (36x86x978)
E7
(x4)
ANGLE SUPPORT BRACE - W4L12935
1 3/8"x3 3/8"x25 3/8" (36x86x643)
E8
(x2)
6

Parts Identification Wood Components (Not to Scale)
ANGLE BRACE - W4L11378
1 3/8"x3 3/8"x88 3/4" (36x86x2254)
E51
(x2)
LEFT UPRIGHT - W4L12840
1 3/8"x3 3/8"x64 7/8" (36x86x1649)
E77
(x1)
RIGHT UPRIGHT - W4L12841
1 3/8"x3 3/8"x64 7/8" (36x86x1649)
E78
(x1)
POST - W4L08495
1 3/8"x2 3/8"x54 5/8" (36x60x1389)
F1
(x2)
POST - W4L08503
1 3/8"x2 3/8"x47 1/4" (36x60x1200)
F2
(x1)
POST - W4L08504
1 3/8"x2 3/8"x47 1/4" (36x60x1200)
F3
(x1)
WALL SUPPORT - W4L12822
1"x5 1/4"x77 3/8" (24x134x1964)
G1
(x1)
WALL SUPPORT - W4L12824
1"x5 1/4"x66 5/8" (24x134x1692)
G2
(x1)
WALL SUPPORT - W4L12801
1"x5 1/4"x64 3/4" (24x134x1645)
G3
(x1)
CROSS BRACE - W4L12821
1"x5 1/4"x74 3/4" (24x134x1898)
G4
(x4)
WALL SUPPORT - W4L12804
1"x5 1/4"x77 3/8" (24x134x1964)
G6
(x1)
WALL SUPPORT - W4L12842
1"x5 1/4"x36" (24x134x915)
G7
(x1)
WALL SUPPORT - W4L12843
1"x5 1/4"x32" (24x134x813)
G8
(x1) WALL SUPPORT - W4L08481
1"x5 1/4"x36" (24x134x915)
G10
(x1)
WALL SUPPORT - W4L08486
1"x5 1/4"x7 1/2" (24x134x192)
G11
(x1)
WALL SUPPORT - W4L08490
1"x5 1/4"x29 1/8" (24x134x741)
G12
(x1)
WALL SUPPORT - W4L08491
1"x5 1/4"x28 1/4" (24x134x716)
G13
(x1)
WALL SUPPORT - W4L08492
1"x5 1/4"x10 5/8" (24x134x269)
G14
(x1)
BASE BOARD - W4L12885
1"x5 1/4"x79 1/4" (24x134x2014)
G9
(x1)
CROSS BRACE - W4L12915
1"x5 1/4"x17 3/4" (24x134x450)
G5
(x2)
WALL SUPPORT - W4L13101
1 3/8"x2 3/8"x11 3/4" (36x60x300)
F4
(x1)
7

Parts Identification Wood Components (Not to Scale)
WALL SUPPORT - W4L08546
1"x5 1/4"x14 7/8" (24x134x378)
G16
(x1)
WALL SUPPORT - W4L12825
1"x5 1/4"x14 7/8" (24x134x378)
G17
(x1)
WALL SUPPORT - W4L08560
1"x5 1/4"x8 5/8" (24x134x218)
G19
(x1)
DECK BOARD - W4L12803
1"x5 1/4"x89 5/8" (24x134x2276)
G20
(x1)
WALL SUPPORT - W4L12815
1"x5 1/4"x77 3/8" (24x134x1964)
G21
(x1)
DECK RAIL - W4L12816
1"x5 1/4"x53 1/8" (24x134x1349)
G22
(x1)
DECK BOARD - W4L08698
1"x5 1/4"x22" (24x134x560)
G23
(x1)
DECK BOARD - W4L12805
1"x5 1/4"x25 3/8" (24x134x645)
G24
(x1)
ENTRY BOARD - W4L12817
1"x5 1/4"x53 1/8" (24x134x1349)
G25
(x1)
WALL SUPPORT - W4L08485
1"x5 1/4"x36" (24x134x915)
G26
(x1)
DECK BOARD - W4L12818
1"x5 1/4"x89 5/8" (24x134x2276)
G28
(x1)
SLIDE ARCH BOARD - W4L12813
1"x5 1/4"x40 1/2" (24x134x1028)
G30
(x1)
GROUND BOARD - W4L11380
1"x5 1/4"x86 3/4" (24x134x2202)
G50
(x1)
WALL PICKET - W4L12829
1"x3 3/8"x29 3/4" (24x86x756)
H1
(x3)
FLOOR SUPPORT - W4L08479
1"x3 3/8"x32" (24x86x813)
H5
(x1)
FLOOR SUPPORT - W4L08482
1"x3 3/8"x32" (24x86x813)
H6
(x1)
FLOOR SUPPORT - W4L08483
1"x3 3/8"x26" (24x86x661)
H7
(x1)
ROOF SUPPORT - W4L08513
1"x3 3/8"x76 3/4" (24x86x1949)
H10
(x1)
ROOF SUPPORT - W4L08518
1"x3 3/8"x76 3/4" (24x86x1949)
H11
(x1)
BASE BOARD - W4L12820
1"x5 1/4"x56" (24x134x1422)
G18
(x2)
BASE BOARD - W4L12819
1"x5 1/4"x64 3/4" (24x134x1645)
G27
(x1)
BASE BOARD - W4L12827
1"x5 1/4"x89 5/8" (24x134x2275)
G29
(x1)
WALL SUPPORT - W4L08545
1"x5 1/4"x30 1/4" (24x134x768)
G15
(x1)
8

Parts Identification Wood Components (Not to Scale)
ROOF SUPPORT - W4L08519
1"x3 3/8"x39 1/2" (24x86x1004)
H12
(x1)
ROOF SUPPORT - W4L08520
1"x3 3/8"x74 3/4" (24x86x1900)
H13
(x1)
ROOF SUPPORT - W4L08521
1"x3 3/8"x74 3/4" (24x86x1900)
H14
(x1)
RAFTER - W4L08526
1"x3 3/8"x47 5/8" (24x86x1209)
H15
(x4)
RAFTER - W4L08527
1"x3 3/8"x47 5/8" (24x86x1209)
H16
(x2)
WALL SUPPORT - W4L08533
1"x3 3/8"x35" (24x86x889)
H17
(x1)
FLOOR SUPPORT - W4L08562
1"x2 3/4"x3" (24x70x76)
H20
(x9)
BASE BOARD - W4L08563
1"x3 3/8"x35" (24x86x889)
H21
(x1)
FLOOR SUPPORT - W4L12800
1"x3 3/8"x64 3/4" (24x86x1645)
H23
(x1)
FLOOR SUPPORT - W4L12888
1"x3 3/8"x58 3/4" (24x86x1493)
H24
(x1)
FLOOR SUPPORT - W4L08700
1"x3 3/8"x46 1/8" (24x86x1172)
H26
(x1)
FLOOR SUPPORT - W4L12823
1"x3 3/8"x52 1/8" (24x86x1324)
H28
(x1)
LADDER RUNG - W4L06609
1"x3 3/8"x18 1/8" (24x86x460)
H76
(x5)
ATTACHMENT BOARD - W4L12839
1"x3 3/8"x20 1/8" (24x86x512)
H110
(x1)
WALL SUPPORT - W4L08496
1"x2 3/8"x27 1/8" (24x60x688)
J1
(x2)
FLOOR SUPPORT - W4L12844
1"x2 3/8"x23 3/8" (24x60x594)
J2
(x1)
FLOOR SUPPORT - W4L12845
1"x2 3/8"x24 3/8" (24x60x619)
J3
(x1)
ATTACHMENT BOARD - W4L12836
1"x3 3/8"x24 1/4" (24x86x615)
J31
(x1)
FLOOR BOARD - W4L12808
5/8"x5"x64 3/4" (16x128x1644)
K4
(x1)
WALL PICKET - W4L08561
5/8"x5 1/4"x43 1/4" (16x132x1099)
K6
(x1)
ROOF SUPPORT - W4L08541
1"x3 3/8"x28 1/4" (24x86x717)
H18
(x1)
FLOOR BOARD - W4L12916
5/8"x4 3/8"x34" (16x112x865)
L1
(x2)
FLOOR BOARD - W4L12917
5/8"x4 3/8"x33 1/2" (16x112x852)
L4
(x2)
FLOOR BOARD - W4L12918
5/8"x4 3/8"x31 7/8" (16x112x811)
L5
(x2)
FLOOR BOARD - W4L12919
5/8"x4 3/8"x27" (16x112x687)
L6
(x2)
9

Parts Identification Wood Components (Not to Scale)
WALL PICKET - W4L08046
5/8"x4 3/8"x9 5/8" (16x112x244)
L8
(x4)
FLOOR BOARD - W4L08489
5/8"x3 3/8"x34 1/4" (16x86x869)
M1
(x1)
FLOOR BOARD - W4L08038
5/8"x2 1/2"x19 3/8" (16x62x493)
M7
(x2)
WALL BOARD - W4L08530
5/8"x3 3/8"x34 1/8" (16x86x867)
M16
(x2)
WALL BOARD - W4L08531
5/8"x3 3/8"x22 3/8" (16x86x567)
M17
(x2)
WALL BOARD - W4L08532
5/8"x3"x10 1/2" (16x77x268)
M18
(x2)
WALL BOARD - W4L08536
5/8"x3 3/8"x20 1/2" (16x86x521)
M20
(x1)
WALL PICKET - W4L08544
5/8"x3 3/8"x29 7/8" (16x86x759)
M23
(x16)
ROCK WALL BOARD - W4L12832
5/8"x3 3/8"x23 1/4" (16x86x590)
M26
(x9)
ROCK WALL BOARD - W4L12833
5/8"x3 3/8"x23 1/4" (16x86x590)
M28
(x4)
ROCK WALL BOARD - W4L12834
5/8"x3 3/8"x23 1/4" (16x86x590)
M29
(x5)
ROCK WALL END BOARD - W4L12835
5/8"x3 3/8"x24 1/4" (16x86x615)
M30
(x1)
ROCK WALL BOARD - W4L12837
5/8"x2 3/4"x23 1/4" (16x69x590)
M31
(x1)
TURRET FILLER BOARD - W4L11445
5/8"x3 3/8"x5 3/4" (16x86x146)
M38
(x2)
FLOOR BOARD - W4L11558
5/8"x3"x18 7/8" (16x76x480)
M39
(x1)
REAR SUPPORT - W4L11417
5/8"x3 3/8"x20 1/8" (16x86x512)
M73
(x1)
FLOOR BOARD - W4L12806
5/8"x4"x64 3/4" (16x102x1644)
Y1
(x1)
WINDOW BOTTOM - W4L08538
5/8"x2 3/8"x25 1/4" (16x60x640)
N2
(x1)
WINDOW SIDE - W4L08539
5/8"x2 3/8"x12 5/8" (16x60x321)
N3
(x2)
ROCK WALL CLEAT - W4L12847
5/8"x2 3/8"x61 3/4" (16x60x1568)
N4
(x1)
RAFTER CLEAT - W4L11446
5/8"x2 3/8"x3 1/8" (16x60x80)
N6
(x1)
FLOOR BOARD - W4L12814
5/8"x4"x64 3/4" (16x102x1644)
Y2
(x1)
WALL PICKET - W4L08512
5/8"x1 3/8"x39 7/8" (16x34x1013)
O3
(x1)
WALL BOARD - W4L12846
1"x1 3/8"x5 7/8" (24x34x150)
T2
(x2)
FLOOR SUPPORT - W4L08466
1"x1 3/8"x48 3/8" (24x34x1230)
T1
(x2)
WALL PICKET - W4L08047
5/8"x3"x9 5/8" (16x75x244)
O2
(x2)
WALL PICKET - W4L08506
5/8"x1 3/8"x32 7/8" (16x34x835)
O1
(x60)
SWING BEAM SUPPORT - W4L11377
3 3/8"x3 3/8"x49 3/8" (86x86x1254)
SP50
(x1)
SLIDE MOUNTING BOARD - W4L09040
5/8"x1 3/8"x20 3/8" (16x34x517)
O70
(x1)
10

Parts Identification Wood Components (Not to Scale)
POST - W2A02902
3"x3"x89 5/8" (76x76x2275)
B2
(x1)
RIGHT WALL PANEL - W2A02903
1 1/4"x10 3/16"x29 7/8" (32x258x759)
WP1
(x2)
RIGHT WALL PANEL - W2A02904
1 1/4"x12 1/2"x29 7/8" (32x318x759)
WP2
(x2)
REAR FORT WALL - W2A02905
1 1/4"x8 1/8"x53 15/16" (32x212x1370)
WP3
(x2)
WALL PANEL - W2A02906
1 1/4"x11 5/8"x29 7/8" (32x295x759)
WP4
(x2)
WALL PANEL - W2A02907
1 1/4"x9 13/16"x39 7/8" (32x250x1013)
WP5
(x1)
WALL PANEL - W2A02908
1/16"x1/16"x1/16" (32x243x521)
WP6
(x1)
WLL PANEL - W2A02909
1/16"x1/16"x1/16" (32x547x243)
WP7
(x1)
LEFT WINDOW WALL PANEL - W2A02910
1 1/4"x16"x43 1/4" (32x407x1099)
WP8
(x1)
RIGHT WINDOW WALL PANEL - W2A02911
1 1/4"x15 7/8"x43 1/4" (32x404x1099)
WP9
(x1)
ROOF PANEL - W2A02182
1/16"x1/16"x1/16" (40x287x2165)
RP01
(x2)
ROOF PANEL - W2A020184
1 9/16"x19 1/4"x85 3/16" (40x488x2165)
RP02
(x2)
11

Parts Identification Wood Components (Not to Scale)
ROOF PANEL - W2A02185
1 9/16"x18 3/4"x85 3/16" (40x476x2165)
RP03
(x1)
ROOF PANEL - W2A02186
1 9/16"x18 3/4"x85 1/4" (40x476x2165)
RP04
(x1)
ROOF PANEL - W2A02189
13/16"x24 7/8"x17 11/16" (21x632x450)
RP07
(x8)
FLOOR PANEL - W2A02900
1 1/4"x20 9/16"x65 11/16" (32x523x1644)
FP1
(x2)
FLOOR PANEL - W2A02227
1 1/4"x22 1/16"x20 11/16" (32x555x525)
FP3
(x2) FLOOR PANEL - W2A02228
1 1/4"x20 1/4"x22" (32x515x555)
FP4
(x1)
FLOOR PANEL - W2A02229
1 1/4"x19 15/16"x22 15/16" (32x506x582)
FP5
(x1)
FLOOR PANEL - W2A02230
1 1/4"x20 5/16"x22 15/16" (32x516x582)
FP6
(x1)
12

Parts Identification Wood Components (Not to Scale)
FLOOR PANEL - W2A02248
1 1/4"x12 1/16"x22 1/16" (32x302x558)
FP7
(x1)
FLOOR PANEL - W2A02912
1 1/4"x14 5/16"x34 3/16" (32x363x869)
FP8
(x1)
FLOOR PANEL - W2A02913
1 1/4"x14 5/16"x34 3/16" (32x363x869)
FP9
(x1)
GABLE PANEL - W2A02914
1 1/4"x69 1/2"x10 3/16" (32x1766x259)
GP1
(x2)
13

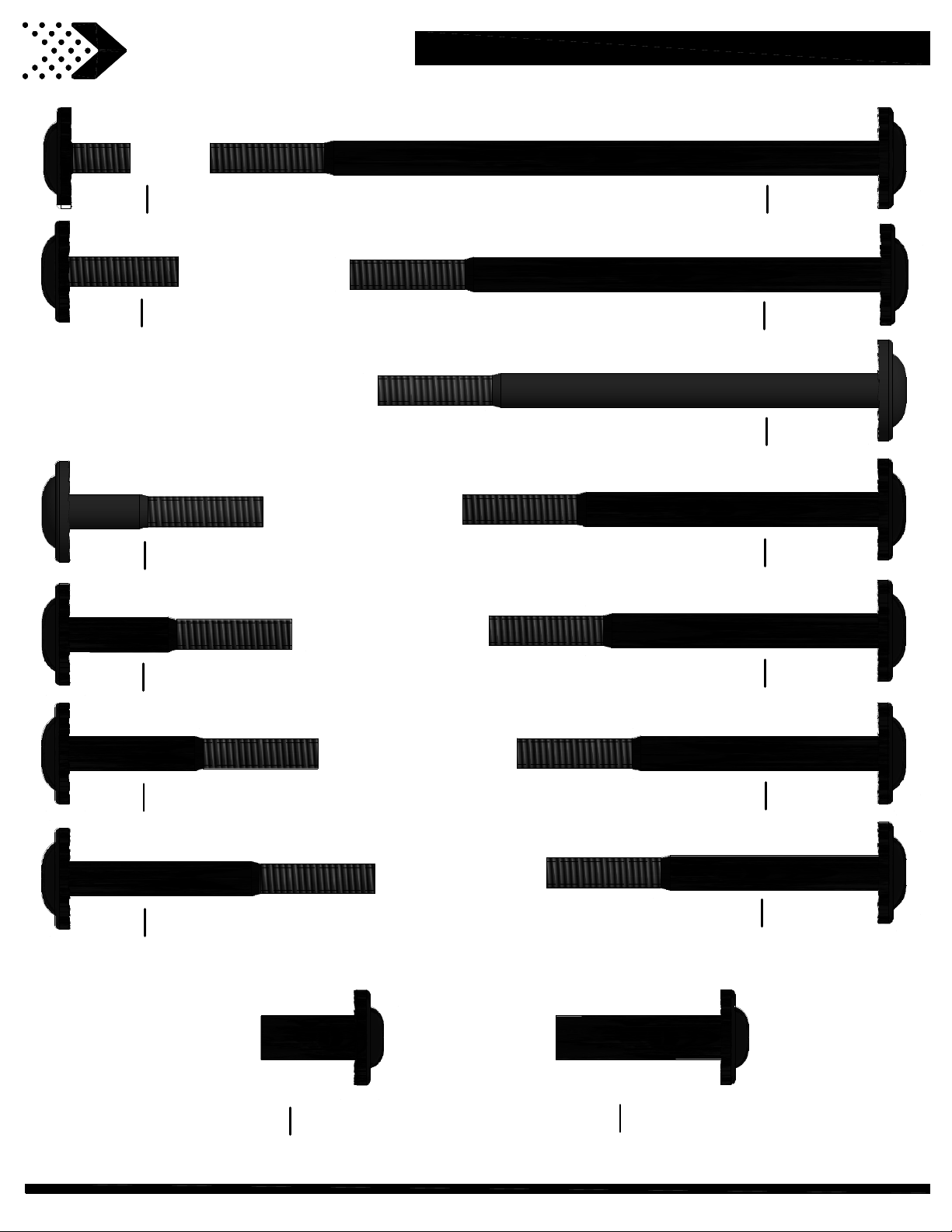

Parts Identification Hardware Components
NUT BARREL WH BLK
5/16x7/8
(x26)
H100192 NUT BARREL WH BLK
5/16x1-1/2
(x2)
H100193
BOLT WH BLK
5/16x2-3/4
(x7)
H100195
BOLT WH BLK
5/16x2-1/4
(x26)
H100205
BOLT WH BLK
5/16X6
(x1)
H100363
BOLT WH BLK
5/16x1 3/4
(x18)
H100378
BOLT WH BLK
5/16x1/2
(x7)
H100396
BOLT WH BLK
5/16x3 3/4
(x103)
H100415
BOLT WH BLK
5/16x3
(x22)
H100416
BOLT WH BLK
5/16x2
(x4)
H100457
BOLT WH BLK
5/16x1
(x20)
H100468 BOLT WH BLK
5/16x4 3/4
(x3)
H100480
BOLT WH BLK
5/16x3 1/4
(x9)
H100484
BOLT WH BLK
5/16x3-1/2
(x4)
H100503
BOLT WH BLK
5/16x4 1/2
(x1)
H100534
14

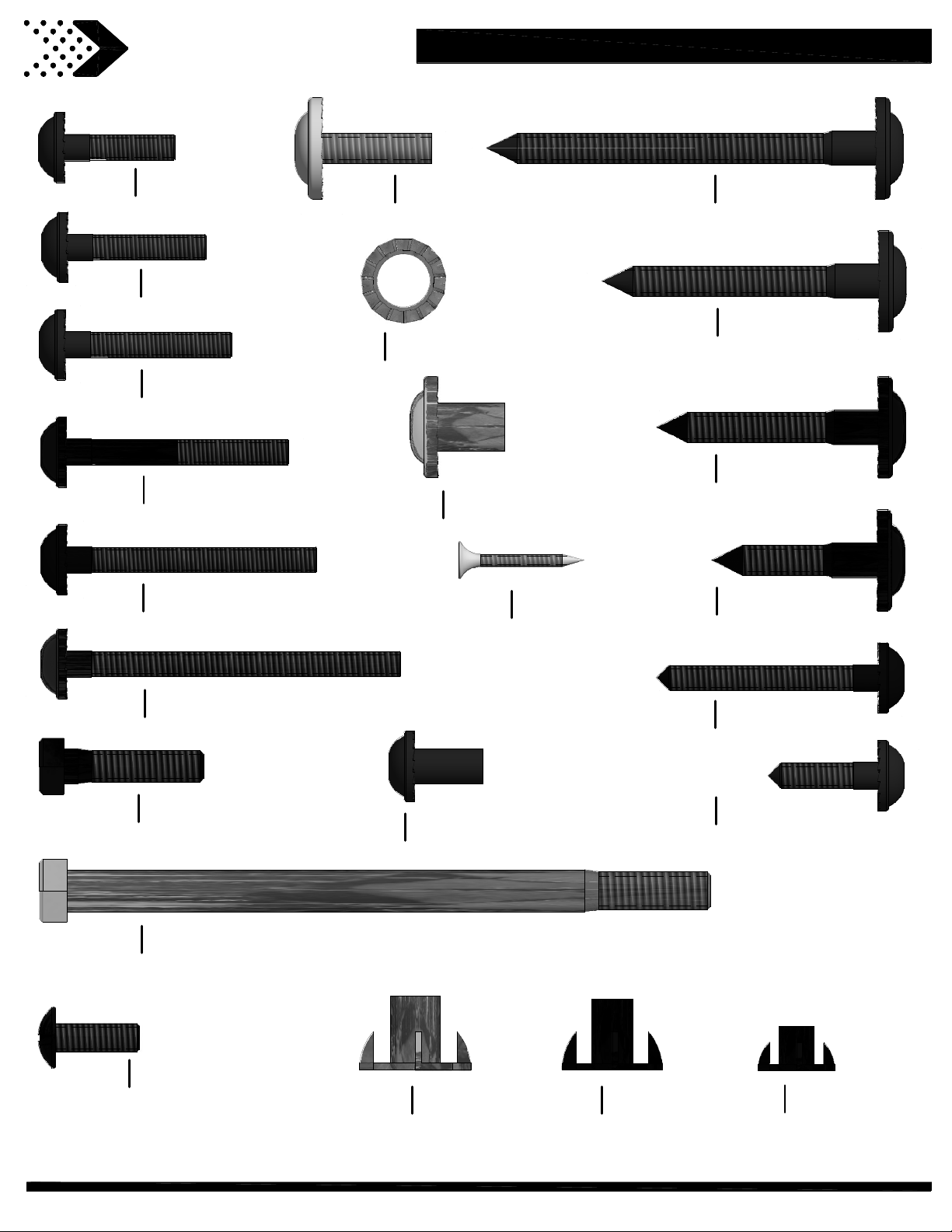

Parts Identification Hardware Components
BOLT WH BLK
1/4x1
(x12)
H100171
BOLT WH BLK
1/4x1 1/4
(x1)
H100397
BOLT WH BLK
1/4x1 1/2
(x2)
H100406
BOLT WH BLK
1/4x2
(x4)
H100488
BOLT WH BLK
1/4x2 1/4
(x22)
H100567
BOLT WH BLK
1/4x3
(x2)
H100800
LAG SCREW WH BLK
5/16x3 1/2
(x2)
H100482
LAG SCREW WH BLK
5/16x2 1/2
(x25)
H100197
LAG SCREW WH BLK
5/16x2
(x9)
H100458
LAG SCREW WH BLK
5/16x1 1/2
(x3)
H100471
LAG SCREW WH BLK
1/4x1
(x4)
H100460
LAG SCREW WH BLK
1/4x2
(x9)
H100487
BOLT HEX BLK
5/16x1 1/4
(x4)
H100481
BOLT HEX SD
3/8x5 3/4
(x13)
H100665
BOLT PTH BLK
1/4x3/4
(x36)
H100489
T-NUT BLK
5/16
(x192)
H100379 T-NUT BLK
1/4
(x59)
H100398
T-NUT SD
3/8
(x13)
H100700
NUT BARREL WH BLK
1/4x5/8
(x10)
H100404
BOLT WH
5/16x1
(x3)
H100008
WASHER LOCK EXT
12x19
(x3)
H100031
NUT BARREL WH
5/16 x 5/8
(x3)
H100004
SCREW PFH
8x1 1/8
(x4)
H100088
15

Parts Identification Hardware Components
WASHER LOCK EXT BLK
8x19
(x206)
H100198
WASHER LOCK EXT BLK
12x19
(x15)
H100199
SCREW PFH BLK
8x1 1/2
(x299)
H100200
SCREW PFH BLK
8x1/2
(x4)
H100203
SCREW PFH BLK
8x3
(x9)
H100362
SCREW PFH BLK
8x1 1/8
(x35)
H100380
SCREW PFH BLK
8x1-1/4
(x336)
H100387
SCREW PFH BLK
8x2
(x116)
H100391
SCREW PWH BLK
8x3/4
(x76)
H100392
WASHER LOCK EXT BLK
8x15
(x10)
H100400 WASHER LOCK EXT BLK
6x15
(x14)
H100405
SCREW PWH BLK
8x1/2
(x2)
H100408
WASHER LOCK INT BLK
8x15
(x28)
H100473
WASHER FLAT BLK
9x18
(x9)
H100474
WASHER SPLIT BLK
5/16
(x4)
H100477
WASHER FLAT BLK
8x27
(x4)
H100478
WASHER FLAT BLK
8x19
(x11)
H100630
NUT LOCK BLK
1/4
(x11)
H100653
WASHER FLAT SD
11x25
(x13)
H100703
WASHER LOCK INT SD
10x18
(x13)
H100708
SCREW PWH SD
8x1 5/8
(x1)
H100736
SCREW PWH SD
10x1 1/4
(x150)
H100746
SCREW PFH BLK
8x1 3/4
(x14)
H100382
16

Parts Identification Hardware Components
TORX BIT
T-30
(x1)
H100147
TORX WRENCH
T-30
(x1)
H100114
SCREW SETTER
(x1)
H100764
MAGNETIC DRIVER
(x1)
H101100
17

Parts Identification Accessories (Not to Scale)
HAND GRIP METAL GREEN 381 c/c
(x4)
A100118
HAND GRIP GREEN 816 C/C
(x2)
A100134
AUGER GROUND STAKE
(x8)
A100178
BYD ID TAG (LARGE) AGES 3-10
(x1)
A100164
"A" REVISION TAG
(x1)
A100314
ROUND ROOF PLASTIC CAP
(x1)
A6P00239
90° L-BRACKET - BLK
(x4)
A4M00555
ROUND ROOF RIB CONNECTOR PLATE
(x1)
A4M00844
L BRACKET BLK
(x3)
A4M00615
METAL ROOF FULL RIB
(x8)
A4M00842
SLIDE VF 10 FT
(x1)
A100287 or A6P00539
18

Parts Identification Accessories (Not to Scale)
TURRET WALL ARCH BAND
(x2)
A4M00880
TURRET WALL ARCH BAND
(x1)
A4M00907
QUARTER ROUND TURRET FLOOR SUPPORT
(x2)
A4M00881
QUARTER ROUND TURRET FLOOR SUPPORT
(x1)
A4M00883
TURRET WALL ARCH BAND
(x1)
A4M00896
QUARTER ROUND TURRET FLOOR SUPPORT
(x2)
A4M00897
19

Parts Identification Accessories (Not to Scale)
TRIANGLE BRACE - BLK
(x4)
A4M00827
SINGLE DUCTILE HANGER SD
(x6)
A4M00926
SWING BEAM EXTENSION BRACKET-RIGHT
(x1)
A100326
SWING BEAM EXTENSION BRACKET-LEFT
(x1)
A100325
QUICK LINK SD
(x4)
A4M00927
26" WEB SWING SEAT
(x1)
A6P00253
EXTENDED SWING BEAM BRACKET
(x2)
A4M00993
METAL ANGLE BRACE
(x2)
A4M01012
26" HD BELT SWING
(x2)
A6P00362
GREEN HC ROCK #2
(x7)
A6P00037
CHAIN GREEN 7mm X 57in
(x4)
A4M01005
GREEN HC ROCK #1
(x6)
A6P00036
20
