Badger Meter HEDLAND MR Series User manual

MR Flow Transmitter
XMT-UM-00498-EN-02 (November 2013)
Flow Transmitter
3500 PSI/241 BARS MAX
OIL
RUN
User Manual

MR Flow Transmitter
Page ii November 2013

CONTENTS
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Unpacking and Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Schematics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installing the Transmitter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Operating the Meter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Normal Operation (RUN) Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Programming Operation (PROGRAM) Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cover Removal/Reinstallation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Programming Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
List Item Selection Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Numeric Value Entry Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Programming Flow Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Cartridge Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
No LCD Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
No Rate or Total Displayed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Unstable Flow Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Application Information, Liquid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Viscosity Eect (SUS/cSt) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Density Eect (specic gravity) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Flow vs Pressure Drop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Petroleum Fluids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Phosphate Ester . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
User Manual
Page iiiNovember 2013

API Oil. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Water-Based Fluids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Caustic and Corrosive Liquids. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Air/Compressed Gases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Air/Caustic and Corrosive Gases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
MR Flow Transmitter
Page iv November 2013

INTRODUCTION
The MR flow transmitter is a state-of-the-art, microprocessor based variable area flow meter. It combines the rugged proven
technology of a piston-type, variable area flow meter with solid state circuitry including:
• Non-contact sensor electronics
• Electronic signal conditioning circuit
• Digital flow rate and total indication
• Proportional analog output
The product is sealed against industrial contamination by a NEMA 12 and 13 (IP 52/54) rated enclosure and is available for
either liquid or gas service.
The MR flow transmitter is capable of calculating and displaying both flow rate and total accumulated flow. The flow rate and
total flow can be displayed in any of the user selectable measurement units. The monitor’s large 8 digit numeric liquid crystal
display makes extended range viewing practical. The second 8 character alphanumeric display provides for selectable units
viewing in RUN mode and prompts for variables in PROGRAM mode.
All MR flow transmitters come pre-calibrated from the factory. However, the unit may be adjusted by the user to meet
specific system requirements. Calibration parameters are included for:
• Specific gravity compensation (all fluids)
• Viscosity compensation (petroleum-based fluids)
• Pressure and temperature compensation (pneumatic applications)
All meters include an analog output that can be configured for 0…5V DC, 0…10V DC, or 4…20 mA current loop. Applications
for the MR flow transmitter include:
• Bearing lubrication
• Case drain verification
• Gun drill and machine cooling
• Pump flow outputs
SAFETY INFORMATION
The installation of this flow meter must comply with all applicable federal, state, and local rules, regulations, and codes.
Failure to read and follow these instructions can lead to misapplication or misuse of this product, resulting in personal injury
and damage to equipment.
UNPACKING AND INSPECTION
Upon opening the shipping container, visually inspect the product and applicable accessories for any physical damage such
as scratches, loose or broken parts, or any other sign of damage that may have occurred during shipment.
OTE:NIf damage is found, request an inspection by the carrier's agent within 48 hours of delivery and file a claim with the
carries. A claim for equipment damage in transit is the sole responsibility of the purchaser.
User Manual
Page 5November 2013

INSTALLATION
THIS PRODUCT SHOULD BE INSTALLED AND SERVICED BY TECHNICALLY QUALIFIED PERSONNEL TRAINED IN
MAINTAINING INDUSTRIAL CLASS FLOW INSTRUMENTATION AND PROCESSING EQUIPMENT.
READ INSTRUCTIONS THOROUGHLY BEFORE INSTALLING THE UNIT. IF YOU HAVE ANY QUESTIONS REGARDING
PRODUCT INSTALLATION OR MAINTENANCE, CALL YOUR LOCAL SUPPLIER FOR MORE INFORMATION.
DISCONNECT ELECTRICAL POWER BEFORE OPENING WIRING ENCLOSURE. FAILURE TO FOLLOW THESE INSTRUCTIONS
COULD RESULT IN SERIOUS PERSONAL INJURY OR DEATH AND/OR DAMAGE TO THE EQUIPMENT.
ALL WIRING SHOULD BE INSTALLED IN ACCORDANCE WITH THE NATIONAL ELECTRICAL CODE® AND MUST CONFORM
TO ANY APPLICABLE STATE AND LOCAL CODES. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN SERIOUS
PERSONAL INJURY OR DEATH AND/OR DAMAGE TO THE EQUIPMENT.
AIR/GAS METERS ARE NOT OXYGEN CLEANED. USE WITH OXYGEN MAY CAUSE HAZARDOUS OR EXPLOSIVE
CONDITIONS THAT MAY CAUSE SERIOUS PERSONAL INJURY AND/OR DAMAGE TO THE EQUIPMENT.
THIS METER MAY CONTAIN RESIDUAL AMOUNTS OF TEST FLUID AT THE TIME OF SHIPMENT. THIS FLUID SHOULD BE
REMOVED PRIOR TO INSTALLATION AS THE FLUID MAY BE INCOMPATIBLE OR HAZARDOUS WITH SOME LIQUIDS OR
GASES. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN DAMAGE TO THE EQUIPMENT.
THIS STANDARD METER IS UNIDIRECTIONAL. ATTEMPTS TO FLOW FLUIDS IN THE OPPOSITE DIRECTION OF THE FLOW
ARROW WILL RESULT IN THE METER ACTING AS A CHECK VALVE, CREATING A DEADHEADING SITUATION. IF THE
DIFFERENTIAL PRESSURE MAGNITUDE IS GREAT ENOUGH, DAMAGE TO THE INTERNAL PARTS OF THE METER WILL
RESULT.
MR Flow Transmitter
Page 6 November 2013

Installation Recommendations
The transmitter is a simple device to install. However, the following measures are recommended for reliable, trouble-
free operation:
• Align pipe accurately. Piping should be accurately aligned and of correct length. The high pressure body of the
transmitter can withstand shock and flow/pressure pulsation. However, the piping should be firmly supported by external
mounting brackets, both upstream and downstream of the meter, to avoid any pipe flexing actions that could reduce
meter life.
• Use rigid mounting. If the transmitter inlet or outlet are to be rigidly mounted, and the opposing port is to be connected
to flexible hose, the end connected with the flexible hose must be rigidly mounted.
• Use Teflon® tape for sealing NPT fitting.
• Install unions. Install a union near the inlet or outlet of the transmitter. This will facilitate quick, easy meter removal and
inspection during periodic maintenance procedures.
• Ensure the fluid is traveling in the direction of the flow arrow. See Figure 4.
OTE:NThe MR flow transmitter display board can be rotated 180° for optimal viewing. Simply remove the MR flow
transmitter cover, disconnect the ribbon cable, rotate the display board 180°, reconnect the ribbon cable, and
reinstall cover. See Figure 10 for cover screw tightening sequence.
• Use at least a 200 mesh (74 micron) filter. The transmitter will allow particulate to pass that would jam most valves and
flow controls. Systems that do not have filtration should be equipped with at least a 200 mesh (74 micron) filter. Most
hydraulic systems already have much finer filtration. Dirt, ferrous metal or sealing agents, such as Teflon® tape may lodge
and cause malfunction. If the meter is jammed at a fixed position, follow cleaning and maintenance instructions.
• Do not use thread locking compounds as thread sealant.
• Do not install the transmitter near turbulence producing fittings such as elbows, reducers, or close coupled valves. The
transmitter does not require flow straighteners or special lengths of straight inlet/outlet piping to stabilize turbulent
flow patterns. However, to assure maximum operational reliability, avoid installation of elbows, valves and/or reducers
immediately adjacent to the meter inlet.
• Do not install the transmitter near fast-acting valves. Fast-acting valves have the potential to create high magnitude
hydraulic pressure spikes. These spikes can damage the internal components of the meter, resulting in inaccuracies
or malfunction.
• Do not allow unidirectional transmitters to be operated against the direction of the flow arrow. The standard transmitter
is a unidirectional flow meter. The piston acts as a check valve to block flow in the reverse direction. This causes an
excessive pressure differential, which can result in damage to internal meter components. The transmitter is also available
in a modified design, which offers a reverse flow bypass feature to accommodate bidirectional flow.
OTE:NTransmitters with a reverse flow bypass feature are available. Consult factory for details.
Electrical Connections
Cable may be shortened or lengthened as required for proper installation. The cable is soldered directly to the electrical
connector at the factory.
Cable replacement requires disassembly of the electrical connector.
4
2
1
3
2
1
4
3
Figure 1: 4-pin cable connection
DC Output Connection Loop Power Connection
No Connection (-) 4…20 mA Out
0V DC No Connection
(+) DC Power (+) 4…20 mA In
0…5 or 0…10V DC Output No Connection
User Manual
Page 7November 2013

THE FLOW TRANSMITTER IS DESIGNED TO OPERATE ONLY ONE OF ITS THREE OUTPUTS AT A TIME (0…5V DC OR
0…10V DC OR 4…20 MA). CONNECTING MULTIPLE OUTPUTS SIMULTANEOUSLY WILL RESULT IN INACCURATE OUTPUT
SIGNAL LEVELS.
Schematics
The transmitter can be wired in various configurations to allow interface with many different types of data collection and
control instrumentation.
Schematics 1 & 2 (Figure 3) represent typical wiring for a target powered by either AC power or DC supply.
Schematics 3 & 4 (Figure 3) will be used when the flow transmitter is operated with loop-powered process indicators or data
loggers that do not have external sensor excitation available.
MENU ENTER
RUN PROGRAM RELAY 1 RELAY 2
Outlet Port
Display Board
Transmitter
Connector
Sensor Board
Inlet Port
Figure 2: Terminology
MR Flow Transmitter
Page 8 November 2013

Schematic 4: 0…5 Vdc or 0…10 Vdc connection using
targets external power supply.
4
2
1
3
Black
Green
White
Red
Fuse: 0.05 A Fast
Excitation
Voltage
0-10 VDC Input
Ground
0-5 VDC Input
Example:
Chart Recorder
Schematic 3: 4…20 mA connection using targets
external power supply.
4
2
1
3
Black
Green
White
Red
Fuse: 0.05 A Fast
Excitation
Voltage
4-20 mA Input (+)
4-20 mA Input (-)
Example:
Chart Recorder
Schematic 2: 0…5 Vdc or 0…10 Vdc connection using
targets power supply.
4
2
1
3
Black
Green
White
Red
Sensor Excitation
0-10 VDC Input
Ground
0-5 VDC Input
Example:
Chart Recorder
Schematic 1: 4…20 mA connection using targets
power supply.
4
2
1
3
Black
Green
White
Red
External DC
Sensor Excitation
4-20 mA Input
Example:
Chart Recorder
Figure 3: Wiring diagrams
User Manual
Page 9November 2013

Flo w Tr a ns mi tte r
3500 PSI/241 BARS MAX
OIL
Fl ow Transmitter
Model H600A-000-MR
S.N.: 78500
Date: 0412
FLOW
Flow
Inlet Port
Flow
Direction
Arrow
Figure 4: Flow direction arrow
Installing the Transmitter
1. Disconnect the electrical power from the target system before making or changing any transmitter connections.
2. Use 0.05 A fast-acting fuse if non-current limited power sources are used.
3. Terminate cable shield connection at either DC ground or earth ground.
4. Mount the transmitter so uid is traveling in the direction of the ow arrow. See Figure 4.
5. Install unit in desired location. Use wrench on transmitter ats to hold the unit in place during installation. DO NOT TURN
the transmitter using the wrench. See Figure 5.
6. After installation, rotate the transmitter by hand to view the display. See Figure 6.
7. Capture the zero ow position on the meter cone using the ZERO CAPTURE procedure.

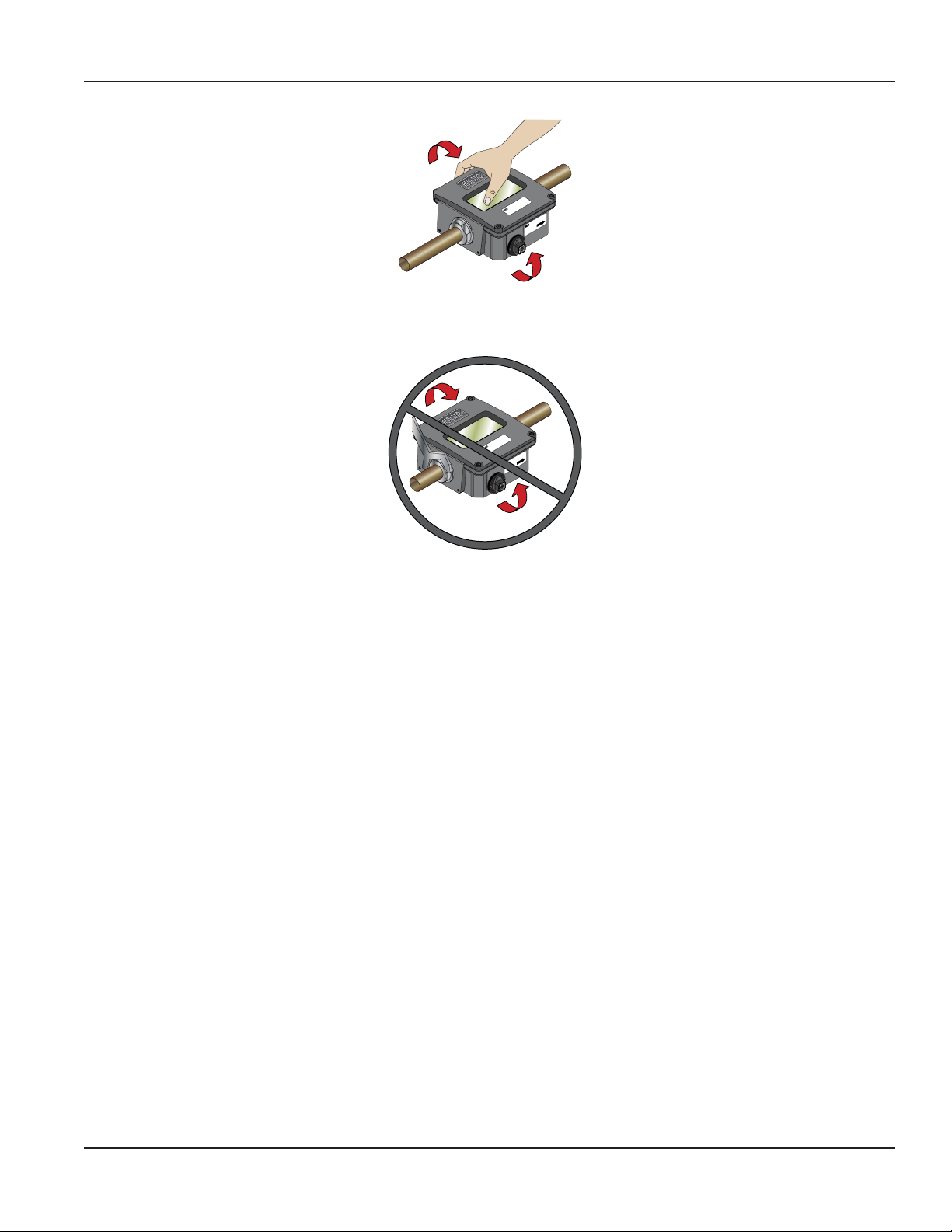

Place wrench on transmitter ats on the same
side plumbing is being tightened
Never place wrench on transmitter ats
opposite plumbing being tightened
Fl o w Tr an s m it t er
Model H600A-000-MR
S.N.: 78500
Date: 0412
FLOW
Fl ow Tran smi tter
3500 P SI/241 B ARS MAX
OIL
Fl o w Tr an s m it t er
Model H600A-000-MR
S.N.: 78500
Date: 0412
FLOW
Fl ow Tran smi tter
3500 P SI/241 B ARS MAX
OIL
Figure 5: Installing the meter
MR Flow Transmitter
Page 10 November 2013

Place wrench on transmitter ats on the
same side plumbing is being tightened
Never place wrench on transmitter ats
opposite plumbing being tightened
Fl ow T ra n sm i tt er
Model H600A-000-MR
S.N.: 78500
Date:0412
FLOW
Flo w Tran smit ter
3500 PSI/241BARS MAX
OIL
Fl ow T ra n sm i tt er
Model H600A-000-MR
S.N.: 78500
Date:0412
FLOW
Flo w Tran smit ter
3500 PSI/241BARS MAX
OIL
Figure 6: Rotating meter
User Manual
Page 11November 2013

OPERATION
Operating the Meter
The monitor has two modes of operation, referred to as RUN mode and PROGRAM mode as indicated on the display screen
readout. Normal operation will be in the run mode. To access the program mode, press MENU until the first programming
screen DISPLAY appears.
OTE:NPROGRAM appears on left side of display.
After programming the meter, a password may be entered to prevent unauthorized access to programming.
Normal Operation (RUN) Mode
During normal operation, the transmitter will show RUN on the left side of the display. In RUN mode the flow rate and total
flow will alternate being shown as the default. The meter can also be set to show only flow rate or only flow total.
MENU ENTER
Programming
Buttons
Figure 7: Programming buttons
The four buttons have the following function in RUN mode:
MENU Selects programming mode.
No function.
No function.
ENTER The current total can be manually stored in the monitor's flash memory. Press and hold ENTER for 2
seconds. The display will respond with a flashing TOTALSVD and then will return to RUN mode.
RESET TOTAL To reset the monitor's total display, press MENU and ENTER simultaneously until TOTALRST starts to
flash. The TOTALRST will stop flashing and the display will return to RUN mode at the conclusion of the
rest procedure.
Programming Operation (PROGRAM) Mode
The programming mode lets you change the configuration and adjust the calibration of the meter. The MR flow transmitter
has two types of configuration changes accessible in program mode:
1. To view or change selections from a pre-dened list.
2. To view or change numeric entries.
During programming operation, the following four button functions are provided:
MR Flow Transmitter
Page 12 November 2013

MENU Enters and exits programming mode. Press MENU once to change to programming mode. The mode
indicator on the display will change from RUN to PROGRAM.
Press to scroll through the configuration choices in a bottom-to-top order. For numeric setup, this
button increments numeric values.
Use to scroll through the configuration choices in a top-to-bottom order. For numeric setup, this
button moves the active digit to the right.
ENTER Used to enter menus, to change configurations and to save programming information.
OTE:NIf any input value exceeds the meter’s capabilities, the LIMIT indicator will begin to flash indicating an invalid entry.
Press ENTER once to return to the entry screen to reenter the value.
Cover Removal/Reinstallation
It is necessary to remove the MR flow transmitter cover to access the programming keys. Use a Phillips screwdriver to remove
the four screws that hold the cover in place, turning them counterclockwise. When programming is completed, reinstall the
cover. To properly seat the built-in cover gasket, tighten the cover screws clockwise in a crisscross pattern as shown in Figure 8.
Flow Transmitter
3500 PSI/241 BARS MAX
OIL
1
2
3
4
Figure 8: Cover screw tightening sequence
Programming Procedures
The MR flow transmitter has been programmed at the factory according to the specifications that were provided at the time
of order. No further programming is required unless a change has occurred in the original specifications.
If programming is required, the MR flow transmitter allows two basic sets of programming procedures:
1. List Item Selection
2. Numeric Value Entry
List Item Selection Procedure
OTE:NIf you are already in PROGRAM mode and the selection to be viewed or changed is already displayed, proceed to step
3 below. If you are in PROGRAM mode and the selection to be viewed or changed is not displayed, press or
and repeat pressing until the desired selection appears. Proceed to step 3.
1. Press MENU. PROGRAM appears in the lower left-hand corner and DISPLAY appears.
2. Press or to move to the desired selection.
3. Press ENTER to view the current selection.
4. If the current selection is desired, press ENTER to confirm. The unit will automatically advance.
5. If current selection must change, press or to scroll through the available choices. Press ENTER to conrm your
selection. The unit will automatically advance.
6. To exit programming, press MENU. The display will change to RUN mode.
User Manual
Page 13November 2013

Numeric Value Entry Procedure
OTE:NIf you are already in PROGRAM mode and the desired selection is displayed, proceed to step 3 below. If you are in
PROGRAM mode and the desired selection is not displayed, press or and repeat pressing until the desired
selection appears. Proceed to step 3.
1. Press MENU. PROGRAM appears in the lower left-hand corner and DISPLAY appears.
2. Press or to move to the desired selection. The current numeric value for this selection appears in the upper section
of the display.
3. If the current displayed value is desired, press ENTER. The left most programmable number begins to ash. Press ENTER
again to conrm and keep the current setting. The unit will automatically advance.
4. If the current selection must change, press ENTER. The left most programmable number begins to ash. Use to scroll
through the digits 0-9 and change the flashing digit to the desired value. Use to move the active digit to the right.
Continue using the and until all desired digits are selected.
5. Press ENTER to conrm your selection. The unit will automatically advance.
6. To exit programming mode, press MENU. The display will change to RUN mode.
Programming Flow Chart
See the programming flow charts in “Application Information, Liquid” on page 19 for the menu structure of the MR flow
transmitter and the available configuration selections.
Basic Programming Descriptions
Display Mode
The meter can display RATE (flow rate) or TOTAL (total accumulated flow) or alternate between BOTH rate and total. Its
displayed name is DISPLAY and is viewed or changed using the List Item Selection Procedure.
Rate Units of Measure
The meter allows the selection of many common rate units. Its displayed name is RATE UNT and is viewed or changed using
the List Item Selection Procedure.
Rate (Time) Interval
The meter allows selection of several intervals based on time. Its displayed name is RATE INT and is viewed or changed using
the List Item Selection Procedure.
Total Units of Measure
If the total flow is being displayed, the units for the total must first be chosen. The monitor allows the choice of many common
totalization units. Its displayed name is TOTL UNT and is viewed or changed using the List Item Selection Procedure.
Total Display Multiplier
The meter has the ability to accumulate the flow total in multiples of ten. For example, if the most desirable totalization unit
is 1000 gallons, the monitor can easily be set up for this requirement. Once back in RUN mode, every time the total display
increments by one digit the actual total would be an additional 1000 gallons. At 1000 total gallons the total display would
read 1, at 3000 gallons the total display would read 3. This feature allows the unit to accumulate totals that would exceed the
8-digit display capacity. Table 2 lists the available selection choices. Its displayed name is TOTL EXP and is viewed or changed
using the List Item Selection Procedure.
Exponent Totalizer Multiplier
E-2 x 0.01 (÷100)
E-1 x 0.1 (÷100)
E0 x 1 (no multiplier)
E1 x 10
E2 x 100
E3 x 1000
E4 x 10,000
E5 x 100,000
E6 x 1,000,000
Table 1: Total flow units
MR Flow Transmitter
Page 14 November 2013

Full Flow Rate
The full flow rate is used to span the meter. Its displayed name is FULL FLOW and is viewed or changed using the Numeric
Value Entry Procedure.
Zero Capture
The zero position of the meter cone must be set when installing the meter. To capture the zero calibration position, press
ENTER at the ZERO CAP prompt. NO will display. Press either arrow key to change to YES, then press ENTER to capture zero.
Viscosity Units (Displayed for OIL meters only)
The Viscosity Units parameter is used in conjunction with Viscosity to perform viscosity correction for oil applications. The
meter allows the selection of the viscosity units, SUS or cSt. Its displayed name is VIS UNIT and is viewed or changed using the
List Item Selection Procedure.
Viscosity (Displayed for OIL meters only)
Viscosity is used in conjunction with Viscosity Units to perform viscosity correction for oil applications. Enter the viscosity in
either SUS or cSt, depending on the viscosity units selected, of the oil that will be used. Its displayed name is VISCOSTY and is
viewed or changed using the Numeric Value Entry Procedure.
Operating Pressure Unit (Displayed for GAS meters only)
Operating Pressure Units is used in conjunction with Operating Pressure in gas applications to compensate for the actual
pressure being measured at the meter. The meter allows the selection of the operating pressure units, Bar or PSI. Its displayed
name is PRESUNIT and viewed or changed using the List Item Selection Procedure.
Operating Pressure (Displayed for GAS meters only)
Operating Pressure is used in conjunction with Operating Pressure Units in gas applications to compensate for the actual
pressure being measured at the meter. Enter the operating pressure in either Bar or PSI units, depending on the Operating
Pressure Units selected. Its displayed name is OP PRES and is viewed or changed using the Numeric Value Entry Procedure.
Operating Temperature Unit (Displayed for GAS meters only)
Operating Temperature Units is used in conjunction with Operating Temperature in gas applications to compensate for the
actual temperature of the gas being measured at the meter. The meter allows the selection of the operating temperature
units, °F or °C. Its displayed name is TMP UNIT and is viewed or changed using the List Item Selection Procedure.
Operating Temperature (Displayed for GAS meters only)
Operating Temperature is used in conjunction with Operating Temperature Units in gas applications to compensate for the
actual temperature of the gas being measured at the meter. Enter the operating temperature in either °F or °C, depending on
the Operating Temperature Units selected. Its displayed name is OP TEMP and is viewed or changed using the Numeric Value
Entry Procedure.
Specific Gravity Correction Factor
Specific Gravity is used to compensate for the specific gravity of the liquid or gas being measured with the meter. Its displayed
name is SP GRAV and is viewed or changed using the Numeric Value Entry Procedure.
Damping
The Damping factor is increased to enhance the stability of the flow readings. Damping values are decreased to allow the flow
meter to react faster to changing values of flow. This parameter can range from 0 to 99; factory default is 0. Its displayed name
is DAMPING and is viewed or changed using the Numeric Value Entry Procedure.
Output Mode
The MR flow transmitter offers three analog output modes:
• 4…20 mA Output Signal
• 0…5 Volts DC Output Signal
• 0…10 Volts DC Output Signal
The output mode selected is determined by the type of peripheral device being connected to the MR flow transmitter.
The displayed name is OUT MODE and is viewed or changed using the List Item Selection Procedure.
OTE:NSetup prompts and descriptors for configuring and calibrating the analog output will correspond to the output
mode selected.
User Manual
Page 15November 2013

Password
Password protection prevents unauthorized users from changing programming information. Initially the password is set to all
zeros. Its displayed name is PASSWORD and is viewed or changed using the Numeric Value Entry Procedure.
Restore Defaults
This feature allows you to restore factory calibration data. Its displayed name is RES DFLT. To restore factory calibration data,
select YES, then press ENTER.
Advanced Programming Descriptions
Advanced programming allows the user access to re-configure the analog output. Calibration of the analog output is preset
at the factory, but can be changed to customize calibration for your installation.
To access the Advanced Programming Options, press and hold MENU for approximately 3 seconds until DISPLAY is viewed on
the display panel. The programming menus will begin with display mode DISPLAY and continue as described above through
output mode OUT MODE.
After output mode has been entered, Advanced Programming starts with the following:
Calibration of Analog Output
This selection allows access to the calibration and testing of the analog output signal.
To test or change the analog output calibration, it is first necessary to change the default setting for CAL OUT? from NO to YES.
OTE:NSetup prompts and descriptors for configuring and calibrating the analog output will correspond to the output
mode selected. Refer to the Flow Chart.
1. At the CAL OUT? prompt press ENTER. NO will display.
2. To change to YES, press either arrow key.
3. The analog output will go to its minimum output level. A numeric value between 0-4000 will display. This is an internal
number used to drive the analog output.
4. To increase the analog output signal level, press . To decrease the analog output signal level, press .
5. Press ENTER to store the setting.
6. The analog output will go to its maximum output level. A numeric value between 0-4000 will display. This is an internal
number used to drive the analog output.
7. To increase the analog output signal level, press . To decrease the analog output signal level, press .
8. Press ENTER to store the setting.
9. The unit will advance to the analog output test mode. The analog output will go to its minimum output level. A numeric
value of 0 will display. For test purposes, the analog output signal can be run up or down in increments of 1 milliamp or 1
volt, depending on the OUT MODE selected.
10. To increase the analog output signal level, press . To decrease the analog output signal level, press .
11. Press ENTER to exit the analog calibration mode.
12. The unit automatically advances to the PASSWORD feature.
Password
Password protection prevents unauthorized users from changing programming information. Initially the password is set to all
zeros. Its displayed name is PASSWORD and is viewed or changed using the Numeric Value Entry Procedure f.
Restore Defaults
This feature allows you to restore factory calibration data. Its displayed name is RES DFLT. To restore factory calibration data,
select YES, then press ENTER.
MR Flow Transmitter
Page 16 November 2013

MAINTENANCE
BEFORE ATTEMPTING TO REMOVE THE TRANSMITTER FROM THE LINE, CHECK THE SYSTEM TO CONFIRM THAT LINE
PRESSURE HAS BEEN REDUCED TO ZERO PSI. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN SERIOUS
PERSONAL INJURY OR DEATH AND/OR DAMAGE TO THE EQUIPMENT.
DISCONNECT ELECTRICAL POWER BEFORE REMOVING METER COVER. FAILURE TO FOLLOW THESE INSTRUCTIONS
COULD RESULT IN SERIOUS PERSONAL INJURY OR DEATH AND/OR DAMAGE TO THE EQUIPMENT.
Cartridge Cleaning
1. Disconnect the transmitter cable.
2. Remove the meter from the line. Remove excess piping from the transmitter. See Figure 4 and Figure 5.
OTE:NIt is not necessary to remove the aluminum housing from the transmitter to remove it from the line.
3. Thoroughly wipe o the entire transmitter surface using mild detergent or isopropyl alcohol.
DO NOT USE AROMATIC HYDROCARBONS, HALOGENATED HYDROCARBONS, KETONES OR ESTER BASED FLUIDS ON
POLYCARBONATE LENS. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN DAMAGE TO THE TRANSMITTER.
4. Remove the inlet port cap, wave spring, retaining ring, and cone assembly from the transmitter body (Figure 9).
5. Gently push the body towards the outlet port.
6. The piston, inner magnet and transmitter spring are secured within the transmitter body with a retaining ring. Remove the
retaining ring with a small screwdriver, then the internal components can be removed from the body (Figure 9).
OTE:NIf internal parts do not slide freely from cartridge, use a wooden dowel inserted into the outlet port of the meter to
push parts out.
7. Place all parts on a clean work surface. Clean and inspect all parts. Replace any that appear worn or damaged. Check inlet
port O-ring for damage and replace if required.
FIELD REPLACEMENT OF THE SPRING, METERING CONE AND/OR PISTON/MAGNET ASSEMBLY MAY RESULT IN CHANGES
TO THE CALIBRATION OF THE FLOW METER.
8. Reassemble the transmitter by inserting the transmitter spring into the body, followed by the piston/inner magnet
assembly. A slight compression of the piston against the spring is required during installation of the retaining ring.
9. Gently push body assembly into the outlet end of the transmitter enclosure. The at surface of the body output port
should be ush with the transmitter enclosure opening.
10. With the transmitter positioned vertically on a at surface, inlet port facing up, install the transmitter cone assembly and
wave spring into the body and secure with the inlet port end cap.
11. Reinstall transmitter to the line. Reconnect electrical power.
Inspection
1. Frequent inspection should be made. The environment and frequency of use should determine a schedule for
maintenance checks. It is recommended that it should be at least once a year.
2. Perform visual, electrical, and mechanical checks on all components on a regular basis.
3. Visually check for undue heating evidence such as discoloration of wires or other components, damaged or worn parts, or
leakage evidence such as water or corrosion in the interior.
4. Make sure all electrical connections are clean and tight and that the device is wired properly.
User Manual
Page 17November 2013

TROUBLESHOOTING
No LCD Display
• For 4…20 mA operation, check for current flow in the loop.
• Check polarity of the current loop connections for proper orientation.
• For 0…5V or 0…10V operation, check for proper voltage being supplied to the unit.
• Check polarity of the supply voltage.
MENU ENTER
RUN PROGRAM RELAY1 RELAY 2
4
3
2
5
6
7
1

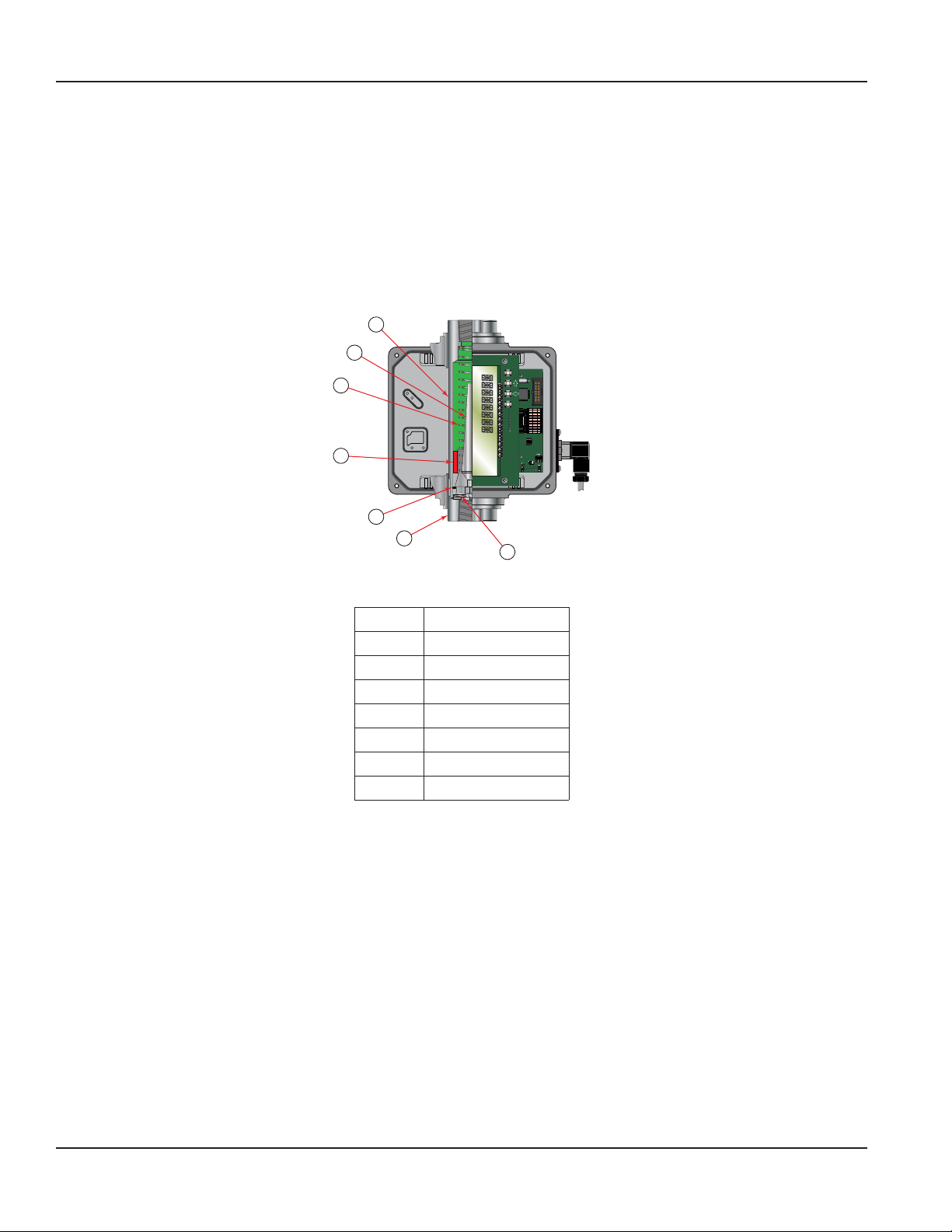

Figure 9: Cartridge components
Number Name
1Body
2Cone Assembly
3Meter Spring
4Piston Assembly
5Retaining Spring
6Cap
7Wave Spring
No Rate or Total Displayed
• Check flow meter body and internal components for debris. Piston should move inside the tube freely.
• Check setup programming of flow meter.
Unstable Flow Reading
• This usually indicated pulsing or oscillation in the actual flow. Increase the DAMPING parameter to increase the filtering in
order to provide a more stable display reading.
MR Flow Transmitter
Page 18 November 2013

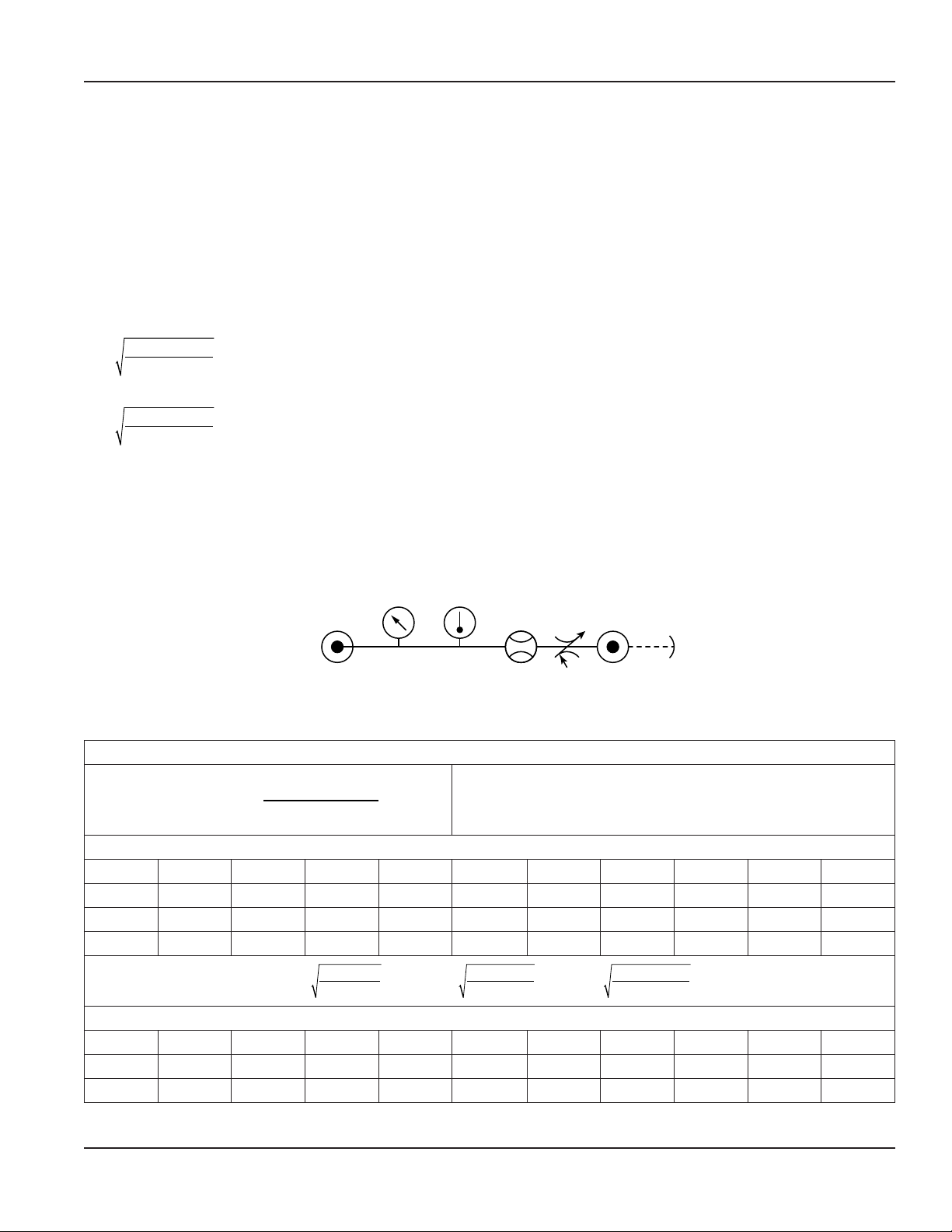

APPLICATION INFORMATION, LIQUID
Viscosity Eect (SUS/cSt)
The design uses a precision machined, sharp- edged orifice and biasing calibration spring that assures operating stability and
accuracy over the wide viscosity range common to many fluids. Generally, high flow models of each meter size provide good
accuracy over a viscosity range of 40…500 SUS (4.2…109 cSt).
Density Eect (specic gravity)
Any fluid density change from stated standards has a proportional effect on meter accuracy. Corrections for more or less
dense fluids can be made to standard scales using the following correction factor:
10.
Specic Gravity For water/water-based meters
0 876.
Specic Gravity For petroleum-based meters
Application Information Pneumatic
OTE:NPressure and temperature readings must be taken at the flow meter inlet to ensure accurate correction factors.
The pneumatic flow meter is calibrated for air in standard cubic feet per minute (scfm) at 1.0 s.g. (70° F @ 100 psi), and liter per
second (lps) at 1.0 s.g. (21° C @ 6.9 bar).
Pressure
Gauge Air Bleed O
To Equipment
Pressure
Source
Adjustable
Valve
Flow
Meter
Temp
Figure 10: System schematic
DETERMINE FLOW RATES USING DIFFERENT PRESSURES & TEMPERATURES
scfm actual scfm indicated
fxfxf
()
()
=
13
2
Where f1= Conversion Factor for Inlet Pressure
f2= Conversion Factor for Inlet Pressure
f3= Conversion Factor for Inlet Pressure
Table 1–Temperature Correction Factor (f1) Operating Pressure
psig 25 50 75 100 125 150 175 200 225 250
BAR 1.7 3.5 5.2 6.9 8.6 10.4 12.1 13.8 15.5 17.2
kPa 172 345 517 689 862 1034 1207 1379 1551 1724
f11.700 1.331 1.131 1.00 0.902 0.835 0.778 0.731 0.692 0.658
fkPa 1
790 857
101 357
=
+
.
.
fBAR 1
7 914
1 014
=
+
.
.
fpsig 1
114 7
14 7
=
+
.
.
Table 2–Temperature Correction Factor (f2)
°F 10 30 50 70 90 110 130 150 170 190
°C –12.2 –1.1 9.9 21.0 32.1 43 54 65 76 88
f20.942 0.962 0.981 1.00 1.018 1.037 1.055 1.072 1.090 1.107
User Manual
Page 19November 2013

fF
2
460
530
=+° fC
2
273
293
=+°
Table 3–Specific Gravity Correction Factor (f3)
fSpGr 3 =..
Table 2: Conversion factors
OTE:NTable 2 is included to show the correction algorithms include in the program to perform pressure, temperature,
and specific gravity corrections. When configuring the MR flow transmitter, enter the actual operating pressure,
temperature, and specific gravity values, not the correction factors.
MR Flow Transmitter
Page 20 November 2013
