Bafo BF-374B User manual

BF-374B
HDMI EXTENDER
User Manual
HDMI Extender over single CAT6 With IR(200M)
(HDMI1.3V Full HD 1080P)
Bring High-Definition to your life!

01
HDMI Extender over single CAT6 with TCP/IP(200M)
Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully before connecting, operating or adjusting this product. Please
keep this manual for future reference.
1.0 INTRODUCTION
The HDMI Extender over single CAT6 is a tool for extending your HDMI signal over long distances to
a compatible display. Instead of using expensive HDMI cables, your existing CAT6 cables/sockets can
be utilized to perform advanced functions like transferring Deep Color (12bits/color) video and
digital audio, with a bandwidth up to 225MHz. The HDMI Transmitter and Receiver, over ONE CAT6
extender is your substantial HDMI extender tool. The HDMI Extender also support IR re-transmitting,
so you can control the source which is 200 meters outside using the HDMI extender.
2.0 FEATURES
1. Signal transmission : CAT6 or higher level cables up to 200 meters instead of HDMI
cables are connected between TX and RX Extender.
2. Support HDMI1.3, HDCP 1.2 protocol compliant.
3. Support video input : 24/50/60fs/1080p/720p/576p/480p.
4. Support video output : 24/50/60fs/1080p/720p/576p/480p.
5. Support CEC.
6. Support 20~60KHz IR working.
7. Protocol compliant TCP/IP one transmitter and multiple receivers, with a maximum of 253
receivers.
8. Audio format support : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD.
9. No loss of quality.
10 Installs in minutes.
11 Need DC5V/1A power supply.
3.0 PACKAGING ACCESSORIES:
When first unpacking your extender please check to see if the following items are included:
1. HDMI Transmitter ---------------------------------------------------------------------------------------------
2. HDMI Receiver ------------------------------------------------------------------------------------------------
3. IR-TX ------------------------------------------------------------------------------------------------------------
4. IR-RX ------------------------------------------------------------------------------------------------------------
5. Power supply --------------------------------------------------------------------------------------------------
6. User manual ---------------------------------------------------------------------------------------------------
2PCS
1PCS
1PCS
1PCS
1PCS
1PCS

02
HDMI Extender over single CAT6 with TCP/IP(200M)
4.0 SPECIFICATION

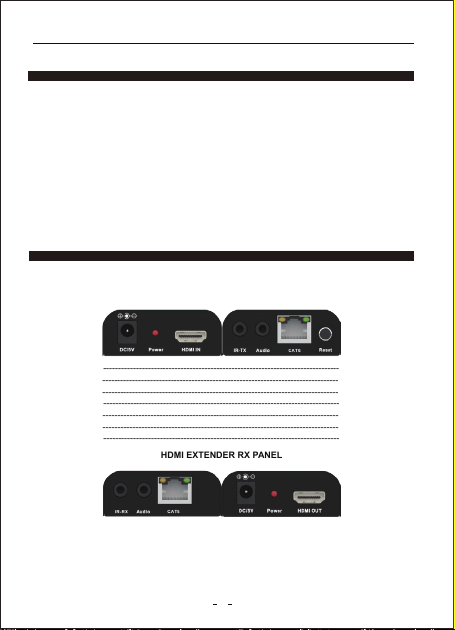

5.0 PANEL DESCRIPTIONS
Please study the panel drawings below and become familiar with the signal input(S), output(S)and
power requirements
Length of CAT6 cable between Transmitter and Receiver ---------------------------- Up to 200 meters
HDMI Input ------------------------------------------------------------------- 24/50/60fs/1080p/720p/576p/480p
Support audio format input ------------------- DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Output ---------------------------------------------------------------- 24/50/60fs/1080p/720p/576p/480p
Support audio format output ------------------------------------------------- LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth --------------------------------------------------------------------------------------------------- 65MHz
Max baud rate ------------------------------------------------------------------------------------------------ 4.95Gbps
Input Video signal ----------------------------------------------------------------------------------- 0.5~1.5Volts p-p
Output DDC signal -------------------------------------------------------------------------------- 5Volts p-p (TT1L)
Input/Output HDMI cable distance ------------------------------------ ≤20m AWG26 HDMI standard cable
Max working current -------------------------------------------------------------------------------------------- 800mA
Power adapter format ---------------------------- Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range ----------------------------------------------------------------------- (-15 to +55℃)
Operating Humidity range ----------------------------------------------------- 5 to 90%RH (No Condensation)
DC/5V --------------------------------------------------------------------------------------------
Power -------------------------------------------------------------------------------------------------
HDMI IN ------------------------------------------------------------------------------------------
IR-TX ----------------------------------------------------------------------------------------------
Audio -------------------------------------------------------------------------------------------------
CAT6 --------------------------------------------------------------------------------------------------
Reset -----------------------------------------------------------------------------------------------------
Power IN interface
Power indicator
HDMI IN interface
IR transmitter port
stereo OUT port
CAT6 OUTport
Reset button
IR-RX -------------------------------------------------------------------------------------------
Audio -------------------------------------------------------------------------------------------------
CAT6 -----------------------------------------------------------------------------------------------------
DC/5V -----------------------------------------------------------------------------------------
Power -------------------------------------------------------------------------------------------------
HDMI OUT ------------------------------------------------------------------------------------
IR receiver interface
stereo OUT port
CAT6 IN port
Power Input interface
Power indicator
HDMI OUT interface
HDMI EXTENDER TX PANEL
HDMI EXTENDER RX PANEL

HDMI Extender over single CAT6 with TCP/IP(200M)
6.0 CONNECT AND OPERATE
Before installation, please make sure all devices you wish to connect have been turned off.
1. Connect HDMI signal source to the transmitter of HDMI extender.
2. Use CAT6 or higher level cables up to
200 meters to connect the transmitter and receiver of
HDMI
Extender.
3. Connect the display equipment with HDMI connector to the receiver of HDMI extender.
4. Power on all connected devices, choose the input of the display device to its HDMI channel.
Transmitter and Receiver one by N application, N can up to 253.
7.0 INSTALLATION AND PRECAUTIONS
To avoid electric shock, product damage and to protect your safety, please notice the following:
1. Please slowly plug or unplug signal cables and do not often plug, unplug, or shake them.
2. The equipment should not be placed under the sun, rain and damp or unventilated environment.
03

HDMI Extender over single CAT6 with TCP/IP(200M)
3. Liquid items should not be placed on the equipment.
4. Do not install the equipment near heat sources such as fire, power, or other amplifiers that produce
heat.
5. Do not insert the metal or other objects to the equipment in addition to connecting cables to ports.
6. Do not demolish the equipment by yourself; it should be maintained by professional maintenance
staff.
