BainUltra ESSENCIA OVAL 7236 User manual

ESSENCIA DROP-IN
ESSENCIA OVAL 7236 & DESIGN 7438
INSTALLATION INSTRUCTIONS
ADDENDUM to ESSENCIA- INSTALLATION INSTRUCTIONS*
IMPORTANT INFORMATION FOR THE INSTALLER AND THE OWNER
* This document should always be accompanied by the ESSENCIA-INSTALLATION INSTRUCTIONS.
TO BE KEPT BY THE OWNER

ESSENCIA DROP-IN - installation
1 800 463.2187 Monday to Thursday from 8 a.m. to 8 p.m. (EST) .Friday from 8 a.m. to 5 p.m. (EST)
Printed in Canada. Copyright © April 2017 BainUltra Inc. All rights reserved. 45200653
ESSENCIA® COLLECTION - DROP-IN MODELS
INSTALLATION INSTRUCTIONS
TABLE OF CONTENT
IMPORTANT SAFETY INSTRUCTIONS .....................................................................................................................1
PARTS & TOOLS...................................................................................................................................................3
SITE PREPARATION .............................................................................................................................................5
INSTALLATION
• DROP-IN WITH REMOTE MOUNTING OF TURBINE – ESSENCIA OVAL 7236 & DESIGN 7438 ...........................7
• DROP-IN WITH FACTORY INSTALLED TURBINE – ESSENCIA OVAL 7236......................................................14
•UNDERMOUNT WITH REMOTE MOUNTING OF TURBINE – ESSENCIA DESIGN 7438 ....................................15
CUTTING TEMPLATES • ELECTRONIC CONTROLS ..........................ESSENCIA - INSTALLATION INSTRUCTIONS Manual page 34

1
ESSENCIA DROP-IN - installation
www.bainultra.com
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
ESSENCIA® COLLECTION - DROP-IN MODELS
IMPORTANT SECURITY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
PERTAINING TO RISKS OF FIRE, ELECTROCUTION OR PERSONAL INJURY
READ AND FOLLOW ALL INSTRUCTIONS • SAVE THESE INSTRUCTIONS
THIS DOCUMENT SUPERCEDES THE INSTALLATION INSTRUCTION IN THE OWNER’S MANUAL.
WARNING
• Risk of hyperthermia; people using medication and/or having an adverse medical history should consult a physician
before using a Hydro-thermo massage®bathtub equipped with a heater.
• Risk of hyperthermia and possible drowning: do not use a Hydro-thermo massage®bathtub equipped with heater
immediately following strenuous exercise.
• Risk of fetal injury; pregnant or possibly pregnant women should consult a physician before using a Hydro-thermo
massage®bathtub equipped with a heater.
• Risk of accidental injury or drowning; do not use drugs or alcohol before or during the use of a Hydro-thermo massage®
bathtub equipped with a heater.
• Use this unit only for its intended purposes or as described in this manual. Use only accessories or devices recommended
by the manufacturer.
• Risk of hyperthermia and possible drowning. Check and adjust water temperature before use. Water temperature
exceeding 100ºF (38ºC) may be injurious to your health.
• To reduce the risk of injury, as with any other conventional bath, do not allow children or physically impaired people
to use this unit unless they are closely supervised at all times.
• To avoid injury, exercise care when entering or exiting the Thermomasseur®.
• The Geysair (option) should always be connected to the hot water intake. If it is not the case, then, the Geysair option
should be deactivated via the bath control.
RISK OF ELECTRICAL SHOCK
• Disconnect electric power before servicing.
• Do not permit electrical appliances (hair dryer, lamp, telephone, radio, television, etc.) within 5’ (1,5 m) of the Thermomasseur®.
• Before using the Thermomasseur®, its exterior construction (podium or skirting) should be finished so that a bather cannot
accidentally come in contact with electrical components (turbine and power module).
• For indoor use only.

2
ESSENCIA DROP-IN - installation
1 800 463.2187 Monday to Thursday from 8 a.m. to 8 p.m. (EST) .Friday from 8 a.m. to 5 p.m. (EST)
Printed in Canada. Copyright © April 2017 BainUltra Inc. All rights reserved. 45200653
ESSENCIA® COLLECTION - DROP-IN MODELS
INSTALLATION INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS • SAVE THESE INSTRUCTIONS
THIS DOCUMENT SUPERCEDES THE INSTALLATION INSTRUCTION IN THE OWNER’S MANUAL.

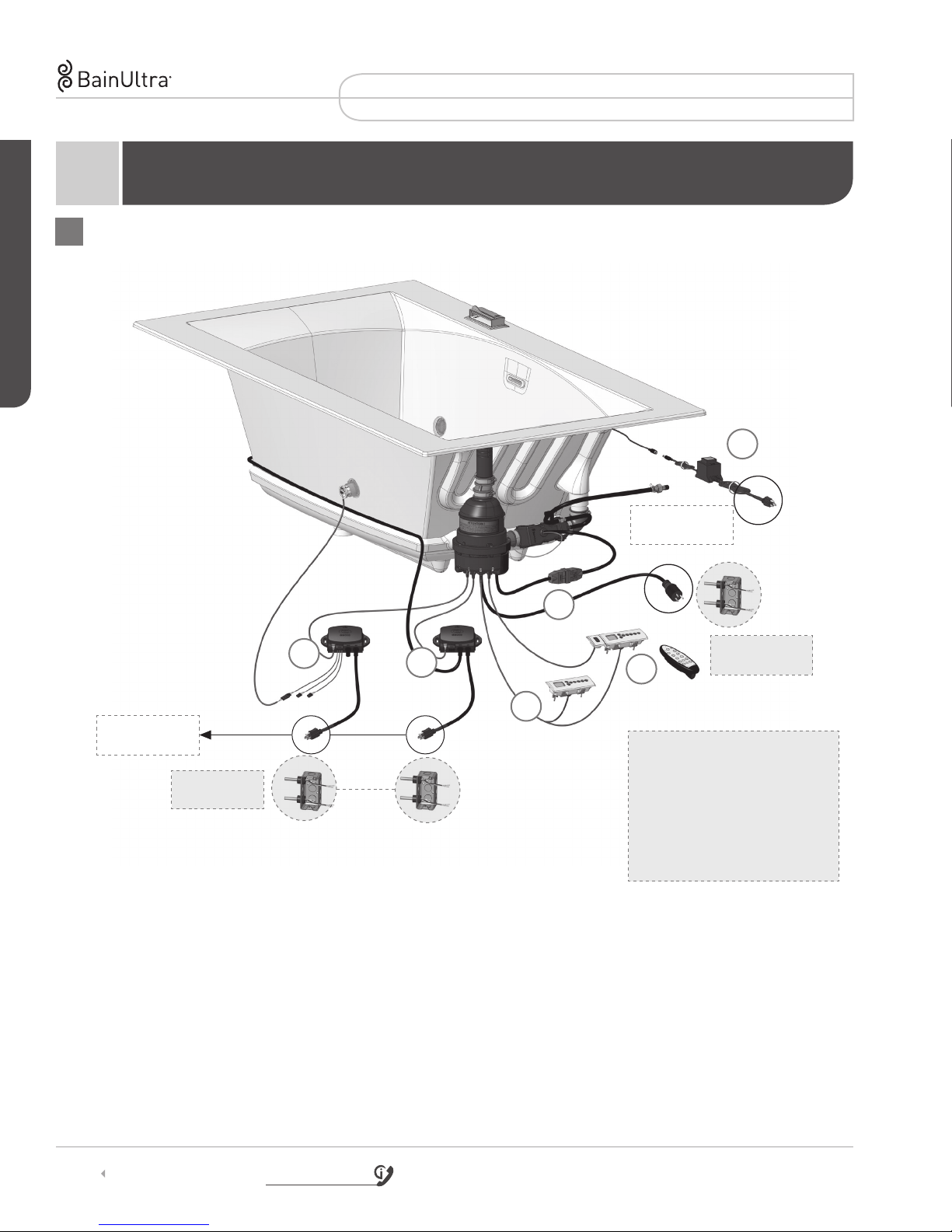

ELECTRICAL CONNECTIONS:
• Never drop or insert objects into any openings.
• The Thermomasseur®must be connected only to a supply circuit that is protected by a 20 amp class A ground fault circuit
interrupter (GFCI). Optional therapies such as Chromatherapy and/or 2nd heated backrest and/or WarmTouchShell®must be
connected to a supply circuit that is protected by a 15 amp class A ground fault circuit interrupter (GFCI). This interrupter is
supplied by a certified electrician and must be tested on a regular basis in accordance with manufacturer’s instructions. The GFCI
ground must be connected. If defective, do not use the Thermomasseur. Disconnect immediately and call a certified electrician.
• Use 12 AWG (or greater) copper conductors that resist temperatures of at least 194ºF (90ºC).
• Canada only: for permanently connected units. A green-colored terminal (or a wire connector marked g., gr., ground
or grounding) is provided within the terminal compartment (not applicable if unit supplied with an electric plug).
To reduce the risk of electrocution, connect this terminal or connector to the grounding terminal of your electric service
or supply panel with conductor equivalent in size to the circuit conductors supplying the equipment and be 12 AWG
or more.
• All electrical connections must be carried out by a certified electrician and must respect federal, provincial/state,
and local building codes and regulations.
• Install in accordance with manufacturer’s installation instructions.
• For Geysair-equipped baths using remote turbine installation (not mounted on the bath), grounding continuity must be tested
between the bath grounding terminal and the bath power supply. Failure to perform the grounding continuity test could
result in serious personal injury.
WATER LEAK TEST
• Once plumbing is fully installed and before beginning any other work, fill the ThermoMasseur®with water to overflow level and
wait 30 minutes. Check all plumbing hook-ups and bath for leaks. BainUltra®is not responsible for any water damage caused by
improper installation (see Warranty section).
IMPORTANT SAFETY INSTRUCTIONS (cont’d)
PERTAINING TO RISKS OF FIRE, ELECTROCUTION OR PERSONAL INJURY

3
ESSENCIA DROP-IN - installation
www.bainultra.com
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
ESSENCIA® COLLECTION - DROP-IN MODELS
INSTALLATION INSTRUCTIONS
PLUMBING
STANDARD PARTS – DESIGN 7438
OPTIONAL PARTS – OVAL 7236(1)
STANDARD PARTS - PLUMBING
ESSENCIA OVAL 7236
DESCRIPTION QTY
APlated drain clicker 1
BLocking nut 1
CStrainer 1
DRubber seal 1
EPVC Wired drain shoe 1
FPVC Piping 1-1/2’’ x 2’’ 1
GPVC Tee Connector 1-1/2’’ F-F 1
DESCRIPTION QTY
HPlated drain clicker 1
IStrainer 1
JRubber seal 1
KBrass drain shoe 1
L4 in. brass tailpiece 1
MNylon conic shaped seal for drain 1
NBrass nut 2
OBrass pipe 1-1/2” x 3” with flange 1
PNylon flat seal with flange 1
Q1-1/2” male threaded adaptor 1
(1) : Integrated Waste & Overflow
PARTS & TOOLS REQUIRED
J
I
L
H
F
A
B
C
D
E
M
N
O
P
Q
K
A’
B’
C’
D’
G
STANDARD PARTS - PLUMBING
ESSENCIA DESIGN 7438
DESCRIPTION QTY
A’ Plated drain clicker 1
B’ Strainer 1
C’ Rubber seal 1
D’ PVC drain shoe 1

4
ESSENCIA DROP-IN - installation
1 800 463.2187 Monday to Thursday from 8 a.m. to 8 p.m. (EST) .Friday from 8 a.m. to 5 p.m. (EST)
Printed in Canada. Copyright © April 2017 BainUltra Inc. All rights reserved. 45200653
ESSENCIA® COLLECTION - DROP-IN MODELS
INSTALLATION INSTRUCTIONS
B
C
D
A

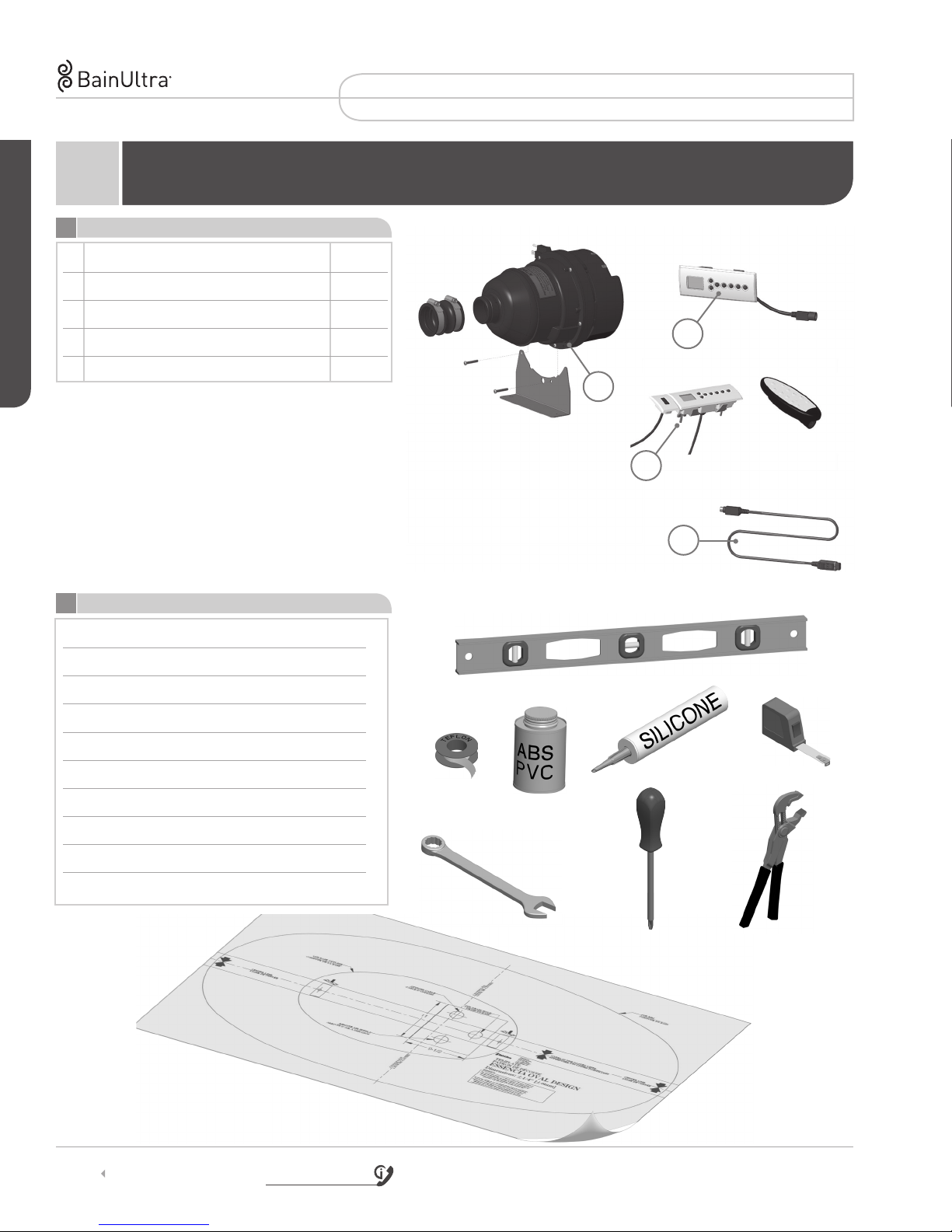

PARTS & TOOLS REQUIRED
STANDARD PARTS – THERMOMASSEUR®
DESCRIPTION QTY
A Turbine 1
B MiaPlus®Control (Design 7438) 1
C MiaMulti®Control (Oval 7236) 1
D 15’ extension cord 1
PARTS & TOOLS REQUIRED
Installation template
48-inch level
Measuring tape
Teflon tape
Caulking gun
Silicone
ABS & PVC Glue
Square/Phillips #2 Screwdriver
3/4” Ratchet
Adjustable clamps

5
ESSENCIA DROP-IN - installation
www.bainultra.com
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
ESSENCIA® COLLECTION - DROP-IN MODELS
INSTALLATION INSTRUCTIONS
SITE PREPARATION
PLUMBING
• See faucet manufacturer’s specifications for zoning
and plan water supply location accordingly.
• Position drain according to bath’s technical specifications.
WARNING
• Baths from Essencia®collection cannot be drilled
for faucet installation. Faucets must be freestanding,
wall-mounted models, or installed on podium box.
BEDDING
• Before installing, ensure that the floor underneath the bath can support 1500 lb (680 kg). The bath may sit directly
on the floor. The bathtub can also sit on a concrete bed. In that case, it is recommended to isolate the concrete between two
plastic sheets: one installed on the floor and the other under the bath.
SERVICE ACCESS AND VENTILATION
• A service access is necessary. Minimum dimensions are 22” x 18” (55 cm x46 cm)
to properly reach all electrical components of the system.
• An air vent is necessary. Minimum dimensions are: 2” x4” (5 cm x 10 cm)
to ensure proper functioning of the turbine.
There is a technical specification sheet for each BainUltra®ThermoMasseur®which includes information such as necessary
dimensions of site before installation.
If you do not already have the technical specifications, download from the BainUltra®Web site at: bainultra.com
or call us at: 1 800 463-2187.
FLOOR
1500 LB
(680 KG)

6
ESSENCIA DROP-IN - installation
1 800 463.2187 Monday to Thursday from 8 a.m. to 8 p.m. (EST) .Friday from 8 a.m. to 5 p.m. (EST)
Printed in Canada. Copyright © April 2017 BainUltra Inc. All rights reserved. 45200653
ESSENCIA® COLLECTION - DROP-IN MODELS
INSTALLATION INSTRUCTIONS

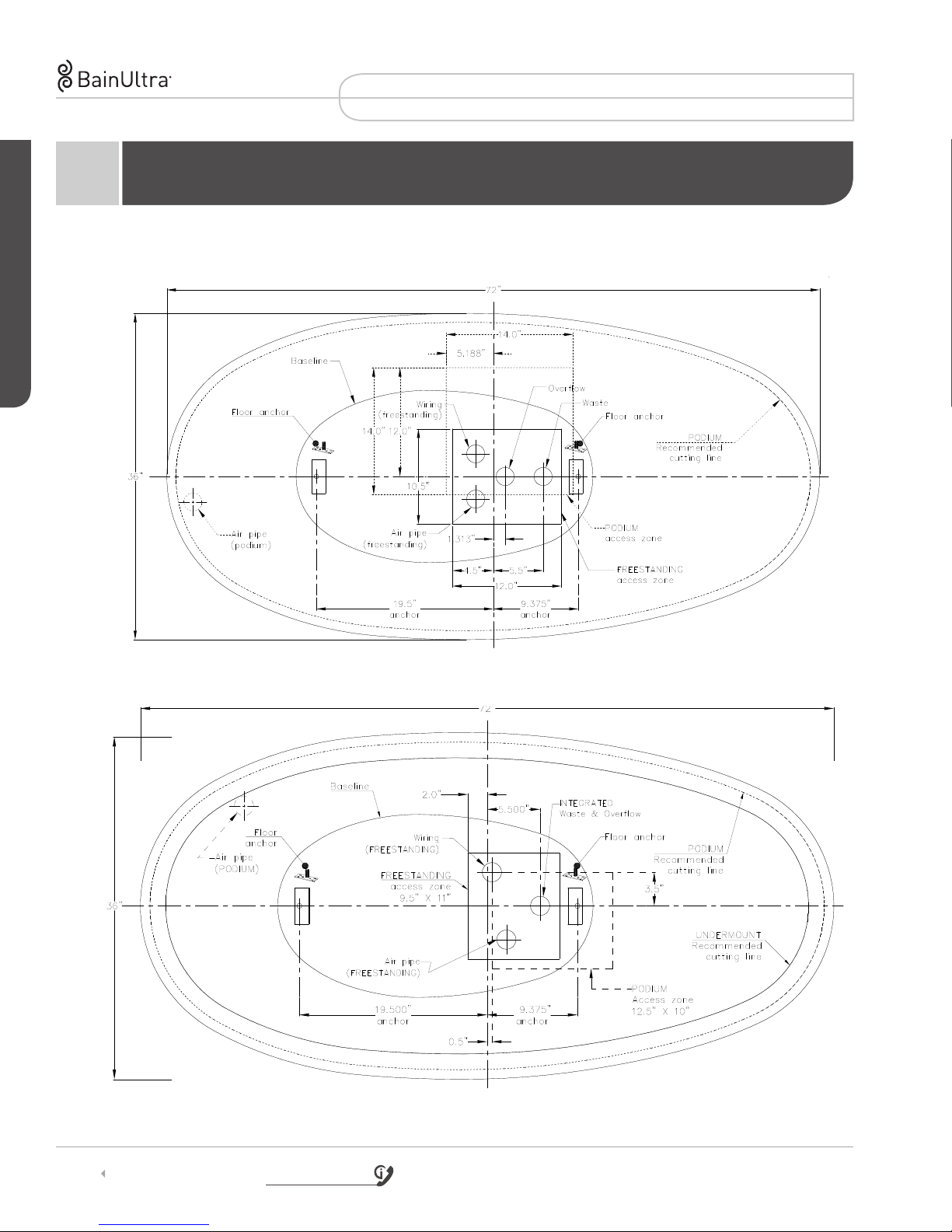

PLUMBING – INTALLATION TEMPLATES - FLOOR LAYOUT FOR PIPES AND ACCESS
ESSENCIA OVAL 7236
ESSENCIA DESIGN 7438

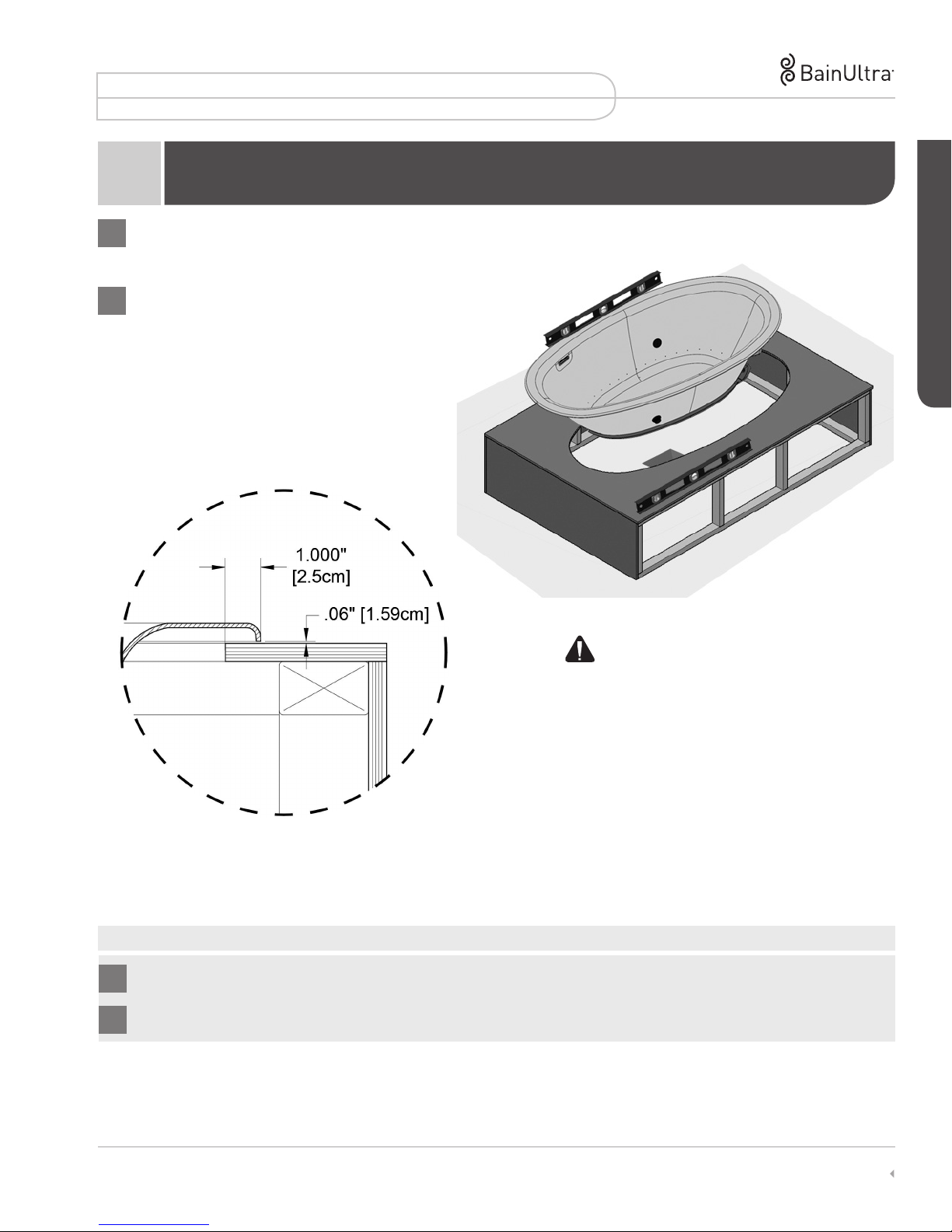

DROP-IN INSTALLATION WITH REMOTE MOUNTING OF TURBINE
ESSENCIA OVAL 7236 & DESIGN 7438
NOTE: Please refer to the Installation Template provided with your ESSENCIA bath. However, if it is missing, please contact us
at 1-800-463-2187 to order it.

7
ESSENCIA DROP-IN - installation
www.bainultra.com
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
ESSENCIA® COLLECTION - DROP-IN MODELS
INSTALLATION INSTRUCTIONS
1PLUMBING - ESSENCIA OVAL 7236
Assembly of the waste & overflow.
DROP-IN INSTALLATION WITH REMOTE MOUNTING OF TURBINE
ESSENCIA OVAL 7236 & DESIGN 7438
WARNING
• Refer to manufacturer’s instructions
supplied with packaging of components
for final assembly.

8
ESSENCIA DROP-IN - installation
1 800 463.2187 Monday to Thursday from 8 a.m. to 8 p.m. (EST) .Friday from 8 a.m. to 5 p.m. (EST)
Printed in Canada. Copyright © April 2017 BainUltra Inc. All rights reserved. 45200653
ESSENCIA® COLLECTION - DROP-IN MODELS
INSTALLATION INSTRUCTIONS
DROP-IN INSTALLATION WITH REMOTE MOUNTING OF TURBINE
ESSENCIA OVAL 7236 & DESIGN 7438

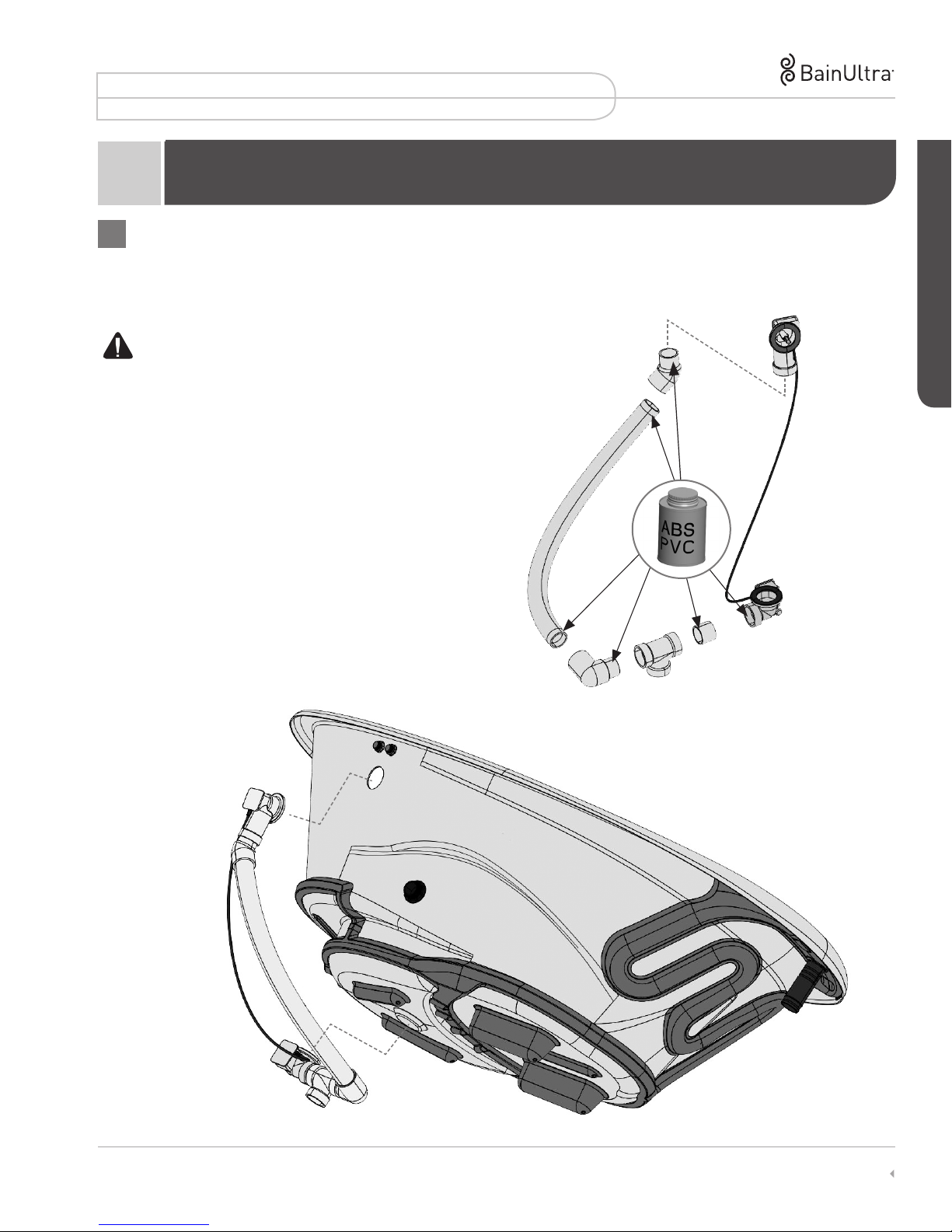

1PLUMBING - ESSENCIA DESIGN 7438
Assembly of the waste & overflow.
WARNING
• Refer to manufacturer’s instructions
supplied with packaging of components
for final assembly.

9
ESSENCIA DROP-IN - installation
www.bainultra.com
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
ESSENCIA® COLLECTION - DROP-IN MODELS
INSTALLATION INSTRUCTIONS
2DROP-IN CONSTRUCTION
HELPFUL TIP:
• Build the box according to the location
of the bath on the installation template.
DROP-IN INSTALLATION WITH REMOTE MOUNTING OF TURBINE
ESSENCIA OVAL 7236 & DESIGN 7438
Box
Structure
Installation
Template
IF NEEDED, make an opening of sufficient
dimension in the panel to allow air, electrical
& plumbing connections, access according
to dimensions on installation template.
Build the wooden box structure
(2’’ x 3’’ or better) taking into account
the thickness (plywood), finish (ceramic,
laminate, granite, marble, quartz, or other),
and the height of the bath.
WARNING
• Make sure that the structure
is levelled to the ground and square.

10
ESSENCIA DROP-IN - installation
1 800 463.2187 Monday to Thursday from 8 a.m. to 8 p.m. (EST) .Friday from 8 a.m. to 5 p.m. (EST)
Printed in Canada. Copyright © April 2017 BainUltra Inc. All rights reserved. 45200653
ESSENCIA® COLLECTION - DROP-IN MODELS
INSTALLATION INSTRUCTIONS
DROP-IN INSTALLATION WITH REMOTE MOUNTING OF TURBINE
ESSENCIA OVAL 7236 & DESIGN 7438

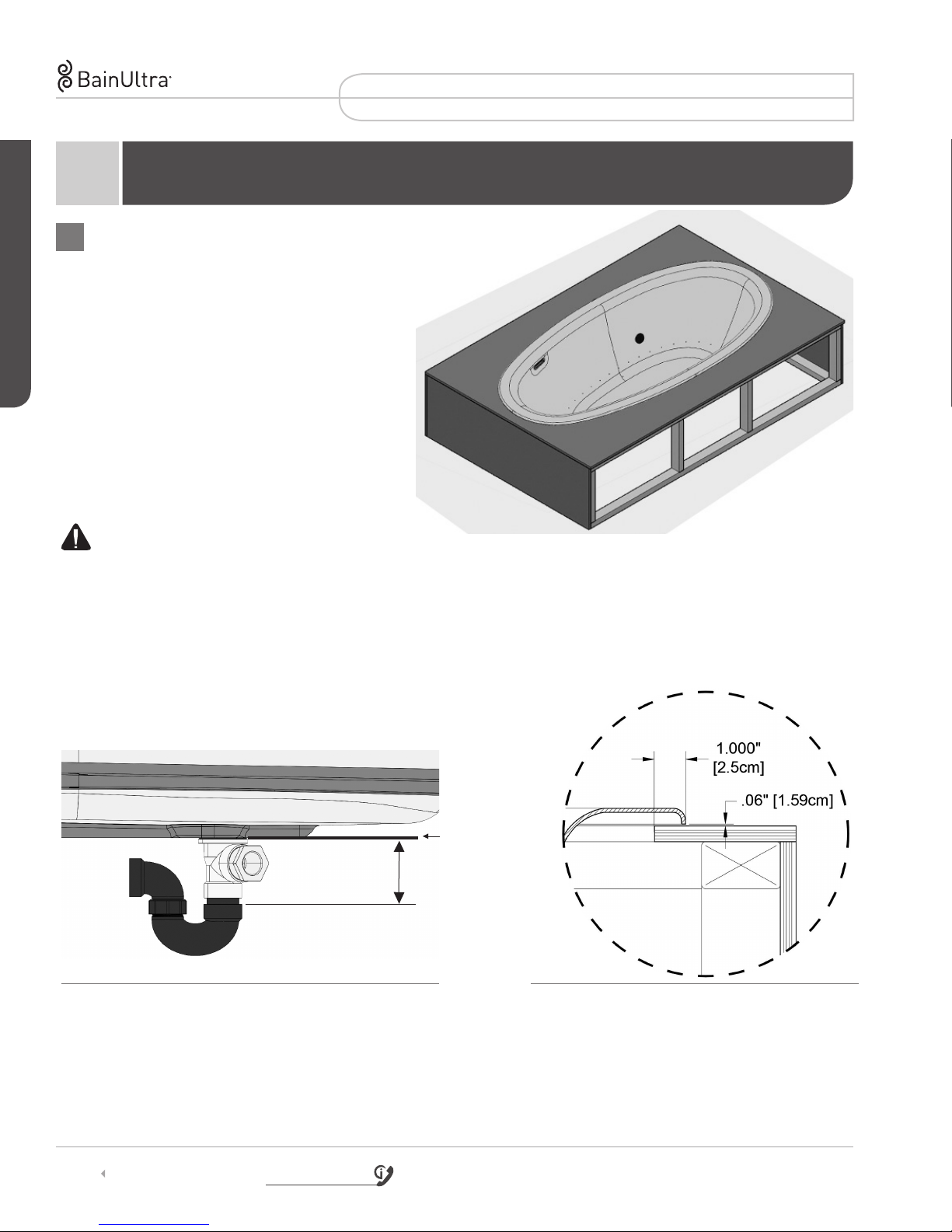

Deck of the bath
Plywoods
Wooden structure (2“x 3“)

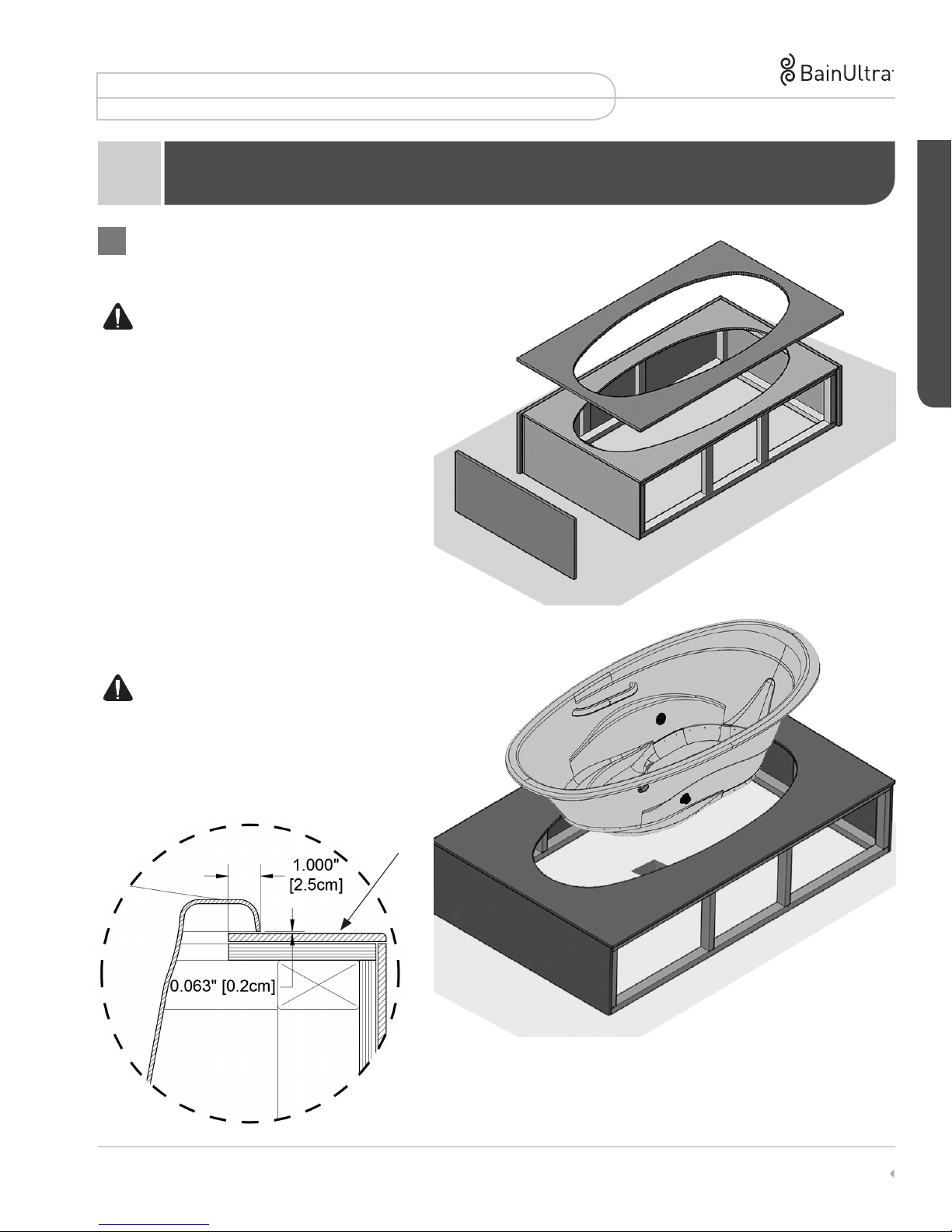

WARNING FOR DROP-IN ONLY
•Check the spacing from the bottom of the deck
to the top of the plywood panel to clear the thick-
ness of the finishing material plus a clearance
of at least 1/16” (0.2cm), considering the
thickness of the glue of the finishing. Adjust
the height of the bath to the floor if necessary.
• The bath is molded with a slope towards the
drain. If the bathtub is levelled according to bath
deck surface, the water will drain completely.

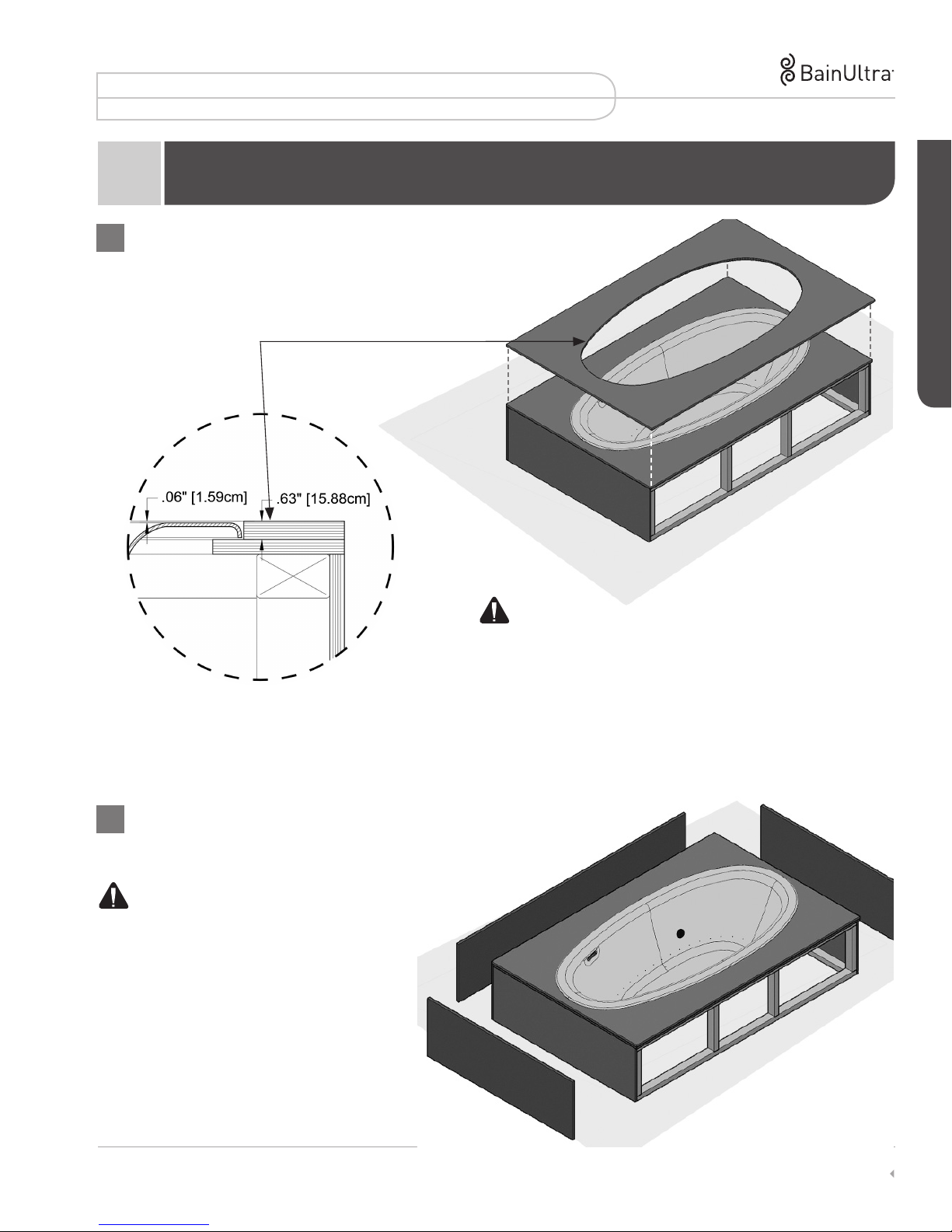

2DROP-IN – CONSTRUCTION (cont’d)
Fix INTERMEDIATE panels (plywood recommended)
on the sides and at the top.
Check the bath level with the ground and
its clearance with the opening on top of the
box. Use shims if necessary and attach them
to the ground.
WARNING
• Draw the outside contour of the bath on the interme-
diate top panel according to the “DROP-IN” cut line
drawn on the installation template
• Cut the intermediate top panel at 1” (2.5cm) inside the
outline of tub deck dimension.
• Keep an access for electrical & plumbing connections.

11
ESSENCIA DROP-IN - installation
www.bainultra.com
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
ESSENCIA® COLLECTION - DROP-IN MODELS
INSTALLATION INSTRUCTIONS
DROP-IN INSTALLATION WITH REMOTE MOUNTING OF TURBINE
ESSENCIA OVAL 7236 & DESIGN 7438
WARNING
• Cut the contour of the bath on the top panel
following the “DROP-IN” cut line drawn on
the installation template, at 1“ (2,5 cm) from
the outside edge of the bath area.
• Keep an access to perform electrical & plumbing
connections.
• Keep minimum 22”x 18” (55cmx 46cm)
access to perform electrical & plumbing
connections and facilitate repairs.
• An air intake of at least 2”x 4” (5cm x10 cm)
is necessary to ensure proper functioning
of the turbine.
WARNING
• Once the bath is placed on the floor, it is recom-
mended to have a clearance of 1/16” (0.2 cm)
between the deck of the bath and the top
of the box.
Reposition the bath in the box opening.
2DROP-IN CONSTRUCTION (cont’d)
Cover the edge and the contour of the box with the FINISH.
Finish

12
ESSENCIA DROP-IN - installation
1 800 463.2187 Monday to Thursday from 8 a.m. to 8 p.m. (EST) .Friday from 8 a.m. to 5 p.m. (EST)
Printed in Canada. Copyright © April 2017 BainUltra Inc. All rights reserved. 45200653
ESSENCIA® COLLECTION - DROP-IN MODELS
INSTALLATION INSTRUCTIONS
DROP-IN INSTALLATION WITH REMOTE MOUNTING OF TURBINE
ESSENCIA OVAL 7236 & DESIGN 7438
WARNING
• Leave the plastic film on the bath and place a drop-cloth a cover in the bath during installation.
• Connect the drain.
• Perform a leak test before completing the box installation.
• Once the bath is placed on the floor, it is recommended to leave a clearance of 1/16’’ (0.2cm)
between the deck surface of the bath and the top of the box.
•
Apply a bead of silicone on the contour of the bath to make sure the top of the box is sealed.
FOR NEXT STEPS, PLEASE REFER TO THE ESSENCIA – INSTALLATION INSTRUCTIONS MANUAL
2TURBINE & GEYSAIR INSTALLATION (FOR THERMOMASSEUR®)...........................................................PAGE 12
3ELECTRICAL WIRING OF OPTIONAL COMPONENTS ............................................................................PAGE 12
4BATH INSTALLATION
ESSENCIA OVAL 7236 ESSENCIA DESIGN 7438
5“ (13 cm)
minimum
4“ (10 cm)
minimum
Floor Surface

13
ESSENCIA DROP-IN - installation
www.bainultra.com
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
ESSENCIA® COLLECTION - DROP-IN MODELS
INSTALLATION INSTRUCTIONS
DROP-IN INSTALLATION WITH REMOTE MOUNTING OF TURBINE
ESSENCIA OVAL 7236 & DESIGN 7438
5ELECTRONIC CONTROL INSTALLATION – MIAPLUS®(DESIGN 7438) & MIAMULTI®(OVAL 7236) ..........PAGE 15
6REMOTE MOUNTING OF TURBINE......................................................................................................PAGE16
7REMOTE MOUNTING OF TURBINE - AIR PIPE (THERMOMASSEUR®).....................................................PAGE 17
7REMOTE MOUNTING OF TURBINE - ELECTRICAL CONNECTIONS (THERMOMASSEUR) ..........................PAGE17
8REMOTE MOUNTING OF TURBINE – ELECTRICAL CONNECTIONS OF OPTIONAL THERAPIES................PAGE 18
8REMOTE MOUNTING OF OPTIONAL THERAPIES (TUB ONLY) ..............................................................PAGE 19
ELECTRICAL DIAGRAMS...........................................................................................................PAGES 20 & 21
FOR NEXT STEPS, PLEASE REFER TO THE ESSENCIA – INSTALLATION INSTRUCTIONS MANUAL

14
ESSENCIA DROP-IN - installation
1 800 463.2187 Monday to Thursday from 8 a.m. to 8 p.m. (EST) .Friday from 8 a.m. to 5 p.m. (EST)
Printed in Canada. Copyright © April 2017 BainUltra Inc. All rights reserved. 45200653
ESSENCIA® COLLECTION - DROP-IN MODELS
INSTALLATION INSTRUCTIONS
DROP-IN INSTALLATION WITH FACTORY INSTALLED TURBINE
ESSENCIA OVAL 7236
A : Turbine
B : WarmTouchShell®
C : Chromatherapy (LED)
D : MiaPlus®
E : MiaMulti®
F : AromaCloud®
C
A
D
E
F
B
FOR ELECTRICAL DIAGRAMS, SEE: ESSENCIA – INSTALLATION INSTRUCTIONS MANUAL, PAGES 20 & 21.
4FACTORY INSTALLED TURBINE – ELECTRICAL WIRING – THERMOMASSEUR®
Junction box
Canada
Junction box
Canada
TO GFCI Outlet
United States
TO GFCI Outlet
United States

15
ESSENCIA DROP-IN - installation
www.bainultra.com
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
ESSENCIA® COLLECTION - DROP-IN MODELS
INSTALLATION INSTRUCTIONS
UNDERMOUNT INSTALLATION WITH REMOTE MOUNTING OF TURBINE
ESSENCIA DESIGN 7438
2BOX CONSTRUCTION (PAGES 9 & 10)
3PRELIMINARY ADJUSTMENT OF BATH
• Place the bath in the box opening.
• Check the bath level with the ground
and its clearance with the opening on top
of the box. Use shims if necessary
and attach them to the ground.
WARNING
•Check the spacing from the bottom of the deck
to the top of the plywood panel to clear
the thickness of the finishing material plus a
clearance of at least 1/16” (0.2cm), considering
the thickness of the glue for the finishing. Adjust
the height of the bath to the floor if necessary.
• Proceed with a leak test before completing
installation of the box.
2TURBINE & GEYSAIR INSTALLATION (FOR THERMOMASSEUR®) ..........................................................PAGE 12
3ELECTRICAL WIRING OF OPTIONAL COMPONENTS ............................................................................PAGE 12
FOR NEXT STEPS, PLEASE REFER TO THE ESSENCIA – INSTALLATION INSTRUCTIONS MANUAL

16
ESSENCIA DROP-IN - installation
1 800 463.2187 Monday to Thursday from 8 a.m. to 8 p.m. (EST) .Friday from 8 a.m. to 5 p.m. (EST)
Printed in Canada. Copyright © April 2017 BainUltra Inc. All rights reserved. 45200653
ESSENCIA® COLLECTION - DROP-IN MODELS
INSTALLATION INSTRUCTIONS
UNDERMOUNT INSTALLATION WITH REMOTE MOUNTING OF TURBINE
ESSENCIA DESIGN 7438
4BATH FINAL INSTALLATION
Place the bath in the box opening for the
final installation of the bath on the floor.
A – ESSENCIA DESIGN 7438 – DRAIN CONNECTION B – DECK OF THE BATH CLEARANCE
4“ (10 cm)
minimum
WARNING
• Leave the plastic film on the bath and place a drop-cloth a cover in the bath during installation.
• Connect the drain (A).
• Perform a leak test before completing the box installation.
• Once the bath is placed on the floor, it is recommended to leave a clearance of 1/16’’ (0.2cm) between the deck surface of the
bath and the top of the box (B).
•
Apply a bead of silicone on the contour of the bath to make sure the top of the box is sealed.
Floor Surface

17
ESSENCIA DROP-IN - installation
www.bainultra.com
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
ESSENCIA® COLLECTION - DROP-IN MODELS
INSTALLATION INSTRUCTIONS
UNDERMOUNT INSTALLATION WITH REMOTE MOUNTING OF TURBINE
ESSENCIA DESIGN 7438
5BATH UNDERMOUNT – BOX FINISH
WARNING
• Leave the plastic film on the bath and place a drop-cloth
a cover in the bath during installation.
• Cut the bath contour on the support panel according to
the EXTERIOR contour line drawn on the installation template
AND LEAVE an additional 1/4” (0.6cm) of clearance.
• Check that the space left on top of the support panel leaves a
1/16’’ (0.2 cm) clearance with the top.
WARNING
• Keep minimum 22”x 18” (55cmx 46cm)
access to perform electrical & plumbing
connections and facilitate repairs.
• An air intake of at least 2“x 4” (5cmx 10cm)
is necessary to ensure proper functioning
of the turbine.
5BATH UNDERMOUNT – SUPPORT FINISH
Add a full panel or sections at the perimeter
of the bath to provide a support to the finish coating.

18
ESSENCIA DROP-IN - installation
1 800 463.2187 Monday to Thursday from 8 a.m. to 8 p.m. (EST) .Friday from 8 a.m. to 5 p.m. (EST)
Printed in Canada. Copyright © April 2017 BainUltra Inc. All rights reserved. 45200653
ESSENCIA® COLLECTION - DROP-IN MODELS
INSTALLATION INSTRUCTIONS
UNDERMOUNT INSTALLATION WITH REMOTE MOUNTING OF TURBINE
ESSENCIA DESIGN 7438
5BATH UNDERMOUNT – BOX FINISH (cont’d)
Apply the finish coating on top
while opening the contour of the bath.
WARNING
• Cut the contour of the bath on the top panel
following the UNDERMOUNT line of the
installation template.
•
Apply a bead of silicone on the contour
of the bath to make sure the bottom
of the box is sealed.
5ELECTRONIC CONTROL INSTALLATION – MIAPLUS®& MIAMULTI®(OPTIONAL) LOCATION ..................PAGE 15
6REMOTE MOUNTING OF TURBINE ......................................................................................................PAGE16
7REMOTE MOUNTING OF TURBINE - AIR PIPE (THERMOMASSEUR®)...................................................PAGE 17
7REMOTE MOUNTING OF TURBINE - ELECTRICAL CONNECTIONS (THERMOMASSEUR®)......................PAGE17
8
REMOTE MOUNTING OF TURBINE – ELECTRICAL CONNECTIONS OF OPTIONAL THERAPIES ............PAGE 18
8REMOTE MOUNTING OF OPTIONAL THERAPIES (TUB ONLY) – ELECTRICAL CONNECTIONS..............PAGE 19
ELECTRICAL DIAGRAMS ..........................................................................................................PAGES 20 & 21
FOR NEXT STEPS, PLEASE REFER TO THE ESSENCIA – INSTALLATION INSTRUCTIONS MANUAL
