BainUltra GEYSAIR Installation and operating instructions

TM 

IMporTanT InforMaTIon for The InsTaller
and The owner
 TherMoMasseur® wITh GeysaIrTM InsTallaTIon


GEYSAIRTM ADDENDUM TO THE OWNER’S MANUAL
3
www.bainultra.com
Printed in Canada. Copyright © September 2012 BainUltra Inc. All rights reserved. 45100169
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
table of contents
SAFETY INSTRUCTIONS 4
THERMOMASSEUR®
AYOURA® FREESTANDING 5
AMMA® FREESTANDING 6
BALNEO® - NAOS & SANOS - INSTALLATION 7 - 8
BALNEO® - CELLA - INSTALLATION 9
ORIGAMI FREESTANDING INSTALLATION 10 - 11
ESSENCIA OVAL 7236 - PARTS AND TOOLS - INSTALLATION 12 - 13
ESSENCIA RECTANGULAR 6838 - PARTS AND TOOLS - INSTALLATION 14 - 15
TURBINE

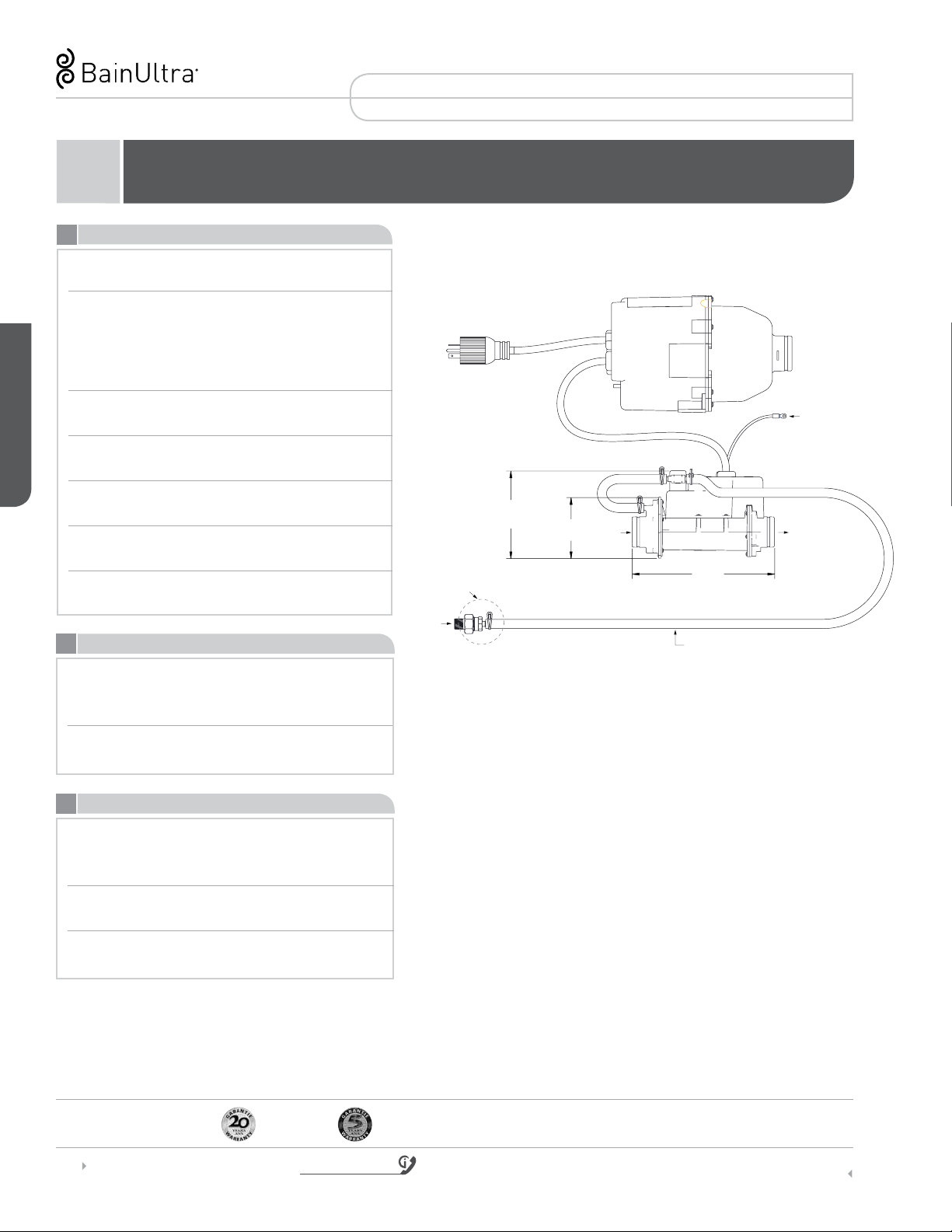

TECHNICAL SPECIFICATIONS 16
ELECTRICAL INSTALLATION & PLUMBING 17 - 19
REMOTE MOUNTING 20
THE MIA® SERIES CONTROLS
MIAPLUS - USER GUIDE 21 - 22
TROUBLESHOOTING 23
WARRANTY 24
956, chemin Olivier
Saint-Nicolas (Québec)
G7A 2N1
T 418.831.7701 1.800.463.2187
F 418.831.6623 1.800.382.8587 [email protected]

4 Supercede page 4 of Owner’s Manual
GEYSAIRTM ADDENDUM TO THE OWNER’S MANUAL | SAFETY INSTRUCTIONS
InstRUctIons PeRtaInInG to a RIsK of fIRe,
electRocUtIon, oR PeRsonal InJURY
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
• Risk of hyperthermia; people using medication and/or having an adverse medical history should consult a physician before using a
Hydro-thermo massageTM bathtub equipped with a heater.
• Risk of hyperthermia and possible drowning: do not use a Hydro-thermo massageTM bathtub equipped with heater immediately follow-
ing strenuous exercise.
• Risk of fetal injury; pregnant or possibly pregnant women should consult a physician before using a Hydro-thermo massageTM bathtub
equipped with a heater.
• Risk of accidental injury or drowning; do not use drugs or alcohol before or during the use of a Hydro-thermo massageTM bathtub
equipped with a heater.
• Use this unit only for its intended purposes or as described in this manual. Use only attachments recommended by the manufacturer.
• Risk of hyperthermia and possible drowning. water temperature in excess of 100ºF (38ºC) may be injurious to your health. Check and
adjust temperature before use.
• To reduce the risk of injury, as with any other conventional bath, do not allow children or physically impaired people to use this unit
unless they are closely supervised at all times.
• To avoid injury, exercise care when entering or exiting the Thermomasseur®.
• The Geysair (option) should always be connected to the hot water intake. If it is not the case, then, the Geysair option should be
deactivated via the bath control.
RISK OF ELECTRICAL SHOCK
• Disconnect electric power before servicing.
• Do not permit electrical appliances (hair dryer, lamp, telephone, radio, television, etc.) within 5’ (1.5 m) of the Thermomasseur®.
• Before using the Thermomasseur®, its exterior construction (podium or skirting) should be finished so that a bather cannot accidentally
come in contact with electrical components (turbine and power module).
• For indoor use only.
ELECTRICAL CONNECTIONS:
• Never drop or insert objects into any openings.
• The Thermomasseur® must be connected only to a supply circuit that is protected by A 15 amp class A ground fault circuit interrupter
(GFCI) for baths with 1 heated backrest and A 20 amp (GFCI) for baths with Geysair or for baths with 2 heated backrests of the
Amma® series. This interrupter is supplied by a certified electrician and must be tested on a regular basis in accordance with manufac-
turer’s instructions. The GFCI ground must be connected. If defective, do not use the Thermomasseur®. Disconnect immediately and call
a certified electrician.
• Use 12 AWG (or greater) copper conductors that resist temperatures of at least 194ºF (90ºC).
• Canada only: for permanently connected units. A green-colored terminal (or a wire connector marked g, gr, ground or grounding) is
provided within the terminal compartment (not applicable if unit supplied with an electric plug). To reduce the risk of electrocution,
connect this terminal or connector to the grounding terminal of your electric service or supply panel with conductor equivalent in size
to the circuit conductors supplying the equipment and be 12 AWG or more.
• All electrical connections must be carried out by a certified electrician and must respect federal, provincial/state, and localbuilding
codes and regulations.
• Install in accordance with manufacturer’s installation instructions.
• For Geysair-equipped baths using remote turbine installation (not mounted on the bath), grounding continuity must be tested
between the bath grounding terminal and the bath power supply. Failure to perform the grounding continuity test could
result in serious personal injury.
WARNING
1 800 463.2187 From 8 a.m. to 8 p.m. Monday to Thursday (EST) From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © September 2012 BainUltra Inc. All rights reserved. 45100169
Some products, specifications, and services mentioned in this manual are described
in pending patent applications or are protected by patents.

THERMOMASSEUR® | GEYSAIRTM ADDENDUM TO THE OWNER’S MANUAL
www.bainultra.com
Printed in Canada. Copyright © September 2012 BainUltra Inc. All rights reserved. 45100169
Some products, specifications, and services mentioned in this manual are described
in pending patent applications or are protected by patents.
THERMOMASSEUR®
Supersedes page 20 of Owner’s Manual 5

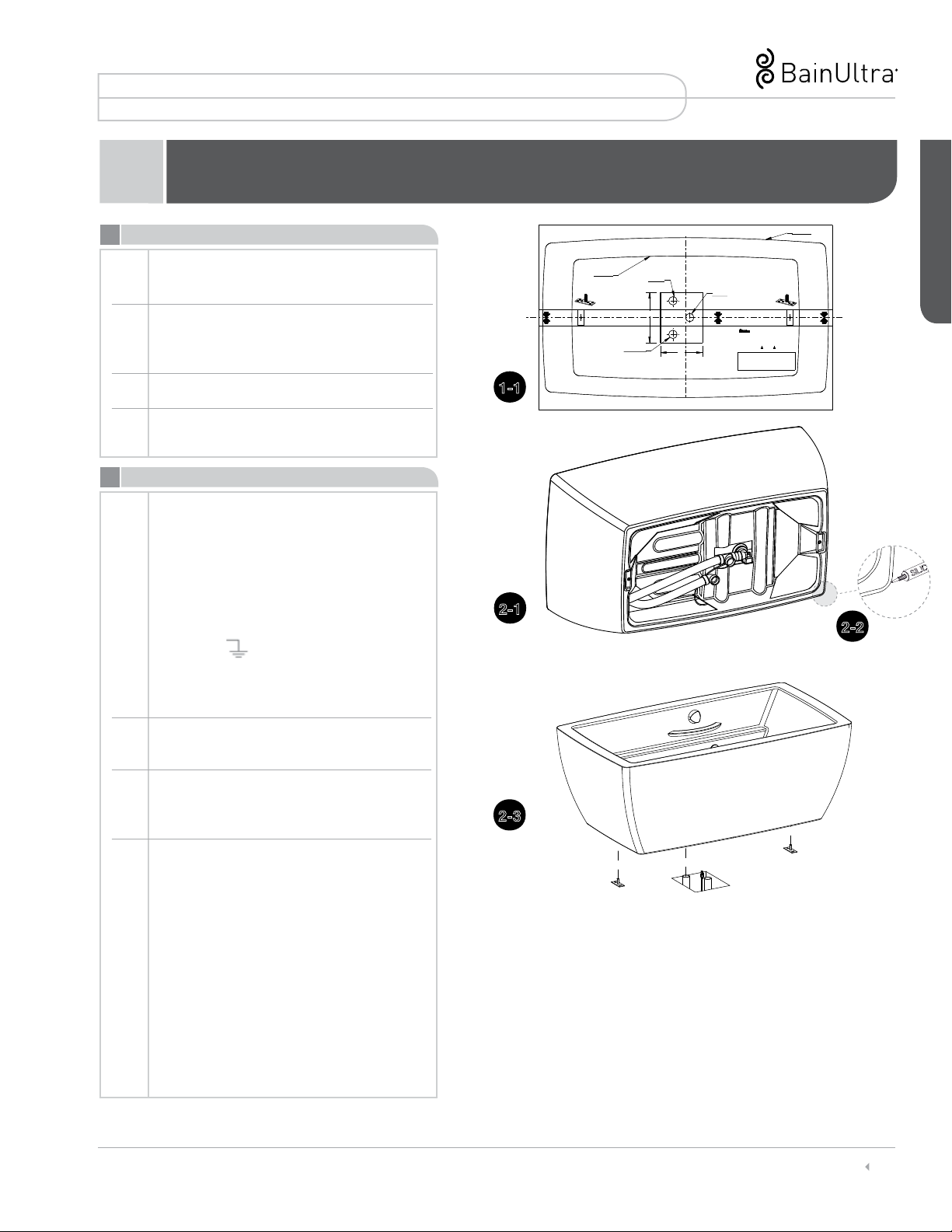

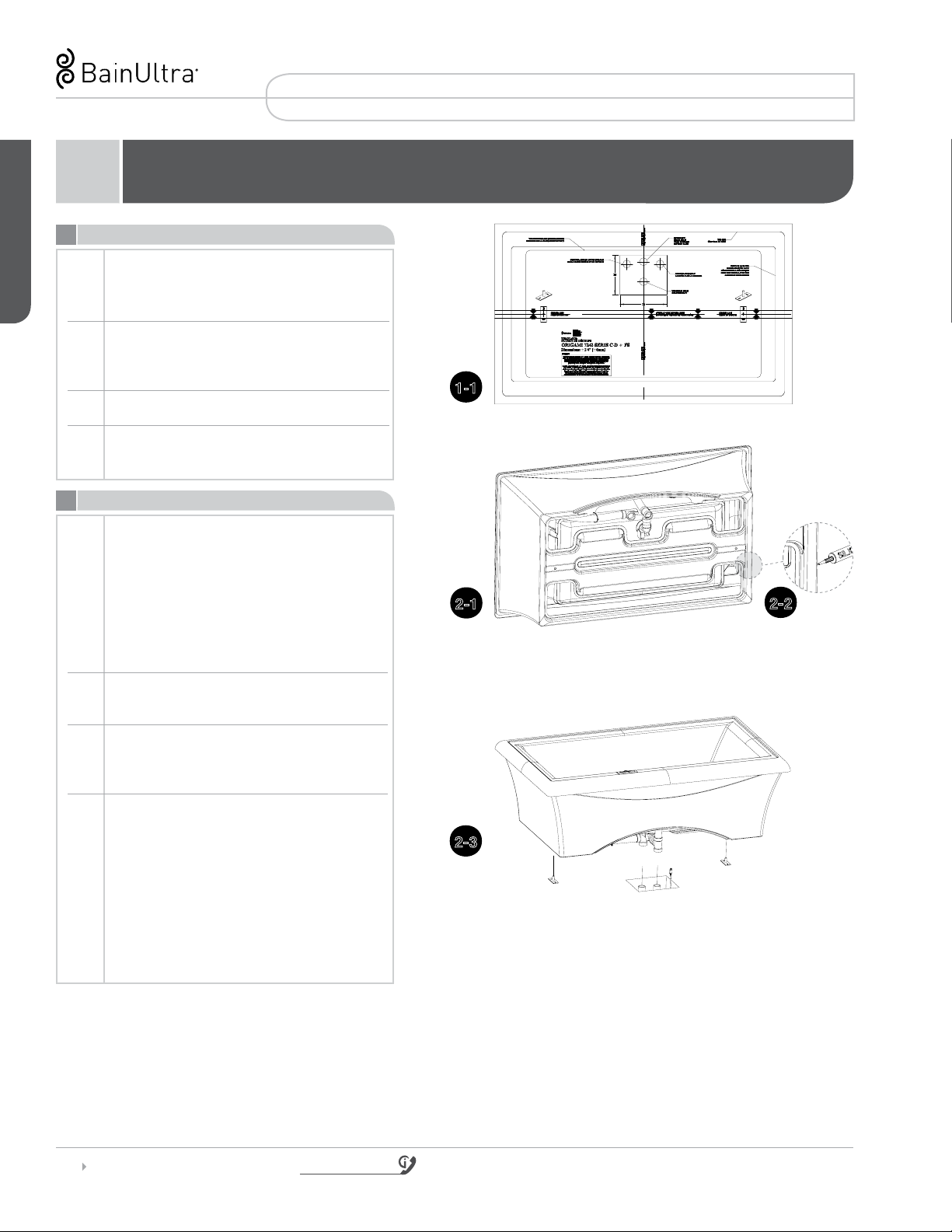

aYoURa® fReestandInG
INSTALLATION
1. BATH SITE
2. INSTALLATION
1-1 Once floor is prepared and level and
recess is cleared around the drain, place
installation template on floor in the
chosen location.
1-2 Align template overflow drain hole with
floor drain and make sure recess around
drain matches required measurements.
1-3 Mark anchor screw entry points on the
floor.
1-4 Remove template and screw anchors
where specified.
TEMPLATE:
AYOURA
Dimensions: ±1/4" [±6mm]
12"
20"
1-1
1-2
2-3
AYOURA® FREESTANDING - INSTALLATION
2-1 Unscrew both screws on access panel
under the lip and gently remove panel.
2-2 Complete installation of bath drain. Make
sure it is watertight.
2-3 Install bath on anchors.
2-4 Connect drain and water supply and
finish wiring.
2-5 For Geysair-equipped baths, the Geysair
unit must be connected to the hot water
supply with a 3/8 male compression or
1/2” male NPT hose bibb. A T and a valve
(not supplied) must be installed at the
hot water intake.
2-6 Reinstall access panel.

GEYSAIRTM ADDENDUM TO THE OWNER’S MANUAL | THERMOMASSEUR®
1 800 463.2187 From 8 a.m. to 8 p.m. Monday to Thursday (EST) From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © September 2012 BainUltra Inc. All rights reserved. 45100169
Some products, specifications, and services mentioned in this manual are described
in pending patent applications or are protected by patents.
6 Supersedes page 21 of Owner’s Manual

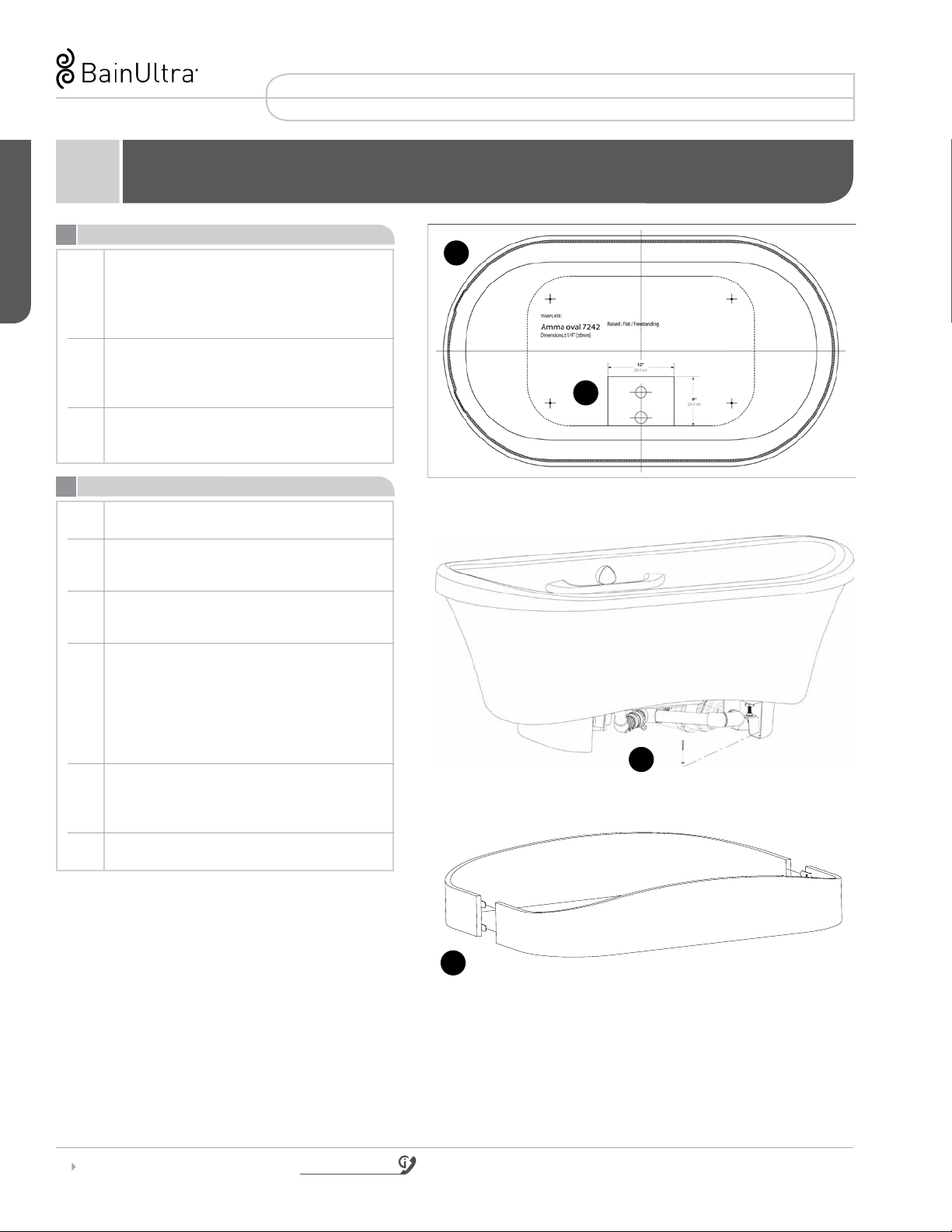

AMMA® FREESTANDING - INSTALLATION
amma® fReestandInG
INSTALLATION
1. BATH SITE
2. INSTALLATION
2-5
1-1
1-2
2-6
1-1 Once floor is prepared and level and
recess is cleared around the drain, place
installation template on floor in the chosen
location.
1-2 Align the template overflow with the floor
drain and ensure that the recess around
the drain is properly measured.
1-3 Use a 3/16” bit to drill anchor screw entry
points.
2-1 Mount drain on bath. Ensure watertightness.
2-2 Position the bath, aligning anchor holes
with anchor screw entry points.
2-3 Connect bath drain and water supply,
and complete electrical wiring.
2-4 For Geysair-equipped baths, the Geysair
unit must be connected to the hot water
supply with a 3/8 male compression or
1/2” male NPT hose bibb. A T and a valve
(not supplied) must be installed at the
hot water intake.
2-5 Once the bath is in place and all connections
completed, secure bath in place using
washers and screws supplied.
2-6 Install base.
THERMOMASSEUR®

THERMOMASSEUR® | GEYSAIRTM ADDENDUM TO THE OWNER’S MANUAL
THERMOMASSEUR®
www.bainultra.com
Printed in Canada. Copyright © September 2012 BainUltra Inc. All rights reserved. 45100169
Some products, specifications, and services mentioned in this manual are described
in pending patent applications or are protected by patents.
Supersedes page 22 of Owner’s Manual 7
2. INSTALLATION
balneo® - naos & sanos
INSTALLATION
1. BATH SITE
1-1 Once the floor has been finished and is
perfectly level, place ThermoMasseur® in
the exact chosen location. Trace the outline
of the bath with an erasable marker.
1-2 Remove the ThermoMasseur® and carefully
place it upside down on a blanket or
corrugated cardboard (ex. the box in which
it was delivered).
1-3 On the floor, determine by referring to
measurements taken underneath the bath,
the exact location of the drain, the air pipe,
and the two anchoring points at each end
of the bath.
BALNEO® - NAOS & SANOS - INSTALLATION
2-1
2-2
2-3
1-1
Horizontal – Drain
Horizontal –
Anchoring
Point
Vertical –
Drain
Vertical –
Anchoring
Point
Vertical –
Air Intake
Pipe
1- 3
TOP VIEW
2-1 Install the drain and overflow set on the
bath and the first section of the air intake
pipe (1 1/2’’ ABS) under the floor.
2-2 Apply a silicone joint to the base rim.
2-3 Put the ThermoMasseur® in place and
put pipes through the floor, ensuring
bath is aligned with anchoring points.
For Geysair-equipped baths, also run
the water hose and electrical wiring
through the floor.
2-4 Wipe off excess silicone immediately.

GEYSAIRTM ADDENDUM TO THE OWNER’S MANUAL | THERMOMASSEUR®
1 800 463.2187 From 8 a.m. to 8 p.m. Monday to Thursday (EST) From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © September 2012 BainUltra Inc. All rights reserved. 45100169
Some products, specifications, and services mentioned in this manual are described
in pending patent applications or are protected by patents.
THERMOMASSEUR®
8 Supersedes page 22 of Owner’s Manual
2. INSTALLATION (cont’d)
Once plumbing is fully installed and before beginning
any other work, fill the ThermoMasseur® to overflow
and wait 30 minutes. Check all plumbing hook-ups
and bath for leaks. BainUltra® is not responsible for
any water damage caused by improper installation
(see Warranty section).
Install turbine and InMix power module connections
according to specifications outlined in the MIAMULTI®
ELECTRICAL INSTALLATION - TURBINE section.
LEAK TEST
ELECTRICITY
balneo® - naos & sanos
INSTALLATION
NOTES • Since these models sit directly on the floor, the overflow drain pipe opening is factory-drilled.
• To installation of the Naos or Sanos on a concrete slab with no access below for air entry to the
bath: a hole of 1 5/8 inch (4.1 cm) in diameter must be drilled into the bath skirt to allow air
supply to the bath. Important: Do not drill above height of existing hole in the skirt intended to
connect drain to overflow.
BALNEO® - NAOS & SANOS - INSTALLATION

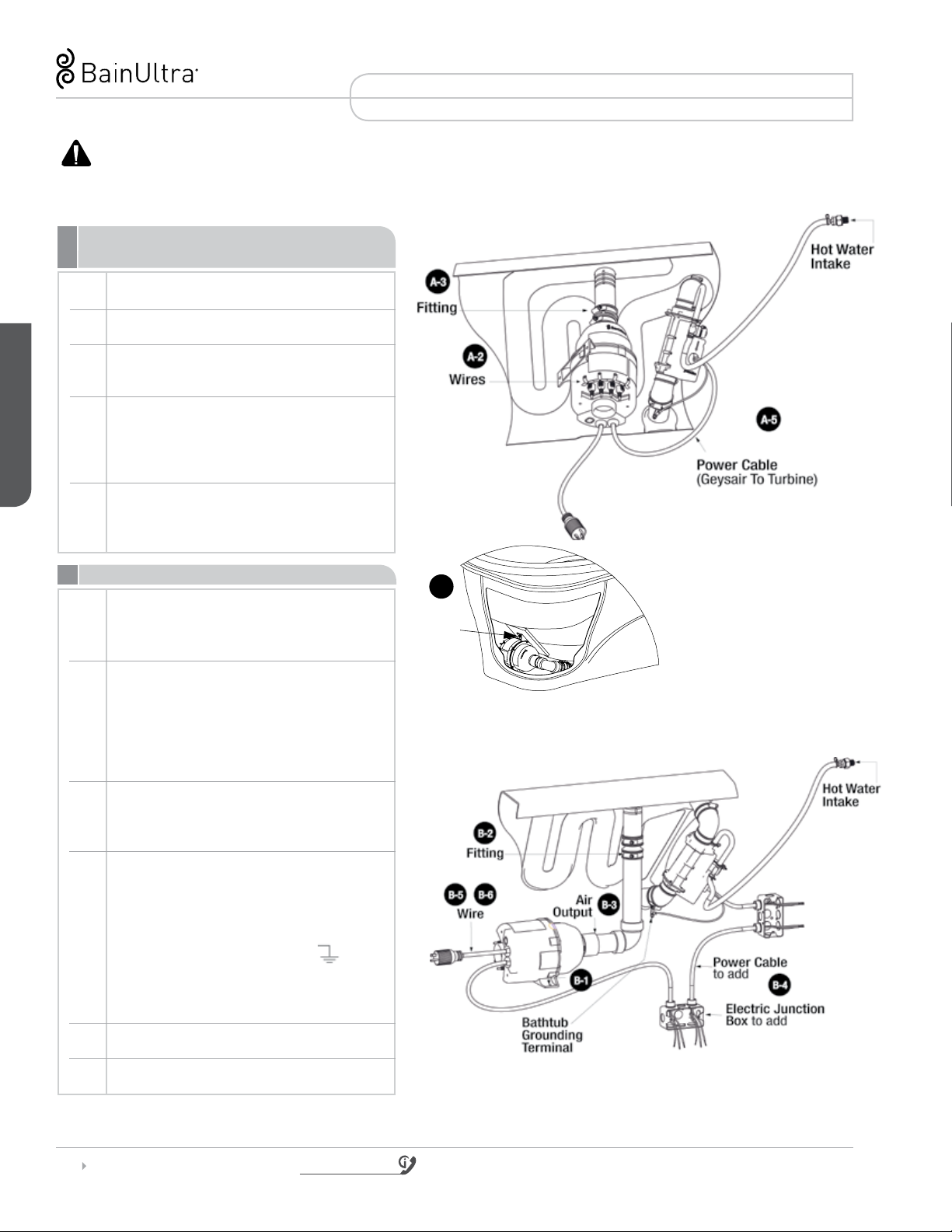

2-5 For Geysair-equipped baths, connect
the Geysair electrical wire supplied (orange
label) to the turbine wire (also marked with
an orange label) in the junction box. Test
for grounding continuity between the
bath grounding terminal
and the
bath power supply. Failure to perform
the grounding continuity test could
result in serious personal injury.
2-6 For Geysair-equipped baths, the Geysair
unit must be connected to the hot water
supply with a 3/8 male compression or
1/2“ male NPT hose bibb. A T and a valve
(not supplied) must be installed at the
hot water intake.

THERMOMASSEUR® | GEYSAIRTM ADDENDUM TO THE OWNER’S MANUAL
www.bainultra.com
Printed in Canada. Copyright © September 2012 BainUltra Inc. All rights reserved. 45100169
Some products, specifications, and services mentioned in this manual are described
in pending patent applications or are protected by patents.
THERMOMASSEUR®
Supersedes page 23 of Owner’s Manual 9

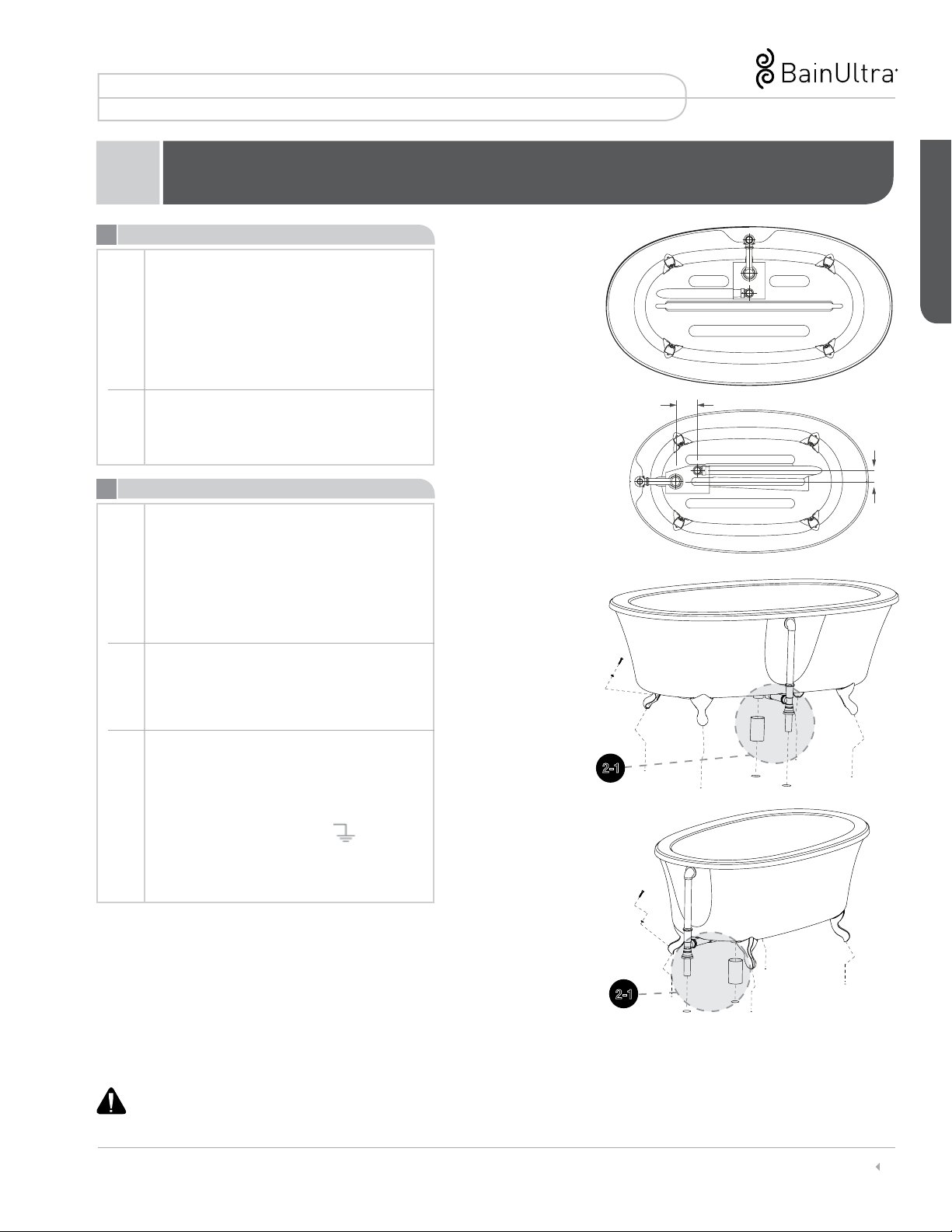

balneo® - cella
INSTALLATION
1. BATH SITE
2. INSTALLATION
IMPORTANT • Do not remove the protective plastic film from the bath and place a drop-cloth in the Thermomasseur®
during installation to protect the acrylic.
• The Thermomasseur® must be secured to the floor.
2 3/4"
[7 cm]
5 1/2" [14 cm]
2-1
2-1
Cella
Cella 6036
Cella
Cella 6036
1-1 Once the floor has been finished and is
perfectly level, determine the exact location
of the ThermoMasseur®. Mark the following
on the floor:
a) position of the four feet;
b) holes to be drilled for the drain and air
intake for the turbine.
1-2 Drill the four holes for the feet with a
3/16’’ drill bit and the drain and air intake
openings with a 2’’ hole saw.
BALNEO® - CELLA - INSTALLATION
• Balneo® series baths cannot be drilled for faucet installation. Faucets must be freestanding or
wall-mounted models.
WARNING
2-1 Install the drain and overflow set on the
bath and the first section of the air intake
pipe (1 1/2’’ ABS) under the floor. Cover
the ABS pipe with pipe concealer
(included). For Geysair-equipped baths,
also run the water hose and wiring
through the pipe concealer.
2-2 Once the ThermoMasseur® is in place
with piping installed in the floor, secure
the four feet with screws and washers
provided. (A-2)

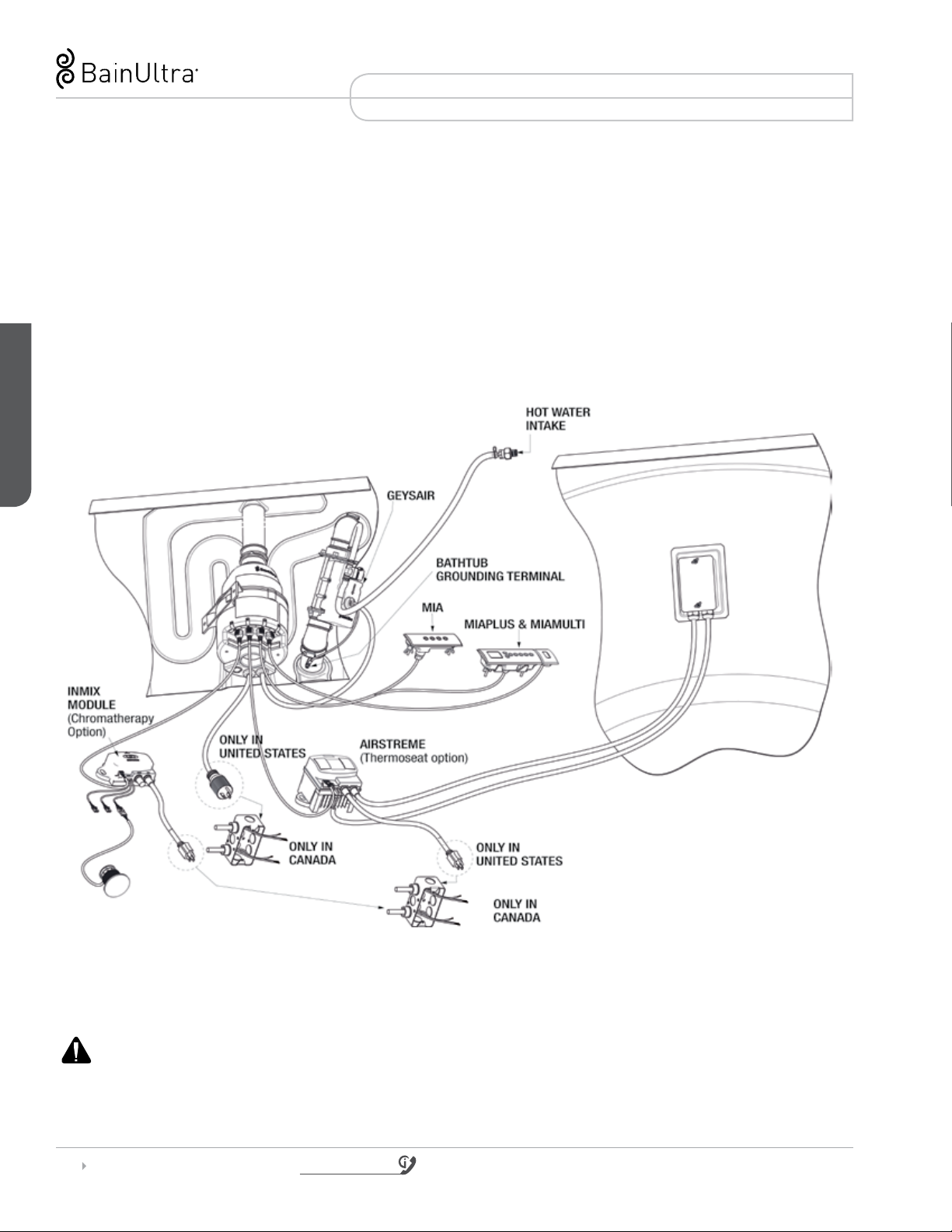

2-3 For Geysair-equipped baths, connect the
Geysair electrical wire supplied (orange
label) to the turbine wire (also marked with
an orange label) in the junction box. Test
for grounding continuity between the
bath grounding terminal
and the
bath power supply. Failure to perform
the grounding continuity test could
result in serious personal injury.

GEYSAIRTM ADDENDUM TO THE OWNER’S MANUAL | THERMOMASSEUR®
1 800 463.2187 From 8 a.m. to 8 p.m. Monday to Thursday (EST) From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © September 2012 BainUltra Inc. All rights reserved. 45100169
Some products, specifications, and services mentioned in this manual are described
in pending patent applications or are protected by patents.
THERMOMASSEUR®
10 Supersedes page 25 of Owner’s Manual
ORIGAMI FREESTANDING DESIGN SERIES - INSTALLATION
2. INSTALLATION
1. LOCATION
oRIGamI fReestandInG desIGn seRIes
INSTALLATION
1-1
2-1 2-3 2-62-2
1-1
2-1
2-3 2-62-2
1-1 2-1
2-3
2-62-2
1-1 2-1 2-3 2-6
2-2
2-1 Assemble the drain on the bathtub. Use
the flexible 1 1/2” pipe provided for the
junction between the overflow and the
T-joint. Ensure watertightness. This
operation is much easier to complete
when the bathtub rests on its side. Place a
cover or protective cardboard on the floor
before positioning the bathtub on its side.
2-2 Apply a joint of silicone under the edge
of the base of the bathtub.
2-3 Install the bathtub on the anchor points
fastened to the floor and immediately wipe
away any excess silicone. Connect the drain.
2-4 Install the turbine according to the
instructions in the TURBINE – DISTANCE
INSTALLATION section of the manual.
The air inlet is located to the left of the
bathtub drain and, ifapplicable, control
and option connection cables to the right.
Connect control and option cables
if applicable. For Geysair-equipped
baths, also run the water hose and
electrical wiring through the floor.
1-1 Once the compartment around the drain is
completed in the floor, place the installation
template on the ground at the chosen location.
1-2 Align the position of the overflow drain with
the floor drain and ensure that the compart-
ment size corresponds to requirements.
1-3 Mark the location of the anchor point screws.
1-4 Remove the installation template and screw
in the anchor points in the marked locations.

THERMOMASSEUR® | GEYSAIRTM ADDENDUM TO THE OWNER’S MANUAL
www.bainultra.com
Printed in Canada. Copyright © September 2012 BainUltra Inc. All rights reserved. 45100169
Some products, specifications, and services mentioned in this manual are described
in pending patent applications or are protected by patents.
THERMOMASSEUR®
Supersedes page 25 of Owner’s Manual 11
ORIGAMI FREESTANDING DESIGN SERIES - INSTALLATION
2. INSTALLATION (cont’d)
NOTES • To install the Origami Freestanding Design Series
on a concrete slab with no place for the passage
of the air inlet pipe to the bathtub: drill a hole
1 5/8 inches in diameter in the skirt. IMPORTANT:
drill the hole 1 1/2 inches above floor level and
protect the bathtub with a piece of wood placed
behind the location to be drilled.
• If a control or options are installed on the bathtub,
a second pipe may be required through which to
feed the cables.
oRIGamI fReestandInG desIGn seRIes
INSTALLATION
3/4
1-1 2-1 2-3 2-6
2-7
2-2
2-5 For Geysair-equipped baths, connect
the Geysair electrical wire supplied (orange
label) to the turbine wire (also marked with
an orange label) in the junction box. Test
for grounding continuity between the
bath grounding terminal
and the
bath power supply. Failure to perform the
grounding continuity test could result
in serious personal injury.
2-6 Use a level or ruler to draw a line on the floor
between contact points between the access
panel arch and the base of the bathtub.
2-7 Position the metal access panel hinge 3/4 of
an inch behind the line drawn in Step 2-6.
2-8 Screw the hinge in place on the floor
using the slots prjovided. Install panel.

1 800 463.2187 From 8 a.m. to 8 p.m. Monday to Thursday (EST) From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © September 2012 BainUltra Inc. All rights reserved. 45100169
Some products, specifications, and services mentioned in this manual are described
in pending patent applications or are protected by patents.
THERMOMASSEUR®
12
GEYSAIRTM ADDENDUM TO THE OWNER’S MANUAL | THERMOMASSEUR®
THERMOMASSEUR®
ESSENCIA OVAL 7236 - PARTS AND TOOLS - INSTALLATION
essencIa oval 7236
PARTS AND TOOLS
essencIa oval 7236
INSTALLATION
B. TOOLS REQUIRED
LOCATION INSTALLATION
The Essencia Oval requires a 10 1/2” x 12” (27 cm X 30 cm)
compartment for the drain, distance air inlet and, if appli-
cable, space for control cables and options. Refer to the
installation template.
ACCESS AND AIR INLET
For this model, the turbine is not installed on the bath-
tub. Determine a location near the bathtub at a maxi-
mum distance of 15 feet or (4.6 metres) under the floor,
in a cabinet or any other location to conceal the turbine
and optional accessory casings, if applicable. The location
chosen must also be accessible and allow sufficient air intake
for the turbine.(Refer to the TURBINE – DISTANCE INSTAL-
LATION section).
B-1 48-inch level
B-2 Caulking gun
B-3 Screwdriver
B-4 3/4” Ratchet wrench
B-5 Silicone
A. PARTS INCLUDED
A-1 Floor anchoring
A-2 Installation template
A-3 Flexible 11/2” pipe for overflow
A-4 Screws
A-5 Nuts
A-6 Washers
A-7 Seals
B-2
B-1
B-4 B-5
B-3
A-1 x 2
x 2 x 2
x 1
x 12
A-3
A-4 A-5 A-6 x 2
A-7
A-2
1. LOCATION
1-1 Once the compartment around the drain is
completed in the floor, place the installation
template on the ground at the chosen location.
1-2 Align the position of the overflow drain with
the floor drain and ensure that the compart-
ment size corresponds to requirements.
1-3 Mark the location of the anchor point screws.
1-4 Remove the installation template and screw
in the anchor points in the marked locations.

THERMOMASSEUR® | GEYSAIRTM ADDENDUM TO THE OWNER’S MANUAL
www.bainultra.com
Printed in Canada. Copyright © September 2012 BainUltra Inc. All rights reserved. 45100169
Some products, specifications, and services mentioned in this manual are described
in pending patent applications or are protected by patents.
THERMOMASSEUR®
13
ESSENCIA OVAL 7236 - INSTALLATION
2. INSTALLATION
NOTE • To install the Essencia Oval 7236 on a concrete
slab with no access below for air entry to the
bath: a hole 1 5/8 inches (4.1 cm) in diameter
must be drilled from the inside to the outside into
the bath skirt to allow air supply to the bath.
For Geysair equipped baths, this hole will
also allow supply in hot water and electricity to
Geysair. IMPORTANT: Do not drill above height of
existing hole in the skirt intended to connect drain
to overflow.
essencIa oval 7236
INSTALLATION
10-1/2
12
90000056
CENTER LINE OVERLAP THE DOTTED LINES
SUPERPOSER LES LIGNES POINTILLÉES
TUB BASE outline
CONTOUR DE LA BASE
CENTER LINE
LIGNE DE CENTRE
CENTER LINE
LIGNE DE CENTRE
LIGNE DE CENTRE
CENTER LINE
LIGNE DE CENTRE
TUB RIM
CONTOUR DU
BAIN
TUB DRAIN HOLE
DRAIN DU BAIN
OVERFLOW
DRAIN HOLE
TROU DU DRAIN DU TROP PLEIN
OPTIONS CABLE
CABLE D'OPTIONS
REMOTE AIR SUPPLY
ARRIVÉE D'AIR À DISTANCE
TEMPLATE Patron de découpe
Essencia Oval 7236
Dimensions + _1/4” [+ _6mm]
1-1
2-1 2-3 2-62-2
1-1
2-1
2-3 2-62-2
1-1 2-1
2-3
2-62-2
1-1 2-1 2-3 2-6
2-2
2-1 Assemble the drain on the bathtub. Use the
flexible 1 1/2” pipe provided for the junction
between the overflow and the T-joint. Ensure
watertightness. This operation is much easier
to complete when the bathtub rests on its
side. Place a cover or protective cardboard
on the floor before positioning the bathtub
on its side. • For Geysair-equipped baths,
connect the Geysair electrical wire supplied
(orange label) to the turbine wire (also
marked with an orange label) in the junc-
tion box. Test for grounding continuity
between the bath grounding terminal
and the bath power supply. Failure to per-
form the grounding continuity test could
result in serious personal injury
2-2 Apply a joint of silicone under the edge of
the base of the bathtub.
2-3 Install the bathtub on the anchor points fas-
tened to the floor and immediately wipe away
any excess silicone. Connect the drain.
2-4 Install the turbine according to the instructions
in the TURBINE – DISTANCE INSTALLATION
section of the manual. The air inlet is located
to the left of the bathtub drain and, if applica-
ble, control and option connection cables to
the right. Connect control and option cables
if applicable.
2-5 Fix the bath to the ground by screwing the
nuts on the anchors using a ratchet.
2-6 Peel and stick the seals to mask the opening.
• For Geysair-equipped baths, the Geysair
unit must be connected to the hot water
supply with a 3/8 male compression or 1/2“
male NPT hose bibb. A T and a valve (not
supplied) must be installed at the hot water
intake.
Once plumbing is fully installed and before beginning
any other work, fill the ThermoMasseur® to overflow
and wait 30 minutes. Check all plumbing hook-ups
and bath for leaks. BainUltra® is not responsible for
any water damage caused by improper installation
(see Warranty section).
LEAK TEST
Install turbine and InMix power module connections
according to specifications outlined in the MIAMULTI®
ELECTRICAL INSTALLATION - TURBINE section.
ELECTRICITY

GEYSAIRTM ADDENDUM TO THE OWNER’S MANUAL | THERMOMASSEUR®
1 800 463.2187 From 8 a.m. to 8 p.m. Monday to Thursday (EST) From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © September 2012 BainUltra Inc. All rights reserved. 45100169
Some products, specifications, and services mentioned in this manual are described
in pending patent applications or are protected by patents.
THERMOMASSEUR®
14
THERMOMASSEUR®
essencIa RectanGUlaR 6838 fReestandInG
PARTS AND TOOLS

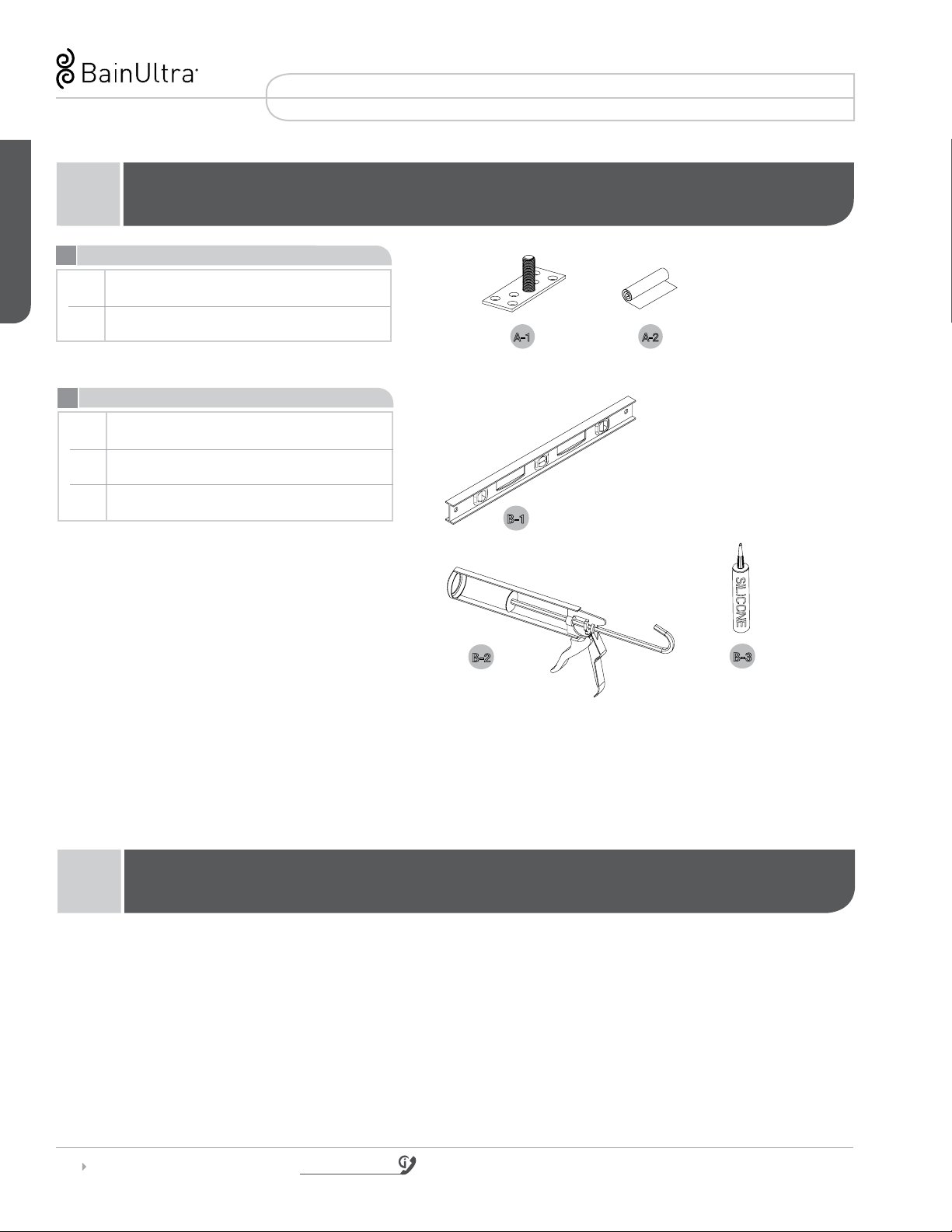

B. TOOLS REQUIRED
B-1 48-inch level
B-2 Caulking gun
B-3 Silicone
A. PARTS INCLUDED
A-1 Floor anchoring
A-2 Installation template
B-2
B-1
B-3
A-1 x 2 x 1A-2
essencIa RectanGUlaR 6838 fReestandInG
SITE PREPARATION
LOCATION INSTALLATION
The Essencia 6838 requires a 10” x 12”
(25 cm X 30 cm) compartment for the drain,
distance air inlet, and space for control cables and
options. Refer to the installation template.
ACCESS AND AIR INLET
For this model, the turbine is not installed on the bathtub.
Determine a location near the bathtub at a maximum distance
of 15 feet or (4.6 metres) under the floor, in a cabinet or any other
location to conceal the turbine and optional accessory casings.
The location chosen must also be accessible and allow sufficient air
intake for the turbine.
(Refer to the TURBINE–DISTANCE INSTALLATION section of the
Owner’s Manual).

THERMOMASSEUR® | GEYSAIRTM ADDENDUM TO THE OWNER’S MANUAL
www.bainultra.com
Printed in Canada. Copyright © September 2012 BainUltra Inc. All rights reserved. 45100169
Some products, specifications, and services mentioned in this manual are described
in pending patent applications or are protected by patents.
THERMOMASSEUR®
15
2. INSTALLATION
1. LOCATION
NOTES • To install the Essencia 6838 Freestanding on
a concrete slab with no place for the passage
of the air inlet pipe to the bathtub: drill a hole
1 5/8 inches in diameter in the skirt.
For Geysair equipped baths, a second hole is
necessary for hot water and electricity supply to
Geysair. IMPORTANT: drill the hole 1 1/2 inches
above floor level and protect the bathtub with a
piece of wood placed behind the location to be
drilled.
essencIa RectanGUlaR 6838 fReestandInG
INSTALLATION
12
10
BainUltra inc.
956 chemin Olivier
Saint-Nicolas (Quebec)
G7A 2N1, Canada
Tel.: [phone]
Fax: [phone]
[email protected]
TEMPLATE:
PATRON DE DÉCOUPE
ESSENCIA 6838
Dimensions: 1/4" [ 6mm]
90000057
CENTER LINE
LIGNE DE CENTRE CENTER LINE
LIGNE DE CENTRE
OVERLAP THE DOTTED LINES
SUPERPOSER LES LIGNES POINTILLÉES
TUB BASE OUTLINE
CONTOUR DE LA BASE
CENTER LINE LIGNE DE CENTRE CENTER LINE
LIGNE DE CENTRE
TUB RIM
CONTOUR DU BAIN
OVERFLOW
DRAIN HOLE
TROU DU DRAIN
DU TROP-PLEIN
OPTIONS CABLE
CABLE D'OPTIONS
REMOTE AIR SUPPLY
ARRIVÉE D'AIR À DISTANCE The manufacturer accepts a 1/4" [6mm] variance.There are variations on
each tub and specifications are subject to change as we improve upon our
products as required.The dimensions needed for site preparation and
structure building will differ.BainUltra assumes no responsibility for
preparatory work done prior to the product being on site.
Il existe une variation de 1/4" [6mm] pour chaque bain et les spécifications
peuvent être modifiées suite à l'amélioration du produit.Les dimensions
requises pour la préparation de l'emplacement et pour la construction de la
structure peuvent être différentes.Aucune construction ne devrait être
effectuée avant la réception du produit.BainUltra n'assume aucune
responsabilité pour les travaux entrepris avant la réception du produit.
1-1
2-1 2-3 2-62-2
1-1
2-1
2-3 2-62-2
1-1 2-1
2-3
2-62-2
1-1 2-1 2-3 2-6
2-2
2-1 Place a cover or protective cardboard on
the floor before positioning the bathtub
on its side. • For Geysair-equipped
baths, connect the Geysair electrical wire
supplied (orange label) to the turbine wire
(also marked with an orange label) in the
junction box. Test for grounding con-
tinuity between the bath grounding
terminal
and the bath power sup-
ply. Failure to perform the grounding
continuity test could result in serious
personal injury.
2-2 Apply a joint of silicone under the edge
of the base of the bathtub.
2-3 Install the bathtub on the anchor points
fastened to the floor and immediately wipe
away any excess silicone. Connect the drain.
2-4 Install the turbine according to the
instructions in the TURBINE – DISTANCE
INSTALLATION section of the manual.
The air inlet is located to the left of the
bathtub drain and, if applicable, control
and option connection cables to the right.
Connect control and option cables
if applicable.
• For Geysair-equipped baths, the Gey-
sair unit must be connected to the hot wa-
ter supply with a 3/8 male compression or
1/2“ male NPT hose bibb. A T and a valve
(not supplied) must be installed at the
hot water intake.
1-1 Place the installation template on the ground
at the chosen location.
1-2 Align the position of the overflow drain with
the floor drain and ensure that the compart-
ment size corresponds to requirements.
1-3 Mark the location of the anchor point screws.
1-4 Remove the installation template and screw
in the anchor points in the marked locations.

TURBINE
GEYSAIRTM ADDENDUM TO THE OWNER’S MANUAL | TURBINE
1 800 463.2187 From 8 a.m. to 8 p.m. Monday to Thursday (EST) From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © September 2012 BainUltra Inc. All rights reserved. 45100169
Some products, specifications, and services mentioned in this manual are described
in pending patent applications or are protected by patents.
16 Supersedes page 26 of Owner’s Manual
tURbIne wIth GeYsaIR
TECHNICAL SPECIFICATIONS
NOTES • The specifications shown indicate the outer edge dimension.
• The manufacturer accepts a 1/4” [ 0.64 cm] variance. There are variations on each product and
specifications are subject to change as we improve upon our product as required. The dimensions
needed for site preparation and structure building will differ. BainUltra
® assumes no responsibility for
preparatory work done prior to the product being on site.
WARRANTY Turbine* | Geysair* | *Some restrictions may apply. (www.bainultra.com/warranty)
Air
Intake Air
Outlet
Ground Wire
for the Bathtub
Hot Water
Intake
4-3/4"
[12,1 cm]
[8,3 cm]
[19,7 cm]
7-3/4"
3-1/4"
Flow Controller
(Filter Inside)
72” [272,5 cm] Hose
connected to Hot Water Supply
MOTOR
AIR HEATER
Power
600 W
5.0 A
Operating cost
$0.027/HR for $0.045/KWh
Weight
5,5 lbs
Motor power
Panasonic 0,8 HP
120 V
600 W
5 A
Air pressure
2,75 psi
Air flow
75 cfm at maximum speed
Motor rotation speed
27 000 rpm at maximum speed
Noise level
56 to 60 db at maximum speed
Operating cost
$0.027/HR for $0.045/KWh
TURBINE WITH GEYSAIR - TECHNICAL SPECIFICATIONS
GEYSAIR
Power
700 W
5,8 A
Hot Water Consumption
0,13 GPM
Operating cost
$0,032/HR for $0,045/KWh

TURBINE
TURBINE | GEYSAIRTM ADDENDUM TO THE OWNER’S MANUAL
www.bainultra.com
Printed in Canada. Copyright © September 2012 BainUltra Inc. All rights reserved. 45100169
Some products, specifications, and services mentioned in this manual are described
in pending patent applications or are protected by patents.
Supersedes page 27 of Owner’s Manual 17
TURBINE WITH GEYSAIR - ELECTRICAL INSTALLATION & PLUMBING
tURbIne wIth GeYsaIR
ELECTRICAL INSTALLATION & PLUMBING
The turbine is connected to a 120V circuit.
All electrical connections must be carried out by
a certified electrician in accordance with local
electrical requirements and codes. Special attention
must be given to installation of bath’s power circuit,
and more particularly to the following points:
The electrical system must be connected to an
independent circuit protected by a new 20 AMP
Class A ground fault circuit interrupter (GFCI)
and another one of 15 AMP for additonal options.
This electrical circuit must imperatively be grounded.
CANADA ONLY: for permanently connected
units.
A green-colored terminal (or a wire connector marked g,
gr, ground or grounding) is provided within the terminal
compartment (not applicable if unit supplied with an elec-
tric plug). To reduce the risk of electrocution, connect this
terminal or connector to the grounding terminal of your
electric service or supply panel with conductor equivalent in
size to the circuit conductors supplying the equipment and
be 12 AWG or more. INSTALL THIS UNIT IN ACCORDANCE
WITH THE CANADIAN ELECTRICAL CODE, PART 1.
A service access is necessary. Minimum dimensions
are: 22” x 18” (55 cm x 46 cm) to properly reach all
electrical components of the system.
The InMix module (Chromatherapy) of the electronic control and
the turbine must be easily accessible at all times. Make all connec-
tions as indicated on diagram below. Ensure that power circuit
is disabled before proceeding with any electrical connec-
tions. Electrical cable feeding bath must be at least N° 12 AWG
caliber. Turbine must be connected to its own circuit, which,
in turn must be connected directly in breaker panel without
any interrupters or dimmer switches. Canada only: the junc-
tion box must be attached to the wall at the height of at least
1 1/2” (3.8 cm) from the ground.
The Geysair hose must be connected to the hot water supply
by a qualified plumber. A 3/8 inch male or 1/2 inch NPT hose bibb
is supplied. For optimal performance, keep hose length to
a minimum. Set temperature on hot water heater no higher than
140°F/60°C. For all the houses having to deal with special
water conditions (hard, rust, sulfur, etc) the homeowner
should already be aware of the specific measures that should
be taken for all his other appliances using water. The Geysair
does not need other measures than that.
GROUNDING
ACCESS
CONNECTIONS
PLUMBING

TURBINE
GEYSAIRTM ADDENDUM TO THE OWNER’S MANUAL | TURBINE
1 800 463.2187 From 8 a.m. to 8 p.m. Monday to Thursday (EST) From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © September 2012 BainUltra Inc. All rights reserved. 45100169
Some products, specifications, and services mentioned in this manual are described
in pending patent applications or are protected by patents.
18 Supersedes page 28 of Owner’s Manual
MIAPLUS®, MIAMULTI®
Connections for double heated backrest
of the Amma® series WITH GEYSAIR
• Electrical outlet must be installed by a certified electrician. Installation must be conducted in
accordance with all local, provincial/state, and federal building/electrical codes and regulations.
Connect electrical power supply only after all low voltage wiring is properly installed on turbine.
If you did not follow this last step, shut off and then restart your home’s circuit breaker. Turbine
and air pipe should be clear of building materials and wiring.
WARNING
TURBINE WITH GEYSAIR - ELECTRICAL INSTALLATION

TURBINE
TURBINE | GEYSAIRTM ADDENDUM TO THE OWNER’S MANUAL
www.bainultra.com
Printed in Canada. Copyright © September 2012 BainUltra Inc. All rights reserved. 45100169
Some products, specifications, and services mentioned in this manual are described
in pending patent applications or are protected by patents.
Supersedes page 29 of Owner’s Manual 19
TURBINE WITH GEYSAIR - ELECTRICAL INSTALLATION

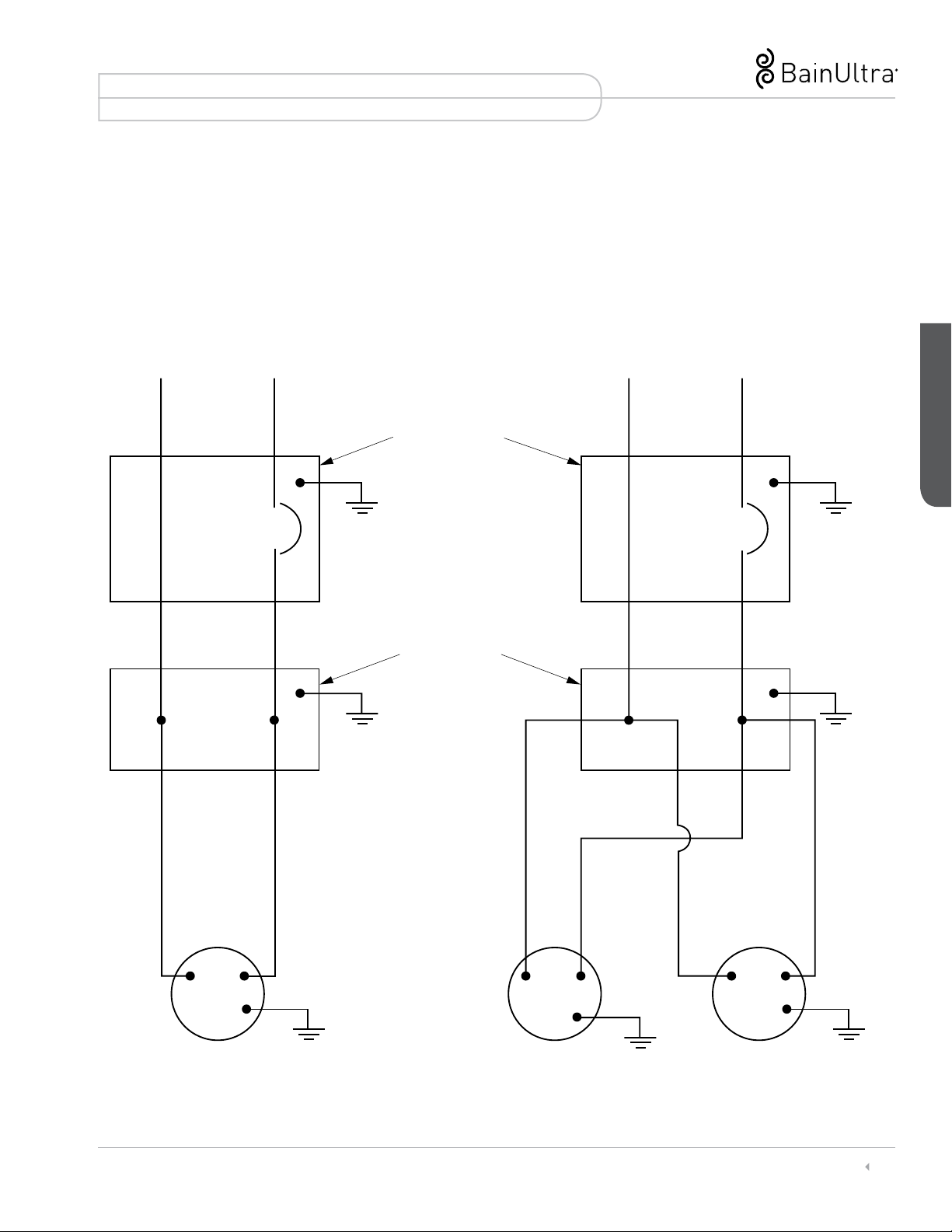

ELECTRICAL DIAGRAM - TURBINE WITH GEYSAIR
Electrical connections for Canada only
15A CIRCUIT
20A CIRCUIT
AIRSTREME
(THERMOSEAT)
N L N L
N L
NEUTRAL N L LOAD NEUTRAL N L LOAD
GROUND FAULT
CIRCUIT INTERRUPTER
JUNCTION BOX
TURBINE WITH GEYSAIR
(FOR MIA®, MIAPLUS®,
MIAMULTI®)
INMIX MODULE
(CHROMATHERAPY)

TURBINE
GEYSAIRTM ADDENDUM TO THE OWNER’S MANUAL | TURBINE
1 800 463.2187 From 8 a.m. to 8 p.m. Monday to Thursday (EST) From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © September 2012 BainUltra Inc. All rights reserved. 45100169
Some products, specifications, and services mentioned in this manual are described
in pending patent applications or are protected by patents.
20 Supersedes page 31 of Owner’s Manual
A. TO REMOVE TURBINE WITH GEYSAIR
FROM ITS PRESENT SUPPORTS
B. TO REINSTALL TURBINE
TURBINE WITH GEYSAIR - REMOTE MOUNTING TURBINE INSTALLATION
2 x
A-4
A-1 Disconnect electrical supply to bath.
A-2 Disconnect wires going to turbine.
A3 Using a flathead screwdriver, loosen
fitting.
A-4 For Ayoura® freestanding only:
Disconnect turbine at fitting by loosening
lower and upper fitting with flathead
screwdriver.
A-5 Cut the electrical cable connecting the
turbine to the Geysair unit. This wire is
marked with a yellow label.
B-1 Mount turbine to wall or wall structure
by inserting 1” (2.5 cm) screws in
mounting holes.
B-2 Use as many 1 1/2” (4 cm) ABS or PVC
pipes as necessary to connect turbine to
bath. Follow all relocation instructions
provided in installation manual. To reduce
vibrations, avoid having air line pipes
touch home structure.
B-3 Secure pipe at air output of turbine by
drilling a 1/8” (0.3 cm) hole and by using
1/2” (1.3 cm) screw. (Do not glue).
B-4 Strip the two ends of the cut cable. Con-
nect each end to a terminal box. Connect
the two terminal boxes with minimum
14AWG 3-stranded cable.WARNING:
Test for grounding continuity between
the bath grounding terminal and
bath power supply. Failure to perform
the grounding continuity test could
result in serious personal injury.
B-5 Reconnect wires going to turbine.
B-6 Connect bathtub’s power supply.
IMPORTANT • THESE STEPS MUST BE EXECUTED BY A QUALIFIED ELECTRICIAN
• GEYSAIR SHOULD NOT BE INSTALLED REMOTELY
