VEDANA®|OWNER’S MANUAL
WARRANTY 4
SAFETY INSTRUCTIONS 5
TECHNICAL SPECIFICATIONS 6
PARTS & TOOLS 7
SITE PREPARATION 8 - 9
STRUCTURE INSTALLATION 10 - 11
ELECTRICAL INSTALLATION 12
FINISHING INSTALLATION 13 - 17
MIAPLUS®CONTROL NAVIGATION 18 - 19
BLUETOOTH - MUSIC 20
MAINTENANCE 21 - 22
TROUBLESHOOTING 23 - 24
956, chemin Olivier
Lévis (Québec)
G7A 2N1
T 418.831.7701 1.800.463.2187
F 418.831.6623 1.800.382.8587 [email protected]
TABLE OF CONTENTS

4
OWNER’S MANUAL |VEDANA®
1 800 463.2187 From 8 a.m. to 6 p.m. Monday to Thursday (EST) .From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © July 2019 BainUltra®. All rights reserved. 45200496
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
THE BAINULTRA®LIMITED WARRANTY VEDANA®: 5 YEARS
LIMITED WARRANTY
This limited warranty is extended only to the original purchaser of the unit who has
possession of his or her receipt of purchase, and is valid only when the unit has been
purchased through an authorized Bains Ultra Inc. (“BainUltra®”) retailer and has been
registered with BainUltra®(registration not required for consumer purchasers domiciled
in the Province of Québec). This warranty is not transferable under any circumstance.
Please note that you are responsible for inspecting the product and all parts prior
to installation. This warranty will not apply if a product with visible defects has been
installed without providing notice to BainUltra®of the defect.
In the case of the electronic components of the Vedana®, BainUltra®guarantees against
defects in materials and workmanship for a ve-(5) year period from the original
purchase date.
BainUltra®products are designed for residential use only. BainUltra®products used
for commercial or display applications will be limited to a two-(2) year warranty against
defects in materials and workmanship regardless of the specic nature of any potential
defects.
BainUltra® products sold outside of North America will be limited to a parts-only warranty
through the dealer of the sale. Our service department will help diagnose any problems
with your unit and will provide parts only for repairs or replacements covered by the
warranty. All parts will be shipped to the dealer in North America. BainUltra®will not be
responsible for cost of shipping or servicing outside of North America.
Any part that must be changed during the warranty period will be covered by the
original warranty or for a two-(2) year period following replacement, according to the
rst contingency.
EXCLUSIONS
The above-stated limited warranty applies as long as the damage is not caused by an
accident, abuse, misuse, re, insects, use of abrasive products, force majeure or an act
of God.
The above-stated limited warranty does not apply to transport, handling or installation
damages.
Moreover, this warranty is void if i): your Vedana®is installed by anyone other than a
licensed contractor; or ii): your Vedana® or part thereof has been modied or if any
repairs have been attempted by anyone other than BainUltra®, an authorized BainUltra®
dealer, or other representative of BainUltra®; or iii): the unit is installed outdoors, or has
not been installed in accordance with BainUltra®’s instructions, or in compliance with
local codes and ordinances.
Any and all components that are not provided by BainUltra®, as well as any items attached
or installed on your Vedana®, or on any other BainUltra®product after the date of
manufacture are expressly excluded from this limited warranty.
PROCEDURE
Any defect involving BainUltra®’s potential liability under this limited warranty shall
be reported to BainUltra®within ten (10) days of its occurrence. To assist you with
your warranty, please contact BainUltra®’s customer service by email, telephone or fax
between 8 a.m. to 6 p.m. Monday to Thursday (EST) or 8 a.m. to 5 p.m. on Friday (EST).
Email: wecar[email protected]om
Tel.: [phone] or 418 831-7701
Fax: [phone] or 418 831-6623
BainUltra Inc.
956, chemin Olivier
Lévis, Québec
Canada G7A 2N1
Proof of purchase and date of purchase will be required. Units claimed to be defective
shall be held until inspected by an authorized representative of BainUltra®, and upon
their specic instructions, units found to be defective will be repaired or replaced at
BainUltra®’s exclusive choice.
The liability of BainUltra®with respect to the sale of this unit shall be limited to repair
or replacement by a similar product as provided above and does not include any cost of
removal, reinstallation, transport and shipping of defective product, loss of time, salary
or any other expenses as well as any consequential damages of any kind.
BainUltra® and its representatives shall not be liable for any injury, loss, cost or other
damage, whether direct, consequential, incidental, or special, that arise from any defect
covered under this limited warranty, even if BainUltra®has been advised of the possibility
of such damage. Some states and provinces may not allow the exclusion or limitation
of incidental or consequential damages, so the above limitation or exclusion may not
apply to you, but these limitations or exclusions will be enforced to the maximum extent
of the law.
An adequate access way to mechanical and electrical parts of your Vedana®must be antici-
pated and prepared before an authorized representative arrives on the premises to
carry out a repair. The costs incurred to provide access to the electronic module or the
heating system will not be covered by this warranty.
LIMITATIONS
Except for consumer purchasers domiciled in the Province of Québec, and except to the
extent prohibited by applicable law, this limited warranty replaces all other warranties,
expressed or implied, in fact or at law, including implied warranties based on course
of dealing, usage of trade, and merchantability and tness for a particular purpose.
(Inapplicable in Québec). The terms of this limited warranty cannot be modied or
extended in any way whatsoever by any agent, dealer, distributor, service company
or party other than BainUltra®.
BainUltra®excludes any statement in any advertisement or instruction, any picture, or
any guideline as an express warranty for our products. We recognize that some states
and provinces may not allow limitations on implied warranties, so the above limitations
and exclusions may not apply to you, but they will be enforced to the maximum extent
of the law.
LEGAL RIGHTS
This limited warranty gives specic legal rights and is not applicable if it interferes with
any law or regulation in any state, province or country.
WARRANTY

5
www.bainultra.com
Printed in Canada. Copyright © July 2019 BainUltra®. All rights reserved. 45200496
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
VEDANA®|OWNER’S MANUAL
• FAILURE TO FOLLOW THE SAFETY INSTRUCTIONS OF THE MANUEL COULD RESULT IN
SERIOUS PERSONAL INJURY AND/OR PROPERTY DAMAGE.
• USE THIS VEDANA®UNIT FOR ITS INTENDED PURPOSES OR AS DESCRIBED IN THIS
MANUAL. USE ONLY ATTACHMENTS RECOMMENDED BY THE MANUFACTURER.
• Never let children operate the Vedana
®
without supervision.
• Never obstruct the heated air exit with any object.
• Basic precautions must be taken during the installation and
usage of electrical products, as mentioned in this manual.
• Installation must allow easy access to components for servicing
and repairs.
• Under no circumstances should a substitution be made for
any Vedana
®
component.
• Cleaning measures should be duly followed, including the
recommendation to clean the filters.
• Avoid wearing contact lenses or jewelry during
Thermotherapy sessions.
• To reduce the risk of injury never touch the metal structure or
ceramic around the Vedana
®
during thermotherapy session.
• Do not install shower heads or water spray device above the
air heater.
• As in any heated environment, prolonged exposure to
high temperatures may trigger hyperthermia (overheating).
Hyperthermia occurs when internal body temperature rises
above normal body temperature of 98.6 °F (37 °C).
• Symptoms of hyperthermia include an increase in internal body
temperature, dizziness, nausea, loss of consciousness, lethargy,
and drowsiness. The effects of hyperthermia include:
• Inability to perceive heat;
• Inability to recognize the need to exit the room;
• Physical inability to leave the room;
• Unawareness of danger;
• Fetal injury in pregnant women;
• Loss of consciousness.
• If you are a pregnant women, or a person who have had a
stroke or have heart disease, kidney failure, or a history of heat
stroke, contact a doctor before doing a Thermotherapy session.
The use of drugs or alcohol may significantly increase the risk
of death from hyperthermia.
• Drink water before, during and after the therapy to avoid
dehydration.
• Use gradually the therapeutic system.
• All electrical connections must be made by a certified
electrician in accordance with local, provincial/state, and
federal building/electrical code regulations.
• Make connections as shown in diagram. Make connections in
the control box before connecting to power supply.
• This unit is connected to a 240 V circuit.
• The unit’s electrical system must be connected to a circuit pro-
tected by a 40 Amperes Class A ground fault circuit interrupter
(GFCI).These components must be new.
• Control panel connections must be minimum no. 8 AWG
copper conductors rated minimum 194 °F (90 °C).
PRECAUTIONS FOR ESSENTIAL OILS AND NEBULIZER:
• Never drink essential oils or leave children alone with
essential oils.
• Do not drop essential oils in nose, ear, or anogenital mucosal.
• If allergic reactions occur, stop using the product.
• Do not use if the seal is broken.
•
Manipulate the diffuser with care to reduce the risk
of injuries.
•
Avoid contact of essential oil with eyes. In the event of
accidental contact with eyes, carefully apply vegetable oil to
the affected eye with a cotton swab. DO NOT rinse eyes
with water. See immediate medical assistance.
SAFETY INTRUCTIONS
IMPORTANT: READ AND FOLLOW ALL INSTRUCTIONS
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTROCUTION,
OR PERSONAL INJURY
WARNING

6
OWNER’S MANUAL |VEDANA®
1 800 463.2187 From 8 a.m. to 6 p.m. Monday to Thursday (EST) .From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © July 2019 BainUltra®. All rights reserved. 45200496
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
DIMENSIONS
THERAPIES INCLUDED
GENERAL SPECIFICATIONS
Polycarbonate
Galvanized stainless structure
Stainless steel and polycarbonate finish
All bolts required for assembly included
This unit is connected to a 240 V circuit / 40 Amp.
19 5/8”
(45.7 cm)
80”
(203.2 cm)
TECHNICAL SPECIFICATIONS
Aromatherapy
Thermotherapy®
Light therapy®
Chromatherapy
Sound therapy®
21” x 80” x 9 1/2”
• The manufacturer accepts a 1/4” (0.64 cm) variance. There are variations on each product and
specifications are subject to change as we improve our product. The dimensions needed for site
preparation and structure building may differ. BainUltra ®assumes no responsibility for preparatory
work done prior to the product being on site.
* Some restrictions may apply.
Polycarbonate & Components*
1/2” Gypsum
or 1/2”
fiber cement
3 1/2 ” structure
with minimum 3”
fiberglass insulation
“Hot” air outlet
Light/Chroma
Nebulizer (Aroma)
Control
“Audio” Speakers
Air intake
1/2” to 1” finishing

VEDANA®|OWNER’S MANUAL
7
www.bainultra.com
Printed in Canada. Copyright © July 2019 BainUltra®. All rights reserved. 45200496
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
A. PARTS INCLUDED
B. TOOLS REQUIRED
PARTS & TOOLS
A-1 Vedana
A-2 Nebulizer
A-3 Essential oils bottle
A-4 2 Hyperthermia warning sticker
B-1 Drill
B-2 24” Level
B-3 Phillips screwdriver
B-4 Measuring tape
B-5 1/8” Allen key
B-6 Hole saw
B-7 Silicone
B-8 24” Square
B-9 Caulking gun B-4
B-1 B-2
B-8
B-3
B-5 B-7
B-9
B-6
IMPORTANT • Vedana®unit is delivered in a single box.
• Please make sure that all parts are present and in proper condition.
A-1
A-2 A-3
A-4

8
OWNER’S MANUAL |VEDANA®
1 800 463.2187 From 8 a.m. to 6 p.m. Monday to Thursday (EST) .From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © July 2019 BainUltra®. All rights reserved. 45200496
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
8”
min.
(Both sides)
8”
40” min
40” min
• Do not install on an exterior wall, this would reduce the insulation of your house.
• Doors must always open outwards. All that should be needed to open the door is a light pressure.
Never install any locking or latching on the door. Make sure that the door can’t cause any entrapment.
Fresh air intake
Glass
Door
Minimum
3” Fiberglass
insulation
Allow a 10 in2
air outlet ideally in
the top of the
room facing the
Vedana®to ensure
air circulation
Minimum air intake
of 24 in2 behind the Vedana®
Do not screw on the back
wall facing the Vedana®
SITE PREPARATION
Your Vedana was designed to provide optimal
efficiency in a room of 120 ft3to 280 ft3. Minimum
ceiling height: 7 ft, maximum 8 ft.
Do not install closer than 8 in to any vertical surface,
2 in to ceiling or 4 in to the floor.
IMPORTANT:
All electrical connections must
be carried out by a certified
electrician.
WARNING
INSTALLATION CONFIGURATION

VEDANA®|OWNER’S MANUAL
9
www.bainultra.com
Printed in Canada. Copyright © July 2019 BainUltra®. All rights reserved. 45200496
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
STRUCTURE AND INSTALLATION OF SUPPORTS
3 1/2”
80” to 86”
1 1/2” min.
• Do not install shower faucets or a shower head any closer than 3 ft (36”)
from the Vedana®.
WARNING
18 1/2”
SITE PREPARATION

10
OWNER’S MANUAL |VEDANA®
B-3
Phillips
screwdriver
STRUCTURE INSTALLATION
B-5
Air conduit
Air conduit
Air conduit
Protection panel
Front Panel
•Remove front panel, protection panel and air conduit
Protection panel
1 800 463.2187 From 8 a.m. to 6 p.m. Monday to Thursday (EST) .From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © July 2019 BainUltra®. All rights reserved. 45200496
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.

VEDANA®|OWNER’S MANUAL
11
www.bainultra.com
Printed in Canada. Copyright © July 2019 BainUltra®. All rights reserved. 45200496
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
* Screws x 12
not included
x 12
Drill and screws*
4” to 10”
• Always handle the Vedana®with the help of another person to avoid breach and/or injury.
• When drilling holes, be careful not to damage the stainless steel side panels.
WARNING
STRUCTURE INSTALLATION
• Once the Vedana is fixed to the structure, screw the small panel
at the bottom of the structure.
• It is strongly recommended to use 12 screws (not included) to fix the
Vedana. Please choose the screws according to your structure material.

12
OWNER’S MANUAL |VEDANA®
1 800 463.2187 From 8 a.m. to 6 p.m. Monday to Thursday (EST) .From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © July 2019 BainUltra®. All rights reserved. 45200496
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
ELECTRICAL INSTALLATION
ELECTRICAL CONNECTIONS
Proceed carefully when installing the electrical
system, paying close attention to the following:
All electrical connections must be made by a
certified electrician in accordance with local,
provincial/state and federal building/electrical
code regulations.
Make connections as shown below. Make
connections in the control box before connecting
to power supply.
This unit is connected a 240 V circuit.
The unit’s electrical system must be connected
to a circuit protected by a 40 Amperes Class A
ground fault circuit interrupter (GFCI). These com-
ponents must be new.
Connections must be minimum No. 8 AWG
copper conductors rated minimum 194 °F (90 °C).
Power Entry
240 V
Alternative
Power Entry
240 V (1 1/16”
Knock-out)
• Under no circumstances should a substitution be made for any Vedana®component.
WARNING

VEDANA®|OWNER’S MANUAL
13
www.bainultra.com
Printed in Canada. Copyright © July 2019 BainUltra®. All rights reserved. 45200496
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
INSTALLATION OF WALL PANELS (GYPSUM)
Silicone
FINISHING INSTALLATION
INSTALLATION OF CERAMIC TILES
• Install ceramic tiles according to industry standards.
• Never drill into the Vedana®structure, but only into the expressly designated places.
Humidity-resistant gypsum
or fiber cement
1/2” thick
1/2” to 1” finishing
(Ceramic tiles)
Gypsum or fiber cement Minimum 3 1/2 ”
structure with minimum
3” fiberglass insulation
Epoxy grout
(advised)
Mounting bracket
WARNING

14
OWNER’S MANUAL |VEDANA®
1 800 463.2187 From 8 a.m. to 6 p.m. Monday to Thursday (EST) .From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © July 2019 BainUltra®. All rights reserved. 45200496
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
FINISHING INSTALLATION
INSTALLATION OF FRONT PANEL, CONTROL AND
AROMATHERAPY TUBE CONNECTIONS
Hook up aromatherapy tube
and control cable
to protection panel
Air conduit

VEDANA®|OWNER’S MANUAL
15
www.bainultra.com
Printed in Canada. Copyright © July 2019 BainUltra®. All rights reserved. 45200496
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
FINISHING INSTALLATION
Aromatherapy module
(panel is not shown to
see the components).

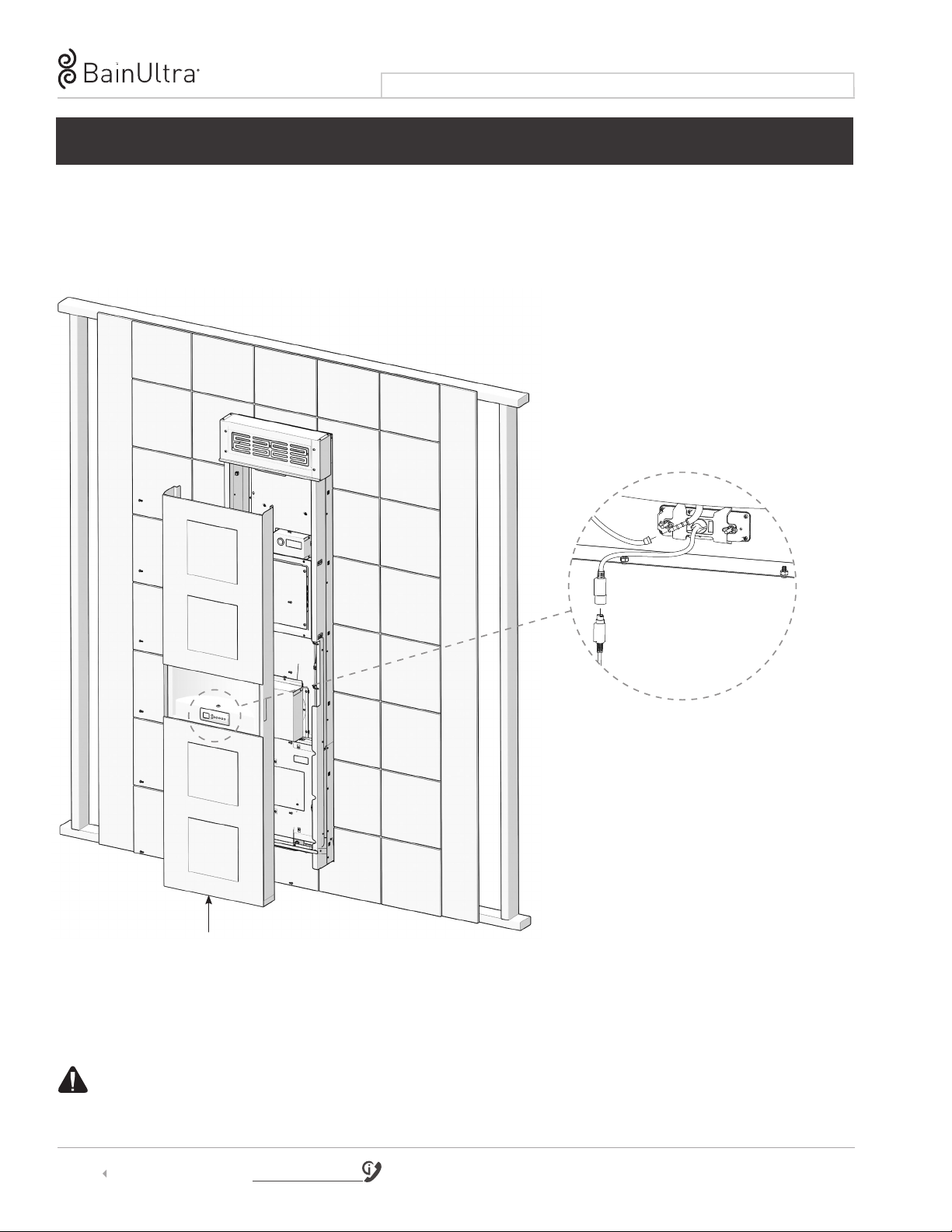

•Connect the tube to the aromatherapy module
•Connect the electric plug
Aromatherapy tube
•Screw protection panel
Protection panel

16
OWNER’S MANUAL |VEDANA®
1 800 463.2187 From 8 a.m. to 6 p.m. Monday to Thursday (EST) .From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © July 2019 BainUltra®. All rights reserved. 45200496
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
Front panel
• Use a hand-held screwdriver to avoid damaging the front panel.
• Make sure to properly secure in place the 14 screws of the front panel.
• Connect and test the control before final installation.
FRONT PANEL INSTALLATION, CONTROL AND
AROMATHERAPY TUBE CONNECTIONS
Hook up aromatherapy tube
and control cable
FINISHING INSTALLATION
WARNING

VEDANA®|OWNER’S MANUAL
17
www.bainultra.com
Printed in Canada. Copyright © July 2019 BainUltra®. All rights reserved. 45200496
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
FINISHING INSTALLATION
CAUTION SIGNAGE
•This WARNING sticker should affix close to the
Vedana unit to be easily read by user.

18
MIAPLUS®CONTROL NAVIGATION
OWNER’S MANUAL |VEDANA®
LEGEND
On / Off
and Scroll through main functions
and Navigate within the functions
Validate your choice
Home
EXPERIENCES
-
-
-
-
-
-
-
-
-
FREEDOM On
HARMONY
WONDER Stop
LOVE
SESSIONS
-
-
-
-
-
-
-
-
-
ECHO On
VIVERE
Stop
1 800 463.2187 From 8 a.m. to 6 p.m. Monday to Thursday (EST) .From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © July 2019 BainUltra®. All rights reserved. 45200496
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.

19
www.bainultra.com
Printed in Canada. Copyright © July 2019 BainUltra®. All rights reserved. 45200496
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
MIAPLUS®CONTROL NAVIGATION
VEDANA®|OWNER’S MANUAL
Settings
PERSONALIZED (3) User 1 Save User 1
User 2 Save User 2
User 3 Save User 3
User 4 Save User 4
CONTRAST
LOCK (2) Activate
Deactivate
LANGUAGE Français
Español
English
REACH US
THERAPY
AROMA Activate Intensity 1
Deactivate Intensity 2
Intensity 3
THERMO (1) Activate
Comfort
Deactivate
CHROMA Off
Violet
Blue
Green
Yellow
Orange
Red
Scan
Pause
LUMINO Activate
Deactivate
NOTES
1. Thermo
Press Activate, and to activate
the heat. This allows you to set the
desired temperature inside your
Vedana.
Press Deactivate and the temperature
gradually cools down depending
on your Vedana’s space insulation.
When you reach the desired tem-
perature, press Activate and then
Comfort, and the temperature will
remain steady.
2. Lock
To activate the Lock function, using the
and keys, select the option Activate
and to validate your choice.
When you stop the Vedana, the Lock
function locks the key, making it
impossible to restart the system.
To restart the system when the Lock
function is activated, press the key.
Lock is displayed. Press .
To deactivate the Lock function, press
the key until the Lock function appears.
Use the or arrows to select the
Deactivate option. Press .
3. Personalized
Set the functions and options to
the user’s preferences and save
them under User 1, 2, 3 or 4.
Using the or arrows, select
desired user settings. Press
to validate your choice.
NOTES

20 1 800 463.2187 From 8 a.m. to 6 p.m. Monday to Thursday (EST) .From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © July 2019 BainUltra®. All rights reserved. 45200496
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
BLUETOOTH - MUSIC
OWNER’S MANUAL |VEDANA®
The Vedana can play music from any device equipped with Bluetooth wireless technologies, however, you must pair your
mobile device to the audio receiver in order to do so.
The system is ready to pair when it is not already connected to another device. To pair your device, make sure that you are
close enough to the Vedana.
Note: In basic configuration (not connected to a keypad or control), the in.stream 2 is set in Bluetooth mode. Otherwise, please refer to your
specific control operating manual for details on the in.stream 2 functions.
FOLLOW THESE STEPS TO PAIR YOUR DEVICE
1. The Bluetooth Module inside the Vedana is
called in.stream2.
2. Open the Bluetooth settings on your device.
The location of the settings will depend on the
device you are using.
3. Make sure Bluetooth is on.
4. Select “in stream 2” in the list of discoverable
Bluetooth devices detected nearby.
5. When prompted, enter 5555 as the PIN Code.
6. Once the pairing is done select in stream 2 and
when connected is displayed the in stream 2 will
be ready to start playing the selected audio.
Note: If the device moves out of range and loses
connection, it should reconnect automatically
as soon as it is close enough. This should happen
without having to go through the menu again.
The Vedana will keep up to 8 devices in its memory.
If one of the last three connected devices is in range
and has its Bluetooth turned on, it will automatically
connect with in.stream 2.
If multiple devices are within range and have already
been paired with the in.stream 2, priority will be given
to the device that was first detected in the in.stream 2
memory.
PAIRING WITH A BLUETOOTH ENABLED DEVICE
