BainUltra THERMOMASSEUR User manual
OWNER’S MANUAL
IMPORTANT INFORMATION FOR THE INSTALLER
AND THE OWNER
INCLUDED: THERMOMASSEUR®INSTALLATION
USING THE MIA®SERIES CONTROLS
IMPORTANT: TO BE KEPT FOR THE OWNER
+ Register your warranty online www.bainultra.com/warranty
OWNER’S MANUAL
3
www.bainultra.com
Printed in Canada. Copyright © May 2017 BainUltra Inc. All rights reserved. 45220001
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
TABLE OF CONTENTS
SAFETY INSTRUCTIONS 4
THERMOMASSEUR®
PARTS AND TOOLS 5
SITE PREPARATION 6
THERMOMASSEUR®INSTALLATION 7 - 9
PLUMBING INSTALLATION 10 - 12
BALNEO®, AMMA® AND ORIGAMI FREESTANDING
PARTS AND TOOLS 13
SITE PREPARATION 14 - 15
INSTALLATION 16 - 19
TURBINE
TECHNICAL SPECIFICATIONS 20
ELECTRICAL INSTALLATION 21 - 23
REMOTE MOUNTING 24 - 25
SKIRTS
GENERAL INSTRUCTIONS 26
PARTS AND TOOLS 27
INSTALLATION 28 - 40
THE MIA® SERIES CONTROLS
INSTALLATION 41
USER GUIDE 42 - 52
MAINTENANCE 53 - 54
TROUBLESHOOTING 55 - 56
WARRANTY 57
DRILLING TEMPLATES 59 - 61
956, chemin Olivier
Lévis (Québec)
G7A 2N1
T 418.831.7701 1.800.463.2187
4
OWNER’S MANUAL |SAFETY INSTRUCTIONS
1 800 463.2187 From 8 a.m. to 8 p.m. Monday to Thursday (EST) .From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © May 2017 BainUltra Inc. All rights reserved. 45220001
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
READ AND FOLLOW ALL INSTRUCTIONS • SAVE THESE INSTRUCTIONS
WARNINGS
• Risk of hyperthermia; people using medication and/or having an adverse medical history should consult a physician
before using a Hydro-thermo massage®bathtub equipped with a heater.
• Risk of hyperthermia and possible drowning: do not use a Hydro-thermo massage®bathtub equipped with heater
immediately following strenuous exercise.
• Risk of fetal injury; pregnant or possibly pregnant women should consult a physician before using a Hydro-thermo
massage®bathtub equipped with a heater.
• Risk of accidental injury or drowning; do not use drugs or alcohol before or during the use of a Hydro-thermo massage®bathtub
equipped with a heater.
• Use this unit only for its intended purposes or as described in this manual. Use only accessories or devices recommended
by the manufacturer.
• Risk of hyperthermia and possible drowning. Check and adjust water temperature before use. Water temperature
exceeding 100ºF (38ºC) may be injurious to your health.
• To reduce the risk of injury, as with any other conventional bath, do not allow children or physically impaired people
to use this unit unless they are closely supervised at all times.
• To avoid injury, exercise care when entering or exiting the Thermomasseur®.
• The Geysair should always be connected to the hot water intake. If it is not the case, then, the Geysair should be deactivated via
the bath control.
RISK OF ELECTRICAL SHOCK
• Disconnect electric power before servicing.
• Do not permit electrical appliances (hair dryer, lamp, telephone, radio, television, etc.) within 5’ (1,5 m) of the Thermomasseur®.
• Before using the Thermomasseur®, its exterior construction (podium or skirting) should be finished so that a bather cannot ac-
cidentally come in contact with electrical components (turbine and power module).
• For indoor use only.
ELECTRICAL CONNECTIONS:
• Never drop or insert objects into any openings.
• The Thermomasseur®must be connected only to a supply circuit that is protected by a 20 amp class A ground fault circuit
interrupter (GFCI). Optional therapies such as Chromotherapy and/or 2nd heated backrest and/or WarmTouchShell®must be
connected to a supply circuit that is protected by a 15 amp class A ground fault circuit interrupter (GFCI). This interrupter is
supplied by a certified electrician and must be tested on a regular basis in accordance with manufacturer’s instructions. The GFCI
ground must be connected. If defective, do not use the Thermomasseur. Disconnect immediately and call a certified electrician.
• Use 12 AWG (or greater) copper conductors that resist temperatures of at least 194ºF (90ºC).
• Canada only: for permanently connected units. A green-colored terminal (or a wire connector marked g., gr., ground
or grounding) is provided within the terminal compartment (not applicable if unit supplied with an electric plug).
To reduce the risk of electrocution, connect this terminal or connector to the grounding terminal of your electric service
or supply panel with conductor equivalent in size to the circuit conductors supplying the equipment and be 12 AWG
or more.
• All electrical connections must be carried out by a certified electrician and must respect federal, provincial/state,
and local building codes and regulations.
• Install in accordance with manufacturer’s installation instructions.
• For ThermoMasseur baths using remote turbine installation (not mounted on the bath), grounding continuity must be tested
between the bath grounding terminal and the bath power supply. Failure to perform the grounding continuity test could
result in serious personal injury.
WATER LEAK TEST
• Once plumbing is fully installed and before beginning any other work, fill the ThermoMasseur®with water to overflow level and
wait 30 minutes. Check all plumbing hook-ups and bath for leaks. BainUltra®is not responsible for any water damage caused by
improper installation (see Warranty section).
IMPORTANT SAFETY INSTRUCTIONS
PERTAINING TO RISKS OF FIRE, ELECTROCUTION OR PERSONAL INJURY
THERMOMASSEUR®|OWNER’S MANUAL
5
www.bainultra.com
Printed in Canada. Copyright © May 2017 BainUltra Inc. All rights reserved. 45220001
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
THERMOMASSEUR®
5
THERMOMASSEUR®

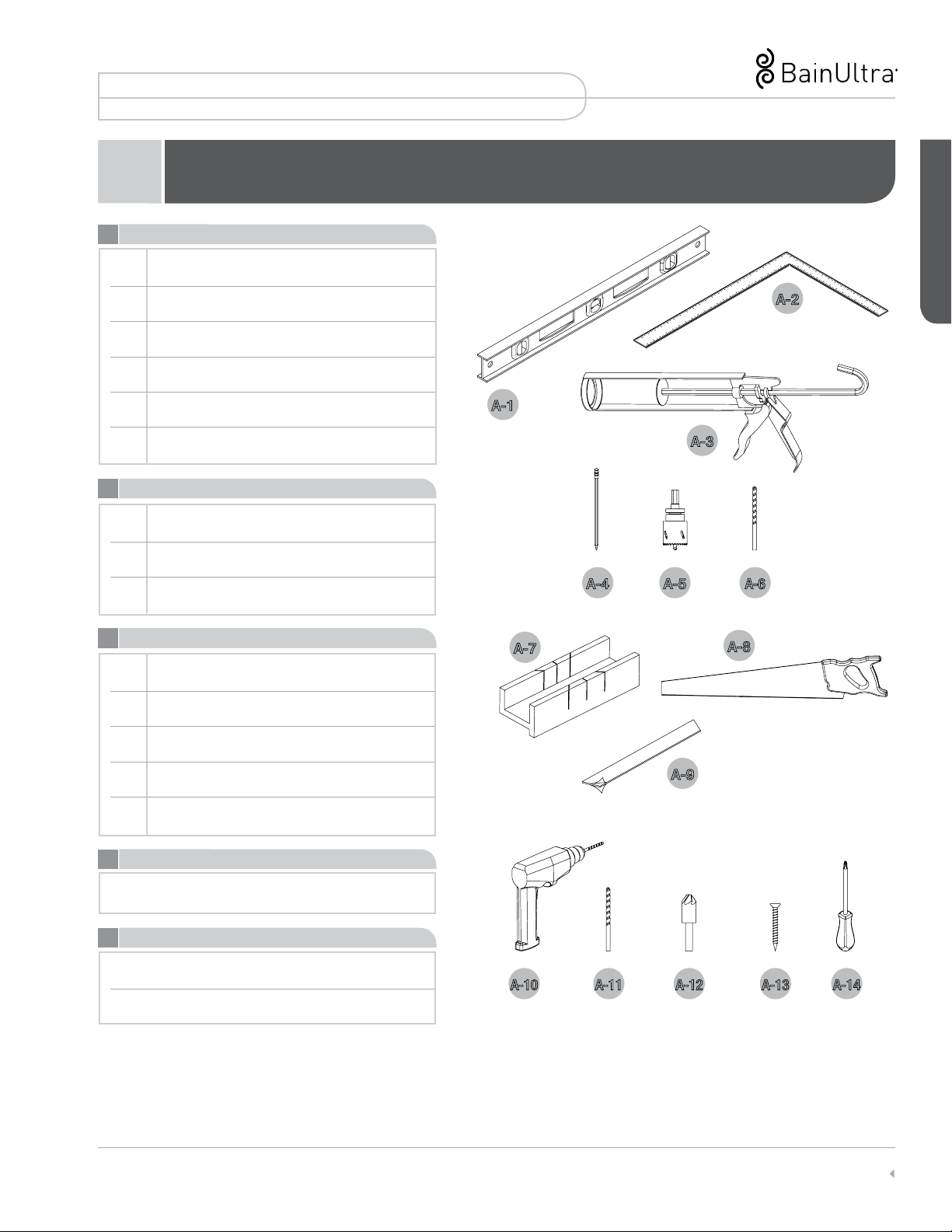

IMPORTANT •Before starting installation, ensure that parts received match your order. For all questions, call
BainUltra®at 1 800 463-2187.
A-10 Drill
A-11 11/64” drill bit
A-12 82° routing bit
A-13 Screws
A-14 Appropriate screwdriver
A. PARTS AND TOOLS
TILE FLANGE INSTALLATION
MOLDED TILE FLANGE INSTALLATION
A-1 24” Level
A-2 24” Square
A-3 Caulking gun
A-4 Pencil
A-5 Hole saw
A-6 1/16” drill bit
SKIRT INSTALLATION
OTHER NECESSARY ITEMS
See skirt section.
• Wood shims
• Silicone
A-3
A-2
A-1
A-4 A-5
A-10 A-11 A-12 A-13
A-7 A-8
A-9
A-14
A-6
A-7 Miter box (angle cutter)
A-8 Fine tooth saw
A-9 Double-face tape
THERMOMASSEUR®- PARTS AND TOOLS
THERMOMASSEUR®
PARTS AND TOOL
6
OWNER’S MANUAL |THERMOMASSEUR®
1 800 463.2187 From 8 a.m. to 8 p.m. Monday to Thursday (EST) .From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © May 2017 BainUltra Inc. All rights reserved. 45220001
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
THERMOMASSEUR®
THERMOMASSEUR®
SITE PREPARATION
There is a technical specification sheet for each
BainUltra®ThermoMasseur®which includes
information such as necessary dimensions of site
before installation. If you do not already have
the technical specifications, download from
the BainUltra®site at: www.bainultra.com or
call us at: 1 800 463-2187.
• See faucet manufacturer’s technical specifications
for zoning and plan water supply accordingly.
• Position drain according to manufacturer’s
specifications.
FAUCET INSTALLATION
Before installing, ensure that the floor underneath
the bath can support 1,500 lbs (680 kg). The bath
may sit directly on the floor. However, the bath may
also be installed on a bed of concrete. For this type
of installation, it is recommended that you insulate
the concrete between two sheets of plastic, one on
floor and the other underneath bath.
• A service access is necessary. Minimum dimensions
are: 22” x 18” (55 cm x 46 cm) to properly reach all
electrical components of the system.
• An air vent is also necessary. Minimum dimensions
are: 2” x 4” (5 cm x 10 cm) to ensure proper
functioning of the turbine. The service access panel
is often the best place to install the air vent.
All ThermoMasseur®components are factory-installed.
If for practical or accessibility reasons, the turbine and
the InMix (Chromatherapy) module must be moved,
follow recommendations outlined in TURBINE -
REMOTE MOUNTING section of this manual.
BEDDING
SERVICE ACCESS AND VENTILATION
REMOTE MOUNTING
• The space surrounding the turbine air intake must be large enough and free of debris for proper
airflow and be at a temperature between 72ºF (20ºC) and 86ºF (30ºC) for optimal performance.
WARNING
THERMOMASSEUR®- SITE PREPARATION
THERMOMASSEUR®|OWNER’S MANUAL
7
www.bainultra.com
Printed in Canada. Copyright © May 2017 BainUltra Inc. All rights reserved. 45220001
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
THERMOMASSEUR®
1-3
1-4
1-5
A
1-11/2"
[2.5 à 3.8 cm]
THERMOMASSEUR®
THERMOMASSEUR®
The BainUltra®ThermoMasseur®is almost as easy
to install as a conventional bath. The following
instructions outline steps to follow for the main
types of installation.
THERMOMASSEUR®
INSTALLATION
IMPORTANT • The Thermomasseur®must sit entirely on its base with the lip supported by a wooden structure.
• The Thermomasseur®must be level.
• The Thermomasseur®is molded with an integrated slope towards the drain. If decking around
the Thermomasseur®is level, the bath will drain accordingly.
1. ALCOVE INSTALLATION (BETWEEN
2 OR 3 WALLS)
Install to permit access for servicing.
The following instructions apply to both rectangular
and corner baths.
1-2
1-1
1-1 Place level lengthwise on decking of the
ThermoMasseur®and adjust by placing
shims under ThermoMasseur®where
necessary. Repeat exercise width wise on
the bath. Glue shims in place with a drop
of silicone.
1-2 Mark position of wooden supports to be
attached to the wall by tracing a line
underneath the deck of the ThermoMasseur®.
1-3 Pull the ThermoMasseur®out.
1-4 Align the wooden supports [at least 1 1/2”
(3.8 cm) thick] with markings and nail into
place on the wall studs. Plan for notch on
wooden supports for installation of a skirt
if necessary
1-5 Reposition ThermoMasseur®and verify that
it is level.
THERMOMASSEUR®- INSTALLATION
8
OWNER’S MANUAL |THERMOMASSEUR®
1 800 463.2187 From 8 a.m. to 8 p.m. Monday to Thursday (EST) .From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © May 2017 BainUltra Inc. All rights reserved. 45220001
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
THERMOMASSEUR®
1. ALCOVE INSTALLATION (BETWEEN
2 OR 3 WALLS)(NEXT)
IMPORTANT • If the Thermomasseur®and the skirt were not ordered together, the retainer blocks will not be
on the bath. As such, leave a 1/4” (0.6 cm) between the 2” x 3” (5 cm x 7.6 cm) support
structure and the lip of the bath so that the top of the skirt may be inserted under the deck.

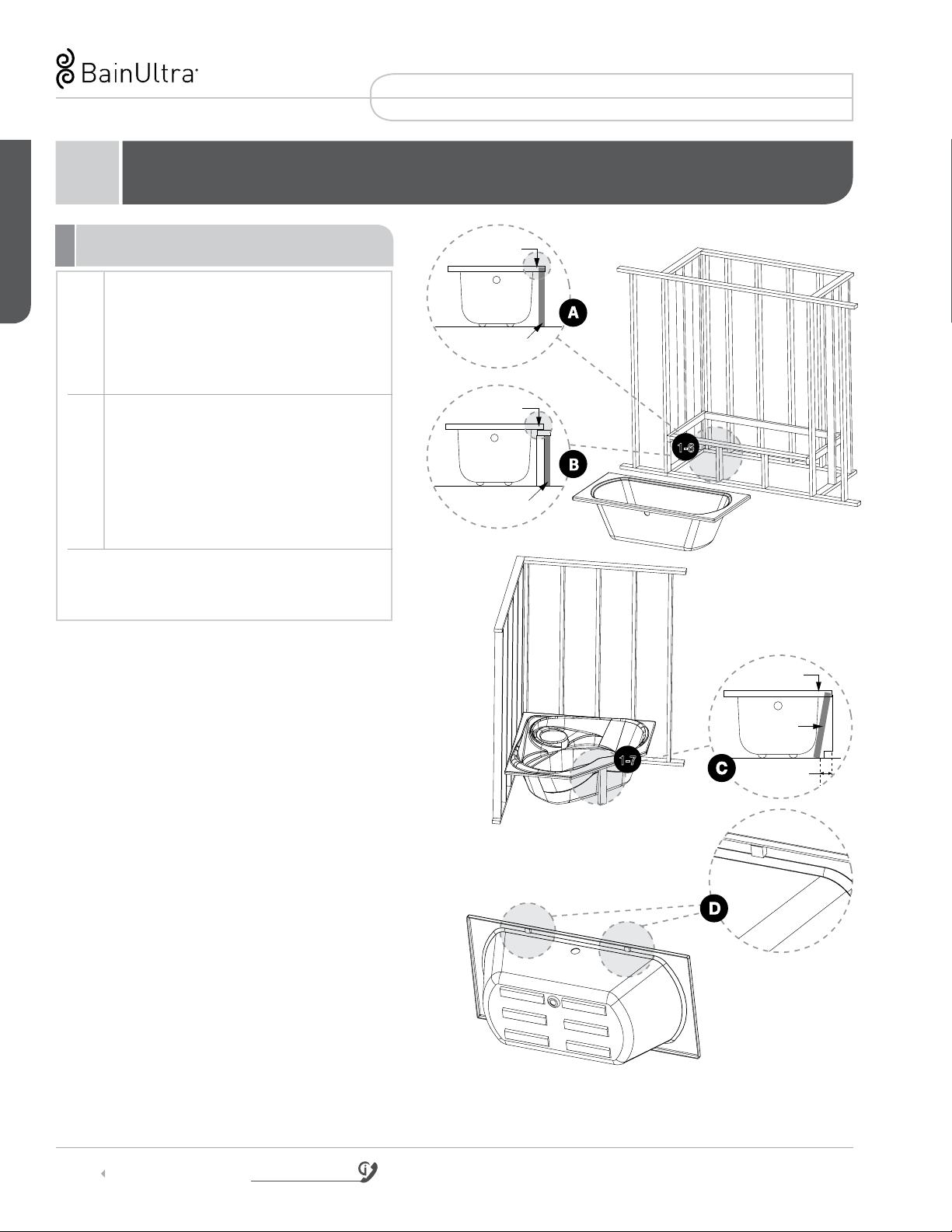

1-6 To finish the front of the bath (with ceramic
tile or other materials), a 2” x 3” (5 cm x
7.6 cm) structure is necessary to support
the ThermoMasseur®. Place underneath
the deck (A) or the edge of the bath (B)
depending on the desired finish.
1-7 BainUltra®skirt installation requires a single
2” x 3” (5 cm x 7.6 cm) support in the
front of the ThermoMasseur®. Tilt the base
of the support 3” (7.6 cm) inwards and
upwards. Place the top of the support
behind the two retainer blocks (D) of the
skirt placed underneath the lip of the
ThermoMasseur®(C).
Instructions for installing skirts and retainer blocks
not factory-installed may be found in this manual
in the SKIRT section.
Structure
2" x 3"
[5 cm x 7.6 cm]
Bath Deck
Bath Lip
Structure
2" x 3"
[5 cm x 7.6 cm]
1-6
1-7
2-5
Structure
2" x 3"
[5 cm x 7.6 cm]
Bath Deck
3
”
[7.6 cm]
THERMOMASSEUR®- INSTALLATION
THERMOMASSEUR®
SITE PREPARATION
THERMOMASSEUR®|OWNER’S MANUAL
9
www.bainultra.com
Printed in Canada. Copyright © May 2017 BainUltra Inc. All rights reserved. 45220001
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
THERMOMASSEUR®
THERMOMASSEUR®

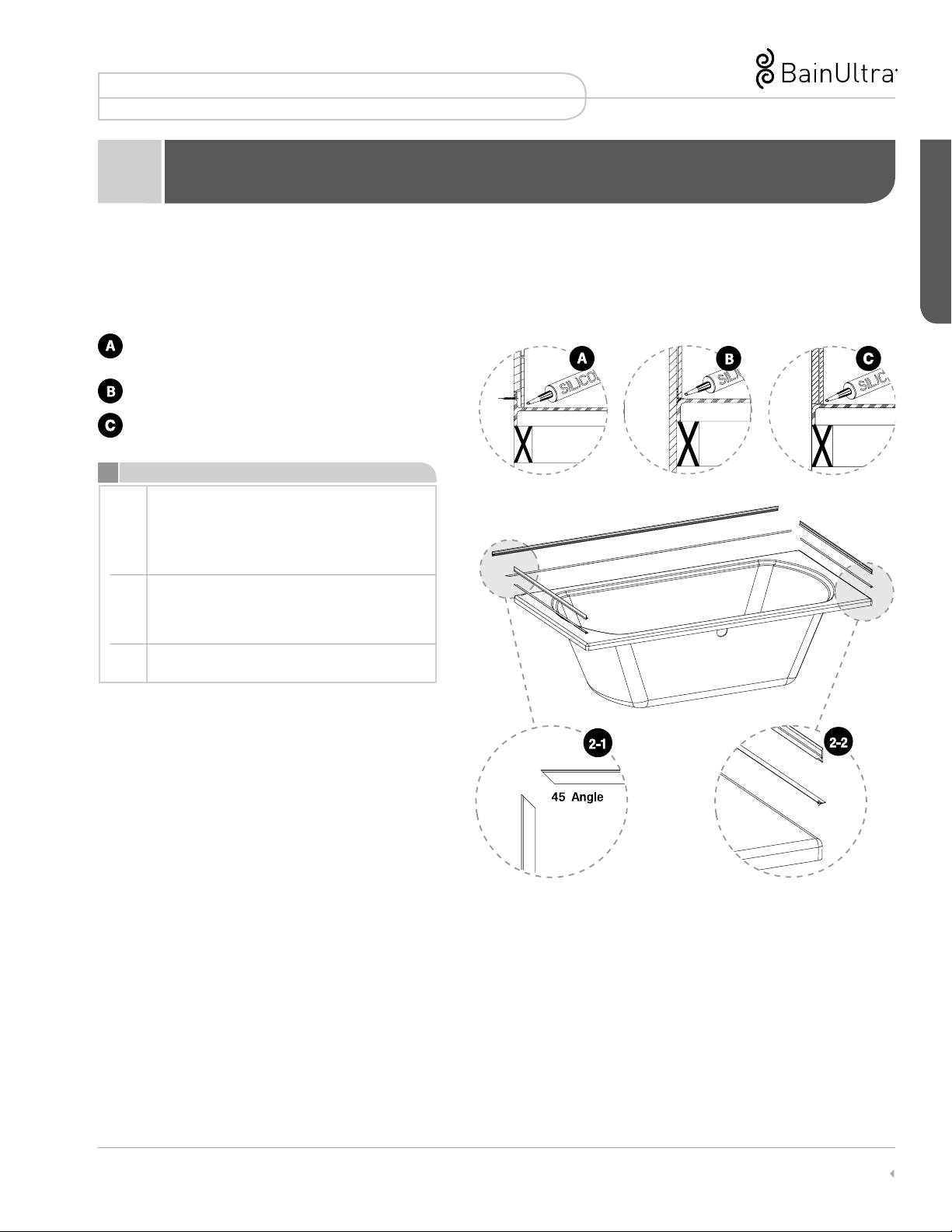

A tile flange is recommended for alcove installations
(between 2 or 3 walls). Some bath models may
include a molded tile flange. Tile flanges for other
models are not installed or may be factory-installed.
Molded tile flange (secure the flange to the wall
while supporting from beneath).
Factory or customer-installed tile flange.
No tile flange.
TILE FLANGE

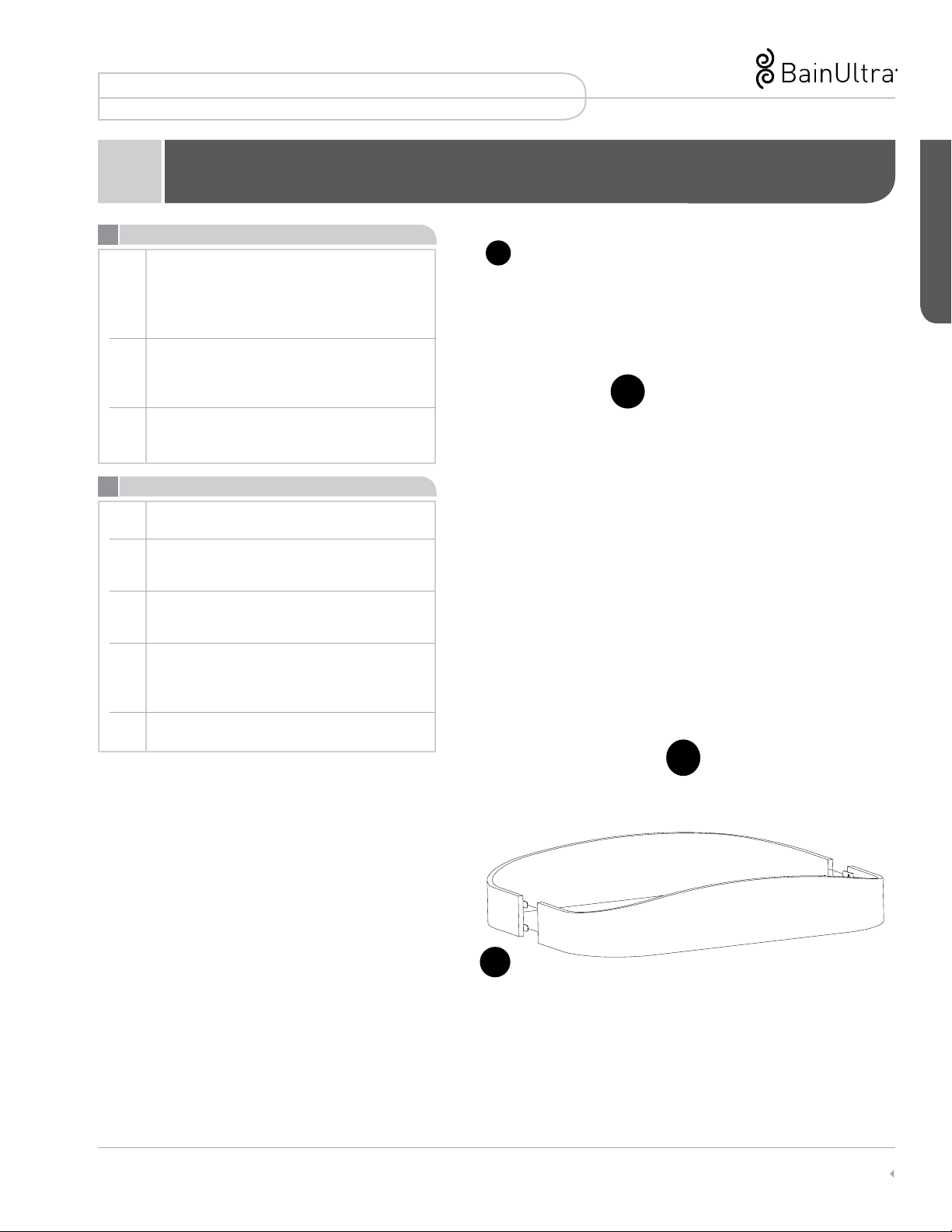

2. TILE FLANGE INSTALLATION
IMPORTANT • A factory-installed tile flange does not replace a silicone joint between tiling and the Thermomasseur®.
• The surfaces that come into contact with double-sided tape must be clean.
2-1 Using a miter box (angle cutter) and a
fine-tooth saw, cut 3 pieces of tile flange
to desired lengths. Cut 45° angles where
necessary.
2-2 Apply double-sided tape along the entire
length of the flange. Stick the tile flange
to the deck.
2-3 Apply silicone.
THERMOMASSEUR®- INSTALLATION
THERMOMASSEUR®
INSTALLATION
10
OWNER’S MANUAL |THERMOMASSEUR®
1 800 463.2187 From 8 a.m. to 8 p.m. Monday to Thursday (EST) .From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © May 2017 BainUltra Inc. All rights reserved. 45220001
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
THERMOMASSEUR®
THERMOMASSEUR®
PLUMBING INSTALLATION
All plumbing installations must be carried out by a
certified plumber. Installation of a ThermoMasseur®
is the same as for regular acrylic baths. Pay close
attention to the following when installing the
ThermoMasseur®:
Once the plumbing installation is complete and
before tile or any other related work begins, fill the
bath to the overflow and wait thirty minutes. Check
all plumbing hook-ups and bath for leaks.
BainUltra®is not responsible for any water damage
caused by leaks due to improper installation (see
WARRANTY section).
LEAK TEST
The drain and overflow openings are factory-drilled.
However, drilling may be necessary to install faucets.
This drilling of acrylic is a very delicate operation.

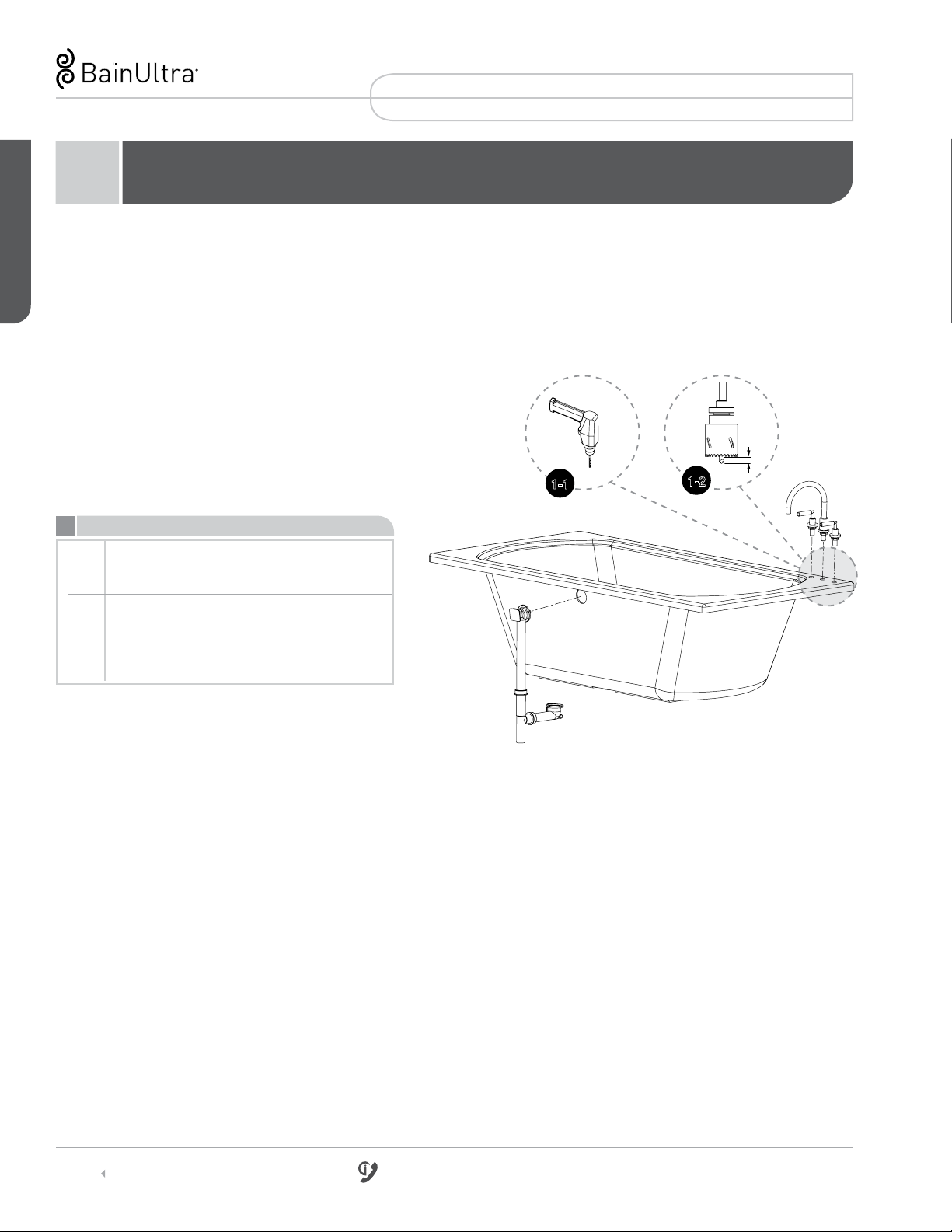

DRILLING ACRYLIC FOR FAUCETS
1. DRILLING
1-1 Drill a 1/16” guide hole before using the
hole saw.
1-2 Use a hole saw in good condition to avoid
accidental scratches. The center guide
bit should extend 1/4” (0.6 cm) for correct
drill positioning.
1/4”
[0.6 cm]
1-2
1-1
1/16”
IMPORTANT • Do not remove the protective plastic film (peel coat) on the bath and place a drop-cloth in the
Thermomasseur®during installation to protect acrylic.
• To avoid drilling in an air intake zone or, an electric component, always check under deck
before drilling.
• Drill openings slightly larger than actual faucet size. This is to avoid any possible cracking or
other damage to the acrylic.
• When installing faucets, do not over-tighten fittings, as this may damage the acrylic.
• This type of damage is not covered by the warranty.
• Drill at medium speed and do not apply pressure to drill; let the drill do the work.
• The temperature of the water heater should not exceed preset and/or recommended levels by the
manufacturer. This may cause a thermal shock to the acrylic and will not be covered by the warranty.
THERMOMASSEUR®- PLUMBING INSTALLATION
THERMOMASSEUR®|OWNER’S MANUAL
11
www.bainultra.com
Printed in Canada. Copyright © May 2017 BainUltra Inc. All rights reserved. 45220001
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
THERMOMASSEUR®
THERMOMASSEUR®
THERMOMASSEUR®
BATH ON DECK
PLUMBING INSTALLATION
IMPORTANT • Bath must be completely supported by the floor making sure the edge rests entirely on the structure.
• Bath must be levelled.
• Bath is molded with a slope toward drain. If bath is levelled in respect to the deck, the water will
drain completely.
1. INSTALLATION
* See specification sheet of bath for exceptions.
1-1 Prepare the site to connect the plumbing
and turbine.
1-2 Build the (2” x 3”) wooden structure taking
into account the thickness of the ceramic
tiles and the plywood as well as the height
of the bath.
NOTE: Plan air intake for turbine.
1-3 Secure plywood into place with screws
around and above structure.
1-4 Cut inside 1 1/2” of the outside dimensions
of the tub.
1-5 Ensure bath is levelled and that it fits properly
in cutout.
NOTE: Protect turbine as you insert bath.
1-6 Install desired finishing materials (ceramic
tiles, granit, marble or other) and top
surface and siding of the deck.
1-7 Set bath back into place and conduct
plumbing and turbine connection.
Edge of bath
Ceramic, marble,
granit or other
Plywood
2” x 3”
structure
1 1/2"
[3.8 cm]
BATH ON DECK - PLUMBING INSTALLATION
12
OWNER’S MANUAL |THERMOMASSEUR®
1 800 463.2187 From 8 a.m. to 8 p.m. Monday to Thursday (EST) .From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © May 2017 BainUltra Inc. All rights reserved. 45220001
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
THERMOMASSEUR®

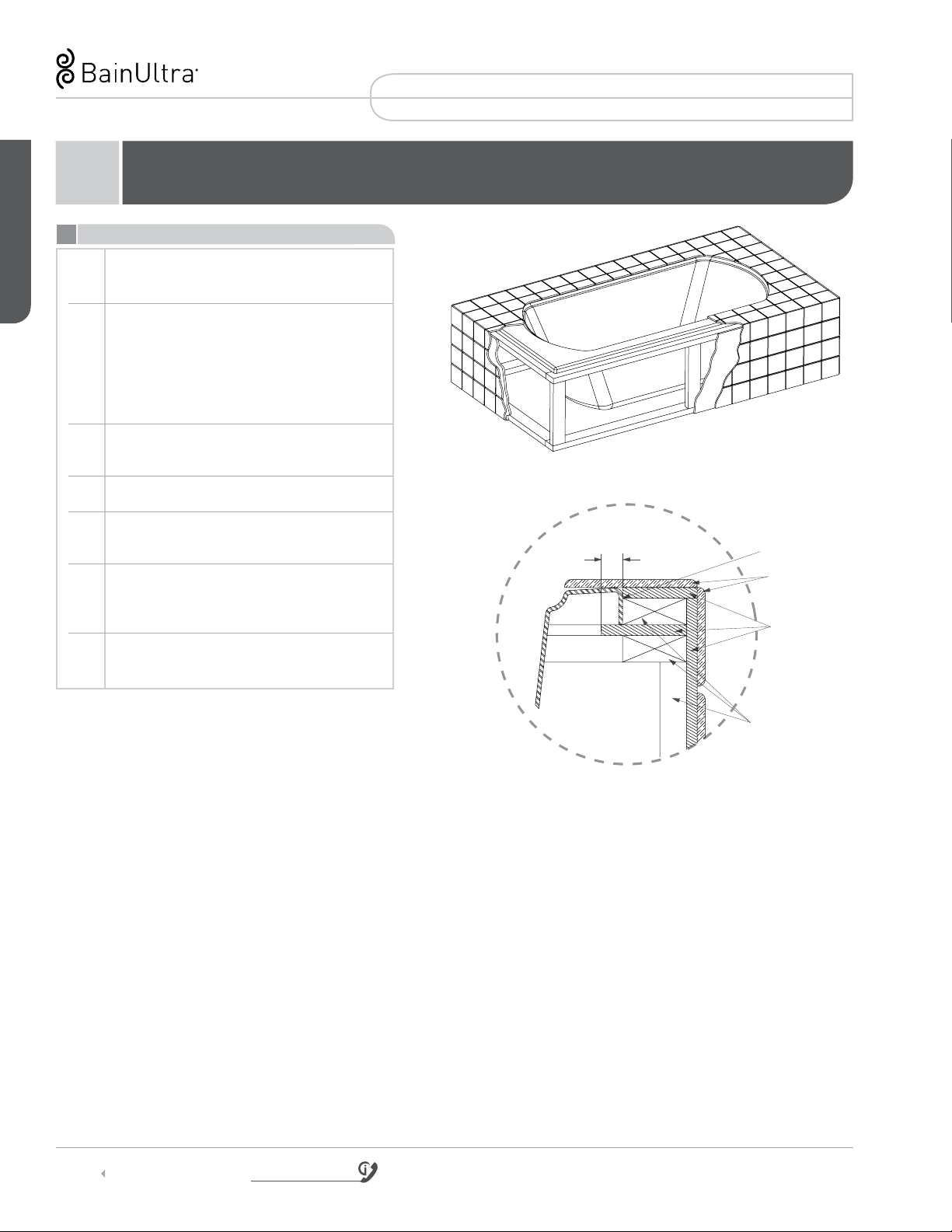

UNDERMOUNTED BATH
PLUMBING INSTALLATION
1. INSTALLATION
1-1 Prepare the site to connect the plumbing
and turbine.
1-2 Build the (2” x 3”) levelled wooden struc-
ture with plywood as in Detail A, taking
into account the thickness of the ceramic
tiles and the plywood as well as the height
of the bath.
NOTE: Plan air intake for turbine.
1-3 Ensure bath is levelled.
NOTE: Protect turbine as you insert bath.
1-4 Conduct plumbing and turbine connection.
1-5 Enclose contour of podium using plywood.
NOTE: Plan air intake for turbine.
1-6 Install desired finishing materials (ceramic
tiles, granit, marble or other) and top
surface and siding of podium.
1-7 Apply seal to junction of ceramic tiles with
ceramic grout and/or silicone.
IMPORTANT • Bath must be completely supported by podium making sure the edge rests entirely on the structure.
• Bath must be levelled.
• Bath is molded with a slope toward drain. If bath is levelled in respect to the deck, the water will
drain completely.
Edge of bath
Ceramic, marbl
e,
granit or other
Plywood
1"
[2.5 cm]
2” x 3”
structure
Detail A
UNDERMOUNTED BATH - PLUMBING INSTALLATION
BALNEO®, AMMA®
& ORIGAMI FREESTANDING
PARTS AND TOOLS
THERMOMASSEUR®|OWNER’S MANUAL
13
www.bainultra.com
Printed in Canada. Copyright © May 2017 BainUltra Inc. All rights reserved. 45220001
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
THERMOMASSEUR®
THERMOMASSEUR®
IMPORTANT • Before starting installation, ensure that parts received match your order. For all questions, call
BainUltra®at 1 800 463-2187.
• Instructions in this section apply Amma®freestanding models. Refer to
Thermomasseur®instructions for the installation of Amma®drop-in models.
BALNEO®, AMMA®
& ORIGAMI FREESTANDING
PARTS AND TOOLS
BALNEO®, AMMA®& ORIGAMI® FREESTANDING - PARTS AND TOOLS

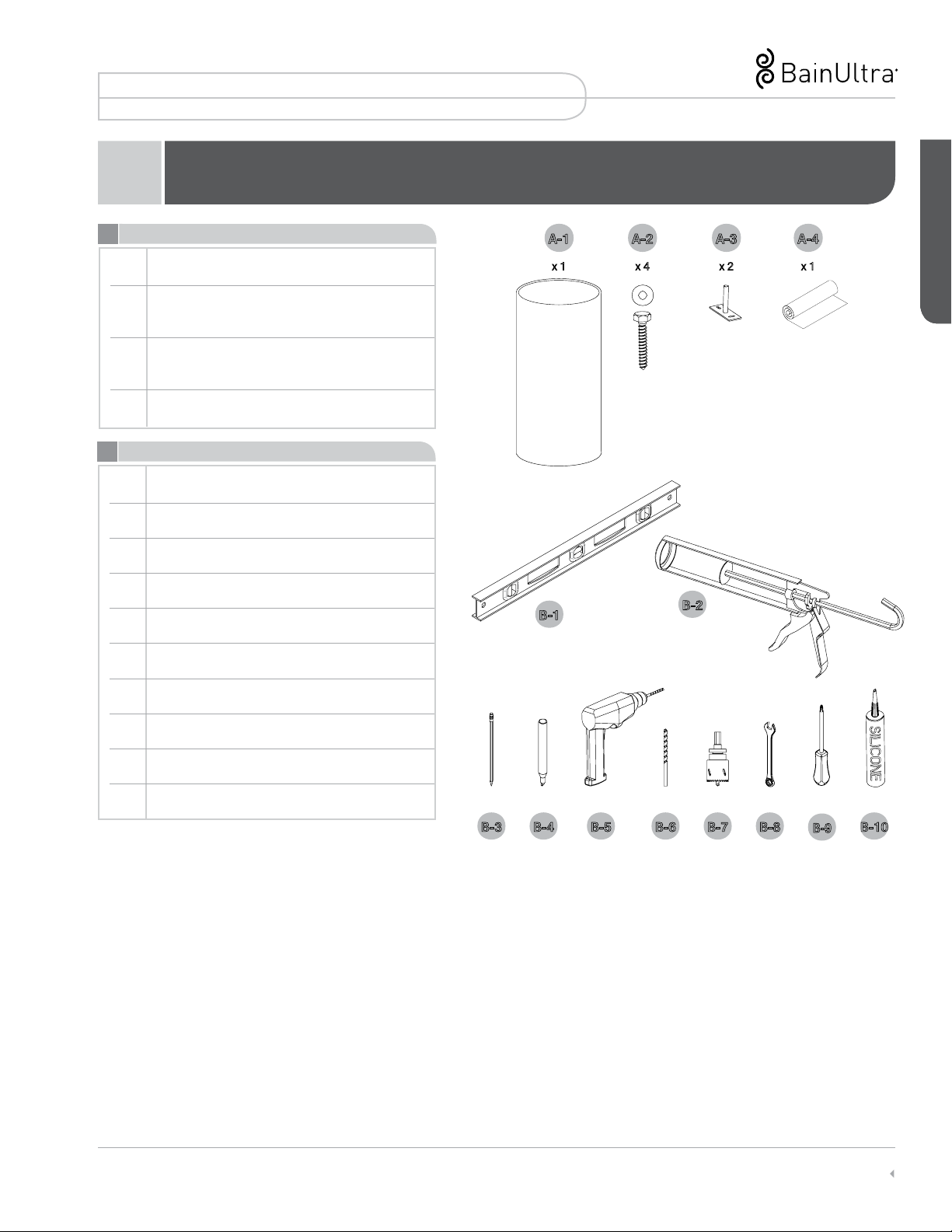

A. PARTS INCLUDED
A-1 Pipe concealer (Cella model)
A-2 Screws and washers
(Cella and Amma®models)
A-3 Floor anchoring
(Naos and Sanos)
A-4 Template (Amma®models)
B. TOOLS REQUIRED
B-1 24” level
B-2 Caulking gun
B-3 Pencil
B-4 Erasable marker
B-5 Drill
B-6 3/16” drill bit
B-7 2” hole saw
B-8 7/16” wrench (Cella and Amma®models)
B-9 Phillips #2 screwdriver
B-10 Silicone
A-1
x 1
A-2
x 4
A-4
x 1
A-3
x 2
B-2
B-1
B-3 B-5 B-7B-6 B-8B-4 B-10
B-9
14
OWNER’S MANUAL |THERMOMASSEUR®
1 800 463.2187 From 8 a.m. to 8 p.m. Monday to Thursday (EST) .From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © May 2017 BainUltra Inc. All rights reserved. 45220001
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
THERMOMASSEUR®

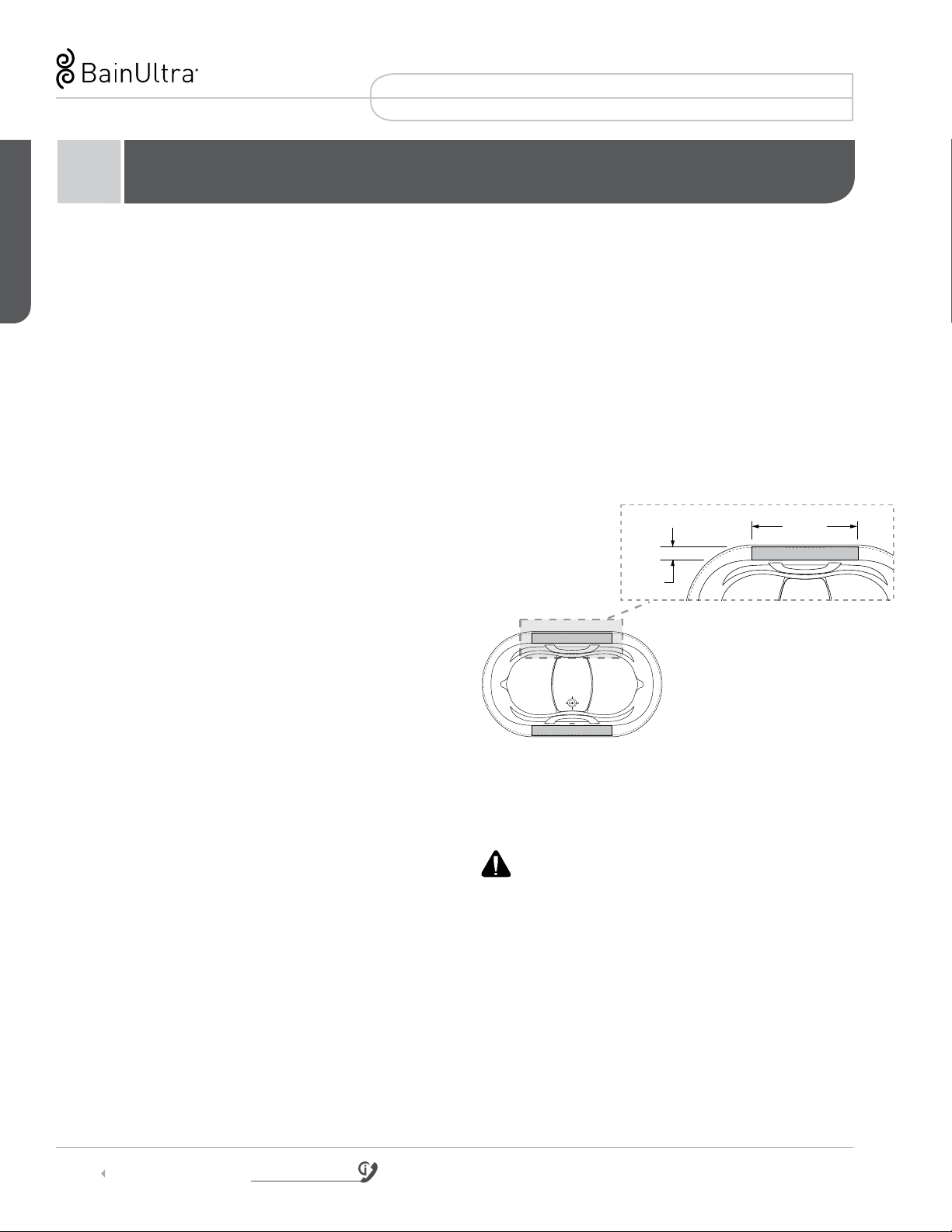

• Use flexible pipes for Amma®water connections.
• On the Amma®model, the faucet may be installed
on the bath ledge.In both cases, follow faucet loca-
tion recommendations in drawings.
NOTE: Before drilling the wood or acrylic, read the
instructions in the THERMOMASSEUR®-
PLUMBING INSTALLATION section.
PLUMBING
•Balneo®series baths cannot be drilled for faucet
installation. Faucets must be freestanding or
wall-mounted models.
WARNING
3 7/8"
[9.8 cm]
32"
[81.3 cm]
3
7/8
"
[9.8 cm]
32"
[81.3 cm]
Faucet area Amma®
BALNEO®, AMMA®
& ORIGAMI FREESTANDING
SITE PREPARATION
• Before finishing your bathroom floor (ceramic,
wood or other) ensure that the floor is level. No
subsequent adjustments may be made to these
baths except for the Amma®model, where shims
may be installed under the bath.
• Thermomasseurs®are molded with an integrated
slope towards the drain. If floor is level, the bath
will drain accordingly.
• The Amma®model requires a 12” x 9” (30.5 cm
x 22.9 cm) recess for the drain. Refer to the bath
template for the locations of water supply, electrical
connection, and control cable and remote air supply,
if applicable.
For models in the Balneo®series, the turbine is
not installed on the ThermoMasseur®. Determine
a suitable place close to the bath (must be less than
15’ [4.6 m] away), either under the floor, in a closet,
or any other location that will conceal the power
module and turbine. Chosen location must be easily
accessible for servicing while allowing sufficient air
circulation for the turbine (see TURBINE - REMOTE
MOUNTING section).
The turbine of the Amma®models is installed
beneath the bath. To allow access to
the turbine and other components, foresee an 11”
(28 cm) space around the bath in order to be able to
take out the removable base. Refer to the template.
The turbine may also be installed remotely. If necessary,
please contact BainUltra®at 1 800 463-2187 for
additional information.
If you cannot install the turbine or pro-
vide an air passage under the floor for
the Cella, Naos, or Sanos models, an
optional surface installation kit is avail-
able and must be ordered through your
retailer.
BEDDING
SERVICE ACCESS AND VENTILATION
BALNEO®, AMMA®, & ORIGAMI® FREESTANDING - SITE PREPARATION
15
www.bainultra.com
Printed in Canada. Copyright © May 2017 BainUltra Inc. All rights reserved. 45220001
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
THERMOMASSEUR®
THERMOMASSEUR®|OWNER’S MANUAL
AMMA®FREESTANDING - INSTALLATION
AMMA®FREESTANDING
INSTALLATION
1. BATH SITE
2. INSTALLATION
2-1 Mount drain on bath. Ensure watertightness.
2-2 Position the bath, aligning anchor holes
with anchor screw entry points.
2-3 Connect bath drain and water supply,
and complete electrical wiring.
2-4 Once the bath is in place and all connections
completed, secure bath in place using
washers and screws supplied.
2-5 Install base.
2-3
1-1
1-2
2-4
1-1 Once floor is prepared and level and
recess is cleared around the drain, place
installation template on floor in the chosen
location.
1-2 Align the template overflow with the floor
drain and ensure that the recess around
the drain is properly measured.
1-3 Use a 3/16” bit to drill anchor screw entry
points.
16
OWNER’S MANUAL |THERMOMASSEUR®
1 800 463.2187 From 8 a.m. to 8 p.m. Monday to Thursday (EST) .From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © January 2011 BainUltra Inc. All rights reserved. 45220001
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
THERMOMASSEUR®
2. INSTALLATION
2-1 Install the drain and overflow set on the
bath and the first section of the air intake
pipe (1 1/2’’ ABS) under the floor.
2-2 Apply a silicone joint to the base rim.
2-3 Put the ThermoMasseur®in place and put
pipes through the floor, ensuring bath is
aligned with anchoring points.
2-4 Wipe off excess silicone immediately.
Once plumbing is fully installed and before beginning
any other work, fill the ThermoMasseur®to overflow
and wait 30 minutes. Check all plumbing hook-ups
and bath for leaks. BainUltra®is not responsible for
any water damage caused by improper installation
(see Warranty section).
Install turbine and InMix power module connections
according to specifications outlined in the MIAMULTI®
ELECTRICAL INSTALLATION - TURBINE section.
LEAK TEST
ELECTRICITY
BALNEO®- NAOS & SANOS
INSTALLATION
1. BATH SITE
1-1 Once the floor has been finished and is
perfectly level, place ThermoMasseur®in
the exact chosen location. Trace the outline
of the bath with an erasable marker.
1-2 Remove the ThermoMasseur® and carefully
place it upside down on a blanket or
corrugated cardboard (ex. the box in which
it was delivered).
1-3 On the floor, determine by referring to
measurements taken underneath the bath,
the exact location of the drain, the air pipe,
and the two anchoring points at each end
of the bath.
NOTES • Since these models sit directly on the floor, the overflow drain pipe opening is factory-drilled.
• To installation of the Naos or Sanos on a concrete slab with no access below for air entry to the
bath: a hole of 1 5/8 inch (4.1 cm) in diameter must be drilled into the bath skirt to allow air
supply to the bath. Important: Do not drill above height of existing hole in the skirt intended to
connect drain to overflow.
BALNEO®- NAOS & SANOS - INSTALLATION
2-1
2-2
2-3
1-1
Horizontal – Drain
Horizontal –
Anchoring
Point
V
ertical –
Drain
Vertical –
Anchoring
Point
Vertical –
Air Intake
Pipe
1- 3
TOP VIEW
THERMOMASSEUR®|OWNER’S MANUAL
17
www.bainultra.com
Printed in Canada. Copyright © May 2017 BainUltra Inc. All rights reserved. 45220001
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
THERMOMASSEUR®
THERMOMASSEUR®
BALNEO®- CELLA
INSTALLATION
1. BATH SITE
2. INSTALLATION
2-1 Install the drain and overflow set on the
bath and the first section of the air intake
pipe (1 1/2’’ ABS) under the floor. Cover
the ABS pipe with pipe concealer
(included).
2-2 Once the ThermoMasseur®is in place
with piping installed in the floor, secure
the four feet with screws and washers
provided. (A-2)
IMPORTANT • Do not remove the protective plastic film from the bath and place a drop-cloth in the Thermomasseur®
during installation to protect the acrylic.
• The Thermomasseur®must be secured to the floor.
2 3/4"
[7 cm]
5 1/2"
[14 cm]
2-1
2-1
Cella
Cella 6036
Cella
Cella 6036
1-1 Once the floor has been finished and is
perfectly level, determine the exact location
of the ThermoMasseur®. Mark the following
on the floor:
a) position of the four feet;
b) holes to be drilled for the drain and air
intake for the turbine.
1-2 Drill the four holes for the feet with a
3/16’’ drill bit and the drain and air intake
openings with a 2’’ hole saw.
BALNEO®- CELLA - INSTALLATION
•Balneo®series baths cannot be drilled for faucet installation. Faucets must be freestanding or
wall-mounted models.
WARNING
18 1 800 463.2187 From 8 a.m. to 8 p.m. Monday to Thursday (EST) .From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © May 2017 BainUltra Inc. All rights reserved. 45220001
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
THERMOMASSEUR®
OWNER’S MANUAL |THERMOMASSEUR®
ORIGAMI FREESTANDING DESIGN SERIES - PARTS AND TOOLS - SITE PREPARATION
ORIGAMI FREESTANDING DESIGN SERIES
PARTS AND TOOLS
ORIGAMI FREESTANDING DESIGN SERIES
SITE PREPARATION

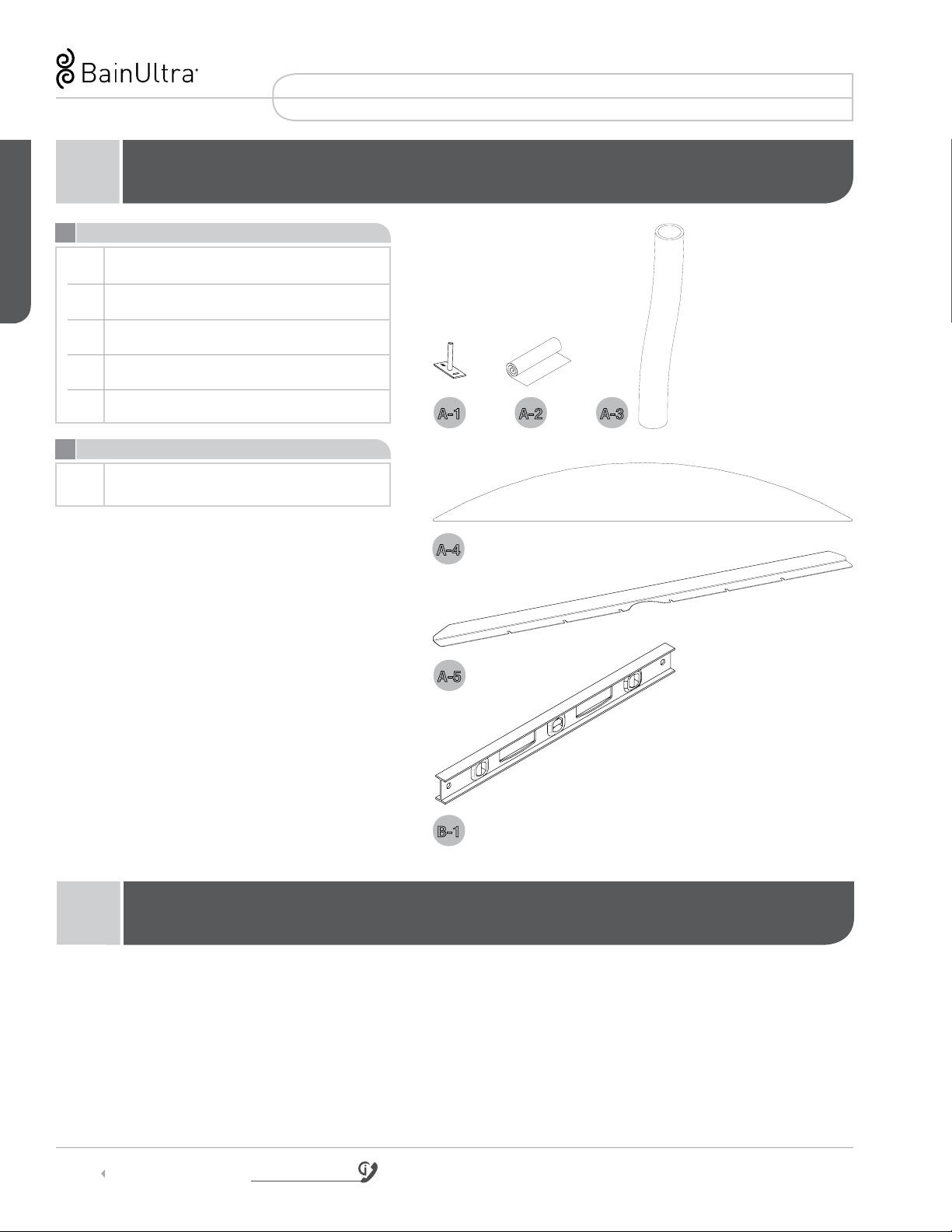

A. PARTS INCLUDED
A-1 Anchor points
A-2 Installation template
A-3 Flexible 1 1/2” pipe for overflow
A-4 Access panel
A-5 Access panel hinge
B. TOOLS REQUIRED
B-1 48-inch level
The Origami Freestanding Design Series requires
a 12” x 10” (30 cm X 25 cm) compartment for the
drain, distance air inlet and, if applicable, space
for control cables and options. Refer to the instal-
lation template.
ACCESS AND AIR INLET
For this model, the turbine is not installed on the bathtub.
Determine a location near the bathtub at a maximum distance
of 15 feet or (4.6 metres) under the floor, in a cabinet or any other
location to conceal the turbine and optional accessory casings,
if applicable. The location chosen must also be accessible and allow
sufficient air intake for the turbine.
(See TURBINE – REMOTE MOUNTING INSTALLATION section).
A-3
A-2A-1 A-4 A-5
A-3
A-2
A-1 A-4 A-5
A-3A-2
A-1
A-4 A-5
A-3A-2A-1
A-4
A-5
A-3A-2A-1 A-4
A-5
B-1
B-2
19
www.bainultra.com
Printed in Canada. Copyright © May 2017 BainUltra Inc. All rights reserved. 45220001
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
THERMOMASSEUR®
THERMOMASSEUR®|OWNER’S MANUAL
ORIGAMI FREESTANDING DESIGN SERIES - INSTALLATION
2. INSTALLATION
1. LOCATION
NOTES • To install the Origami Freestanding Design Series
on a concrete slab with no place for the passage
of the air inlet pipe to the bathtub: drill a hole
1 5/8 inches in diameter in the skirt. IMPORTANT:
drill the hole 1 1/2 inches above floor level and
protect the bathtub with a piece of wood placed
behind the location to be drilled.
• If a control or options are installed on the bathtub,
a second pipe may be required through which to
feed the cables.
ORIGAMI FREESTANDING DESIGN SERIES
INSTALLATION
3/4
1-1
2-1 2-3 2-62-2
1-1
2-1
2-3 2-62-2
1-1 2-1
2-3
2-62-2
1-1 2-1 2-3
2-6
2-2
1-1 2-1 2-3 2-6
2-2
2-1 Assemble the drain on the bathtub. Use
the flexible 1 1/2” pipe provided for the
junction between the overflow and the
T-joint. Ensure watertightness. This
operation is much easier to complete
when the bathtub rests on its side. Place a
cover or protective cardboard on the floor
before positioning the bathtub on its side.
2-2 Apply a joint of silicone under the edge
of the base of the bathtub.
2-3 Install the bathtub on the anchor points
fastened to the floor and immediately wipe
away any excess silicone. Connect the drain.
2-4 Install the turbine according to the
instructions in the TURBINE – REMOTE
MOUNTING INSTALLATION section of the
manual.The air inlet is located to the left
of the bathtub drain and, ifapplicable,
control and option connection cables to
the right. Connect control and option
cables if applicable.
2-5 Use a level or ruler to draw a line on the floor
between contact points between the access
panel arch and the base of the bathtub.
2-6 Position the metal access panel hinge 3/4 of
an inch behind the line drawn in Step 2-5.
2-7 Screw the hinge in place on the floor
using the slots provided. Install panel.
1-1 Once the compartment around the drain is
completed in the floor, place the installation
template on the ground at the chosen location.
1-2 Align the position of the overflow drain with
the floor drain and ensure that the compart-
ment size corresponds to requirements.
1-3 Mark the location of the anchor point screws.
1-4 Remove the installation template and screw
in the anchor points in the marked locations.
OWNER’S MANUAL |TURBINE
20 1 800 463.2187 From 8 a.m. to 8 p.m. Monday to Thursday (EST) .From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © May 2017 BainUltra Inc. All rights reserved. 45220001
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
TURBINE
TURBINE
TECHNICAL SPECIFICATIONS
NOTES • The specifications shown indicate the outer edge dimension.
• The manufacturer accepts a 1/4” [ 0.64 cm] variance. There are variations on each product and
specifications are subject to change as we improve upon our product as required. The dimensions
needed for site preparation and structure building will differ. BainUltra
®assumes no responsibility
for preparatory work done prior to the product being on site.
WARRANTY Turbine* | *Some restrictions may apply. (www.bainultra.com/warranty)
MOTOR
AIR HEATER
Power
700 W
5.8 A
Operating cost
$0.027/HR for $0.045/KWh
Weight
5,5 lbs
Motor power
Panasonic 0,8 HP
120 V
600 W
5 A
Air pressure
2,75 psi
Air flow
75 cfm at maximum speed
Motor rotation speed
27 000 rpm at maximum speed
Noise level
56 to 60 db at maximum speed
Operating cost
$0.027/HR for $0.045/KWh
TURBINE - TECHNICAL SPECIFICATIONS
6-1/2’’
[16,5 cm]
1-1/2’’
[3,8 cm]
10’’
[25,4 cm]
29-1/2’’
[75 cm]
8-1/4’’
[21,1 cm]
n 6-3/4’’
[17,2 cm]
1-1/2’’
[4 cm]
(OPTIONAL SUPPORT INCLUDED)
FOR REMOTE MOUNTING ONLY
AIR INTAKE
AIR OUTLET
PIPE n1-1/2’’
Other manuals for THERMOMASSEUR
1
Table of contents
Other BainUltra Hot Tub manuals
