Baja MB801700 User manual

WARNING: To reduce the risk of injury, the user must
read and understand the operator’s manual before using this
product.
ADVERTENCIA: Para reducir el riesgo de lesiones,
el usuario debe leer y comprender el manual del operador
antes de usar este producto.
TABLE OF CONTENTS
Important Safety Instructions ................................................ 2
Specific Safety Rules ......................................................... 3-4
Symbols.............................................................................. 5-6
Electrical................................................................................. 7
Features.................................................................................. 8
Assembly...........................................................................8-10
Operation..........................................................................11-14
Maintenance.................................................................... 15-16
Troubleshooting.................................................................... 17
Warranty ............................................................................... 18
Parts Ordering/Service .......................................... Back Page
ÍNDICE DE CONTENIDO
Instrucciones de seguridad importantes ................................2
Reglas de seguridad específicas ........................................3-4
Símbolos ..............................................................................5-6
Aspectos Eléctricos.................................................................7
Características.........................................................................8
Armado............................................................................... 8-10
Funcionamiento ................................................................11-14
Mantenimiento ................................................................. 15-16
Solución de problemas..........................................................17
Garantía..................................................................................18
Pedidos de piezas/servicio ............................... Pág. posterior
OPERATOR’S MANUAL
MANUAL DEL OPERADOR
1800 PSI ELECTRIC
PRESSURE WASHER
LAVADORA A PRESIÓN A ELÉCTRICA
DE 1 800 PSI
MB801700
SAVE THIS MANUAL FOR
FUTURE REFERENCE GUARDE ESTE MANUAL PARA FUTURAS CONSULTAS

ii
Fig. 1 Fig. 2
A - Test button (botón de prueba)
B - Reset button (botón de reajuste)
A
B
Fig. 3
A - On/off switch (interruptor de encendido)
B - Nozzle storage (almacenamiento para
boquilla)
C - Spray wand (tubo rociado)
D - Motor housing (alojamiento del motor)
A
C
H
J
C
F
A
B
B
D
E
G
E - Soap tank (tanque de jabón)
F - Trigger with lock-out (gatillo con seguro)
G - Power cord storage brackets (soportes para
almacenamiento del cordón eléctrico)
H - Trigger handle (mango del gatillo)
A - Pressure washer power cord (cordón de
corriente de la lavadora de presión)
I
B - Drip loop (vuelta de goteo)
C - Extension cord (cordón de extensión)
See this fold-out section for all of the figures referenced in the operator’s manual.
Consulte esta sección desplegable para ver todas las figuras a las que se hace referencia en el manual del operador.
I - High pressure hose (manguera de alta
presión)
J - Handle (mango)

iii

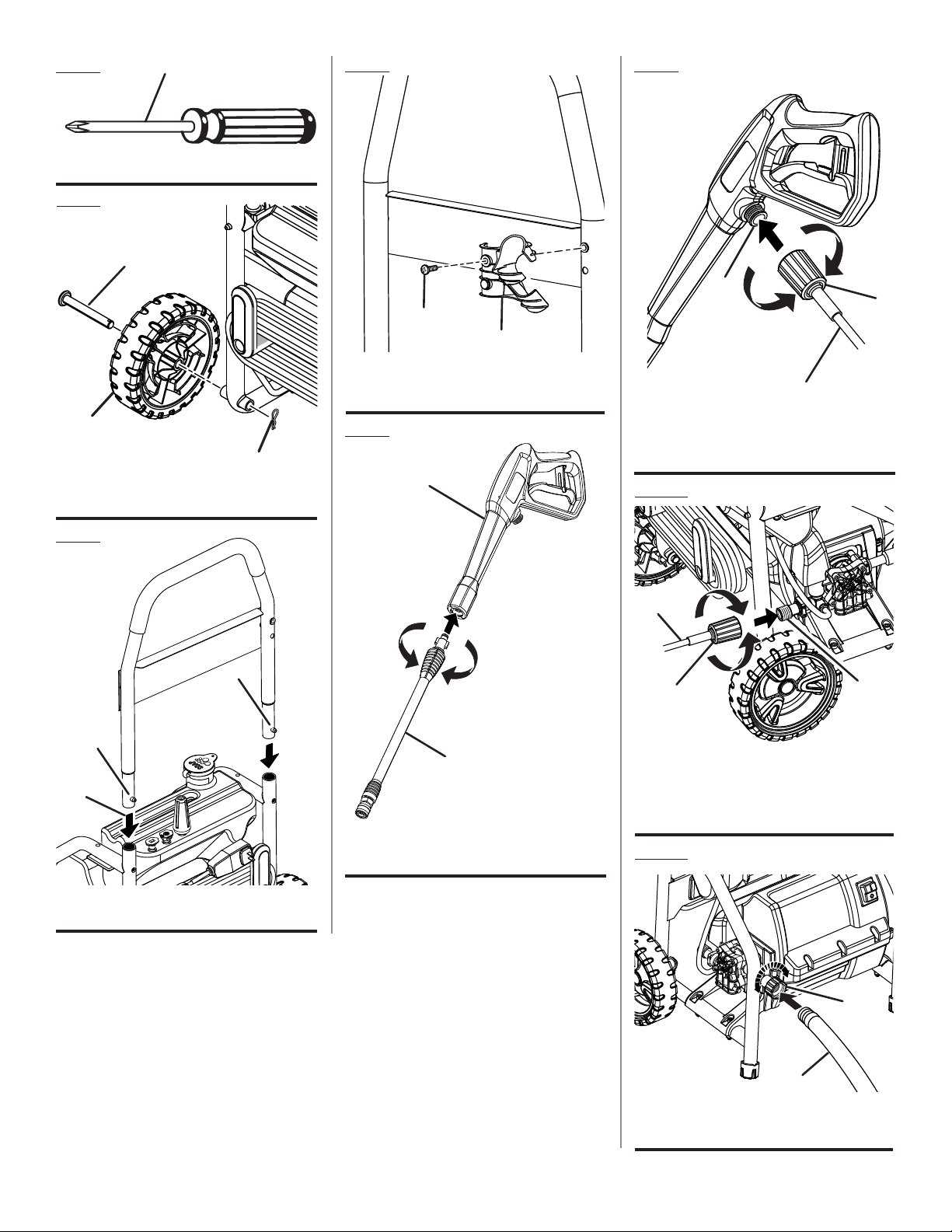

Fig. 5
A - Axle (eje)
B - Wheel (rueda)
C - Hitch pin (pasador del enganche)
A
C
B
Fig. 4
A - Screwdriver (destornillador)
A
A - Button (botón)
B - Push to insert (presione para insertar)
Fig. 6
A
A
B
B
A - Screw (tornillo)
B - Trigger handle storage bracket (soporte para
almacenamiento del mango del gatillo)
Fig. 7
Fig. 8
A - Trigger handle (mango del gatillo)
B - Spray wand (tubo rociador)
A
B
Fig. 9
A - Collar (casquillo)
B - Inlet coupler (acoplador de entrada)
C - High pressure hose (manguera de alta
presión)
A
B
C
A - Threaded outlet (conexión roscada)
B - Collar (casquillo)
C - High-pressure hose (manguera de alta
presión)
Fig. 10
A
B
A - Water intake (entrada de agua)
B - Garden hose (manguera de jardín)
Fig. 11
A
B
C
A
B

iv

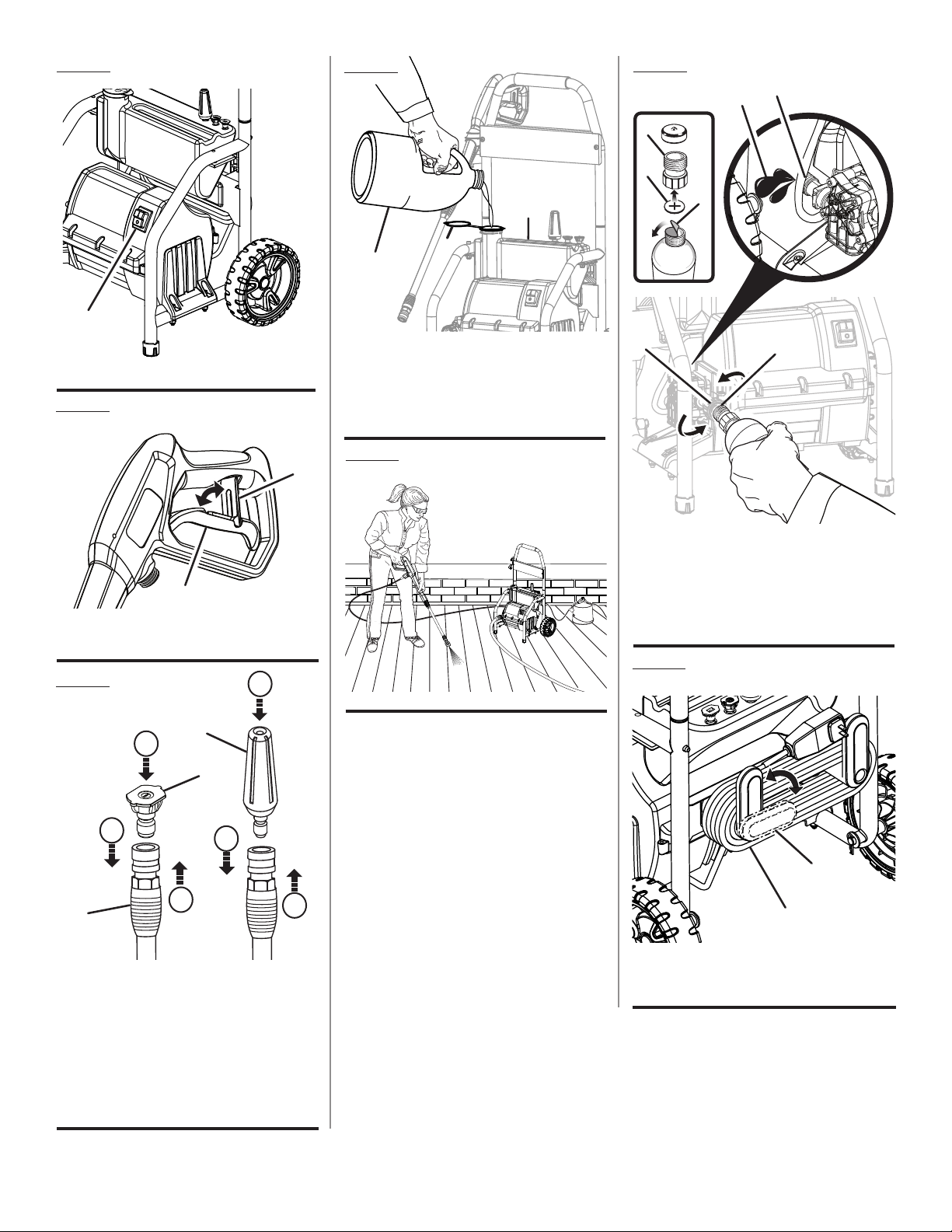

A - On/off switch (interruptor de encendido)
Fig. 12
A
A - Trigger (gatillo)
B - Lock-out (seguro)

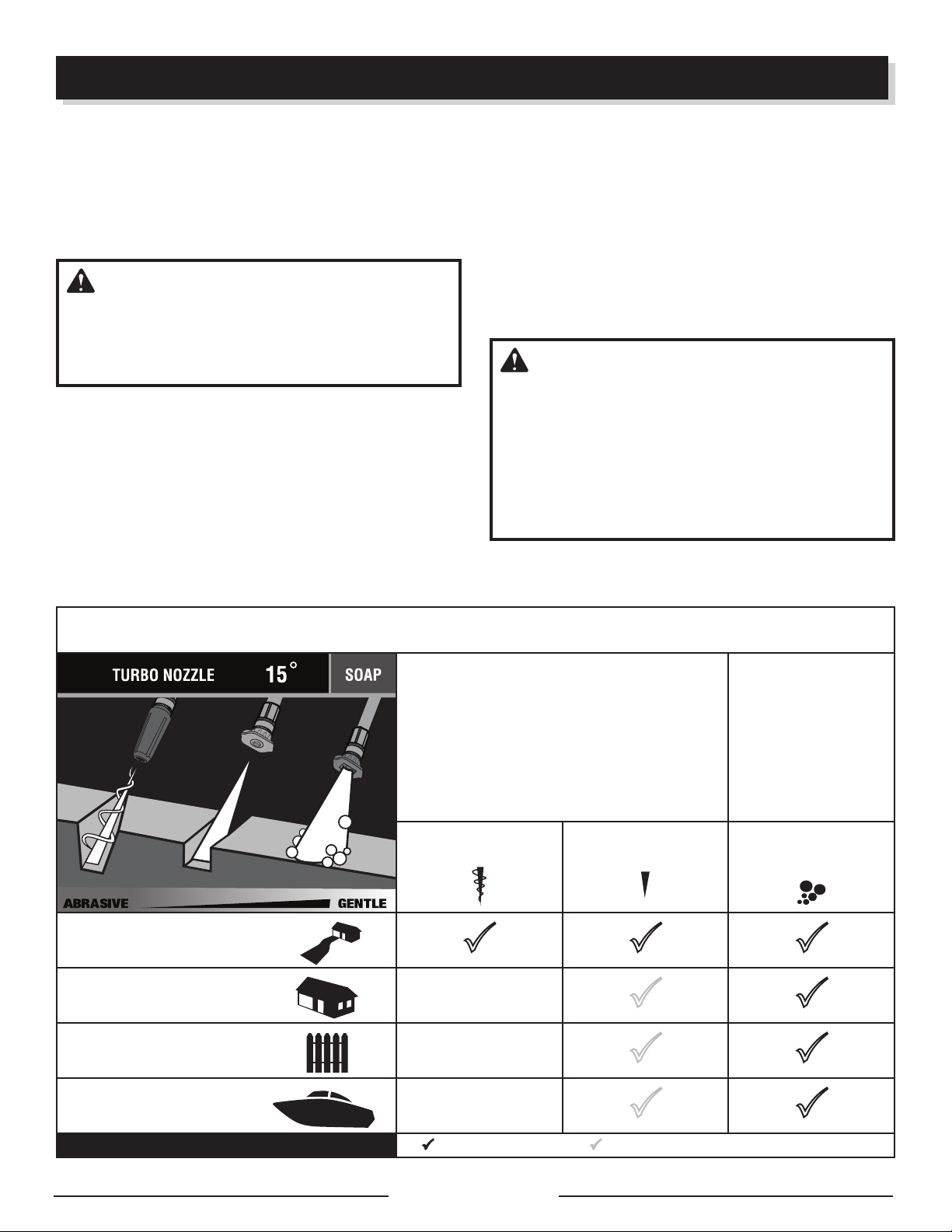

A - Spray wand (tubo rociador)
B - Nozzle (boquilla)
C - Turbo nozzle (boquilla de turbo)
D - Pull back the quick-connect collar (tire del
collar de conexión rápida)
E - Push the nozzle into place (introduzca la
boquilla en su lugar)
F - Push the collar forward (empuje del collar
adelante)
A
B
C
Fig. 14
A
B
DD
E
E
FF
Fig. 13
Fig. 15
A - Cap (tapa)
B - Detergent (detergente)
C - Soap tank (tanque de jabón)
A
B
C
Fig. 16
Fig. 18
A - Power cord (cordón de corriente)
B - Power cord storage bracket (soporte para
almacenamiento del cordón eléctrico)
A
B
Fig. 17
A - Threaded top (parte superior roscada)
B - Rubber seal (sello de goma)
C - Paper seal (sello de papel)
D - Water intake (entrada de agua)
E - Pump outlet (orificio de descarga de la
bomba)
F - Pump protector (protector de bomba)
C
B
A
A
D
E
F

v
Fig. 20
A - Straightened paper clip (clip para papel
abierto)
B - Nozzle (boquilla)
A
B
Fig. 21
Fig. 19 Fig. 22
TO STORE THE MACHINE
PARA GUARDAR LA MÁQUINA
MOVING THE PRESSURE WASHER
PARA MOVER LA MÁQUINA

Page 2 — English
WARNING:
Read and understand all instructions. Failure to follow
all instructions listed below may result in electric shock,
fire, and/or serious personal injury.
WARNING:
When using this product basic precautions should al-
ways be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING
THIS PRODUCT
To reduce the risk of injury, close supervision is neces-
sary when a product is used near children.
Be thoroughly familiar with controls. Know how to
stop the product and release pressure quickly.
Stay alert and exercise control. Watch what you are
doing and use common sense. Do not operate product
when you are tired. Do not rush.
Do not operate the product when fatigued or while
under the influence of drugs, alcohol, or any medica-
tion.
Keep the area of operation clear of all persons,
particularly small children, and pets.
Don’toverreach orstandona ladder, rooftop,or other
unstable support. Keep proper footing and balance at
all times.
Follow the maintenance instructions specified in this
manual.
This product is provided with a ground fault circuit
interrupter built into the power cord plug. If replace-
ment of the plug or cord is needed, use only identical
replacement parts.
WARNING: Risk of injection or injury – Do not direct
discharge stream at persons.
SAVE THESE INSTRUCTIONS
GROUND FAULT CIRCUIT INTERRUPTER
PROTECTION
This pressure washer is provided with a ground fault circuit
interrupter (GFCI) built into the plug of the power supply
cord. This device provides additional protection from the
risk of electric shock. Should replacement of the plug or
cord become necessary, use only identical replacement
parts that include GFCI protection.
EXTENSION CORDS
See Figure 1.
Use only extension cords that are intended for outdoor use.
These extension cords are identified by a marking “Accept-
ableforusewith outdoorappliances; storeindoorswhilenot
in use.” Use only extension cords having an electrical rating
not less than the rating of the product. Do not use damaged
extension cords. Examine extension cord before using and
replace if damaged. Do not abuse extension cord and do
not yank on any cord to disconnect. Keep cord away from
heat and sharp edges. Always disconnect the extension
cord from the receptacle before disconnecting the product
from the extension cord. Always plug the extension cord
into a GFCI protected outlet.
To avoid the possibility of the tool plug getting wet when
using an extension cord, arrange a “drip loop” in the cord
connecting the pressure washer to the extension cord. The
“drip loop” is that part of the cord below the level of the
connector which prevents water travelling along the cord
and coming in contact with the connection. If the plug does
get wet, DO NOT unplug the cord. Disconnect the fuse or
circuit breaker that supplies power to the tool, then unplug
and examine for presence of water in the connection.
WARNING: To reduce the risk of electrocution, keep all
connections dry and off the ground. Do not touch plug
with wet hands.
SERVICING OF A DOUBLE-INSULATED
APPLIANCE
In a double-insulated product, two systems of insulation
are provided instead of grounding. No grounding means is
providedonadouble-insulatedproduct, nor shouldameans
for grounding be added to the product. Servicing a double-
insulated product requires extreme care and knowledge of
the system, and should be done only by qualified service
personnel.Replacementpartsforadouble-insulatedproduct
must be identicaltothepartstheyreplace.A double-insulated
product is marked with the words “DOUBLE INSULATION”
or “DOUBLE INSULATED”. The symbol may also be
marked on the product.
IMPORTANT SAFETY INSTRUCTIONS

Page 3 — English
SPECIFIC SAFETY RULES
Use caution when positioning the pressure washer
for use. Warm air from the motor could cause discolored
spots on grass.
Know your product. Read the operator’s manual care-
fully. Learn the machine’s applications and limitations
as well as the specific potential hazards related to this
product.
To reduce the risk of injury, keep children and visitors
away. All visitors should wear safety glasses and be kept
a safe distance from work area.
Use right product. Don’t force product or attachment to
do a job it was not designed for. Don’t use it for a purpose
not intended.
Dress properly. Wear long pants and long sleeves. Do
not wear loose clothing, neckties, or jewelry. They can get
caught and draw you into moving parts. Rubber gloves
and nonskid footwear are recommended when working
outdoors. Also wear protective hair covering to contain
long hair.
Do not operate the equipmentwhile barefootor when
wearing sandals or similar lightweight footwear.
Wear protective footwear that will protect your feet and
improve your footing on slippery surfaces.
Exercise caution to avoid slipping or falling.
 Alwaysweareyeprotectionwithsideshieldsmarked
tocomplywithANSIZ87.1.Following this rule will reduce
the risk of serious personal injury.
Use only recommended accessories. The use of im-
proper accessories may cause risk of injury.
Checkdamagedparts.Beforefurtheruse oftheproduct,
a guard or other part that is damaged should be care-
fully checked to determine that it will operate properly
and perform its intended function. Check for alignment
of moving parts, binding of moving parts, breakage of
parts, mounting, and any other conditions that may af-
fect its operation. A guard or other part that is damaged
must be properly repaired or replaced by an authorized
service center to avoid risk of personal injury.
Neverleaveproduct running unattended. Turnpower
off. Don’t leave product until it comes to a complete stop.
Keep the motor free of grass, leaves, or grease to
reduce the chance of a fire hazard.
Follow manufacturer’s recommendations for safe
loading, unloading, transport, and storage of ma-
chine.
Keep product dry, clean, and free from oil and
grease. Always use a clean cloth when cleaning. Never
use brake fluids, gasoline, petroleum-based products,
or any solvents to clean product.
Check the work area before each use. Remove all
objects such as rocks, broken glass, nails, wire, or string
whichcanbethrownorbecome entangled in the machine.
Do not use product if switch does not turn it off. Have
switch replaced by an authorized service center.
Avoid dangerous environment. Don’t expose to rain.
Keep work area well lit.
Do not abuse the cord. Never use the cord to carry the
product or to disconnect the plug from an outlet. Keep
cord away from heat, oil, sharp edges, or moving parts.
Replace damaged cords immediately. Damaged cords
increase the risk of electric shock.
Ground Fault Circuit Interrupter (GFCI) protection
should be provided on the circuit(s) or outlet(s) to
be used for the product. Receptacles are available
having built-in GFCI protection and may be used for this
measure of safety.
To reduce the risk of electric shock, this product has
a polarized plug (one blade is wider than the other)
andwill requirethe useof a polarizedextension cord.
The plug will fit into a polarized extension cord only one
way. If the plug does not fit fully into the extension cord,
reverse the plug. If the plug still does not fit, obtain a
correct polarized extension cord. A polarized extension
cord will require the use of a polarized wall outlet. This
plug will fit into the polarized wall outlet only one way.
If the plug does not fit fully into the wall outlet, reverse
the plug. If the plug still does not fit, contact a qualified
electrician to install the proper wall outlet. Do not change
the equipment plug, extension cord receptacle, or exten-
sion cord plug in any way.
Make sure your extension cord is in good condition.
When using an extension cord, be sure to use one heavy
enough to carry the current your product will draw. A wire
gauge size (A.W.G.) of at least 14 is recommended for an
extension cord 25 feet or less in length. If in doubt, use
the next heavier gauge. The smaller the gauge number,
the heavierthecord. Anundersizedcord willcauseadrop
in line voltage resulting in loss of power and overheating.
WARNING: Use outdoor extension cords marked SW-A,
SOW-A,STW-A,STOW-A,SJW-A,SJTW-A,or SJTOWA.
These cords are rated for outdoor use and reduce the
risk of electric shock.
Inspect extension cords periodically and replace if
damaged. Keep handles dry, clean, and free from oil or
grease.
Never direct a water stream toward people or pets,
or any electrical device.
Before starting any cleaning operation, close doors
and windows. Clear the area to be cleaned of debris,
toys, outdoor furniture, or other objects that could create
a hazard.
Do not use acids, alkalines, solvents, flammable
material, bleaches, or industrial grade solutions in
this product. These products can cause physical injuries
to the operator and irreversible damage to the machine.

Page 4 — English
SPECIFIC SAFETY RULES
WARNING: High pressure jets can be dangerous if
subject to misuse. The jet must not be directed at per-
sons, animals, electrical devices, or the machine itself.
Keep the motor away from flammables and other
hazardous materials.
Check bolts and nuts for looseness before each use.
A loose bolt or nut may cause serious motor problems.
Before storing, allow the motor to cool.
Whenservicinguseonlyidenticalreplacementparts.
Use of any other parts may create a hazard or cause
product damage.
ONLY use cold water.
Never pick up or carry the machine while the motor
is running.
Never start the machine if ice has formed in any part
of the equipment.
Keep guards in place and in working order. Never oper-
ate the tool with any guard or cover removed. Make sure
all guards are operating properly before each use.
Use right tool. Don’t force tool or attachment to do a
job it was not designed for. Don’t use it for a purpose
not intended.
Make sure minimum clearanceof 3 feetis maintained
from combustible materials.
Never spray close to the surface to be cleaned, as
you can damage the surface.
After stopping the motor, always pull the trigger on
the trigger handle to relieve stored pressure in the
high pressure hose. Failure to do so could result in
serious personal injury.
For outdoor use only.
Ensurethehighpressure hose isproperlyconnected
before using the product.
Connectpressurewasheronly to an individualbranch
circuit.
Hold the trigger handle securely with both hands.
Expect the trigger handle to move when the trigger is
pulled due to reaction forces. Failure to do so could
cause loss of control and injury to yourself and others.
Save these instructions. Refer to them frequently and
use them to instruct other users. If you loan someone this
product, loan them these instructions also.

Page 5 — English
SYMBOLS
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER: Indicates a hazardous situation, which, if not avoided, will result in death or
serious injury.
WARNING: Indicates a hazardous situation, which, if not avoided, could result in death or
serious injury.
CAUTION: Indicates a hazardous situation, that, if not avoided, may result in minor or
moderate injury.
NOTICE: (Without Safety Alert Symbol) Indicates information considered important, but
not related to a potential injury (e.g. messages relating to property damage).
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the product better and safer.
SYMBOL NAME DESIGNATION/EXPLANATION
Safety Alert Indicates a potential personal injury hazard.
Read Operator’s Manual To reduce the risk of injury, user must read and understand
operator’s manual before using this product.
Eye Protection Always wear eye protection with side shields marked to comply
with ANSI Z87.1.
Wet Conditions Alert Do not expose to rain or use in damp locations, and never direct
a water stream toward any electrical device.
Risk of Injection
To reduce the risk of injection or injury, never direct a water stream
towards people or pets or place any body part in the stream.
Leaking hoses and fittings are also capable of causing injection
injury. Do not hold hoses or fittings.
Kickback To reduce the risk of injury from kickback, hold the spray wand
securely with both hands when the machine is on.
Electric Shock Do not use near electric power lines or receptacle outlets.
Chemical Burns
To reduce the risk of injury or damage, DO NOT USE ACIDS,
ALKALINES, BLEACHES, SOLVENTS, FLAMMABLE MATERIAL,
OR INDUSTRIAL GRADE SOLUTIONS in this product.
Risk of Explosion Do not sprayflammableliquids. Flammableliquidsandtheir vapors
are explosive and can cause severe burns or death.

Page 6 — English
SYMBOLS
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the product better and safer.
SYMBOL NAME DESIGNATION/EXPLANATION
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
Alternating Current Type of current
n
o
No Load Speed Rotational speed, at no load
Class II Construction Double-insulated construction
.../min Per Minute Revolutions, strokes, surface speed, orbits etc., per minute

Page 7 — English
USE ONLY THIS SIZE EXTENSION CORD
WHEN USING THIS PRODUCT:
CORD LENGTH WIRE SIZE (A.W.G.)
25 FT. 14
50 FT. 12
100 FT. NOT ALLOWED
NOTE: A.W.G. = American Wire Gauge
WARNING:
Keep the extension cord clear of the working area.Po-
sition the cord so that it will not get caught on lumber,
tools, or other obstructions while you are working with
a power tool. Failure to do so can result in serious per-
sonal injury.
WARNING:
Check extension cords before each use. If damaged
replace immediately. Never use the product with a dam-
aged cord since touching the damaged area could cause
electrical shock resulting in serious injury.
GROUND FAULT CIRCUIT INTERRUPTER
See Figure 2.
This unit is equipped with a Ground Fault Circuit Interrupter
(GFCI), which guards against the hazards of ground fault
currents. An example of ground fault current is the current
that would flow through a person who is using an appliance
with faulty insulation and, at the same time, is in contact
with an electrical ground such as a plumbing fixture, wet
floor, or earth.
GFCI plugs do not protect against short circuits, overloads,
or shocks.
NOTE: To ensure readiness for use, press the reset button
each time you connect the pressure washer to the power
supply.
The GFCI plug can be tested with the TEST and RESET
buttons.
To test:
Press the TEST button. You will hear a “click” sound and
the red LED light will go out.
To restore power, press the RESET button. The LED light
will illuminate to indicate power has been restored.
Perform this test monthly to ensure proper operation of
the GFCI.
To reduce the risk of electric shock the supervisory
circuit must be operated before an appliance is
plugged into any receptacle on the device.
DOUBLE INSULATION
Double insulation is a concept in safety in electric power
tools, which eliminates the need for the usual three-
wire grounded power cord. All exposed metal parts are
isolated from the internal metal motor components with
protecting insulation. Double insulated products do not
need to be grounded.
WARNING:
The double insulated system is intended to protect the
user from shock resulting from a break in the product’s
internal insulation. Observe all normal safety precautions
to avoid electrical shock.
NOTE: Servicingofaproduct withdoubleinsulation requires
extreme care and knowledge of the system and should
be performed only by a qualified service technician. For
service, we suggest you return the product to your nearest
authorized service center for repair. Always use original
factory replacement parts when servicing.
ELECTRICAL CONNECTION
Thisproduct hasa precision-builtelectricmotor. Itshouldbe
connected to a power supply that is nominal 120V/60Hz
AC(typical householdcircuit). Do notoperatethis product
on direct current (DC). A substantial voltage drop will cause
a loss of power and the motor will overheat. If the product
doesnot operate when plugged intoan outlet, double-check
the power supply.
EXTENSION CORDS
When using a power tool at a considerable distance from
a power source, be sure to use an extension cord that has
the capacity to handle the current the product will draw. An
undersized cord will cause a drop in line voltage, possibly
resulting in overheating, lossof power, and/orcircuit breaker
or GFCI tripping. Use the chart to determine the minimum
wire size required in an extension cord. Only round jacketed
cords listed by Underwriter’s Laboratories (UL) should be
used.
When working outdoors with a product, use an extension
cord that is designed for outside use. This type of cord is
designated with “WA” or “W” on the cord’s jacket.
Before using any extension cord, inspect it for loose or
exposed wires and cut or worn insulation.
It is possible to tie the extension cord and power cord in a
knot to prevent them from becoming disconnected during
use. Make a knot, then connect the plug end of the power
cord into the receptacle end of the extension cord. This
methodcanalsobe usedto tietwoextension cordstogether.
ELECTRICAL

Page 8 — English
PACKING LIST
Electric Pressure Washer
25 ft. High Pressure Hose
Handle
Trigger Handle
Spray Wand
Trigger Handle Storage Bracket
Phillips Head Screw
Wheels (2)
Axles (2)
Hitch Pins (2)
Nozzles (15º, Turbo, Soap)
Operator’s Manual
WARNING:
If any parts are damaged or missing do not operate this
product until the parts are replaced. Use of this product
with damaged or missing parts could result in serious
personal injury.
UNPACKING
This product requires assembly.
Carefully remove the product and any accessories from
the box. Make sure that all items listed in the packing list
are included.
NOTE: This tool is heavy. To avoid back injury, lift with
your legs, not your back, and get help when needed.
WARNING:
Do not use this product if any parts on the Packing List
are already assembled to your product when you unpack
it. Parts on this list are not assembled to the product by
the manufacturer and require customer installation. Use
of a product that may have been improperly assembled
could result in serious personal injury.
Inspect the tool carefully to make sure no breakage or
damage occurred during shipping.
Do not discard the packing material until you have care-
fully inspected and satisfactorily operated the tool.
If any parts are damaged or missing, please call
1-866-340-3912 for assistance.
FEATURES
ASSEMBLY
PRODUCT SPECIFICATIONS
Maximum Pounds Per Square Inch*......................................................................................................................... 1,800 psi
Maximum Gallons Per Minute....................................................................................................................................1.2 GPM
Input ......................................................................................................................................120 V, AC only, 60 Hz, 13 Amps
*Max. rating determined by PWMA Standard 101
KNOW YOUR PRESSURE WASHER
See Figure 3.
The safe use of this product requires an understanding of
the information on the product and in this operator’s manual
as well as a knowledge of the project you are attempting.
Before use of this product, familiarize yourself with all op-
erating features and safety rules.
GFCI PLUG
The pressure washer is equipped with a GFCI plug to guard
against the hazards of ground fault currents. This plug does
not protect against short circuits, overloads, or shocks.
ON/OFF SWITCH
This switch turns the pressure washer on and off.
POWER CORD STORAGE BRACKETS
Store the power cord on the convenient storage brackets
when the pressure washer is not in use. Rotate the left
bracket clockwise and remove for quick release of the cord.
SOAP TANK
Remove the cap from the soap tank to add detergent to the
pressure washer.
TRIGGER HANDLE
The trigger handle has a gripping surface that provides
added control of the spray wand and helps reduce fatigue.
TRIGGER WITH LOCK-OUT
Pulling the trigger releases a stream of water for high pres-
sure cleaning. The lock-out provides protection against
unauthorized use.

Page 9 — English
WARNING:
Do not attempt to modify this product or create acces-
sories not recommended for use with this product. Any
such alteration or modification is misuse and could result
in a hazardous condition leading to possible serious
personal injury.
WARNING:
Do not connect to power supply until assembly is com-
plete. Failure to comply could result in accidental starting
and possible serious personal injury.
TOOLS NEEDED
See Figure 4.
The following tool (not included or drawn to scale) is needed
for assembly:
Screwdriver
INSTALLING THE WHEELS
See Figure 5.
Locate the axles, hitch pins, and wheels.
Slide the axle through the hole in the center of the wheel.
Lift the machine and slide the axle into the wheel mount-
ing hole in the machine base as shown.
Push the hitch pin into the hole on the end of the axle to
secure the wheel assembly.
NOTE: The hitch pin should be pushed into the axle until
the center of the pin rests on top of the axle.
Repeat with the second wheel.
INSTALLING THE HANDLE
See Figure 6.
CAUTION:
Be careful to avoid pinching your fingers or hands when
installing the handle onto the frame.
Push and hold the push-pin button on the side of the handle
as you slide the handle onto the frame.
NOTE: Before use, pull the handle up until the lock button
snapsthrough the locking slotstosecure the handle inplace.
ATTACHING THE TRIGGER HANDLE
STORAGE BRACKET
See Figure 7.
Place the trigger handle storage bracket over the hole in
the frame.
Insert a screw through the hole and tighten securely.
CONNECTING THE SPRAY WAND TO THE
TRIGGER HANDLE
See Figure 8.
Push the end of the spray wand into the trigger handle
and rotate clockwise to secure.
Place the assembled spray wand in the trigger handle
storage bracket.
Pull on the spraywand tobe certain it isproperlysecured.
CONNECTING THE HIGH PRESSURE HOSE
TO THE TRIGGER HANDLE
See Figure 9.
Screw the collar on the high pressure hose into the trigger
handle inlet coupler by turning the hose collar clockwise.
Tighten securely.
NOTE: Be careful to avoid cross-threading, which can
cause the trigger handle to leak during use.
Pull on the hose to be certain it is properly secured.
CONNECTING THE HIGH PRESSURE HOSE
TO THE PUMP
See Figure 10.
Completely uncoil and straighten the high pressure hose
to prevent kinks.
NOTE: See Using the High Pressure Hose in Opera-
tion for more information about using the high pressure
hose.
Align the collar on the hose to the threaded outlet on the
pump.
Install the high pressure hose collar onto the threaded
outlet.
Turn the collar clockwise to tighten the hose securely to
the pump.
NOTE: Be careful to avoid cross-threading, which can
cause the hose to leak during use.
Pull on the hose to be certain it is properly secured.
ASSEMBLY

Page 10 — English
CONNECTINGTHEGARDENHOSETOTHE
PRESSURE WASHER
See Figure 11.
NOTICE:
Always observe all local regulations when connecting
hoses to the water main. Some areas have restrictions
against connecting directly to public drinking water sup-
ply to prevent the feedback of chemicals into the drinking
water supply. Direct connection through a receiver tank
or backflow preventer is usually permitted.
The water supply must come from a water main. NEVER use
hot water or water from pools, lakes, etc. Before connecting
the garden hose to the pressure washer:
Run water through the hose for 30 seconds to clean any
debris from the hose.
Inspect the screen in the water intake.
If the screen is damaged, do not use the machine until
the screen has been replaced.
If the screen isdirty,cleanitbeforeconnecting thegarden
hose to the machine.
To connect the garden hose to the machine:
Completely uncoilthe gardenhose orremovecompletely
from reel to prevent kinks.
NOTE: Theremust be a minimumof10feetof unrestricted
hose between the pressure washer intake and the hose
faucet or shut off valve (such as a “Y” shut off connector).
With the hose faucet turned completely off, attach the
end of the garden hose to the water intake. Tighten by
hand.
NOTICE:
Do not run the pressure washer without water supply
connected and turned on, as this may damage the high
pressure seals and decrease pump life. Completely
unwind the hose from its reel or coil and make sure the
hose is not being restricted by tires, rocks, or any other
objects that may lessen or prevent water flow to the
pressure washer.
ASSEMBLY

Page 11 — English
STARTING AND STOPPING THE PRESSURE
WASHER
See Figure 12.
NOTICE:
Do not run the pressure washer without water supply
connected and turned on, as this may damage the high
pressure seals and decrease pump life. Completely
unwind the hose from its reel or coil and make sure the
hose is not being restricted by tires, rocks, or any other
objects that may lessen or prevent water flow to the
pressure washer.
Before starting the motor:
Connect all hoses.
NOTE: Make sure the pressure washer’s water intake
screen is in place and unclogged before connecting
garden hose.
Turn on the garden hose then pull the trigger to relieve air
pressure; hold the trigger until a steady stream of water
appears.
NOTE: Make sure the faucet is turned on fully and that
there are no kinks or leaks in the hose.
To start the motor:
With the on/off switch in the OFF position (O), connect
the pressure washer to the power supply.
NOTE: If using an extension cord, make sure to arrange
a drip loop as described on page 2.
WARNING:
To reduce the risk of electrocution, keep all connections
dry and off the ground. Do not touch plug with wet hands.
Press the reset button on the pressure washer’s plug to
make sure the unit is ready for operation.
Put the on/off switch in the ON position (I) to start the
motor.
NOTICE:
Routinely make a visual inspection of the pump and
motor during use. If you notice any lubricant leaking
around the pump or motor seals, stop using the pres-
sure washer immediately. Contact customer service or
a qualified service center for repair. Failure to do so may
cause property damage.
To stop the motor:
Put the on/off switch in the OFF position (O).
Pull trigger to release water pressure.
OPERATION
WARNING:
Do not allow familiarity with the product to make you care-
less. Remember that a careless fraction of a second is
sufficient to inflict serious injury.
WARNING:
Always wear eye protection with side shields marked to
comply with ANSI Z87.1. Failure to do so could result in
objects being thrown into your eyes resulting in possible
serious injury.
WARNING:
Do not use any attachments or accessories not recom-
mended by the manufacturer of this product. The use
of attachments or accessories not recommended can
result in serious personal injury.
WARNING:
Never direct a water stream toward people or pets, or
any electrical device. Failure to follow these instructions
could result in serious injury, electric shock, or death.
NOTICE:
Before each use, inspect the entire product for damaged,
missing, or loose parts such as screws, nuts, bolts,
caps, etc. Tighten securely all fasteners and caps and
do not operate this product until all missing or damaged
parts are replaced. Please contact customer service or
a qualified service center for assistance.
APPLICATIONS
You may use this tool around the house for cleaning most
small to large horizontal or vertical exterior surfaces, smaller
exterior objects and structures, and outdoor equipment and
tools.* You can:
Cleanorremovemold andmildewfromweathered decks,
driveways, patios, walkways, sidewalks, etc.
Remove dirt from various exterior vertical surfaces such
as house exteriors, siding, fences, brick, concrete or
stone walls, etc.
Wash boats, outdoorfurniture,poweredornon-powered
garden equipment, gutters, window screens, grills, play-
ground equipment, etc.
*Always test in an inconspicuous area first.

Page 12 — English
OPERATION
NOTE: The pressure washer may be on and the system may
have pressure even when the pump and/or motor cannot
be heard running. Always use caution around the pressure
washer.
USING THE TRIGGER HANDLE
See Figure 13.
WARNING:
Hold the trigger handle securely with both hands. Expect
the trigger handle to move when the trigger is pulled due
to reaction forces. Failure to do so could cause loss of
control and injury to yourself and others.
Pull back and hold the trigger to operate the pressure
washer.
Release the trigger to stop the flow of water through the
nozzle.
To engage the lock out:
Push up on the lock out until it clicks into the slot.
To disengage the lock out:
Push the lock out down and into its original position.
Start with the nozzle 1–2 ft. away from the cleaning surface
and carefully approach the surface just until the desired
level of cleaning is achieved. If the spray is too close it can
damage the cleaning surface.
SELECTING THE RIGHT NOZZLE FOR THE JOB
See Figure 14.
Each of the nozzles has a different spray pattern. Before
starting any cleaning job, determine the best nozzle for the
job. Refer to the Nozzle Selection Guide for more informa-
tion about which nozzle to choose.
WARNING:
NEVER remove nozzles without first turning off the mo-
tor, relieving the water pressure in the trigger handle,
and locking the lock out on the trigger handle. NEVER
point the nozzle at your face or at others. The quick-
connect feature contains small springs that could eject
the nozzle with some force. Failure to follow these in-
structions could result in an eye injury or other serious
personal injury.
NOZZLE SELECTION GUIDE
HIGH PRESSURE
(NO SOAP WHEN USING THESE NOZZLES)
LOW PRESSURE
(FOR SOAP OR
GENTLE RINSE)
Turbo Nozzle 15º Blue or Black
Soap Nozzle
Concrete, Brick, Masonry   
Siding, Gutters, House 
Fencing, Deck, Patio 
Lawn Equipment, Boat, RV 
Recommended Nozzle Use With Caution for Certain Applications

Page 13 — English
OPERATION
To connect a nozzle to the spray wand:
Turn off the pressure washer and shut off the water sup-
ply. Pull trigger to release water pressure.
Engage the lock out on the trigger handle by pushing up
on the lock out until it clicks into the slot.
Pull back the quick-connect collar.
Push the nozzle into place in the spray wand.
Push the collar forward so that the nozzle is secured
properly. Check to see that the nozzle is secure.
To disconnect a nozzle from the spray wand once the
cleaning job is complete:
Turn off the pressure washer and shut off the water sup-
ply. Pull trigger to release water pressure.
Engage the lock out on the trigger handle by pushing up
on the lock out until it clicks into the slot.
Pull back and hold the quick-connect collar.
Remove the nozzle by pulling it from the quick-connect
collar. Place nozzle in the nozzle storage area on the top
of the machine.
USING THE HIGH PRESSURE HOSE
WARNING:
Injection hazard. Fully unwrap and straighten high pres-
sure hose prior to and during each use and do not allow
it to become kinked. The high pressure hose features an
outer covering that provides strength to the hose. If the
outer covering becomes damaged, stop using the hose
and replace it immediately. A kinked or damaged hose
can develop a high pressure leak and result in a possible
injection or other serious personal injury.
To prevent damage to the outer covering:
Inspect the hose before every use.
Fully unwrap and straighten hose before use.
Do not allow the high pressure hose to be kinked.
Keep hose away from hot surfaces and sharp edges.
Do not pull unit by high pressure hose.
Do not allow hose to be crushed or wrapped around
objects.
WASHING WITH DETERGENT
See Figure 15 - 16.
As sold,thisunitisdesignedforusewith“downstream”pres-
sure washer detergents. To convert for use with “upstream”
detergents, contact customer service or an authorized
service center for more information.
NOTICE:
USE ONLY DETERGENTS DESIGNED FOR PRES-
SURE WASHERS. Do not use household detergents,
acids, alkalines, bleaches, solvents, flammable mate-
rial, or industrial grade solutions, which can damage
the pump or cause property damage. Many detergents
may require mixing prior to use. Prepare cleaning solu-
tion as instructed on the solution bottle. Always test in
an inconspicuous area before beginning.
Disconnect pressure washer from power supply.
Pour detergent in the soap tank.
NOTE: Use a funnel, if needed, to prevent accidental
spilling of the detergent outside the tank. If any detergent
is spilled during the filling process, make sure the unit is
cleaned and dried before proceeding.
Install the blue or black soap nozzle on the spray wand.
Connect unit to power supply and turn the pressure
washer on.
Squeeze the trigger and wait approximately 5 seconds
for the detergent to appear.
Spray the detergent on a dry surface using long, even,
overlapping strokes. To prevent streaking, do not allow
detergent to dry on the surface.
Before shutting off the motor:
Fill the soap tank with clean water.
Spray the clear water through the spray wand until the
tank is empty.
If anydetergentremainsinthe spray, repeatwith a second
tank of clean water.
Shut off the motor.
NOTE: Shutting off the motor will not relieve pressure in the
system. Pull trigger to release water pressure.
RINSING WITH THE PRESSURE WASHER
Turn off the pressure washer and shut off the water
supply. Pull trigger to release water pressure.
Engage the lock out on the trigger handle by pushing up
on the lock out until it clicks into the slot.
Remove the soap nozzle and place in the nozzle storage
area.
Select the right nozzle for the job. See the chart shown
earlier in the manual to select the appropriate nozzle.
Start at the top of the area to be rinsed and work down,
overlapping the strokes.

Page 14 — English
OPERATION
USING PUMP PROTECTOR
See Figure 17.
Regular use of a commercially available pump protector
prolongs the life of the pressure washer by removing hard
water mineral deposits, lubricating pump seals and pistons,
and preventing freeze damage. Pump protector should be
added to the unit after every use and before storage. Pump
protector can be purchased at the retailer where you pur-
chasedyourpressurewasher,orbycallingcustomerservice.
The instructions that follow are typical for adding pump pro-
tector but you should always verify the specific instructions
provided by the manufacturer of the pump protector used.
Turn off the pressure washer motor and shut off the water
supply. Pull trigger to release water pressure.
Disconnect garden hose and high pressure hose.
Unscrew threaded top from pump protector bottle and
remove paper seal from bottle. Reinstall top on bottle
and tighten securely.
NOTE: The rubber sealshouldremain insidethethreaded
top. If it comes out, be sure to replace before reinstalling
the top.
Remove bottle cap and attach threaded end of bottle
securely to pressure washer pump water intake.
Squeeze bottle to inject contents into pump.
Pump is protected when the protector fluid exits the
pump outlet.
POWER CORD STORAGE
See Figure 18.
When itisnot inuse,thepowercordmay be wrapped around
the two brackets on the back of the unit.
To secure the power cord in place, flip the bracket to the
up position.
MOVING THE PRESSURE WASHER
See Figure 19.
NOTE: Never lift or carry this product using the handle and
never place the unit in any position other than upright on
its wheels.
Turn the pressure washer off.
Tilt the machine toward you slightly until it balances on
the wheels then roll the machine to the desired position.
Do not tilt forward or sideways when moving.
DO NOT attempt to move the unit by pulling on any of
the hoses.

Page 15 — English
WARNING:
Before inspecting, cleaning or servicing the machine,
shut off motor, wait for all moving parts to stop, discon-
nect unit from power supply, and pull trigger to release
water pressure. Failure to follow these instructions can
result in serious personal injury or property damage.
WARNING:
Always wear eye protection with side shields marked to
comply with ANSI Z87.1. Failure to do so could result in
objects being thrown into your eyes, resulting in possible
serious injury.
WARNING:
When servicing, use only identical replacement parts.
Use of any other parts could create a hazard or cause
product damage.
NOTICE:
Periodically inspect the entire product for damaged,
missing, or loose parts such as screws, nuts, bolts,
caps, etc. Tighten securely all fasteners and caps and
do not operate this product until all missing or damaged
parts are replaced. Please contact customer service or
a qualified service center for assistance.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use. Use
clean cloths to remove dirt, dust, oil, grease, etc.
WARNING:
Do not at any time let brake fluids, gasoline, petroleum-
based products, penetrating oils, etc., come in contact
with plastic parts. Chemicals can damage, weaken or
destroy plastic which could result in serious personal
injury.
POWER SUPPLY CORD REPLACEMENT
If replacement of the power supply cord is necessary, this
must be done by an authorized service center in order to
avoid a safety hazard.
MAINTENANCE
PUMP LUBRICATION
The pump on this unit is lubricated with a sufficient amount
of high grade lubricant for the life of the unit under normal
operating conditions. Therefore, no further lubrication is
required.
PUMP MAINTENANCE
Routinely make a visual inspection of the pump. If you notice
any leaking of lubricant around the pump seals, take the
pressure washer to an authorized service center for repair.
There are no user serviceable parts to the pressure washer
pump. Any attempt to service or alter the pump may dam-
age the pressure washer and void your product warranty.
NOZZLE MAINTENANCE
See Figure 20.
Excessive pump pressure (a pulsing sensation felt while
squeezing the trigger) may be the result of a clogged or
dirty nozzle.
Unplug the pressure washer.
Turn off the pressure washer and shut off the water
supply. Pull trigger to release water pressure.
Remove the nozzle from the spray wand.
WARNING:
NEVER remove nozzles without first turning off the
motor, and locking the lock out on the trigger handle.
NEVER point the nozzle at your face or at others. The
quick-connect feature contains small springs that could
eject the nozzle with some force. Failure to follow these
instructions could result in an eye injury or other serious
personal injury.
To free any foreign materials clogging or restricting the
nozzle, blow out or remove debris with a straightened
paper clip or fine needle.
Using a garden hose, flush debris out of nozzle by back
flushing(running the waterthroughthe nozzle backwards
or from the outside to the inside).
Reconnect the nozzle to the spray wand.

Page 16 — English
MAINTENANCE
STORING THE PRESSURE WASHER
See Figures 21 - 22.
NOTE: Regular use of pump protector will give you
better performance of the unit and increase the life of
the pump.
Store in a dry, covered area where the weather can’t dam-
age it.
It is important to store this product in a frost-free area.
Always empty water from all hoses, the pump, and the soap
tank before storing.
Make sure the on/off switch is in the OFF position (O).
Disconnect both the high pressure hose and the garden
hose from the pump.
Tilt the unit as shown to allow any remaining water in the
pump to drain from the water inlet.
NOTICE:
If the location where your pressure washer is stored will
fall below 32°F, the use of a pump protector is required
before storing to prevent freeze damage. Freeze damage
will void your warranty.
Secure the high pressure hose to the hose reel.
Store the unit and accessories in an area that does not
reach freezing temperatures. Do not store near furnace
or other sources of heat that could dry out the pump
seals.
