Bajaj Auto Pulsar RS 200 User manual

Foreword
Welcome to the Pulsar family!
You are now the proud owner of the next generation ‘Pulsar RS 200’, India's No.1 sports bike. By
No.1 we are talking about unparalleled performance, superior technology and incredible market
leadership that Pulsar today enjoys. This makes the Pulsar you ride, unbeatable and unchallenged
both on and off the road.
Before you ride out, please read this Owner's Manual carefully and familiarize yourself with the
operating mechanism, controls and maintenance requirements of your Pulsar. This will ensure you a
safe and trouble free ownership experience.
To keep your bike in perfect running condition and deliver consistent performance, we have
specially programmed the periodic maintenance services which includes 3 free services and
subsequent paid services, as per the schedule contained in this booklet. We earnestly advise you
to avail all these services at any of our Bajaj Dealers, who are well equipped with all necessary
facilities / genuine parts / oil and trained manpower to ensure the best care for your Pulsar. Your
‘Pulsar RS 200’ comes with a warranty of 2 Years or 30,000 Kms whichever occurs earlier from
the date of sale. For details please refer to “Warranty : Scope & Limits” given in this manual.
Should you require any additional information feel free to contact us on our toll free no.:
1800 233 2453 or e-mail us at: [email protected] or visit the Bajaj Auto website
www.bajajauto.com
To be a part of the Pulsarmania, visit www.mypulsar.com and join the Pulsar fanpage on facebook:
www.facebook.com/mypulsar
Rev up, shift gears and enjoy the Pulsar experience…
SERVICE DEPARTMENT
BAJAJ AUTO LIMITED

Notice:
The description and illustration in this booklet
are not to be taken as binding on the
manufacturers. The essential features of the
type described and illustrated herein remaining
unaltered. Bajaj Auto Limited reserves the
right to carry out at any moment without
being obliged to bring this booklet upto-date
& to do modifications on the vehicle, parts or
accessories as may be convenient and
necessary.
Safety and Warning information :
Table of Contents
Caution : This indicates that a potential
hazard that could result in vehicle
damage. Follow the Advice provided with
the caution.
Warning : This indicates that a potential
hazard or injury to you or other persons &
to the vehicle can happen if advice
provided is not followed.
Description
1. Technical Specifications 1
2. Identification Data 3
3. Location of Parts 4
4. Steering cum Ignition lock 5
5. Fuel Tank Cap 6
6. Speedometer Details 7
7. Speedometer Setting 10
8. Control Switches 12
9. Pillion Seat / Tool kit 14
10. Rider Seat / Battery 15
11. Fitment of Rider & Pillion Seat 16
13. Daily Safety Checks 17
14. How to ride your Bike 18
15. Safe Riding Tips 22
16. Engine Oil 23
17. Tube less Tyre & Tyre Pressure 24
18. Battery 25
19. Engine Cooling System / Coolant 26
20. Periodic Maintenance Information 28
21. Brake Fluid 30
22. Free Service Guidelines 31
23. Periodic Maintenance & Lubrication Chart 32
24. Non Use Maintenance 36
25. Delivery Certificate 37
26. Warranty Scope & Limit 38
27. Battery Warranty Card

Engine : 4 Stroke, Single Cyl.
Bore x Stroke : 72 mm x 49 mm
Engine Displacement : 199.5 cc
Compression Ratio : 11 + 0.5 : 1
Idling Speed : 1400 +/- 100 RPM
Max. Net Power : 18 KW at 9750 RPM
Max. Net Torque : 18.6 Nm at 8000 RPM
Ignition System : 12 V, DC
FI system : Single point injection
into manifold - BOSCH
Spark Plug : 3 Nos.
Spark Plug Gap : 0.7 ~ 0.9 mm
Lubrication : Wet sump forced
Transmission : 6 speed constant mesh
Gear Shifting Pattern : 1 Down 5 Up
Engine Cooling : Liquid cooled
Starting Aid : Electric starter
Front & Rear Brake : Disc Brake
Fuel Tank Capacity
Full : 13 liters
Dimensions :
Length : 1999 mm
Width : 765 mm
Height :m 1114 m
Wheelbase : 1345 mm
Ground clearance : 157 mm
Tyre Size
Front : 100/80-17,52P Tubeless
Rear : 130/70-17,62P Tubeless
Tyre Pressure
2
Front :1.75 Kgf/cm (25 PSI)
2
Rear (Solo) :2.00 Kgf/cm (28 PSI)
2
Rear (with pillion) :2.25 Kgf/cm (32 PSI)
Technical Specifications
1

Side Stand Indicator : LCD
ABS Indicator : LED-Amber
Rear No. Plate Lamp : LED
Horn : 12V DC
Battery : 12V 8Ah VRLA
Vehicle Kerb Weight : 164 kg.
Gross Vehicle Weight : 294 kg.
Note :
• All dimensions are under UNLADEN condition.
• Above information is subject to change without
any notice.
• This vehicle complies to BS IV standards.
Electrical System : 12 Volts DC
Head Lamp : Twin Projector,
55W-Low Beam
65W-High Beam
Position Lamp : LED
Tail /Stop Lamp : LED
Side Indicator lamp : LED (4 nos.)
Neutral Indicator : LED, Green
Hi Beam Indicator : LED, Blue
Turn Signal Indicator : LED, Green
Speedometer Back Light : LCD, Blue
Fuel Level Indicator : LCD Bar
Low Oil Pr. Indicator : LED-Red
Mulfunction Indicator : LED-Amber
Coolant Temp. Indicator : LED-Red
Low Battery Indicator : LED-Red
Bajaj Logo : LED-Blue
Rev Indicator : LED-Amber
Service Reminder : LCD
2
Technical Specifications

Identification Data
The Frame and Engine serial numbers are used to register the motorcycle. They are the unique
alpha-numeric codes to identify your particular vehicle from others of the same model and type.
Frame Number Location
On Seal Lock Mounting Bracket
(Alpha-Numeric - 17 Digits)
Engine Number Location
On LH Side Crankcase Near Gear
Change Lever (Alpha-Numeric - 11 Digits)
3

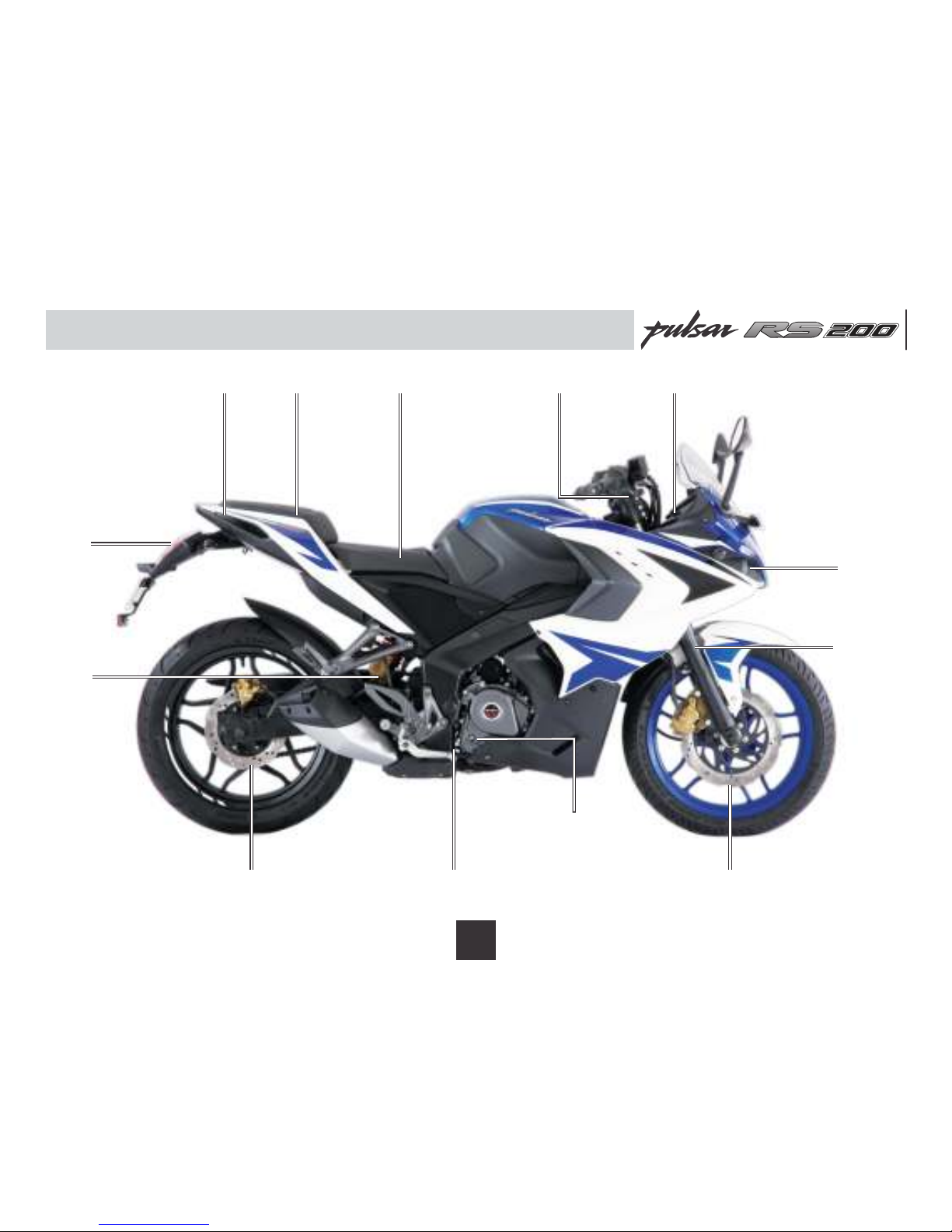

Location of Parts
4
Grab
Handle
Pillion
Seat
Rider
Seat
Rear Disc Brake Rear Brake
Pedal
Engine Oil Level
Inspection Window
Front Brake
Lever
LED
Tail
Lamp
Nitrox
Rear
Shock
Absorber
Front Disc Brake
Digital
Speedometer
Front
Fork
Head
Lamp

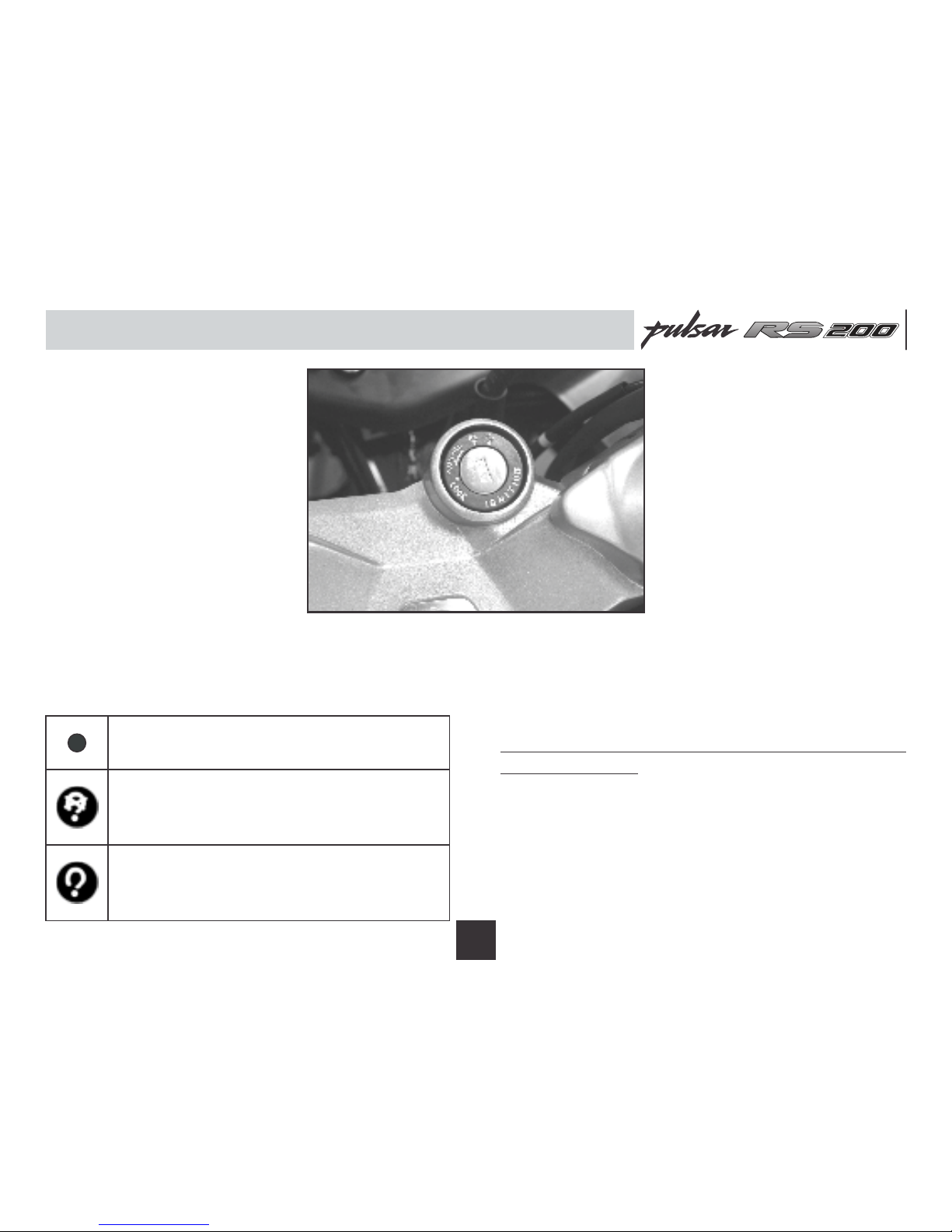

Steering cum Ignition Lock
To Lock the Steering : To lock the steering,
turn the handle bar to the left side. Turn the
handle bar to the left or right. Push & Rotate
the key to “LOCK” position & remove the key.
Steering locking on handle position left
hand side only.
To Unlock the Steering : Insert the key in
steering cum ignition lock. Push & Rotate it
clockwise to “OFF” or “ON” position.
Key : A common key is used for ‘Steering
cum Ignition lock’, ‘Fuel tank cap’ & ‘Rear
Seat’.
Steering cum Ignition Lock :
It has three positions.
LOCK: Steering locked. Ignition OFF.
OFF: Steering unlock. Ignition OFF.
ON: Steering unlock. Ignition ON.
5

Fuel Tank Cap
• To open the fuel tank cap, open the flap.
Insert the key in the lock and turn it
clockwise and lift fuel tank cap.
• To lock the ‘Fuel Tank Cap’ insert the key
in the lock and turn it clockwise and press
fuel tank cap. ‘Click’ sound ensures cap is
fully locked.
Precaution : Dont attach metallic ‘Key
chain’ as it may damage paint of petrol
tank cover.
Fuel Tank Cap
Fuel Tank Cap
6

Speedometer Details
7
2
3
4
5
6
7
8
9
10
11
1
13
14
16
17
18/19
20
21
12
S
M
15

Speedometer Details
8
Speedometer display will work when Ignition switch
is in ‘ON’ position.
1. Fuel Level Indicator: It shows fuel level in fuel tank.
2. Tachometer Dial: It shows engine speed in RPM.
3. Turn Signal Indicator (LH & RH): When Turn signal
switch is pushed to Left or Right, Turn Signal
Indicator - LH or RH will flash.
4. Neutral Indicator: When the transmission is in
Neutral, Neutral indicator will glow.
5. Hi Beam Indicator: When Headlight is ‘ON’ & Hi
beam is selected with engine running, Hi beam
indicator will glow.
6. Low Oil Pressure Indicator ( ) : It glows when
engine oil pressure is low.
7. Malfunction Indicator ( ) : It glows whenever any
abnormality is noticed in functioning of FI system
related components.
8. Coolant Temperature Indicator ( ) : It glows when
0
engine coolant Temperature is more than 110
centigrade.
9. Low Battery Indicator : It indicates battery needs
charging.
10. Bajaj Logo : Bajaj logo flying ‘B’ glows.
11. Mode Button : Mode button used for changing the
mode while selecting & setting Trip1, Trip2, ODO,
Clock & Service reminder.
12. Set Button : Set button used for setting Clock &
Service reminder.
13. Engine Rev Indicator: It blinks when engine RPM
reaches 10000 RPM. After 10500 RPM it continuous
remains ON.
14. Service Reminder ( ): ‘Wrench’ symbol glows when
ODO meter reading reaches to set Kms. It indicates
vehicle is due for periodic service.
This Icon will flash at -
st nd
1 : 450 km 2 : 4450 km,
rd th
3 : 9450 km, 4 : 14450 km
and subsequently at each 5000 kms. Icon will
continue to glow till it is reset. This icon is to be
reset after service is carried out.
15. Side Stand Indicator : When Side stand is down,
the Side stand indicator will glow.
16. Digital Clock : It indicates time in HR : MM
(AM/PM)

Speedometer Details
9
17. Speedometer: Vehicle speed will be displayed in
digital form in Km / Hr.
18. Odometer : The Odometer shows the total distance
that the vehicle has covered. Odometer can not be
reset to ‘Zero’.
19. Trip Meter : Trip 1 & Trip 2 shows the distance
traveled since it was last reset to zero. Rolls over to
zero after 999.9 km & continue updating.
20. ABS Indicator (Yellow) ( ) : With Ignition switch
ON the ABS indicator glows.
When vehicle speed is more than 10 Km/hr the ABS
indicator goes off, if this indicator glows while vehicle
is running, it means there is problem in ABS unit.
21. Low Fuel Level Indicator : It blinks incase of low
fuel level (1 bar or less)
Note :
After switching ‘ON’ the ignition switch, the following
indications will remain ‘ON’ till engine is started.
• Coolant Temperature Indicator
• Low Battery Indicator
• L ow Oil Pressure
• Mulfunction Indicator
ABS
Instructions :
Incase, Malfunction indicator / ABS indicator
gets ON during vehicle running, bring the
vehicle to nearest BAL dealership for
inspection / repair.
ABS System
Always maintain a safe distance between you and
objects ahead. Vehicle speeds should always be
reduced during extreme road conditions. The braking
distance for motorcycle equipped with an anti-lock braking
system may be longer than for those without it on rough
road conditions. During these conditions the vehicle
should be driven at reduced speeds.
When you apply Front brake under conditions which may
lock the wheels, you feel a corresponding sensation
(pulsation) in Front brake lever. This is normal and it
means your ABS is active.
Also it is recommended to use both front & rear
brakes simultaneously.
Always slow down when cornering. The anti-lock brake
system cannot prevent accidents resulting from excessive
speeds.

S
M
Set
Mode
1. Trip Meter Reset :
• Mode & Set push button is provided for selecting &
resetting ‘ODO/TRIP1/TRIP2’.
1. Press mode push button
for less than 2 sec.
Press set push button
for more than 5 sec.
Mode changes from
‘ODO/TRIP1/TRIP2’
Selected ‘TRIP1/TRIP2’
will reset.
Other TRIP mode will
continue updating.
2.
Speedometer Setting
10
2. Service Reminder Reset ( ) :
‘Wrench’ symbol glows when ODO meter reading
reached to set Kms.
Service reminder icon
TRIP 1 /
TRIP 2
This icon will glow at-
1st : 450 Kms 2nd : 4450 Kms
3rd : 9450 Kms 4th : 14450 Kms
& subsequently at each 5000 Kms.
Note : Bring the motorcycle at authorised BAL
dealership for re-setting the service reminder icon.

S
M
Set
Mode
TRIP 1
Clock
3. Clock Reset :
• Digital clock indicates time in HR & MM separated
by colon ‘:’
• It is 12 hour clock.
• Initially ‘:’ will be blinking
• Clock setting is possible in TRIP 1 mode only.
1. Press mode push button
for less than 2 sec.
TRIP1 Mode selected
2. Press mode & set
push button together
for more than 2 sec.
Press mode button for
less than 1 sec.
Press set button for
less than 1 sec.
Press mode & set
button together for
more than 2 sec.
Clock set mode is
selected & no editing
is carried out for
more than 5 sec.
‘:’ stops blinking
Digits starts blinking
Hour digits will increase.
Minutes digits will
increase.
Set value will be saved
Exit clock setting mode
Digits stop blinking
‘:’ start blinking
Auto exit without saving
set value.
If engine/vehicle rpm is
given then system will
exit from clock set mode
without saving set value.
3.
4.
5.
6.
Speedometer Setting
11

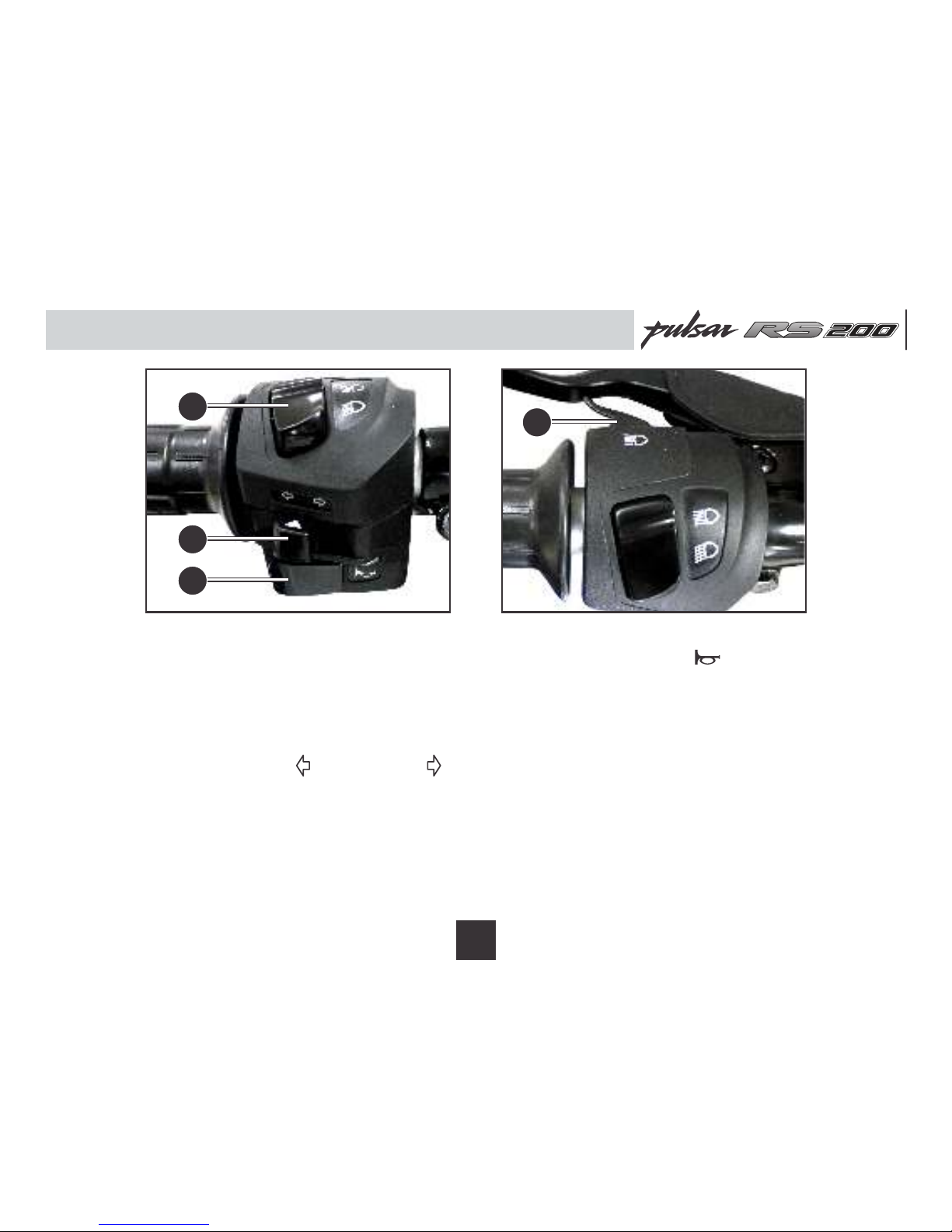

Control Switches
A
C. Horn Button : ( ) Press button for
sounding horn.
D. Pass Switch : Press the switch to put on
Hi Beam projector. It is used to give signal
to vehicles coming from opposite side
while overtaking.
Left Handle Bar Switches
A. Hi / Lo Beam Switch : Head lamp
projector Low or High beam can selected.
B. Turn Signal Switch : When the turn signal
knob is pushed to Left ( ) or Right ( )
respective indicator will start blinking.
To stop blinking push the knob in &
release.
12
C
B
D

Control Switches
13
Hi/Low beam Projector Effect of
Switch Beam Status Pass Switch
Low beam Low beam ‘ON’ Hi beam ‘ON’
Hi beam Hi + Low beam No change
‘ON’
AHO Feature (Automatic Headlight ‘ON’)
There is no ‘Light switch’ on RH control
switch.
Ignition switch ‘ON’ Speedometer illumination
Engine ‘OFF’ Tail lamp, Number
Plate Lamp, Pilot
Lamp & Control Switches
Illumination will get ‘ON’
Effect of pressing In addition to above
‘Pass Switch’ Hi-beam will get ‘ON’
Ignition switch ‘ON’ & Engine Running
Speedometer lamp, Tail lamp, Number Plate Lamp,
Pilot Lamp & Control Switches Illumination will get
‘ON’
in addition to above, projector lamp will get on as
given below.
E
E. Starter Button :
Starter button operates the electric starter.
It is recommended to start the engine with
the transmission in neutral.
Vehicle in Gear - Press clutch lever &
operate starter button to start the engine.
F. Engine Kill Switch :
The engine kill switch is used for switching
ON & OFF the engine.
: Engine OFF
: Engine ON
F

Pillion Seat / Tool Kit
A
Tool Kit Location
• It is located on RH side of Seat Cowl
below the ‘Pillion seat’.
First Aid Kit Location
• It is located on LH side of Seat Cowl
below the ‘Pillion seat’.
Removal of Pillion Seat
• Insert Key into lock (A)
• Turn the key clock wise.
• Lift front end of ‘Rear seat’
• Pull ‘Pillion seat’ toward front side.
• Take out ‘Pillion seat’.
14
Tool Kit
First Aid
Kit

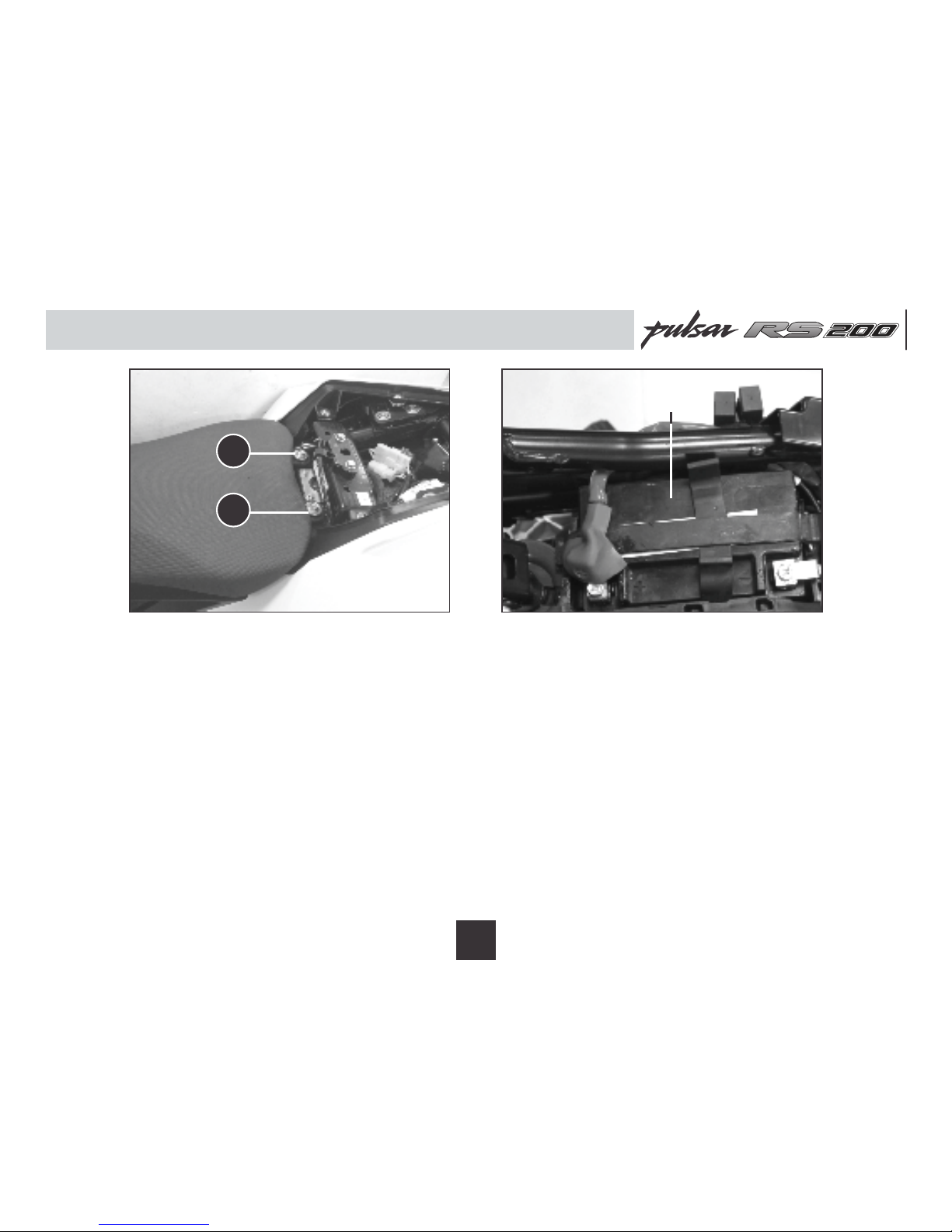

Rider Seat / Battery
Battery
• It is located below ‘Rider seat’.
Removal of Rider Seat
• First remove ‘Pillion seat’.
• Remove ‘Rider seat’ mounting bolts (B).
• Pull backward rear end of ‘Rider seat’.
• Take out ‘Rider seat’.
B
B
15
Battery

B
A
C
D

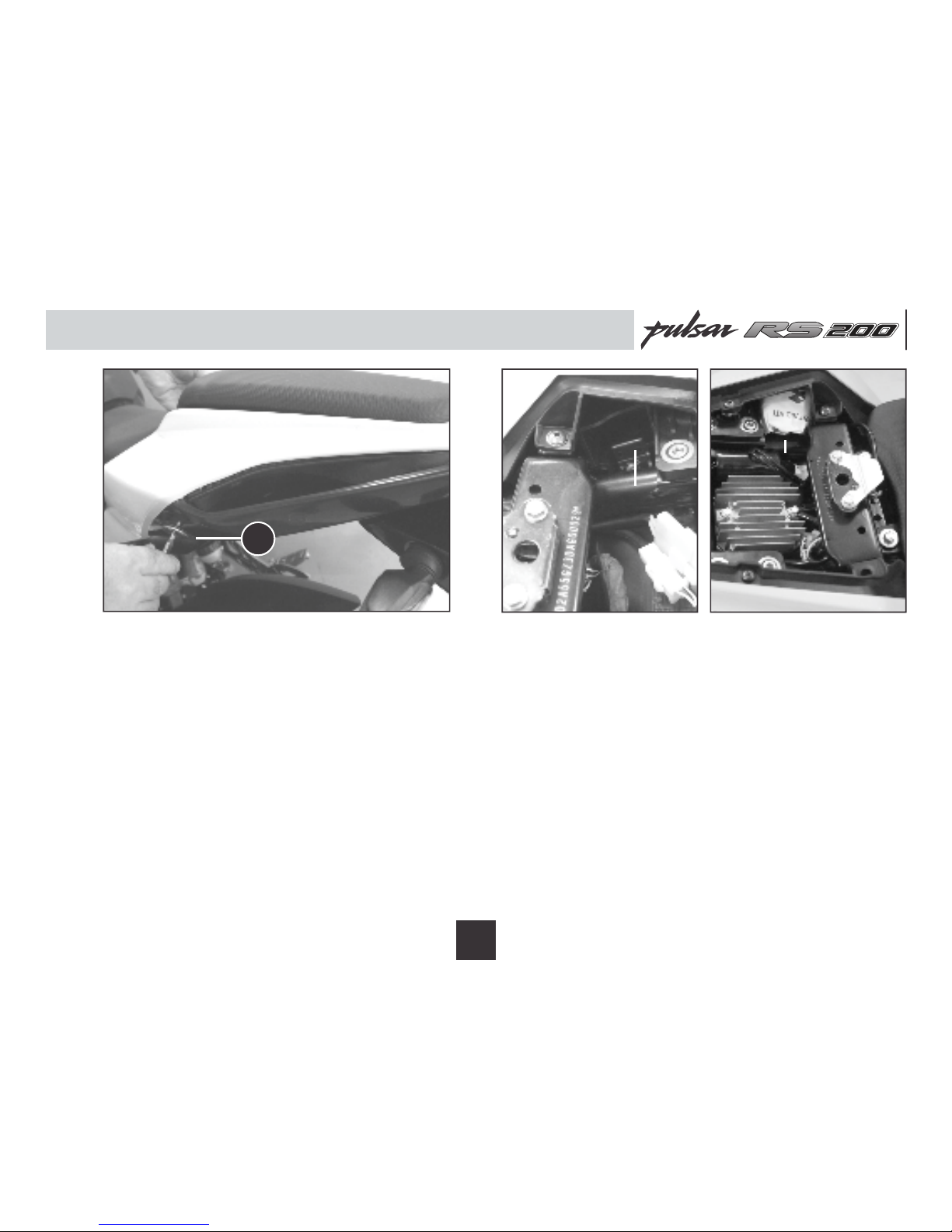

Fitment of Rider & Pillion Seat
Fitment of ‘Rider Seat’
• Match the bracket of ‘Rider seat’ (A) with
slot (B).
• Push ‘Rider seat’ toward petrol tank.
• Match ‘Rider seat’ rear brackets (C) with
the holes (D) provided on chassis.
• Tighten the bolts (E).
Fitment of ‘Pillion Seat’
• First make sure ‘Rider seat’ is fitted
properly.
• Ensure ‘Tool kit’ is located properly.
• Place ‘Pillion seat’ on fitment location.
• Match the bracket of ‘Pillion seat’ (H) with
Hook (I).
• Insert lock rod (F) of seat into hook (G).
• Press front portion of seat.
E
16
H
I
F
G
FH
G
I

Daily Safety Checks
• Brake Fluid level above MIN mark
provided on reservoir, applicable to disc
brake vehicle.
• Drive Chain slack of 15~25mm adequately
lubricated.
• Function of all lights & horn
• Clutch lever play - 2 to 3 mm
• Check Coolant level between MIN and
MAX mark in coolant reservoir tank.
• Smooth steering movement without
restriction.
• Side stand return to It's fully up position.
• Correct inflation pressure in both tyres
Adequate tyre tread depth - no cracks /
cuts.
• Correct rear viewing span adjustment of
mirror.
Before riding motorcycle be sure to check
following items. Please give proper importance
to these checks and perform all of them
before riding motorcycle.
If any irregularities are found during these
checks, refer to the Maintenance chapter &
see your dealer for the action required to
return the motorcycle to a safe operating
condition.
Warning : Failure to perform these
checks every day before you ride may
result in serious damage or severe
accident.
• Enough fuel level for planned distance of
journey. No fuel leakage in fuel lines.
• Engine oil level (between upper and lower
level mark)
• Throttle cable play of 2 ~ 3 mm. Smooth
operation and positive return to closed
position,
17

How to Ride Your Bike
1. Starting The Engine :
• Turn ignition switch key to ‘ ’ position.
• Put kill switch in ‘ ’ position.
• Confirm that transmission is in neutral /
press the clutch lever if transmission is in
gear.
• Keep throttle closed & press starter button,
• Release starter button as soon as engine
starts.
2. Shifting Gears :
• Close throttle & depress the clutch lever.
• Shift into next higher or lower gear.
• Open the throttle and release the clutch
lever slowly and simultaneously.
3. Moving Off :
• Check that side stand is up.
• Depress the clutch lever.
st
• Shift into 1 gear.
• Open the throttle and release the clutch
lever slowly and simultaneously.
• As the clutch starts to engage, open the
throttle a little more, giving the engine just
enough rpm to keep it from stalling.
Caution : Do not operate the s tarter
continuously for more than 5 seconds otherwise
battery would get discharged.
Note : Incase of battery discharged condition, vehicle
will start by push start.
Wait 15 sec. between each operation of the starter
which will facilitate battery to recover.
Note : The motorcycle is equipped with a Clutch
switch. This switch ensures that engine does not start if
the transmission is in gear. However, the engine can be
started in any gear if the clutch lever is pressed.
18
