INSTALLATION AND OPERATING INSTRUCTIONS
COUNTER TOP ELECTRIC OVENS
INTENDED FOR OTHER THAN HOUSEHOLD USE
Models: PX-14, PX-16, P-18, BK-18, P-22S, P-22BL,
P-24S, P-44S, P-44BL, P-46S, P-48S, DP-2
RETAIN THIS MANUAL FOR FUTURE REFERENCE
OVEN MUST BE KEPT CLEAR OF COMBUSTIBLES AT ALL TIMES
P/N U4008A 1/08
1
Note: Only Pizza or Bread can have direct contact with ceramic decks. All other food products must be
placed in a pan or container to avoid direct contact with ceramic decks.
This equipment has been engineered to provide you with year round dependable service when used
according to the instructions in this manual and standard commercial kitchen practices.
! !
WARNING: Improper installation, adjustment, alteration, service or maintenance
can cause property damage, injury or death. Read the Installation, Operating and
Maintenance Instructions thoroughly before installing or servicing this equipment.
Initial heating of oven may generate smoke or fumes and must be done in a well
ventilated area. Overexposure to smoke or fumes may cause nausea or dizziness.
! !
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
CC

INSTALLATION INSTRUCTIONS
SECTION ITEM PAGE
1 Location 2
2 Electrical Connections 2
3 Requirements for Installation 3
4 Initial Start Up 3
OPERATING INSTRUCTIONS
SECTION ITEM PAGE
1 General Baking 3
2 General Baking Tips 4
3 Special Features 4
4 Cleaning 5
5 Service and Trouble Shooting 5
6 Installation of Decks 6
WIRING DIAGRAMS & SCHEMATICS
ITEM PAGE
P Series - 2 Chamber - 1 Ph, 2 W or 3 Ph, 3 W (Wiring Diagram) 7
P Series - 2 Chamber - 3 Ph, 4 W - Star (Wiring Diagram) 8
P Series - 1 Chamber - 3 Ph, 4 W - Star (Wiring Diagram) 9
P Series - 1 Chamber - 1 Ph, 2 W or 3 Ph, 3 W (Wiring Diagram) 10
P Series Counter Top Ovens - 2 Chamber (Schematic) 11
P Series Counter Top Ovens - 1 Chamber (Schematic) 11
PX-14 & PX-16 (Wiring Diagram & Tables) 12
PARTS LISTS & WARRANTY
PX -14, PX-16 (New Style) 13
PX -14, PX-16 (Old Style) 14
P18-S & BK18 15-16
P-22BL, P-22S & P-24S 17-18
P-44S, P-44BL & P-48S 19-20
DP-2 21-22
Warranty 23
ITEM PAGE
2
IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain this manual for the life of the equipment. For
Warranty Service and/or Parts, this information is required.
Model Number Serial Number Date Purchased
CONTENTS
INSTALLATION INSTRUCTIONS
Minimum Clearance for Installation
From combustible or non-combustible construction:
Right side, Left side and Back: 3” (76mm)
1. LOCATION
Due to the heat a counter-top oven may produce, it must be placed on a non-combustible surface.
Do not store combustible materials on top of any oven.
2. ELECTRICAL CONNECTIONS
Suitable means, which will disconnect all ungrounded conductors of the circuit simultaneously,
must be provided by the installer.
Make sure electrical supply corresponds with that specified on the rating plate located in the rear of
the oven.
When installed, the unit must be connected by an earthing cable to all other units within the
complete installation and thence to an independent earth connection.
Use copper conductors only, rated at 90° C.
If a line cord is used for the installation of the unit in Europe, it should be a minimum of H07RN-F type
conforming to EN60 335-1 and/or local codes.

3
Use minimum conductor size as below:
!For models PX-14, PX-16, P-18, BK-18 and P-24S:
14 Gauge (1.5mm) for 220-240V, single phase supply.
!For models P-22S, P-22BL, P-44S, P-44BL, P-46S, P-48S and DP-2:
10 Gauge (2.5mm) for 220-240/380-415V, 3 phase supply.
3. REQUIREMENTS FOR INSTALLATION
For portable units (Model PX-14 and PX-16) there are no special requirements.
For shipping purposes the optional 4” (100mm) legs are not mounted. For mounting legs, follow
steps a. through g.
a. Remove the outer shipping carton and paper and place the oven on the floor or other flat
surface.
b. Remove legs, baking decks and any other materials from inside the unit.
c. With sufficient help, tilt the unit back far enough to mount the two front legs and tighten with
an adjustable wrench.
d. After the front legs are tight, lift rear of unit approximately 5” (125mm) off the surface and
block in position using wood or some other solid material. Now mount the two rear legs and
tighten.
e. Using the proper lifting equipment, move the unit to its final location.
f. Adjust the bottom portion of legs to make level.

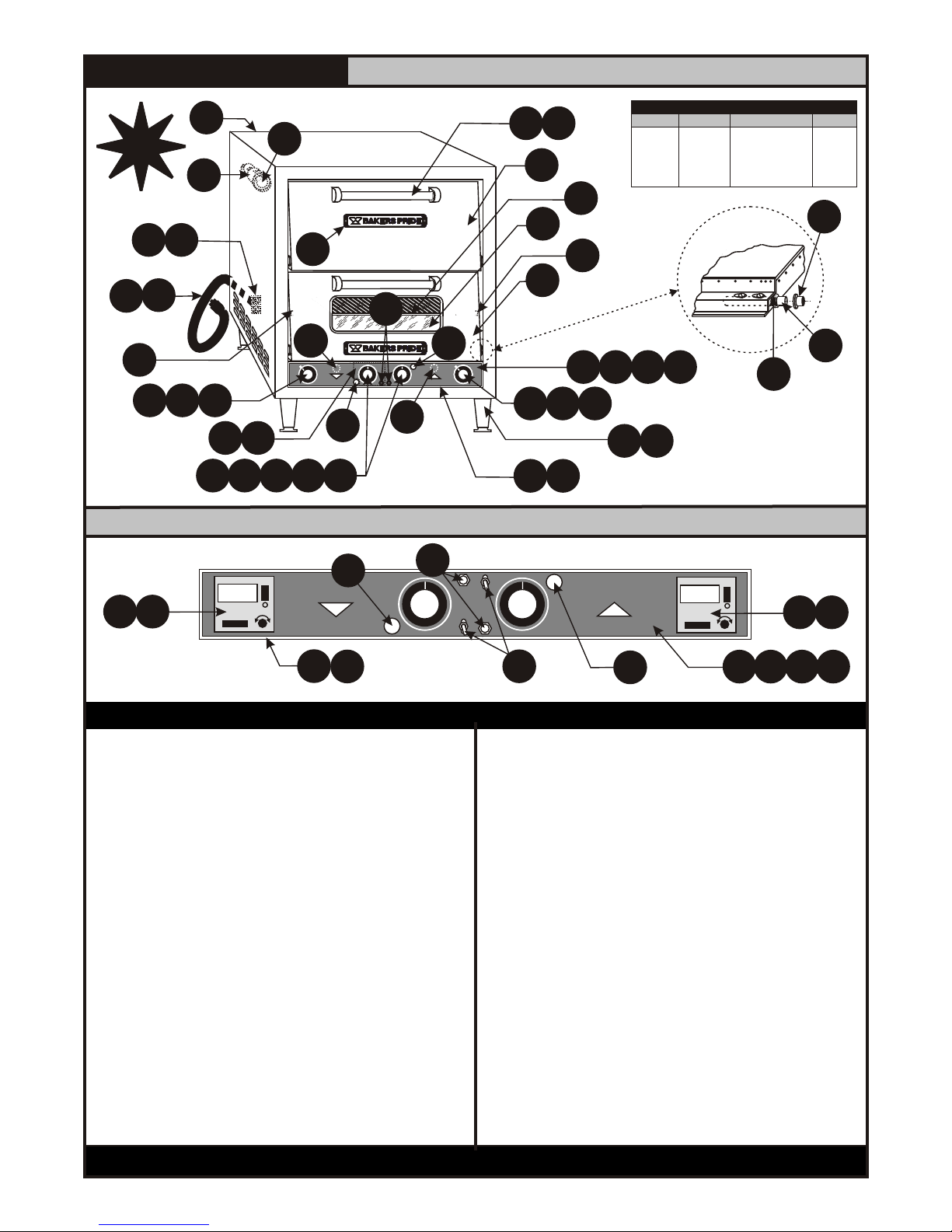

g. Slide baking decks into each shelf. (View on Page 7)
4. INITIAL START UP
After the electrical connections have been made, the oven will need approximately 2 to 3 hours to
burn off. Initial heating of the oven may generate smoke or fumes and must be done in a well
ventilated area.
CAUTION: OVEREXPOSURE TO SMOKE OR FUMES MAY CAUSE NAUSEA AND DIZZINESS.
For initial heating of the new oven, follow the steps below:
!Place the oven in a well ventilated area.
!Open the oven doors and remove any instructions or samples shipped within the unit. Make
sure the oven cavity is empty and the baking decks are properly installed.
!With the oven doors open, turn the temperature knobs to 400° F (205° C) for one hour.
!Close the oven door. Increase the temperature to 500° F (260° C) for at least 1 ½ hours.
This procedure will dry out the insulation and deck material and will help to insure optimum baking
results thereafter.
OPERATING INSTRUCTIONS
Note: Only Pizza or Bread can have direct contact with ceramic decks. All other food products must be
placed in a pan or container to avoid direct contact with ceramic decks.
1. GENERAL BAKING
Models: P-18, BK-18, P-22S, P-22BL, P-24S, P-44S, P-44BL, P-46S, P-48S, PX-14 and PX-16
Preheat the oven by setting the thermostat to the desired temperature. When the thermostat light
goes out and has cycled three times, the oven is ready for use.
These ovens have been designed to bake both fresh and frozen products. Frozen fruit pies should
be taken directly from the freezer and placed into the oven. Cooking time will vary with the size of the
pie, but under normal conditions a frozen pie should bake approximately in the same time as a fresh
pie.

4
These ovens work well for toasting, melting cheese, baking frozen entrees, roasting small meat
items, etc.
The temperature range for pizza baking is usually between 500° F (260° C) and 575° F (300° C)
depending on the individual product.
Allow the pizza to bake until the cheese bubbles and the bottoms are evenly brown. (Rotate if
necessary)
The design of the PX-14 and PX-16 is such that normal baking temperature may be too high for
good results. Set the thermostat approximately 25° F (15° C) BELOW normal setting. Adjust
temperature as needed.
Do not keep the oven door open too long when loading since heat will escape, resulting in slower
baking.
When production requirements are low, keep the temperature low to prevent the bottoms from
burning.
As demand increases, temperature should be raised for faster recovery.
Fresh dough generally requires a slightly lower baking temperature and longer bake time than
defrosted pre-baked crusts.
2. GENERAL BAKING TIPS
!Pizza crusts should be fully defrosted before baking.
!Wet areas on the bottom of a pizza will cause them to stick to the deck. Avoid spills.
!For fresh dough pizza, flour or corn meal on the peel will prevent sticking and ease
placement of the pizza on the deck.
!Increasing bake temperature during heavy production assists in maintaining temperature.
After the rush is over, reduce temperature to prevent burning.
!Heavily topped pizzas require longer bake times at lower temperatures.
!Placing a screen under pizza will allow the top to cook without overcooking the bottom.
!Frequently scrape and brush off decks to remove burned residue which can cause an off
flavor to the product. Residue build-up can slow bake times. A deck scraper/brush
specifically designed for this is available from BAKERS PRIDE.
!Clean heavily soiled pizza decks by scraping down, brushing off, removing from oven,
turning over and putting back. This procedure will burn off the decks and should be repeated
every six months. DO NOT USE WATER TO CLEAN THE DECKS as this could cause the
decks to crack.
!Using shiny pans or screens will produce products with light bottom color. We strongly
suggest that all pans and screens be seasoned before use.
3. SPECIAL FEATURES
Timer: An electric timer is provided to give an audible, continuous signal at the end of a preset time
up to 15 minutes (18 minutes with 50Hz supply) on pizza ovens, or 60 minutes (72 minutes with
50Hz supply) on bake ovens,
Optional Electronic Timer: A Digital electronic 99 minute timer can be provided on all models to give
an audible signal at the end of a pre-set time.
Note: TIMER DOES NOT CONTROL THE OVEN.
For PX-14 and PX-16 only: Individual switches are provided to turn off the top or the bottom heating
element. This allows baking items that do not require direct top or bottom heat.

5
For DP-2 only: Optional infinite control switches can be provided for fine balancing of top and
bottom heat.
4. CLEANING
Periodic cleaning is suggested to keep your oven in good shape.
ALWAYS CLEAN THE OVEN WHEN IT IS COLD.
WHEN CLEANING STAINLESS STEEL, ALWAYS WIPE IN THE DIRECTION OF THE GRAIN.
Scrapers, brushes and stainless steel cleaner can be ordered from BAKERS PRIDE for this
purpose.
From time to time the spillage should be scraped out. For hard to clean spillage, the following is
suggested:
!Turn the thermostat up to the highest setting and let the oven run for ½ hour with the door
closed.
!Allow the oven to cool down.
!Brush the residue from deck.
Note: DO NOT USE WATER TO CLEAN DECKS. CRACKING MAY RESULT.
Stainless steel surfaces should be cleaned with BAKERS PRIDE STAINLESS STEEL CLEANER.
5. SERVICE AND TROUBLE SHOOTING
The ovens are designed to be as trouble free as possible. Keeping the oven clean is all that is
normally required. All servicing should be performed by a factory authorized technician only.
However, if your oven stops operating, please check the following:
!Power supply cord is plugged into the supply receptacle.
!Power supply fuse/circuit breaker has not tripped.
If the oven still does not operate, take the following steps:
!Disconnect the power supply to the unit by removing the supply cord and/or turning off the
main switch.
!Contact the factory, factory representative or an authorized service agency.
Note: Infinite control switches must be in a set position (other than off) in model DP-2 with optional infinite
switches, for elements to operate.
A system wiring diagram is a part of this manual and is provided on the back of the unit.
For further information and to purchase the deck scraper/brush, or stainless steel cleaner, call BAKERS
PRIDE at: [phone].

6
DECK
DECK
6. INSTALLATION OF DECKS
TROUBLESHOOTING CHART
Take no action. The thermostat has
turned off the power to the heat control
switches, indicator lamps, contactors and
heating elements. When oven starts to
cool, all functions will be restored.
Turn switches to a position other than
"OFF". This will allow indicator lamps,
contactors and heating elements to
operate.
Replace fuse or reset circuit breaker.
Plug in power cord.
Replace fuse or reset circuit breaker.
Plug in power cord.
Lower the thermostat setting. Allow
ample time for heat to regulate.
Call local authorized Bakers Pride
Service Agent.
Increase setting.
Decrease setting.
Reduce Thermostat setting by 50° - 75°
below normal bake temperature. When
decks cool begin cooking and
immediately increase the thermostat
setting by 50° - 75°.
Decrease setting.
Increase setting.
Rotate pies (180°), once during each
bake or keep to the center of oven.
PROBLEM PROBABLE CAUSE SOLUTION
Indicator light is out
No power
Oven too Hot
Bottom of pies are
undercooked
Bottom of pies burn
before toppings are
cooked
Pies cook unevenly
Set temperature has been
reached.
The infinite top and bottom heat
control switches are "OFF". (DP-2
w/Infinite Switches only)
Power supply fuses or circuit
breakers are blown or have been
tripped.
Power cord is unplugged.
Power supply fuses or circuit
breakers are blown or have been
tripped.
Power cord is unplugged.
Thermostat set too high.
Thermostat may be defective.
Bottom infinite switch set too low.
(DP-2 w/Infinite Switches only)
Top Infinite switch set too high.
(DP-2 w/Infinite Switches only)
Deck temperature too hot -
especially during slow periods.
Bottom infinite switch set too high.
(DP-2 w/Infinite Switches only)
Top Infinite switch set too low.
(DP-2 w/Infinite Switches only)
Area's adjacent to oven walls are
generally hotter.

7
BR17
21 WT
WT 21
L1 L2
TERMINAL
BLOCK
1 PHASE
BR1
BK2
WT22
WT11
BR23
BK10
BK10 BR23
BK16
BR1 BK2
WT11
WT22
BK4
BK4
WT22
ELECTRONIC
TIMER 250V
(OPT)
BR17
BK18
BR17
BK18
2 3 5 62 3 5 6
BK16
BR17
BK26
BK20
BR3 BR3
BR25
BR19
BK16
BK18
BK18
BR15
BR15
BK28
BR27
BK14
WT24
WT13
BR5 BR29
BR27
BK28
WT11
BK30
BK2
BR1
L3 200V 1 OR 3
208V 1 OR 3
240V 1 OR 3
TERMINAL
BLOCK
3 PHASE
LOWER HEATING COILS UPPER HEATING COILS
LB
LC
LT UT
UC
UB
L2
L1
THERMOSTAT
EGO 3 POLE
THERMOSTAT
EGO 3 POLE
CIRCUIT
BREAKER
CIRCUIT
BREAKER
PILOT
LIGHT
PILOT
LIGHT
LIGHT
SWITCH
(OPT)
LIGHT
SWITCH
(OPT)
2, 3 OR 4 AS REQUIRED
250V LAMPS (OPT)
BUZZER
BUZZER
TIMER 250V
TIMER 250V
LOWER
BAKE
CHAMBER
UPPER
BAKE
CHAMBER
BR7
BK8
BK16
ELECTRONIC
TIMER 250V
(OPT)
ROBERTSHAW
THERMOSTATS
BK2
BR1
WT22 WT11 WT13
WT24
BR5 BK14
BR3
BR7 BK4
DWG. 1012-120 10/09/00
P-SERIES 2 CHAMBER - 1 PH, 2 W OR 3 PH, 3 W - ELECTRICAL WIRING DIAGRAM & TABLES
ELECTRICAL WIRING DIAGRAMS, SCHEMATICS AND TABLES
WATT PER HEATING COIL & TOTAL WATT PER UNIT
COIL LOCATION DP2
UC - UPPER CTR
UT - UPPER TOP
UB - UPPER BOTT
LT - LOWER TOP
LC - LOWER CTR
LB - LOWER BOTT
TOTAL NO LIGHT
TOTAL W. LIGHT
1,075
- - -
1,450
1,075
- - -
1,450
5,050
5,080
P48S
1,075
- - -
1,075
1,075
- - -
1,075
4,300
4,330
P46S
1,075
1,450
1,075
1,075
- - -
1,075
5,750
5,795
P44S
1,075
1,450
1,075
1,075
1,450
1,075
7,200
7,260
P44SH
1,075
1,450
1,450
1,075
1,450
1,450
7,950
8,010
L3
L2
22.0
18.7
18.7
18.7
24.3
25.327.9
26.9
24.3
20.7
21.526.1
25.0
22.7
20.7
21.518.6
17.9
16.2
20.7
21.511.2
10.7
9.7
25.3
24.3
22.011.4
12.5
13.0
AMP - W. LIGHT
L1
L3
24.3
22.7
16.2
9.7
26.9
27.925.3
24.3
22.0
25.0
26.121.5
20.7
18.7
17.9
18.621.5
20.7
18.7
10.7
11.221.5
20.7
18.7
13.0
12.5
11.422.0
24.3
25.3
AMP - NO LIGHT
L1 L2
12.6
12.1
11.0 11.0
12.1
12.6
9.3
10.3
10.8 10.8
10.3
15.7
17.3
18.0 18.0
17.3
22.0
24.3
25.3 25.3
24.3
23.6
26.1
27.1 27.1
26.1
9.3
15.7
22.0
23.6
3 PHASE - 3 WIRE
AMPERE
25.3
24.3
22.0
18.7
20.7
21.5
25.0
27.6
28.8
31.3
34.6
36.0
34.6
38.2
39.8
NO L.
22.3
24.7
25.7
21.9
21.1
29.4
28.2
36.8
35.4
40.6
39.0
19.0
25.5
32.1
35.3
VOLT A/C
200
240
208
UNIT COILS
200
208
230
MODEL
DP2
200
208
P48S
200
208
240 230
200
208
P46S
200
208
240 230
200
208
P44S
200
208
240 230
200
208
P44SH
200
208
240 230
I PHASE - 2 WIRE
PLUG & NO.
USA CAN
W. L.
6-30P 6-30P
6-30P6-30P
6-30P 6-50P
6-50P6-50P
6-50P 6-50P

8
BL34,45,45
BR1
BK2
WT11
BK2
WT11
NN
BR1
L3L2
L1
BR54
L1
BL34,45,45
(BL53)
(BL53)
BL34
BL35
BR39
BK12
BL52
BL52
BL52
BL52
BL33
BL32
WT42
BK40
BK2
BR41
BR1
BL31
BL35
TERMINAL
BLOCK
1 PHASE
BK16
BR1
BK2
WT11
BK4
ELECTRONIC
TIMER 250V
(OPT)
BL35
BK18
BL35
BK18
2 3 5 62 3 5 6
BK16
BL35
BK 26
BK20
BK16
BK18
BK18
BK28
BL36
BR39
WT24
WT13
BR37
BK28
(230V 1)
400V 3N
TERMINAL
BLOCK
3 PHASE
LOWER HEATING COILS UPPER HEATING COILS
LB
LC
LT UT
UC
UB
THERMOSTAT
EGO 3 POLE
THERMOSTAT
EGO 3 POLE
CIRCUIT
BREAKER
CIRCUIT
BREAKER
PILOT
LIGHT
PILOT
LIGHT
LIGHT
SWITCH
(OPT)
LIGHT
SWITCH
(OPT)
BUZZER
BUZZER
TIMER 250V
TIMER 250V
LOWER
BAKE
CHAMBER
UPPER
BAKE
CHAMBER
BK12
BK8
BK16
ELECTRONIC
TIMER 250V
(OPT)
ROBERTSHAW
THERMOSTATS
1 OR 2 AS REQUIRED
BK2
BR1
WT13
WT24
BR37 BK8
BL36
2, 3 OR 4 AS REQUIRED
250V LAMPS (OPT)
DWG. 1012-124 10/11/00
P-SERIES 2 CHAMBER - 3 PH, 4 W - STAR - ELECTRICAL WIRING DIAGRAM & TABLES
WATT PER HEATING COIL & TOTAL WATT PER UNIT
COIL LOCATION DP2
UC - UPPER CTR
UT - UPPER TOP
UB - UPPER BOTT
LT - LOWER TOP
LC - LOWER CTR
LB - LOWER BOTT
TOTAL NO LIGHT
TOTAL W. LIGHT
1,075
- - -
1,450
1,075
- - -
1,450
5,050
5,080
P48S
1,075
- - -
1,075
1,075
- - -
1,075
4,300
4,330
P46S
1,075
1,450
1,075
1,075
- - -
1,075
5,750
5,795
P44S
1,075
1,450
1,075
1,075
1,450
1,075
7,200
7,260
P44SH
1,075
1,450
1,450
1,075
1,450
1,450
7,950
8,010
- - -- - -
- - -- - -
- - -- - -
- - -- - -
- - -- - -
- - -
- - -
- - -
- - -
- - -
- - -
- - -
- - -
- - -
- - -
L3
L2
12.6
9.3
9.3
9.3
12.6
12.6
6.3
0.0
12.6
0.0
L1
L3
10.0
10.0
9.9
9.7
12.6
9.3
9.3
9.3
9.712.6
230/400
UNIT COILS L1 L2
230 9.3
DP2
0.0
P48S
230/400 230 9.3
P46S
230/400 230 9.3
P44S
230/400 230 9.3
P44SH
230/400 230 9.3
0.0
6.3
12.6
12.6
NN
34.6230
230
31.3230
230
25.0230
230
18.7230
230
22.0230
230 22.3
19.0
25.5
32.0
35.3
3.3
- - -
3.0
3.3
3.3
22.0
18.7
25.0
31.3
34.6
2.9
0.4
3.6
3.3
2.6
22.3
19.0
25.5
32.0
35.3
AMPERE - W. LIGHT
VOLT A/C AMPERE - NO LIGHT
MODEL

9
BL31,32,34
BR1
BK2
WT22
BK2
WT22
NN
BR1
L3L2
L1
BR54
L1
1, 3
BL332, 4
(BL53)
BR37
WT24
BR1
ROBERTSHAW
THERMOSTAT
ELECTRONIC
TIMER 250V
(OPT)
BK16
TIMER 250V
BUZZER
250V LAMPS (OPT)
1 OR 2 AS REQUIRED
LIGHT
SWITCH
(OPT)
PILOT
LIGHT
CIRCUIT
BREAKER
CIRCUIT
BREAKER
THERMOSTAT
EGO 3 POLE
TE
CE
BE
HEATING COILS
BK28
BK18
BK16
BK 26
6532
BK18
BL35
WT22
BK2
BR1
BL35
BR12
BL34
BL52
BL52
BL32
TERMINAL
BLOCK
1 PHASE
BL36 WT24
BR37
(230V 1)
400V 3N
TERMINAL
BLOCK
3 PHASE
BK12
BL31
BK4
DWG. 1012-128 10/11/00
P-SERIES 1 CHAMBER - 3 PH, 4 W - STAR - ELECTRICAL WIRING DIAGRAM & TABLES
- - -- - -
- - -- - -
- - -- - -
- - -- - -
- - -- - -
- - -
- - -
- - -
- - -
- - -
- - -
- - -
- - -
- - -
- - -
L3
L2
6.3
4.7
4.8
4.3
6.7
6.7
0.2
4.7
3.7
0.2
AMPERE - W. LIGHT
L1
L3
4.7
4.7
4.8
3.7
6.3
4.7
4.7
4.3
3.7 3.7
VOLT A/C AMPERE - NO LIGHT
230/400
UNIT COILS L1 L2
230 3.7
MODEL
BK18
0.0
P18S
230/400 230 3.7
P24S
230/400 230 4.7
P22S
230/400 230 4.7
P22SH
230/400 230 4.7
4.3
0.0
6.3
6.3
NN
17.3230
230
15.7230
230
9.3230
230
12.4230
230
7.4230
230 7.6
12.7
9.5
16.0
17.6
0.0
0.6
0.0
1.4
1.6
7.4
12.4
9.3
15.7
17.3
0.2
1.0
0.2
2.0
2.0
7.6
12.7
9.5
16.0
17.6
P22SH
4,005
3,975
1,450
1,450
1,075
3,630
3,600
1,075
1,450
1,075
P22S
WATT PER HEATING COIL & TOTAL WATT PER UNIT
COIL LOCATION
TE - TOP ELEMENT
BE - BOT ELEMENT
TOTAL NO LIGHT
TOTAL W. LIGHT
P18S
850
1,000
1,000
2,850
2,880
P24S
1,075
- - -
1,075
2,150
2,1651,715
1,700
850
- - -
850
BK18

10
(WT22 NOT USED)
TO SWITCH
(OPT)
A
BK18
BK16
BK2
BR5
WT24
BR1
ROBERTSHAW THERMOSTAT
SINGLE POLE NO SWITCH
1 PHASE ONLY
BR3
BR7
BR7 BR3
BR17
BK18
2 3 5 6
ELECTRONIC
TIMER 250V
(OPT)
ROBERTSHAW
THERMOSTAT
SINGLE POLE
WITH SWITCH
BR1
WT22
WT24
BR5
BR17
WT 21
L1 L2
TERMINAL
BLOCK
3 PHASE
BR1
BK2
WT22
BK10
BK10
BR1 BK2
WT22
BK26
BR3 BR3
BR25
BK16
BK18
BR15
BR27 WT24
BR5
BR29
BK28
WT22
BK2
BR1
HEATING COILS
BE
CE
TE
L2 (N)
L1
THERMOSTAT
EGO 3 POLE
CIRCUIT
BREAKER
CIRCUIT
BREAKER
PILOT
LIGHT
LIGHT
SWITCH
(OPT)
1 OR 2 AS REQUIRED
250V LAMPS (OPT)
BUZZER
TIMER 250V
BR7
BK16
TERMINAL
BLOCK
1 PHASE
240V 1 OR 3
208V 1 OR 3
200V 1 OR 3
120V 1
100V 1
230V 1 OR 3
L3
DWG. 1012-127 10/9/00
P-SERIES 1 CHAMBER - 1 PH, 2 W or 3 PH, 3 W - ELECTRICAL WIRING DIAGRAM & TABLES
BK18
850
- - -
850
1,700
1,715 2,165
2,150
1,075
- - -
1,075
P24S
2,880
2,850
1,000
1,000
850
P18S-2
1,830
1,800
600
600
600
P18S-1
TOTAL W. LIGHT
TOTAL NO LIGHT
BE - BOT ELEMENT
CE - CTR ELEMENT
TE - TOP ELEMENT
COIL LOCATION WATT PER HEATING COIL & TOTAL WATT PER UNIT
P22S
1,075
1,450
1,075
3,600
3,630
1,075
1,450
1,450
3,975
4,005
P22SH
L3
L2L1L3
L2L1
12.0 7.219.212.0 6.918.8
12.1 7.419.512.1 7.019.1
12.6 7.720.312.6 7.219.9
10.2 7.217.410.2 6.917.1
10.3 7.417.710.3 7.017.3
10.8 7.718.410.8 7.218.0
10.2 0.210.410.2 0.010.2
10.3 0.210.510.3 0.010.3
10.8 0.211.010.8 0.010.8
8.8 5.113.9 8.8 4.713.5
8.9 5.214.1 8.9 4.813.7
9.3 5.414.7 9.3 5.014.3
8.1 0.1 8.2 8.1 0.0 8.1
8.2 0.2 8.4 8.2 0.0 8.2
8.5 0.2 8.7 8.5 0.0 8.5
AMP - W. LIGHT
AMP - NO LIGHT
3 PHASE - 3 WIRE
230
240
208
200
P22SH 208
200
230
240
208
200
P22S 208
200
230
240
208
200
P24S 208
200
230
240
208
200
P18S-2 208
200
P18S-1
MODEL
120
100
COILS
UNIT
100
120
VOLT A/C
200
240
208
200
208
230
120
100 100
120
BK18
N/A
1 PH - 2 W
BS 1363A CEE 7-VII
BS 1363A CEE 7-VII
6-30P
CEE 7-VII
5-20P
6-15P
5-20P
6-15P
6-15P
6-20P
6-20P
6-15P
5-15P
6-20P 6-30P
6-20P
6-20P
6-15P
6-15P
6-20P
5-20P
6-15P
19.2
17.4
10.4
13.9
19.5
20.319.9
19.1
18.8
17.7
18.418.0
17.3
17.1
10.5
11.010.8
10.3
10.2
14.1
14.714.3
13.7
13.5
18.8
N/A15.0
18.0
W. L.
NO L.
AMPERE CANUSA
PLUG CONFIGURATION & NUMBER
5-15P
8.5
8.2
8.1 8.2
8.4
8.7
6-15P
17.0
14.2 14.5
17.4
5-20P
JAPAN UK EUROPE
N/A N/A
N/A N/A
N/A
N/A N/A

CB
T
B
M
T
B
M
CB
TH
TH
L1 L1
L2 L2 L3
P
P
L
L
L
L
MM
B
B
CB CB CB CB
TH
TH
TH
TH
UT
LT
LC
UC
UB
LB
LS LS LS LS
T
T
UPPER CHAMBER
LOWER CHAMBER
LSLS L
L
LS
LS L
L
UB
UC
UT
TH
P
LB
LC
LT
TH
TH
TH
P
200V 1
208V 1
240V 1
200V 3
208V 3
240V 3
T
LS
B
M
L
L
LB
LC
LT
TH
TH
P
TH
TH
N400V 3 N L1 L2 L3
P
L
L
M
B
TH
TH
UT
UC
UB
LS
T
TH
TH
11
CB
TH
TH
TH
TH
TH
T
B
M
L3
L2
L1
N
400V 3 N
TH
P
TH
TH
TE
CE
BE
L
L
M
B
LS
T
CB
240V 3
208V 3
200V 3
100V 1
120V 1
200V 1
240V 1
230V 1
208V 1
P
TH
TE
CE
BE
L
L
LS LS
L
L
M
B
LS LS
T
BE
CE
TE
CB
CB
CB
CB
P
L3
L2
L2 (N) L1
L1
DWG. 1012-126 10/11/00
DWG. 1012-129 10/11/00
P-SERIES - 2 CHAMBERS - ELECTRICAL WIRING SCHEMATICS
P-SERIES - 1 CHAMBER - ELECTRICAL WIRING SCHEMATICS
LEGEND
N, L1, L2, L3 = FROM TERMINAL BLOCK
TH = THERMOSTAT 2 POLE (3 POLE)
P = THERMOSTAT INDICATOR LIGHT
CB = CIRCUIT BREAKER
M = SYNCHRONOUS TIMER (OR TIMER MOTOR)
T = INTERVAL TIMER CONTACTS (IF PROVIDED)
B = BUZZER (IF PROVIDED)
LS = LIGHT SWITCH DPST ON-OFF (IF PROVIDED)
L = INTERIOR LIGHTS (IF PROVIDED)
LEGEND
N, L1, L2, L3 = FROM TERMINAL BLOCK
TH = THERMOSTAT 2 POLE (3 POLE)
P = THERMOSTAT INDICATOR LIGHT
CB = CIRCUIT BREAKER
M = SYNCHRONOUS TIMER (OR TIMER MOTOR)
T = INTERVAL TIMER CONTACTS (IF PROVIDED)
B = BUZZER (IF PROVIDED)
LS = LIGHT SWITCH DPST ON-OFF (IF PROVIDED)
L = INTERIOR LIGHTS (IF PROVIDED)
HEATER COILS
UT = UPPER CHAMBER, TOP ELEMENT
UC = UPPER CHAMBER, CENTER ELEMENT (P44 & P46 ONLY)
UB = UPPER CHAMBER, BOTTOM ELEMENT
LT = LOWER CHAMBER, TOP ELEMENT
LC = LOWER CHAMBER, CENTER ELEMENT (P44 ONLY)
LB = LOWER CHAMBER, BOTTOM ELEMENT
HEATER COILS
TE = TOP ELEMENT
CE = CENTER ELEMENT (IF PROVIDED)
BE = BOTTOM ELEMENT

PX-16 PX-14
PX-14 & PX-16 WIRING DIAGRAM & TABLES
To Top Switch
To Bottom Switch
Line Co dr
T p Eeme
o l nt
m
Botto Element
Q1-Connector
Q2-Connector
Q3-Butt Connector
Q4-Twin Adapter Terminal
Q5-Twin Adapter Terminal
Terminal Block
zBuzer
Timer
Motor
Bottom
Switch Top
Switch
Pilot Light
ost
Therm at
11
22
T1 A3
A1 H4
A1 H1 H2 C1
L2 (N)
GND
L2
L1
L1
H1
S2 H2
S1
T1
C1
H4
A4
H1
H5
H3
H5
E2
E3
H1
E2
Q5
S2
H3
A4
E3
Q4
S1
A3
Brn-S1
Brn-S2
Brn
H5
Top Heating Coil
Bottom Heating Coil
Bottom
Switch
Blu-H4 Q1-P1085AA4
uzzer
B
Timer
Motor
H1
Q2-P1085A
Brn-T1
Brn
H3
Brn-A3
Thermostat 12
NOTE: All wires to be 14 AWG 600V 200°C.
Color as shown above.
Brn
Blu
Grn/Yel
(Blk)
(Wht)
(Grn)
or: -Line Cord-
For NEMA plugs see tables
L1 L2 (N)
A1
Blu
Terminal
Block
Gnd
Pilot
Light
C1 P1069A E2 Gry
Top
Switch
E3 Gry
Blu Q3-Butt Connector
Blu-H1
Blu-H2
Heating Coils
Watts / Volts
Timer Motor
Volts / Hz
Volts A/C
/ Phase Amp USA Canada UK Europe Japan
Heating Coils
Watts / Volts
Timer Motor
Volts / Hz
Volts A/C
/ Phase Amp USA Canada UK Europe Japan
100/1 100/1
15
120/1 120/1
12.5
200/1 200/1
7.5
208-240/1 208-240/1
220-240/1 220-240/1
8.1
8.1
750/100
750/110
750/200
750/220
750/220
120/60
120/60
250/60
250/60
250/60
18
15
9
9.7
9.7
900/100
900/100
900/200
900/220
900/220
125/60
125/60
250/60
250/60
250/60
NEMA Plug Configuration & Number NEMA Plug Configuration & Number
5-15P
5-15P
5-20P
6-15P
6-15P6-15P
BS 1363A CEE7-VII
5-15P
5-15P
5-20P
6-15P
6-15P6-15P
BS 1363A CEE7-VII
12

PX-14 Beginning: Serial #4633, 12/09/99 (120V) or Serial #6547, 11/22/99 (208/240V)
PX-16 Beginning: Serial #959, 11/11/99 (120V) or Serial #1783, 12/01/99 (208/240V)
1 D5023X Crumb Pan Assy w/Knob (PX-14) 19 D5043U Capillary Retainer Assy
2 D5123X Crumb Pan Assy w/Knob (PX-16) 20 S1392A Leg, each
3 S1153X Knob (Crumb Pan) 21 U1044X Bakers Pride Nameplate, 8"
4 M1335X Audio Alarm 22 D5037U Peel Tray Assy w/Wire Rack & Hdl (PX-14)
5 P1003X Terminal Block, 3 Pole 23 D5141U Peel Tray Assy w/Wire Rack & Hdl (PX-16)
6 D5027U Control Panel Assy, Front (PX-14) 24 S1031X Handle, w/Nut & Bolt
7 D5127X Control Panel Assy, Front (PX-16) 25 L1065X Element, PX-14, 120V/750W (2)
8 U1308A Control Panel Overlay, 60hz 26 L1148X Element, PX-16, 120V/900W (2)
9 U1309A Control Panel Overlay, 50hz 27 L1066X Element, PX-14, 220V/750W (2)
10 M1383A Timer, Electro-Mechanical, 15 Minutes, 120V 28 L1149X Element, PX-16, 220V/900W (2)
11 M1384A Timer, Electro-Mechanical, 15 Minutes, 220V 29 L1067X Element, PX-14, 100V/750W (2) Japan
12 M1119X Thermostat, EGO, 300-650 deg (No Knob) 30 L1156X Element, PX-16, 200V/900W (2) Japan
13 S1311X Knob (Thermostat & Timer) 31 P6004X Line Cord, 125V/15A
14 M1037X Switch, Toggle, On/Off 32 P6383A Line Cord, 125V/20A (Canada)
15 S1038X Rubber Boot, On/Off Switch (Export) 33 P6005X Line Cord, 250V/15A
16 P1127X Pilot Light, Amber 34 P6006X Line Cord, CEE7-VII (Europe)
17 D5038U Rear Panel Assy, (PX-14) 35 P6343X Line Cord w/Fuse, 13A/240V (U.K.)
18 D5138U Rear Panel Assy, (PX-16)
01
2
3
4
5
6
7
8
9
10
11
12
13
14
15
MINUTES
300
450
650
350
400
500
550
600
21
30 29 28 26 25
27
17
18
16
8
9
19
10 11 13
7
6
4
5
22
23 24 3
12
20
12
13
14
15 35
34
33
32
31
Item Part # Description Item Part # Description
Note: When ordering, ALWAYS specify Part #, Model #, Serial # and Voltage/Phase. 10/05
PARTS LISTS & EXPLODED VIEWS
13
PX-14/16 Electric Counter Top Oven (New Style)

Item Part # Description Item Part # Description
Note: When ordering, ALWAYS specify Part #, Model #, Serial # and Voltage/Phase. 10/05
PX-14 Before: Serial #4633, 12/09/99 (120V) or Serial #6547, 11/22/99 (208/240V)
PX-16 Before: Serial #959, 11/11/99 (120V) or Serial #1783, 12/01/99 (208/240V)
01
2
3
4
5
6
7
8
9
10
11
12
13
14
15
MINUTES
300
450
650
350
400
500
550
600
*
01
2
3
4
5
6
7
8
9
10
11
12
13
14
15
TURN POINTER TO STAR, THEN SET FOR TIME
POINTER L’ETOILE, PUIS REGLER LE TEMPS
300
450
650 350
400
500
550
600
19
18
17 16
15
14
13 12
11 10 98
7
65
4
321
33 32 31 30 29
22
20
21
28 26 25 24 23
27
1 D5023X Crumb Pan Assy w/Knob (PX-14) 18 S1392A Leg, each
2 D5123X Crumb Pan Assy w/Knob (PX-16) 19 U1044X Bakers Pride Nameplate, 8"
3 S1153X Knob (Crumb Pan) 20 D5037U Peel Tray Assy w/Wire Rack (PX-14)
4 P1003X Terminal Block, 3 Pole 21 D5141U Peel Tray Assy w/Wire Rack (PX-16)
5 M1017X Timer, Mech, 15 Minutes (w/Knob/Plate) 22 S1031X Handle, w/Nut & Bolt
6 S1052X Knob, Timer 23 L1065X Element, PX-14, 120V/750W (2)
7 S1025X Plate, Timer 24 L1148X Element, PX-16, 120V/900W (2)
8 M1120X Thermostat, EGO, 650F deg (w/Knob) 25 L1066X Element, PX-14, 220V/750W (2)
9 M1119X Thermostat, EGO, 370C deg (w/Knob) 26 L1149X Element, PX-16, 220V/900W (2)
10 S1155X Knob, Thermostat (650F) 27 L1067X Element, PX-14, 100V/750W (2) Japan
11 S1154X Knob, Thermostat (370C) 28 L1156X Element, PX-16, 200V/900W (2) Japan
12 M1037X Switch, Toggle, On/Off 29 P6004X Line Cord, 125V/15A
13 S1038X Rubber Boot, On/Off Switch (Export) 30 P6383A Line Cord, 125V/20A (Canada)
14 P1127X Pilot Light, Amber 31 P6005X Line Cord, 250V/15A
15 D5038U Rear Panel Assy, (PX-14) 32 P6006X Line Cord, CEE7-VII (Europe)
16 D5138U Rear Panel Assy, (PX-16) 33 P6343X Line Cord w/Fuse, 13A/240V (U.K.)
17 D5043U Capillary Retainer Assy
14
PX-14/16 Electric Counter Top Oven (Old Style)

Note: When ordering, ALWAYS specify Part #, Model #, Serial # and Voltage/Phase. 10/05
1 M1098X Thermostat w/Knob, EGO (Standard) P-18 20 U1302X Control Panel Overlay, EGO (P-18)
2 M1192X Thermostat w/Knob, EGO (High Heat) P-18 21 U1307A Control Panel Overlay, EGO Hi-Heat (P-18)
3 M1110X Thermostat w/Knob, KA-72, 550deg (BK-18) 22 U1314A Control Panel Overlay (BK-18)
4 S1311X Knob (Thermostat & Timer) 23 U1297A 18 Minute Timer Overlay (50 cycles)
5 M1381A Timer, Elec-Mech, 60 Min, 120V (BK-18) 24 U1296A 72 Minute Timer Overlay (50 cycles)
6 M1382A Timer, Elec-Mech, 60 Min, 220V (BK-18) 25 S3019X Bushing, Door
7 M1383A Timer, Elec-Mech, 15 Min, 120V (P-18) 26 D3106X Door Assy w/Handle
8 M1384A Timer, Elec-Mech, 15 Min, 220V (P-18) 27 S3001X Door Rod
9 D3157K Control Panel 28 Q3021X Door Rod Spacer Kit (1 Kit per Door)
10 M1330A Circuit Breaker, 3 Amp 29 D3105K Outer Back
11 M1335X Audio Alarm (Discontinued) 30 S1316U Door Handle Assy, 10"
12 P1127X Pilot Light, Amber 31 Q2041A Screw, 1/4-20 x 1/2 Rd Hd (Door Handle)
13 P1089A Terminal Block, 3 Pole 32 U1044X Bakers Pride Nameplate, 8"
14 P6004X Line Cord 125V/15A (US) P & BK 33 S1014X 4" Adjustable Leg (Set/4)
15 P6005X Line Cord 250V/15A (US & Japan) P & BK 34 S1014Y 4" Adjustable Leg (each)
16 P6383X Line Cord 125V/20A (Canada) 35 T3150A Intermediate Wire Rack (Option, BK18)
17 P6009X Line Cord 250V/20A (Canada) 36 D3162U Wire Rack Support Assy, Left (Option)
18 P6006X Line Cord, 230V/16A "C" Type (CE) 37 D3163U Wire Rack Support Assy, Right (Option)
19 P6343X Line Cord, 230V/13A (UK) N/S D2069X Stacking Kit
DECK ARRANGEMENT BY MODEL
BK18
BAKE
7 1/2”
E
U T
S
I
N
M
BAKERSBAKERS
PRIDEPRIDE
0
300
450
650
P ZA
IZ
3 1/4”
3 1/4”
E
U T
S
I
N
M
BAKERSBAKERS
PRIDEPRIDE
0
300
450
650
P18S
Item Part # Description Item Part # Description
E
U T
S
I
N
M
E
U T
S
I
N
M
00
300
300
450
450
650
650
0
300
450
650
E
U T
S
I
N
M
BAKERSBAKERS
PRIDEPRIDE
E
U T
S
I
N
M
BAKERSBAKERS
PRIDEPRIDE
0
300
450
650
19
18
17
16
15
14
13
12
11
10
9
876544
3
2
1
36
35
34
33
29
28
25
24
23
20 22
21
27
30 31
37
26
32
15
P18-S, BK18 Exterior/Door/Controls (Electro-Mechanical Timers)

1
1
1
3
3
5
2
2
4
4
6
6
8
9
10
13
14
17
18
19
20
21
11
12
22
22
23
24
20
19
18
17
16
15
14
13
12 11 10 9
8
7
6
6
5
4
4
3
3
2
2
1
1
1
24
23
22
22
21
Note: When ordering, ALWAYS specify Part #, Model #, Serial # and Voltage/Phase. 10/05
Description
Part #Item
DescriptionPart #Item
1 L1024X Element 115V/600W (US/Can) P-18, T,C & B 13 K1355X Baffle & Top Elem. Clips (5) BK
2 L1171X Element 115V/850W (US/Can) BK-18, T & B 14 P1042A Element Clip, 5/16", Center & Bottom
3 L1025X Element 208-240V/850W (US/Can/CE)P Top, BK T&B 15 T1120Y Ceramic Deck, 17 1/2 x 17 3/4 x 1/2 (each)
4 L1026X Element 208-240V/1KW (US/Can/CE) P-18 C & B 16 T1120X Ceramic Deck, 17 1/2 x 17 3/4 x 1/2 (set/2)
5 L1112X Element 200V/850W (Japan) P-18 Top 17 D3140Z Fresh Dough Baffle
6 L1113X Element 200V/1000W (Japan) P-18 C & B 18 D3152T Hearth Frame Assy
7 T5118X 19 D4039K Deck Support
8 T5107Y Deck Scraper Brush 20 D3151K Element Support
9 P1019X Porcelain Spacer 21 D3131K Baffle Trim
10 Q3016A Washer, Star, #6 22 D3142K Deck Trim
11 Q1002A Nut, 6-32 23 D1134K Capillary Cover
12 S1061X 6-32 Terminal Cap 24 Q4021X Clip 3/16", Temp Sensor (2)
Steel Bake Deck (BK18 Only)
16
Interior Components & Accessories P18, BK18

E
U T
S
I
N
M
E
U T
S
I
N
M
00
300
300
450
450
650
650
0
300
450
650
E
U T
S
I
N
M
BAKERSBAKERS
PRIDEPRIDE
E
U T
S
I
N
M
BAKERSBAKERS
PRIDEPRIDE
0
300
450
650
14
34
38
31
15
16 32
33
17
18
19
13
10
23
24 12345
12
5
6
7
35 36
20 21 22
25
30 29
27
39
26 28
37
14
34
38
Note: When ordering, ALWAYS specify Part #, Model #, Serial # and Voltage/Phase. 10/05
STYLE
NEW
Item Part # Description Item Part # Description
1 M1098X Thermostat w/Knob, 650F (EGO) 21 U1307A Control Panel Overlay, Hi Heat, 22S & 22BL
Thermostat w/Knob, Control Panel
2 M1192X CE "430C" (High Heat) 22 U1314A Overlay, P-24S
3 M1110X Thermostat w/Knob, 550F, KA-72 (P-24S) 23 U1297A 18 Minute Timer Overlay (50 cycle)
4 M1342X Thermostat Kit w/Knob, 250F (Special) 24 U1296A 72 Minute Timer Overlay (50 cycle)
5 S1311X Knob (T-stat "F", 15 Min Timer: Rot-Elec) 25 S3019X Door Bushing
6 M1384A Timer, Electro-Mech, 15 Min, (P-22S & P-22BL) 26 D1106X Door Assy (No Window)
7 M1382A Timer, Electro-Mech, 60 Min (P-24S) 27 S1020X Window Assy (Door)
8 M1275X Timer, Electronic (Digital Readout) 60 cycle 28 D1143U Door Assy (w/Window)
9 M1274X Timer, Electronic (Digital Readout) 50 cycle 29 S3001X Door Rod
10 D1157K Control Panel (Rot/Elect Timer) 30 Q3021X Door Rod Spacer Kit (1 Kit per Door)
11 D1156K Control Panel (Electronic Timer) 31 D1105K Outer Back
12 M1330A Circuit Breaker, 3A 32 S1316U Door Handle
13 M1335X Audio Alarm (Discontinued) 33 Q2041A Screws, 1/4-20 x 1/2 RH (Door Handle)
14 P1127X Pilot Light, Amber 34 U1044X Bakers Pride Nameplate, 8"
15 P1003X Terminal Block, 3 Pole, 1 Phase 35 S1014X 4" Adjustable Leg (Set/4)
16 P1004X Terminal Block, 4 Pole, 3 Phase 36 S1014Y 4" Adjustable Leg (each)
17 P6009X Line Cord, 250V/20A (USA & Canada) 37 T3139X Intermediate Wire Rack (Option, P-24)
18 P6385A Line Cord, 250V/30A (Can. 208V only)P22S/BL 38 D1162U Wire Rack Support Assy, Left (Option)
19 P6005X Line Cord, 250V/15A (P-24S) 39 D1163U Wire Rack Support Assy, Right (Option)
CONTROL PANEL WITH DIGITAL TIMER (OPTIONAL)
0
300
450
650
BAKERSBAKERS
PRIDEPRIDE
START-STOP
MIN. SEC.
- +
09 : 15
DIEHL micro
11
8
912 14 5
4
3
2
1
21 22
20
20 U1302X Control Panel Overlay, 22S & 22BL 40 D2069X Stacking Kit
DECK ARRANGEMENT BY MODEL
P-22BL P-22S P-24S
PIZZA
2 3/4”
2 3/4”
E
U T
S
I
N
M
BAKERSBAKERS
PRIDEPRIDE
0
300
450
650
PIZZA
3 1/4”
3 1/4”
E
U T
S
I
N
M
BAKERSBAKERS
PRIDEPRIDE
0
300
450
650
BAKE
7 1/2”
E
U T
S
I
N
M
BAKERSBAKERS
PRIDEPRIDE
0
300
450
650
THIS PARTS LIST PERTAINS TO THE FOLLOWING UNITS:
Model # Voltage Starting Serial # Date
P-22BL All All N/A
P-22S 208VAC #7131 11/2/99
P-22S 230VAC #4160 11/2/99
P-24S All #17288 2/29/00
17
EXTERIOR/DOOR/CONTROLS (Electro-Mechanical Timers)P-22BL, P-22S, P-24S

Note: When ordering, ALWAYS specify Part #, Model #, Serial # and Voltage/Phase. 10/05
Description
Part #Item
DescriptionPart #Item
STYLE
NEW
Brick Lined
Models Only
24
18 1
3
5
2
4
6
22
17
20
20 21
11
19
7
8
9
10
2 L1071X Element, 208V/1450W, Center 14 T1121Y Deck, 20 13/16 x 20 13/16 x 1/2 (each)
3 L1035X Element, 230V/1075W, Top & Bottom 15 T1121X Deck, 20 13/16 x 20 13/16 x 1/2 (set/2)
4 L1034X Element, 230V/1450W, Center 16 D4040X Fresh Dough Baffle
5 L1116X Element, 200V/1075W, Top & Bottom (Japan) 17 D1152T Hearth Frame Assy (No Element)
6 L1117X Element, 200V/1450W, Center (Japan) 18 D4039K Deck Support
7 P1019A Porcelain Spacer 19 D4031X Baffle Trim
8 Q3016A Washer, Star, #6 20 D1142K Hearth Trim
9 Q1002A Nut, 6-32 21 D1134K Capillary Cover
10 S1061X Terminal Cap, 6-32 22 Q4021X Clip, 3/16"
11 K1355X Element Clip 23 T1222K Steel Bake Deck (Optional)
12 D1158U Ceramic Top Frame Assy (B/L Only) 24 T5107Y Deck Scraper Brush
1 L1072X Element, 208V/1075W, Top & Bottom 13 T1120Y Deck, ea 17 3/4 x 17 1/2 x 1/2 (P-22BL Only)
14
15
23
12
13 16
135
18
Interior Components & Accessories P-22BL, P-22S, P-24S

Note: When ordering, ALWAYS specify Part #, Model #, Serial # and Voltage/Phase. 10/05
E
U T
S
I
N
M
E
U T
S
I
N
M
00
300
300
450
450
650
650
STYLE
NEW
THIS PARTS LIST PERTAINS TO THE FOLLOWING UNITS:
Model # Voltage Starting Serial # Date
P-44BL All All N/A
P-44S 208VAC #9503 11/12/99
P-44S 230VAC #6475 11/12/99
P-46S All #17309 3/1/00
P-48S All #17161 2/18/00
35
32
31
17
18
19
20
38
42 44
15
5
6
7
25
26
16
16 39 40
44 567
11 12
54321
21 22 23 24
36 37
28
41
29
43
30
27
33
34
Item Part # Description Item Part # Description
1 M1098X Thermostat w/Knob, 650F EGO, 44(2) 46(1)
23 U1316A Control Panel Overlay (P-46)
2 M1192X Thermostat w/Knob, CE "430C" High Heat 44
24 U1318A Control Panel Overlay (P-48)
3 M1342X Thermostat Kit w/Knob, 250F (Special)
25 U1297A 18 Minute Timer Overlay (50 cycles)
4 M1110X Thermostat w/Knob, 550F KA72, 46 (1), 48 (2)
26 U1296A 72 Minute Timer Overlay (50 cycles)
5 S1311X Knob (T-stat "F", 15 Min Timer: Rot-Elec)
27 S3019X Door Bushing
6 M1384A Timer, Elec-Mech, 15 Min, 44(2) 46(1)
28 D1106U Door Assy (No Window)
7 M1382A Timer, Elec-Mech, 60 Min, 46(1) 48(2)
29 S1020X Window Assy (Door)
8 M1275X Timer, Electronic (Digital Readout) 60 cycle
30 D1143U Door Assy (w/Window)
9 M1274X Timer, Electronic (Digital Readout) 50 cycle
31 P1145X
P1129X
Light Fixture
Light Fixture
(w/240V,15W Bulb)
(Old Style, 3” Diameter)
10 M1259X Toggle Switch (Lights, On/Off)
32 P1147X
P1020X
P1122X
Light Bulb, 240V/15W
Light Bulb, (Old Style, 115V)
Light Bulb, (Old Style, 250V)
11 D2157K Control Panel (Rot/Elect Timer-No Lights)
33 S3001X Door Rod
12 D2101K Control Panel (Rot/Elect Timer-w/Lights)
34 Q3021X Door Rod Spacer Kit (1 Kit per Door)
13 D2156K Control Panel (Electronic Timer-No Lights)
35 D2105K Outer Back
14 D2102K Control Panel (Electronic Timer-W/Lights)
36 S1316U Door Handle
15 M1330A Circuit Breaker, 3A
37 Q2041A Screws, 1/4-20 x 1/2 RH (Door Handle)
16 P1127X Pilot Light, Amber
38 U1044X Bakers Pride Nameplate, 8"
17 P1003X Terminal Block, 3 Pole, 1 Phase
39 S1014X 4" Adjustable Leg (Set/4)
18 P1004X Terminal Block, 4 Pole, 3 Phase
40 S1014Y 4" Adjustable Leg (each)
19 P6399A Line Cord, 125/250V, 50A
41 T3139A Intermediate Wire Rack (Option 46 & 48)
20 P6385A Line Cord, 250V, 30A (P-46 & P-48)
42 D1162U Wire Rack Support Assy, Left (Option)
21 U1304A Control Panel Overlay (44 & 44BL)
43 D1163U Wire Rack Support Assy, Right (Option)
22 U1310A Control Panel Overlay, Hi Heat (44 & 44BL)
44 M1335A Audio Alarm (Discontinued)
45 D2069X Stacking Kit
00
300
300
450
450
650
650
START-STOP
MIN. SEC.
- +
09 : 15
DIEHL micro
START-STOP
MIN. SEC.
- +
09 : 15
DIEHL micro
CONTROL PANEL WITH LIGHTS & DIGITAL TIMERS (OPTIONAL)
15
16
16
16
15
14
13 10
989
8
24
23
22
21
19
P-44S, P-44BL, P-46S, P-48S EXTERIOR/DOOR/CONTROLS (No Lights, Electro-Mechanical Timers)

Note: When ordering, ALWAYS specify Part #, Model #, Serial # and Voltage/Phase. 10/05
Description
Part #
Item
DescriptionPart #Item
DECK ARRANGEMENT BY MODEL
2
3
4
5
6
7
8
9
10
11
12
1
L1071X
L1035X
L1034X
L1117X
L1116X
P1019A
Q3016A
Q1002A
S1061X
K1355X
D1158U
L1072X
Element, 208V/1450W, Center
Element, 230V/1075W, Top & Bottom
Element, 230V/1450W, Center
Element, 200V/1075W, Top & Bottom (Japan)
Element, 200V/1450W, Center (Japan)
Porcelain Spacer
Washer, Star, #6
Nut, 6-32
Terminal Cap, 6-32
Element Clip
Ceramic Top Frame Assy (P-44BL Only)
Element, 208V/1075W, Top & Bottom
14
15
16
17
18
19
20
21
22
23
24
13
T1121Y
T1121X
D4040X
D1152T
D4039K
D4031K
D1142K
D1134K
Q4021X
T1222K
T5107Y
T1120Y
Deck 20 13/16 x 20 13/16 x 1/2 (each)
Deck 20 13/16 x 20 13/16 x 1/2 (Set/2)
Fresh Dough Baffle
Hearth Frame Assy (No Element)
Deck Support
Baffle Trim
Hearth Trim
Capillary Cover
Clip, 3/16"
Steel Deck (Optional)
Deck Scraper Brush
Deck, ea 17 3/4 x 17 1/2 x 1/2 (P-44BL Only)
P-44BL P-44S P-46S P-48S
E
U T
S
I
N
M
E
U T
S
I
N
M
00
300
300
450
450
650
650
PIZ A
Z
BAKE
3 1/4”
3 1/4”
7”
E
U T
S
I
N
M
E
U T
S
I
N
M
00
300
300
450
450
650
650
A E
B K
A E
BK
7”
7”
E
U T
S
I
N
M
E
U T
S
I
N
M
00
300
300
450
450
650
650
PIZZA
PIZZA
2 3/4”
2 3/4”
2 3/4”
2 3/4”
E
U T
S
I
N
M
E
U T
S
I
N
M
00
300
300
450
450
650
650
PIZZA
PIZ AZ
3 1/4”
3 1/4”
3 1/4”
3 1/4”
STYLE
NEW
Brick Lined
Models Only
24
12
13 16 10 987135
14
15
23
18 1
3
520 11 21
20
17
6
4
2
22
19
20
Interior Components & Accessories P-44S, P-44BL, P-46S, P-48S
