Bakers Pride GP-61 Series User manual

9/05 Note: When ordering, ALWAYS specify Part #, Model #, Serial # and type of gas. Page 1 of 4
GP-61
Counter Top Gas Oven
PARTS LIST
Serial Number: Natural L.P. Other
Model Number: Type of Gas
GP-61
30 Pine Street • New Rochelle • New York • 10801
914 / 576 - 0200
914 / 576 - 0605
1 - 800 - 431 - 2745
www.bakerspride.com
fax
US & Canada
web address
BAKERS
PRIDE

Old Style
New Style
Figure A Exterior / Decks / Burner Compartment / Door Rod / Interior Trim
Page 2 of 4 Note: When ordering, ALWAYS specify Part #, Model #, Serial # and type of gas. 9/05
GP-61
Counter Top Gas Oven
30 Pine Street • New Rochelle • New York • 10801
914 / 576 - 0200
914 / 576 - 0605
1 - 800 - 431 - 2745
www.bakerspride.com
fax
US & Canada
web address
BAKERS
PRIDE
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
40
39
38
37
36
35
34
33
32
31
30
29
28
26
25
24
23
22
21
58
57
56
55
54
53
52
51
50
49
48
47
47
46
45
44
43
42
41
27

Exterior / Decks

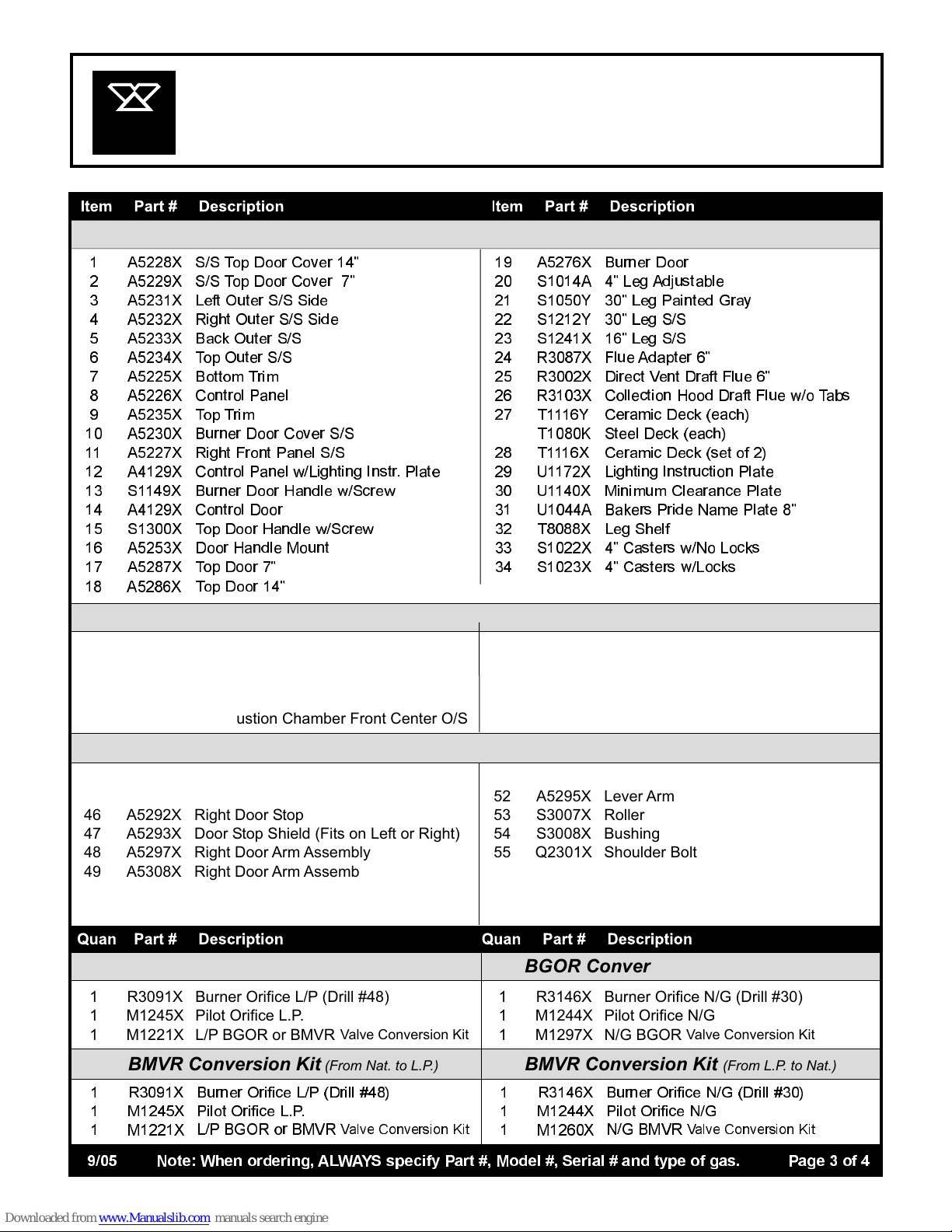

9/05 Note: When ordering, ALWAYS specify Part #, Model #, Serial # and type of gas. Page 3 of 4
BMVR Conversion Kit (From L.P. to Nat.)BMVR Conversion Kit (From Nat. to L.P.)
BGOR Conversion Kit (From L.P. to Nat.)BGOR Conversion Kit )(From Nat. to L.P
Door Rod & Accessories / Interior Trim
Burner Compartment
1 R3091X Burner Orifice L/P (Drill #48) 1 R3146X Burner Orifice N/G (Drill #30)
1 M1245X Pilot Orifice L.P. 1 M1244X Pilot Orifice N/G
1 M1221X L/P BGOR or BMVR
Valve Conversion Kit
1 M1260X N/G BMVR
Valve Conversion Kit
44 A5288X Spring Bracket 51 S3105X Door Spring (used with 14" door)
45 A5291X Left Door Stop 52 A5295X Lever Arm
46 A5292X Right Door Stop 53 S3007X Roller
47 A5293X Door Stop Shield (Fits on Left or Right) 54 S3008X Bushing
48 A5297X Right Door Arm Assembly 55 Q2301X Shoulder Bolt
49 A5308X Right Door Arm Assembly (Complete) 56 A5267X Upper Deck Trim Assembly 7" Door
50 A5296X Left Door Arm Assembly 57 A5305X Upper Deck Trim Assembly 14" Door
51 S3004X Door Spring (used with 7" door) 58 A5265X Lower Deck Trim Assembly (All)
GP-61
Counter Top Gas Oven
30 Pine Street • New Rochelle • New York • 10801
914 / 576 - 0200
914 / 576 - 0605
1 - 800 - 431 - 2745
www.bakerspride.com
fax
US & Canada
web address
BAKERS
PRIDE
1 A5228X S/S Top Door Cover 14"
18 A5286X Top Door 14"
2 A5229X S/S Top Door Cover 7" 19 A5276X Burner Door
3 A5231X Left Outer S/S Side 20 S1014A 4" Leg Adjustable
4 A5232X Right Outer S/S Side 21 S1050Y 30" Leg Painted Gray
5 A5233X Back Outer S/S 22 S1212Y 30" Leg S/S
6 A5234X Top Outer S/S 23 S1241X 16" Leg S/S
7 A5225X Bottom Trim 24 R3087X Flue Adapter 6"
8 A5226X Control Panel 25 R3002X Direct Vent Draft Flue 6"
9 A5235X Top Trim 26 R3103X Collection Hood Draft Flue w/o Tabs
10 A5230X Burner Door Cover S/S 27 T1116Y
T1080K Ceramic Deck (each) Steel Deck (each)
11 A5227X Right Front Panel S/S 28 T1116X Ceramic Deck (set of 2)
12 A4129X Control Panel w/Lighting Instr. Plate 29 U1172X Lighting Instruction Plate
13 S1149X Burner Door Handle w/Screw 30 U1140X Minimum Clearance Plate
14 A4129X Control Door 31 U1044A Bakers Pride Name Plate 8"
15 S1300X Top Door Handle w/Screw 32 T8088X Leg Shelf
16 A5253X Door Handle Mount 33 S1022X 4" Casters w/No Locks
17 A5287X Top Door 7" 34 S1023X 4" Casters w/Locks
35 A5258X Upper Breather Pan 40 A5252X Burner Access Cover O/S
36 A5244X Flue Deflector (Set: Left & Right) 41 A5301K Combustion Chamber Front Center
37 A5237X Slide Out Flame Diverter 42 A5302K Burner Access Cover
38 A5259X Insulation Pan (Set: Top & Bottom) 43 S3203X Magnetic Latch Assembly
39 A5251X Combustion Chamber Front Center O/S
1 R3091X Burner Orifice L/P (Drill #48) 1 R3146X Burner Orifice N/G (Drill #30)
1 M1245X Pilot Orifice L.P. 1 M1244X Pilot Orifice N/G
1 M1221X L/P BGOR or BMVR Valve Conversion Kit 1 M1297X N/G BGOR Valve Conversion Kit

GP-61
Counter Top Gas Oven
63
64
65
66
67
68
Figure B
Figure C
Page 4 of 4 Note: When ordering, ALWAYS specify Part #, Model #, Serial # and type of gas. 9/05
Plumbing Control
Burner
69
70
71
73 72
87
74
75
76 77 78 79
80
81
82
83
84
85
86
88
89
90
59
60
61
62
650650
600600
550550
500500
450450
400
350350
300 300
BMVR BGOR
Item Part # Description
Item Part # Description
30 Pine Street • New Rochelle • New York • 10801
914 / 576 - 0200
914 / 576 - 0605
1 - 800 - 431 - 2745
www.bakerspride.com
fax
US & Canada
web address
BAKERS
PRIDE
59 L5036X Burner w/Inspirator to Union w/o Orifice O/S
60 L5095X Burner w/Cap & Elbow O/S
61 L5108X Burner w/Inspirator to Union w/o Orifice
62 L5096X Burner w/Cap & Elbow
63 K1237X Pilot Bracket Adapter (Used on O/S Burner)
64 M1220X Pilot Burner N/G
65 M1222X Pilot Burner L/P
66 M1244X Pilot Orifice N/G
67 M1245X Pilot Orifice L.P.
68 R3036X S/S Pilot Tubing 45"
69 L5032X Inspirator #2
70 R3075X Spud Assembly #2 w/o Orifice
71 R3146X Burner Orifice N/G (Drill #30)
72 R3091X Burner Orifice L/P (Drill #48)
73 R3080X Blank Spud #2 (For #2 Inspirator)
74 M1296X Thermocouple T-46 (Used w/BGOR)
75 M1265X Thermopile (Used w/BMVR)
BGOR, N/G (After SN339, 8/98)
BGOR, L/P (After SN339, 8/98)
Valve Conversion Kit
Valve Conversion Kit
Europe
BMVR, N/G (Before SN440, 8/98)
Valve Conversion Kit
BMVR, L/P (Before SN440, 8/98)
60
59
67
66
65
64
63
68
74
75
62
61
69
70
71
72
73
80
79
78
77
76
90
89
88
87
86
85
84
83
82
81
Discontinued 7/00. Substitute BMVR parts listed
above. ALWAYS INCLUDE #M1265X Thermopile.
N/S Q4021X Capillary Clip (Thermostat Sensor)
N/S A5173S Stacking Bracket Kit
