Baldwin Boxall BVRDTSM User manual

BVRDTSM Touchscreen
Microphone
Installation Instructions
Manual name: BVRDTSM Touchscreen Microphone
Issue: 6
ECR: 4436
Date of issue: Oct 2021

BVRDTSM Touchscreen Microphone
Installation Instructions
ii BVRDTSM Touchscreen Microphone issue 6
© Oct 2021 Baldwin Boxall Communications Limited
Wealden Industrial Estate
Farningham Road
Crowborough
East Sussex
TN6 2JR
UK
Telephone: [phone]
Email: [email protected].uk
Website: http://www.baldwinboxall.co.uk
This equipment has been designed and manufactured to conform to both CE &
UKCA requirements
Failure to use the equipment in the manner described in the product literature
will invalidate the conformity.
A “Declaration of Conformity” statement and a “Declaration of Performance” is
available on request.

BVRDTSM Touchscreen Microphone
Installation Instructions
BVRDTSM Touchscreen Microphone issue 6 iii
Amendment Record ___________________________________ v
Proprietary Notice ____________________________________ v
Safety Information ___________________________________ vi
Comments_________________________________________ vi
Introduction
Microphone Options & Features __________________________2
Technical Specification _________________________________3
Installation
Hardware Configuration Options _________________________5
Options behind RH Side Panel - - - - - - - - - - - - - - - - - - - - - 5
Options behind LH Side panel- - - - - - - - - - - - - - - - - - - - - - 6
Audio Outputs _______________________________________7
Configuration Option - Live Page & AUX____________________7
Description - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7
Hardware Required - - - - - - - - - - - - - - - - - - - - - - - - - - 8
Hardware Configuration - - - - - - - - - - - - - - - - - - - - - - - - 8
Cabling and Connection details - - - - - - - - - - - - - - - - - - - - - 9
Configuration Option - Live Page & Hardwired Bypass _________ 10
Description - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10
Hardware Required - - - - - - - - - - - - - - - - - - - - - - - - - 10
Hardware Configuration - - - - - - - - - - - - - - - - - - - - - - - 11
Cabling and Connection details - - - - - - - - - - - - - - - - - - - - 11
Configuration Option - Live Paging, AUX and Hardwired Bypass__ 12
Description - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12
Hardware Required - - - - - - - - - - - - - - - - - - - - - - - - - 12
Hardware Configuration - - - - - - - - - - - - - - - - - - - - - - - 13
Cabling and Connection details - - - - - - - - - - - - - - - - - - - - 14
BMS8/16 Termination Box _____________________________ 14
Recommended Cable Types ____________________________ 15
Operating Instructions
Controls & Indicators _________________________________ 17
Operation _________________________________________ 18

BVRDTSM Touchscreen Microphone
Installation Instructions
iv BVRDTSM Touchscreen Microphone issue 6
General Tips - - - - - - - - - - - - - - - - - - - - - - - - - - - - 18
User Accounts- - - - - - - - - - - - - - - - - - - - - - - - - - - - 19
Zone Selection - - - - - - - - - - - - - - - - - - - - - - - - - - - 20
Groups - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20
Recording of User Messages - - - - - - - - - - - - - - - - - - - - - 20
Firmware Configuration
Introduction _______________________________________ 23
Entering Configuration Mode ___________________________ 23
Import / Export Configuration Settings ____________________ 24
Configuration Options________________________________ 25
User Accounts- - - - - - - - - - - - - - - - - - - - - - - - - - - - 25
Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 26
Communication - - - - - - - - - - - - - - - - - - - - - - - - - - - 26
Audio Channels - - - - - - - - - - - - - - - - - - - - - - - - - - - 26
User Interface - - - - - - - - - - - - - - - - - - - - - - - - - - - - 26
Zones - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 27
Groups - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 27
Messages - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 27
Music- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 28
Vols - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 28
DVA - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 28
Paging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 28
Logs - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 28
Monitoring - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 28
General- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 28
Line/Amp Inputs - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 29
Display - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 29
Default Names- - - - - - - - - - - - - - - - - - - - - - - - - - - - 29
VA Active - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 29
Time/Date - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 29
Import/Export - - - - - - - - - - - - - - - - - - - - - - - - - - - - 30
Firmware - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 30

BVRDTSM Touchscreen Microphone
Installation Instructions
BVRDTSM Touchscreen Microphone issue 6 v
AMENDMENT RECORD
Change Note
Number
Nature of Amendment Date of
Amendment
ECR3330 Issue 3: Updates Oct 2017
ECR3376 Issue 4: Updates Jan 2018
ECR3235 Issue 5: Updates Sept 2019
ECR4436 Issue 6: Update to remove Dual Output facility Oct 2021
PROPRIETARY NOTICE
All data and information contained within this manual is of a
proprietary nature with the exclusive title to the same held by
Baldwin Boxall Communications Limited. The possession of this
manual and the use of the information is, therefore, restricted
only to those persons duly authorised by Baldwin Boxall
Communications Limited.
Do not reproduce, transcribe, store in a retrieval system or
translate into any language, any part of this manual without the
prior permission of Baldwin Boxall Communications Limited.
In the interest of continual product development, Baldwin Boxall
Communications Limited reserves the right to make changes to
product specification without notice or liability. Use of Baldwin
Boxall Communications Limited products as critical components
in life support systems is not authorised except with express
written approval from Baldwin Boxall Communications Limited.

BVRDTSM Touchscreen Microphone
Installation Instructions
vi BVRDTSM Touchscreen Microphone issue 6
SAFETY INFORMATION
Personnel who install, maintain or repair this equipment must
read the safety information below before starting work.
Voltages in excess of 30 Volts RMS or 50 Volts DC are considered
Hazardous and in certain circumstances can be lethal.
If Functional Testing, Maintenance, or Repair is to be completed
with the Mains Power (and/or battery backup) connected then
this should only be undertaken by personnel who are fully aware
of the danger involved and who have taken adequate precautions
and training.
This Manual contains Warnings, Cautions and Notes.
War nings describe potential threats to health or life, e.g.
WARNING
Before attempting to remove this component, ensure the Mains
Power Supply and Battery Backup have been disconnected.
Cautions describe potential threats to the equipment, e.g.
CAUTION
Notice must be taken of all cautions.
If a Caution is ignored the equipment may be damaged.
CAUTION: ELECTRO-STATIC SENSITIVE DEVICES
Observe the relevant precautions for the protection of Electro-
static Sensitive Devices when handling this equipment.
Notes are statements that are useful to the user in the context of
a particular section of the manual, e.g.
NOTE: Do not speak into the microphone until the "Speak Now" LED is
illuminated.
COMMENTS
Comments regarding the content of this manual are welcome and
should be addressed to [e-mail].
!!!

BVRDTSM Touchscreen Microphone
Installation Instructions
BVRDTSM Touchscreen Microphone issue 6 1
1 Introduction
The BVRDTSM Touchscreen Microphone has been designed to
provide a wide variety of features suitable for any installation.

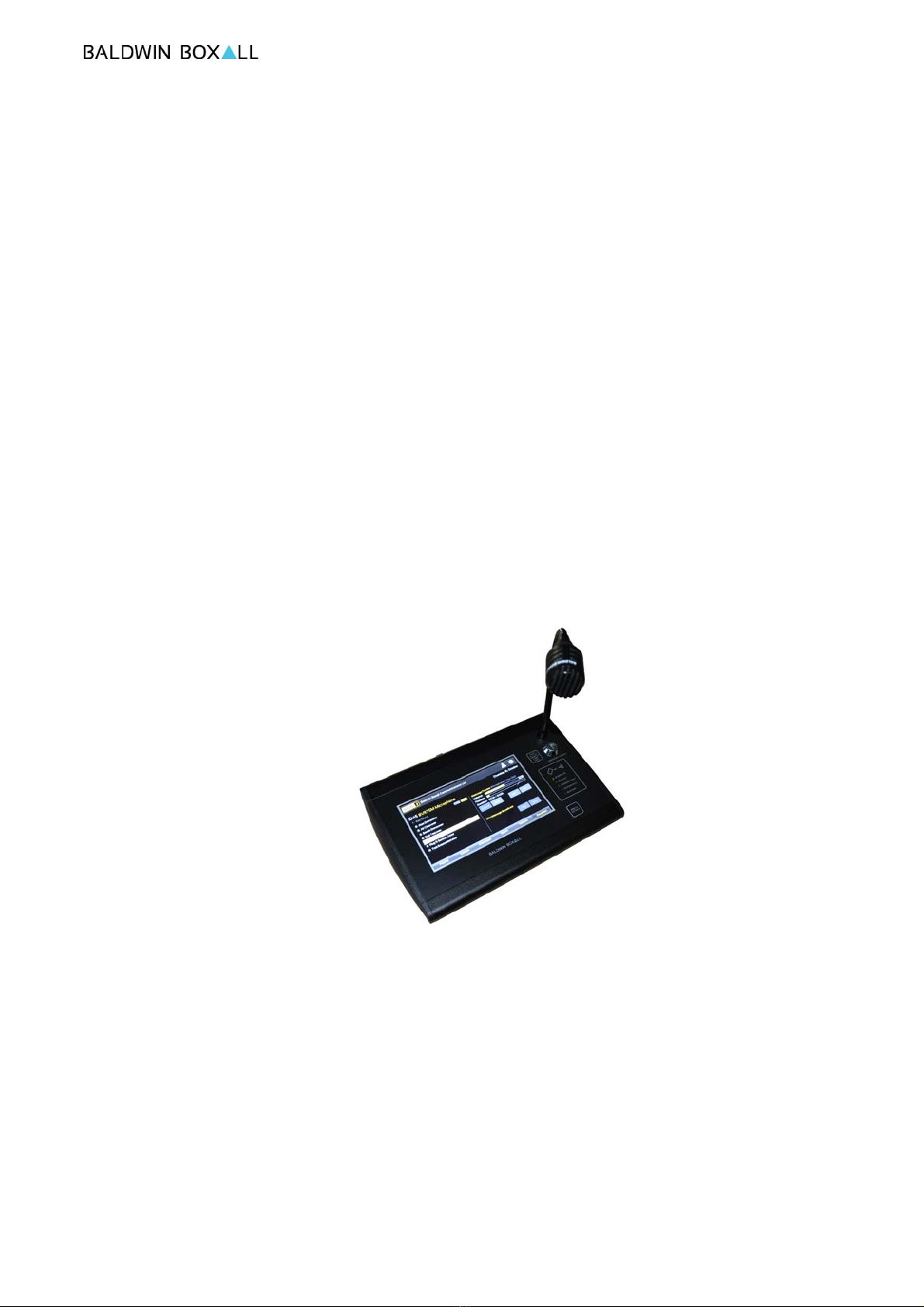

Figure 1.1 — BVRDTSM Microphone
The Microphone is configured during commissioning using the in
built touchscreen. Standard RJ45 Network cable connections
(carrying both Audio and Serial Data) are employed, in order to
make installation simple and flexible.

BVRDTSM Touchscreen Microphone
Installation Instructions
2BVRDTSM Touchscreen Microphone issue 6
1.1 MICROPHONE OPTIONS & FEATURES
The BVRDTSM microphone includes the following features as
standard:
• Fully monitored microphone, speech and data paths
• Ergonomic design with all buttons and displays mounted
behind a stylish overlay
• Performs as a Paging microphone (with emergency options
disabled) and as a Fire microphone only when the key switch
is turned
• 7" high brightness, capacitive touchscreen
• NFC Smart card access control with configurable
permissions per user
• Record, Preview and Broadcast non-emergency messages
• Scheduler to enable timed broadcast of non-emergency
messages
• Route background music sources to all zones
• Zone programmable volume adjustment
• Connect a background music source directly to the
microphone
• USB import and export of non-emergency messages,
configuration files and logs (fault and activity)
• All configuration performed via touchscreen, no other tools
required
• “Speak Now” indicator to show the user when a pre-
announcement chime has finished
• Ability to select router stored emergency messages
• Voice alarm system Active indicator
• Option to add emergency “All Call” bypass facility

BVRDTSM Touchscreen Microphone
Installation Instructions
BVRDTSM Touchscreen Microphone issue 6 3
1.2 TECHNICAL SPECIFICATION
Audio
Nominal Output Level 0dBM
Max Output (limiter operating) +6dBM
Output Impedance 180R
Frequency Response (-3dB) 200Hz - 12KHz
Power Requirement (24V DC)
Standby 0.175A
In Use 0.36A
Serial Data Link (See note below)
RS485 Type 2 Protocol, 9600, 38400,
115200 Baud, 8 bit, Even Parity, 1
Stop Bit
Dimensions (W x H x D)
BVRDTSM 275mm x 48mm x 177mm
NOTE: The RS485 Protocol is configured during the commissioning
process, the default values are shown above.

BVRDTSM Touchscreen Microphone
Installation Instructions
4BVRDTSM Touchscreen Microphone issue 6

BVRDTSM Touchscreen Microphone
Installation Instructions
BVRDTSM Touchscreen Microphone issue 6 5
2 Installation
2.1 HARDWARE CONFIGURATION OPTIONS
There are four hardware configuration options accessible by
removing the left and right side panels of the BVRDTSM. These
options and functions are shown in the following sections:
2.1.1 Options behind RH Side Panel
Figure 2.1 — BVRDTSM RH Hardware Options
Table 2.1 — BVRDTSM RH Hardware Options
Figure Marked as Function
AA-DC Mon / Park
Default: A-DC Mon
A-DC Mon: Applies a DC Voltage for monitoring
purposes to the audio transmission path
Park*: No DC present, set to Park if Audio input is not
transformer isolated

Figure Marked as Function
BAll Call / Park
Factory Fit Option
All Call: Set on microphones with All Call Bypass button
Park: Set on microphones without All Call Bypass button
CDual OP / BGM
Default: BGM
Dual OP: Not used
BGM: AUX Audio routed out of OP2
See section 2.2 for more details
DBypass / CH2 Audio
Default: CH2 Audio
Bypass: Connect bypass access signals via OP1
CH2 Audio: Connect Aux audio channel via OP1
ERS485 Term
Resistor
Default: Out
In: RS485 termination
Out: No RS485 Termination
NOTE: * If park is selected "Protocol Faults (BVRD2M MB F/W 2.00
and above)" must be also be disabled in the configuration. This enables
compatability with legacy systems
BVRDTSM Touchscreen Microphone
Installation Instructions
6BVRDTSM Touchscreen Microphone issue 6
2.1.2 Options behind LH Side panel
Figure 2.2 — BVRDTSM LH Hardware Options
Table 2.2 — BVRDTSM LH Hardware Options
Figure Marked as Function
ATest / Park Default: Park
Factory use only
B3V3 / Park* Default: Park
Park: Hardware Bypass Access Level = 10V
3V3: Hardwired Bypass Access Level = 3V3
NOTE: * Option label on underside of PCB. Hardwired Bypass Access
Level must match connected BVRD2M or BVRD2M4 configured level. See
manuals for these products for more details.

BVRDTSM Touchscreen Microphone
Installation Instructions
BVRDTSM Touchscreen Microphone issue 6 7
2.2 AUDIO OUTPUTS
The BVRDTSM is equipped with 2 Audio Outputs OP1 and OP2.
OP1 is used for Live paging broadcasts. 
OP2 can be configured for AUX Output (broadcast of
microphone stored non-emergency messages or routing of local
background music connection)
See Hardware Configuration section for more details on how to
change the Audio Output Configuration.
In order to simplify cabling requirements by default the
BVRDTSM also carries the AUX Output on OP1. This means
that the microphone can be installed using a single CAT6A cable.
If a Hard Wired Bypass is fitted to the microphone (factory fit
option) then the AUX Output is not available on OP1 so therefore
OP2 must also be connected.
Please see the following sections for details of site connections
and hardware configuration for all Audio Output options.
2.3 CONFIGURATION OPTION - LIVE PAGE
& AUX
2.3.1 Description
This is the default configuration of a BVRDTSM and enables;
• Live Paging and Emergency Paging Broadcasts
• Broadcasting of microphone stored non-emergency messages
• Routing of a locally connected background music source
(microphone messages take priority and if triggered will stop
local background music routing)

BVRDTSM Touchscreen Microphone
Installation Instructions
8BVRDTSM Touchscreen Microphone issue 6
2.3.2 Hardware Required
In order to support this BVRDTSM configuration the following
additional equipment is required;
• BMS8 - required to terminate the BVRDTSM microphone
CAT6A lead to site wiring
• BVRDIF7 - required to terminate the site wiring to a Voice
Alarm rack (If a bypass input on a BVRD2M or BVRD2M4 is
to be used by the BVRDTSM and the microphone is not
configured for Bypass ensure the corresponding ZENER/
PARK jumper on the BVRDIF7 is set to ZENER)
•1xCAT6Acable
Optional Equipment;
• Background Music Source (if required) connected to AUX
IN jack socket on rear of the BVRDTSM
• Headphones connected to H/SET OUT jack socket on the
rear of the BVRDTSM (allows previewing of recorded
messages before broadcast)
2.3.3 Hardware Configuration
The following hardware options must be set to support this
configuration;
Option Jumper Position
A-DC Mon / Park Don’t Care*
All Call / Park Park
Dual OP / BGM BGM
Bypass / CH2 Audio CH2 Audio
RS485 Term Resistor Don’t Care*
+3V3 / Park Don’t Care*
NOTE: * see section section 2.1 above for more information

BVRDTSM Touchscreen Microphone
Installation Instructions
BVRDTSM Touchscreen Microphone issue 6 9
2.3.4 Cabling and Connection details
Please see Table below for details of Site Wiring connections;
Mic OP
(CAT6A)
BMS8
(CAT6A)
BMS8 (Site
Wiring)
Cable BVRDIF7 (Site
Wiring
1 1
+V
4 Core 1
+V
0V 0V
RS485-A RS485-A
RS485-B RS485-B
Audio CH1 (Paging)
4 Core 2
Audio CH1 (Paging)
Audio CH1 (Paging) Audio CH1 (Paging)
Audio CH2 (AUX) Audio CH2 (AUX)
Audio CH2 (AUX) Audio CH2 (AUX)
EMC Shield of cable 1&2 EMC
2Not Used

BVRDTSM Touchscreen Microphone
Installation Instructions
10 BVRDTSM Touchscreen Microphone issue 6
2.4 CONFIGURATION OPTION - LIVE PAGE
& HARDWIRED BYPASS
2.4.1 Description
The addition of Hardwired Bypass is a factory fit option. If this
option is fitted then it is possible to configure the microphone for
Live paging and Hardwired bypass enabling;
• Live Paging and Emergency Paging
• Performing an All Call utilising the Hardwired Bypass inputs
of a Baldwin Boxall router.
NOTE: Broadcasting of microphone stored messages or local background
music source is not possible in this configuration
2.4.2 Hardware Required
In order to support this BVRDTSM configuration the following
additional equipment is required;
• BMS8 - required to terminate the BVRDTSM microphone
CAT6A lead to site wiring
• BVRDIF3 - required to terminate the site wiring to a Voice
Alarm rack
•1xCAT6Acable
Optional Equipment;
•None

BVRDTSM Touchscreen Microphone
Installation Instructions
BVRDTSM Touchscreen Microphone issue 6 11
2.4.3 Hardware Configuration
The following hardware options must be set to support this
configuration;
Option Jumper Position
A-DC Mon / Park Don’t Care*
All Call / Park All Call
Dual OP / BGM Don’t Care*
Bypass / CH2
Audio
Bypass
RS485 Term
Resistor
Don’t Care*
+3V3 / Park Must match the hardwired bypass access level of the
connected Baldwin Boxall router (3V3 = 3V3, Park =
10V)
NOTE: * see section section 2.1 above for more information
2.4.4 Cabling and Connection details
Please see Table below for details of Site Wiring connections;
Mic OP
(CAT6A)
BMS8
(CAT6A)
BMS8 (Site
Wiring)
Cable BVRDIF7 (Site
Wiring
1 1
+V
4 Core 1
+V
0V 0V
RS485-A RS485-A
RS485-B RS485-B
Audio CH1 (Paging)
4 Core 2
Audio CH1 (Paging)
Audio CH1 (Paging) Audio CH1 (Paging)
Access Access
0V 0V
EMC Shield of cable 1&2 EMC
2Not Used

BVRDTSM Touchscreen Microphone
Installation Instructions
12 BVRDTSM Touchscreen Microphone issue 6
2.5 CONFIGURATION OPTION - LIVE
PAGING, AUX AND HARDWIRED
BYPASS
2.5.1 Description
The addition of Hardwired Bypass is a factory fit option. If this
option is fitted then it is possible to configure the microphone for
Live paging, AUX output and hardwired bypass enabling;
• Live Paging and Emergency Paging Broadcasts
• Broadcasting of microphone stored none emergency
messages
• Routing of a locally connected background music source
(microphone messages take priority and if triggered will stop
local background music routing)
• Performing an All Call utilising the Hardwired Bypass inputs
of a Baldwin Boxall router.
2.5.2 Hardware Required
In order to support this BVRDTSM configuration the following
additional equipment is required;
• BMS16 - required to terminate the BVRDTSM microphone
OP1 and OP2 to site wiring
• 2 x BVRDIF3 - 2 required in order to interface all the
required signals to a voice alarm rack.
•2xCAT6Acable
Optional Equipment;
• Background Music Source (if required) connected to AUX
IN jack socket on rear of the BVRDTSM
• Headphones connected to H/SET OUT jack socket on the
rear of the BVRDTSM (allows previewing of recorded
messages before broadcast)

BVRDTSM Touchscreen Microphone
Installation Instructions
BVRDTSM Touchscreen Microphone issue 6 13
2.5.3 Hardware Configuration
The following hardware options must be set to support this
configuration;
Option Jumper Position
A-DC Mon / Park Don’t Care*
All Call / Park All Call
Dual OP / BGM BGM
Bypass / CH2
Audio
Bypass
RS485 Term
Resistor
Don’t Care*
+3V3 / Park Must match the hardwired bypass access level of the
connected Baldwin Boxall router (3V3 = 3V3, Park =
10V)
NOTE: * see section section 2.1 above for more information

BVRDTSM Touchscreen Microphone
Installation Instructions
14 BVRDTSM Touchscreen Microphone issue 6
2.5.4 Cabling and Connection details
Please see Table below for details of Site Wiring connections;
Mic OP
(CAT6A)
BMS16
(CAT6A)
BMS16 Channel 1
(Site Wiring)
Cable BVRDIF31 (Site
Wiring)
1Channel 1
+V
4 Core 1
+V
0V 0V
RS485-A RS485-A
RS485-B RS485-B
Audio CH1 (Paging)
4 Core 2
Audio CH1 (Paging)
Audio CH1 (Paging) Audio CH1 (Paging)
ACCESS ACCESS
0V 0V
EMC Shield of cable 1&2 EMC
BMS16 Channel 2
(Site Wiring)
BVRDIF3 2 (Site
Wiring)
2Channel 2
Not used
Not required
Not used
Not used Not used
Not used Not used
Not used Not used
Audio CH2 (AUX)
4 Core 3 (or 2 Core)
Line (AUX)
Audio CH2 (AUX) Line (AUX)
Not Used Not Used
Not Used Not Used
EMC Shield of cable 3 EMC
2.6 BMS8/16 TERMINATION BOX
As shown above all BVRDTSM microphone CAT6A connections
should be terminated to a BMS8 or BMS16 termination box.
CAUTION
The BMS8/16 Termination Boxes have a standard RJ45 socket to
allow use of standard CAT6A network cables to connect to the
microphone.
Care must be taken to ensure this socket is not used for any other
equipment since it may be damaged if connected.
