#27513 “The Boss”

Mobile AV/Presentation System

Assembly Instructions

Do not use unless all screws are tight. At least every six months, check all screws to be sure

they are tight. If parts are missing, broken, damaged, or worn, stop use of the product

until repairs are made by your dealer using factory authorized parts.

Part Drawing Description Qty Hardware List

Part Drawing Description Qty

ASocket Screw M6X12mm 8 EA

A1 HexHeadScrewM8X20mm 16 EA

BFlat Washer ( install on Caster) 16 EA

B1 RubberO-Ring(installedon rail) 8 EA

C4” Locking Plate Caster 2 EA

D4”Plate Caster 2 EA

ESelfTapping Screw 3.5 x 10mm 12 EA

FWrench13mm 1 EA

GAllenWrench 1 EA

(2frontdoor/2 back door)

P1 Metal Cabinet 1 EA

P2 Security Rail 2 EA

P3 Shelf Brackets 8 EA

P4 Adjustable Shelf 2 EA

P5 Keys 4 EA

P6 Bracket#1 7 Outlet elec. 1 EA

P7 Bracket#2 7 Outlet elec. 1 EA

P8 7 Outlet Electrical w/Switch 1 EA

#27513 “The Boss”

MobileAV / Presentation System

Should you require assistance

duringassembly,

please call our Customer Service

Department Monday - Friday

8 a.m. - 5 p.m.

CentralStandardTime

1-800-749-2258

#27513 “The Boss”

AssemblyDiagram

1.)

EAD

HROUGH

NSTRUCTIONS

FROM

BEGINNING

END

BEFORE

STARTING

ASSEMBLE

UNIT

Illustration # 1

IdentifyandSeparateallthe Parts and Hardware.

2.)

P-1

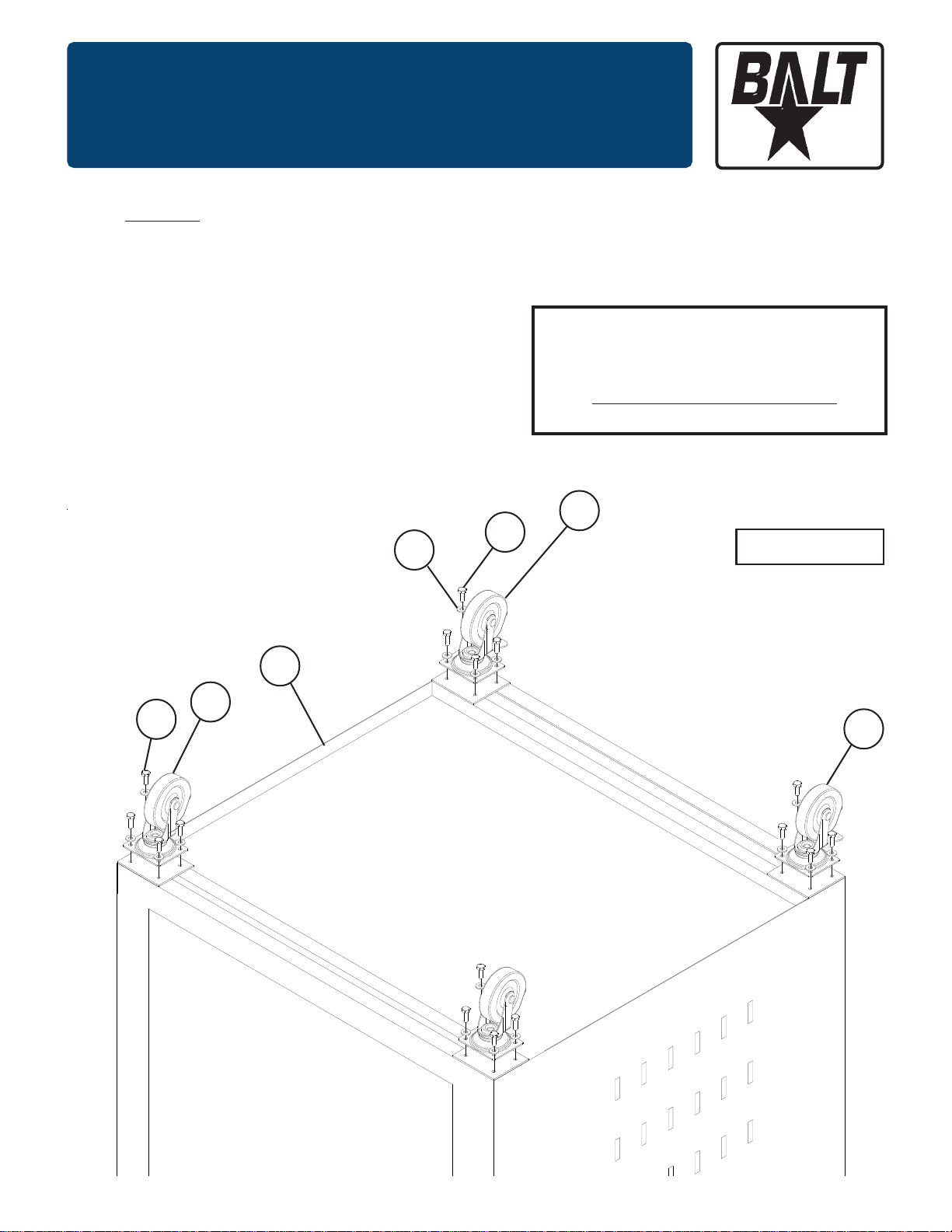

Attach 2 Locking Plate Casters (C) to the

front, and 2 Plate Casters (D) to the back of

theMetal Cabinet(P1)using 16 screws(A1)

and16Flat Washers(B).Tightenall Casters

usingSocketorOpen end Wrench.

A1 C

Missing Parts or UPS Damaged Parts

ForYour Convenienceyoucan

EMAILusat

[email protected]

24HOURS 7 DAYSAWEEK

Attach2Security Rails (P-2)totheMetal

Cabinet (P-1) using 8 Screws (A) as

showninillustration#2.

Besure 8 RubberO-Rings(B1)

are located onrailsas shown.

Aftersecuring rails, slide

RubberO-Rings(B1)

downrailsuntiltheycontact

MetalCabinet (P-1).

Illustration #2

P-2

P-1

3.)

4.)

Attach 8Shelf Brackets

(P-3)to the Metal Cabinet

(P-1)asshown in

illustration#3.

Illustration #3

6.)

P-3

P-1

5.)

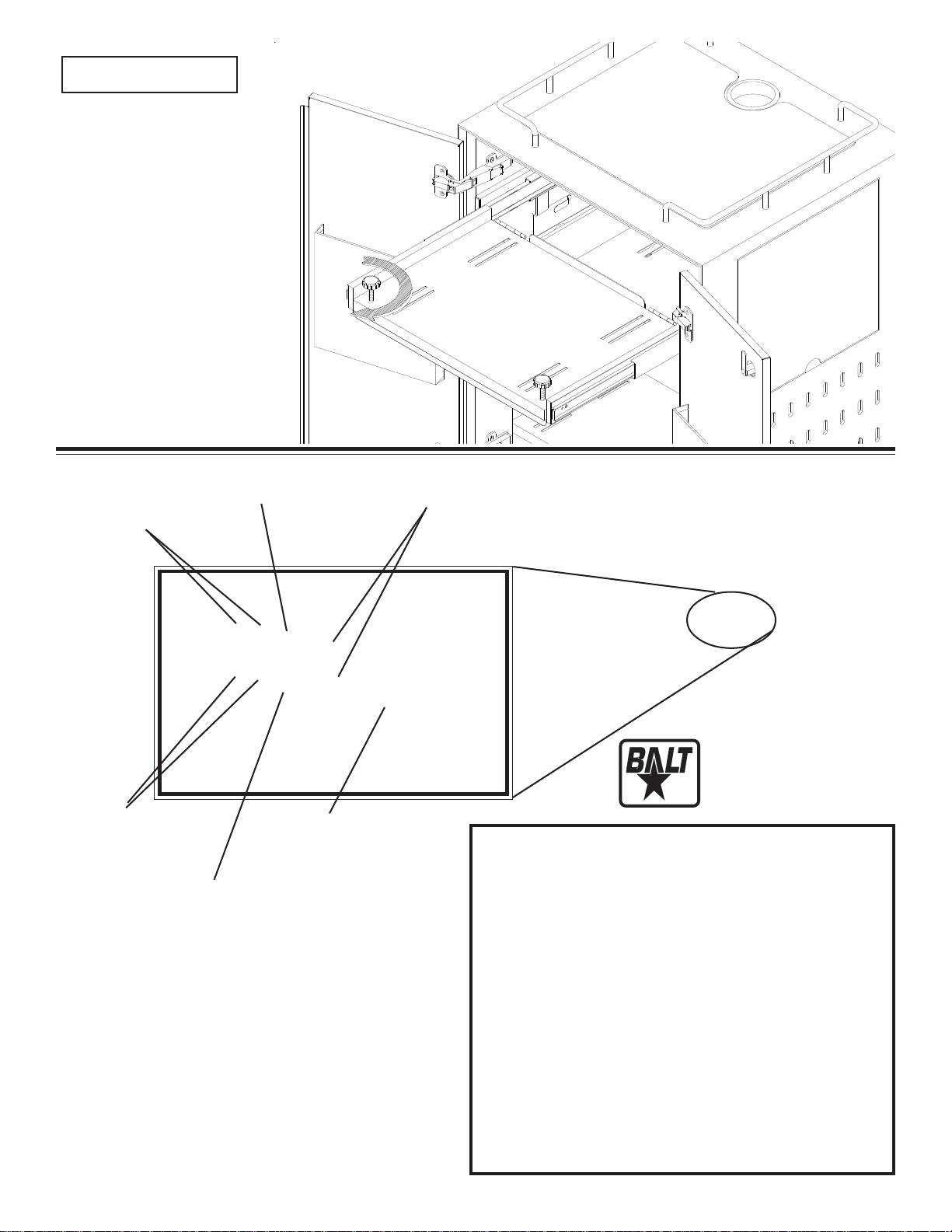

Place2AdjustableShelves

(P-4)ontothe8 Shelf

Brackets(P-3) as shown

inillustration#4.

Illustration #4

8.)

P-4

P-3

P-1

P-4

Back Door

P-1

P-7

P-6

P-8

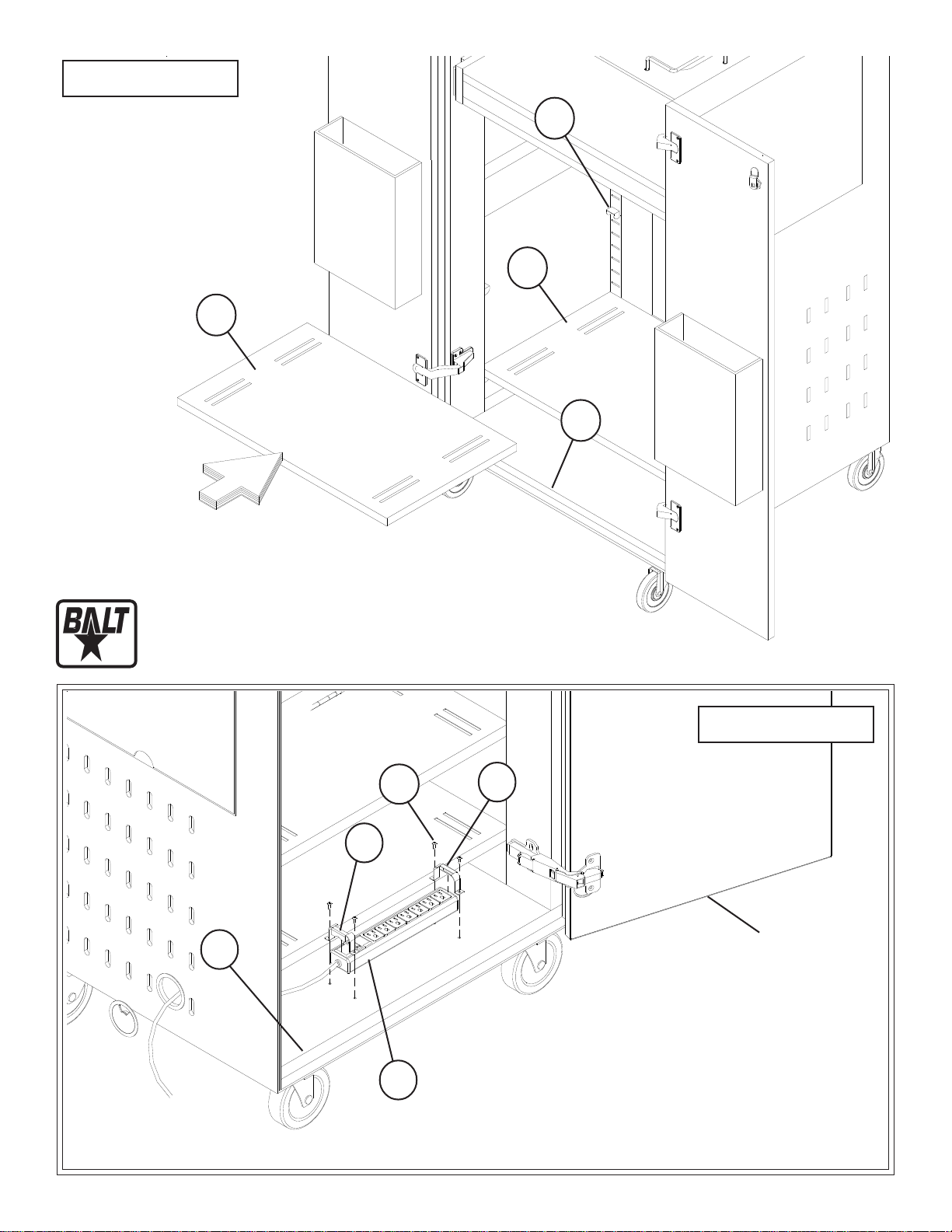

Align7 Outlet Electrical (P-8)withcordtoward

grommetas shown in illustration#5. PlaceBracket

(P-6)and Bracket (P-7)overthe2 ends of7Outlet

Electrical(P-8) and secure tobottomof Metal

Cabinet (P-1) using 4 Screws (E).

9.)

Illustration #5
