Bannerman/Re-Mac Stone Burier
Model no.: B-IS-245-H
Operation & Parts Manual
GORDON BANNERMAN LIMITED
41 Kelfield Street, Rexdale, ON M9W 5A3 Canada
T: [phone] F: [phone]
www.sportsturfmagic.com

P a g e | 2
GORDON BANNERMAN LIMITED
41 Kelfield Street, Rexdale, ON M9W 5A3 Canada
T: [phone] F: [phone]
www.sportsturfmagic.com
Table of Contents
Cover Page
1
Table of Contents
2
Welcome to Bannerman
3
Warranty
4
Machine Description and Safety
5
Stone Burier Set Up
7
Maintenance
8
Storage
9
Main Frame Assembly Parts Diagram
10
Main Frame Assembly Parts List
11

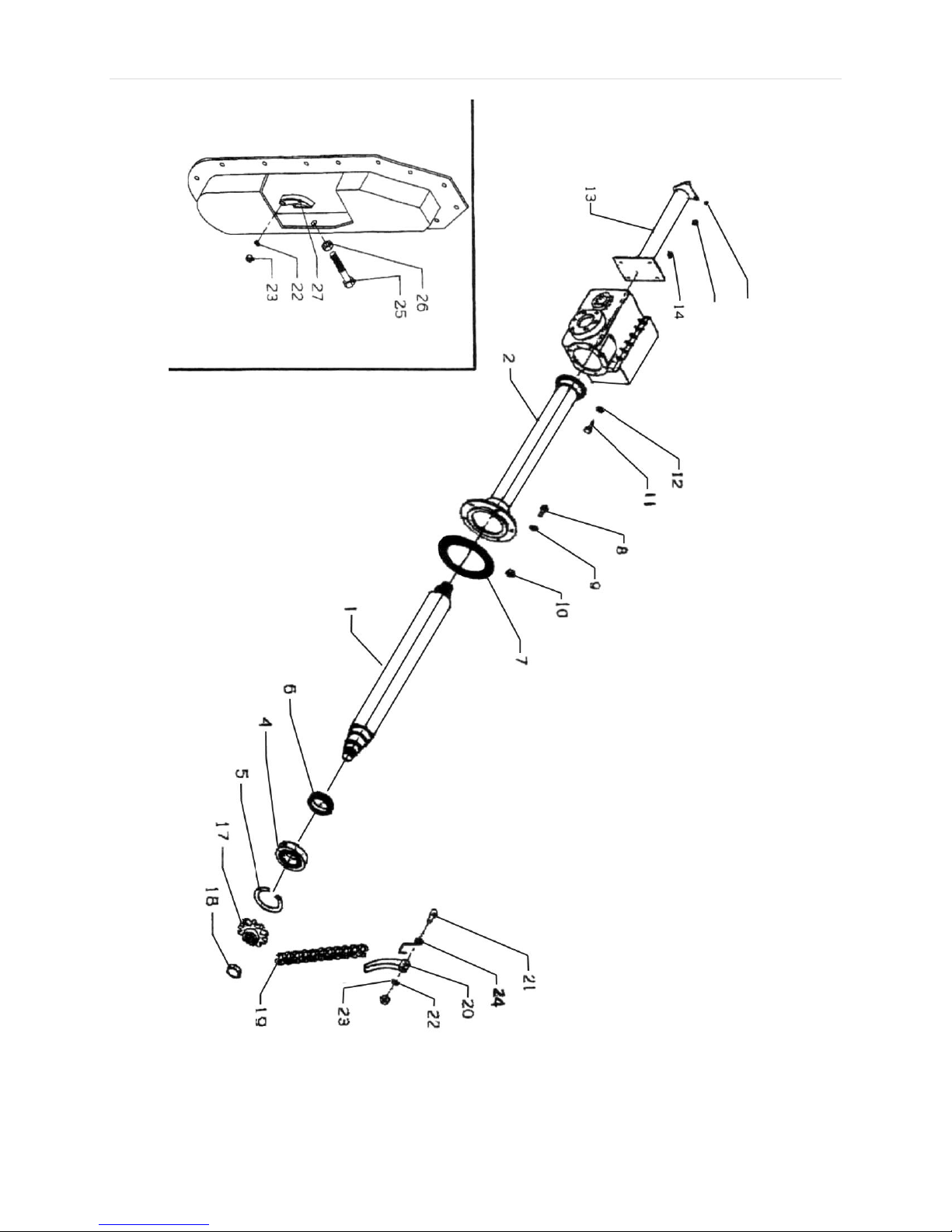

Gear Box Parts Diagram
12
Gear Box Parts List
13
Extension Parts Diagram
14
Extension Parts List
15
Complete Roller Parts Diagram
16
Complete Roller Parts List
17
Rear Levelling Bar Parts Diagram and List
18
Contact Information
19

P a g e | 3
GORDON BANNERMAN LIMITED
41 Kelfield Street, Rexdale, ON M9W 5A3 Canada
T: [phone] F: [phone]
www.sportsturfmagic.com
Bannerman/Re-Mac
Stone Burier (B-IS-245-H)
Dear Owner,
Welcome to Bannerman, the Home of Sports Turf Magic.
Your new B-IS-245-H Bannerman/Re-Mac Stone Burier is designed to meet your ground
cultivation and leveling requirements. The ease of operation and low maintenance will give you
many trouble free years of use. Please make certain that you read and understand the
important instructions for the assembly, adjustment, operations, safety, and maintenance
contained in this manual. If there are any instructions which you do not fully understand,
contact either your dealer or Bannerman Ltd. for clarification prior to using the unit.
When in need of replacement parts, specify the model and serial number of your new B-IS-245-
H Bannerman/Re-Mac Stone Burier. The serial plate that identifies your model number and the
serial number is located on the A Frame. To give you many years of service, regular
preventative maintenance is required. Should you require further assistance, please feel free to
contact your local Bannerman dealer or Bannerman directly
Regards,
George Bannerman
Corporate Secretary

P a g e | 4
GORDON BANNERMAN LIMITED
41 Kelfield Street, Rexdale, ON M9W 5A3 Canada
T: [phone] F: [phone]
www.sportsturfmagic.com
Warranty
Bannerman Ltd warranties all Bannerman/Re-Mac Stone Buriers (B-IS-245-H), when applied and
installed, to be free from defects in material and workmanship under normal use and service for a
period of 1 year from date of use. We must receive the Warranty Card and Declaration or Delivery
Card filled out in its entirety, via post, fax, or email within 30 days of date of sale. It is the
responsibility of the end user to make sure that the Warranty Card has been filled out and
submitted to Bannerman Ltd. This warranty does not guarantee a particular service life of the
products. Service life will vary with application, operating environment, level of maintenance and
other factors beyond our control.
Bannerman Ltd’s sole responsibilities for the Bannerman/Re-Mac Stone Buriers or parts
determined to be defective and covered by this warranty is limited to repairing the product or
part. An allowance is to be applied to the labour cost for the removal and replacement.
Prior authorization from Bannerman Ltd must be obtained before replacing or returning any part
(s), or incurring any cost of labour. No charges for expense incurred in parts, labour or
transportation by unauthorized persons will be allowed under this warranty. Bannerman Ltd
reserves the right of any part or Bannerman assembly (with transportation prepaid) claimed to be
covered under this warranty.
Bannerman Ltd shall not be liable, in event, for proximate, incidental, consequential, special or
other damages. This includes, but it not limited to, damages for loss of production, loss of profit,
loss of opportunity, or injury to persons arising out of any breach in this warranty.
THERE ARE NO WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING THE WARRANTY OF
MERCHANTABILITY, WARRANTY OF FITNESS FOR PARTICULAR PURPOSE, OR ANY OTHER
WARRANTY EXTENDING BEYOND THAT SET FORTH ABOVE.
GORDON BANNERMAN LIMITED
41 Kelfield Street, Rexdale, M9W 5A3
Ontario, Canada
CONTACT US:
CAN 1-800-325-4871
USA 1-800-665-2696
[email protected]

P a g e | 5
GORDON BANNERMAN LIMITED
41 Kelfield Street, Rexdale, ON M9W 5A3 Canada
T: [phone] F: [phone]
www.sportsturfmagic.com
Machine Description
The Bannerman/Re-Mac Debris & Stone Burier is designed to cultivate, grate, bury stones as
well as debris, leaving behind a leveled blanket of fine soil. It uses an electro-welded metal base
chassis carrying a steel frame for attachment to the tractor and a reducer with a coupling for
the PTO shaft. The rotor shaft and blade break up the ground.
Series H Model IS-H245
Working width of 2.44 meters (96 inches) for tractors from 30 to 45 HP.
Standard Cat #2 & #3 Three Point Hitch System RPM 540 (1 3/8” 6 Spline)
Length: 84”
Width: 114”
Height: 60”
Weight: 1190 Kg (2624 Lbs.)
Working Depth: 20 cm (7.8 Inches)
60/150 H.P Tractor Required
Complete With:
PTO Torque Limiter Clutch (Adjust from 8 - 18 FT/LB)
Leveling Grader Blade on Screw Jacks
Rear Adjustable Pack Roller
Soil Scraper & Brush
52 Special Contra Rotating Hoe Blades
9mm Spring Debris Tines on 5/8” Centers
Important Warnings
Study the manual before using the stone burier.
Equipment must be completely halted before any maintenance,
cleaning or adjustment work can be performed on the stone burier.
The tractor driver must be the only one on the machine.
The tractor driver must make sure that no one is nearby while using
the equipment.

P a g e | 6
GORDON BANNERMAN LIMITED
41 Kelfield Street, Rexdale, ON M9W 5A3 Canada
T: [phone] F: [phone]
www.sportsturfmagic.com
Safety Precautions
Make sure the area is completely free of people or animals during use, as the machine
may toss up foreign bodies such as small rocks and dirt.
Disengage the power drive to the equipment during raising, changing direction, or for
any other maneuvering.
Shut off tractor engine before making any adjustments on the stone burier.
Never raise the stone burier too high when maneuvering over hills. It can damage the
PTO shaft. Always disengage the PTO.
The stone burier must run at the PTO speed (r. p.m.) indicated on the gearbox. A higher
speed may damage the machine.
Never use PTO shaft without a Torque Limiter Clutch. Immediately replace plastic
coverings of the PTO shaft as soon as any wear and tear occurs.
Never allow anyone to attempt to ride on machine.
Never work on or maintain the machine when in the raised position.
Always ensure that PTO shaft guards are in good order.
Transportation on Public Roads
Note: Please observe the transportation laws in your area.
As the attachment of equipment to the tractor changes weight distribution, additional ballasts
may need to be used to restore the balance of the axle.
When the stone burier is not connected to the tractor, it must be transported with a suitable
lifting frame. A storage & fork lifting frame is provided with the machine. For lifting a machine,
a suspended point is indicated on the stone burier.
Use of Equipment
The attached stone burier machine must be operated solely using the original universal joint
equipped with safety guards which must be prevented from rotating by the appropriate chain.
Warning: always check that the PTO speed on the tractor corresponds to the PTO speed on the
machine to be used; i.e. 540 to 540 and 1000 to 1000 PTO speeds must always be synchronized.
If the PTO speed is altered, the PTO shaft shear bolt must be changed.
Always disconnect the PTO when the machine is not in use. Turn off the engine and place the
machine on the ground or storage fork lift frame. Do not exceed the power limits applied to
the machine.

P a g e | 7
GORDON BANNERMAN LIMITED
41 Kelfield Street, Rexdale, ON M9W 5A3 Canada
T: [phone] F: [phone]
www.sportsturfmagic.com
Stone Burier Set Up
Tractor Attachment
Place the machine on a level surface and proceed as follows:
1. Connect the lower links of the tractor to the junction of the stone burier.
2. Connect the upper link (third point).
3. Fit the PTO shaft.
If the PTO shaft needs to be shortened, remove the same amount from both pipes shaft halves,
so that they remain same length.
Warning: the two halves must overlap for at least 150 mm when the PTO shaft is extended to
its greatest length. When it is at its closed position, the minimum overlap cannot be less than
40 mm.
Assembling the Blades
The blades should be mounted in the same direction; either right to left or left to right.
Each rotor shaft flange should be mounted with 4 blades, alternating 2 leaning to the right and
2 leaning to the left, with the cutting edge turned up.
On the rotor shaft there are 4 longer blades (2 right & 2 left) to put on the 2 end rotor flanges.
PLEASE NOTE: When using a new machine for the first time, check all screws and nuts on main
frame and supports after a few hours of work. They must be fully tightened to maintain rigidity.
Check this frequently.

P a g e | 8
GORDON BANNERMAN LIMITED
41 Kelfield Street, Rexdale, ON M9W 5A3 Canada
T: [phone] F: [phone]
www.sportsturfmagic.com
Note: in order to obtain the best performance from the machine, it is necessary to follow the
following instructions.
During operation the stone burier must be horizontal. The front of the machine can be
raised slightly which can be adjusted by the upper link (third point). A hydraulic top link
is preferred.
Working depth is adjusted by the height of the rear roller.
The PTO should always be disengaged when the stone burier is raised and when
turning on uneven terrain.
Engage the PTO when the blades are beginning to hit the ground.
The working angle of the PTO shaft should be as small as possible, or less than 15°.
Always use the correct PTO shaft with a torque limiting shear bolt suitable to your
tractor to avoid damage to gears.
Maintenance
Lubrication
Please Note: Good maintenance extends the life of your machine.
Before starting up the machine for the first time, check the lubricant
level as described below.
• Before performing the checking operations, add or change the lubricant, then clean all
involved parts carefully.
• Clean the machine after use to prevent rust, with oil or equivalent.
•The gear box is filled with SAE 75W-90 oil (for quantity table 1).
• Check the level of oil frequently. Change the oil after the first 20 hours of work.
Thereafter change the oil every 400 hours of works or once every year.
•The main frame chain drive housing is filled with 460 oil. The level of oil should be
maintained by topping up as required. To fill the correct amount of oil, refer to table 2.

P a g e | 9
GORDON BANNERMAN LIMITED
41 Kelfield Street, Rexdale, ON M9W 5A3 Canada
T: [phone] F: [phone]
www.sportsturfmagic.com
Table 1.
Reduction Gear
Oil Volume
TB-19C SERIES “E”
600 GR
*TB-27C SERIES “F”
1,1 KG
TB-278C SERIES “G”
1,6 KG
LMT CM 120 SERIES “H”
2,8 KG
MV 817F
13 KG
Table 2.
Model
Oil Volume
IS E 85
800 gr.
IS E 105
800 gr.
IS E 125
800 gr.
IS F 105
1.200 gr.
IS F 125
1.200 gr.
*IS F 145
1.200 gr.
IS G 165
1.200 gr.
IS G 185
1.200 gr.
IS H 185
2.500 gr.
IS H 205
2.500 gr.
IS H 225
2.500 gr.
IS H 245
2.500 gr.
IS H 295
2.500 gr.
After the first 50 hours of operation it is necessary to change the oil in the main gear box/speed
–reducing unit. In order to do so, drain the oil by removing the drain plug, then add the new
lubricant of the prescribed type through the cap opening until the lubricant reaches the correct
level on the transparent level plug or on the dip stick.
Storage
For proper maintenance, if the machine remains unused for a long period of time, it is
necessary to complete the following steps:
1. Wash the machine thoroughly, especially removing all traces of fertilizer, chemical
products, etc.
2. Verify that the machine is in working condition.
3. Protect all uncoated metal parts by coating them with oil, then cover the machine and
store it in a dry place.
4. Place machine on storage stand.

P a g e | 10
GORDON BANNERMAN LIMITED
41 Kelfield Street, Rexdale, ON M9W 5A3 Canada
T: [phone] F: [phone]
www.sportsturfmagic.com
Main Frame Assembly

P a g e | 11
GORDON BANNERMAN LIMITED
41 Kelfield Street, Rexdale, ON M9W 5A3 Canada
T: [phone] F: [phone]
www.sportsturfmagic.com
Main Frame Assembly
Part No
Description
1
ISHG.003
Lock Ring M 50x1.5
2
PIGH.001
Lower Pinion Asa 140 Z12
3
AEOO.050
Spring Clip 1 110
4
CUOO.020
Bearing 22212
5
ISPA.100
Oil Seal 75x95x12
6
FLIS.005
Drive Side Gasket
7
PRPO.005
Drive Side Support Bearing
8
PRPO.003
Drive Side Rotor Grooved Hub
9
VEOO.021
Anti-Dust Ring
10
VEOO.021
Screw TE M14x55x1,5 10.9
11
ISZP.200
Right Hoe
12
ISZP.201
Left Hoe
13
COIS.015
Counter Flange
14
ABIS.245H
Hoe Support rotor IS H 245
15
PRPO.006
Conduit Side Rotor Hub
16
PRPO.008
Dust Ring
17
FLIS.010
Conduit Side Bearing Support
18
GRNZ.011
Conduit Side Gasket
19
ISPA.101
Oil Seal 75x85x10
20
CUOO.011
Bearing 22211 E
21
ISZP.221
Hoe Long Side - Right
22
AEOO.009
Ring I 100
23
ISZP.222
Hoe Long Side - Left
24
ISFN.100
External Side - Right
25
ISSP.011
Protection Casing Hood
26
ISCR.101
Chain Casing
27
ISGC.011
Casing Gasket
28
ISFN.200
Side - Right
29D
ISSO.245
Box IS H 245
30
DAOO.015
Nut M12
31
DAOO.016
Nut M14
32
VEOO.074
Screw SPEI M12x40
33
VEOO.073
Screw TE M14x45
Part No
Description
34
ISRG.03
Open-Ended Washer Ø 14
35
VEOO.080
Screw TCEI M10x16
36
VEOO.030
Screw TE M10x50
37
VEOO.100
Nut M8
38D
ISCC.245H
Rear Cowling IS H 245
39
BAN002
Gauge Rod
40
SINT.002
Anti-Vibration Ring
41
VEOO.001
Screw TE M14x40
42
PIAS.001
Threaded Plate
43
RSNO.001
Washer Schnoor D 10
44
VEOO.020
SCREW TE M10x25
45
ISFN.101
Side
46
ISGC.112
External Gasket - Right
47
VEIS.045
Oil Cover
48
CO19.160
Pin
49
ISFN.101
External Side Right
50D
ISFD.245H
Double Base IS H 245
53
VEOO.124
Hoe Screw M12x40
54
VOER.001
Small Share
55
VEOO.068
Screw TE 16x50
56
PSAH.001
Anchor Support Plate
57
DAOO.011
Nut M16
58
ATHI.001
Anchor
59
VEOO.034
Disk Support Anchor
60
VEOO.037
Screw TE M12x35
61
ISCA.300
Castle
62
VEIS.045
Screw TE M12x40x(1,25)
63
CSTI.001
Pipe Wrench Stand
64
VEIS.045
Screw TE M12x40x(1,25)
65
RSNO.002
Washer Schnoor M12
66
VEOO.201
Screw TCEI M12x30
67
DFHI.001
Cut-Away Disc
70
ISDA.014
High Nut M14x1,5

P a g e | 12
GORDON BANNERMAN LIMITED
41 Kelfield Street, Rexdale, ON M9W 5A3 Canada
T: [phone] F: [phone]
www.sportsturfmagic.com
Gear Box

P a g e | 13
GORDON BANNERMAN LIMITED
41 Kelfield Street, Rexdale, ON M9W 5A3 Canada
T: [phone] F: [phone]
www.sportsturfmagic.com
Gear Box Parts List
Part No
Description
1
817.0301
Box
2
817.7201
Gasket
3
811.0054
Screw TE UNI 5739 M10x20 8,8
4
851.0020
Ring
5
817.1301
Rear Cowling
6
852.01772
Ring
7
717.7520
Regulation Shim 75.2x84.8x2
8
815.01877
Stud UNI5909 M10x22
9
821.00244
Nut es. UNI5588 M10 10
10
819.5045
Gear Z=27 M=5
11
819.5046
Gear Z=29 M=5
12
819.5049
Bevel Pinion Z=14 M=7.87
13
809.01108
Bearing CLA 32209
14
144.7500
Regulation Shim 125.5x139.5
15
809.0187
Roller Bearing CLA 32214
16
853.02004
Shoulder Ring SB 130
17
866.00088
Plug With Hexagon inc. ½” GAS
18
851.01980
Ring
19
717.7500
Regulation Shim 75.2x87.3
20
871.023
Oil Seal 75x130x12
21
809.01032
Bearing CLA 30214
22
809.01876
Bearing CLA 30215
Part No
Description
23
816.1327
Output Flange
24
811.01891
TE UNI5739 M12x35 DCRT320 10.9
25
809.01881
Bearing CLA 30216
26
819.6003
Crown Z=29 M=7.87
27
852.007
Flexible Safety Ring x for 62 UNI7437
28
819.7100
Bearing Support Bush
29
819.3000
Intermediate Shaft
30
824.1300
Sheared Cover
31
819.7101
Spacer 124.7x111x3
32
819.7500
Regulation Shim 110.2x124.8
33
817.2000
Input Shaft
34
873.0033
Oil Seal BA 45x85x10
36
852.0190
Flexible Safety Ring x for 125 UNI7437
37
870.1359
Plug
38
709.7500
Regulation Shim 70.3x84.7
40
812.7101
Oil Filler
41
810.001
Base For Protecting Hood
42
810.190
PTO Protection
43
811.0135
Screw T.C.EI 10x16
44
811.0500
Flat Washer Ø 10
45
810.3000
Wing-nut M. 8
46
810.0001
Flat Washer Ø 8

P a g e | 14
GORDON BANNERMAN LIMITED
41 Kelfield Street, Rexdale, ON M9W 5A3 Canada
T: [phone] F: [phone]
www.sportsturfmagic.com
Extension

P a g e | 15
GORDON BANNERMAN LIMITED
41 Kelfield Street, Rexdale, ON M9W 5A3 Canada
T: [phone] F: [phone]
www.sportsturfmagic.com
Extension
Part No
Description
1D
ALPR.245
Shaft IS H 245
2D
TRIS.245
Horn IS H 245
4
CUOO.011
Bearing 22212
5
AEOO.009
Spring Clip I 100
6
ISPA.100
Oil Seal 80x55x10
7
FLIS.100
Gasket
8
VEOO.055
Screw TE 14x40
9
RSNO.002
Flat Washer Piana Ø 14
10
DAOO.015
Nut Aut. M14
11
VEIS.050
Screw TE 12x40x1,25
12
RSNO.002
Washer Schnoor Ø 12
13D
PRSC.245
Extensions IS H 245
14
VEOO.068
Screw T.E. 16x50
15
VEOO.037
Screw T.E. 12x40
16
DAOO.016
Nut aut. M12
17
PISP.010
Upper Stud ASA 140 Z10
18
ISGH.001
Lock Ring H40x1,5
19
CAIS.140
Chain ASA 140

P a g e | 16
GORDON BANNERMAN LIMITED
41 Kelfield Street, Rexdale, ON M9W 5A3 Canada
T: [phone] F: [phone]
www.sportsturfmagic.com
Complete Roller

P a g e | 17
GORDON BANNERMAN LIMITED
41 Kelfield Street, Rexdale, ON M9W 5A3 Canada
T: [phone] F: [phone]
www.sportsturfmagic.com
Complete Roller Parts List
Part No
Description
1D
GOMM.010
Rubber Element for Scraper IS H 245
2D
RGGM.245
Fixing Rod IS H 245
3D
RSTR.245
Rubber Scraper IS H 245
4D
PRZZ.245
Brush Holder IS H 245
5
VEIS.045
Screw TE 12x45
6
CUOO.053
Support UCF 206
7
PRCH.001
Scraper Support Alignment Device
8D
RLS.245
Roller IS H 245
9D
SPZZ.001
Scraping Brushes IS H 245
10D
ISPR.245
Roller Support IS H 245
11
PRLL.001
Alignment Device
12
CLL.100
Stand
13
ASVR.001
Roller Adjustment Lever
14
VEAF.055
Screw Ø 5,5
15
VEOO.217
Screw T.E. M6x35
16
DAOO.098
Nut Aut. M6
17
VEOO.300
Screw TE M14x65
18
DAOO.016
Nut aut. M12
19
DAOO.015
Nut aut. M14
20
DAOO.222
Nut aut. M20
21
VEOO.230
Screw T.E. M20x60
22
VEOO.077
Screw T.E. M12x20
23
VEOO.078
Screw T.E. M12x25
24
STRG.001
Adjustment Bracket
25
RP00.300
Flat Washer Ø 30x55x4
26
SPELL.001
Pin Ø 8x40

P a g e | 18
GORDON BANNERMAN LIMITED
41 Kelfield Street, Rexdale, ON M9W 5A3 Canada
T: [phone] F: [phone]
www.sportsturfmagic.com
Rear Levelling Bar
Parts List
Part No
Description
1D
LLIS.245
Complete Levelling Blade IS H 245
2
VEOO.445
Screw TE M14x45
3
DAOO.015
Nut aut. M14

P a g e | 19
GORDON BANNERMAN LIMITED
41 Kelfield Street, Rexdale, ON M9W 5A3 Canada
T: [phone] F: [phone]
www.sportsturfmagic.com
A Division of Gordon Bannerman Limited
“The Home of Sportsturf Magic”
Scan the QR code below to visit our website
Or visit www.sportsturfmagic.com
For any Questions, Customer Support or General Inquiries, please email [e-mail]
