bar BAR4013C-HJ User manual

USERMANUAL
PRESSURE CLEANERS
barrouomauModel Numbers:BAR4013C-HJ & BAR4013C-HEJBAR3513G-HJV & BAR3513G-HEJVBAR3513G-HJVT & BAR3513G-HEJVT

2
Introduction
Using the Operators Manual ............................................
ressure Cleaner...............................................................
Engine................................................................................
afety
Safety Rules.......................................................................
Cooling Information............................................................
Hazard Symbols and Meanings.........................................
ee Ceane Coonent
Component Charts (Various Models)..................................
Assemly
Unpack the ressure Washer ...........................................
Attach Handle ....................................................................
PreOperation Checlist
Check Oils, Fuel, Water ....................................................
Connect Hose and Water Supply to ump .......................
tarting our Ceane
How to Start your ressure Cleaner..................................
hutting on our Ceane
How to Shut Down your ressure Cleaner.......................
Eectc Stat Oton
Component Chart ............................................................
4
5
5
6
7
8
14
17
17
18
18
19
23
24
TAE O CONTENT

3
25
25
25
26
27
28
29
29
29
30
30
44
pray Tips
How to Use Spray Tips ........................................................
Change Spray Tips ..............................................................
Usage Tips ..........................................................................
sing Te lac oap Nole
Applying Detergent ...............................................................
Trouleshooting
etrol Engine Trouble Shooting Chart .................................
ump Trouble Shooting Chart ..............................................
torage
Winter Storage .....................................................................
Long Term Storage ..............................................................
rotect Fuel System ............................................................
Storing the Engine ...............................................................
Other Storage Tips ..............................................................
Te An Conton
Terms and Conditions ..........................................................
TAE O CONTENTS
46
Notes
Maintenance Notes ...............................................................
32
at t
Maor Components N: .......................................................
Warranty Statement ............................................................. 45

4
Attention: Read through the complete
manual prior to the initial use of your
pressure washer.
NTOCTION
sing the Operators manual
The operating manual is an important part of your pressure washer. It should
be read thoroughly before initial use, and referred to often to make sure
adequate safety and service concerns are being addressed.
Reading the owners manual thoroughly will help avoid any personal inury or
damage to your machine. By knowing how best to operate this machine, you
will be better positioned to show others who may also operate the unit.
This manual was written to take you from the safety requirements to the
operating functions of your machine. ou can refer back to the manual at any
machine at all times.

5
OCT IENTIICATION
IIf you need to contact an Authorized Dealer or Customer Service line
   for information on servicing, always provide the product
ou will need to locate the model and serial number for the machine
and record the information in the places provided below.
ate of Purchase:
ealer Name
ealer Phone
Model Numer:
erial Numer:
urication hart
Pump
Engine:
Gearo
niversal Tractor Transmission Oil
AE 1030
AE 90

6
mportant arnings
Failure to observe warnings will void warranty andor cause inury.
1. Do not let the pressure washer overheat. Ecess heat will cause severe dam-
age (see below for details).
2. Never run the unit without water. Running the pump dry will cause it to quickly
fail (NOT COVERED B WARRANT).
3. Do not let the unit freeze. Frozen water in the pump will cause serious damage.
4. Always wear eye protection when operating the unit.
5. High pressure spray can cause serious bodily inury of damage soft material.
Use with caution.
6. Never adust unloader to eceed the preset pressure. remature wear, equip-
ment failure, or inury may occur.
IMOTANT SAET INSTCTIONS
SAE TESE INSTCTIONS
WARNING - When using this product, the following precautions should
always be observed and adhered to.
1. Read all instructions before using the product.
2. To reduce the risk of inury, close supervision is necessary when a product is
used near children.
3. now how to stop the product and bleed pressures quickly. Be thoroughly
familiar with the controls. See page 23.
4. Stay alert - watch what you are doing.
5.
drugs.
6. eep operating area clear of other people.
7. Do not overreach or stand on unstable support. eep
solid footing and balance at all times.
8. .
SAET

7
SAET - OONG NORATON
Motors are air cooled. It is important to ensure that machine is operated in a well-
ventilated area where it can draw a steady supply of fresh air. The arrows below show
an eample of locations for air intake on an engine.
Most pumps are protected by a thermal ale. The thermal valve releases water if a
pump starts to run too hot. It will prevent catastrophic heat failure. However, the pump
may have suffered damage and need maintenance, repair, or replacement. If it does
not reset and continues to leak water, the thermal valve may need to be replaced.
THREADEDINTOPUMPWITHTEFLONTAPELEAKSWATERTOPREVENTOVERHEATINGRECT RVEGEARB RVEThermal valve ae ate cooe When the machine is running, ensure the trigger of the gun is pressed
to allow a constant flow of fresh water into and out of the pump. o not et te acne n o
oe tan  econ tot en on on te te

8
The safety alert symbol ( ) is used with a signal word (DANGER,
CAUTION, WARNING), a pictorial andor a safety message to alert you
to hazards.
ANE indicates a hazard which, if not avoided, will result in death or
serious inury.
ANIN indicates a hazard which, if not avoided, could result in death or
serious inury.
CATION indicates a hazard which, if not avoided, might result in minor or
moderate inury.
NOTICE indicates a situation that could result in equipment or property damage.
aard yols and Meanings
SAVE THESE INSTRUCTIONS
afety Rules
This is the safety alert symbol. It is used to alert
you to potential personal inury hazards. Obey all
safety messages that follow this symbol to avoid
possible inury or death.
EXPLOSIONKICKBACKFALLFLUIDINJECTIONMOVINGPARTSREADMANUALHOTSURFACEFLYINGOBJECTSSLIPPERYFIREELECTRICSHOCKTOXICFUMESSAET

9
ANIN
eplosive.
Fire or eplosion can cause severe burns or death.
hen Adding or raining uel
hen tarting Euipment
hen Transporting or Repairing Euipment
•Transportrepair with fuel tank EMT or with fuel shutoff valve OFF.
•Disconnect spark plug wire.
hen toring uel or Euipment ith uel in Tan
•Store away from furnaces, stoves, water heaters, clothes dryers, or other
appliances that have pilot light or other ignition source because they can
ignite fuel vapors.
SAET
This product can epose you to chemicals
including lead, which is known to cause
cancer and birth defects or other reproductive
harm. Wash hands after handling.
•Turn pressure cleaner OFF and let it cool at least 2 minutes before removing
fuel cap. Loosen cap slowly to relieve pressure in tank.
•Fill or drain fuel tank outdoors and in accordance with the LOCAL
GOVERNMENT GUIDELINES.
•DO NOT overfill tank. Always allow space for fuel epansion.
•If fuel spills, wait until it evaporates before starting engine.
•eep fuel away from sparks, open flames, pilot lights, heat, and other ignition
sources.
•DO NOT light a cigarette or smoke.
•Ensure spark plug, muffler, fuel cap, and air cleaner are in place.
•DO NOT crank engine with spark plug removed.
hen Operating Euipment
•DO NOT tip engine or equipment at angle which causes fuel to spill.
•DO NOT spray flammable liquids.

10
ANING
Starter cord kickback (rapid retraction) can result in bodily inury.
ickback will pull hand and arm toward engine faster than you can
let go.
Broken bones, fractures, bruises, or sprains could result.
•
•When starting engine, pull cord slowly until resistance is felt and then pull
rapidly to avoid kickback.
•After each starting attempt, where engine fails to run, always point spray gun
in safe direction and squeeze spray gun trigger to release pressure.
•Firmly grasp spray gun with both hands when using high pressure spray to
avoid inury when spray gun kicks back.
ANIN
A running engine gives off carbon monoide, an odorless, colorless,
poison gas.
Breathing carbon monoide can cause headache, fatigue, dizzi-
ness, vomiting, confusion, seizures, nausea, fainting or death.
Some chemicals or detergents may be harmful if inhaled or ingest-
ed, causing severe nausea, fainting, or poisoning.
•Operate pressure cleaner ONL outdoors.
•
-
tion intakes, or other openings.
•DO NOT start or run engine indoors or in an enclosed area, even if windows and
are open.
•Use a respirator or mask whenever there is a chance that vapors may be inhaled.
•Read all instructions with mask so you are certain the mask will provide the neces-
sary protection against harmful vapors.
SAET
ANIN
Risk of electrocution.
Contact with power source can cause electric shock
or burn.
•NEVER spray near a power source.

11
ANIN
Ehaust heatgases can ignite combustibles, structures or damage
•DO NOT touch hot parts and AVOID hot ehaust gases.
•Allow equipment to cool before touching.
•eep at least 5 feet (1.5 m) of clearance on all sides of pressure cleaner
including overhead.
ANIN
Use of pressure cleaner can create puddles
and slippery surfaces.
ickback from spray gun can cause you to fall.
•Operate pressure cleaner from a stable surface.
•The cleaning area should have adequate slopes and drainage to reduce the
pos-sibility of a fall due to slippery surfaces.
•Be etremely careful if you must use the pressure washer from a ladder,
scaffolding, or any other similar location.
•Firmly grasp spray gun with both hands when using high pressure spray to
avoid inury when spray gun kicks back.
ANIN
Risk of eye inury.
Spray can splash back or propel obects.
•Always wear safety goggles when using this equipment or in vicinity of
where equipment is in use.
•Before starting the pressure cleaner, be sure you are wearing adequate
safety goggles.
•NEVER substitute safety glasses for safety goggles.
SAET

12
ANIN
Starter and other rotating parts can entangle hands,
hair, clothing, or accessories.
•NEVER operate pressure cleaner without protective housing or covers.
•DO NOT wear loose clothing, ewelry or anything that may be caught in the
starter or other rotating parts.
•Tie up long hair and remove ewelry.
ANIN
The high pressure stream of water that this equipment produces
can cut through skin and its underlying tissues, leading to serious
inury and possible amputation.
Spray gun traps high water pressure, even when engine is stopped
and water is disconnected, which can cause inury.
•DO NOT allow children to operate the pressure cleaner.
•NEVER repair the high pressure hose. Replace it.
•NEVER repair leaking connections with sealant of any kind. Replace o-ring or seal.
•NEVER connect high pressure hose to nozzle etension.
•eep high pressure hose connected to pump and spray gun while system is pres-
surized.
•ALWAS point spray gun in safe direction and squeeze spray gun trigger to release
high pressure every time you stop engine.
•NEVER aim spray gun at people, animals, or plants.
•DO NOT leave spray gun unattended while machine is running.
•NEVER use a spray gun which does not have a trigger lock or trigger guard in place
and in working order.
•Always be certain spray gun, nozzles and accessories are correctly attached before
spraying water.
SAET

13
NOTICE
High pressure spray may damage fragile items including glass.
•DO NOT point spray gun at glass when using red 00spray tip.
•NEVER aim spray gun at plants, animals or any other living thing.
NOTICE
Improper treatment of pressure washer can damage it and shorten its life.
•If you have questions about intended use, contact your nearest authorized
dealer, call our support line, or visit our website.
•NEVER operate units with broken or missing parts, or without protective housing
or covers.
•DO NOT by-pass any safety device on this machine.
•DO NOT tamper with governed speed.
•DO NOT operate pressure cleaner above rated pressure.
•DO NOT modify pressure cleaner in any way.
•Before starting pressure cleaner in cold weather, check all parts of the
equipment to be sure ice has not formed.
•NEVER move machine by pulling on hoses. Use the handle provided on units
frame.
•Check fuel system for leaks or signs of deterioration, such as chafed or spongy
hose, loose or missing clamps, and damaged tank or cap.
•Correct all defects before operating pressure cleaner.
ANIN
hen Adusting or an Repairs to our Pressure ae Ceane
•Disconnect the spark plug wire from the spark plug and place the wire where it
cannot contact spark plug.
hen Testing for Engine par
•Use approved spark plug tester.
•DO NOT check for spark with spark plug removed.
SAET

14
 AC
2.
13.
14.
8.
7.

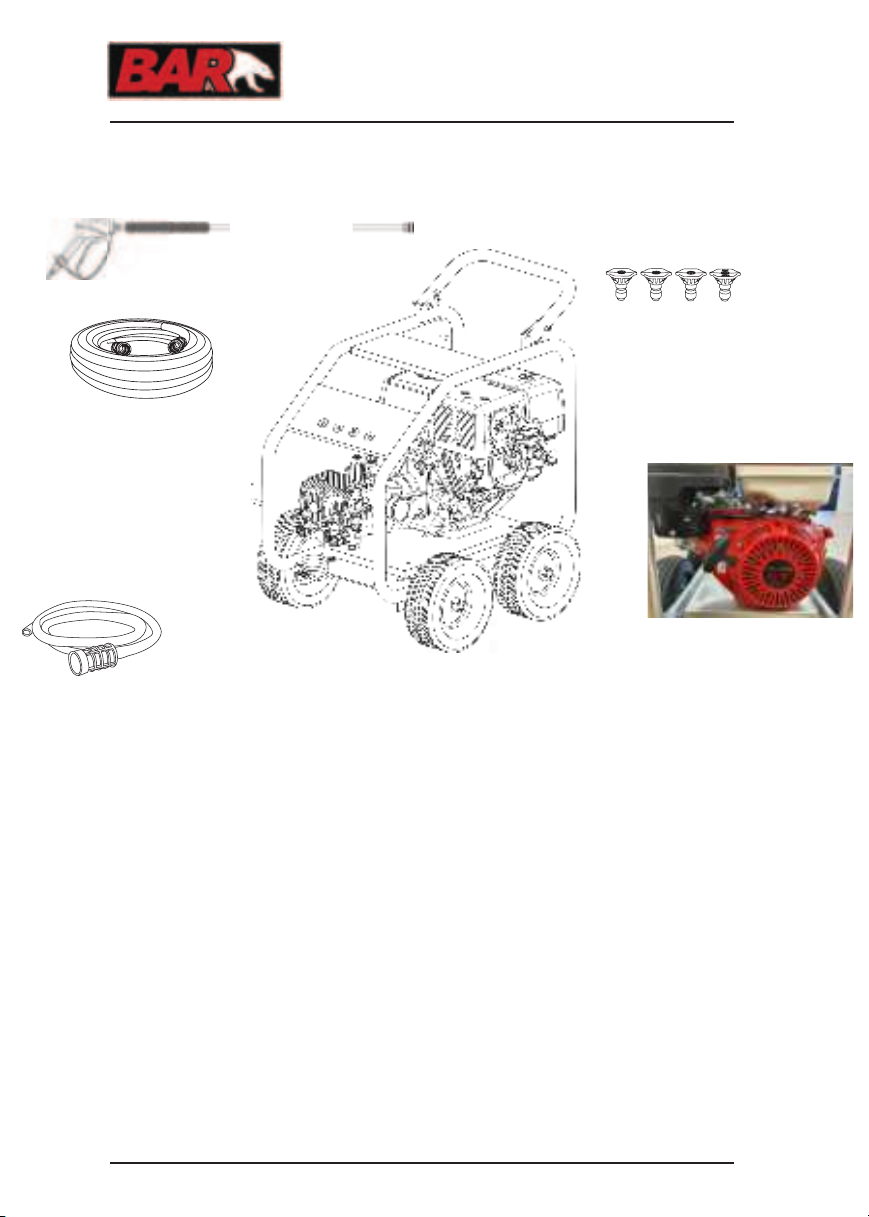

The following diagram is intended for general reference.
our pressure cleaner may differ from the model shown below. For
specific model information, please visit .arr..a.
1.
9.
4.
10.
3.
6.
1. pray un  ance Assemly  Controls the application of water onto cleaning
surface with trigger device. Includes trigger lock. Allows you to switch between
various spray tips.
2. igh Pressure ose  Designed to withstand the pressure created by the pump.
3. uel Tan  Fill tank with regular, unleaded fuel. Always leave room for fuel
epansion. Do not fill while machine is running or hot.
4. nloader  ressure is preset at the factory.
5. Pump  Develops high pressure. Connect the garden hose to the inlet of the water
pump and connect the high pressure hose to the outlet.
6. etergent Pic p  Low pressure chemical pick up.
7. Recoil tarter  Used for starting the engine manually.
8. Top Choe Rod  repares a cold engine for starting.
ottom uel ale  Used to turn fuel supply on and off to engine.
9. MufflerExhaust  Reduces noise of the engine and epels heat (CAUTION HOT).
10. Air ilter  rotects the engine by filtering dust and debris out of intake air.
11. Throttle leer  Sets engine in starting mode for recoil starter. Then adust to
maimum speed once started.
12. Engine itch  Set switch to "On" for recoil starting. Set switch to "Off" to stop a
running engine.
13. etergent iphoning ose  Used to draw detergent into the low pressure stream.
14. pray Tips  Detergent, 00, 150, and 400:for various cleaning applications.
11. 12.
5.
Black Detergent
Red Straight
ellow 150
White 400

15
120 AR3513G-HJV
2.
15.
16.
10.
9.
The following diagram is intended for general reference.
our pressure cleaner may differ from the model shown below. For
specific model information, please visit .arr..a.
1.
11.
4. 12.
3.
6.
1. pray un  ance Assemly  Controls the application of water onto cleaning
surface with trigger device. ncludes trigger lock. Allows you to switch between
various spray tips.
2. igh Pressure ose  esigned to withstand the pressure created by the pump.
3. uel Tan  Fill tank with regular, unleaded fuel. Always leave room for fuel
epansion. o not fill while machine is running or hot.
4. nloader  ressure is preset at the factory.
5. Pump  evelops high pressure. Connect the garden hose to the inlet of the water
pump and connect the high pressure hose to the outlet.
6. etergent Pic p  Low pressure chemical pick up.
7. iration Plate  Connects pump motor group to frame via anti-vibration mounts.
8. earox  Reduces engine speed to 1440 rpm (slow running of pump).
9. Recoil tarter  sed for starting the engine manually.
10. Top Choe Rod  repares a cold engine for starting.
ottom uel ale  Used to turn fuel supply on and off to engine.
11. MufflerExhaust  Reduces noise of the engine and epels heat (CAUTION HOT).
12. Air ilter  rotects the engine by filtering dust and debris out of intake air.
13. Throttle leer  Sets engine in starting mode for recoil starter. Then adust to
maimum speed once started.
14. Engine itch  Set switch to "On" for recoil starting. Set switch to "Off" to stop a
running engine.
15. etergent iphoning ose - Used to draw detergent into the low pressure stream.
16. pray Tips - etergent, 00, 150, and 400 : for various cleaning applications.
13. 14.
5.
7. 8.
Black Detergent
Red Straight
ellow 150
White 400

16
 AT
2.
10.
9.
The following diagram is intended for general reference.
our pressure cleaner may differ from the model shown below. For
specific model information, please visit .arr..a.
1.
11.
4. 12.
3.
6.
1. pray un  ance Assemly  Controls the application of water onto cleaning surface
with trigger device. Includes trigger lock. Allows you to switch between various spray tips.
2. igh Pressure ose  Designed to withstand the pressure created by the pump.
3. uel Tan  Fill tank with regular, unleaded fuel. Always leave room for fuel epansion.
Do not fill while machine is running or hot.
4. nloader  ressure is preset at the factory.
5. Pump  Develops high pressure. Connect the garden hose to the water tank as this
feeds water to the pump and connect the high pressure hose to the outlet.
6. etergent Pic p  Low pressure chemical pick up.
7. iration Plate  Connects pump motor group to frame via anti-vibration mounts.
8. earox  Reduces engine speed to 1440 rpm (slow running of pump).
9. Recoil tarter  Used for starting the engine manually.
10. Top Choe Rod  repares a cold engine for starting.
ottom uel ale  Used to turn fuel supply on and off to engine.
11. MufflerExhaust  Reduces noise of the engine and epels heat (CAUTION HOT).
12. Air ilter  rotects the engine by filtering dust and debris out of intake air.
13. Throttle leer  Sets engine in starting mode for recoil starter. Then adust to maimum
speed once started.
14. Engine itch  Set switch to "On" for recoil starting. Set switch to "Off" to stop a
running engine.
15. etergent iphoning ose - Used to draw detergent into the low pressure stream.
16. ater Tan  Holds water in reserve for pump supply (must be FULL before you start
operating).
17. pray Tips  Detergent, 00, 150, and 400 : for various cleaning applications.
[NOTE Tank units are fitted with low water cut out and must be FULL to use.]
13. 14.
5.
7. 8.
16.
15.
17.
Black Detergent
Red Straight
ellow 150
White 400

17
our pressure cleaner requires some assembly and is ready for use after it
has been properly serviced with the recommended oil and fuel. We
recommend AE  Oil for engines. AE 90 Gear Oil for gearbo units
and niversal Tractor Transmission Oil for pump. See page 5.
If you have any problems with the assembly of your pressure cleaner, please
call our support line. If calling for assistance, please have the model and
serial number from the data tag available.
npac the Pressure Cleaner
1. Remove the parts bag, accessories, and inserts included with pressure
cleaner.
2. Open bo completely by cutting each corner from top to bottom.
3. Ensure all contents are present prior to assembly.
Attach andle
1. lace handle (A))onto handle supports (B) connected to main unit.
Make sure holes in handle align with holes on handle supports.
NOTE These diagrams are intended for general reference. As a result, they
3. Insert multi-colored quick connect spray tips and other supplied accesso-
ries in spaces provided on panel.
2. Insert carriage bolts through holes from inside of unit and attach
nuts from outside of unit. Tighten using spanner.
ASSEM
A


18
ollo the steps elo prior to using the machine eery time
1. Check to ensure the engine oil is at the proper level. se AE  Oil.
2.
3.
4. Connect and tighten the garden hose to the GHA (garden hose inlet)
connection.
5. Connect high pressure hose to the pump outlet. Connect the other end to
the spray gun.
** ater must e turned on prior to starting the cleaner pull the
spray trigger to ensure ater is moing through the lines and out the
nole ithout any leas efore starting the unit Tan units ill not
flo ater until started. Tan must e full efore starting.**
6. Review the safety guidelines in the manual prior to starting the unit. If you
have any issues operating the pressure cleaner, call our customer service
line.
Connect ose and ater upply to Pump efore tarting
ANIN
DO NOT start your pressure cleaner without
the water supply turned on.
•Failure to do so will result in damaging the pump from
overheating and void the warranty.
ANIN
Always check the level of the engine oil prior to starting
the cleaner. Oil level of the pumpgearbo should be at
about halfway up the sight glass. If your unit does not
have one, use the oil dipstick. The level should be about
halfway up the dipstick.
•Failure to do so could cause the engine to seize if the oil is
low or empty.
EOEATION CECIST
Check the handle in the frame to ensure they are tight and will not vibrate
loose.
Add fuel to the fuel tank. Be careful not to spill while filling and do not overfill.
This engine is certified to operate on unleaded petrol ith octane rating
of  or higher

19
1. lace pressure cleaner near an outside water source capable of supplying
water at a flow rate of at least 1GM greater than the rated flow of your
pressure cleaner. It should also be no less than 20 SI at pressure cleaner
end of garden hose. DO NOT siphon standing water.
2. Make sure unit is in a level position and apply handbrake (if fitted) or
"chock" wheels as needed.
3. Connect garden hose to water inlet on pressure cleaner pump or tank.
4. Choose desired spray tip, pull back nozzle etension collar, insert spray
tip and release collar. Tug on spray tip to make sure it is securely in place.
See Spray Tips.
NOTICE
DO NOT run the pump without the water supply connected
and turned on.
•Damage to equipment resulting from failure to follow this
instruction will void warranty.
STATIN O CEANE
o to tart our Pressure Cleaner
To start your pressure cleaner for the first time, follow these instructions step-
by-step. This starting information also applies if you have let the
pressure cleaner sit idle for at least a day.

20
5. If your gun uses a quick-connect, pull down on the collar of the quick
connect coupler, slide onto the gun and let go of collar. ull on hose to
thread the connections together until secure.
6. Attach the other end of the high pressure hose to high pressure outlet (A)
on pump. ull down on collar of quick connect, slide onto pump and let go
of collar. Note that some pumps require the hose to be threaded on. Tug on
the hose to ensure connection is secure.
7. Turn Water Supply on if you have not already done so. oint the gun in a
safe direction and squeeze the trigger to purge the pump of air and debris.
Do this until water flow is no longer erratic. Tank units will not flow water
until started.
8.
loose connections. If there are any leaks in hoses, they must be replaced.
IMOTANT DO NOT siphon standing water for the water supply.
Use COLD WATER only (less than 1000F380C). Hot water will damage
seals and compromise the integrity of your pump.
ANIN
The high pressure stream of water that this
equipment produces can cut through skin and its
underlying tissues, leading to serious inury and
possible amputation.
•NEVER connect high pressure hose directly to nozzle etension.
•eep high pressure hose connected to pump and spray gun while
system is pressurized.
A
B
TRIPLEXPUMP*Pump ses AE Nonetergent Mineral Oil
STATIN O CEANE
