barbas BOX 55 User manual

BRUKSANVISNING & UNDERHÅLLSHANDBOK BOX
55
Barbas önskar dig många mysiga kvällar med din nya apparat
Det här dokumentet är en viktig del av din apparat.
Läs den noga innan du använder apparaten och förvara den på ett säkert ställe!
Serienummer:
Produktionsdatum:
Versionsnummer: 03-343822
Datum: 29-05-2019
Multilizer PDF Translator Free version - translation is limited to ~ 3 pages per translation.
Multilizer PDF Translator Free version - translation is limited to ~ 3 pages per translation.

Multilizer PDF Translator Free version - translation is limited to ~ 3 pages per translation.
Multilizer PDF Translator Free version - translation is limited to ~ 3 pages per translation.

1.
2.
3.
4.
5.
6.
7.
-
8.
BOX 55
Instruktioner för användning
Unik identifieringskod för produkttypen
Byggproduktens avsedda användning eller
användningar, i enlighet med tillämpliga
harmoniserade tekniska specifikationer enligt
tillverkarens
Tillverkarens namn, registrerade firmanamn eller
registrerade varumärke och kontaktadress enligt vad
som krävs enligt artikel 11 (5)
I tillämpliga fall, namn och kontaktadress för den
befullmäktigade representant vars uppdrag omfattar
de uppgifter som anges i artikel 12 (2).
System eller system för bedömning och kontroll av
beständigheten hos byggprodukten enligt bilaga V
System 3
När det gäller prestandadeklarationen för en
byggprodukt som omfattas av en harmoniserad
standard
Deklarerad prestanda
Brandsäkerhet
Avstånd till brännbara material
Väsentliga egenskaper
Minsta avstånd, i mm
Bakre =
Passera
350
450
Sidor =
tak =
front =
golv =
1800
30
Npd
Passera
Ej tillämpligt
Termisk utgång
Nominell värmeeffekt
Mekaniskt motstånd (för att bära en skorsten/rökkanalen)
Energieffektivitet
Vatten värmeutgång
Undertecknat för tillverkarens räkning av:
Danny Baijens, VD
(Namn och funktion)
Bladel
(ort och datum för utfärdandet)
September 18, 2018
...................................................................................
Signatur
Prestandan hos den produkt som anges i punkt 1 överensstämmer med den deklarerade prestandan i punkt 7.
Denna Prestandadeklaration utfärdas på eget ansvar av den tillverkare som anges i punkt 3.
-kW
9 kW
75%
Passera
Passera
CO = 0,05 Vol%
9 kW
Passera
Rumsuppvärmning utgång
Elsäkerhet
Rengöring
Yttemperatur
Maximalt arbetstryck
Rökgastemperatur vid Nominell värmeeffekt
Utsläpp av farliga ämnen
T = 342 ° C
Npd
Risk för förbränning av bränsle
som faller ut utsläpp av
förbränningsprodukter
Passera
Prestandadeklaration enligt
förordning (EU) 305/2011 nr.
1.812.081-2-CPR-2013/07/01 Box
55
Rumsvärmare utan varmvattenförsörjning
Barbas Bellfires BV; Hallenstraat 17; 5531 AB Bladel; Nederländerna
Ej tillämpligt
Det anmälda laboratoriet SGS Nederland BV, nr 0608, utförde fastställandet av
produkttypen på grundval av typ provning enligt System 3 och utfärdat
provningsrapport EZKA/2016-07/00008-1
Harmoniserad teknisk specifikation
EN13240:2001/A2:2004/AC: 2007
Prestanda
3
Multilizer PDF Translator Free version - translation is limited to ~ 3 pages per translation.
Multilizer PDF Translator Free version - translation is limited to ~ 3 pages per translation.

1.
2.
3.
4.
5.
6.
7.
-
-
8.
BOX 55
Instructions for use
Unique identification code of the product-type
Intended use or uses of the construction product, in
accordance with the applicable harmonised technical
specification, as foreseen by the manufacturer
Name, registered trade name or registered trade mark
and contact address of the manufacturer as required
pursuant to Article 11(5)
Where applicable, name and contact address of the
authorised representative whose mandate covers the
tasks specified in Article 12(2)
System or systems of assessment and verification of
constancy of performance of the construction product
as set out in Annex V
System 3
In case of the declaration of performance concerning a
construction product covered by a harmonised
standard
Declared performance
Fire safety
Distance to combustible materials
Essential characteristics
Minimum distances, in mm
Rear =
Pass
350
300
Sides =
Ceiling =
Front =
Floor =
1300
NPD
Pass
Not applicable
Thermal output
Nominal heat output
Mechanical resistance (to carry a chimney/flue)
Energy efficiency
Water heating output
Signed for and on behalf of the manufacturer by:
Danny Baijens, CEO
(Name and function)
Bladel;
(place and date of issue)
September 18, 2018
………………………………………………………………………..
(Signature)
The performance of the product identified in point 1 is in conformity with the declared performance in point 7.
This declaration of performance is issued under the sole responsibility of the manufacturer identified in point 3.
- kW
9 kW
75 %
Pass
Pass
CO = 0.05 vol%
9 kW
Pass
Room heating output
Electrical safety
Cleanability
Surface temperature
Maximum operating pressure
Flue gas temperature at nominal heat output
Release of dangerous substances
T = 342 °C
NPD
Risk of burning fuel falling out
Emission of combustion products
Pass
Declaration of Performance
According to regulation (EU) 305/2011
No. 1.812.082-2 -
CPR-2013/07/01 Box 55 with woodlog storage module
Room heater without hot water supply
Barbas Bellfires BV; Hallenstraat 17; 5531 AB Bladel; The Netherlands
Not applicable
The notified laboratory SGS Nederland BV, No. 0608 performed the
determination of the product type on the basis of type testing under system 3
and issued test report EZKA/2016-07/00008-1
Harmonized technical specification
EN13240:2001/A2:2004/AC:2007
Performance
4

BOX 55
Instructions for use
CONTENTS
Page
1. INTRODUCTION ........................................................................................ 7
2. SAFETY ...................................................................................................... 8
3. OPERATION ................................................................................ ............. .. 10
4. USING THE APPLIANCE FOR THE FIRST TIME ........ .. ............................ 12
5. USE ............................................................................................................. 15
6. FUEL ........................................................................................................... 22
7. MAINTENANCE .......................................................................................... 24
8. FREQUENTLY ASKED QUESTIONS ......................................................... 26
9. TECHNICAL DATA ...................................................................................... 30
10. WARRANTY TERMS .................................................................................. 31
5

BOX 55
Instructions for use6

BOX 55
Instructions for use
1 INTRODUCTION
Congratulations on your purchase of this modern Barbas appliance.
This quality product will provide you with many years of enjoyment due to the fl ame
effect and warmth that it provides.
This appliance is recommended as suitable for use in smoke control areas when
burning wood logs. The appliance, when sold into the UK market, include a factory-
installed modifi ed air slider to ensure compliance with smoke emission requirements
within smoke control areas.
Study this manual carefully before using the fi replace. We recommend you keep this
manual in a safe place for reference purposes.
The images in this manual are made of a different variant of this appliance.
The depicted appliance may differ from your device, but the actions and instructions
shown are fully valid for the unit described here.
“The Clean Air Act 1993 and Smoke Control Areas”
Under the Clean Air Act local authorities may declare the whole or part of the district of
the authority to be a smoke control area. It is an offence to emit smoke from a chimney
of a building, from a furnace or from any fi xed boiler if located in a designated smoke
control area. It is also an offence to acquire an “unauthorised fuel” for use within a
smoke control area unless it is used in an “exempt” appliance (“exempted” from the
controls which generally apply in the smoke control area).
In England appliances are exempted by publication on a list by the Secretary of State
in accordance with changes made to sections 20 and 21 of the Clean Air Act 1993 by
section 15 of the Deregulation Act 2015.
In Scotland appliances are exempted by publication on a list by Scottish Ministers under
section 50 of the Regulatory Reform (Scotland) Act 2014.
In Northern Ireland appliances are exempted by publication on a list by the Department
of Agriculture, Environment and Rural Affairs under Section 16 of the Environmental
Better regulation Act (Northern Ireland) 2016.
In Wales appliances are exempted by regulations made by Welsh Ministers.
Further information on the requirements of the Clean Air Act can be found here:
https://www.gov.uk/smoke-control-area-rules.
Your local authority is responsible for implementing the Clean Air Act 1993 including
designation and supervision of smoke control areas and you can contact them for details
of Clean Air Act requirements.
7

BOX 55
Instructions for use
2 SAFETY
Do not place fl ammable objects within 130 cm of the appliance.
Pay special attention to furnishings and ornaments around the
appliance.
When you use your appliance, the exterior will become hot. Always wear
the glove or use the accessories supplied when fi lling etc. Protect
yourself and others (especially children!) from burns. Do not leave
children unattended when the appliance is burning.
Watch your clothing. Synthetic clothing in particular can easily catch fi
re and burn intensely.
Do not approach the appliance with fl ammable materials or liquids.
Any work with solvents, adhesives etc. in the space heated by the
appliance can be very dangerous.
It is not allowed to connect the appliance to a fl ue which is already
connected to another appliance.
Make sure you know what state your chimney is in. Cracks in the
chimney may not only lead to damp, staining of walls and leaking
of smoke, they can also impair the carrying off of smoke. Make
sure you get proper advice from your dealer or other specialist
company.
Avoid chimney fi res! Have your chimney swept at least once per
year - more often if you use your appliance a lot. Prevent excessive
deposits of soot inside the chimney by not burning freshly-cut wood.
Instead, burn clean, dry chopped wood.
Ensure that the room in which the appliance is situated has adequate
ve ntilation.
It is essential that the appliance, the fl ue and combustion air supply
are cleaned and inspected annually by a Barbas dealer/specialist.
The safe operation of the appliance will thus remain guaranteed.
8

BOX 55
Instructions for use
The appliance must never be used with the door open or the door
glass removed.
Wood and wood briquettes may be stoked in the appliance.
Coals can’t be burned in the appliance.
Avoid over-loading (white burning glow), caused, for example, by
lengthy burning with a fully open primary air vent (combustion air
supply slider all the way to “ +
one go. The appliance can then become over-heated.
”), or by burning too much wood in
Never use the appliance to burn rubbish.
Do not use your appliance as a barbecue. This can cause (fl ammable)
fat deposits to be left in the chimney and hastens the chimney
becoming clogged.
Ensure at all times that children and other people who are not aware
of the operation of a wood-burning appliance are only in the vicinity of
the appliance exclusively under supervision.
Use a fi reguard to protect the people and children mentioned
above against possible burns.
The appliance is suitable and approved for intermittent use.
The appliance can be taken in operation if national and local regulations
are satisfi ed. The required constructive adaptations should be
satisfi ed as well.
9

BOX 55
Instructions for use
3 OPERATION
Figure 1: Operation Box
1 Handle
2 Ceramic heat-proof glass
3 Grate
4 Ashtray
5 Combustion air-supply slider (Combined operation for the primary, secondary and
tertiary combustion air-supply)
6 Inlet opening (2x) combustion air from living-room, if a direct outside air supply is not
connected. This will be determined when the appliance is installed.
Do not EVER close open inlet openings.
7 External connection combustion air supply (not pictured: possible at the bottom)
10

BOX 55
Instructions for use
Figure 2: Operation Box with log store
1 Handle
2 Ceramic heat-proof glass
3 Grate
4 Ashtray
5 Combustion air-supply slider (Combined operation for the primary, secondary and
tertiary combustion air-supply)
6 Inlet opening (2x) combustion air from living-room, if a direct outside air supply is not
connected. This will be determined when the appliance is installed.
Do not EVER close open inlet openings.
7 External connection combustion air supply (not pictured: possible at the bottom)
11

BOX 55
Instructions for use
4.2 INCLUDED
4 USING THE APPLIANCE FOR THE FIRST TIME
4.1
Allow your home to dry properly, after you have had your chimney breast modifi ed or
newly built. Walls which have not been allowed to dry properly are a magnet for dust
such as any smoke particles created when stoking up the appliance or suddenly
opening the door.
GENERAL
Even scorched dust can easily be retained by damp walls. Think also of dust on the
outside of the appliance or on hot radiators, lamps etc.
Check that all packaging, stickers etc. and/or all dust and waste has been cleaned up
after the installation work (to avoid it getting scorched/causing a bad smell).
The appliance is coated with a lacquer layer resistant to high temperature.
During the fi rst hours of operation, the burning in of the lacquer may result in an
unpleasant smell. This is harmless, however.
To speed up the process, the appliance should be allowed to run for a few hours at the correct
heat level, with adequate ventilation for the room in question.
After using your appliance for the fi rst few times, you may be aware of a light deposit
on the inside off the glass. This is caused by the paint curing. Once your appliance has
cooled down, this deposit can be removed with glass cleaner or ceramic hob cleaner.
At the start of the heating season, check that the fl ue/chimney is not blocked, for
instance by birds’ nests etc.
N.B. If any part is missing, please contact your dealer.
Documentation • Instructions for use
• Installation instructions
Attributes • Glove (Heat resistant up to max. 95°C)
• Operating hook / Poker
12

BOX 55
Instructions for use
4.3 INSPECTION OF THE APPLIANCE BEFORE FIRST USE
Check all available functions before using the appliance for the fi rst time .
• Check the opening and closing operation of the door.
Turn the handle all the way down:
Door is locked.
Handle forwards:
The door releases from its lock and can be opened forwards.
For this, use the operating hook supplied.
13

BOX 55
Instructions for use
• Check whether the 2 baffl e plates are located correctly in the supports.
• Check the operation of the slider for the regulation of the combustion air intake (middle
below the window) .
• Check whether the ashtray is completely empty.
• Report any defects immediately to your dealer.
• Remove enclosed documents and components from the appliance.
• Check that all grates in the fi replace are open.
14

BOX 55
Instructions for use
5 USE
5.1 VENTILATION
If wood is to burn, it needs air. For each kilo of wood that you put on the appliance (door
closed), 10 - 15 m of extra air is needed. That means about 35 m per hour!
3 3
Depending on how the appliance has been installed, the combustion air will either be
drawn directly from outside or from the living room itself. If the air is drawn in from the
room, it must be ventilated by an opening in the external wall.
If the combustion air is led outside through a pipe, we recommend that a sealing valve
is fi tted in this pipe. This prevents condensation forming in the appliance when it is not
in use. Ensure that the fl ap is always open before using the appliance.

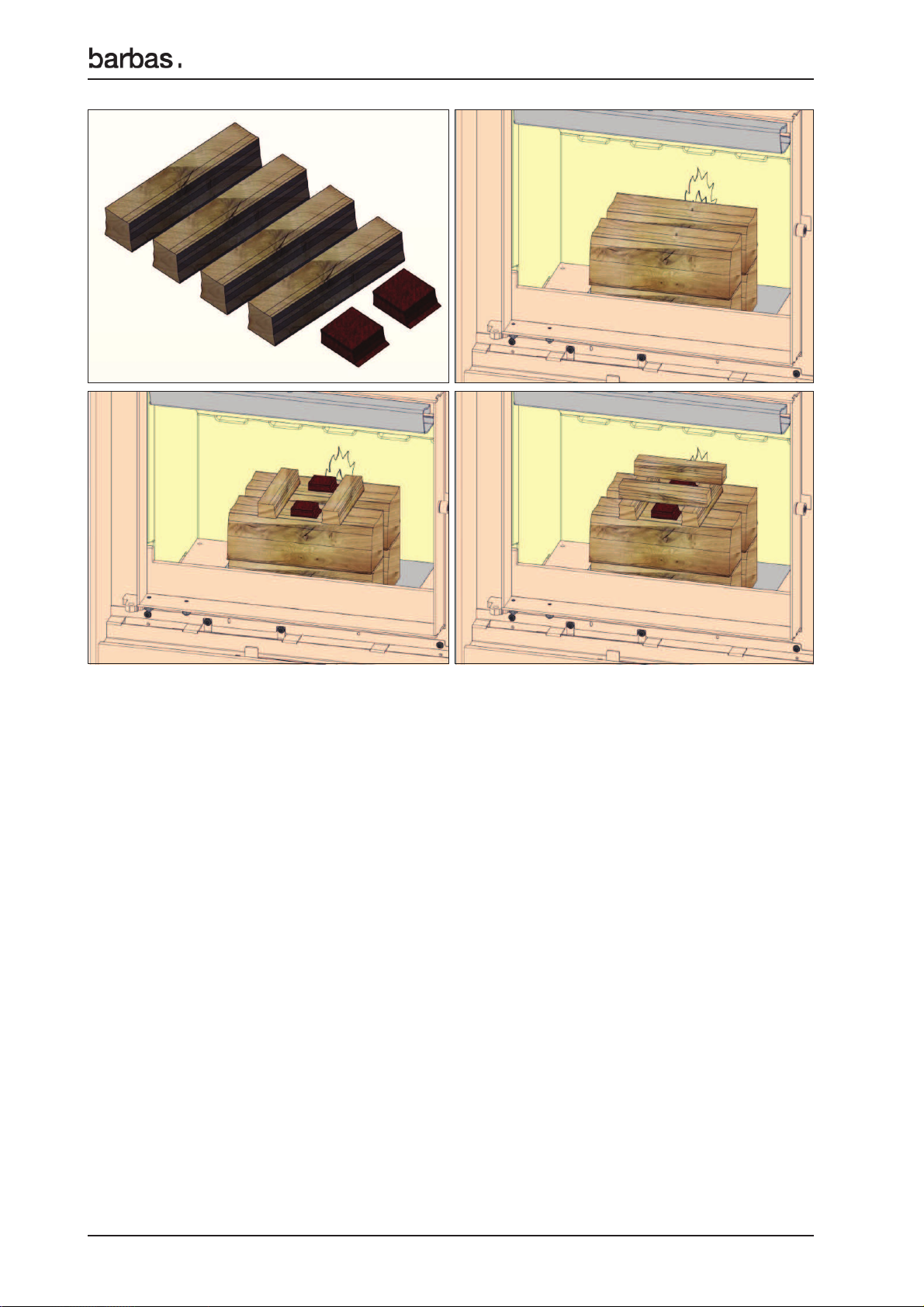

5.2 GETTING THE APPLIANCE GOING
When you start the appliance, the chimney is still cold and there is little draught.
Before the fi re is lit, turn the operating handle completely to the right (maximum air
supply). Open any chimney valve and the valve in the external combustion air pipe.
Place 4 wood blocks in the combustion chamber and place several fi re lighting sticks
on them diagonally. Place 2 fi re lighting blocks between the fi re lighting strips. Ensure
that fi re lighting strips are placed above the fi re lighting blocks. Refer to the illustrations
below. Light the fi re lighting blocks and close the door as soon as they are well lit. After
approximately 20 minutes the wood blocks will be completely lit. Leave the door closed
as long as fl ames are visible. The appliance can be loaded again as soon as all of the
fl ames have disappeared.
Attention: If the door is opened during the lighting process, while all
of the wood has not yet been burned, smoke can escape.
Only open the door when you need to load more wood.
15

BOX 55
Instructions for use
5.3 INSTRUCTIONS WHILE STOKING
Using the air supply slider you can adjust the air supply for further combustion.
Make sure the appliance burns quietly.
Note: Once you have got the appliance going, leave the air supply slider in the centre
position for optimal combustion. Your appliance will then be much cleaner and more
effi cient (more heat, less topping up).
16

BOX 55
Instructions for use

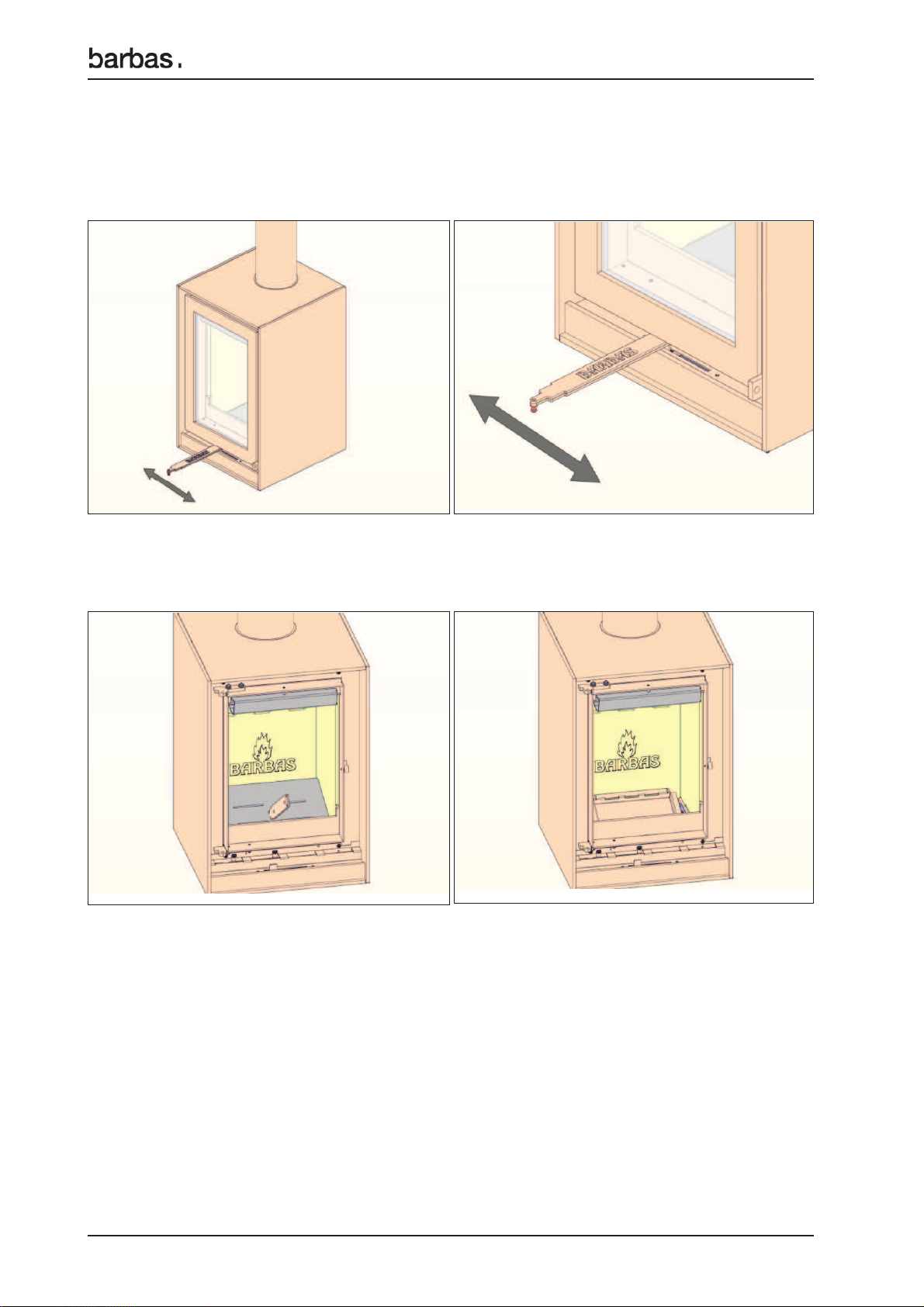

Combustion air supply slider
Control range of primary air supply (by grate)
Control range of secondary and tertiary air supply
Centre position
We recommend that you maintain a substantial layer of ash (2 - 3 cm). This not only
forms a protective layer for the base of the appliance but also signifi cantly reduces
consumption of fuel and allows new wood to catch light easier.
When loading the appliance with fuel, two blocks measuring ca. 15 cm long and 25 cm
perimeter is suffi cient. Only load again when the last fl ames have disappeared. This
ê
is after approximately 45 minutes. Do not leave the door open longer than necessary.
The maximum amount of fuel specifi ed in this manual should not be exceeded,
overloading can cause excess smoke and damage to the appliance.
Refuelling on to a low fi re bed.
If there is insuffi cient burning material in the fi rebed to light a new fuel charge,
excessive smoke emision can occur. Refuelling must be carried out onto a suffi cient
quantity of glowing embers and ash that the new fuel charge will ignite in a reasonable
period. If there are too few embers in the fi rebed, add suitable kindling to prevent
excessive smoke.
Weather conditions
In order to reduce pollution and any other inconvenience, we advise not fi ring up the
appliance when there is no wind, or in foggy/misty conditions.
Smoke development
Your appliance has been designed to be used with the load/observation door closed.
Should you use it with the door open, under certain circumstances (presence of mechanical
ventilation, draught, differences in barometric pressure) smoke may enter the room in
which the appliance is situated.
Use of the appliance
Your appliance is suitable for periodic use.
The appliance may only be positioned in a place where the location, construction and
activity in the room can accommodate it without danger.
17

BOX 55
Instructions for use
Ventilation
When using the appliance, ensure a good supply of fresh air, particularly if the combus-
tion air is drawn from the room itself. Turn on the fl ue gas fan if the fl ue is fi tted with one.
Spare parts
Any replacement parts must be new, original parts. Use of non-original/reconditioned
parts will invalidate your warranty.
Modifi cation
Do not make modifi cations to your appliance.
Any alteration to your appliance, of whatever nature, will also invalidate your warranty.
Only open the door for fi lling and lighting the appliance and for removing the ash. Keep
the door shut at all other times.
Continuous stoking while burning wood logs with the primary air supply
open (combustion air supply slider is right over to the “ + ” position) (air
through the grate) causes a fi ercely white-hot fi re that can damage the
grate and other parts of the appliance.
5.4 HEATING ECONOMICALLY
The most environmentally-friendly and economic way of heating with wood is to have
your fi re hot but calm. The ash should appear to glow a soft red-orange and should not
glow like a blacksmith’s fi re. Fires like that burn quickly and intensely, leaving little
time for complete combustion.
Your appliance is at its most economical when :
• Using dry and clean wood (as described further in Chapter 6).
• Always ensure even combustion. Stoke with the primary air regulator closed.
To do this, place the combustion air supply slider in the centre position.
• The bed of the fi re should be homogeneous, and the fi re must have easy access
to air. Position the blocks of wood (loosely and evenly) horizontally on the bed of
ash, so that they are separate and several centimetres away from the walls.
5.5 CLEANING THE WINDOW
After several burning hours, a light deposit may form on the inner side of the window.
Once the appliance has cooled down, this deposit can be removed using glass cleaner
or ceramic hob cleaner.
18

BOX 55
Instructions for use
To reduce the chance of accidental escape
of smoke, it is strongly adviced to follow the
fi ring instruction as stated in 5.2.
5.6 INCREASE THE FLUE DRAUGHT
If there is too much fl ow resistance in the chimney, causing insuffi cent fl ow of of the fl
ue gasses, one can increase the chimney draught.
To do this, remove the upper baffl e from the appliance and detach the back part of the baffl e
by moving this part back and forth until it breaks. (see fi gures hereunder) Subsequently,
replace the baffl e in the appliance.
19

BOX 55
Instructions for use
5.7 GENERAL HEATING TIPS
• Burn dry wood only. Damp wood not only burns poorly, it causes more pollution
in the appliance (window), the chimney, your room (when opening the door of the
appliance, for instance) and the environment. Wood can only be classifi ed as dry if it
has been stored under a Dutch barn for at least two years (not covered with plastic).
Never use painted or impregnated wood. The gases emitted when burning painted or
impregnated wood are aggressive and will affect the appliance, the environment and
your health.
• Ensure that your appliance burns well. The smoke generated should be translucent
or white and the windows of the appliance will remain clean. We recommend that
you do not ‘pinch off’ your appliance (by closing all air openings). Doing so will hinder
combustion which, apart from polluting the atmosphere, will lead to deposits of soot
and tar in your chimney (which, unchecked, will increase the risk of chimney fi re).
• Keep the door shut when the appliance is burning. Doing so improves the
performance of your appliance 8 - 10 times, benefi ting the environment and the heat
in your home (less topping up). You will also prevent appliance damage from any
particles the appliance ‘spits’ out (this is a particular problem with softwood from
conifers). If your fl oor contains fl ammable material, an extra fl oor plate is required.
• Avoid lighting an appliance in misty or still conditions. If the wind is still, there is
hardly any draught in the cold chimney. As smoke is heavier than air, there is a
chance that smoke will enter the room. If there is mist in the air, smoke coming out
of your chimney will cool quickly and fall, causing problems in your area.
• Do not extinguish your appliance with water - let it burn out. The part of the inner
lining that is in direct contact with the appliance is clad with fi re-resistant material.
Sudden changes in temperature may lead to it deforming or cracks appearing.
• Chimney fi re.
If, despite all the precautions, a fi re should occur in the chimney (you generally notice
that because of a roaring sound in the chimney), do the following:
• Immediately shut the chimney fl ap (if fi tted).
• Immediately shut the air supply to the appliance.
• Call the fi re brigade ( 112).
(
• Quickly quench the fi re in the appliance with sand or soda in order to prevent
smoke in your house.
• Never use water to put out the fi re.
• Ventilate.
• If there has been a fi re in the chimney, have it swept and inspected for damage
and leakage.
20
