Barbeques Galore ALISLSINK Operator's manual
Page 1
WELCOME TO THE WORLD OF BARBEQUES GALORE OUTDDOR COOKING
INSTRUCTIONS FOR ASSEMBLY AND USE OF
ALFRESCO SINK UNIT
Code: ALISLSINK
For the safe use and enjoyment of your new barbeque.
These instructions contain important information that needs to be followed for the safe assembly and use of your
sink unit. Please read through carefully and completely prior to assembly.
Take care to remove all packaging materials and protective coatings from the sink unit before
first use.
For Code: ALISLSINK
Tools required:
1 x Adjustable spanner
1 x Phillips head screwdriver
1xRegularscrewdriver
Page 2

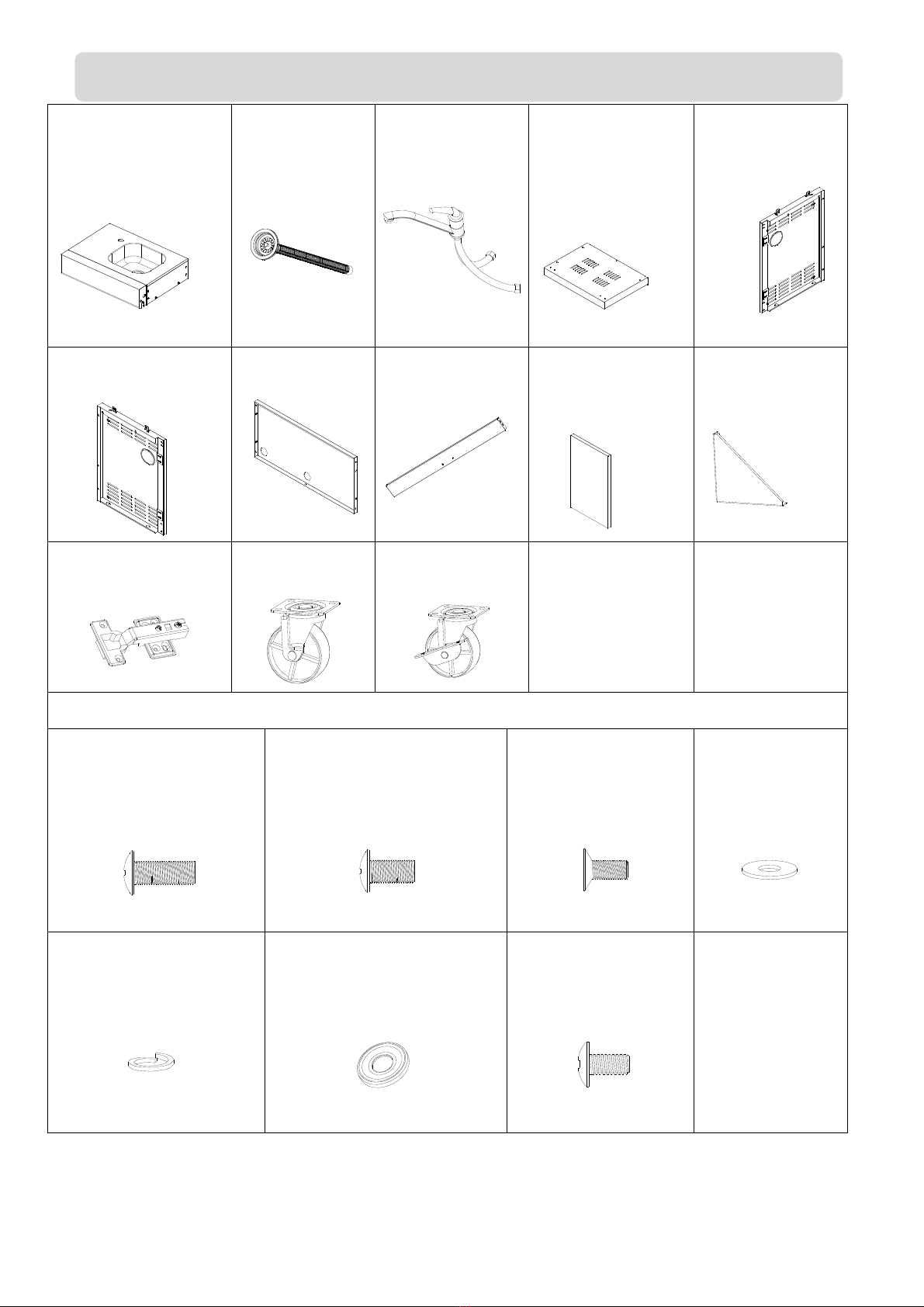

Contents list. Carefully unpack the carton and check all the parts:
1. One Sink Assembly 2. One Waste
Drain Fitting
Set
3. One Tap 4. One Base Panel 5. One Left Side
Panel
6. One Right Side
Panel 7. One Rear
Panel 8. One Cart Front
Beam 9. Two Doors 10. Two Triangle
Plates
11. Four Door Hinges 12. Two Castors
without lock 13. Two Castors
with lock
Bolt Pack Contents
A. Twenty four M6*16mm
Screws B. Twenty three M6*12mm
Screws (including 2pcs
spare)
C. Twenty four
M4*10mm Screws D. Sixteen M6
Flat Washers
E. Sixteen M6 Spring
Washers F. Four M6 Special Washers G. Three M4*8mm
Screws (all spares)
Before you start, check that you have all the contents as above. Remove all items, including
any packing materials from the firebox and hood assembly. Dispose of all packing materials
only after assembly is complete.
Page 3
Assembly instructions
STEP 1: Attach Castors
STEP 2: Attach the Cart Side Panel.
WHAT YOU NEED:
two x Castors without lock (12)
two x Castors with lock (13)
one x Base panel (4)
sixteen x M6*16mm screws (A)
sixteen x M6 flat washer (D)
sixteen x M6 spring washer (E)
Use four M6*16mm screws (A),
four M6 flat washers (D) and four
M6 spring washers (E) to attach
each castor onto the underside of
base panel (4) (two castors
without lock (12) at the front and
two castors with lock (13) at the
back).
WHAT YOU NEED:
one x Left side cart panel (5)
one x Right side cart panel (6)
four x M6*12mm screws (B)
Use two M6*12mm screws (B) to
attach cabinet left side panel (5)
and two more to attach cabinet
right side panel (6) both to the base
panel (4).
Note: Door hinge brackets should
be at the front.
A x four x 4
D x four x 4
E x four x 4
FRONT
RIGHT
B x two x 2
12 x two
13 x two
Page 4
Assembly instructions (continued)

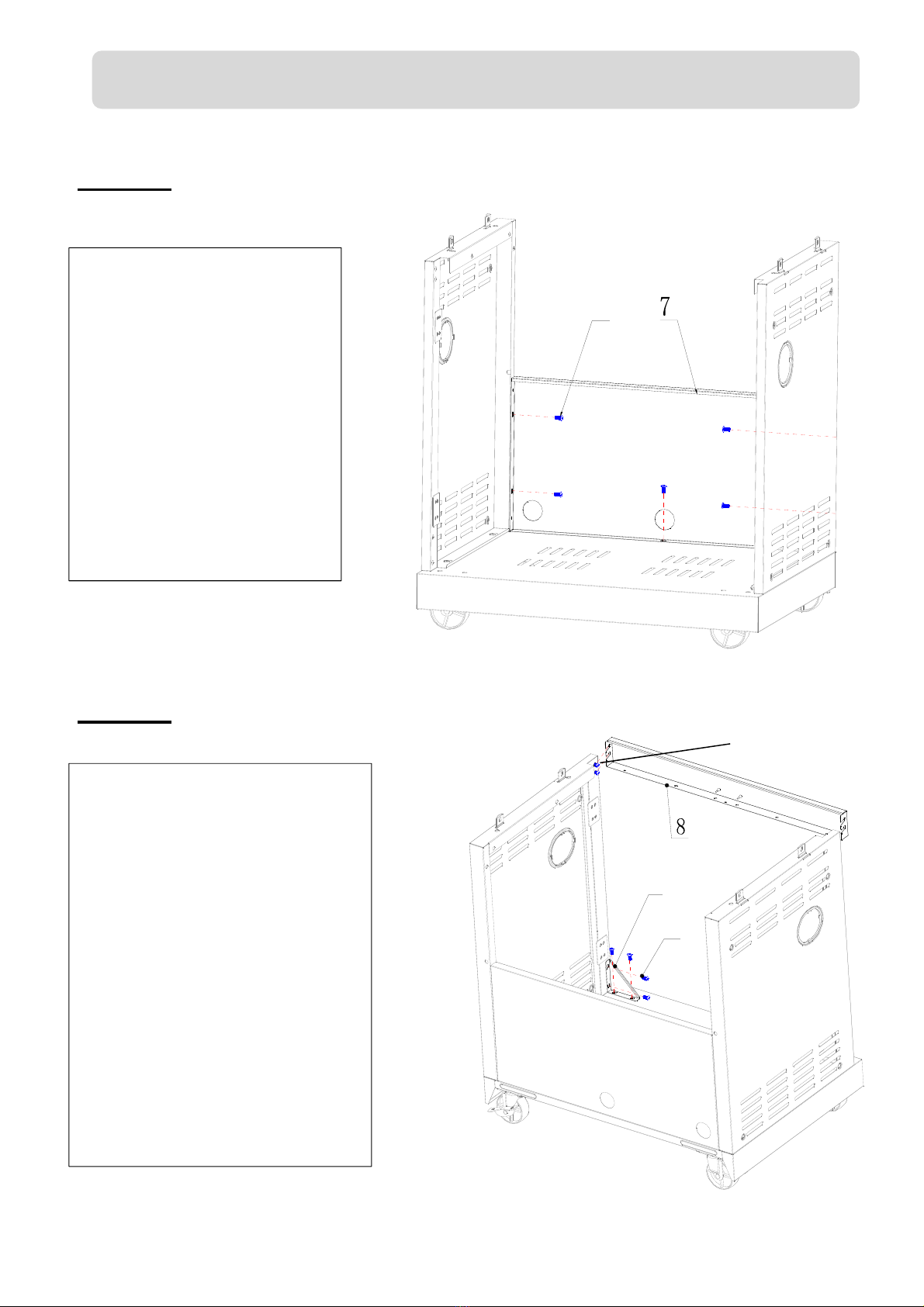

STEP 3: Attach Rear Panel.
STEP 4: Attach the Cart Front Beam and Triangle Plates.
WHAT YOU NEED:
one x Rear panel (7)
five x M6*12mm screws (B)
Attach the rear panel (7) to
the cart with five M6*12mm
screws (B).
Note: Do not fully tighten the
screws until all five screws are
started.
WHAT YOU NEED:
one x Cart front beam (8)
two x Triangle plates (10)
twelve x M6*12mm screws (B)
a) Attach cart front beam (8) to
the cart side panels with four
M6*12mm screws (B).
b) Attach each triangle plate (10)
to a side panel and to the base
panel with four M6*12mm
screws (B).
B x fou
r
x 2
B x five
FRONT
BACK
10 x two
B x two x 2
Page 5
Assembly instructions (continued)
STEP 5: Attach the Door Hinges.
STEP 6: Attach the Doors.
WHAT YOU NEED:
four x Door hinges (11)
sixteen x M4*10mm screws (C)
Attach door hinges (11) to the
cabinet left (5) & right (6) side
panels top and bottom, each
hinge with four M4*10mm
screws (C).
WHAT YOU NEED:
two x Doors (9)
eight x M4*10mm screws (C)
Attach the doors (9) to the
hinges with two M4*10mm
screws (C) on each hinge.
C x two x 4
C x four x 4
11 x four
9 x two
Page 6
Assembly instructions (continued)

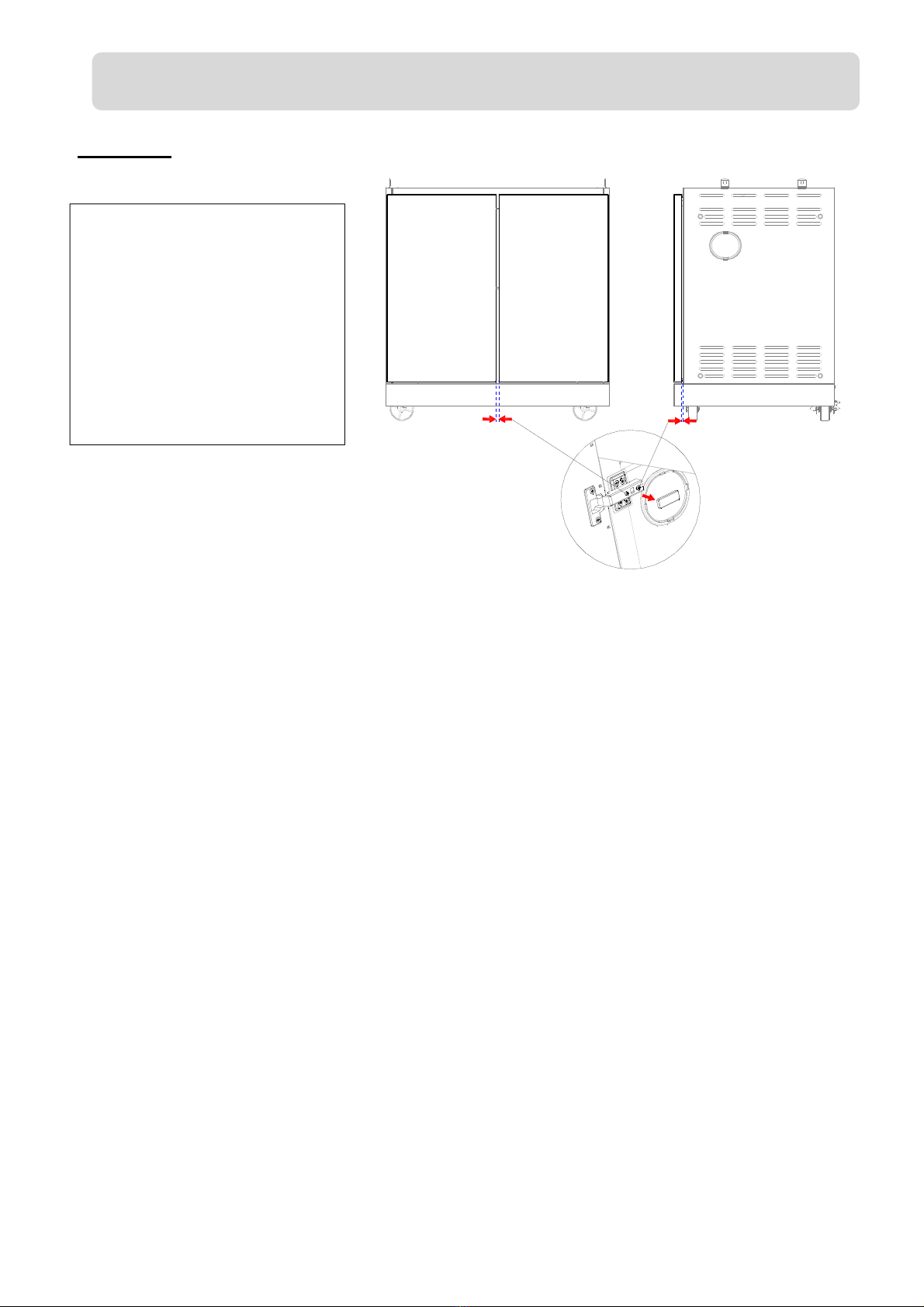

STEP 7: Adjust the Door Gap.
There are 2 adjustable screws
on each door hinge, use them
to adjust the door gap if
required.
Note: It is better to wait until
the unit is fully assembled and
in position before finally
adjusting the doors.
Page 7
Assembly instructions (continued)
STEP 8: Attach the Tap and Waste Drain Fittings.
STEP 9: Attach the Sink Assembly. (Use two people for this step)
WHAT YOU NEED:
one x Tap (3)
one x Waste drain fitting set (2)
one x Sink assembly (1)
(i) Remove the pre-assembled
nut (a) and washers (b+c) from
the tap.
(ii) Fit the threaded end of the tap and
the water hoses through the tap
hole and secure with the washers
(b+c) and locking nut (a).
(iii) Fit the waste drain fittings to the
sink bowl in the order pictured,
tighten the flange nut (i) firmly.
(iv) Attach the waste drain flexible
pipe (j).
Note: The flexible pipe (j) must
terminate in a suitable drain point in a
way that complies with your local
regulations based on intended use.
WHAT YOU NEED:
one x Sink assembly (1)
four x M6*16mm screws (A)
Place the sink assembly (1) onto
the cabinet, fix with four M6*16mm
screws (A) as shown.
Plug
d
e
c
b
a
f
g
h
i
j
a – Locking nut
b – Nut
c – Washer
Waste drain fittings:
d – Waste drain body
e – Thin gasket
f – Adaptor gasket
g – Adaptor
h – ‘O’ ring
i – Flange nut
j – Waste drain flexible pipe
A x four
Page 8
Configure the alfresco island with separately available units
Configure your alfresco island by combining:
G4ALF2 G6ALF2 ALISLSINK ALISLRANGE
4 burner bbq 6burner bbq sink unit range unit
Note: The barbeques and range units need separate, independent gas supplies.
BBQ + Sink unit + Range unit
BBQ + Range unit + Sink unit
BBQ + Sink unit or Range unit
Note: The side burner must only fit onto the LEFT side of the BBQ as above.
OR + +
Page 9
Configure the alfresco island with separately available units (continued)
How to join your alfresco island units
What you need:
four M6*16mm screws (A) for each connection (four are included in the bolt packs that come
with the sink unit and the range unit)
If joining a separately purchased barbeque to an optional sink unit or to an optional range unit,
open the cart door for that optional unit, then connect that unit to the barbeque with four
M6*16mm screws (A) as shown.
If joining a separately purchased barbeque to an optional sink unit and an optional range unit
all together, open the cart doors for the sink and the range units, connect the first unit to your
barbeque with four M6*16mm screws (A) as shown, then connect the second unit to the first
unit with another four M6*16mm screws (A) as shown.
A x four
A x four x 2
Page 10

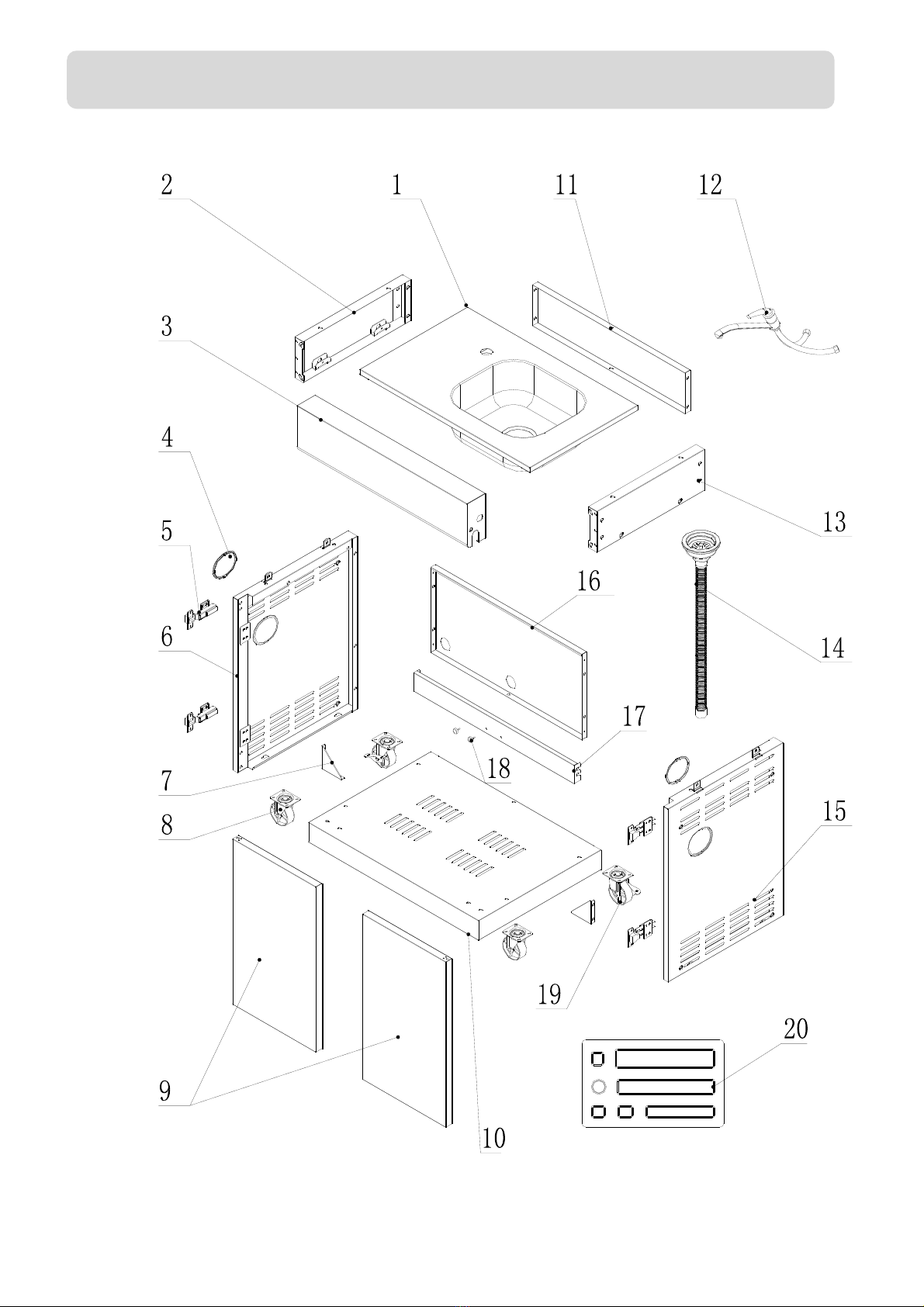

Exploded Drawing - Part List
Page 11
Exploded Drawing - Part List
PART
NUMBER PART CODE DESCRIPTION QTY PER
SINK UNIT
QTY PER
SPARE
PART PACK
1 CP9153154 Sink Top Assembly 1 1
2 CP9153062 Left Side Panel for Sink 1 1 set
3 Front Panel for Sink 1
4 CP9153087 Plastic Ring for Cart Panels 2 1
5 CP9153104 Door Hinge 4 1
6 CP9153053 Left Side Panel for Cabinet 1 1
7 CP9153108 Triangle Plate 2 2
8 CP9153120 Castor without Lock 2 1
9 CP9153126 Door Assembly 2 1
10 CP9153068 Base Panel 1 1
11 CP9153045 Rear Panel for Sink 1 1
12 CP9153070 Tap 1 1
13 CP9153061 Right Side Panel for Sink 1 1
14 TBD Waste Drains Fittings 1 1 set
15 CP9153052 Right Side Panel for Cart 1 1
16 CP9153083 Rear Panel for Cart 1 1
17 CP9153082 Cart Front Beam 1 1
18 CP9153090 Rubber Cushion 2 2
19 CP9153121 Castor with Lock 2 1
20 CP9153056 Bolt Pack 1 1
Page 12
Care and Maintenance
Your sink unit will look better and last longer if you keep it clean.
How to care for stainless steel:
Even though stainless steel is remarkably resistant to tarnish and rust relative to ordinary
steels, it still needs proper care. We recommend the following:
•After use, clean the stainless steel surfaces with fresh water and a soft cloth.
•Where light cleaning is needed, a commercially available stainless steel cleaner with a soft
cloth should be used.
•To repair minor tea staining or pitting, you can use a light, non-metallic scour pad. It is
important that you rub with the natural grain of the stainless steel surface to avoid leaving
visible scratch marks.
•Use 3M stainless steel cleaner available for your local Barbeques Galore store to polish
and protect all stainless steel surfaces. Follow the manufacturer's instructions on the can.
Do not use while the barbeque is on or still hot!
•Between uses, it is a good idea to leave the barbeque covered to prevent dust and air
borne salts settling on the stainless steel surfaces. If left for too long, these particles can
act as rust centres.
•Use a ventilated cover, or add a couple of sponges between the cover and the unit to
promote ventilation and reduce condensation.
With a small amount of care, your investment in quality stainless steel will keep its beautiful
finish as well as its value for a long time to come.
Page 13

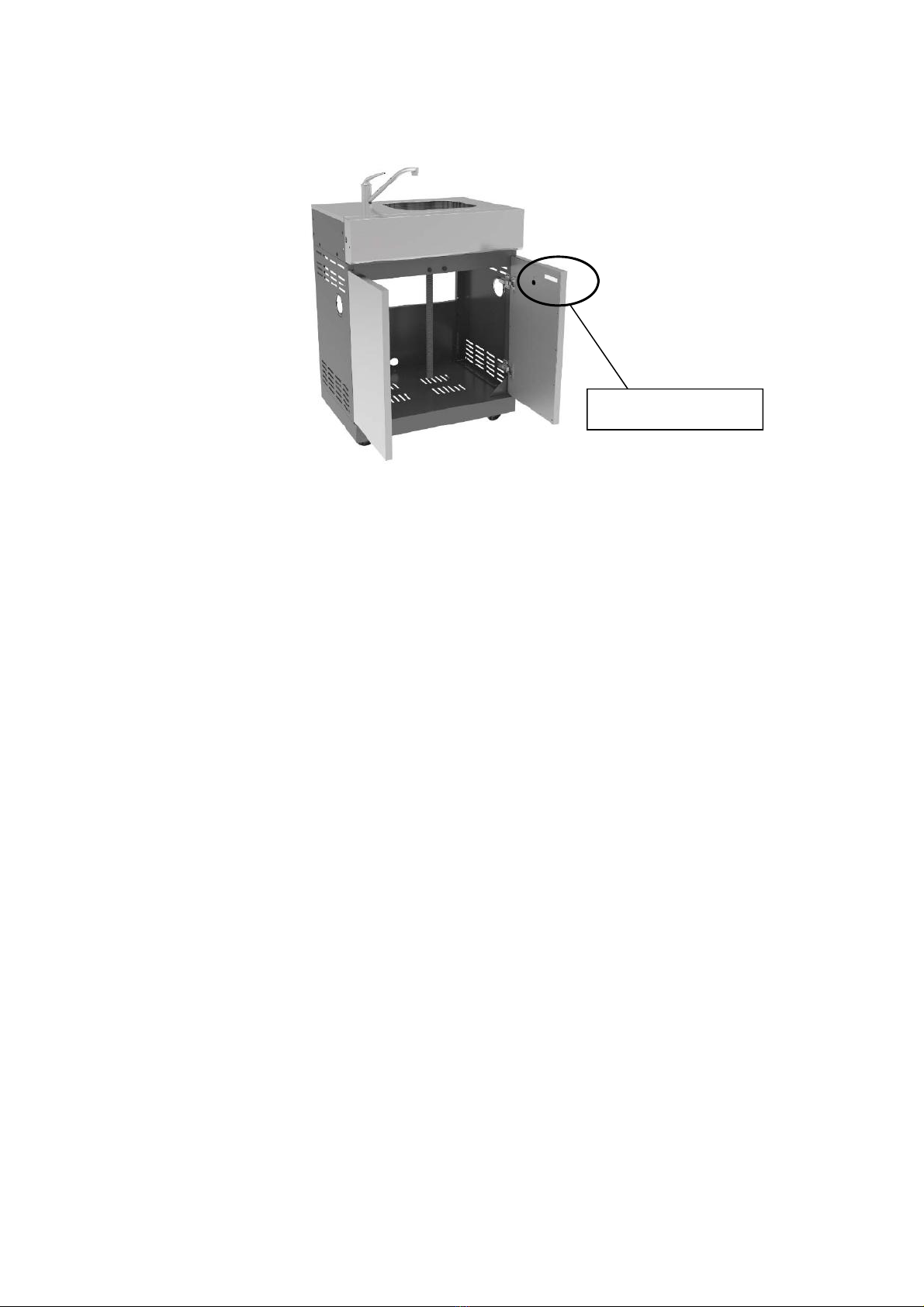

The serial number starting with “AF” is unique for each unit and can be found on the
inside of the right door as shown below.
Need More Information?
Call your local Barbeques Galore store where barbeque experts will be happy to help you.
Phone 1 300 301 392
Or visit us online at: www.barbequesgalore.com.au
Barbeques Galore G.L.G. Australia Pty Ltd (ACN 001 185 002).
Building A2, Campus Business Park, 350-374 Parramatta Road.
Homebush NSW 2140 AUSTRALIA Ph. 02 9735 4111
ALISLSINK -SERIES 0612
AF00001~
