SSC-LUXon 990070716 Quick reference guide

Assembly/operating instructions for SSC-LUXon wall light up & down with motion detector 990070716
1. Intended use
This product is for lighting purposes only and: -can be installed indoors and outdoors -protection type IP44, suitable for use in damp areas
-must not be exposed to strong mechanical loads or heavy soiling -may not be operated after damp or dirty storage until after a condition
check -may not be changed or modied, otherwise the operating permit and conformity will expire with immediate eect!
It is not allowed to remove the type plate.
 If the aforementioned points are not observed, a short circuit or electric shock may occur! There is danger to life!
2. General safety instructions
The complete installation may only be carried out by an authorized electrician who is familiar with the applicable guidelines. Hereinafter
referred to as „qualied electrician“.
For safe handling of the product, the user must have read and understood the installation/operating instructions completely before using
the device for the rst time.
 The product may only be used if it is alright. If the device or parts of it are defective, it must be repaired by a qualied electrician.
Only use lamps/light source approved by the manufacturer. The max. lamp wattage in watts is not allowed be exceeded.
This product is not a toy and is not allowed be stored or used within the reach of children.
Safe operation of the product is only guaranteed if these instructions are followed. Therefore, keep these assembly/operating instructions.
SSC-LUXon GmbH accepts no liability if the instructions given here are not followed or the lamp is subjected to improper use.
3. Assembly & conguration
 Caution: The connecting cable must be disconnected from the power supply before starting work (switch o the main switch/fuse)! Only use
parts which are supplied with the product or which are clearly marked as equipment! Otherwise the product may not be suciently safe!
 The cable routing shown in the illustrations is for simplied purposes only. They in no way represent a recommendation for connection! The
connection may only be carried out by a qualied electrician.
When drilling, pay attention to cables and gas and water lines. Always route the cable so that it does not touch the luminaire.
3.1 Assembly location
The product is suitable for mounting on ceilings and walls. The product may only be mounted on a stable, tilt-resistant and level surface. Do
not cover the product under any circumstances, especially not with insulating material! Fire hazard!
Components of the luminaire and especially the lamps/light source become hot during operation. Especially in the case of halogen lamps/
light source. Keep a sucient distance (0.5 m) from easily ammable objects (e.g. curtains, drapes, etc.) and ammable materials (ignition
temperature<250°C)!
4. Operation, bulb replacement, faults & disorders
Caution: Halogen lamps/light sources become very hot during operation - risk of burns! Therefore, do not touch the protective glass or the
reector! Allow to cool down before replacing! Do not cover! There is a risk of re when covering (e.g. with towel)! Lamps with protective cover
may only be operated with complete protective cover!
Never look directly into the light source!
What to do in case of error?
In case of an error, the device must be switched o immediately. The product may only be operated if it works correctly. The device may only
be put back into operation after it has been checked by a qualied electrician! This is the case if:
1. there is visible damage, 2. the product is not working corrctly, 3. there is smoke, steam, or audible crackling noises, 4. overheating can be
detected
Caution: There is a danger to life - repairs to the product or work on parts carrying mains voltage may only be carried out by qualied
electricians.
Avoidance of disturbances and re hazards:
It is not allowed to cover the product under any circumstances. Air circulation must be ensured. Nothing may be attached or hung on the
product, especially no decoration.
5. Cleaning & care instructions
The product may only be wiped dry or carefully with a slightly damp and lint-free cloth. The product is not allowed to be removed for this
purpose. Do not use abrasive or sharp objects or aggressive cleaning agents. Do not use solvents.

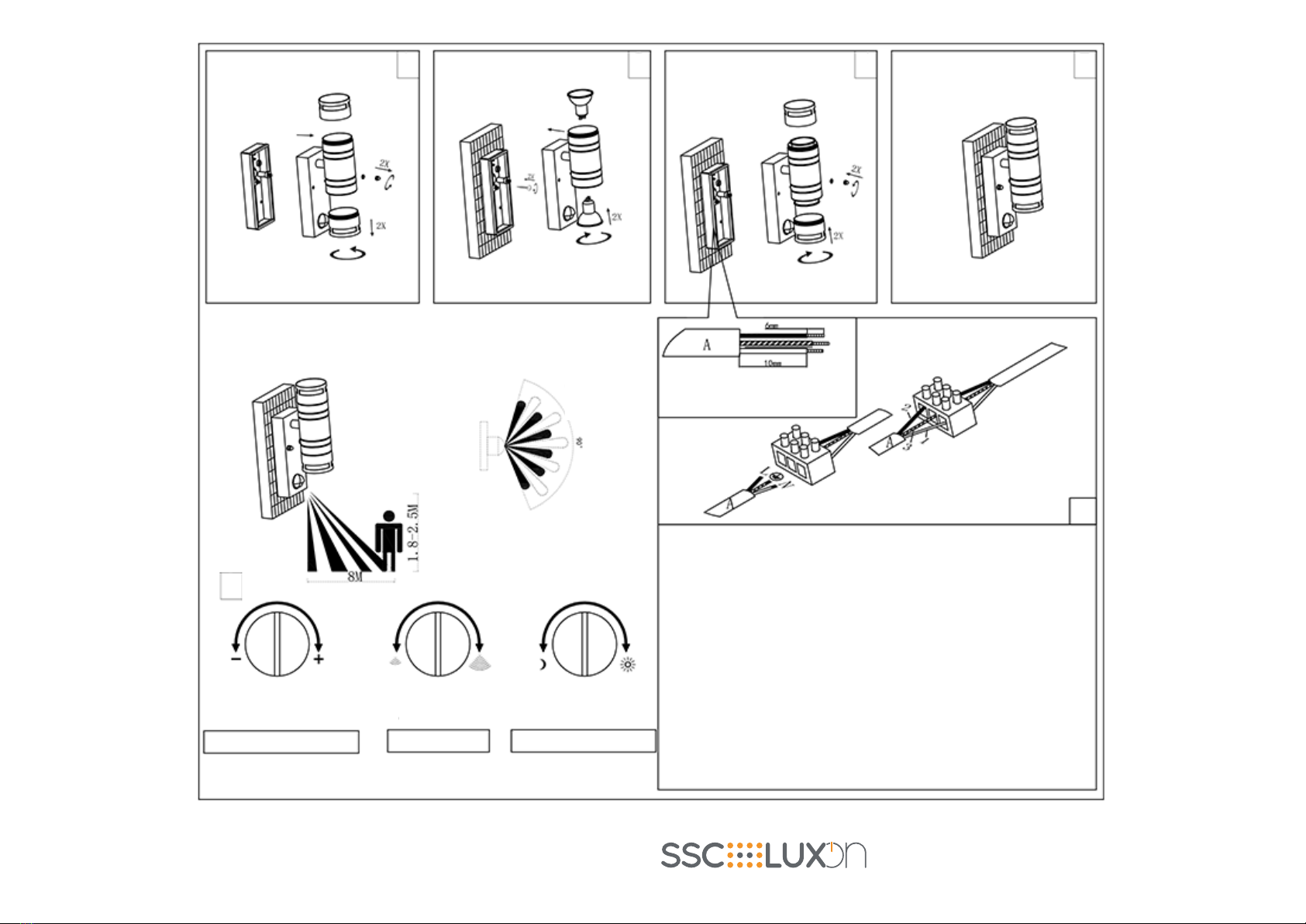

6. Assembly instruction wall light up & down with motion detector 990070716
1. Disconnect the connecting cable from the power supply!
2. Remove the two cap nuts on the front. Fig.1
3. Guide the connecting cable through the soft rubber opening.
4. Attach the bracket to the intended location on the wall. Fig.2
5. Connect the connecting cable to the light (luster terminal L, N & protective earth). Fig.3
6. Place the wall light on the bracket and secure it with the two cap nuts. Fig.4
7. Screw the light on. Now screw the bulbs into the GU10 sockets. Fig.2
8. Screw the light back on. Make sure that the sealing ring is seated correctly. Fig.4
9. Switch the connection cable to voltage.
10. Congure the sensor according to. Fig.6
11. The product is now ready for use. Fig.5
Model: 990070716
Type: Wall light up & down
Voltage: 220-240V / 50-60Hz
Protection type: IP44
Max. power: 2x 15 W
Material: Stainless steel / glas
Operating temperature: -20°C - +35°C
Socket: GU10
Protection class: I
Measurements: 67mm x 110mm x 228mm
Can be used
indoors and
outdoors
Colour: Silver
7. Technical data
Important information
Protection class I
Installation only by qualied
electrician
Disconnect the device from the
mains power before starting
any work
Disposal instructions
Make sure to dispose
packaging in accordance
with the applicable guideli-
nes of your local authority.
Devices marked with
the crossed-out waste
garbage do not belong
in the household waste!
You are obliged to hand
in these devices at one of the free collection
points in your municipality. You can obtain
more information from your local authority,
the relevant town hall or a local or regional
waste disposal company.
 Keep packaging material and small parts
away from children and animals. Danger of
suocation!
Notes on use indoors & outdoors
 Protection type IP20 & IP23: Use only
indoors and dry, i.e. do not use in damp or
dirty rooms and in areas of high humidity.
 Protection type IP44 & IP65: Can be used
indoors and outdoors.
Onlineshop:
www.led-lichtraum.de
Satised with your product?
Then we look forward to your
product review in our online store,
on Amazon or eBay!
SSC-LUXon GmbH – Am Krozinger Weg 4, 79189 Bad Krozingen, Germany
E-Mail: [email protected]; Phone: +49 7633 - 988 3000
SSC-LUXon GmbH – Am Krozinger Weg 4, 79189 Bad Krozingen, Germany
E-Mail: [email protected]; Phone: +49 7633 - 988 3000
Vers. 04/2021
Distance to illuminated objects
min. 0.5m

SSC-LUXon GmbH – Am Krozinger Weg 4, 79189 Bad Krozingen, Germany
E-Mail: [email protected]; Phone: +49 7633 - 988 3000
Sensor
Distances
Sensor
Range
Time Area Sensitivity
10 sec. bis zu 5 min. 2-8 m Night to daylight
Mains connection
Cable 3x1,0mm
1 2 4 5
3
6
