Barco Products 07GX1315 User manual

1
Assembly Instructions
Swing-Out Round Picnic Table

2
Before assembly, be sure that all components are included.
AA –1 table top
AB –3 bench seats
AC –3 table legs
AD –center table leg brace
AE –3 bench legs
underside
of table

3

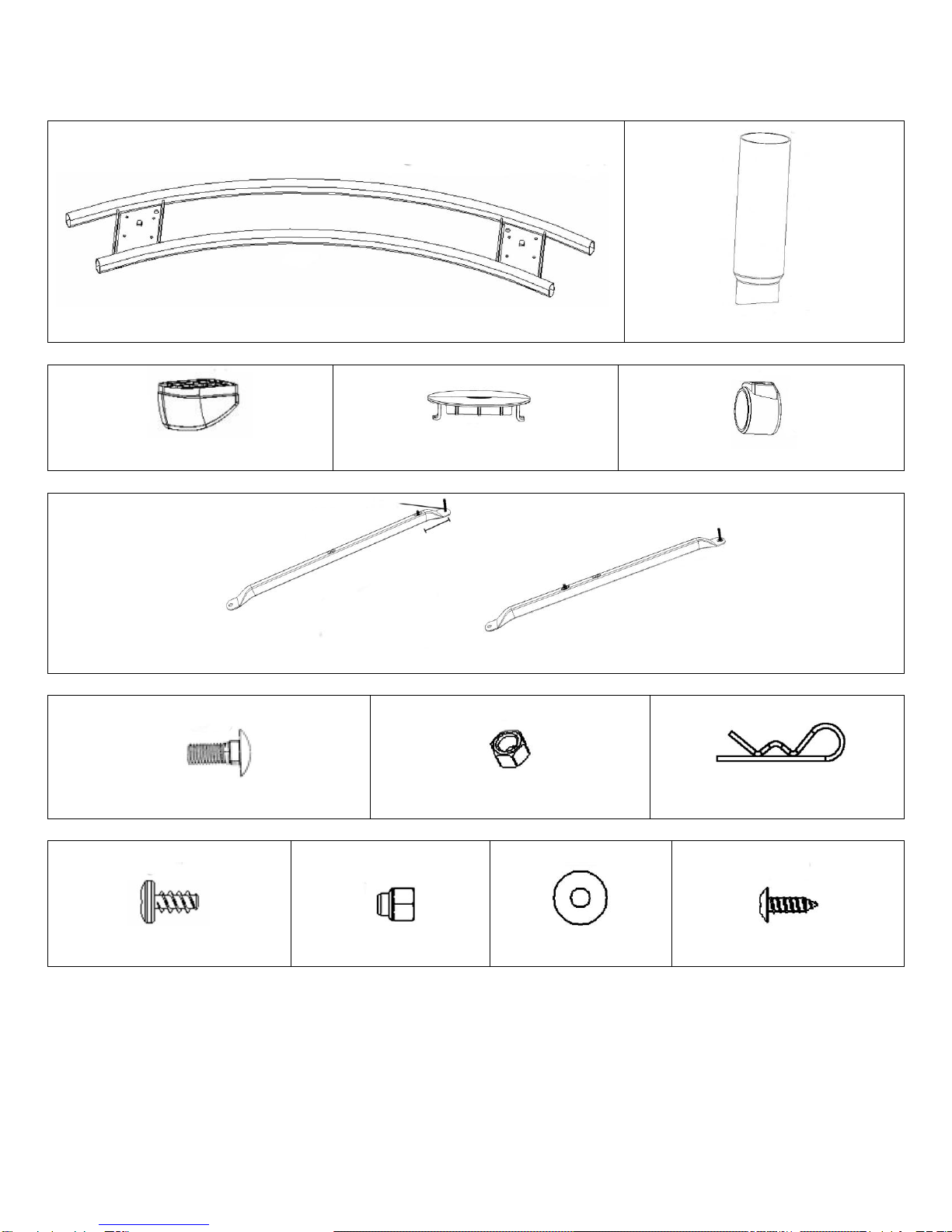

AF –3 bench frames
AG –3 bench leg pivots
AH –6 foot caps
AI –1 umbrella hole plug
AJ –6 bench leg caps
AK –3 support braces #1
AL –3 support braces #2
BA –24 - 5mm x12.5mm carriage bolts
BB –24 - M5 center lock nuts
BD - 3 cotter keys
RA –24 - 1/4”x 1/2”screws
RC -12 - 5mm cap nuts
RD –3 flat washers
RE - 33 - #8 x 1/2” screws
Tools needed:
1- Phillips screwdriver, 1 - adjustable wrench, 1 - 5/16” wrench

4
Step 1:
Turn a table leg (AC) upside down. Place a foot cap (AH) on the bottom of each leg.
Secure each foot cap with two #8 x 1/2” screws (RE). Repeat for the other two legs.
Step 2:
Turn table legs right side up. Attach a center leg brace (AD) to each table leg as
shown. Ensure the end of the brace angles upwards. Secure with two #8 x 1/2”(RE)
screws. Repeat for remaining legs.
Note: Completely tighten both screws, and then loosen them one full turn.
AC

5

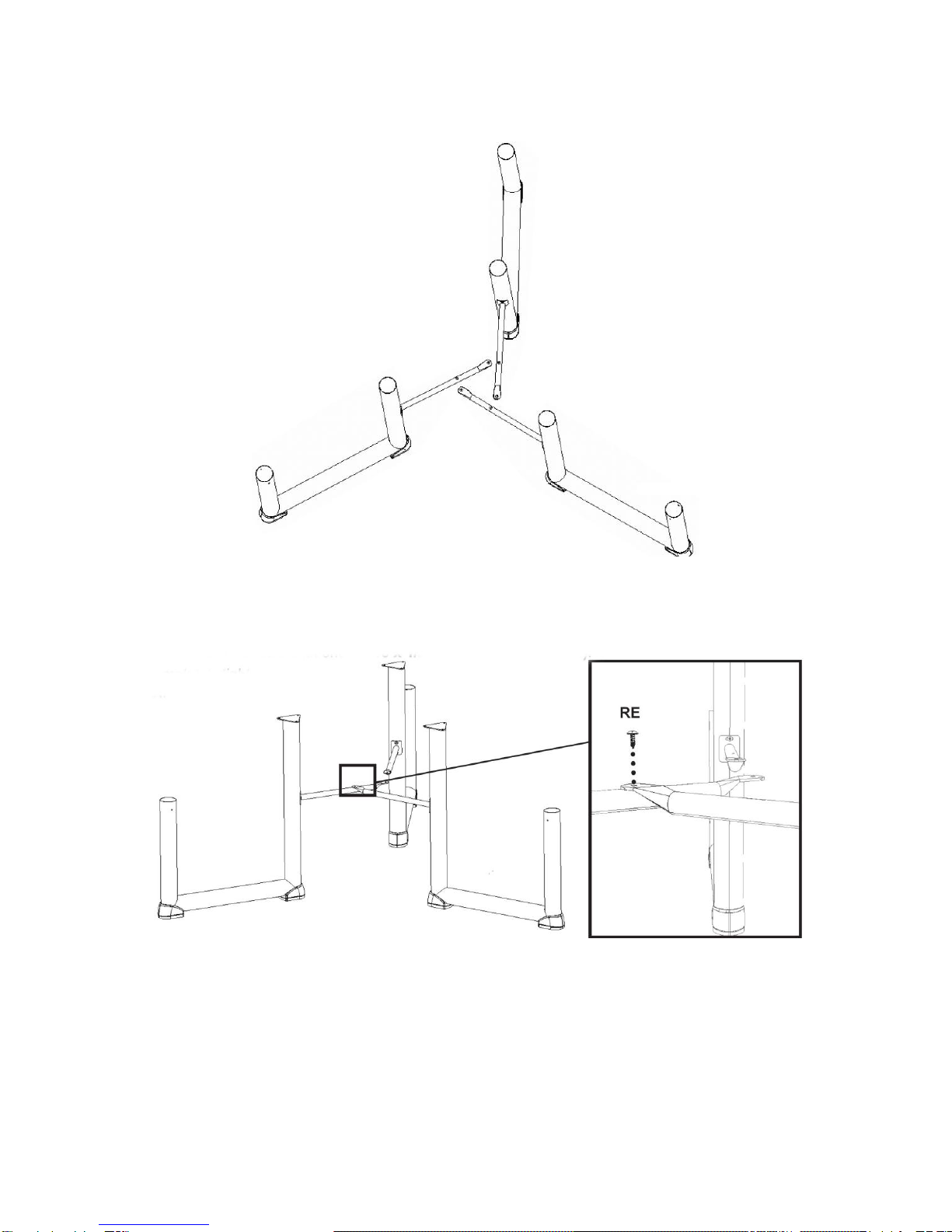

Step 3:
Stand table leg assemblies in a circle with the braces pointing in towards the center.
Step 4:
While standing between the two legs, line up the end hole on the right brace with the
middle hole on the left brace as shown. Secure with one #8 x 1/2”screw (RE).
Note: The center leg braces are joined together always in a right over left format. Do
not completely tighten the screws. This will be done in a later step.

6
Step 5:
Move clockwise and stand between the next pair of legs. Line up the end hole on the
right brace with the middle hole on the left brace as shown. Secure with one #8 x 1/2”
screw (RE).
Note: Do not completely tighten the screws.This will be done in a later step.
Step 6:
Move clockwise and stand between the last pair of legs. Line up the end hole on the
right brace with the middle hole on the left brace as shown. Secure with one #8 x 1/2”
screw (RE). Set aside assembly.
Note: Do not completely tighten the screws. This will be done in a later step.

7
Step 7:
Two sets of 3 support braces (AK and AL) come with your picnic table. Set (AK)
comes with 2 bolts next to each other (one of the bolts is gold colored). Set (AL)
comes with 2 bolts about 12” from each other.
Step 8:
Place a support brace (AK) onto the underside of the table top (AA) and lightly secure
the brace with one 1/4"x 1/2” screw (RA).
Note: Do not completely tighten the screw. This will be done in a later step.
gold colored bolt
AL
AK
AA - underside of table top
pilot hole
RA
AK

8
Step 9:
Place a support brace (AL) over the support brace (AK) and lightly secure the brace to
the table top (AA) with one 1/4” x 1/2” screw (RA).
Note: Do not completely tighten the screws. This will be done in a later step.
Step 10:
Continue on to the next support braces, repeating Step 9 instructions.
Note: Do not completely tighten the screws. This will be done in a later step.
AA - underside of table top
pilot hole
RA
AL
pilot hole
RA
AA - underside of table top

9
Step 11:
Continue on to the next support braces, repeating Step 9 instructions.
Note: Do not completely tighten the screws. This will be done in a later step.
Step 12:
Continue on to the next support braces, repeating Step 9 instructions.
Note: Do not completely tighten the screws. This will be done in a later step.
AA - underside of table top
pilot hole
RA
pilot hole
AA - underside of table top

10
Step 13:
Remove the first 1/4”x 1/2”(RA) screw and gently tilt the support brace (AK) and slide
the last support brace (AL) into place. Replace the first 1/4” x 1/2”screw (RA) into the
first support brace (AK). Finally, secure the last support brace (AL) to the table top.
Note: Completely tighten all screws.
Step 14:
Secure support braces (AL) to (AK) using three flat washers (RD) and three 5mm cap
nuts (RC).
Note: Completely tighten all cap nuts (RE).
RD
RC
RD
RC
RA
RA
pilot hole
pilot hole
AA - underside of table top
AA - underside of table top

11

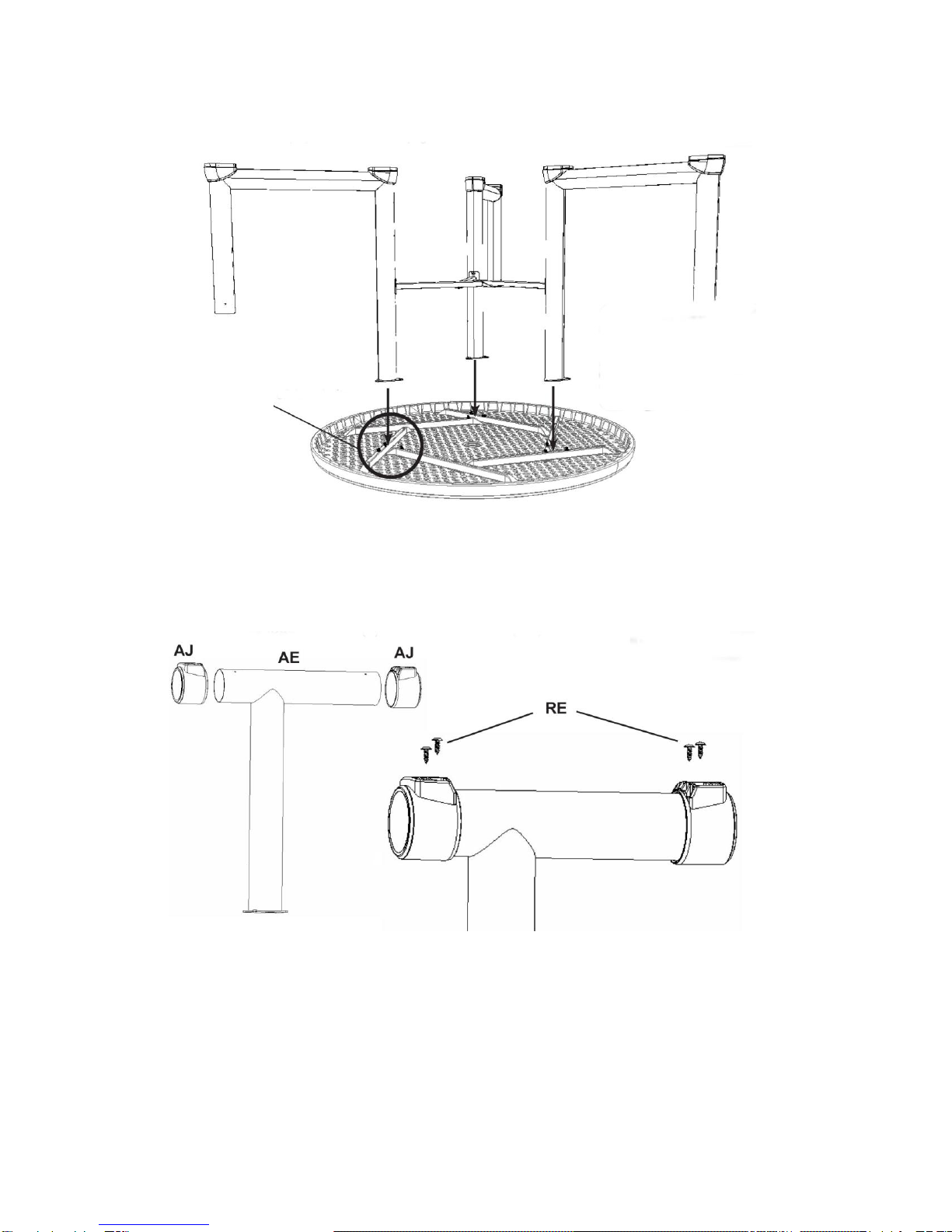

Step 15:
With the table top facing down on the ground, align the leg support assembly over the
three sets of bolts on the support brace assembly. Fasten the leg assembly to the
support braces using nine 5mm cap nuts (RC).
Note: Tighten all loose hardware including the center braces. Stand the table upright.
Step 16:
Turn a bench leg (AE) upside down and fasten a bench leg cap (AJ) on each end of
the foot. Secure the cap to the legs with two #8 x 1/2” screws (RE).
Note: Repeat this step for all three benches.
set of three bolts

12
Step 17:
Lay a bench frame (AF) top-side down, with the curved edges pointing away from you.
Step 18:
Line up a bench leg (AE) with the right side of the bench frame (AF). Secure to frame
with four 5mm x 12.5mm carriage bolts (BA) and four M5 center lock nuts (BB).
Note: The tab on the frame must line up with the hole in the bench leg plate.
Step 19:
Line up a bench leg pivot piece (AG) with the left side of the bench seat frame.
Secure to frame with four 5mm x 12.5mm carriage bolts (BA) and four center lock
nuts (BB).
AF
Note: the tab on the frame must line up
with hole in the bench pivot plate.
AF
AG

13
Step 21:
Fasten the bench frame to the bench seat with six 1/4”x 1/2”screws (RA).
Note: Ensure that the holes line up with the pilot holes in the bench seat. Use only a
hand screwdriver on this step.
Step 20:
Lay a bench seat (AB) top-side down, with the curved side pointing away from you.
Lay bench frame (AF) inside the bench seat and line up holes. Repeat for all three
benches.
AB
RA
AF

14
Step 22:
Insert a bench assembly into the table leg. Ensure the bench is fully inserted into the
leg.
Step 23:
Insert a cotter key (BD) through the two holes in the leg of the bench to help prevent
the bottom of the bench from pulling out of the table leg.
Note: Repeat steps 22 and 23 for remaining two benches.

15
Step 24:
If you will not be using an umbrella with your table, install the umbrella hole plug (AI).
If it is not already installed, snap it into the hole at the center of the table.
