Barco IEX Series User manual

R5915190 /00 IEX
IEX SERIES
Product Manual

R5915190 /00 IEX
1 IEX SERIES
Barco NV
Beneluxpark 21, 8500 Kortrijk, Belgium
www.barco.com/en/support
www.barco.com
Registered office: Barco NV
President Kennedypark 35, 8500 Kortrijk, Belgium
www.barco.com/en/support
www.barco.com

R5915190 /00 IEX
2 IEX SERIES
Changes
Barco provides this manual 'as is' without warranty of any kind, either expressed or
implied, including but not limited to the implied warranties or merchantability and
fitness for a particular purpose. Barco may make improvements and/or changes to the
product(s) and/or the program(s) described in this publication at any time without
notice.
This publication could contain technical inaccuracies or typographical errors. Changes
are periodically made to the information in this publication; these changes are
incorporated in new editions of this publication.
The latest edition of Barco manuals can be downloaded from the Barco web site
www.barco.com.
Copyright ©
All rights reserved. No part of this document may be copied, reproduced or translated.
It shall not otherwise be recorded, transmitted or stored in a retrieval system without
the prior written consent of Barco.
Trademarks
Brand and product names mentioned in this manual may be trademarks, registered
trademarks or copyrights of their respective holders. All brand and product names
mentioned in this manual serve as comments or examples and are not to be understood
as advertising for the products or their manufacturers.
Federal Communications Commission (FCC Statement)
This equipment has been tested and found to comply with the limits for a class A digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in
a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area may cause harmful interference, in which case the user
will be responsible for correcting any interference at his own expense
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment
FCC responsible:
Barco Inc.
3059 Premiere Parkway Suite 400
30097 Duluth GA, United States
Tel: [phone]
EMC notices
EN55032/CISPR32 Class A MME (MultiMedia Equipment)
Warning : This equipment is compliant with Class A of CISPR 32. In a residential
environment this equipment may cause radio interference.

R5915190 /00 IEX
3 IEX SERIES
This product is fit for use in the UK.
Authorized Representative: Barco UK Ltd
Address: Building 329, Doncastle Road
Bracknell RG12 8PE, Berkshire, United Kingdom

R5915190 /00 IEX
4 IEX SERIES
Instructions
About this chapter
Read this chapter attentively. It contains important information to prevent personal
injury while installing the IEX display. Furthermore, it includes several cautions to
prevent damage to the IEX tiles. Ensure that you understand and follow all safety
guidelines, safety instructions and warnings mentioned in this chapter before installing
the IEX tiles. After this chapter, additional “warnings” and “cautions”are given
depending on the installation procedure. Read and follow these “warnings” and
“cautions” as well.
Clarification of the term “IEX” used in this document
When referring in this document to the term “IEX” means that the content is applicable
for following Barco products:
• LD IEX1.2, LD IEX1.2 RED PSU, LD IEX1.5, LD IEX1.5 RED PSU, LD IEX1.8, LD IEX1.8
RED PSU, LD IEX2.5, LD IEX2.5 RED PSU
Barco provides a guarantee relating to perfect manufacturing as part of the legally
stipulated terms of guarantee. Observing the specification mentioned in this chapter is
critical for product performance. Neglecting this can result in loss of warranty.
1.1 Safety guidelines
Personal protection

R5915190 /00 IEX
5 IEX SERIES
Installation personnel
This installation must be performed by authorized and qualified technical personnel
only.
Accredited safety officers must ensure the safety of the site, construction, assembly,
connection, use, dismantling, transport etc. of such safety critical systems.
Operator
The products specified in the manual only can be operated and used by the professional
who meets the requirements for this work.
The operator shall obey the instruction in this document, especially the safety and
warning note herein. Due to the relevant training and experience, professional have a
more in-depth understanding of this product, they can avoid the risk of the process of
the operation.
A non-professional operator should neither assemble nor disassemble these products
by himself. There is a risk of electric shock from exposure to high voltage.
Caution
Installation should be performed only after you are thoroughly familiar with all of the
proper safety checks and installation instructions. To do otherwise increases the risk of
hazards and injury to the user.
Assembly parts are designed for intended use only in conjunction with IEX displays.
Do not modify and/or replicate any component. Barco uses specific materials and
manufacturing processes in order to achieve part strength. Consult Barco for assistance
with custom applications.
Always follow Barco installation instructions. Contact Barco if you should have any
question regarding the safety of an application. The manufacturer assumes no liability

R5915190 /00 IEX
6 IEX SERIES
for incorrect, inadequate, irresponsible or unsafe assembly of systems. The system
must comply with the local safety regulations regarding environmental conditions,
solidity final construction, etc…
Notice on safety
This equipment is built in accordance with the requirements of the international safety
standards IEC 62368-1, which are the safety standards of information technology
equipment including electrical business equipment. These safety standards impose
important requirements on the use of safety critical components, materials and
insulation, in order to protect the user or operator against risk of electric shock and
energy hazard and having access to live parts. Safety standards also impose limits to
the internal and external temperature rises, radiation levels, mechanical stability and
strength, enclosure construction and protection against the risk of fire. Simulated single
fault condition testing ensures the safety of the equipment to the user even when the
equipment's normal operation fails.
Product care
Structural & mounting components should be kept dry, clean, lubricated (only if
recommended), coated properly, and otherwise maintained in a manner consistent with
part design. Barco products must be used in a manner consistent with their design and
inspected on a routine basis for security, wear, deformation, corrosion and any other
circumstances that may affect the load handling capability of the part.
Barco recommends inspections at regular intervals for all installations and increasing
in frequency for more critical installations. If a part is found to have damage, which
may cause a decrease in load capability, the part must be removed for service or
replaced immediately.
Under no circumstances are Barco parts repairable by anyone other than Barco.

R5915190 /00 IEX
7 IEX SERIES
1.2 Important safety instructions
Instructions:
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Clean only with materials or chemicals that are inert, nonabrasive, noncorrosive and
non-marking. Consult the manufacturer for further advice should any doubts exist
regarding any cleaning procedure.
• Do not block ventilation openings. Install in accordance with the manufacturers
instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding type plugs/sockets. If
the provided sockets/plugs are damaged then replacement of the defective parts must
be undertaken immediately.
• Protect the power/data cords from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus. Replace
damaged power/data cords immediately.
• Only use attachments/accessories specified by the manufacturer.
• Disconnect the power to this apparatus during lightning storms or provide suitable
additional lightning protection. Unplug this apparatus when unused for long period of
time.
• Refer all servicing to qualified service technicians/personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-supply cord or plug
is damaged, the apparatus does not operate normally, or has been dropped.
• Use only with systems or peripherals specified by the manufacturer, or sold with the
apparatus. Use caution during lifting/moving or transporting to avoid damage by
possible tipping.
• Do not use damaged LED tiles. Replace damaged parts immediately.

R5915190 /00 IEX
8 IEX SERIES
1.3 Important warnings
Important warnings:
Risk of electric shock:
Do not open. To reduce the risk of electric shock, do not remove LED board from tile.
No user-serviceable parts inside. Refer servicing to qualified service personnel.
Maximum and minimum ambient temperature:
The maximum ambient temperature for the LED wall is 40°C (104°F), the minimum
temperature is -10°C (14°F).
Low Voltage Surge Protection Device required
Due to the damaging effects of lightning, utility switching and switching electric motors
of other users on the mains, this product needs to be protected by means of a Surge
Protection Device. This product is connected to the mains through a power distribution
box from another party, please verify that a Low Voltage Surge Protection Device
according EN61643-11 or UL 1449 is in place.
High leakage current:
The combination of multiple tiles in an installation results in increased levels of leakage
current. In order to avoid risk of electric shock due to high leakage current, proper
grounding of the installation is required.
Flammable materials:
Keep flammable materials away from the installation (such as curtains). A lot of energy
is transferred into heat. The installation should be such that the amount of air flow
required for safe operation of the equipment is not compromised. Proper ventilation
must be provided.
Risk of electric shock / Risk of fire:
Use single-phase power supply for an LED display with the total power consumption
not exceeding 3 kW, and three-phase power supply for an LED display with the total
power consumption exceeding 3 kW.
Each power source cable should be protected by a circuit breaker or fuses rated 16 A /
250 VAC (15 A / 250 VAC in the USA and Canada). Note that one tile requires 100-240
VAC, 50-60 Hz.

R5915190 /00 IEX
9 IEX SERIES
To protect against risk of fire caused by overloading of power cables, the number of
tiles connected in parallel is limited, see table below.
Maximum tiles per power cable
Tile
Power source
USA/Canada
Rest of world
IEX1.2
110 – 180 VAC
7 tiles
9 tiles
180 – 240 VAC
14 tiles
18 tiles
IEX1.5
110 – 180 VAC
7 tiles
9 tiles
180 – 240 VAC
14 tiles
18 tiles
IEX1.8
110 – 180 VAC
7 tiles
9 tiles
180 – 240 VAC
14 tiles
18 tiles
IEX2.5
110 – 180 VAC
7 tiles
9 tiles
180 – 204 VAC
14 tiles
18 tiles
The power limits of the used power connectors needs to be followed.
ESD and LED's:
LED components used in IEX tiles are ESD (Electro-Static Discharge) sensitive. To
prevent the possibility of destroying LED components
do not touch either in operation or while switched off. Always use ESD-gloves.
Disconnect device:
When the appliance inlets of the individual tiles are not accessible, the socket outlets
supplying the rack shall be installed near the equipment and be easily accessible, or a
readily accessible general disconnect device shall be incorporated in the fixed wiring.
This equipment MUST be earthed:
In order to protect against risk of electric shock, the installation should be properly
grounded. Defeating the purpose of the grounding type plug will expose you to the risk
of electric shock.
Power system:
It is recommended to use a TN-S power distribution system (a power distribution
system with a separate neutral and grounding conductor) in order to avoid large ground
current loops due to voltage differences in the neutral conductor. The total electrical

R5915190 /00 IEX
10 IEX SERIES
installation should be protected by an appropriately rated disconnect switch, circuit
breakers, over voltage protector and Ground Fault Current Interrupters. The
installation shall be done according to the local electrical installation codes. In Europe
special attention should be given to HD 60364, Harmonization Document for electrical
installation of buildings. In Germany VDE 0100 should be adhered to. In America,
special attention should be given to the National Electrical Code, ANSI/NFPA 70.
Mains cords:
The power cords delivered with this system have special properties for safety. They are
not user serviceable. If the power cords are damaged, replace them only with new
ones. Never try to repair a power cord.
LEDs:
The LEDs used on the IEX tiles are fragile. Never push with a hard or sharp object onto
the lens of the LED as this may cause damage to the LED. The maximum allowed load
upon the lens of the LED is 300 gram/LED.
Do not hot plug:
Do not hot plug any cables. Damage to the connector pins may occur. Resulting
damage is not covered under warranty.
Maximum allowed display height:
The maximum height of the IEX display in a wall mount configuration 18 tiles.
1.4 Proper usage
Proper usage of IEX tiles
• No part of the IEX tile can come in contact with any type of moisture.
• No part of the IEX tile can come in contact with any type of abrasive.
• No part of the IEX tile can come in contact with any type of dust.
• No part of the IEX tile can come in contact with any type of corrosive substance.
• Do not incline, scratch, or crash the LED display during installation.

R5915190 /00 IEX
11 IEX SERIES
• Do not direct the air outlet of an air conditioner to the LED display.
• Do not place or use the LED display in an environment with volatile, corrosive or
flammable chemical products.
• Using the LED product in an environment with high corrosive gasses (e.g. Sulphur)
can lead to discoloration of the materials. This discoloration gives a change in
brightness of the product. This could lead to uniformity differences and possibly also
to failures. Each use of the product in this kind of environment needs to be checked
up-front with the supplier.
• IEX tiles are to be used in environments meeting the operating specifications.
• IEX tiles are not to be used in environments that are subject to airborne contaminants
such as that produced by smoke machines (cracked oil) or similar (these deposit a thin
layer of greasy residue upon the LEDs optics, degrading performance).
• IEX tiles are not to be exposed to extreme localized heat or cold exceeding the
temperature specifications.
• IEX tiles are not to be exposed to any element or situation that will cause any part
of the display to heat beyond what occurs during normal operation. Such situations
include but are not limited to lasers, ultrasonic vibration, or any type of substance that
prevents proper ventilation and heat radiation of the IEX tiles.
• IEX tiles are not to be exposed to circumstances where moisture can condense or
collect on any components.
• Power connected to the IEX tiles must meet the specifications outlined in the
installation manual.
• Avoid any accidental bumping of the module corners while installing or removing the
IEX module. Since LED’s of the IEX modules are mounted near by the edges of the LED
boards, which is unavoidable in the design of a high resolution LED-wall, the corners
of the IEX modules become sensitive for mechanical damage. Because of that it is
required to handle the IEX modules with care at all times.
• Never place an IEX module upon a surface with the LED’s facing downwards without
protection. This to prevent damage to the LEDs and the soft lens of the LEDs.
• While removing or installing the IEX modules always keep the LED side of the IEX
module parallel with the LED side of the remaining neighboring IEX modules. This to
avoid any mechanical stress upon the corners of the IEX modules.

R5915190 /00 IEX
12 IEX SERIES
• No force can be applied to the LEDs. Any LEDs damaged due to mechanical stress
are not covered by the warranty.
• Safety and functional features of the display cannot be defeated.
• It is not allowed to climb or hang any additional equipment on the back of an IEX
wall. Nothing is to be allowed to hang from the cables of an IEX tile.
• Any failures must be immediately and appropriately dealt with (equipment returned
to Barco). Failing equipment cannot be left to run in a wall.
• No additional tools (hammers, pry-bars, etc.) are to be used to force handles or locks
into place. All moving parts should be managed by hand.
• Only Barco cables specified to be used with the IEX display are to be used to connect
components in the IEX wall. Further, care must be taken to connect signal only
according to the installation manual.
• IEX tiles are not to be used in the vicinity of any equipment that is not CE and UL/ETL
certified.
• When reconnecting components in an IEX tile, care must be taken to ensure that
cables are carefully routed according to the installation manual to prevent damage to
the cables or other parts of the IEX tile.
• IEX tiles can be cleaned only in accordance to the procedures defined in the
installation manual.
• The IEX display is an indoor product. Use the IEX tiles only in a dry area away from
direct sunlight, dust and moisture. Never install and use the IEX tiles in an outdoor
environment.
• Ensure rigging hardware is able to handle the weight of the entire IEX with
appropriate safety factors.
• Ensure good ventilation for the LED display when designing the heat dissipation
solution
• Switch off the power immediately and contact the professional personnel when the
LED display has any abnormal conditions such as peculiar smell, smoke, electric
leakage, and abnormal temperature.
• In case the LED display is not been powered on twice a per week for at least 2 hours
each time then the “Warm up procedure” as described in Chapter 5.4 has to be followed
precisely.

R5915190 /00 IEX
13 IEX SERIES
• Installing the LED display in the following places may result in an equipment failure
and reduce its lifespan: near the sea, in an area with salt and alkali or sulphurous gases,
near a kitchen exhaust position, or at a place where the difference between indoor and
outdoor temperatures is great. Consult our professional personnel at the service center
if the LED display must be installed in any of these places.
1.5 LED Display Humidity precautions
Overview
LED displays have recommended temperature and humidity ranges for storage and
operation. Use of the products in temperature or humidity ranges outside these
recommendations can cause temporary or permanent damages.
The SMD LEDs used on indoor LED displays are moisture sensitive components, the
smaller the size of the LEDs, the more sensitive the LEDs are for humidity due to their
structure and electric clearance, specifically a chip LED (used for pixel pitches of sub
2mm) is highly sensitive.
When the humidity is high, it might cause condensation on and in the LED.
Condensation on the LED is dangerous and can cause shortcircuits, dead LEDs and
other issues.
Therefore, customers should strictly follow the humidity precautions and start up
procedure when using the screen.

R5915190 /00 IEX
14 IEX SERIES
1 PRODUCT INTRODUCTION ............................................................... 17
1.1 FEATURES .............................................................................................. 17
1.2 CABINET APPEARANCE ........................................................................... 18
1.3 SPECIFICATION ...................................................................................... 19
1.4 SYSTEM SOLUTION ................................................................................ 20
2 INSTALLATION AND WIRING ......................................................... 21
2.1 OUT-OF-BOX INSPECTION ..................................................................... 21
2.2 GENERAL INSTALLATION......................................................................... 21
2.2.1 Fixed Installation....................................................................... 22
2.3 WIRING FOR LED DISPLAY .................................................................... 24
2.3.1 Common cables ......................................................................... 24
2.3.2 Signal and Power Cable Connection...................................... 25
CHAPTER 3 LED DISPLAY CONTROL SETTING.............................. 27
3.1 POWER-ON TESTING .............................................................................. 27
3.2 STARTING THE HARDWARE..................................................................... 28
3.3 SOFTWARE CONTROL SETTING............................................................... 28
3.3.1 Installing the Software............................................................. 28
3.3.2 Display Configuration ............................................................... 29
3.3.3 Brightness Adjustment............................................................. 33
3.3.4 Correction Coefficient Management ...................................... 35
3.3.4.1 Setting Coefficients for a New Receiving Card ..................37
3.3.4.2 Setting Coefficients for a New Module ................................39
3.3.4.3 Replace Module with Flash ....................................................42
3.3.5 Pre-storing Picture .................................................................... 43
3.4 SOFTWARE CONTROL SETTING............................................................... 45
Table of Contents

R5915190 /00 IEX
15 IEX SERIES
3.4.1 Setting Coefficients for a New Module.................................. 45
CHAPTER 4 LED DISPLAY PLAYING SETTING............................... 49
4.1 LED DISPLAY PLAYING SETTING ............................................................ 49
4.1.1 Selecting a Playing Solution.................................................... 49
4.1.2 Playing Setting........................................................................... 50
4.1.2.1 Display Window Setting.........................................................50
4.1.2.2 Startup Setting........................................................................51
4.1.3 Editing Professional Playing Solution .................................... 52
4.1.3.1 Editing the Time Segment.....................................................52
4.1.3.2 Editing the Program Page......................................................54
4.1.3.3 Editing the Display Window ..................................................57
4.1.3.4 Editing the Media ....................................................................60
4.1.3.5 Playing the Media....................................................................63
4.1.4 Saving and Opening a Playing Solution ............................... 65
4.2 LED DISPLAY PLAYING SETTING ............................................................ 66
4.2.1 Set the Count and Size of the Screen .................................. 66
4.2.2 Setting the Program Page ....................................................... 67
4.2.3 Adjust Window Position and Size........................................... 71
4.2.4 Playing the Program ................................................................. 72
4.2.5 Edit Window................................................................................ 73
4.2.6 Timed Playback and Control ................................................... 73
CHAPTER 5 STARTUP, SHUTDOWN, AND MAINTENANCE ........ 76
5.1 STARTUP SEQUENCE .............................................................................. 76
5.2 SHUTDOWN SEQUENCE .......................................................................... 76
5.3 DAILY MAINTENANCE ............................................................................. 77
5.4 WARM-UP OPERATION ........................................................................... 77
5.4.1 Setting the Prestored Picture - NovaLCT ............................. 77
5.4.2 Ageing Operation ...................................................................... 79
5.4.3 Aging Operation......................................................................... 81
CHAPTER 6 TROUBLESHOOTING AND COMPONENT
REPLACING................................................................................................. 83
6.1 COMMON FAULTS AND TROUBLESHOOTING METHODS ............................ 83

R5915190 /00 IEX
16 IEX SERIES
6.1.1 Failure in Lighting up the Display .......................................... 83
6.1.2 Incomplete Picture or Incorrect Position of Picture
Displayed ............................................................................................... 83
6.1.3 Screen Blinking.......................................................................... 84
6.1.4 Blinking of a Cabinet in the Display ...................................... 84
6.1.5 Failure in Lighting up of a Cabinet in the Display .............. 84
6.1.6 Failure in Lighting up Part of the Modules in the Cabinet 85
6.2 REPLACEMENT OF MAIN COMPONENTS ................................................... 86
6.2.1 Replacement of Module............................................................ 86
6.2.2 Replacement of Power Supply ................................................ 88
6.2.3 Replacement of Receiving Card ............................................. 90
CHAPTER 7 PACKAGING TRANSPORTATION AND STORAGE .. 92
7.1 PACKAGING............................................................................................ 92
7.2 TRANSPORTATION .................................................................................. 92
7.3 STORAGE ............................................................................................... 92

R5915190 /00 IEX
17 IEX SERIES
1 Product Introduction
The IEX series is a new generation of small pitch LED display product launched by Barco.
Designed for HD display application scenarios, with high protection, high reliability,
stable pictures, wide viewing angle, the IEX series supports wide-range adjustment of
the color temperature and brightness. The pixel-by-pixel calibration technology can
greatly improve experience of using the IEX series product in projects. The IEX series
can be assembled seamlessly into a screen of any size for different application
environments.
1.1 Features
1) Ultrathin, lightweight, and highly stable aluminium die casting structure.
2) Supports front and rear maintenance of cabinet, no limit of the application
environment.
3）High efficiency transmission of board to board connection, reduce the cable of
module, system card.
4）High-precision structure and fine adjustment of joints.
5）With the flash memory chip, calibration data is saved at module.
6）Wide colour gamut, and adjustable brightness and colour temperature, making it
available for different application sites.

R5915190 /00 IEX
18 IEX SERIES

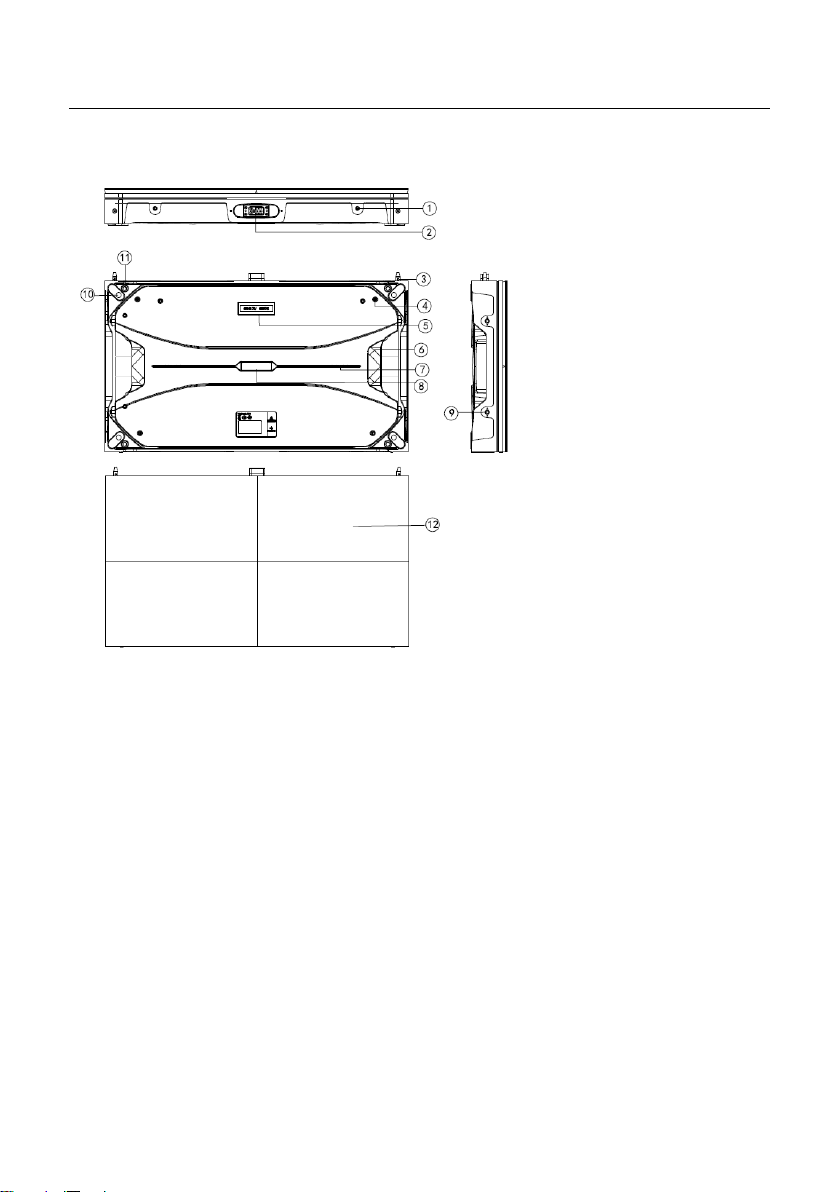

1.2 Cabinet Appearance
1-1 Cabinet Appearance
1. Upper/lower shoulder
screw hole
2. Signal and power socket
3. Positioning pin
4. Screw hole of fixing rear
cover
5. Monitoring LCD
6. Handle
7. Test button
8. Nameplate
9. Left/right shoulder screw
hole
10. Front installation hole
11. Rear installation hole
12. Module

R5915190 /00 IEX
19 IEX SERIES
1.3 Specification
Note：Specifications are for reference only and are subject to change without notice.
Pixel pitch
1.25 mm
1.56 mm
1.875 mm
2.5 mm
Pixels per tile
480 x 270 (HxV)
384 x 216 (HxV)
320 x 180 (HxV)
240 x 135 (HxV)
Brightness
>600 nit
>600 nit
>600 nit
>600 nit
Internal processing
16 bit (281 trillion
colors)
16 bit (281 trillion
colors)
16 bit (281 trillion
colors)
16 bit (281 trillion
colors)
Refresh rate
3,840Hz
3,840Hz
3,840Hz
3,840Hz
Horizontal Viewing angle
160° +/- 5°
160° +/- 5°
160° +/- 5°
160° +/- 5°
Vertical viewing angle
140° +/- 5°
150° +/- 5°
150° +/- 5°
150° +/- 5°
Brightness uniformity
(RGBW)
>97%
>97%
>97%
>97%
Contrast
>3,000:1
>3,000:1
>3,000:1
>3,000:1
Power consumption (max.)
790 W/m²
721 W/m²
642 W/m²
395 W/m²
Power consumption (avg.)
262 W/m²
237 W/m²
212 W/m²
128 W/m²
Heat dissipation (max.)
2,694 BTU/hr/m²
2,459 BTU/hr/m²
2,189 BTU/hr/m²
1,347 BTU/hr/m²
Heat dissipation (typ.)
893 BTU/hr/m²
808 BTU/hr/m²
723 BTU/hr/m²
436 BTU/hr/m²
Operation power voltage
100-240V 50/60Hz
100-240V50/60Hz
100-240V 50/60Hz
100-240V 50/60Hz
Operational temperature
-10°C to +40°C /
14°F to 104°F
-10°C to +40°C /
14°F to 104°F
-10°C to +40°C /
14°F to 104°F
-10°C to +40°C /
14°F to 104°F
Operational humidity
10-80%
10-80%
10-80%
10-80%
Ingress protection
front IP30 / rear
IP50
front IP30 / rear
IP50
front IP30 / rear
IP50
front IP30 / rear
IP50
Power redundancy
Optional
Optional
Optional
Optional
Concave curvature
Up to 5° inter-tile
Up to 5° inter-tile
Up to 5° inter-tile
Up to 5° inter-tile
Dimensions (WxHxD)
600x337.5x74mm
600x337.5x74mm
600x337.5x74mm
600x337.5x74mm
Aspect ratio
16:9
16:9
16:9
16:9
Installation access
Front or back
Front or back
Front or back
Front or back
Service access
Front or back
Front or back
Front or back
Front or back
Cabling
No external cabling
No external cabling
No external cabling
No external cabling
Warranty
Up to 5 years
extended warranty
Up to 5 years
extended warranty
Up to 5 years
extended warranty
Up to 5 years
extended warranty
Weight
8kg/tile
8kg/tile
8kg/tile
8kg/tile
