Type D0800
Bantam Cartridge Holder
OPERATION MANUAL
AND PARTS LIST
SERIES 494
BARNSTEAD THERMOLYNE CORPORATION
60119 • 3/12/98
Model # Voltage
D0800 120
D0805 240

2
Safety Information .............................................................................................................................................. 3
Alert Signals ..................................................................................................................................................... 3
Warnings .......................................................................................................................................................... 3
General Specifications ....................................................................................................................................... 4
Cartridge Specifications ................................................................................................................................... 5
High Capacity................................................................................................................................................. 5
Ultrapure (Mixed Resin) ................................................................................................................................. 5
Installation .......................................................................................................................................................... 6
Unpacking ........................................................................................................................................................ 6
Choosing a Site................................................................................................................................................ 6
Mounting .......................................................................................................................................................... 6
Plumbing Service Connections ........................................................................................................................ 6
Elbow-Tubing Assembly ..................................................................................................................................... 8
Cartridge Installation .......................................................................................................................................... 9
Operation ......................................................................................................................................................... 10
Purity Meter Operation ................................................................................................................................... 10
Maintenance and Servicing.............................................................................................................................. 11
Calibration ...................................................................................................................................................... 11
Replacement Parts List .................................................................................................................................... 12
Ordering Procedures........................................................................................................................................ 13
Warranty........................................................................................................................................................... 16
Table of Contents

3
Important Information
This manual contains important operating and
safety information. The user must carefully
read and understand the contents of this
manual prior to the use of this equipment.
Safety Information
Your Barnstead Bantam Cartridge Holder has
been designed with function, reliability, and
safety in mind. It is the user’s responsibility to
install it in conformance with local electrical
codes. For safe operation, please pay attention
to the alert signals throughout the manual.
Warnings
To avoid electrical shock, always:
1. Use a properly grounded electrical
outlet of correct voltage and current
handling capacity.
2. Disconnect from the power supply
prior to maintenance and servicing.
To avoid personal injury:
1. Do not use in the presence of
flammable or combustible materials;
fire or explosion may result. This
device contains components which
may ignite such materials.
2. Refer servicing to qualified personnel.
Alert Signals
Safety Information
Note
Notes alert you to pertinent facts
and conditions.
Caution
Cautions alert you to a
possibility of damage to the
equipment.
Warning
Warnings alert you to a
possibility of personal injury.

4
General Specifications
stinUIShsilgnE
etarwolfmumixaM HPL83
1
HPG01
1
egnarerutarepmeT C°94-4F°021-04
yticapacegnahcxE wolebeeswolebees
snoitcennocecivresgnibmulP
telnI~gnibutDO"4/1
teltuO~gnibutDO"4/1
niarD~gnibutDO"4/1
snoisnemidllarevO
htdiWmm251"6
htpeDmm312"8/3-8
thgieHmm427"2/1-82
stnemeriuqerlacirtcelE
0080DledoM 1,zH06/05,V021
esahp
2
,zH06/05,V021
esahp1
2
5080D 1,zH06/05,V042
esahp
2
,zH06/05,V042
esahp1
2
Note
Pure water exposed to the
atmosphere will absorb CO2. This
will lower resistivity and pH.
1
Using average tap water. Delivers deionized water in continuous flow at atmospheric pressure. Although the
cartridge holder can be operated at inlet pressures up to 700 kPa (100 psig), the cartridge holder cannot
without any back pressure. Ensure that maximum flow rate is not exceeded, the outlet is open to atmosphere,
and there are no tubing restrictions.
2
Provided with 1.7 m (5-1/2”) electrical cord and plug.

5
High Capacity
This cartridge (catalog no. D0803) has the
capacity to remove 113 grams (1740 grains) of
dissolved ionized impurities (as NaCl) to an
endpoint of 50,000 ohm-cm. This high capacity
configuration produces water with an electrical
resistivity of about 175,000 ohm-cm. Each
cartridge will purify about 660 liters (175
gallons) of water containing 170 mg/liter (10
grains/gallon, as NaCl). The pressure drop
across the cartridge is less than 7 kPa (about 1
psig) at 38 L/hr (10 GPH) when the cartridge is
new.
Ultrapure (Mixed Resin)
This cartridge (catalog no. D0809) has the
capacity to remove 65 grams (750 grains) of
dissolved ionized impurities (as NaCl). About
3/4 (75%) of the capacity is capable of
producing water with an electrical resistivity
greater than 1 megohm/cm. Each cartridge will
purify about 380 liters (about 100 gallons) of
water containing 170 mg/liter (10 grains/gallon,
as NaCl) to 20,000 ohms. The pH is 6.8 to 7.2,
and the water produced is largely free of silica.
The water is also free of CO2until exposed to
atmosphere. The pressure drop across the
cartridge is less than 7 kPa (about 1 psig) at 38
L/hr. (10 GPH) when the cartridge is new.
Cartridge Specifications

6
Unpacking
Unpack the Bantam Holder carefully so that none
of the parts will be marred or damaged. Ensure
that any loose parts — such as tubing and fittings
for the plumbing service connections — are not
discarded with the packing materials.
Choosing a Site
Move the Bantam Holder to the desired operating
location. The holder should be installed in a
location accessible to a water supply (raw water
faucet). Also, the unit should be accessible to an
electrical outlet. The holder is equipped with a
1.7m (5-1/2') electrical cord.
Mounting
The Bantam Holder is shipped assembled for
bench mounting. Four screws are provided for
wall mounting if desired.
Plumbing Service Connections
The Bantam Holders are supplied with
polypropylene elbows, inlet and drain tubing, and
straight connectors. The plumbing service
connections are accomplished as follows:
1. Remove the fitting and screen from the
raw water faucet opening.
2. Install a customer-supplied 3/8" NPT x
1/8" NPT brass bushing in the faucet
opening. The 1/8" NPT portion of the
brass bushing is used to connect the
Installation
Note
It is suggested that the Bantam
Holder inlet be connected to a raw
water faucet. Other means of
connecting the holder inlet to a raw
water supply can be used, if
desired.

7
1/8" NPT x 1/4" OD straight connector
provided to connect the Bantam Holder
inlet to the raw water supply. If the raw
water supply service connection is not
3/8" NPT, use another brass fitting as
required.
3. Cut a piece of tubing from the 2.1m (7')
of 1/4" OD tubing (part no. TU1494X1)
provided to make the plumbing service
connection between the raw water faucet
and the plumbing service connection
marked “inlet” on the Bantam Holder.
Ensure that sufficient tubing is left to
drain the holder through the plumbing
service connection marked “drain” on the
Bantam Holder to the sink and to make
the plumbing service connection
between the holder effluent connection
at the top of the unit and the point of
distribution.
4. Thread the 1/8" NPT x 1/4" OD straight
connector provided (part no. 15451) into
the brass bushing at the faucet opening
and connect the tubing between this
connection and the plumbing service
connection marked “inlet” on the holder.
5. Ensure that the 1/8" NPT x 1/4" OD
polypropylene elbow (part no. 15847) is
threaded into the effluent connection at
the top of the holder and connect tubing
between this connection and the point of
distribution. See Elbow-Tubing Assembly
in this manual to ensure that the
connection is made properly to prevent
leakage.
INSTALLATION

8
Elbow Tubing Installation
6. Connect the remaining tubing to the
plumbing service connection marked
“drain” and extend the tubing into the
sink to allow the holder to be drained in
an unrestricted manner.
Elbow-Tubing Assembly
Assembling the tubing and polypropylene elbow
is accomplished as follows to ensure against
leakage.
1. Remove the adapter nut, being careful
not to lose the o-ring, backup ring, and
stainless steel grab ring.
2. Remove the o-ring from the elbow.
3. Install the metal grab ring and backup
ring in the adapter nut, and install the
nut on the elbow. Do not install the
o-ring at this time.
4. Push the tubing through the nut until it
bottoms out in the elbow.
5. Remove the adapter nut, then install the
o-ring on the tubing. Do not push the
backup or metal grab rings back on the
tubing when installing the o-ring on the
tubing.
6. Install the adapter nut on the elbow and
hand-tighten the nut.
INSTALLATION
Caution
Do not restrict the tubing and run
the tubing in an upward direction
from the top of the unit. Any
restriction on the outlet can result in
a cartridge bursting and flooding.
Caution
Do not apply a wrench to the nut—
the nut should be hand-tightened
only to prevent leakage.

9
Cartridge Installation
Install a cartridge in the holder as follows:
1. Install the large o-ring (part no. 06419)
on the cartridge holder. A small o-ring
should be on the bottom of the cell.
The large o-ring is packaged
separately during shipment.
2. Install the fresh cartridge in an upright
position, the large opening toward the
bottom. The lower tightening wheel
should be turned down to allow the
cartridge to be centered between the
top and bottom o-ring.
3. Turn the lower tightening wheel until
the cartridge seats against the top
o-ring.
INSTALLATION
Note
Water purified by the
ion-exchange method is not
necessarily free from odor and
color. In some instances, color or
odor could be introduced by trace
quantities of free amines or low
molecular weight polymers which
are present in fresh untreated
resin. Generally, the amine odor
lessens or disappears after
passing a few gallons of water
through the holder.
Caution
Do not over-tighten the tightening
wheel.

10
Operate the Bantam Holder as follows:
1. Close the drain valve.
2. Open the inlet valve one to two turns
and allow a couple of minutes for the
cartridge to fill. If leakage occurs at an o-
ring, close the inlet valve, loosen the
lower tightening wheel enough to rotate
the cartridge 90°, and retighten. Open
the inlet valve and recheck for leakage.
3. When water issues from the tubing,
adjust the inlet valve to the desired flow
rate (see Cartridge Technical Character-
istics ).
Purity Meter Operation
Operate the Direct Reading Meter by setting the
on/off switch to the “on” position. When the purity
meter drops below the acceptable minimum
purity, or when the purity meter needle registers
in the 0.05 to 0.025 megohm red range, the
cartridge should be replaced. The meter provides
a constant indication of the water purity. The
meter scale is calibrated 0 to 19 PPM (ionizable
impurities) with equivalent indications in
megohms resistance from 0.025 to 18, making
possible constant monitoring of the water purity.
To stop the meter from operating, set the on/off
switch to the “off” position.
Operation
Caution
Do not exceed a flow rate of 38
LPH (10 GPH). Leakage will occur if
this flow is exceeded.
Caution
Do not over-tighten the tightening
wheel.

11
Maintenance of the Bantam Holder should be
minimal, involving cartridge replacement and
o-ring seal replacement. Also, an occasional
calibration check of the purity meter might be
necessary. Cartridges should be stored away
from heat.
Calibration
Calibrate the Direct Reading Meter as follows:
1. Set the on/off switch to the “off” posi-
tion.
2. Check the zero alignment of the meter
needle to the meter scale. If required,
rotate the zero adjustment screw until
the meter needle is aligned with the
line indicating the beginning of the
meter scale. The zero adjustment
screw is located on the face of the
meter below the scales.
3. To calibrate the meter further, connect
a known resistance across the cell
terminals. A 50,000 ohm resistance
should correspond to “0.05” on the
meter scale.
4. With the on/off switch set to “on,”
adjust the potentiometer (screwdriver
adjustment) at the bottom of the meter
case to make the scale reading
correspond to the simulated resis-
tance.
Maintenance and Servicing
Warning
To avoid electrical shock, always
disconnect the power supply
before maintenance and
servicing. Refer servicing to
qualified personnel.

12

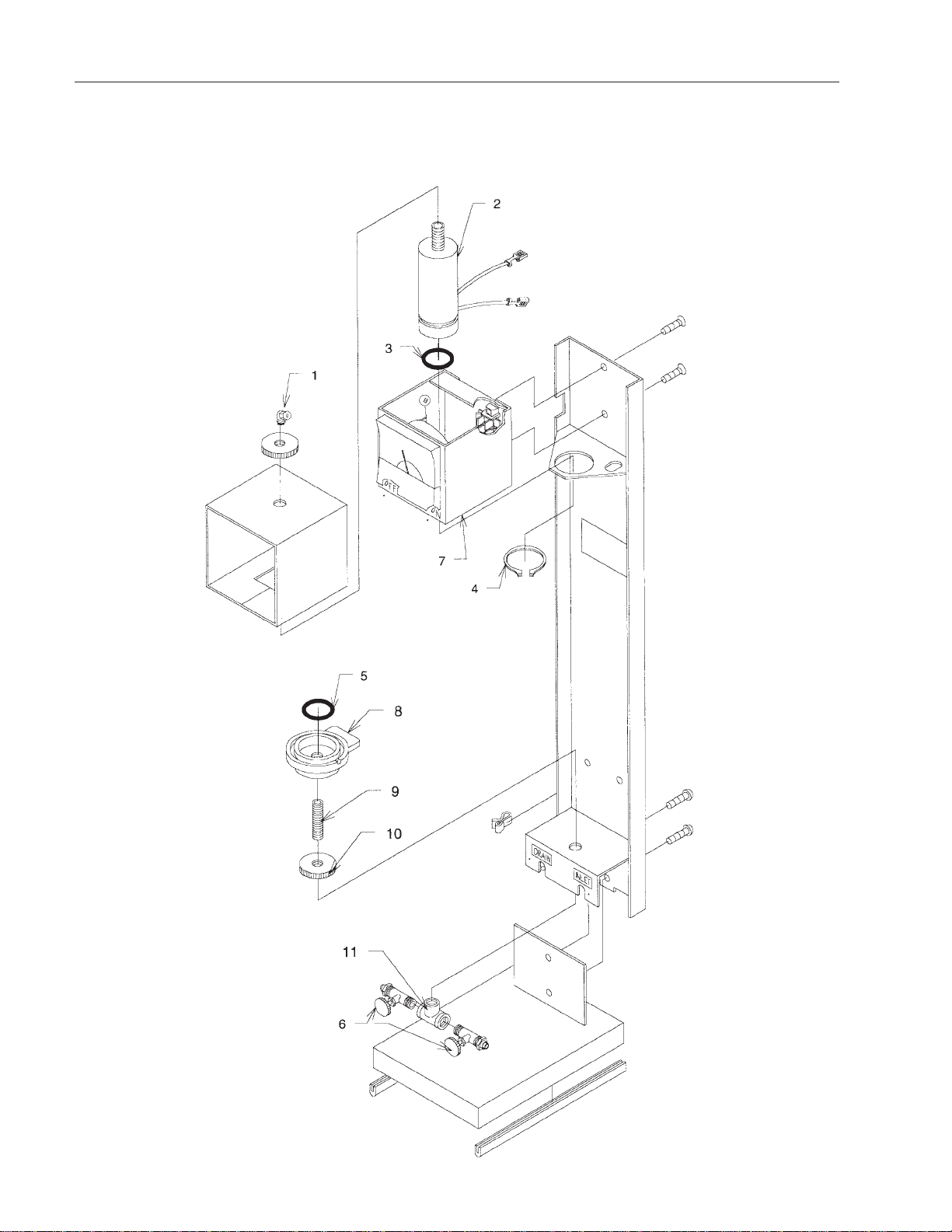

Exploded View

13
Replacement Parts
yeK).ytQ(#traPnoitpircseD
174851ebut"4/1xTPN"8/1,woblE
2075511-DB,lleC
311460gnir-O
428451gniniater,gniR
591460gnir-O
607530TPN"8/1xDO"4/1,ssarb,evlaV
7
)V511(83512
)V032(91033
reteM
879551redlohegdirtraC
969851elppiN
0120551leehWgninethgiTrewoL
1120350eeT
ro3080D
9080D ,erupartlUroyticapachgih,egdirtraC )yletarapesdesahcruP(ylevitcepser
Model Type: D0800
Product Name: Bantam Cartridge Holder
Series Number: 494

14
Ordering Procedures
Please refer to the Specification Plate for the complete model number, serial number, and
series number when requesting service, replacement parts or in any correspondence
concerning this unit.
All parts listed herein may be ordered from the Barnstead Thermolyne dealer from whom
you purchased this unit or can be obtained promptly from the factory. When service or
replacement parts are needed we ask that you check first with your dealer. If the dealer
cannot handle your request, then contact our Customer Service Department at
319-556-2241 or 800-553-0039.
Prior to returning any materials to Barnstead Thermolyne Corp., please contact our
Customer Service Department for a “Return Goods Authorization” number (RGA). Material
Returned without an RGA number will be returned.

15

16
Barnstead|Thermolyne Corporation warrants that if a product manufactured by
Barnstead|Thermolyne and sold by it within the continental United States or Canada
proves to be defective in material or construction, it will provide you, without charge, for a
period of ninety (90) days, the labor, and a period of one (1) year, the parts, necessary to
remedy any such defect. Outside the continental United States and Canada, the warranty
provides, for one (1) year, the parts necessary to remedy any such defect. The warranty
period shall commence either six (6) months following the date the product is sold by
Barnstead|Thermolyne or on the date it is purchased by the original retail consumer,
whichever date occurs first.
All warranty inspections and repairs must be performed by and parts obtained from
an authorized Barnstead|Thermolyne dealer or Barnstead|Thermolyne (at its own
discretion). Heating elements, however, because of their susceptibility to overheating and
contamination, must be returned to our factory, and if, upon inspection, it is concluded that
failure is not due to excessive high temperature or contamination, warranty replacement will
be provided by Barnstead|Thermolyne. The name of the authorized
Barnstead|Thermolyne dealer nearest you may be obtained by calling 1-800-446-6060 or
writing to: Barnstead|Thermolyne
P.O. Box 797
2555 Kerper Boulevard
Dubuque, IA 52004-0797
USA
FAX: [phone]
E-MAILADDRESS: [email protected]
Barnstead|Thermolyne’s sole obligation with respect to its product shall be to repair
or (at its own discretion) replace the product. Under no circumstances shall it be liable for
incidental or consequential damage.
THE WARRANTY STATED HEREIN IS THE SOLE WARRANTYAPPLICABLE TO
Barnstead|Thermolyne PRODUCTS. Barnstead|Thermolyne EXPRESSLY DISCLAIMS
ANYANDALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR USE.
One Year Limited Warranty
9001
ISO
REGISTERED
Barnstead|Thermolyne
2555 Kerper Blvd.
P.O. Box 797
Dubuque, IA 52004-2241
Phone: [phone]
Fax: [phone]
E-Mail Address: [e-mail]
