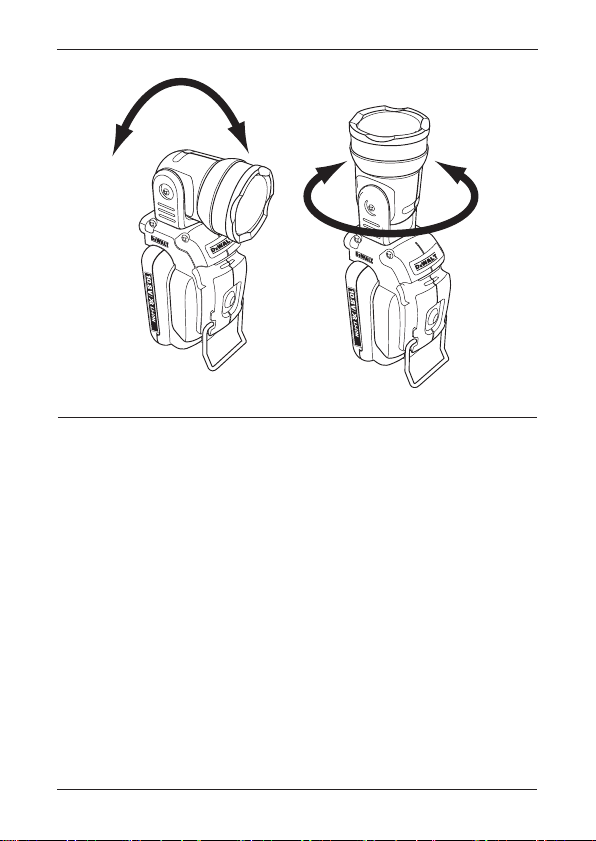

Figure 3

English
4
10.8V CORDLESS LED WORKLIGHT
DCL510
Congratulations!
You have chosen a DeWALT tool. Years of experience, thorough
product development and innovation make DeWALT one of the most
reliable partners for professional tool users.
Technical Data
DCL510
Voltage VDC 10.8
Type 1
Battery Type Li-Ion
Weight (without
battery pack) kg 0.15
Battery pack DCB125 DCB127
Battery type Li-Ion Li-Ion
Voltage VDC 10.8 10.8
Capacity A
h
1.3 2.0
Weight kg 0.2 0.2
Charger DCB105
Mains voltage VAC 220-240 V
Battery type Li-Ion
Approximate charging min 25 30 40 55 70
time of battery packs (1.3 Ah) (1.5 Ah) (2.0 Ah) (3.0 Ah) (4.0 Ah)
Weight kg 0.49

English
5
Charger DCB107
Mains voltage VAC 220-240 V
Battery type Li-Ion
Approximate charging min 60 70 90 140 185
time of battery packs (1.3 Ah) (1.5 Ah) (2.0 Ah) (3.0 Ah) (4.0 Ah)
Weight kg 0.29
Charger DCB112
Mains voltage VAC 220-240 V
Battery type Li-Ion
Approximate charging min 40 45 60 90 120
time of battery packs (1.3 Ah) (1.5 Ah) (2.0 Ah) (3.0 Ah) (4.0 Ah)
Weight kg 0.36
Definitions: Safety Guidelines
The definitions below describe the level of severity for each signal word.
Please read the manual and pay attention to these symbols.
DANGER: Indicates an imminently
hazardous situation which, if not avoided, will result in
death or serious injury.
WARNING: Indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
injury.
CAUTION: Indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate
injury.
NOTICE: Indicates a practice not related to personal
injury which, if not avoided, may result in property
damage.
Denotes risk of electric shock.
Denotes risk of fire.

English
6
WARNING: To reduce the risk of injury, read the instruction
manual.
Safety Warnings
WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or serious
injury.
Save all warningS and inStructionS
for future reference
WARNING!
  •DO NOT stare directly into the light source.
  •DONOTviewdirectlywithopticalinstrumentsinto
the light source.
  •DONOTpointthelightintootherpeopleseyes.
BATTERY TOOL USE AND CARE
a) Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type of battery
pack may create a risk of fire when used with another battery
pack.
b) Use tools only with specifically designated battery packs.
Use of any other battery packs may create a risk of injury
and fire.
c) When battery pack is not in use, keep it away from other
metal objects like paper clips, coins, keys, nails, screws
or other small metal objects that can make a connection
from one terminal to another. Shorting the battery terminals
together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the
battery, avoid contact. If contact accidentally occurs, flush
with water. If liquid contacts eyes, additionally seek medical
help. Liquid ejected from the battery may cause irritation or
burns.

English
7
SERVICE
a) Have your tool serviced by a qualified repair person using
only identical replacement parts. This will ensure that the
safety of the power tool is maintained.
Additional Specific Safety Rules for Worklights
WARNING: Fire hazard. Do not operate worklight or
charger near flammable liquids or in gaseous or explosive
atmospheres. Internal sparks may ignite fumes causing
personal injury.
 • Donotexposelightorchargertowetordampareas.Donot
expose light or charger to rain or snow.
 • Donotwashlightorchargerwithwaterorallowwatertogetinside
light or charger. Do not submerge light in water at any time.
 • Donotoperatewithoutlenscoverassemblyattached.
CAUTION: When not in use, place tool on its side on
a stable surface where it will not cause a tripping
or falling hazard. Some tools with large battery packs
will stand upright on the battery pack but may be easily
knocked over.
Markings on Tool
The following pictograms are shown on the tool:
Read instruction manual before use.
Do not stare directly into the light source.
DATE CODE POSITION
The date code, which also includes the year of manufacture, is printed
into the housing surface that forms the mounting joint between tool and
battery.

English
8
Example:
2014 XX XX
Year of Manufacture
Important Safety Instructions for All Battery
Chargers
SAVE THESE INSTRUCTIONS: This manual contains important
safety and operating instructions for the DCB105, DCB107 and
DCB112 battery chargers.
 • Beforeusingcharger,readallinstructionsandcautionarymarkings
on charger, battery pack, and product using battery pack.
WARNING: Shock hazard. Do not allow any liquid to get
inside charger. Electric shock may result.
CAUTION: Burn hazard. To reduce the risk of injury,
charge only DeWALT rechargeable batteries. Other types of
batteries may burst causing personal injury and damage.
CAUTION: Children should be supervised to ensure that
they do not play with the appliance.
NOTICE: Under certain conditions, with the charger
plugged in to the power supply, the charger can be
shorted by foreign material. Foreign materials of a
conductive nature such as, but not limited to, grinding
dust, metal chips, steel wool, aluminum foil, or any buildup
of metallic particles should be kept away from charger
cavities. Always unplug the charger from the power supply
when there is no battery pack in the cavity. Unplug charger
before attempting to clean.
WARNING:
 • DONOTattempttochargethebatterypackwithanychargers
other than the ones in this manual. The charger and battery
pack are specifically designed to work together.

English
9
 • Thesechargersarenotintendedforanyusesotherthan
charging DeWALT rechargeable batteries. Any other uses may
result in risk of fire, electric shock or electrocution.
 • Donotexposechargertorainorsnow.
 • Pullbyplugratherthancordwhendisconnectingcharger.
This will reduce risk of damage to electric plug and cord.
 • Makesurethatcordislocatedsothatitwillnotbestepped
on, tripped over, or otherwise subjected to damage or stress.
 • Donotuseanextensioncordunlessitisabsolutelynecessary.
Use of improper extension cord could result in risk of fire,
electric shock, or electrocution.
 • Donotplaceanyobjectontopofchargerorplacethe
charger on a soft surface that might block the ventilation
slotsandresultinexcessiveinternalheat. Place the charger in
a position away from any heat source. The charger is ventilated
through slots in the top and the bottom of the housing.
 • Donotoperatechargerwithdamagedcordorplug— have
them replaced immediately.
 • Donotoperatechargerifithasreceivedasharpblow,been
dropped, or otherwise damaged in any way. Take it to an
authorised service centre.
 • Donotdisassemblecharger;takeittoanauthorisedservice
centre when service or repair is required. Incorrect reassembly
may result in a risk of electric shock, electrocution or fire.
 • Incaseofdamagedpowersupplycordthesupplycordmustbe
replaced immediately by the manufacturer, its service agent or
similar qualified person to prevent any hazard.
 • Disconnectthechargerfromtheoutletbeforeattemptingany
cleaning.Thiswillreducetheriskofelectricshock.Removing
the battery pack will not reduce this risk.
• NEVERattempt to connect 2 chargers together.
 • Thechargerisdesignedtooperateonstandard220-240V
householdelectricalpower.Donotattempttouseitonany
other voltage. This does not apply to the vehicular charger.

English
10
Save tHeSe inStructionS
Chargers
The DCB105, DCB107 and DCB112 chargers accept 10.8V DeWALT
XR Li-Ion batteries.
These chargers require no adjustment and are designed to be as easy
as possible to operate.

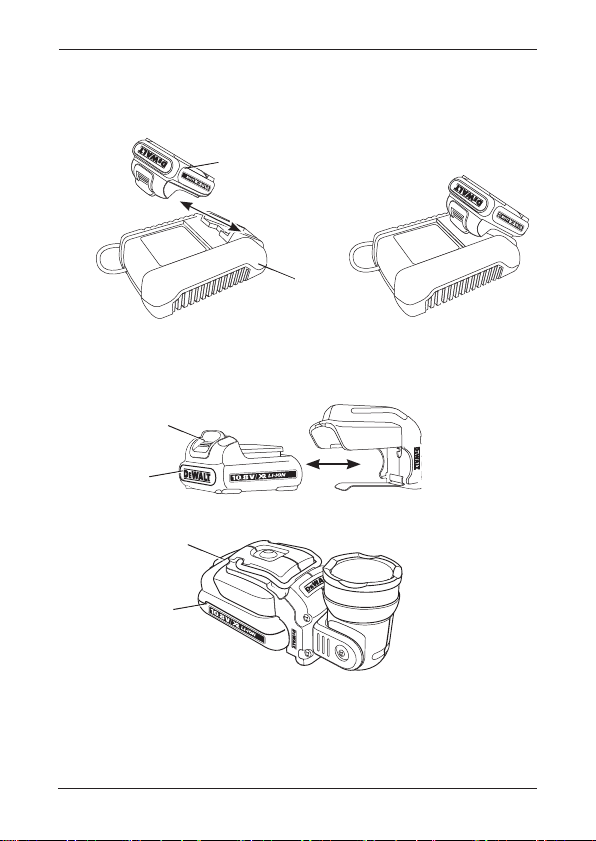

Charging Procedure (fig. 2)
1. Plug the charger (h) into an appropriate outlet before inserting
battery pack.
2. Insert the battery pack (f) into the charger. The red (charging) light
will blink continuously indicating that the charging process has
started.
3. The completion of charge will be indicated by the red light
remaining ON continuously. The pack is fully charged and may be
used at this time or left in the charger.
NOTE: To ensure maximum performance and life of Li-Ion batteries,
charge the battery pack fully before first use.
Charging Process
Refer the tables below for the state of charge of the battery pack.
State of charge–DCB105
charging – – – –
fully charged –––––––––––
hot/cold pack delay –– – –– –
 replacebatterypack •••••••••••
State of charge–DCB107 and DCB112
charging –– –– –– –– ––
fully charged ––––––––––––––––––––
hot/cold pack delay –– –– –– –––––––

English
11
Hot/Cold Pack Delay
DCB105
When the charger detects a battery that is too hot or too cold, it
automatically starts a Hot/Cold Pack Delay, suspending charging until
the battery has reached an appropriate temperature. The charger then
automatically switches to the pack charging mode. This feature ensures
maximum battery life.
DCB107 AND DCB112
When the charger detects a battery that is hot, it automatically delays
charging until the battery has cooled.
When the charger detects a battery that is cold, it automatically delays
charging until the battery has warmed.
The red light will continue to blink, but a yellow indicator light will
be illuminated during this operation. Once the battery has cooled,
the yellow light will turn off and the charger will resume the charging
procedure.
XR Li-Ion tools are designed with an Electronic Protection System
that will protect the battery against overloading, overheating or deep
discharge.
The tool will automatically turn off if the Electronic Protection System
engages. If this occurs, place the Li-Ion battery on the charger until it is
fully charged.
LI-ION BATTERY PACKS ONLY
Li-Ion batteries are designed with an Electronic Protection System
that will protect the battery against overloading, overheating or deep
discharge.
The tool will automatically turn off if the Electronic Protection System
engages. If this occurs, place the Li-Ion battery on the charger until it is
fully charged.

English
12
Important Safety Instructions for All Battery
Packs
When ordering replacement battery packs, be sure to include catalog
number and voltage.
The battery pack is not fully charged out of the carton. Before using
the battery pack and charger, read the safety instructions below. Then
follow charging procedures outlined.
read all inStructionS
 • Donotchargeorusebatteryinexplosiveatmospheres,
such as in the presence of flammable liquids, gases or dust.
Inserting or removing the battery from the charger may ignite the
dust or fumes.
• Neverforcebatterypackintocharger.Donotmodifybattery
packinanywaytofitintoanon-compatiblechargeras
battery pack may rupture causing serious personal injury.
 • ChargethebatterypacksonlyinDeWALT chargers.
• DONOTsplash or immerse in water or other liquids.
 • Donotstoreorusethetoolandbatterypackinlocations
wherethetemperaturemayreachorexceed40°C(105°F)
(suchasoutsideshedsormetalbuildingsinsummer).
WARNING: Never attempt to open the battery pack for
any reason. If battery pack case is cracked or damaged,
do not insert into charger. Do not crush, drop or damage
battery pack. Do not use a battery pack or charger that
has received a sharp blow, been dropped, run over or
damaged in any way (i.e., pierced with a nail, hit with
a hammer, stepped on). Electric shock or electrocution
may result.Damaged battery packs should be returned to
service centre for recycling.
CAUTION: When not in use, place tool on its side on
a stable surface where it will not cause a tripping
or falling hazard. Some tools with large battery packs
will stand upright on the battery pack but may be easily
knocked over.

English
13
SPECIFIC SAFETY INSTRUCTIONS FOR LITHIUM ION (Li-Ion)
 • Donotincineratethebatterypackevenifitisseverely
damaged or is completely worn out. The battery pack can
explode in a fire. Toxic fumes and materials are created when
lithium ion battery packs are burned.
 • Ifbatterycontentscomeintocontactwiththeskin,
immediately wash area with mild soap and water. If battery
liquid gets into the eye, rinse water over the open eye for
15 minutes or until irritation ceases. If medical attention is needed,
the battery electrolyte is composed of a mixture of liquid organic
carbonates and lithium salts.
 • Contentsofopenedbatterycellsmaycauserespiratory
irritation. Provide fresh air. If symptoms persists, seek medical
attention.
WARNING: Burn hazard. Battery liquid may be flammable
if exposed to spark or flame.
Transportation
DeWALT batteries comply with all applicable shipping regulations
as prescribed by industry and legal standards which include UN
Recommendations on the Transport of Dangerous Goods; International
Air Transport Association (IATA) Dangerous Goods Regulations,
International Maritime Dangerous Goods (IMDG) Regulations, and
the European Agreement Concerning The International Carriage of
Dangerous Goods by Road (ADR). Lithium-ion cells and batteries
have been tested to section 38.3 of the UN Recommendations on the
Transport of Dangerous Goods Manual of Tests and Criteria.
In most instances, shipping a DeWALT battery pack will be excepted
from being classified as a fully regulated Class 9 Hazardous material. In
general, the two instances that require shipping Class 9 are:

English
14
1. Air shipping more than two DeWALT lithium-ion battery packs
when the package contains only battery packs (no tools), and
2. Any shipment containing a lithium-ion battery with an energy rating
greater than 100 watt hours (Wh). All lithium-ion batteries have the
watt hour rating marked on the pack.
Regardless of whether a shipment is considered excepted or fully
regulated, it is the shipper’s responsibility to consult the latest
regulations for packaging, labeling/marking and documentation
requirements.
Transporting batteries can possibly cause fire if the battery terminals
inadvertently come in contact with conductive materials. When
transporting batteries, make sure that the battery terminals are
protected and well insulated from materials that could contact them
and cause a short circuit.
The information provided in this section of the manual is provided in
good faith and believed to be accurate at the time the document was
created. However, no warranty, expressed or implied, is given. It is
the buyer’s responsibility to ensure that its activities comply with the
applicable regulations.
Battery Pack
BATTERY TYPE
The DCL510 operates on 10.8 volt DeWALT XR Li-Ion battery packs.
Refer to Technical Data for more information.
Storage Recommendations
1. The best storage place is one that is cool and dry away from
direct sunlight and excess heat or cold. For optimum battery
performance and life, store battery packs at room temperature
when not in use.
2. For long storage, it is recommended to store a fully charged
battery pack in a cool, dry place out of the charger for optimal
results.
NOTE: Battery packs should not be stored completely depleted of
charge. The battery pack will need to be recharged before use.

English
15
Labels on Charger and Battery Pack
In addition to the pictographs used in this manual, the labels on the
charger and the battery pack show the following pictographs:
Read instruction manual before use.
See Technical Data for charging time.
Battery charging.
Battery charged.
Battery defective.
Hot/cold pack delay.
Do not probe with conductive objects.
Do not charge damaged battery packs.
Do not expose to water.
Have defective cords replaced immediately.
Charge only between 4 ˚C and 40 ˚C.
Only for indoor use.

English
16
Discard the battery pack with due care for the environment.
Charge DeWALT battery packs only with designated
DeWALT chargers. Charging battery packs other than the
designated DeWALT batteries with a DeWALT charger may
make them burst or lead to other dangerous situations.
Do not incinerate the battery pack.
Package Contents
The package contains:
1 Worklight
1 Instruction manual
NOTE: Battery packs and chargers are not included with N-models.
 • Checkfordamagetothetool,partsoraccessorieswhichmay
have occurred during transport.
 • Takethetimetothoroughlyreadandunderstandthismanualprior
to operation.
Description (fig. 1, 2)
WARNING: Never modify the power tool or any part of it.
Damage or personal injury could result.
a. Switch
b. Stand
c. Pivoting head
d. Belt hook
e. Magnets
f. Battery
g. Release button

English
17
INTENDED USE
These worklights are professional tools.
DO NOT use under wet conditions or in presence of flammable liquids
or gases.
DO NOT let children come into contact with the tool. Supervision is
required when inexperienced operators use this tool.
 • Thisproductisnotintendedforusebypersons(includingchildren)
suffering from diminished physical, sensory or mental abilities,
or for lack of experience and/or for want of knowledge or skills
unless they are supervised by a person responsible for their safety.
Children should never be left alone to play with this product.
Electrical Safety
The product has been designed for one voltage only. Always check that
the battery pack voltage corresponds to the voltage on the rating plate.
Also make sure that the voltage of your charger corresponds to that of
your mains.
Your DeWALT charger is double insulated in accordance with
IEC 60335; therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by a specially
prepared cord available through the DeWALT service organisation.
Using an Extension Cable
An extension cord should not be used unless absolutely necessary.
Use an approved extension cable suitable for the power input of your
charger (see Technical Data). The minimum conductor size is 1 mm2;
the maximum length is 30 m.
When using a cable reel, always unwind the cable completely.
ASSEMBLY AND ADJUSTMENTS
WARNING: Use only DeWALT battery packs and chargers.

English
18
Inserting and Removing the Battery Pack
from the Tool (fig. 2)
NOTE: Make sure your battery pack (f) is fully charged.
TO INSTALL THE BATTERY PACK INTO THE TOOL HANDLE
1. Align the battery pack with the rails inside the handle.
2. Slide it firmly into place until you hear the lock snap into place.
TO REMOVE THE BATTERY PACK FROM THE TOOL
1. Press the release button (g) and firmly pull the battery pack out of
the tool handle.
2. Insert battery pack into the charger as described in the charger
section of this manual.
OPERATION
Instructions for Use
WARNING: Always observe the safety instructions and
applicable regulations.
Switch (fig. 1)
To turn the light on, press the switch (a). To turn it off, press the switch
again.
Pivoting Head (fig. 1, 3)
The pivoting head (c) provides light in any direction by rotating 180˚ in
both directions.
Magnets, Belt Hook and Stand
CAUTION: When magnet and belt hook is in use, do not
shake light. Personal injury or property damage may occur.
CAUTION: When light is hung by the magnet and belt
hook, do not shake the light or object that it is hanging
from. Do not hang the light from any electrical wires or
