Bartec PBTC-200-E Specification sheet

Origin Operating Instructions –keep for future reference
Operation and Installation Manual
Junction Box with Electronic Thermostat Module
PBTC-200-E
27-54C2-4412/E210

Operation and Installation Manual PBTC-200-E
Contents
1About this Manual........................................................2
1.1 Product Safety...............................................................2
1.2 How to use the Operating and Installation Instructions..2
1.3 Symbols and Signs........................................................2
1.4 Terms and Definitions....................................................3
2Safety Instructions ......................................................3
2.1 Intended Use .................................................................3
2.2 Certifications / Approvals / Marking ...............................4
2.3 Reasonably foreseeable Misuse....................................4
2.4 Personal Qualification....................................................5
3Performance Description............................................5
4Scope of Delivery.........................................................6
5Device Description ......................................................7
5.1 Thermostat module in junction box................................7
5.2 Thermostatmodul...........................................................9
5.3 LED-Status Indication..................................................10
6Technical Data ...........................................................11
6.1 Dimensions..................................................................11
6.2 Operating Data ............................................................12
6.3 Accessories .................................................................13
6.4 Spare parts..................................................................15
7Functional Description..............................................16
8Transport....................................................................16
9Installation and Assembly.........................................17
Required Tools / Equipment................................................17
Safety Instructions...............................................................17
Installing the Heating Cable.................................................17
Pre-assembling the Mounting Stand ...................................18
Preparing the Heating Cable...............................................19
Installing the Mounting Stand..............................................23
Connecting the Heating Cable and Power Supply...............25
Mounting the Resistance Temperature Device Pt100 .........30
Installing the End Seal.........................................................30
Applying the Pipe Insulation................................................31
10 Commissioning..........................................................32
11 Operation....................................................................34
12 Maintenance...............................................................35
13 Decommissioning......................................................35
14 Recommissioning......................................................36
15 Disposal and Recycling.............................................36
16 Troubleshooting.........................................................37
17 Acceptance and Test Report.....................................38
18 Limited Product Warranty.........................................38
19 EU Declaration of Conformity...................................39

Operation and Installation Manual PBTC-200-E
21-54C3-7D0001/A
05/2023-EHT-441168
Notice: Technical data subject to change without notice.
No claims for damage arising from alternations, errors or misprints shall be allowed.
Page 2 / 40
1 About this Manual
1.1 Product Safety
The Junction Box with Electronic Thermostat Module PBTC-200-E is designed and approved for use in hazardous areas. It is built
according to the state of the art and is safe to use. To ensure safe operation, it is essential to plan the system accurately, transport it
properly, install it professionally, and to commission and maintain it. The necessary personal protective equipment (PPE) must be
worn when working on the product or on the system in which it is installed.
The junction boxes with electronic thermostat module PBTC may only be operated and used in accordance with their intended pur-
pose and in compliance with these operating instructions and the applicable national standards and approvals.
WARNING
Injuries due to misuse
Improper use of the product can lead to an explosion, serious injury or death. The warnings and instructions must be
read and understood.
1.2 How to use the Operating and Installation Instructions
This manual is part of the Junction Box with Electronic Thermostat Module PBTC-200-E. It is intended for safe and efficient handling
of the product. The manual must be kept for future reference and kept close to the PBTC electronic thermostat module junction box
so that it is always available to all personnel involved.
Read these instructions carefully and completely before working with the product. The contents of the manual must be read and
understood thoroughly before installing, commissioning, using or maintaining the product. This manual must be passed on to future
owners or operators if necessary.
The safety notes and instructions in this manual and in the documents provided are a requirement for safe working and must be
observed. The technical data and applicable standards must be observed.
The illustrations in this manual are for basic understanding and may differ from the actual design
1.3 Symbols and Signs
The Warning signs warn of dangerous situations. They are intended to protect against personal injury and damage to property.
In the operating instructions, the severity of the possible dangers is indicated by the following signal words:
DANGER
DANGER draws attention to a danger, which will lead to death or serious injury if not avoided.
WARNING
WARNING draws attention to a danger, which can lead to death or serious injury if not avoided.
CAUTION
CAUTION draws attention to a danger, which can lead to minor or moderate injury if not avoided.
NOTICE
Important instructions and information on effective, economical & environmentally compatible handling.
Reference to important information to which special attention is drawn:
Disposal
The device must be disposed of properly in accordance with the local laws and regulations for electrical and
electronic equipment.
The device must not be disposed of with household waste.

Operation and Installation Manual PBTC-200-E
21-54C3-7D0001/A
05/2023-EHT-441168
Notice: Technical data subject to change without notice.
No claims for damage arising from alternations, errors or misprints shall be allowed.
Page 3 / 40
1.4 Terms and Definitions
These operating instructions describe the junction box with electronic thermostat module PBTC and may only be referred to in these
operating instructions as junction box with thermostat module. In this case, it refers to the connection housing with PBTC electronic
thermostat module.
A Pt100 Resistance Temperature Device is connected to the connection housing with the thermostat module. In this document, it
may only be referred to as a Resistance Temperature Device. In this case, the Pt100 Resistance Temperature Device is meant.
The individual components of the connection housing with electronic thermostat module are described in Chapter 5 (Device Descrip-
tion) and used in this manual.
2 Safety Instructions
WARNING
Risk of fire or electrical shock due to electric trace heating system.
Follow these guidelines to avoid personal injury or material damage.
For safe installation of the Junction Box with Electronic Thermostat Module PBTC-200-E the technical requirements and instructions
given in this manual must be followed. Keep these instructions for future reference. If applicable, leave them with the end user.
All electrical systems and installations must comply with BARTEC GmbH requirements and be installed in accordance with the rele-
vant electrical codes and any other applicable national and local codes.
Use the Junction Box with Electronic Thermostat Module PBTC-200-E in accordance with the intended use and strictly comply with
the operational data specified in section Technical Data.
Install all components of the trace heating system carefully, especially the connection kit, trace heater and end seal.
Any defective component of the kit must be replaced before installation. Replace each defect component of the trace heating system.
This kit contains silicone adhesive. Keep out of reach of children. Store at below 25 °C. Follow the safety instructions given on the
packaging.
Use only original BARTEC accessories and spare parts.
Note that the Applicable Documents listed below shows further important information and must be observedin addition to this manual.
Applicable Documents
DesignGuide System (for PSB and MSB)
21-1S00-7D0001
DesignGuide Enclosure (for HSB+ and HTSB)
21-5400-7D0001
Installation Instructions
Self-regulating trace heating cables
01-5800-7D0003
Storage conditions
21-0000-7Q0001
2.1 Intended Use
The Junction Box with Electronic Thermostat Module PBTC is intended for use as a temperature controller in electrical trace heating
systems.
The Junction Box with Electronic Thermostat Module may only be installed in trace heating systems that have been designed by
trained and qualified personnel with specific expertise and experience in explosion protection and trace heating systems.
It can be operated only with
Resistance Temperature Device Pt100
Appropriately designed over-current protection device
The self-limiting BARTEC heating cables type PSB, MSB, HSB+ or HTSB
Completely filled out acceptance test report
The Junction Box with Electronic Thermostat Module may only be operated with one heating cable and one kind of heating cable in
each heating circuit. The maximum permissible heating cable length must be observed. See the corresponding DesignGuide.
The approval and marking of the respective heating system, the data sheet of the heating cable type and the DesignGuide must be
observed.
For use with electrical systems, the relevant installation and operating conditions (e.g. according to ATEX Directive 2014/34/EU,
EN 60079-0, EN 60079-14, EN 60079-17, EN 60079-30-2 and any other relevant national standards) must be observed. Information
on the type plate, the EUtype examination certificate mustbe observed. Technical data on the thermostat module and in the operating
instructions must be observed.

Operation and Installation Manual PBTC-200-E
21-54C3-7D0001/A
05/2023-EHT-441168
Notice: Technical data subject to change without notice.
No claims for damage arising from alternations, errors or misprints shall be allowed.
Page 4 / 40
Specific Conditions of Use
All power and data line cable entries to the trace heater boxes shall be installed with Ex eb or Ex tb cable glands or blanking elements
providing a minimum ingress protection of IP66.
Supply cables and power cable entry glands shall be selected per manufacturer’s installation instructions for appropriate conductor
size and temperature range (refer to DesignGuide, chapter "Checklist customized entry port").
PBTC shall be applied for maintenance temperature control only. The Pt100 wiring shall be part of a fixed installation and shall be
effectively clamped to prevent pulling or twisting.
Trace heater boxes, Aluminium housing type 07-5180-****/****
The enclosure must not be used in areas affected by charge-producing processes, mechanical friction and separation processes,
electron emission (e.g. in the vicinity of electrostatic coating equipment), and pneumatically conveyed dust.
Temperature Controller Type 27-54C*-****/****
Shall be applied for maintaining temperature only.
The Pt100 wiring shall be part of a fixed installation and shall be effectively clamped to prevent pulling or twisting.
2.2 Certifications / Approvals / Marking
According to system certificate:
IECEx DEK 20.0055X
DEKRA 20ATEX0093 X
Junction Box with Electronic Thermostat Module PBTC-200-E
for BARTEC PSB, MSB trace heaters
IECEx DEK 20.0055X
Ex eb mb [ib] 60079-30-1 IIC T6…T31Gb
Ex tb [ib] 60079-30-1 IIIC T80 °C… T170 °C1Db
DEKRA 20ATEX0093 X
II 2G Ex eb mb [ib] 60079-30-1 IIC T6…T31Gb
II 2D Ex tb [ib] 60079-30-1 IIIC T80 °C… T170 °C1Db
According to enclosure certificate:
IECEx DEK 21.0074X
DEKRA 21ATEX0118 X
Junction Box with Electronic Thermostat Module PBTC-200-E
for BARTEC PSB, MSB, HSB+ or HTSB trace heaters
IECEx DEK 21.0074X
Ex eb mb [ib] 60079-30-1 IIC T6…110 °C (T4)1Gb
Ex tb [ib] 60079-30-1 IIIC TL80 °C…TL110 °C1Db
DEKRA 21ATEX0118 X
II 2G Ex eb mb [ib] 60079-30-1 IIC T6…110 °C (T4)1Gb
II 2D Ex tb [ib] 60079-30-1 IIIC TL80 °C…TL110 °C1Db
2.3 Reasonably foreseeable Misuse
The following activities are a misuse of the product and are not allowed:
Use of the Junction Box with Electronic Thermostat Module PBTC for purposes other than those described in the intended use
Installation, commissioning, operation, maintenance or disposal by unauthorised or unqualified personnel
Work on live parts or circuits without switching off the Junction Box with Electronic Thermostat Module PBTC or the system
Commissioning of damaged or faulty system components or incomplete installation
Unauthorized technical modification of the Junction Box with Electronic Thermostat Module PBTC or its components
1
For maximum surface temperature, see heating system design documentation

Operation and Installation Manual PBTC-200-E
21-54C3-7D0001/A
05/2023-EHT-441168
Notice: Technical data subject to change without notice.
No claims for damage arising from alternations, errors or misprints shall be allowed.
Page 5 / 40
2.4 Personal Qualification
The junction box with thermostat module may only be handled by qualified personnel in all phases of its life.
The junction box with thermostat module may only be transported by instructed and qualified personnel with special knowledge of
transport.
The system design, installation/assembly, commissioning, operation, maintenance, decommissioning and re-commissioning of the
junction box with thermostat module may only be carried out by trained, instructed and qualified personnel with specific expertise in
the electrical engineering.
Disposal of the junction box with thermostat module may only be carried out by trained, instructed and qualified personnel with
specialist knowledge of disposal.
For system planning, installation/assembly, commissioning, operation and maintenance/servicing, the requirements for personnel
qualification according to DIN/EN 60079-14 must also be observed.
3 Performance Description
The junction box with thermostat module is intended for use in trace heating systems in hazardous areas. The operation together with
a Resistance Temperature Device Pt100 and BARTEC heating cables of the type PSB, MSB, HSB+ or HTSB is certified.
The thermostat module is a temperature controller type ETM-25Ex-C and meets the requirements of IEEE/IEC/EN 60079-30-1.
The LED status display shows the current operating status of the device by means of color and flash codes. The connection of the
Resistance Temperature Device Pt100 is intrinsically safe. The temperature setpoint is set by means of 3 rotary coding switches.

Operation and Installation Manual PBTC-200-E
21-54C3-7D0001/A
05/2023-EHT-441168
Notice: Technical data subject to change without notice.
No claims for damage arising from alternations, errors or misprints shall be allowed.
Page 6 / 40
4 Scope of Delivery
Product: PBTC-200-E
1 x
Silicone pants
1 x
End seal
1 x
Green/yellow tube
for grounding braid
2 x
Trace heater
grommet
1 x
Silicone adhesive
1 x
Cover for junction box
incl. 4 fixing screws
1 x
Junction box with thermostat module and
Resistance Temperature Device Pt100 M

Operation and Installation Manual PBTC-200-E
21-54C3-7D0001/A
05/2023-EHT-441168
Notice: Technical data subject to change without notice.
No claims for damage arising from alternations, errors or misprints shall be allowed.
Page 7 / 40
1 x
Top unit of the mounting stand
incl. sealing ring and lock nut
1 x
Base unit of the mounting stand
5 Device Description
5.1 Thermostat module in junction box
Illustration with cover for junction box
No.
Description
1
Junction box with thermostat module
2
LED status indication
3
Top unit of the mounting stand
4
Base unit of the mounting stand
5
Resistance thermometer Pt100
6
Cable gland Resistance thermometer Pt100
7
Cable gland Mains connection
2
6
5
3
4
7
1

Operation and Installation Manual PBTC-200-E
21-54C3-7D0001/A
05/2023-EHT-441168
Notice: Technical data subject to change without notice.
No claims for damage arising from alternations, errors or misprints shall be allowed.
Page 8 / 40
Illustration without cover for junction box
No.
Description
1
Electronic thermostat module ETM-25Ex-C
2
Connection cable Resistance Temperature Device Pt100
3
Lock nut
4
Resistance thermometer Pt100
5
DIN rail TS35
3
2
5
4
1

Operation and Installation Manual PBTC-200-E
21-54C3-7D0001/A
05/2023-EHT-441168
Notice: Technical data subject to change without notice.
No claims for damage arising from alternations, errors or misprints shall be allowed.
Page 9 / 40
5.2 Thermostatmodul
No.
Short code/
Labelling
Designation
Function
1
Rotary coding switch 100’s
Adjustment of the temperature setpoint: Digit for 100s value
2
Rotary coding switch 10’s
Adjustment of the temperature setpoint: Digit for 10s value
3
Rotary coding switch 1’s
Adjustment of the temperature setpoint: Digit for for 1 value
4
LED- Status indication
Display of the operating status as color and blink code
5
Selector switch °F - °C
Switch Temperature unit
6
switch not used
without Function
7
Pt100
Connection terminal resistance de-
vice Pt100
-
8
LH
Connection load/el. Trace heating
-
9
L
Power connection (Phase)
-
10
Neutral (N)
Connection neutral lead,
Connection load/el. Trace heating
-
11
Earth (PE)
Protective earth connection,
Connection of protective conductor
load/el. Trace heating
-
For information:
The second selector switch (No. 6) is in this case without function.
7
11
11
10
10
9
8
1
2
3
4
5
6

Operation and Installation Manual PBTC-200-E
21-54C3-7D0001/A
05/2023-EHT-441168
Notice: Technical data subject to change without notice.
No claims for damage arising from alternations, errors or misprints shall be allowed.
Page 10 / 40
5.3 LED-Status Indication
The operating status of the thermostat module is indicated by the LED status display. This is indicated by color and flashing codes.
Description of the color and blink codes:
Status
LED display
Continuous ON
1 flash impulse
2 flash impulse
3 flash impulse
4 flash impulse
OK
Green
Thermostat modul in oper-
ation,
Heating cable in operation
Thermostat mod-
ule is ready for
operation
-
-
-
Warnung
Yellow
Temperature-WARNING,
Temperature at the Re-
sistance Temperature De-
vice Pt100 outside the set
temperature warning
thresholds
Device tempera-
ture of the ther-
mostat module
exceeds the de-
fined warning
limits
80% lifetime of
the thermostat
module reached,
plan and prepare
replacement of
the thermostat
module
Contact problem
at the Re-
sistance Tem-
perature Device
Pt100 or temper-
ature rise at the
Resistance Tem-
perature Device
Pt100 too high
-
Alarm
Red
-
Resistance Tem-
perature Device
Pt100 short-cir-
cuited or defect
Cable connec-
tion to Re-
sistance Tem-
perature Device
Pt100 too long,
cable cross sec-
tion too small
(connection re-
sistance too
high) or Re-
sistance Tem-
perature Device
Pt100 not con-
nected
100% lifetime of
the thermostat
module reached,
heating cable
switched off, re-
place thermostat
module
Temperature of
thermostat mod-
ule too high,
heating circuit is
switched off

Operation and Installation Manual PBTC-200-E
21-54C3-7D0001/A
05/2023-EHT-441168
Notice: Technical data subject to change without notice.
No claims for damage arising from alternations, errors or misprints shall be allowed.
Page 11 / 40
6 Technical Data
6.1 Dimensions

Operation and Installation Manual PBTC-200-E
21-54C3-7D0001/A
05/2023-EHT-441168
Notice: Technical data subject to change without notice.
No claims for damage arising from alternations, errors or misprints shall be allowed.
Page 12 / 40
6.2 Operating Data
Parameter
Values
Nominal operating / control
voltage
80 - 277 VAC (50/60Hz)
Um
305 VAC
Rated power without load
4,5 W
Ambient temperature Ta
-40°C to 55°C
Storage temperature
-50°C to 70°C
Max. pipe temperature
max. 240°C; Observe max. temperature of heating cable type and note information and picture 38
Number of control circuits
1 Heating circuit
Connection RTD temperature
Pt100
3-wire cable, 100 Ohm at 0°C (32°F) Platinum Resistance Temperature Device,
Intrinsically safe input circuit, connection cable resistance max. 14 Ohm
Temperature unit
°C/°F
Temperature control range
0°C to 500°C (32°F to 932°F)
Temperature measuring
range thermostat module
-60°C to 500°C (-76°F to 932°F)
Default temperature warning
thresholds
-40°C and 500°C
Temperature Measuring
Range Resistance Tempera-
ture Device Pt100
-50°C to 200°C; max. operating temperature 200°C
(technical data of the included Pt100)
Length of connecting lead Re-
sistance Temperature Device
Pt100
1.5 m
Measurement accuracy
±0.5 % of the entire measuring range
Control method
On/off control
Switching capacity of the load
contact
See table "Maximum heating circuit length/max. heating cable length”
Temperature adjustment
by rotary coding switch
Hysteresis
Default 5K (9°F)
Resistance Temperature Device Pt100
The junction box with thermostat module can also be operated with a different Pt100 Resistance Temperature Device than the one
installed by the manufacturer. Compliance with the max. permissible connected load at the connection terminal must be ensured:
Max. connected load Resistance Temperature Device Pt100:
Ex ib IIC
Ex ib IIB
Ex ib IIIB
Ex ib IIIC
U0
6,6 V
I0
827 mA
P0
1,28 W
L0
32 µH
128 µH
C0
6,7 µF
484 µF
The sensor circuit of the Pt100 Resistance Temperature Device is not susceptible to interference and is galvanically isolated from all
other non-intrinsically safe circuits. The earth connection of the instrument must be connected to the potential equalization (PE).

Operation and Installation Manual PBTC-200-E
21-54C3-7D0001/A
05/2023-EHT-441168
Notice: Technical data subject to change without notice.
No claims for damage arising from alternations, errors or misprints shall be allowed.
Page 13 / 40
6.3 Accessories
Glass cloth tape
Used to fix the heating cable on pipes.
11 mm x 50 m per roll
Maximum withstand temperature: 180 °C
(short term (1h) 250 °C)
For heating cable PSB, MSB, HSB, HSB+, HTSB and
EKL Light, EKL Medium and EKL Premium.
Gluing below 10 °C should be avoided. Observe processing
instructions on datasheet.
Catalog No.: GT-164
Part No.: 02-5500-0047
Tip: Refer to the following table to estimate the required number of tape rolls for your installation:
Pipe diameter
in inch (DN)
1/4"
(DN8)
1/2"
(DN15)
3/4"
(DN20)
1"
(DN25)
1 1/4"
(DN32)
1 1/2"
(DN40)
2"
(DN50)
2 1/2"
(DN65)
3"
(DN80)
4"
(DN100)
6"
(DN150)
8"
(DN200)
10"
(DN250)
12"
(DN300)
14"
(DN350)
16"
(DN400)
18"
(DN450)
20"
(DN500)
24"
(DN600)
Required no. of
tape rolls per
100 ft (30 m) of
piping
1
1
1
1
1
1
2
2
2
3
4
5
6
7
7
8
9
10
12
Polyester adhesive tape
Used to fix the heating cable on pipes.
19 mm x 50 m per roll
Maximum withstand temperature: 100 °C
For heating cable PSB.
Gluing below 10 °C should be avoided. Observe processing
instructions on datasheet.
Catalog No.: PT-164
Part No.: 02-5500-0005
Tip: Refer to the following table to estimate the required number of tape rolls for your installation:
Pipe diameter
in inch (DN)
1/4"
(DN8)
1/2"
(DN15)
3/4"
(DN20)
1"
(DN25)
1 1/4"
(DN32)
1 1/2"
(DN40)
2"
(DN50)
2 1/2"
(DN65)
3"
(DN80)
4"
(DN100)
6"
(DN150)
8"
(DN200)
10"
(DN250)
12"
(DN300)
14"
(DN350)
16"
(DN400)
18"
(DN450)
20"
(DN500)
24"
(DN600)
Required no. of
tape rolls per
100 ft (30 m) of
piping
1
1
1
1
1
1
2
2
2
3
4
5
6
7
7
8
9
10
12

Operation and Installation Manual PBTC-200-E
21-54C3-7D0001/A
05/2023-EHT-441168
Notice: Technical data subject to change without notice.
No claims for damage arising from alternations, errors or misprints shall be allowed.
Page 14 / 40
Aluminum adhesive tape
Used to fix the heating cable on pipes.
AT80: 50 mm x 50 m per roll
AT150: 50 mm x 55 m per roll
AT230: 50 mm x 50 m per roll
AT80:
Maximum withstand temperature: 176 °F (80 °C)
For heating cable PSB
AT150:
Maximum withstand temperature: 302 °F (150 °C)
For heating cable MSB, HSB and EKL Light, EKL Medium
and EKL Premium
AT230:
Maximum withstand temperature: 446 °F (230 °C)
For heating cable HSB+ and HTSB, and EKL Light, EKL
Medium and EKL Premium
Gluing below 10 °C should be avoided. Observe processing
instructions on datasheet.
AT80:
Catalog No.: AT80-164
Part No.: 02-5500-0003
AT150:
Catalog No.: AT150-164
Part No.: 02-5500-0014
AT230:
Catalog No.: AT230-164
Part No.: 02-5500-0043
Electrically traced warning label
Warning label for trace heater circuits
Recommended: electrical warning label every 3 m
on the outside of the thermal cladding on a clearly visible
place.
German:
Catalog No.: HTWL-DE
Part No.: 05-2144-0046
English:
Catalog No.: HTWL-EN
Part No.: 05-2144-0047
French:
Catalog No.: HTWL-FR
Part No.: 05-2144-0703
Russian:
Catalog No.: HTWL-RU
Part No.: 05-2144-0860
Stainless steel pipe straps
Stainless steel, for attaching mounting
stands on pipes etc. No special tooling required.
for pipe ø up to DN80:
Catalog No: PC-1
Part No.: 03-6510-0228
for pipe ø up to DN250:
Catalog No: PC-2
Part No.: 03-6510-0229
Small pipe adaptor PBS
Mounting stand adaptor for pipe diameters of
less than 35 mm. For use in mounting stands
when using 1 or 2 heating cable, e.g. PBS-,
ELL- or PBTC junction boxes.
Catalog No.: PBS-SPA
Part No.: 05-1105-0071

Operation and Installation Manual PBTC-200-E
21-54C3-7D0001/A
05/2023-EHT-441168
Notice: Technical data subject to change without notice.
No claims for damage arising from alternations, errors or misprints shall be allowed.
Page 15 / 40
ELS-200 high profile end seal
End seal for access above the insulation.
2 pipe straps per mounting stand required.
For a complete list of kit contents and approvals see
data sheet.
Catalog No.: ELS-200
Part No.: 27-54E2-AA12A000
Resistance Temperature Device Pt100
Enables measurement of the process temper-
ature in the measuring range -50°C to 200°C,
protection class IP65
Resistance Temperature Device Pt100
(mineral insulated)
Enables measurement of the process temper-
ature in the measuring range -50°C to 500°C,
protection class IP54
See data sheet for further technical data
Connection cable length 1,5 m,
Sensor length 40 mm
Order No.: 122776
Part No.: 03-9040-0006
Connection cable length 5,0 m,
Sensor length 40 mm
Order No.: 128628
Part No.: 03-9040-0010
Connection cable length 1,5 m,
Sensor length 1,0 m
Order No.: -
Part No.: 03-9040-0017
6.4 Spare parts
On pipe cable gland kit and end seal
Spare parts kit for use with heating cable
PSB, MSB, HSB+, HTSB for replacement of
damaged or lost parts.
Catalog No.: CAK-SRS
Part No.: 27-59CX-9C01/0001
Multi-kits available on request.
CAK-E5/E10 Cold applied end seal
Silicone end seal for insulation of the end of
the trace heater. Suitable to all Bartec paral-
lel trace heating cable. Approved accordingly
IECEx, ATEX, CSA (ordinary and hazardous
locations)
CAK-E5 5 pcs.
CAK-E10 10 pcs.
CAK-E5:
Catalog No.: CAK-E5
Part No.: 27-59CZ-90000005
CAK-E10:
Catalog No.: CAK-E10
Part No.: 27-59CZ-90000010

Operation and Installation Manual PBTC-200-E
21-54C3-7D0001/A
05/2023-EHT-441168
Notice: Technical data subject to change without notice.
No claims for damage arising from alternations, errors or misprints shall be allowed.
Page 16 / 40
7 Functional Description
The thermostat module ETM-25Ex-C switches the connected heating load or heating cable on or off by means of a built-in relay. It
switches on when the temperature measured at the Resistance Temperature Device Pt100 is lower than the temperature setpoint. It
switches off if the measured temperature is higher than the set temperature plus hysteresis. The thermostat module switches the
heating load or the heating cable on when the temperature at the Resistance Temperature Device Pt100 falls below the adjusted
temperature set point.
Toggle switch °C / °F is used to switch the temperature unit, 3 rotary coding switches are used to set the temperature setpoint.
The connected Resistance Temperature Device Pt100 measures the actual temperature and ensures the temperature control func-
tion.
In case of a malfunction of the thermostat module or the Resistance Temperature Device Pt100, the thermostat module switches off
the connected heating load or the heating cable.
The electronic thermostat module has a limited service life, which depends on the switching cycles performed. A color and blinking
code of the LED status display indicates the achieved 80% service life. It is an indication that the thermostat module needs to be
replaced. When the 100% service life is reached, the thermostat module switches off the connected heating load or heating cable.
The LED status display shows a further color and blinking code.
8 Transport
Sensitive components such as sensors are installed inside and outside the junction box with thermostat module. These must be
protected from damage such as impact, moisture and dirt. Careful transport of the junction box with thermostat module must be
ensured.
NOTICE
Plant damage possible due to improper transport
Transport connection housing with thermostat module properly
Transport connection housing with thermostat module only in original packaging
Protect the connection housing with thermostat module from damage (e.g. due to impacts, moisture, contamination).
WARNING
Risk of fire and electric shock!
Danger of injury from electric current
Transport connection housing with thermostat module properly
Protect the connection housing with thermostat module from damage (e.g. due to impacts, moisture, contamination).

Operation and Installation Manual PBTC-200-E
21-54C3-7D0001/A
05/2023-EHT-441168
Notice: Technical data subject to change without notice.
No claims for damage arising from alternations, errors or misprints shall be allowed.
Page 17 / 40

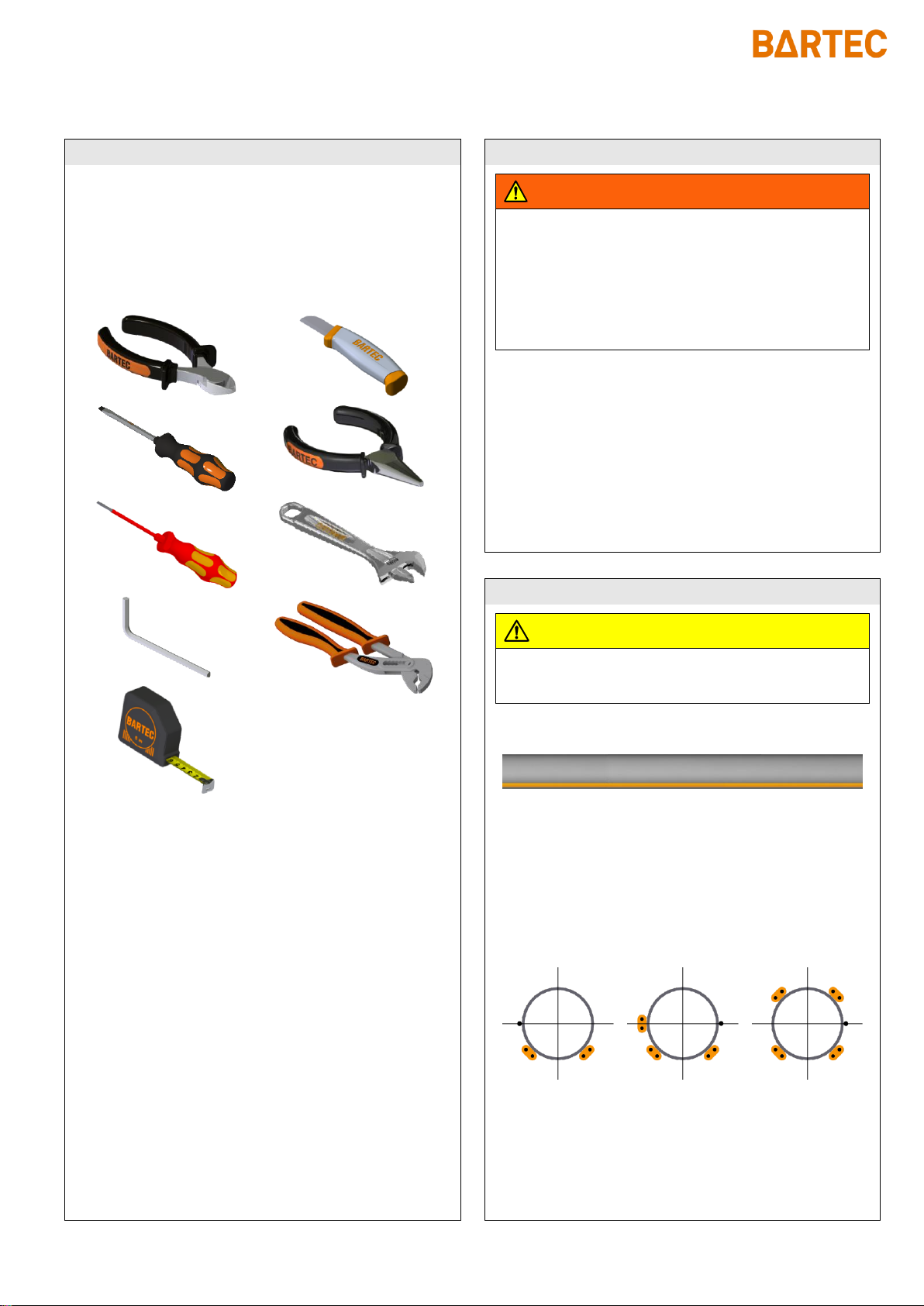

9 Installation and Assembly
Required Tools / Equipment
The following tools and equipment are required for installa-
tion of the PBTC-200-E:
Wire cutters
Flat screwdriver 2.5 mm
Flat screwdriver 3.5 mm
Electricians screwdriver
4 mm hex wrench
Tape measure
Utility knife
Needle-nose pliers (2x)
Adjustable wrench (2x)
Tongue and groove pliers
Safety Instructions
WARNING
Risk of fire or electrical shock due to electric trace
heating system.
De-energize all power circuits before installation or
servicing. Always use ground fault equipment protec-
tion with the trace heating system.
Keep the trace heater ends dry before and during in-
stallation. Observe the design guide of the trace heat-
ing system.
Double-check that all power circuits are de-energized be-
fore you begin your work.
Make sure that you do not exceed the maximum heating
circuit length for the trace heater type you use.
Observe the bending radius of each type of trace heater.
Do not bend on the narrow axis.
To avoid short circuits, do not connect the trace heater bus
wires together. Installing the End seal properely
Keep all components and the trace heaters dry before and
during installation.
Installing the Heating Cable
CAUTION
Risk of injury and/or material damage. Never step on or
drive over the trace heater. Do not use it as a loop for
stepping on.
Install the heating cable in a straight line along the pipe if
possible
If possible, install the heating cable in the lower half of the
pipe, but not at the lowest point
If necessary, return the heating cable loop to the heating
cable at the greatest possible distance
Install the Resistance Temperature Device directly on the
pipe
Install the Resistance Temperature Device in the lower
area of the pipe cross section
Install the Resistance Temperature Device at the greatest
possible distance from the heating cable
Observe additionally required heating cable lengths (as-
sembly of connections, T-branches and end terminations,
each approx. 0.5 m)
Avoid damage to the heating cable and the Resistance
Temperature Device: no bending, pinching or pulling over
sharp edges
2
3
2 x
1
2 x

Operation and Installation Manual PBTC-200-E
21-54C3-7D0001/A
05/2023-EHT-441168
Notice: Technical data subject to change without notice.
No claims for damage arising from alternations, errors or misprints shall be allowed.
Page 18 / 40
Pre-assembling the Mounting Stand
Feed the heating cable through the lower part of the mount-
ing stand.
Do not fix the mounting stand on the pipe yet.
Slide a trace heater grommet onto the trace heater and into
the seal seat.
Slide the other trace heater grommet into the free seal
seat.
Make sure that the trace heater stands out approximately
25 cm. This makes cable preparation easier.
Ensure that all heating cable feed-throughs of the lower
part of the mounting stand are filled with heating cable
seals
4
5
