Barton 90803 Original instruction manual
MEAT GRINDER
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER)
OWNER’S MANUAL AND SAFETY INSTRUCTIONS
ITEM: 90803
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: 909.628.0880 MON-FRI 9AM TO 3PM PST
1
IMPORTANT SAFETY INFORMATION
GENERAL SAFETY WARNINGS
Read all safety warnings and instructions. Failure to follow the warnings and instructions may
result in electric re and/or serious injury. Save all warnings and instructions for future reference.
The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible
conditions and situations that may occur. It must be understood by the operator that common sense and
caution are factors which cannot be built into this product, but must be supplied by the operator. Read
carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to
follow the safety rules and other basic safety precautions may result in serious personal injury.
Read and understand all instructions. Failure to follow all instructions may result in serious injury or
property damage.
DO NOT allow persons to operate or assemble the product until they have read this manual and have
developed a thorough understanding of how it works.
DO NOT modify this product in any way. Unauthorized modication may impair the function and/or
safety and could affect the life of the product. There are specic applications for which the product was
designed.
NEVER operate this appliance unattended.
ALWAYS ensure that the appliance is properly assembled and safely set up before use.
CAUTION: This appliance is not recommended for use near or by children or persons with certain
disabilities. Set up and store the appliance out of reach of children. When not in use, store device in a
secure and dry place out of reach of children
Store appliance in upright position to extend life of motor .
Make sure the voltage and frequency indicated on the bottom plate are the same as your local supply and
that the external earthed wire is reliably connected.
DO NOT operate with a damaged cord or plug, after the unit malfunctions, has been damaged in any way
or if appliance has been immersed in water or other liquid. ALWAYS unplug unit when not in use, when
changing parts or cleaning.
Indoor use only. To protect against the risk of electrical shock, never immerse the device in water and
DO NOT expose the device to rain or moisture. WARNING: In the event the device should fall into water,
remove the plug from the wall socket before attempting to remove the unit from the water. If submergence
occurs, have the appliance examined by an authorized technician before use.
To protect against the risk of electrical shock, DO NOT use the appliance if your hands are wet or if you are
standing on a wet oor. DO NOT use the appliance if it is wet or moist. DO NOT operate this device with
wet hands or bare feet. DO NOT operate near running water.
DO NOT use the appliance to grind bones, frozen food, hard items or non-food items.
Use the appliance with the supplied accessories only. WARNING: The use of attachments not recommended
or sold by the manufacturer may cause injury and/or damage to personal property.
DO NOT grind ginger or other brous foods.
DO NOT use ngers to scrape food away from the cutting blade while appliance is in operation as injury
may result.
2
PARTS LIST
WARNING: DO NOT use while under the inuence of alcohol or drugs (prescription or non-prescription) as
these may impair user’s ability to properly assemble or safely operate the appliance.
Avoid contacting moving parts. Wait until all parts have come to a complete stop and disconnect from the
power source before removing any parts of the grinder.
WARNING: NEVER feed food into grinder by hand as serious injury may occur, always use provided meat
stomper. DO NOT use ngers to scrape food away from the grinding plate while the grinder is running.
Thoroughly hand-wash all grinder parts in warm soapy water prior to use. DO NOT soak. This product is
NOT DISHWASHER SAFE (discoloration may occur)
Tie back loose hair and clothing. Remove neckties, rings, watches, bracelets or other jewelry before
operating the grinder.
DO NOT run grinder without meat in the Grinder Head, severe damage to the Grinder Head and Auger
could result.
Use grinder on a level, stable surface to prevent tipping. NEVER move the grinder while unit is in use.
WARNING: Knife and plates are SHARP! To avoid injury, use extreme caution when handling.
If your unit fails to operate, contact Barton for technical assistance at 909.628.0880. If meat is mashing
instead of extruding in strings from the grinding plate, chill the meat to 40˚, and check to see that the plate
and knife are properly installed. A dull knife or plate will also cause mashing of the meat.
To protect against risk of electrical shock, DO NOT put appliance in water or any other liquids
DO NOT place this appliance on or near gas or electric burners or stoves. DO NOT place this appliance
inside or on top of a heated conventional oven, microwave oven, or other heat source or a dishwasher.
DO NOT submerse or expose the electrical components of this product to water or any other liquids.
WARNING: The cutting blade is sharp; always handle with care when using and while cleaning.
CAUTION: NEVER PUT YOUR FINGERS NEAR THE FOOD CHUTE WHILE GRINDER IS IN OPERATION.
To avoid a circuit overload, do not operate another electrical product on the same electrical circuit as this
product.
Disconnect the plug (DO NOT pull on Power Cord) from the electrical outlet. DO NOT put any stress on
the Power Cord where it connects to the product, as the Power Cord could fray and break.
DO NOT use any abrasive cleaning agents or cleaning cloths or sponges when cleaning the appliance.
TECHNICAL SPECIFICATIONS
PARTS NFORMATION AND ASSEMBLY
3

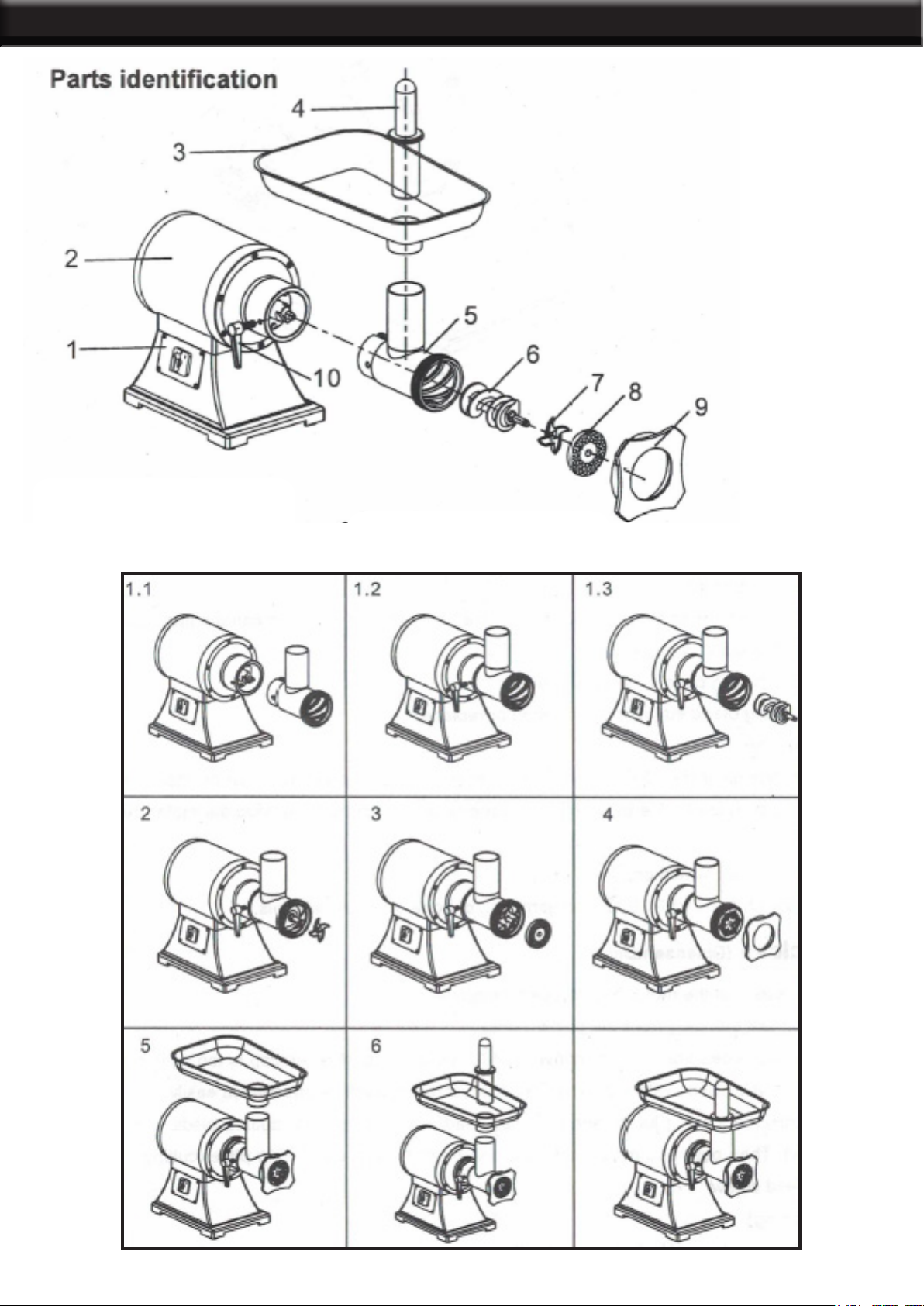

1. Switch
5. T-Tube
2. Motor Housing
6. Feed Screw
3. Hopper Plate
7. Cutting Blade
4. Food Pusher
8. Cutting Plate
9. Screw Cap
ASSEMBLY
ASSEMBLY and OPERATION
4
1. Assemble the head part in the motor housing and lock it. Place feed screw into the head, login
rst by turning the feed screw slightly until it is set into the motor.
2. Place the cutting blade onto the feed screw shaft with the blade facing the front as illustrated. If
it is not tted properly, meat will not be ground.
3. Place the cutting plate next to the cutting blade, the gap aligns the pin to the head.
4. Screw the cap into place until it is tight. Place the hopper plate on the machine.
DO NOT over tighten, Place the hopper plate on the head and x it into position. Locate the
unit on a rm place.
The air passage at the bottom and the side of the motor housing should be kept free and not
blocked. Cut all food into pieces that will t in the hopper. Plug in the grinder and switch the
power to ON.
5. Feed food into the hopper plate and use the pusher to guide meat into the hopper. After you are
nished grinding all the meat, switch the power OFF and unplug the grinder.
NOTE: If minced meat is not discharged smoothly or in the form of a paste, the causes and remedy
could be:
1. Screw cap is too tight making it so the cutting blade does not make proper contact with the
cutting plate. Readjust to t.
2. The cutting plate is blocked and needs to be cleaned.
3. The cutting blade edges are dull, grind or replace it.
JAMMING: When the motor is locked or when the motor continues to function but no meat is coming
out of the cutting plate. This could be due to bone or other materials jamming the hopper.
Switch off the power to the grinder and turn the switch to REVERSE to clear the materials .
CLEANING THE GRINDER
DISASSEMBLY: Make sure the power is switched OFF and the motor has stopped completely.
Disconnect the plug from the power outlet. Unscrew the cap sides and locking knob. Take out the
head (with cutting plate, cutting blade and feed screw), then put head mouth downward in order
to take out the cutting plate, cutting blade and feed screw.
CLEANING: Remove meat etc. wash each part with warm soapy water.
A bleaching solution containing chlorine will discolor aluminium surfaces.
DO NOT immerse in motor housing in water, but only wipe it with a damp cloth.
Thinners and benzenes will crack or change the color of the unit.
A little salad oil on part 6-8 after washing and drying will help lubricate the unit.
NOTE: Use extreme caution when handling the cutting blade.
NOTE: DO NOT use a perforated disc with holes >8mm in diameter or smaller unless an additional
protected hood is provided at the discharge outlet.
MAINTENANCE
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR
DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE
UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL
PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION
OF REPLACEMENT PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only and are not available individually
as replacement parts.
PLEASE READ THE FOLLOWING CAREFULLY
SAVE THESE INSTRUCTIONS
5
PRODUCT MADE IN CHINA
Table of contents
