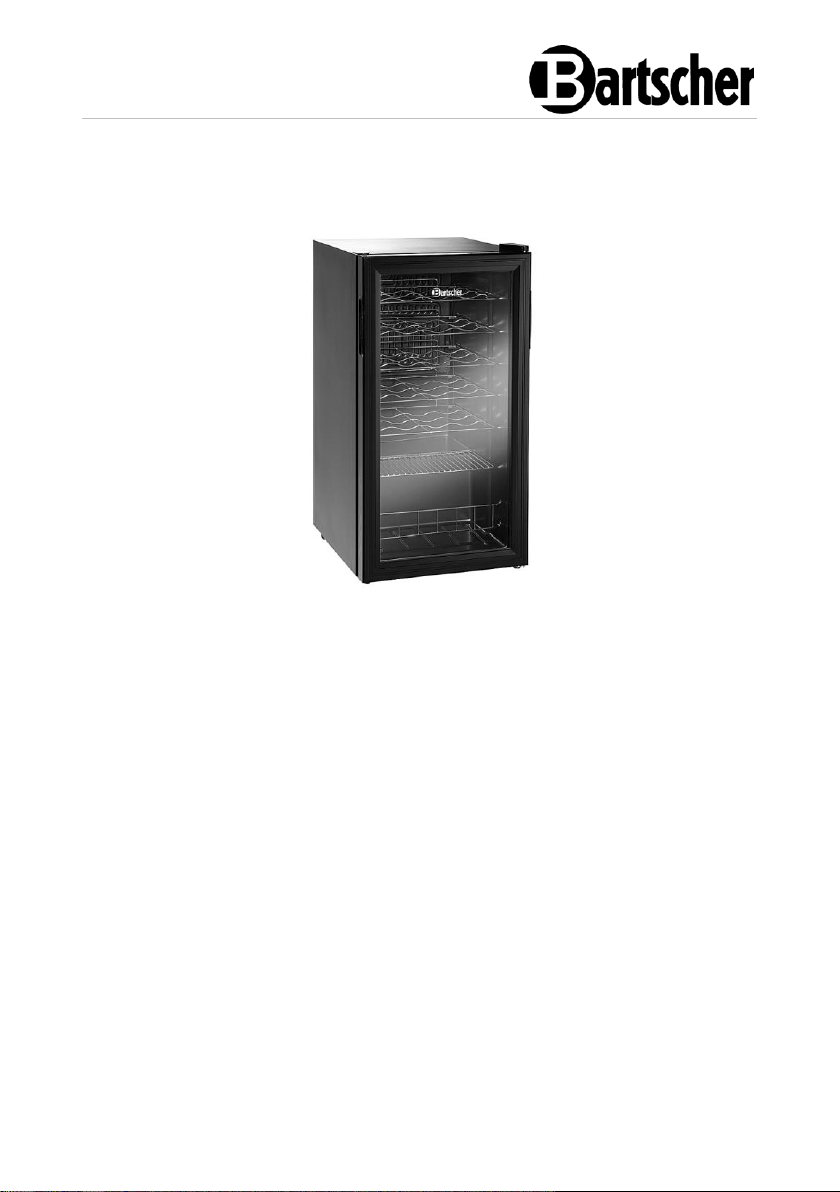

Bartscher 700182G User guide

88L
700182G

Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: [phone]
Fax: [phone]
Technical Support Hotline: [phone]
www.bartscher.com
Version: 1.0
Date of preparation: 2021-04-22
EN

700182G 1 / 22
Original instruction manual
1Safety............................................................................................................2
1.1 Explanation of Signal Words....................................................................2
1.2 Safety instructions....................................................................................3
1.3 Intended Use ...........................................................................................6
1.4 Unintended Use.......................................................................................6
2General information.......................................................................................7
2.1 Liability and Warranty ..............................................................................7
2.2 Copyright Protection ................................................................................7
2.3 Declaration of Conformity ........................................................................7
3Transport, Packaging and Storage................................................................8
3.1 Delivery Check.........................................................................................8
3.2 Packaging................................................................................................8
3.3 Storage....................................................................................................8
4Technical Data...............................................................................................9
4.1 Technical Specifications ..........................................................................9
4.2 Functions of the Appliance.....................................................................10

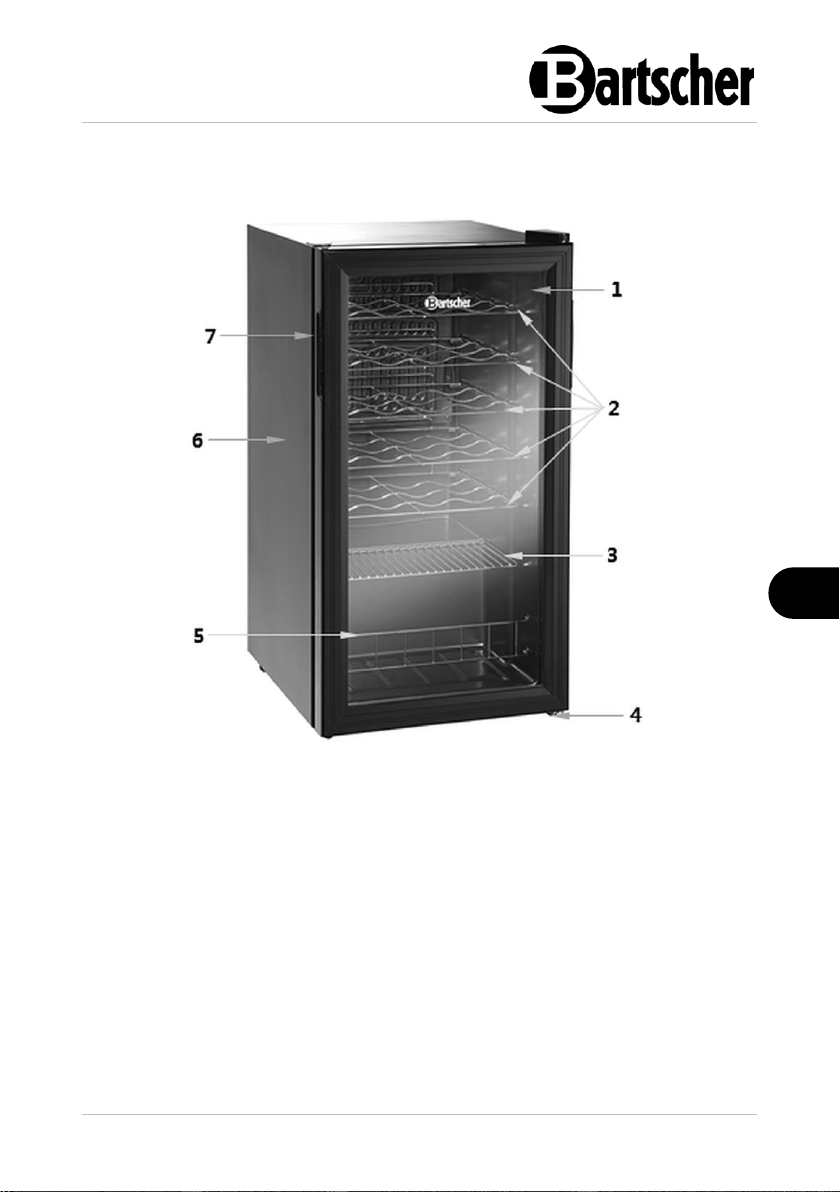

4.3 List of Components of the Appliance .....................................................11
5Installation and operation ............................................................................12
5.1 Installation..............................................................................................12
5.2 Operation...............................................................................................13
6Cleaning and Maintenance..........................................................................16
6.1 Safety Instructions for Cleaning.............................................................16
6.2 Cleaning.................................................................................................17
7Possible Malfunctions..................................................................................18
8Disposal....................................................................................................... 20

Safety
2 / 22 700182G
EN
Diese Bedienungsa nleitung beschreibt di eI nstallation, Bedienu ngu nd Wartung des G erätsu ndg ilt als wichtige Infor mationsquelle und N achschlagewer k.Die Ke nntnis aller enthaltene nSic herheitshin weise und Handlungs anweisungen schaf ft dieV oraussetzung f ürd as sichere und sachger echte Arbeiten mit d emG erät.D arüber hin aus müssen die für den Eins atzbereich des Geräts gelt enden örtlichen Unfall verhütungsvorsc hriften und allgemeine n Sicherheitsbesti mmungen eing ehalten werden. Diese Bedi enungsanleitung is t Bestandteil des Prod ukts und muss in unmitt elbarerN ähe des Geräts für das In¬stall ations-, Bedienungs- , Wartungs- und Reinigu ngspersonal jederzeit z ugänglich auf¬b ewahrt werden. Wenn das Ger ät an eine dritte Person
weitergegeben wird , muss die Bedienungsa nleitung mit ausgehä ndigt werden.
Read this instruction manual before using and keep it available
at all times!
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of Signal Words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.

Safety
700182G 3 / 22
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
,di e
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
1.2 Safety instructions
Electrical Current
•Too high a mains voltage or incorrect installation may cause electric shock.
•The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
•To avoid short-circuit, the appliance should be kept dry.
•If there are malfunctions during operation, disconnect the appliance from the
power supply.
•Do not touch the appliance’s plug with wet hands.
•Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
•Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
•Do not transport the appliance, holding it by the power cord.
•Do not allow the power cord to come into contact with heat sources or sharp
edges.
•Do not bend, pinch nor knot the power cord.

Safety
4 / 22 700182G
EN
•Always completely unwind the power cord.
•Never place the appliance or other objects on the power cord.
•Always take hold of the plug to disconnect the appliance from the power supply.
•Check the power cord regularly for damage. Do not use the appliance if the
power cord is damaged. If this cable is damaged, it must be replaced by
customer service or a qualified electrician in order to avoid dangers.
Incorrect operation of th e appliance may cause fire or explosion hazard d uet oig nition of its content.
Fire hazard / flammable materials hazard / explosion hazard!
•Do not use any electric devices in the appliance.
•Do not store nor use petrol or other flammable liquids and gases in the vicinity of
this or any other appliance. Those gases may cause fire or explosion hazard.
•Do not put into the appliance any explosive materials, like sprays filled with
flammable propellants. Contents of containers filled with flammable gases and
liquids may leak in low temperatures, and the contents may catch fire from
sparks generated by an electric appliance. Explosion hazard!
•In the case of coolant leakage, pull the plug from the socket. Remove all
sources of ignition in the vicinity, ventilate room and contact technical service.
Avoid coolant getting in contact with eyes, as it may cause serious eye damage.
•Never use any flammable liquids for cleaning the appliance or its parts. Gases
released may cause fire or explosion hazard.
•In the case of fire, disconnect the appliance from the power supply before
attempting adequate fire-extinguishing actions.
•Never attempt to extinguish fire with water if the appliance is connected to the
power supply. Following extinction of fire, ensure sufficient fresh air inflow.
•Defrosting process may not be sped up with mechanical means or heat energy
sources (candles or heaters) nor with any other means. Vapour produced may
cause short-circuit and too high temperatures may damage the appliance.
•All ventilation slots should not be obstructed during operation.
•Never attempt to damage cooling installation of the appliance.
Operating personnel
•This appliance is not intended to be used by persons (including children) with
limited physical, sensory or mental capabilities, nor by persons with limited
experience and/or limited knowledge.
•Children should be supervised to ensure that they are not playing with or
switching the appliance on.
•Children aged 3 to 8 may load and unload the refrigerator.

Safety
700182G 5 / 22
EN
Improper Use
•Unintended or prohibited use may cause damage to the appliance.
•The appliance may only be used when its technical condition is flawless and
allows for safe operation.
•The appliance may only be used when all connections are executed according
to rules of law in force.
•The appliance may only be used when it is clean.
•Use only original spare parts. Never attempt to repair the appliance on your own.
•Do not introduce any changes in the appliance nor modify it.
•Do not drill hole in the appliance nor install any objects on it.
•Do not place any heavy objects on the appliance.

Safety
6 / 22 700182G
EN
1.3 Intended Use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
–Cooling and storage of suitable beverages.
The appliance is intended for operation in maximum ambient temperature of 32°C
and relative humidity of 65%.
This appliance is intended for use in households and similar places, e.g.:
–in employee canteens in shops, offices, and similar areas;
–on farms;
–by customers in hotels, motels, and other typical accommodation
establishments;
–in lodging-houses.
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
–Storing flammable or explosive objects and liquids, such as ether,
petroleum or adhesives;
–Storing explosive materials, like sprays filled with flammable propellants;
–Storing pharmaceutical products or preserved blood;
–Storing live pets.

General information
700182G 7 / 22
EN
2 General information
2.1 Liability and Warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
–failure to observe instructions,
–unintended use,
–technical alterations introduced by the user,
–usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
The warranty period for this appliance is 24 months, counted from the purchase
date.
2.2 Copyright Protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of Conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.

Transport, Packaging and Storage
8 / 22 700182G
EN
3 Transport, Packaging and Storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
–in closed rooms;
–in dry and dust-free surrounding;
–away from aggressive agents;
–in a location protected against sunlight;
–in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.

Technical Data
700182G 9 / 22
EN
4 Technical Data
4.1 Technical Specifications
Name:
Bottle cooler 88L
Art. No.:
700182G
Material:
steel sheet
Inner material:
HIPS (High Impact Polystyrene)
Volume, in l:
88
Max. storage capacity, bottles:
28
Temperature range, min.–max., in °C:
2 - 10
Ambient temperature, min.–max., in °C:
10 - 32
Amount of coolant, in kg:
R600a / 0,036
Climate class:
SN
Energy efficiency class:
G
Energy consumption, in kWh/year:
139
GWP index:
3
Number of doors:
1
Number of shelves:
6
Shelves dimensions (W x D), in mm:
336 x 291
Connected load:
0,085 kW | 220-240 V | 50 Hz
Dimensions (W x D x H), in mm:
436 x 482 x 833
Weight, in kg:
52,0
We reserve the right to implement technical modifications.

Technical Data
10 / 22 700182G
EN
Version / Characteristics
•Colour: black
•Cooling: static
•Temperature control: mechanical, stepless
•Control: rotary control knob
•Thermostat
•Insulation: cyclopentane C5H10
•Number of shelves: 6
•Type of shelves:
–bottle rack, chrome-plated (5 pieces)
–rack, chrome-plated (1 piece)
•Shelves without height adjustment
•Door type:
–leaf door
–glass pane door, cased/framed, double glazing
•Right-hand side door, with the possibility for door hinge to be changed
•Top LED lighting, may be switched separately
•ON/OFF switch
More information on the appliance is available in our website www.bartscher.com
or, pursuant to the Regulation (EU) 2019/2024, in our product data base at
https://energy-label.ec.europa.eu/. Enter article number for a given model.
4.2 Functions of the Appliance
The bottle cooler has been designed for cooling and storage of suitable beverages.
Owing to its slim design, it may be perfectly integrated almost anywhere: as a free-
standing appliance, tabletop appliance in restaurants, bars, cafés, canteens, kiosks,
fast-food premises or petrol stations.

Technical Data
700182G 11 / 22
EN
4.3 List of Components of the Appliance
Fig. 1
1. Door with double glazing
2. Bottle racks (5 pcs)
3. Rack (1 pcs)
4. Feet (4 pcs), 2 front height-
adjustable feet
5. Grid
6. Housing
7. Flush door handle

Installation and operation
12 / 22 700182G
EN
5 Installation and operation
5.1 Installation
Unpacking / Positioning
•Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
•If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
•Be careful not to damage the rating plate and warning labels fixed on the
appliance.
•Never place the appliance in humid or wet environment.
•Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
•The appliance should be placed on surfaces that are:
–even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
–sufficiently large, and thus enabling usage of the appliance with no
problems;
–easily accessible;
–well ventilated.
•Nie należy umieszcz ać urządzeni a w gorącym o toczeniu ani w pobliżu materiał ów łatwopalnych.
•The appliance requir ess ufficient airflow for proper operation. Assure a minimum lateral cl earance of the appliance of 10 cm .
•DieÖ ffnungen am Gerät niemals abdec keno der blockieren.
•Do not place the appliance in direct sunlight or in the vicinity of heat sources
(cooker, radiator, heating devices, etc.). Heat sources may negatively affect
power consumption, and restrict functions of the appliance, too.
•Place the appliance so that sufficient air circulation is ensured. Leave 10 cm
clearance from walls and other objects.
•In order to avoid damage to the compressor, do not tilt the appliance more than
45° when positioning or transporting it.
•If the appliance is to be relocated, follow the instructions below:
–switch the appliance off;
–disconnect the plug from the socket;

Installation and operation
700182G 13 / 22
EN
–take out contents of the appliance;
–tape firmly all loose elements in the internal chamber and tape the door;
–the appliance may only be transported in vertical position.
•The electric socket sho uldb e easily accessible so it is possible to quickly disco nnect the power cord when necessar y. The electric socket sho uldb e easily accessible so it is possible to quickly disco nnectt he power cord whenn ecessary. The electric socket sho uldb e easily accessible so it is possible to quickly disco nnect the power cord when necessar y.
•Set the 2 front feet, by screwing them in or out, so that the appliance stands
stably.
HINWEIS IMPORTANT!
The appliance is not suitable for built-in installation.
Power supply connection
•Verify if technical data of the appliance (see rating plate) correspond with the
local electric power grid specification.
•Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
•The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
•The appliance should be left standing upright for at least 4 hours, before it is
connected to power supply.
5.2 Operation
Indications for the User
•The bottle cooler is perfectly designed for storing 0.75 l bottles. The maximum
volume of the appliance is provided on the basis of the size of this bottle.
•When filling the appliance, always make sure that the bottles do not hinder
closing of the door.
•In the case of concurrent filling wit many bottles, the cooling process of
individual bottles to the desired temperature takes more time.
•If possible, fill the bottle cooler with bottles containing beverage of the same
type, to set the optimum temperature.
•The more bottles in the bottle cooler, and the longer the door is kept open, the
higher the energy consumption. Do not overfill the appliance and pay attention
to the opening time of the door.
•To limit the loss of temperature in the appliance, reduce the door opening time
to the minimum. Also, do not open the door too frequently.
•In the event of a sudden power failure, avoid opening doors in order to avoid
loss of cool air.

Installation and operation
14 / 22 700182G
EN
•After a power failure or when the plug is removed from the socket, do not
reconnect the appliance to power supply for at least 5 minutes.
•If the appliance is switched off for a longer period of time, the cooler door should
remain open.
Before First Use
1. Prior to first operation, clean the appliance and its equipment according to
instructions in section 6 'Cleaning'.
2. To end with, dry the appliance and accessories thoroughly.
3. Place the shelves in the appliance.
4. Close the appliance door.
5. The appliance should be left standing upright for at least 4 hours, before it is
connected to power supply.
6. Then, plug the appliance into a suitable single socket.
7. When started for the first time or after breaks in operation, set the temperature
to '7' position (the lowest temperature setting) for at least 3–4 hours before
putting any bottles into the cooler.
8. Then, you can set a desired temperature.
Control Elements
Fig. 2
8. Temperature controller
9. Lighting ON/OFF switch
10.Top LED Lighting

Installation and operation
700182G 15 / 22
EN
Interior Lighting
The appliance is equipped with interior lighting.
The top LED lighting (10) and the lighting ON/OFF switch (9) are located inside the
appliance.
1. If needed, switch the interior lighting on (ON position) or off (OFF position) with
the ON/OFF switch (9).
Temperature Control
Set temperature with use of temperature controller (8, Fig. 2). It is located also
inside of the appliance, at its ceiling.
1. To set the temperature, rotate the temperature controller clockwise to the
selected position.
The temperature may be set in the range of 1–7.
–Position '1' is for the highest temperature setting
–Position '7' is for the lowest temperature setting
–The temperature setting may be verified in 'Technical Specifications'
table.
NOTE!
The optimum temperature for storing food and beverages is 6°C. If you
cannot maintain proper temperature for food and beverages, they may
turn.
2. To switch the appliance off, set the temperature controller to '0' position.

Cleaning and Maintenance
16 / 22 700182G
EN
Shelves
The bottle cooler is equipped with 5 bottle racks, 1 rack and 1 grid.
Bottle racks and the rack are removable.
Bottle racks (2) are fixed at the back of an
internal section of the appliance, using a
snap grove, so that they cannot slide out
when beverage bottles are taken out.
1. To remove the bottle rack, lift it slightly.
The back support in a bottle rack prevents
bottles to contact with rear wall, thus
providing for free air circulation in the
appliance.
Fig. 3
The rack (3) is intended for beverages in
different containers.
The grid (5) in the bottom section of the
appliance prevents horizontally stored
bottles from sliding out of the appliance
when door is open.
Fig. 4
6 Cleaning and Maintenance
6.1 Safety Instructions for Cleaning
•Before cleaning, disconnect the appliance from the power supply.
•Leave the appliance to cool down completely.
•Make sure water does not enter the appliance. Do not immerse the appliance in
water or other liquids during cleaning. Do not clean the appliance with a
pressurized water jet.
•Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp
or pointed implements may damage the appliance, and when in contact with live
parts, they may cause electric shock.
•For cleaning, do not use any scouring agents that contain solvents nor corrosive
cleaning agents. They may damage the surface.

Cleaning and Maintenance
700182G 17 / 22
EN
6.2 Cleaning
2. Wash the appliance regularly.
3. Disconnect the appliance from mains power supply.
4. Remove all beverage bottles from the appliance and store them temporarily in a
cool room.
5. Remove bottle rack and the rack from the appliance.
6. Clean bottle rack and the rack with mild washing agent and soft cloth or sponge
in warm water.
7. Rinse shelves with clean water and dry thoroughly with soft cloth.
8. Wipe the appliance internal and external surfaces, and glass door with door
sealing with a soft, damp cloth. Use mild cleaning agent if required.
9. Wipe cleaned surfaces with a cloth moistened in clean water.
10.Dry washed surfaces thoroughly afterwards.
11.For some time after cleaning, leave the door open for the appliance to dry
completely.
12.At least 4 times a year wipe the dust collected at the rear wall and the
condenser of the appliance. Use a soft, dry brush, electrostatic cloth or vacuum
cleaner.
NOTE!
Non-observance of the recommended cleaning frequency of the
condenser leads to considerable drop in the appliance performance.
13.If the appliance is not to be used for long time, it should be cleaned according to
the description above; to end with, leave the door open to avoid unpleasant
odours and mould inside the appliance being developed.
Maintenance
We recommend you to have the appliance serviced at least once a year; if needed,
we recommend entering into a service agreement.

Possible Malfunctions
18 / 22 700182G
EN
7 Possible Malfunctions
Mögliche
The table below contains descriptions of possible causes and solutions to
malfunctions or errors during operation of the appliance. When malfunction cannot
be removed, contact the technical service.
In such a case, provide article number, model name and serial number. These data
may be found in the rating plate.
Problem
Possible Cause
Solution
No functions
available
Plug improperly inserted
into a socket
Remove the plug and insert
it properly in the socket
Electric power supply safety
fuse damaged
Check the fuse, connect the
appliance to another socket
No power supply
Check the electric power
supply
Damaged temperature
controller
Contact the service
company
Insufficient cooling
efficiency
Direct sunlight or heat
sources in immediate
vicinity
Move the appliance away
from heat sources
Poor air circulation around
the appliance
Keep sufficient clearance
from walls or other objects
Appliance door is not closed
properly or it has been
opened for too long
Close the appliance door
properly
Limit the door opening time
to minimum
Damaged or deformed door
seal
Contact the service
company
Too little clearance between
objects inside the appliance
or too many objects in the
appliance
Provide for sufficient
clearance between objects
inside the appliance;
remove the excess of
objects
Too low a temperature was
set
Select higher temperature
setting
