Bartscher PRO Plus 60T User manual

Bartscher
PRO Plus 40T
Bartscher
PRO Plus 60T
Bartscher
PRO Plus 100T
A190145 A190165 A190195
V2/0814

A190145
A190165
A190195
340
Ø 220
290
485
545
575
Ø 220
Ø 270
290

⑤
⑦
④
⑥
⑪
⑩
③
⑧
⑬
⑫
⑭⑯
①
②
⑮
⑨

- 19 -
ENGLISH
Translation
of the original instruction manual
Read these instructions before using and keep
them available at all times!
1. General information................................................................................................ 20
1.1 Information about the instruction manual ............................................................ 20
1.2 Key to symbols.................................................................................................... 20
1.3 Liability and Warrantees...................................................................................... 21
1.4 Copyright protection............................................................................................ 21
1.5 Declaration of conformity..................................................................................... 21
2.Safety ........................................................................................................................ 22
2.1 General information............................................................................................. 22
2.2 Safety instructions for use of the device.............................................................. 22
2.3 Intended use ....................................................................................................... 23
3. Transport, packaging and storage......................................................................... 24
3.1 Delivery check..................................................................................................... 24
3.2 Packaging ........................................................................................................... 24
3.3 Storage................................................................................................................ 24
4. Technical data ......................................................................................................... 25
4.1 Technical specification........................................................................................ 25
4.2 Overview of parts ................................................................................................ 26
5. Installation and operation....................................................................................... 27
5.1 Safety instructions............................................................................................... 27
5.2 Installation and connection.................................................................................. 27
5.3 Operation ............................................................................................................ 28
6. Cleaning and maintenance..................................................................................... 31
6.1 Safety advice....................................................................................................... 31
6.2 Cleaning and descaling....................................................................................... 32
6.3 Safety instructions for maintenance .................................................................... 35
7. Possible Malfunctions ............................................................................................ 35
8. Waste disposal........................................................................................................ 36
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten phone: [phone]
Germany fax: [phone]
GB/UK

- 20 -
1. General information
1.1 Information about the instruction manual
This instruction manual contains information about the installation, operation and
maintenance of the device and should be consulted as an important source of
information and reference guide.
Awareness of the safety instructions and instructions for use in this manual will ensure
the safe and correct use of the device.
In addition to the information given here, you should comply with any local Health and
safety Controls and generally applicable safety regulations.
The instruction manual forms part of the product and should be kept near the device
and easily accessible for anyone carrying out the installation, servicing, maintenance or
cleaning.
1.2 Key to symbols
In this manual, symbols are used to highlight important safety instructions and any
advice relating to the device. The instructions should be followed very carefully to avoid
any risk of accident, personal injury or material damage.
WARNING!
This symbol highlights hazards, which could lead to injury.
Please follow the instructions very carefully and proceed with particular attention
in these cases.
WARNING! Electrical hazard!
This symbol draws attention to potential electrical hazards. If you do not follow
the safety instructions, you may risk injury or death.
CAUTION!
This symbol highlights instructions, which should be followed to avoid any risk of
damage, malfunctioning and/or breakdown of the device.
NOTE!
This symbol highlights tips and information, which have to be followed for
an efficient and trouble-free operation of the device.
WARNING! Hot surface!
This symbol is a warning that the device surface is hot when in use. Ignoring this
warning may result in burns!

- 21 -
1.3 Liability and Warrantees
All the information and instructions in this manual take into account standard safety
regulations, current levels of technical engineering as well as the expertise and
experience we have developed over the years.
The instruction manual was translated with all due care and attention. However, we do
not accept liability for any translation errors. The German version of this instruction
manual is definitive.
If the delivery consists of a special model, the actual scope of delivery may differ from
the descriptions and illustrations in this manual. This is also the case for special orders
or when the device has been modified in line with new technology.
NOTE!
Read this manual carefully and thoroughly before any operation of the device,
and especially before turning it on!
Manufacturer is not liable for any damages or faults caused by:
-violation of advice concerning operation and cleaning;
-use other than designed;
-alterations made by user;
-use of inadequate spare parts.
We reserve the right to make technical changes for purposes of developing and improving
the useful properties.
1.4 Copyright protection
The instruction manual including any texts, drawings, images or other illustrations is
copyright. No part of this publication may be reproduced, transmitted or used in any
form or by any means without permission in writing from the manufacturer. Any person
who commits any unauthorized act in relation to this publication shall be liable to claims
for damages. All rights reserved.
NOTE!
The contents, texts, drawings, pictures and any other illustrations are copyright
and subject to other protection rights. Any person unlawfully using this
publication is liable to criminal prosecution.
1.5 Declaration of conformity
The device complies with the current standards and directives of the EU.
We certify this in the EC declaration of conformity. If required we will be
glad to send you the according declaration of conformity.

- 22 -
2.Safety
This section provides an overview of all important safety aspects.
In addition every chapter provides precise safety advice for the prevention of dangers
which are highlighted by the use of the above mentioned symbols.
Furthermore, attention should be paid to all pictograms, markers and labels on the
device, which must be kept in a permanent state of legibility.
By following all the important safety advice you gain an optimal protection against all
hazards as well as the assurance of a safe and trouble-free operation.
2.1 General information
This device is designed in accordance with the presently applicable technological
standards. However, the device can pose a danger if handled improperly and
inappropriately.
Knowing the contents of the instruction manual as well as avoiding mistakes and thus
operating this device safely and in a fault-free manner is very essential to protect
yourselves from the hazards.
To prevent hazards and to ensure optimum efficiency, no modifications or alterations to
the device that are not explicitly approved by the manufacturer may be undertaken.
This device may only be operated in technically proper and safe condition.
2.2 Safety instructions for use of the device
The specifications regarding the industrial safety are based on the Regulations of the
European Union applicable at the time of manufacturing the device.
If the device is used commercially, the user is obliged to ensure that the said industrial
safety measures concur with the state of the rules and regulations applicable at the time
in question for the entire period of use of the device and to comply with the new
specifications.
Outside the European Union, the industrial safety laws applicable at the place of
installation of the device and the regional territorial provisions must be complied with.
Besides the industrial safety instructions in the instruction manual, the general safety and
accident prevention regulations as well as environment protection regulations applicable
for area of application of the device must be followed and complied with.
CAUTION!
oThe device can be used by children 8 years and up, as well as by people with
disabilities and those with limited experience/knowledge as long as they are under
supervision or have been instructed on proper use of the device and its possible
dangers.

- 23 -
oChildren should not play with the device.
oCleaning and maintenance cannot be performed by children younger than 8 years
old and must be done under supervision.
oChildren under the age of 8 years old must be kept away from the device and its
power cord.
oPlease keep these instructions and give them to future owners of the device.
oAll people using the device should follow the instructions and tips contained in these
instructions.
oOnly use the device indoors.
2.3 Intended use
Safe operation is only guaranteed when using the device for its intended purpose.
Any technical interventions, as well as assembly and maintenance are to be made by a
qualified customer service only.
The device is intended for home use or in similar places such as:
-in kitchens for store or office employees or in other service locations;
-in suburban properties;
-by guests of hotels, motels and other places of accommodation;
- in Bed & Breakfasts.
The coffee maker with round filter is only intended for the preparation of coffee
and warm or hot water using cold water.
Do not use the coffee maker with round filter for:
-preparing other beverages;
-heating or cooking liquids containing sugar, sweetener,
acid, lye or alcohol;
-filling and heated liquids and other substances that are combustible,
harmful to the health or quickly become volatile.
CAUTION!
Any use going beyond the intended purpose and/or any different use of the
device is forbidden and is not considered as conventional.
Any claims against the manufacturer or his authorized representative as a
consequence of experiencing damages resulting from unconventional use are
impossible.
The operator is liable for all damages resulting from inappropriate use.

- 24 -
3. Transport, packaging and storage
3.1 Delivery check
Please check the delivery upon completeness and transport damage immediately
after receipt. In case of visible damage do not accept or accept the delivery with
reservation only.
Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint.
Hidden damages should be reclaimed immediately after notice, as claims for damages
can only be asserted within the effective period for complaints.
3.2 Packaging
Please do not throw away the covering carton of your device as it might be useful for
storage purposes, when moving or, in case of damages, when the device must be sent
back to a repair center. The outer and inner packing material should be removed
completely from the device before installation.
NOTE!
If you liked to dispose the packing, consider the regulations applicable in your
country. Supply re-usable packing materials to the recycling.
Please inspect the device upon completeness. In case any part is missing please
contact our customer service center immediately.
3.3 Storage
Keep the package closed until installation and under consideration of the outside
indicated positioning- and storage markings.
Packages should be stored under consideration of the following:
-Do not store outdoors.
-Keep it dry and dust-free.
-Do not expose it to aggressive media.
-Do not expose it to direct sunlight.
-Avoid mechanical shocks and vibration.
-In case of longer storage (> 3 months) make sure you check
the state of the packaging and the parts regularly.
If required refresh or renew.

- 25 -
4. Technical data
4.1 Technical specification
Name Coffee maker with round filter
Model:
Ba
rtscher
PRO Plus 40T
Bartscher
PRO Plus 60T
Bartscher
PRO Plus 100T
Code-No: A190145 A190165 A190195
Material: High-grade stainless steel housing
Power supply: 230 V~ 50 Hz
Power: 1.2 kW 1.2 kW 1.6 kW
Capacity: 6.0 litres 9.0 litres 15.0 litres
Brewing time for
maximum capacity:
approx. 45 min. approx. 60 min. approx. 60 min.
Maximum output: approx. 40-48 cups approx. 60-72 cups approx. 100-110 cups
Minimum brewed
amount:
3 litres
(20 cups)
4.5 litres
(30 cups)
4.5 litres
(30 cups)
Dimensions (mm): Ø 220, height 485 Ø 220, height 545 Ø 270, height 575
Weight: 4.0 kg 5.0 kg 6.5 kg
We reserve the right to make technical changes!
Additional equipment (not included in the delivery!)
Round paper filter
PRO 40T + PRO 60T
(250 pieces per package) Code-No.:A190009250
Round paper filter
PRO 40T + PRO 60T
(1000 pieces per package) Code-No.: A190009
Round paper filter
PRO 100T
(250 pieces per package) Code-No.: A190011250
Round paper filter
PRO 100T
(1000 pieces per package) Code-No.: A190011
Quick descaler
for coffee makers
(30 bags 15 g each) Code-No.: 190065

- 26 -

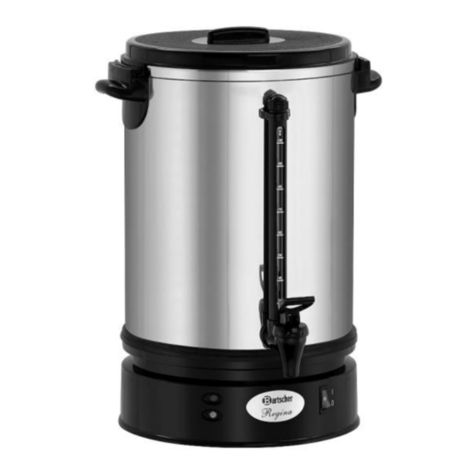

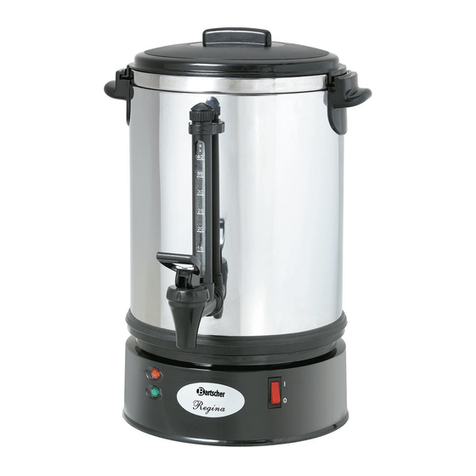

4.2 Overview of parts
NOTE!
On the folded page of the instruction manual is listed
the most important components of the coffee maker.
This page should always be opened when reading
the instruction manual.
①
Cover handle
②
Cover
③
Water container handle
④
Water container
⑤
Indicator light for maintaining hot water (green)
⑥
Descaling indicator (red)
⑦
ON/OFF switch with integrated indicator light (red)
⑧
Base
⑨
Drain
⑩
Faucet
⑪
Fill level indicator
⑫
Filter basket
⑬
Riser pipe
⑭
Heating hole
⑮
Scale deposit scraper
⑯
Cleaning brush

- 27 -
5. Installation and operation
5.1 Safety instructions
•Never allow the power cable to come into contact with heat sources or sharp edges.
The power cable should not hang over the side of the working surface. Ensure that
no one can step on or trip over the cable.
•The power cable must not be folded, bent or tangled, and must always remain fully
unrolled.
•Never place the device or other objects on the power cable.
•Do not lay the cable over carpets or heat insulations. Do not cover the cable.
Keep away the cable from operating range and do not dunk it into water.
•Do not use the device in case it does not function properly, has been damaged or
dropped.
•Do not use any accessory or spare parts that have not been recommended by the
manufacturer. These can be dangerous for the user or lead to damages of the
device or personal injury, and further, the warranty expires.
•Protect the device from frost and moisture.
•Never use the device with wet or moist hands.
•Never leave the device unattended when in use.
•Never fill hot water into the cold water tank.
•Do not fill water into the hot device; wait until it has cooled down.
•Do not move or tilt the device when in operation.
WARNING! Hot surface!
During operation some parts of the device become very hot. In order to avoid
injuries do not touch any hot parts!
5.2 Installation and connection
•Unpack the device and remove all packing material.
•Put the device in a safe place that can support its weight and is not heat sensitive.
•Never place the device on a combustible surface.
•Never place the device at the edge of a table to avoid accidents.
•Never put the device in a moist or wet area.
•Do not place the device near an open flame, electric heater or other heat source.

- 28 -
WARNING! Hazard via electrical current!
The device can cause injuries due to improper installation!
Before installation the local power grid specification should be compared with
that of the device (see type label).
Connect the device only in case of compliance! Take note of the security advice!
The device must only be connected to a properly installed single socket with
protective contact.
Never remove the power cable by pulling the cable itself; always grab the plug
housing.
•The electrical circuit of the socket must be secured to at least 16A. Only connect
the device to a wall outlet; do not use any extension cords or power strips.
•Place the device so that the plug is easily accessible so as to quickly disconnect the
device if the need arises.
5.3 Operation
Preparing the device
•Remove the cover and then remove the filter basket together with the riser pipe
from the water container.
•Before the first use clean the filter basket, cover and water container interior with
warm water and a mild detergent. Rinse thoroughly with clean water to remove
remnants of detergent.
ATTENTION!
Do not immerse the bottom of the device in water!
•Clean the riser pipe with warm water and a mild detergent. Rinse thoroughly with
clean water.
•To assemble the device, insert the riser pipe in the filter basket opening, and then
both parts insert together into the container. Please remember that the riser pipe
should be inserted into the heating hole in the bottom of the container in the center.

- 29 -
Brewing coffee
•Fill the water container with cold water (the necessary amount of water can be read
from the filling indicator level).
•Observe the minimum amount of coffee for brewing. It is:
for device A190145 → 20 cups → about 3.0 liters
for device A190165 → 30 cups → about 4.5 liters
for device A190195 → 30 cups → about 4.5 liters
ATTENTION!
Do not fill the coffee maker with water above the highest marks!
Never use warm water to brew coffee!
•Place the filer basket assembly into the coffee maker so that the riser pipe is inserted
into the heating hole in the bottom of the container in the center. Do not force the
riser pipe into position.
•Insert a round paper filter into the filter basket.
NOTE!
Only round paper filters should be used with the coffee maker with round filter
We recommend using BARTSCHER round paper filters numbers A190190 or
A190009250 for models Bartscher PRO Plus 40T (A190145) + Bartscher PRO Plus 60T
(A190165) and round paper filters numbers A190011 or A190011250 for models
Bartscher PRO Plus 100T (A190195).
•Pour ground coffee (about 6 grams per cup) into the filter basket.
NOTE!
The recommended amount of coffee may be increased or decreased according to
one's preferences.
•Close to coffee maker cover. When closing follow the instructions given on the cover.
WARNING!
During operation, never open the cover. There is a danger of burns!

- 30 -
•Start the coffee maker by switching the ON/OFF switch to position „I“. During the
boiling process the red operation control light in the switch will come on.
•The green heat retention light will come on when the boiling process has completed.
As soon as the brewing process is finished, the temperature is reduced automatically
and the coffee is kept at temperature proper for serving until the power plug is
disconnected from power supply or the ON/OFF switch is set to „O“.
NOTE!
To heat the coffee, remove the riser pipe and filter basket. Turn on the device.
The container must contain the amount of coffee for at least 12 cups.
•Unplug the cord when no liquid flows from the faucet of the standing device.
•The device is equipped with a heat/boil-dry protection. If the device is accidentally
turned on with little or no liquid, the protection device trips and the device switches
off automatically.
ATTENTION!
In the event that the overheating protection turns on,
disconnect the device from the power source (pull the
plug!) and leave to cool.
Remove the base and press the RESET button on the
bottom of the device quickly several times.
The coffee maker is now ready for use.
Serving coffee
•Place the cup or glass under the drain valve, press the valve slightly down and hold
until the cup is filled with required amount of coffee.
•Release the drain valve which is closed automatically.
•In order to obtain full flow press the valve lever fully down.
NOTE!
The drain valve is located a little higher, therefore the dregs remain on the water
tank bottom and do not enter the served coffee.
•When the device is placed in normal position and the coffee does not flow, remove
the plug and fill the device with fresh water after cooling down, when required.

- 31 -
Instructions and advices
NOTE!
The best results can be achieved when coffee is prepared for at
least 20 or 30 cups at once.
Remove the filter basket and coffee grounds immediately after the
brewing process. Thanks to this the coffee's flavor is maintained.
WARNING! Danger of burns!
Elements of the filter basket and grounds are very hot.
During removal, use appropriate protective equipment!
•Before starting the next batch of coffee, you should thoroughly rinse the coffee
brewer with cold water.
•Any drops arising from removing the filter basket and the wet coffee grounds should
be wiped clean.
•In order to re-heat cold coffee you should remove the filter basket and riser pipe
before connecting the device to the power.
•The coffee machine can also be used to heat water. Fill the cleaned water container
with cold water; insert the riser pipe and cleaned filter basket. Turn on the device, as
in brewing coffee.
•Turn off the device when the heating process is complete.
•Pull the power plug as soon as less than four cups of water are left in the water tank.
NOTE!
If the device will not be used, remove the riser pipe, otherwise it might get stuck
in the heating hole.
6. Cleaning and maintenance
6.1 Safety advice
oBefore beginning with repair or cleaning works make sure the device has been
disconnected from power supply and has cooled down.
oDo not use any acid agents and make sure no water ingresses the device.
oTo protect yourself from electric shock, never immerse the device, its cables and
the plug in water or other liquids.
CAUTION!
The device is not suited for direct washing via water jets.
Therefore, you must not use any kind of pressure water jet for cleaning the device!

- 32 -
6.2 Cleaning and descaling
Daily cleaning
oClean the device after each use.
oAfter use, wash the device with hot water and a mild, commercially available
detergent for coffee makers. Clean also the filter basket, riser pipe and cover.
Please observe the instructions of the manufacturer.
oDry these items with a soft cloth.
oThe water container should be cleaned of all sediments and coffee remnants.
It can be cleaned with a mild abrasive cleaner and cleaning pan.
oWipe the surface of the coffee maker with a damp cloth and then dry with a soft cloth.
oTo clean the faucet after use, fill the coffee maker with warm water and drain it
through the faucet.
Weekly cleaning
oIn the case of everyday use, the entire faucet mechanism must be thoroughly
cleaned every week. With less frequent use, it can be done less frequently.
oTo clean the faucet the upper part of the holder should be unscrewed. Clean the
faucet and also the connector between the faucet and the device with the small
brush. Rinse the upper part of the holder and screw it in again.
oThe inside of the fill level indicator can be cleaned with the attached brush.
oFirst remove the fill level indicator cover, pressing it
firmly at the bottom and sliding it up (see the marked
position in the figure on the right), and then remove it.
By loosening the top screw the glass tube can be
removed by pulling it forward. Then remove the
mounting strip from the glass tube.
Insert the attached brush into the top of the
glass tube for cleaning.
After cleaning reassemble the glass tube and
mounting strip.

- 33 -
ATTENTION!
Make sure the glass tube is properly placed in the seal.
Slightly tighten the screws, otherwise the glass may break.
oRemount the fill level indicator cover, sliding it down from above and then snapping it
into place.
Cleaning the heating hole
oThe heating hole must be thoroughly cleaned every week, especially if used daily.
oIncluded in the coffee maker packaging is a scale deposit scraper for cleaning the
heating hole at the bottom of the coffee maker.
NOTE!
Only the attached scale deposit scraper should be used!
oPlace a cloth soaked with soapy
steel wool or a thin cloth for
scrubbing over the heating hole.
oInsert the narrow end of the
scraper into the heating hole.
oBy rotating repeatedly clean
heating hole.
oWhen the heating hole is clean,
the metal will shine.
oAfter completion of cleaning, thoroughly rinse the water container in order to remove
all residues of soaps and cleaning detergents.
Heating hole
Scale deposit
scraper

- 34 -
Descaling
ATTENTION!
In order to extend the use of the device and to ensure good quality coffee, the
coffee maker should be descaled regularly!
Claims will not be accepted if the coffee maker will not be descaled regularly,
as described in the instruction manual.
Such claims are not covered under the warranty!
oThe device is equipped with red descaling indicator. Depending on the hardness of
used water the indicator may be activated after some brewing cycles, which indicates
that the device must be descaled. At the same time the overheating protection is
activated and the device is turned off.
oAfter descaling the coffee maker must be turned on only after pressing the RESET
button in the base. When the device is turned on after descaling, the indicator is not
activated.
oFor descaling the device we recommend „Rapid descaler for coffee makers“
that we have tested.
Code-No.: 190065; packing unit: (30 bags 15 g each).
oDissolve the content of the bag (15 g) in approximately 5 liters of water.
oPush the riser pipe through the center of the filter basket and place it in the water
container. Make sure that the riser pipe has been carefully inserted in the heating hole.
oPour the descaling mixture into the water container of the coffee maker. Place the
cover on the water container and turn on the device.
oStart the brewing process and leave the coffee maker on for about 15 minutes.
oTurn off the device and drain the descaling mixture from the water container through
the faucet.
oAfter descaling, perform the brewing process at least three times to remove all
remnants of the descaling mixture.
oRinse thoroughly with warm water the water container, riser pipe, filter basket and
drain this water through the faucet.
oThe coffee maker is now ready for use.
WARNING!
Do not leave the coffee maker without supervision while descaling!
During descaling use gloves and goggles!
oAfter descaling carefully wash your hands.

- 35 -
6.3 Safety instructions for maintenance
oInspect the power cable regularly for damage. Never use the device if the cable is
damaged. If the power cable is damaged, have an authorised service center or
qualified electrician replace it.
oIn case of damage or malfunction, please contact your stockist or our customer
service centre. Pay attention to the troubleshooting tips in pt. 7.
oOnly a qualified technician and using original spare parts and accessories should
carry out repairs and maintenance of the device. Do not attempt to repair the
device yourself.
7. Possible Malfunctions
Problem Cause Solution
The device is turned on,
but the red indicator light
does not turn on.
•The power plug is not
properly inserted into
the socket
•Disconnected fuse
•Damaged indicator light
•Damaged switch
•Properly insert the plug
into the socket
•Check the fuse
•Check the device in
another socket
•Contact a salesperson
Red descaling indicator is
on during the operation.
•The device is scaled •Remove the plug. Leave
the device until cooling
down, then descale it
according to section
6.2 “Cleaning and
descaling“
The device is turned on,
the ON/OFF switch
indicator is on, but the
device is not heating.
•Damaged heating
element
•Damaged thermostat
•Contact a salesperson
•Contact a salesperson
The device turns off.
•Damaged thermostat
•The device is scaled
•Remove the power plug
and leave the device to
cool. Remove the base
and press the RESET
button on the bottom of
the device. Bear in mind
the necessary quantity of
water in the device
Descale the device accor-
ding to section 6.2 „Clea-
ning and descaling“
