Bartscher IK3342 User manual

IK3342
105858

Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: [phone]
Fax: [phone]
Technical Support Hotline: [phone]
www.bartscher.com
Version: 1.0
Date of preparation: 2019-09-17
EN

105858 1 / 24
Original instruction manual
1Safety............................................................................................................2
1.1 Explanation of signal words.....................................................................2
1.2 Safety instructions....................................................................................3
1.3 Intended use............................................................................................6
1.4 Unintended Use.......................................................................................6
2General information.......................................................................................7
2.1 Liability and warranty...............................................................................7
2.2 Copyright protection.................................................................................7
2.3 Declaration of conformity.........................................................................7
3Transport, packaging and storage.................................................................8
3.1 Delivery Check.........................................................................................8
3.2 Packaging................................................................................................8
3.3 Storage....................................................................................................8
4Technical data...............................................................................................9
4.1 Technical specifications...........................................................................9
4.2 List of components of the appliance.......................................................10
4.3 Functions of the appliance..................................................................... 11
5Installation and operation ............................................................................11
5.1 Installation..............................................................................................11
5.2 Operation............................................................................................... 12
6Cleaning ......................................................................................................20
6.1 Safety Instructions for cleaning..............................................................20
6.2 Cleaning.................................................................................................20
7Possible Malfunctions..................................................................................21
8Disposal....................................................................................................... 22

Safety
2 / 24 105858
EN
Diese Bedienungsa nleitung beschreibt di eI nstallation, Bedienu ngu nd Wartung des Geräts u ndg ilt als wichtige Infor mationsquelle un dN achschlagewer k.Di e Kenntnis aller enthalt enenSic herheitshinw eiseu ndH andlungs anweisungen schafft die V oraussetzung f ürd as sichere und sac hgerechte Arbeite n mitd emG erät.D arüber hin aus müssen die für den Eins atzbereich des Geräts gelt enden örtlichen Un fallverhütungsvorsc hriften und allgemein en Sicherheitsb estimmungen eingehalt en werden. Diese Bedi enungsanleitung is t Bestandteil des Pro dukts und muss in u nmittelbarer Nähe des Ger äts für das In¬stallations-, Bedienungs-, W artungs- und Reinigungsp ersonal jederzeit z ugänglich auf¬be wahrt werden. Wenn das Ger äta n eine dritte Person
weitergegeben wird , muss die Bedienungsa nleitung mit ausgehä ndigt werden.
Read this instruction manual before using and keep it available
at all times!
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of signal words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.

Safety
105858 3 / 24
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
,di e
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
1.2 Safety instructions
Electrical current
•Too high a mains voltage or incorrect installation may cause electric shock.
•The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
•To avoid short-circuit, the appliance should be kept dry.
•If there are malfunctions during operation, disconnect the appliance from the
power supply.
•Do not touch the appliance’s plug with wet hands.
•Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
•Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
•Do not transport the appliance, holding it by the power cord.
•Do not allow the power cord to come into contact with heat sources or sharp
edges.
•Do not bend, pinch nor knot the power cord.

Safety
4 / 24 105858
EN
•Always completely unwind the power cord.
•Never place the appliance or other objects on the power cord.
•Always take hold of the plug to disconnect the appliance from the power supply.
Flammable materials
•Never subject the appliance to contact with high temperature sources, e.g.:
oven, furnace, open flame, heat generating devices, etc.
•To avoid fire hazard, clean the appliance regularly.
•Do not cover the appliance with, e.g., aluminium foil or cloths.
•Use the appliance only with materials designated to this end and with correct
temperature settings. Materials, groceries and left-overs remaining in the
appliance may catch fire.
•Never use the appliance near flammable or inflammable materials, e.g.: petrol,
spirit, alcohol, etc. High temperature triggers evaporation of these materials,
and, as a result of contact with sources of ignition, an explosion may occur.
•In case of fire, disconnect the appliance from the power supply before
attempting suitable fire-extinguishing actions.
•Never attempt to extinguish fire with water if the appliance is connected to the
power supply. Following extinction of fire, ensure sufficient fresh air inflow.
Electromagnetic Fields
•Magnetized items, e.g. credit cards, data storage devices or calculators, may
not be placed in an immediate vicinity of the switched on appliance. Magnetic
field might damage them.
•Do not open the bottom cover!
•Cookware should always be placed in the middle of the cooking area, so that
pot bottom covered the electromagnetic field to the maximum extent.
•Scientific researches proved that induction cookers pose no threat.
Nevertheless, people with cardiac pacemaker should keep a distance of at least
60 cm from the working appliance.
Safety of Induction Plate Operation
•During operation, the heating area is getting very hot.
Information: Induction cooker does not generate heat in the process of
cooking. Nevertheless, the temperature of cookware heats up the heating
area and the surface remains hot after use. Do not touch any hot surfaces
of the appliance.

Safety
105858 5 / 24
EN
•You may transport and clean the appliance after it cools down entirely.
•It is prohibited to sprinkle hot surfaces with cold water or flammable liquids.
•Do not put metal kitchen utensils, lids, knifes nor any other metal objects on the
heating area. These objects might heat up after switching the appliance on.
•Remember that wearable items, e.g. rings, watches etc., may heat up when they
are close to the cooker’s plate.
•In order to avoid overheating, do not place any aluminium foil or metal plates on
the heating surface of the appliance.
•Do not heat up sealed containers, e.g. canned food, on the heating area of the
induction cooker. Resulting overpressure may cause explosion (rupture) of a
container or a can. The canned food is best to open it, put it in a pot filled with
water and place the pot on a heating area in order to heat it up.
•The heating area is made of a temperature-resistant glass. In case of damage,
even if it is only a small fracture, the device should be immediately disconnected
from the power supply and you should contact the service company.
Operating Personnel
•The appliance may only be operated by qualified personnel and trained
specialist personnel.
•This appliance may not be operated by persons (including children) with limited
physical, sensory or mental capabilities, nor by persons with limited experience
and/or limited knowledge.
•Children should be supervised to ensure that they are not playing with or
switching on the appliance.
Improper Use
•Unintended or prohibited use may cause damage to the appliance.
•The appliance may only be used when its technical condition is flawless and
allows for safe operation.
•The appliance may only be used when all connections are executed according
to rules of law in force.
•The appliance may only be used when it is clean.
•Use only original spare parts. Never attempt to repair the appliance on your
own.
•Do not introduce any changes in the appliance nor modify it.

Safety
6 / 24 105858
EN
1.3 Intended use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
–Preparing and heating-up foods with the use of suitable cookware.
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
–Heating of rooms.
–Heating-up flammable, hazardous to health and volatile, etc. liquids and
materials.

General information
105858 7 / 24
EN
2 General information
2.1 Liability and warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
–failure to observe instructions,
–unintended use,
–technical alterations introduced by the user,
–usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.

Transport, packaging and storage
8 / 24 105858
EN
3 Transport, packaging and storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
–in closed rooms;
–in dry and dust-free surrounding;
–away from aggressive agents;
–in a location protected against sunlight;
–in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.

Technical data
105858 9 / 24
EN
4 Technical data
4.1 Technical specifications
Name:
Induction cooker IK3342
Item No.:
105858
Material:
Plastic, ABS
Heating plate material:
IK3342
Number of hobs:
3
Output level / max. output of the right-hand
side hob:
1 - 10 / 1400 W
Max. total output of the left-hand side hobs:
2000 W
Output level / max. output of the left-hand
side front hob:
1 - 10 / 2000 W
Output level / max. output of the left-hand
side rear hob:
1 - 5 / 1000 W
Number of temperature levels:
10
Temperature range, min.–max., in °C:
60 - 240
Temperature setting intervals, in °C:
20
Time setting, from–to, in min.:
1 - 180
Time setting intervals, in min.:
1
Power supply:
3,4 kW / 220-240 V / 50-60 Hz
Hob dimensions (W x D), in mm:
510 x 485
Right-hand side hob diameter, in mm:
106
Left-hand side front hob diameter, in mm:
207
Left-hand side rear hob diameter, in mm:
207
Max. load-bearing capacity, in kg:
15
Dimensions (W x D x H) in mm:
510 x 485 x 70
Weight in kg:
6,6
We reserve the right to implement technical modifications!

Technical data
10 / 24 105858
EN
Version / Characteristics
•Appliance connection: ready to plug in
•Type of hobs: induction
•Arrangement of hobs: 2 at the left, 1 at the right
•Regulation of: output, temperature, time
•ON/OFF button
•Digital display
•Indicator lights: output, temperature, time
•Control: touch
•Cookware detection
•Overheating protection
•Lock button (child safety lock)
4.2 List of components of the appliance

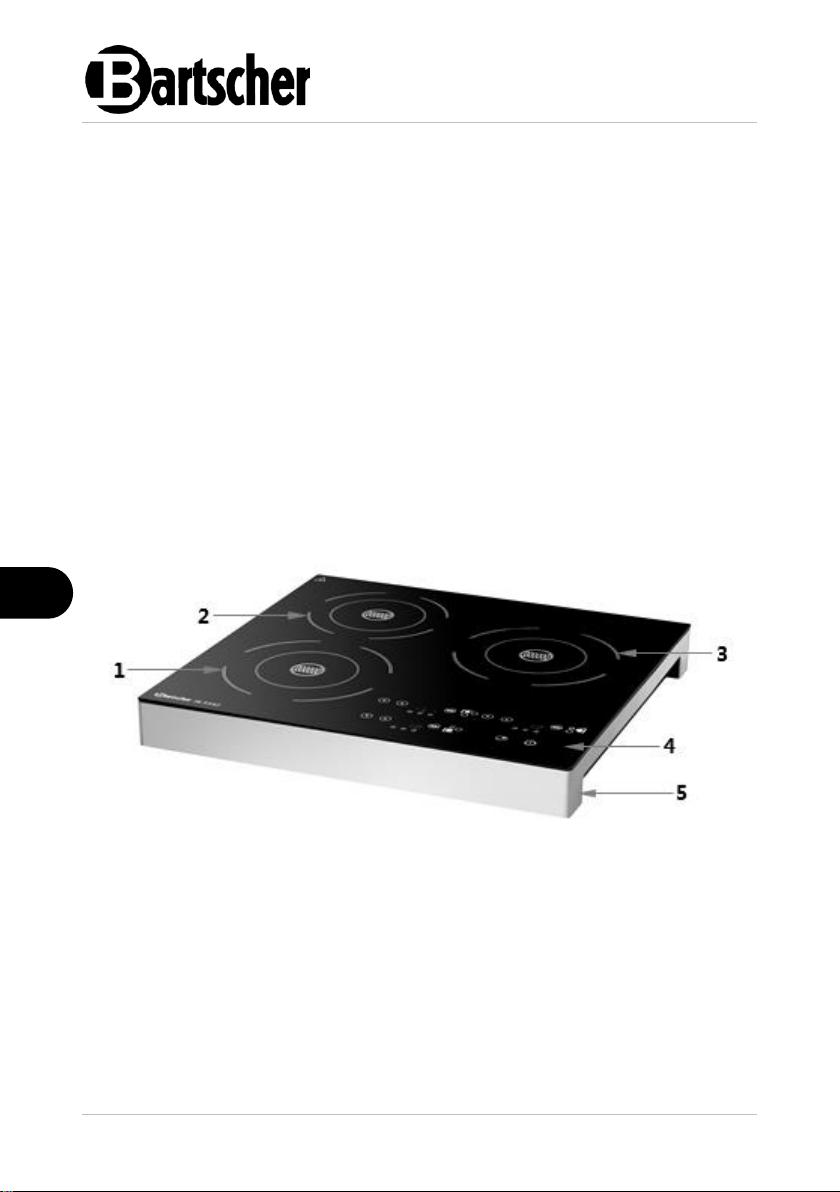

1. Left-hand side front hob
2. Left-hand side rear hob
3. Right-hand side hob
4. Control panels with digital displays
5. Housing

Installation and operation
105858 11 / 24
EN
4.3 Functions of the appliance
The induction cooker is intended for preparation and heating of foods using
appropriate cookware.
5 Installation and operation
5.1 Installation
Unpacking / Positioning
•Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
•If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
•Be careful not to damage the rating plate and warning labels fixed on the
appliance.
•Never place the appliance in humid or wet environment.
•Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
•The appliance should be placed on surfaces that are:
–even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
–sufficiently large, and thus enabling usage of the appliance with no
problems;
–easily accessible;
–well ventilated.
•Maintain sufficient clearance from table edges. The appliance might turn over
and fall down.

Installation and operation
12 / 24 105858
EN
•Do not place the appliance in the vicinity of devices or objects that are sensitive
to magnetic fields (e.g. radio, television, etc.).
•Leave at least 5 -10 cm clearance from flammable walls and other objects.
•Do not use the appliance with an external timer or remote control.
5.2 Operation
Method of operation of heating plates
In induction cookers the electric voltage is applied to a conductive coil under the
glass. This generates magnetic field, which being a physical effect, heats the
bottom of a cookware directly.
This translates to savings of time and energy, as —contradictory to traditional
heating areas —there is no heating up of a heater and then of the glass heating
plate.
Another advantage of the technical features described above is the very short
cooking time.
Additionally, inflow of heat changes instantly with every change of settings and it
may be controlled precisely. The induction heating plate reacts to changes in
settings as fast a gas cooker, for the energy is delivered immediately to a pot,
without the need to prior heating up of other materials.
The induction technology combines the speed of reaction with a basic benefit of the
current, making it possible to precisely control heat inflow.

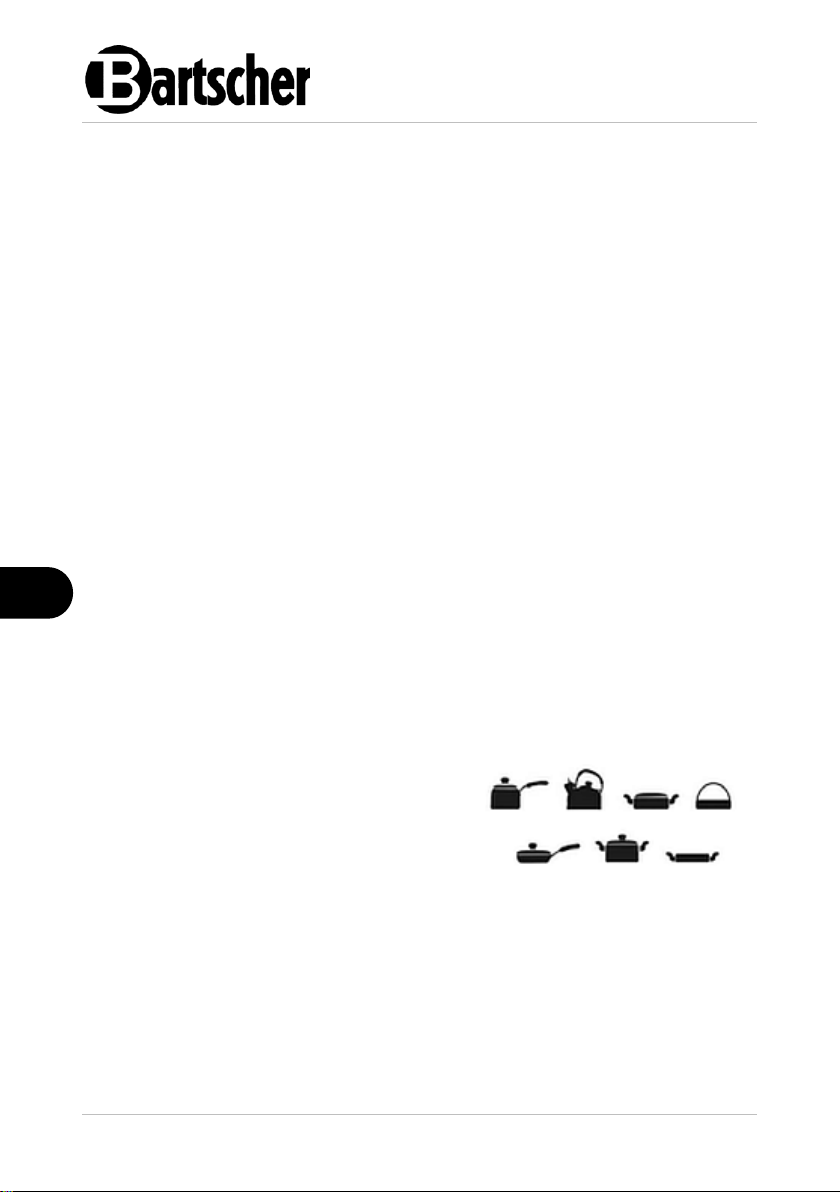

Suitable Cookware
•Iron cookware
•Enamelled iron cookware
•Steel or enamelled cast iron pots/pans
•Cast iron pots/pans
•Cookware made of 18/0 stainless steel
and aluminium if marked as suitable for
induction (mind the description of the
cookware)

Installation and operation
105858 13 / 24
EN
Due to a specific way the induction plate operates,
only cookware with a bottom subject to
magnetization are suitable.
To obtain better results, use only pans/pots with a
diameter of 12–26 cm.
Example:
Induction cooker cookware, Bartscher 9-piece set of cookware
Chrome-nickel steel, anti-drip edges, non-heating handles
4 pots with lids
2.0 litre, 16 cm diameter, H 10.0 cm
2.7 litre, 18 cm diameter, H 11.0 cm
5.1 litre, 24 cm diameter, H 11.5 cm
6.1 litre, 20 cm diameter, H 20.0 cm
1 pan
2.8 litre, 24 cm diameter, H 6.5 cm
Art. No.: A130442
Not Suitable Cookware
•Containers with bulged bottoms
•Aluminium, brass, copper cookware
unless they are clearly indicated as
suitable for induction
•Pots/pans with a diameter below 12
cm
•Cookware with feet
•Ceramic cookware
•Glass cookware

Installation and operation
14 / 24 105858
EN
Before Use
1. Before use, clean the appliance, observing instructions in section 6“Cleaning”.
2. Dry the appliance thoroughly.
3. Place the appropriate cookware with food in the middle of the selected hob.
Operating Elements of Hobs

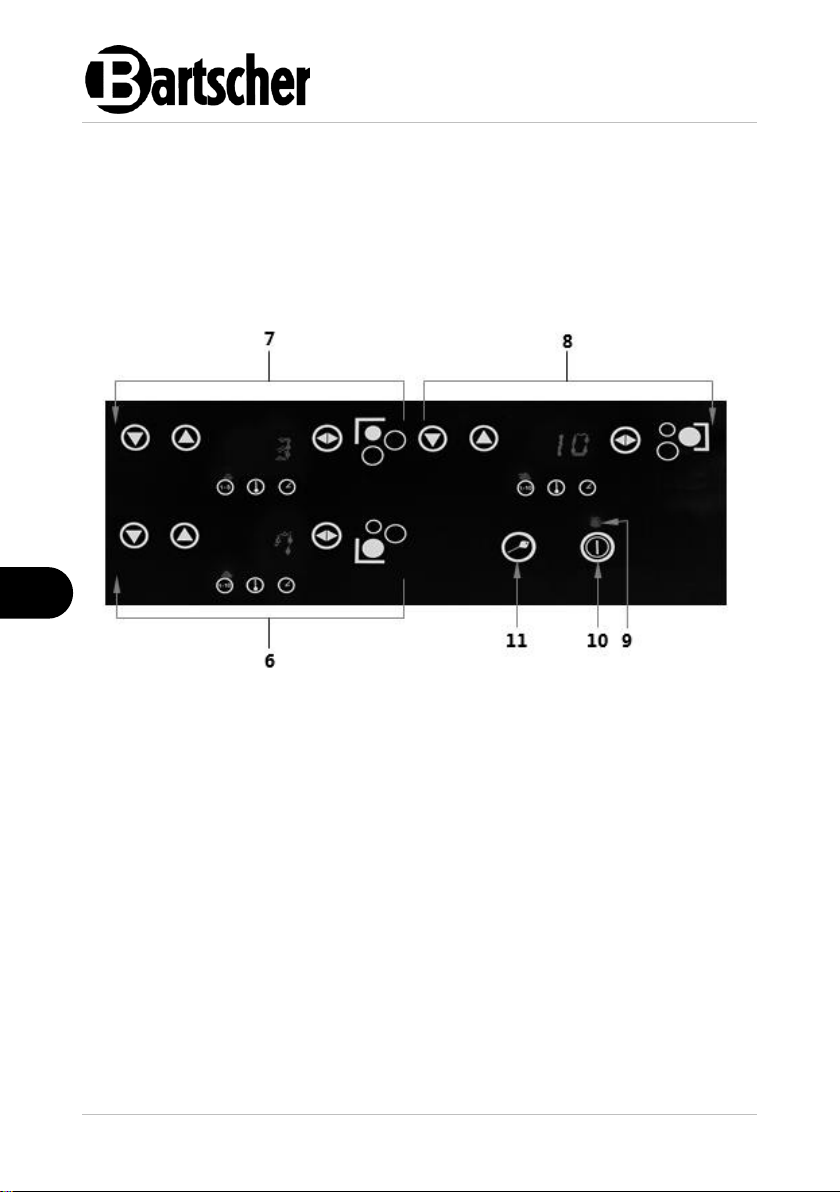

6. Operating elements of the left-hand side front hob
7. Operating elements of the left-hand side rear hob
8. Operating elements of the right-hand side hob
9. STANDBY LED indicator light
10.ON/OFF button
11.Lock button (child safety lock)

Installation and operation
105858 15 / 24
EN
Messages Displayed and Functions of Control Panel Buttons

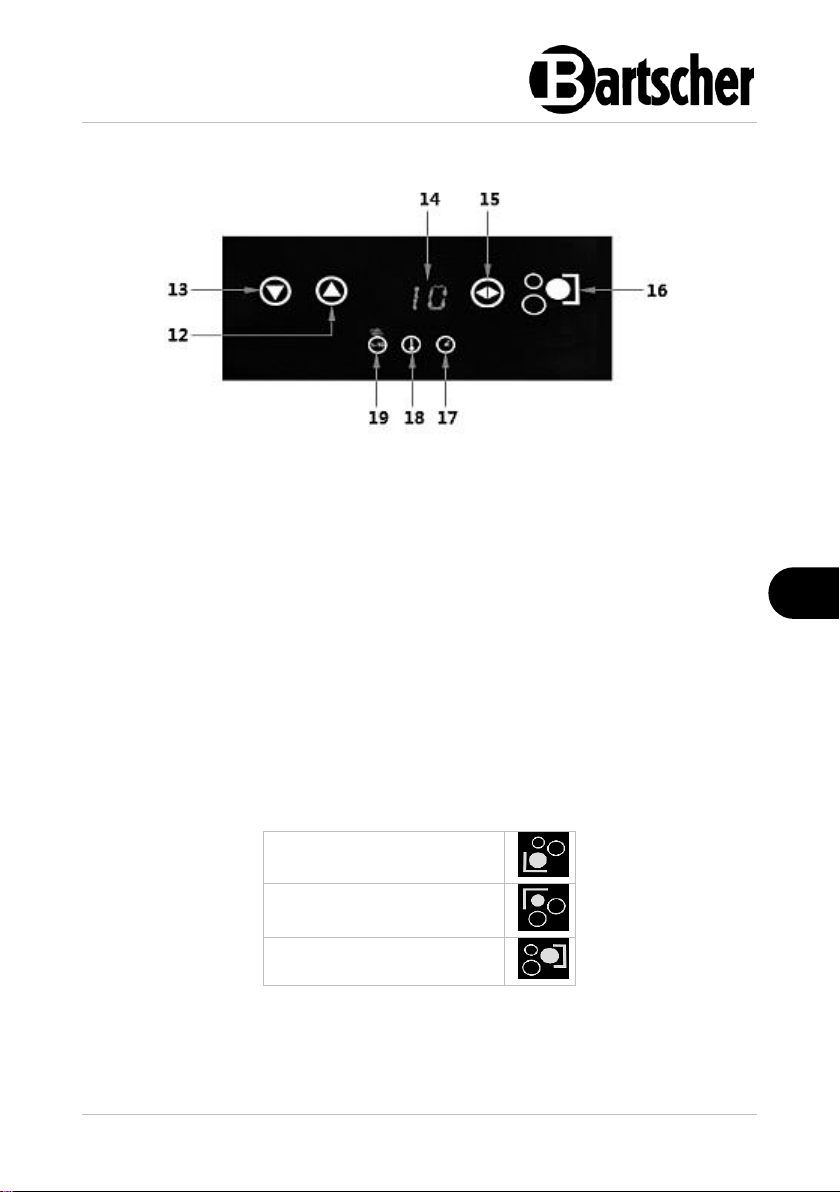

12.Setting value increase button
13.Setting value decrease button
14.Digital display
15.Function selection button
16.Hob position symbol
17.Time setting LED indicator light
18.Temperature setting LED indicator light
19.Output setting LED indicator light
Using the Hobs
•The appliance is equipped with 3 hobs, which may be used separately or
concurrently.
•The arrangement of hobs on the heating plate is indicated with the following
symbols:
Left-hand side front hob
Left-hand side rear hob
Right-hand side hob
•The settings should be introduced with the use of operating elements for a given
hob.
•The right-hand side hob features 10 output levels and may be controlled
independently from the two left-hand side hobs.

Installation and operation
16 / 24 105858
EN
•The left-hand side front and rear hobs may be used independently or
concurrently, but the 2,000 W power is divided between them.
Possible Settings for Concurrent Usage of the Left-Hand Side Hobs
Hob
Output level settings
Left-hand side
front hob
10
9
8
7
6
5
4
3
2
1
Left-hand side
rear hob
0
0
2
3
4
5
5
5
5
5
•If you want to use the left-hand side front hob, you may use the output level
settings in the range of 1–10.
•If you want to use the left-hand side rear hob, you may use the output level
settings in the range of 1–5.
•If you want to use the left-hand side front and rear hobs concurrently, both of
them are by default set to the output level of 5.
•If the output level for the left-hand side front hob is set to a value higher than 5,
the output level of the left-hand side rear hob is reduced automatically, so that the
sum of both output levels is 10. The respective output levels are shown on digital
displays of the hobs.
•If the output level for the left-hand side front hob is set to a value lower than 5,
you may use the highest output level of the left-hand side rear hob, that is 5.
Appliance Start-up
1. Connect the appliance to a single grounded socket.
The acoustic signal sounds.
The digital displays of respective hobs will show '-L-' or '-H-'.
When the temperature of the hob is lower than 50°C, the '-L-' is shown; when the
temperature of the hob is higher than 50 °C, the '-H-' is shown.
The appliance is now in STANDBY.
2. Press the ON/OFF button.
The STANDBY mode LED indicator light located over the ON/OFF button blinks.
NOTE: Unless within 30 seconds following pressing the ON/STANDBY
button new settings are introduced, the appliance automatically returns to
the STANDBY mode.
The '-L-' or '-H-' message shown for a given hob go off.

Installation and operation
105858 17 / 24
EN
The LED indicator lights for 1–10 or 1–5output levels for respective hobs light up
and in respective digital displays, the pre-set output level of 5is shown.
The appliance is ready to select the function.
NOTE:
To simmer or cook food (max. temperature of 170 °C) select one of the
output levels.
To fry or deep-fry food (max. temperature of 240 °C) select one of the
temperature settings (60 °C –240 °C).
3. Press the function selection button.
Settings
Power
When the appliance is connected and the ON/OFF button is pressed, the appliance
is in power output setting mode.
1. Set the required output level for a selected hob with the use of settings value
increase or decrease buttons.
2. Follow the instructions in section “Using the Hobs”.
The selected output level is shown on the digital display for a respective hob.
The output level settings may be changed at any time with the use of settings value
increase or decrease buttons.
Temperature
The temperature of individual hobs may be set independently from the other hobs.
1. Press the function selection button for the selected hob and move to the
temperature mode.
The pre-set temperature of 120 °C is shown on the digital display, and the LED
control light for temperature settings is lit.
At any time, you may use the settings value increase or decrease buttons to change
the temperature settings in the range of 60 °C –240 °C and with intervals of 20 °C.
You may select the following temperature levels:
60, 80, 100, 120, 140, 160, 180, 200, 220 and 240 °C.
The appliance starts heating the food and maintains a constant temperature. The
output level is then controlled automatically.

Installation and operation
18 / 24 105858
EN
Time
1. When the output or temperature are set, press the function selection button
again to set the time.
The time setting LED indicator light for a selected hob lights up, and 0is shown on
the digital display.
2. With the use of the settings value increase button increase the operating time in
5-minute intervals (5, 10, 15, etc.) to max. 180 minutes.
3. If the set time needs to be decreased, use the settings value decrease button to
decrease the time in 1-minute intervals.
The selected operating time is counted down in 1-minute intervals, and the digital
display shows the remaining time.
When the set time elapses, the acoustic signal sounds and the appliance
automatically switches to STANDBY mode.
NOTE:
When the timer is on you can modify the time setting at any moment with
the use of settings value increase or decrease buttons.
Memory function of the appliance keeps the set output and temperature
levels unchanged.
The same way the power level or temperature level may be modified
without changing the set time.
NOTE:
The induction cooker switches off automatically when no new setting has
been introduced for 2 hours. The fan operates for some time to cool down
the electronics.
