Bartscher IK 235Z User manual

IK 235Z
105.838
V1/1011

- 17 -
1. General Information 18
1.1 Information about the instruction manual 18
1.2 Key to symbols 18
1.3 Liability and Warrantees 19
1.4 Copyright protection 19
1.5 Declaration of conformity 19
2. Safety 20
2.1 General information 20
2.2 Safety instructions for use of the device 20-21
2.3 Intended use 21
3. Delivery, packaging and storage 22
3.1 Delivery check 22
3.2 Packaging 22
3.3 Storage 22
4. Technical data 23
4.1 Technical specification
23
4.2 Overview of parts
23
5. Installation and operation 24
5.1 Functionality of induction cookers 24
5.2 Safety instructions 24-25
5.3 Suitable and unsuitable cookware 26
5.4 Installation and connection 27
5.5 Operating 28-30
6. Cleaning and maintenance 30
6.1 Safety advice 30
6.2 Cleaning 31
6.3 Safety instructions for maintenance 31
7. Possible Malfunctions 31-32
8. Waste disposal 32
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten phone: [phone]
Germany fax: [phone]
GB/UK

- 18 -
1. General information
1.1 Information about the instruction manual
This instruction manual contains information about the installation, operation and
maintenance of the device and should be consulted as an important source of
information and reference guide.
Awareness of the safety instructions and instructions for use in this manual will ensure
the safe and correct use of the device.
In addition to the information given here, you should comply with any local Health and
safety Controls and generally applicable safety regulations.
The instruction manual forms part of the product and should be kept near the device and
easily accessible for anyone carrying out the installation, servicing, maintenance or
cleaning.
1.2 Key to symbols
In this manual, symbols are used to highlight important safety instructions and any
advice relating to the device. The instructions should be followed very carefully to avoid
any risk of accident, personal injury or material damage.
WARNING!
This symbol highlights hazards, which could lead to injury.
Please follow the instructions very carefully and proceed with particular attention
in these cases.
WARNING! Electrical hazard!
This symbol draws attention to potential electrical hazards. If you do not follow
the safety instructions, you may risk injury or death.
CAUTION!
This symbol highlights instructions, which should be followed to avoid any risk of
damage, malfunctioning and/or breakdown of the device.
NOTE!
This symbol highlights tips and information, which have to be followed for
an efficient and trouble-free operation of the device.
WARNING! Magnetic field!
Do not open the bottom cover of the device.

- 19 -
1.3 Liability and Warrantees
All the information and instructions in this manual take into account standard safety
regulations, current levels of technical engineering as well as the expertise and
experience we have developed over the years.
The instruction manual was translated with all due care and attention. However, we do
not accept liability for any translation errors. The German version of this instruction
manual is definitive.
If the delivery consists of a special model, the actual scope of delivery may differ from
the descriptions and illustrations in this manual. This is also the case for special orders
or when the device has been modified in line with new technology. If you have any
questions, you should contact the manufacturer.
NOTE!
Read the instruction manual carefully before using the device. The manufacturer
does not accept liability for any damage or malfunction resulting from not
following the instructions for use.
The instruction manual should be kept near the device, easily accessible for anyone
wishing to work with or using it. We reserve the right to make technical changes for
purposes of developing and improving the useful properties.
1.4 Copyright protection
The instruction manual including any texts, drawings, images or other illustrations is
copyright. No part of this publication may be reproduced, transmitted or used in any form
or by any means without permission in writing from the manufacturer. Any person who
commits any unauthorized act in relation to this publication shall be liable to claims for
damages. All rights reserved.
NOTE!
The contents, texts, drawings, pictures and any other illustrations are copyright
and subject to other protection rights. Any person unlawfully using this
publication is liable to criminal prosecution.
1.5 Declaration of conformity
The device complies with the current standards and directives of the EU.
We certify this in the EC declaration of conformity.
If required we will be glad to send you the according declaration of conformity.

- 20 -
2. Safety
This section provides an overview of all important safety aspects.
In addition every chapter provides precise safety advice for the prevention of dangers
which are highlighted by the use of the above mentioned symbols.
Furthermore, attention should be paid to all pictograms, markers and labels on the
device, which must be kept in a permanent state of legibility.
By following all the important safety advice you gain an optimal protection against all
hazards as well as the assurance of a safe and trouble-free operation.
2.1 General Information
This device is designed in accordance with the presently applicable technological
standards. However, the device can pose a danger if handled improperly and
inappropriately.
Knowing the contents of the instruction manual as well as avoiding mistakes and thus
operating this device safely and in a fault-free manner is very essential to protect
yourselves from the hazards.
To prevent hazards and to ensure optimum efficiency, no modifications or alterations to
the device that are not explicitly approved by the manufacturer may be undertaken.
This device may only be operated in technically proper and safe condition.
2.2 Safety instructions for use of the device
The specifications regarding the industrial safety are based on the Regulations of the
European Union applicable at the time of manufacturing the device.
If the device is used commercially, the user is obliged to ensure that the said industrial
safety measures concur with the state of the rules and regulations applicable at the time
in question for the entire period of use of the device and to comply with the new
specifications.
Outside the European Union, the industrial safety laws applicable at the place of
installation of the device and the regional territorial provisions must be complied with.
Besides the industrial safety instructions in the instruction manual, the general safety and
accident prevention regulations as well as environment protection regulations applicable
for area of application of the device must be followed and complied with.

- 21 -
CAUTION!
oThe device is not intended for use by individuals (including children) with physical or
mental disabilities, insufficient experience, and/or insufficient knowledge unless such
persons are under the care of a person responsible for their safety or have received
instructions regarding appropriate use of the device.
oChildren should be observed to ensure that they are not playing with the device.
oPreserve this manual safely. When passing on/selling the device to a third party, the
manuals must be handed over along with the device.
oEvery person using the device must act in accordance to the manuals and under
consideration of the safety advice.
oThe device is to be used indoors only.
2.3 Intended use
Safe operation is only guaranteed when using the device for its intended purpose.
Any technical interventions, as well as assembly and maintenance are to be made by a
qualified customer service only.
The device is not designed for use with an external timer or remote control.
The induction cooker is designed for preparation and warming up of foods using the
appropriate crockery.
The induction cooker may not be used among other things for:
-heating rooms;
-heating and warming inflammable, harmful, volatile or similar liquids or
materials;
-heating sealed tins, tin can explode, remove the lid in any case beforehand.
CAUTION!
Any use going beyond the intended purpose and/or any different use of the device
is forbidden and is not considered as conventional.
Any claims against the manufacturer or his authorized representative as a
consequence of experiencing damages resulting from unconventional use are
impossible.
The operator is liable for all damages resulting from inappropriate use.

- 22 -
3. Transport, packaging and storage
3.1 Delivery check
Please check the delivery upon completeness and transport damage immediately after
receipt.
In case of visible damage do not accept or accept the delivery with reservation only.
Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint.
Hidden damages should be reclaimed immediately after notice, as claims for damages
can only be asserted within the effective period for complaints.
3.2 Packaging
Please do not throw away the covering carton of your device as it might be useful for
storage purposes, when moving or, in case of damages, when the device must be sent
back to a repair center. The outer and inner packing material should be removed
completely from the device before installation.
NOTE!
If you liked to dispose the packing, consider the regulations applicable in your
country. Supply re-usable packing materials to the recycling.
Please inspect the device upon completeness. In case any part is missing please
contact our customer service center immediately.
3.3 Storage
Keep the package closed until installation and under consideration of the outside
indicated positioning- and storage markings.
Packages should be stored under consideration of the following:
-Do not store outdoors.
-Keep it dry and dust-free.
-Do not expose it to aggressive media.
-Do not expose it to direct sunlight.
-Avoid mechanical shocks and vibration.
-In case of longer storage (> 3 months) make sure you
check the state of the packaging and the parts regularly.
If required refresh or renew.

- 23 -
4. Technical data
4.1 Technical specification
Name Induction cooker IK 235Z
Article No:
105.838
Made of: stainless steel housing, glass cooking surface
Power levels: 10 (800 – 3500 W / 800 - 3500 W)
Total power connection: 3 NAC 400 V / 7,0 kW
Dimensions: width 405 x depth 700 x height 138 mm
Weight: 15,0 kg
We reserve the right to make technical changes!
4.2 Overview of parts
①
Cooking plates
②
Housing
③
Service panel
④
Height-adjustable feet
①
②
③
④

- 24 -
5. Installation and operation
5.1 Functionality of induction cookers
With induction cooker, an electric voltage is applied on a conductor spool beneath the
glass. This creates magnetic fields, which directly heat up the bottom of the cookware
through a physical effect. This means saving time and energy, because contrary to
common hotplates, the cookware is heated up, not the heating element and the glass.
Due to the technical characteristics described above, another advantage is the very short
start-up cooking time.
In addition, the heat supply promptly adapts to changed settings and can be controlled in
small steps. The induction cooker reacts to changed settings just as fast as a gas stove,
as the energy reaches the pot immediately without having to heat up other materials first.
The induction technology combines this fast reaction with the basic advantage of
electricity, meaning being able to exactly adjust the heat supply.
Additional advantages of an induction cooker:
•As the cooking zone is only heated up indirectly via the bottom of the cookware, over
spilling food cannot stick and burn and there is hardly any danger of burns for the user.
The glass cooking zone is only heated up by the hot cookware.
•If the device is turned on and no dish for cooking is present or is removed, a repeating
audio signal will sound and the device will turn itself off after approx. 30 seconds.
•The device will detect if the appropriate cookware is placed on the heating plate.
If the cookware is not appropriate for induction hotplates, energy will not flow.
The device will turn off after approx. 30 seconds.
•When operating the cooking zone with empty cookware, a temperature sensor turns it
off automatically.
5.2 Safety instructions
WARNING! Electrical hazard!
Cable must not touch any hot parts.
•See that the cable does not touch any heat sources or sharp edges. Do not let the
cable dangle over the counter edge.
WARNING! Danger of burn!
During operation some parts of the device become very hot. Do not touch the hot
surface of the glass field. Please note: the induction cooker does not heat up itself
during cooking, but the temperature of the cookware heats up the cooking zone.

- 25 -
•Do not use the device in case it does not function properly, has been damaged or
dropped.
•Do not use any accessory or spare parts that have not been recommended by the
manufacturer. These can be dangerous for the user or lead to damages of the device
or personal injury, and further, the warranty expires.
•Do not lay the cable over carpets or heat insulations. Do not cover the cable.
Keep away the cable from operating range and do not dunk it into water.
•Do not move or tilt the device when in operation.
WARNING! Hazard via electrical current!
Do not insert any objects like wires or tools into the ventilation slots.
This may cause electric shocks.
•Do not move the induction cooker during cooking or with hot cookware on top of it.
•Do not use the device as a surface for storing various items. Do not leave such
objects as empty containers, etc. on it.
•We recommend not placing any metal kitchen utensils, cookware or pan lids, knives
or other metal objects on the cooking zone. These may heat up when the device is
turned on.
•Remember that items of jewelry such as rings, watches etc. can get hot if they are
close to the heating surface.
•The cooking zone's surface consists of temperature-resistant glass. In case of
damage, even if this concern only a small tear, disconnect the device from the power
supply immediately and contact the customer service.
•Do not place any magnetically objects like credit cards, cassettes etc. on the glass
surface while the device is in operation.
•On order to avoid overheating, do not place any aluminum foil or metal plates on the
device.
•Do not use any flammable, acidy or alkaline materials or substances near the device,
as this may reduce the service life of the device and lead to deflagration when the
device is turned on.
•Scientific tests have proven that induction cookers do not pose a risk. However,
persons with a pacemaker should keep a minimum distance of 60 cm to the device
while it is in operation.
WARNING! Hazard via electrical current!
The device can cause injuries due to improper installation!
Before installation the local power grid specification should be compared with
that of the device (see type label).Connect the device only in case of compliance!
Take note of the safety advice!

- 26 -
5.3 Suitable and unsuitable cookware
Suitable cookware
osteel or enamelled cast iron;
oiron, steel or non-enamelled cast iron;
o18/0 stainless steel and aluminium, if it is
marked as suitable for induction (follow
the description of the cookware).
For proper functioning, all pots and pans must have a plane magnetic bottom
(a magnet must stick to it).
For best results, use only pots and pans with a diameter between 12 and 30 cm.
e.g.
Induction cookware, 9-piece cooking pot set
chromium-nickel steel ●edge suitable for pouring ●cold handles
4 pots with lid
2.0 litres ●Ø 16 cm ●height 10.0 cm
2.7 litres ●Ø 18 cm ●height 11.0 cm
5.1 litres ●Ø 24 cm ●height 11.5 cm
6.1 litres ●Ø 20 cm ●height 20.0 cm
1 pan
2.8 litres ●Ø 24 cm ●height 6.5 cm
Bartscher order no. A130.442
Unsuitable cookware
opots/pans with a diameterof less
than 12 cm;
oceramic, glass;
ostainless steel, aluminium, bronze or
copper unless, it is expressly marked
as suitable for induction;
ocookware with feet;
o
vessels with round bottom.
CAUTION!
Please use only the cookware marked suitable for induction cooker.
If the induction hotplate detects too great a separation from the magnetizing
container, it will cause a reduction in power. This may cause the overheating
prevention device to malfunction. For this reason, do not use aluminum, bronze or
non-metallic containers.

- 27 -
5.4 Installation and connection
Setting Up
oUnpack the induction cooker and remove all packing material.
oPlace the device on a flat, safe surface which supports the weight and is not sensitive
to heat.
oNever place the device on a combustible surface (such as a tablecloth, etc.).
oDo not place the induction cooker near an open flame, electric ovens, heaters or
other heat sources.
oDo not block or cover the ventilation opening which is utilised for the air supply and
exhaust from the device.
This can lead the device to overheat.
oMaintain a minimum distance of 5 - 10 cm away from combustible walls or other
objects.
oDo not place the device near appliances or items that are sensitive to magnetic fields
(e.g. radio, television, etc.).
Connection to the power supply
WARNING!
Electrical installation of the induction cooker should be carried out only by qualified
personnel with the appropriate approvals whilst maintaining law and specific
domestic and local regulations!
oThe device is equipped with an electric cable. The electric cable must be connected
with the plug or plugged into the wall socket.

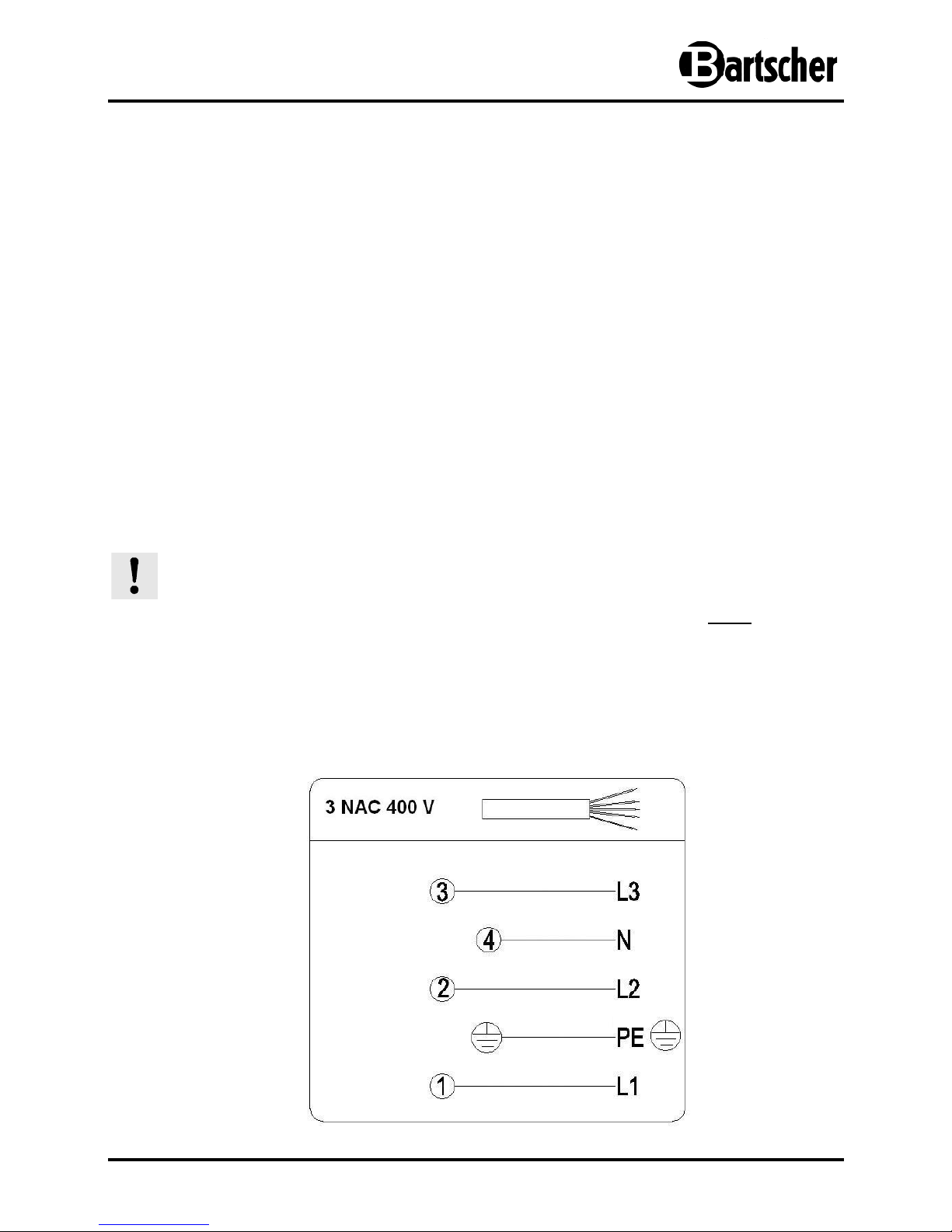

oMake the connection as depicted in the schematic diagram below:
green-yellow
gray
black
blue
brown

- 28 -
5.5 Operating
Control panel
Digital display
①
Setting point of rear cooking plate
②
Setting point of front cooking plate
③
Knob of front cooking plate
④
Knob of rear cooking plate
⑤
Digital display of rear cooking plate
⑥
Digital display of front cooking plate
① ②
⑥
④ ③
⑤

- 29 -
Turning on the device
•Before turning on the device, set both knobs in the OFF position ( „0“ mark of the
knob positioned at the setting point).
•Place an appropriate cooking pan in the middle of the selected cooking plate.
WARNING!
Never place an empty pan on the cooking plate.
Warming up an empty pan or frying pan activates the protection system against
overheating; an audio warning device signals and the device turns off.
On the digital display an error code „E2“ will be displayed .
In such a case remove the pan from the cooking plate and leave the device for few
minutes to cool.
After that the device will operate without problems.
Setting of the power
•Set the knob for the respective cooking plate at the selected output level (setting
range 1-10).
Front cooking plate
(knob on the right hand side)
Rear cooking plate
(knob on the left hand side)
800 W intermittent 800 W intermittent
1800 W 1800 W
2000 W 2000 W
2200 W 2200 W
2400 W 2400 W
2600 W 2600 W
2800 W 2800 W
3000 W 3000 W
3200 W 3200 W
3500 W 3500 W
5000 W 2000 W
NOTE!
This data may vary depending on the type of cooking pan used.

- 30 -
•The power sharing is determined in such a way that both cooking plates operate
simultaneously with an output of 3500 W every time.
•To be able to set the device at the maximum output, both cooking plates must be
turned on. It is then possible to use the rear cooking plate at an output of 2000 W
and then the front cooking plate output of 5000 W can be used. When the output of
the front cooking plate is set at 5000 W, the rear cooking plate switches
automatically to the power value of 2000 W.
•For each power setting the value is displayed on the digital display located on the
cooking surface on the left hand side (for the rear cooking plate) and on the right
hand side (for the front cooking plate).
•If you want to use only the front cooking plate with the 5000 W output, turn the left
hand side knob for the rear cooking plate, one position below the “off” (anti
clockwise).
•During the device operation ensure that the bottom of the cookware surfaces will not
scratch the cooking surface, even though there is no negative impact on the device's
operation.
Turning off the device
•After preparing the meal, set both knobs to the OFF position.(„0“ mark of the knob
positioned at the setting point). Do not rely on the feature of vessel presence
recognition!
•After turning off the device, the fan runs for approximately 1 minute to cool the device
and protect it from overheating.
NOTE!
If during operation of the device there have been no new settings,
automatically, the device will switch off after 2 hours.
6. Cleaning and maintenance
6.1 Safety advice
oBefore cleaning and repairing the device, disconnect it from the power supply
and allow to cool.
oDo not use any acid agents and make sure no water ingresses the device.
oTo protect yourself from electric shock, never immerse the device, its cables and the
plug in water or other liquids.
CAUTION!
The device is not suited for direct washing via water jets. Therefore, you must not
use any kind of pressure water jet for cleaning the device!

- 31 -
6.2 Cleaning
oClean the device regularly.
oClean the cooking surface, control panel and housing with a soft damp cloth and
with a mild, and not an abrasive cleaning agent.
oAlways protect the rear vents of the device against dirt and dust or clean them
(using a brush or air blower).
oNever use cleaners containing petrol or solvents so as not to damage the surface of
the device.
oUse only soft cloth and never use abrasive or aggressive cleaners which may
scratch the surface.
oAfter cleaning use a soft, dry cloth to dry off and polish the surfaces of the device.
6.3 Safety instructions for maintenance
oCheck the mains connection cable for damage from time to time. Never operate the
device when the cable is damaged. A damaged cable must immediately be replaced
by customer service or a qualified electrician to avoid dangers.
oIn case of damage or malfunction, please contact your stockist or our customer
service centre. Pay attention to the troubleshooting tips in pt. 7.
oOnly a qualified technician and using original spare parts and accessories should
carry out repairs and maintenance of the device. Do not attempt to repair the
device yourself.
7. Possible Malfunctions
Error
message Cause Solution
E0
•There is no cookware on
the hob, or the cookware
is of the wrong type.
•Place appropriate cookware on the
hob.
E1
•The device is too hot
(e.g. due to a blocked
ventilation duct)
•Damaged elements (e.g.
transistor)
•Clean the ventilation duct. Leave the
device to cool for several minutes; it
will then be ready for further use.
If the error message remains, contact
a sales agent.
•Contact a sales agent.

- 32 -
Error
message Cause Solution
E2
•The overheating
protection has
activated, the device
will turn off.
•Remove cookware from the induction
plate.
Leave the device to cool for several
minutes. It will soon be ready for
further use.
E3 •Temporary power
surge •Remove the device’s plug from its
socket. Leave the device to cool for
several minutes. It will soon be ready
for further use.
8. Waste disposal
Discarding old devices
At the end of its service life the discarded device has to be disposed in accordance with
the national regulations. It is advisable to contact a company which is specialized in
waste disposal, or just contact the local disposal service in your community.
WARNING!
To exclude any abuse and the dangers involved make the waste device unfit for
use before disposal. For that purpose disconnect device from mains supply and
remove mains connection cable from the device.
NOTE!
For the disposal of the device please consider and act
according to the national and local rules and
regulations.
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten phone: [phone]
Germany fax: [phone]
