Original instruction manual
1Safety............................................................................................................2
1.1 Explanation of Signal Words....................................................................2
1.2 Safety instructions....................................................................................3
1.3 Intended Use ...........................................................................................5
1.4 Unintended Use.......................................................................................6
2General information.......................................................................................7
2.1 Liability and Warranty ..............................................................................7
2.2 Copyright Protection ................................................................................7
2.3 Declaration of Conformity ........................................................................7
3Transport, Packaging and Storage................................................................8
3.1 Delivery Check.........................................................................................8
3.2 Packaging................................................................................................8
3.3 Storage....................................................................................................8
4Technical Data...............................................................................................9
4.1 Technical Specifications ..........................................................................9
4.2 List of Components of the Appliance .....................................................11
4.3 Functions of the Appliance.....................................................................12
5Installation and operation ............................................................................12
5.1 Installation..............................................................................................12
5.2 Electrical Connection.............................................................................13
5.3 Operation...............................................................................................14
6Cleaning ......................................................................................................18
6.1 Safety Instructions for Cleaning.............................................................18
6.2 Cleaning.................................................................................................19
7Possible Malfunctions..................................................................................19
8Disposal....................................................................................................... 20

Safety
2 / 22 105737
EN
Diese Bedienungsa nleitung beschreibt di eI nstallation, Bedienu ngu nd Wartung des G erätsu ndg ilt als wichtige Infor mationsquelle und N achschlagewer k.Die Ke nntnis aller enthaltene nSic herheitshin weise und Handlungs anweisungen schaf ft dieV oraussetzung f ürd as sichere und sachger echte Arbeiten mit d emG erät.D arüber hin aus müssen die für den Eins atzbereich des Geräts gelt enden örtlichen Unfall verhütungsvorsc hriften und allgemeine n Sicherheitsbesti mmungen eing ehalten werden. Diese Bedi enungsanleitung is t Bestandteil des Prod ukts und muss in unmitt elbarerN ähe des Geräts für das In¬stall ations-, Bedienungs- , Wartungs- und Reinigu ngspersonal jederzeit z ugänglich auf¬b ewahrt werden. Wenn das Ger ät an eine dritte Person
weitergegeben wird , muss die Bedienungsa nleitung mit ausgehä ndigt werden.
Read this instruction manual before using and keep it available
at all times!
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of Signal Words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.

Safety
105737 3 / 22
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
,di e
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
1.2 Safety instructions
Electrical Current
•Too high a mains voltage or incorrect installation may cause electric shock.
•The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
•To avoid short-circuit, the appliance should be kept dry.
•If there are malfunctions during operation, disconnect the appliance from the
power supply.
•Do not touch the appliance’s plug with wet hands.
•Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
•Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
•Do not transport the appliance, holding it by the power cord.
•Do not allow the power cord to come into contact with heat sources or sharp
edges.
•Do not bend, pinch nor knot the power cord.

Safety
4 / 22 105737
EN
•Always completely unwind the power cord.
•Never place the appliance or other objects on the power cord.
•Always take hold of the plug to disconnect the appliance from the power supply.
Flammable Materials
•Never subject the appliance to contact with high temperature sources, e.g.:
oven, furnace, open flame, heat generating devices, etc.
•To avoid fire hazard, clean the appliance regularly.
•Do not cover the appliance with, e.g., aluminium foil or cloths.
•Use the appliance only with materials designated to this end and with correct
temperature settings. Materials, groceries and left-overs remaining in the
appliance may catch fire.
•Never use the appliance near flammable or inflammable materials, e.g.: petrol,
spirit, alcohol, etc. High temperature triggers evaporation of these materials,
and, as a result of contact with sources of ignition, an explosion may occur.
•In case of fire, disconnect the appliance from the power supply before
attempting suitable fire-extinguishing actions.
•Never attempt to extinguish fire with water if the appliance is connected to the
power supply. Following extinction of fire, ensure sufficient fresh air inflow.
Safety of Induction Plate Operation
•During operation, the heating area is getting very hot.
Information: Induction cooker does not generate heat in the process of
cooking. Nevertheless, the temperature of cookware heats up the heating
area and the surface remains hot after use. Do not touch any hot surfaces
of the appliance.
•You may transport and clean the appliance after it cools down entirely.
•It is prohibited to sprinkle hot surfaces with cold water or flammable liquids.
•Do not put metal kitchen utensils, lids, knifes nor any other metal objects on the
heating area. These objects might heat up after switching the appliance on.
•Remember that wearable items, e.g. rings, watches etc., may heat up when they
are close to the cooker’s plate.
•In order to avoid overheating, do not place any aluminium foil or metal plates on
the heating surface of the appliance.
•Do not heat up sealed containers, e.g. canned food, on the heating area of the
induction cooker. Resulting overpressure may cause explosion (rupture) of a
container or a can. The canned food is best to open it, put it in a pot filled with
water and place the pot on a heating area in order to heat it up.

Safety
105737 5 / 22
EN
•The heating area is made of a temperature-resistant glass. In case of damage,
even if it is only a small fracture, the device should be immediately disconnected
from the power supply and you should contact the service company.
Operating Personnel
•The appliance may only be operated by qualified personnel and trained
specialist personnel.
•This appliance may not be operated by persons (including children) with limited
physical, sensory or mental capabilities, nor by persons with limited experience
and/or limited knowledge.
•Children should be supervised to ensure that they are not playing with or
switching on the appliance.
Electromagnetic Fields
•Magnetized items, e.g. credit cards, data storage devices or calculators, may
not be placed in an immediate vicinity of the switched on appliance. Magnetic
field might damage them.
•Do not open the bottom cover!
•Cookware should always be placed in the middle of the cooking area, so that
pot bottom covered the electromagnetic field to the maximum extent.
•Scientific researches proved that induction cookers pose no threat.
Nevertheless, people with cardiac pacemaker should keep a distance of at least
60 cm from the working appliance.
Improper Use
•Unintended or prohibited use may cause damage to the appliance.
•The appliance may only be used when its technical condition is flawless and
allows for safe operation.
•The appliance may only be used when all connections are executed according
to rules of law in force.
•The appliance may only be used when it is clean.
•Use only original spare parts. Never attempt to repair the appliance on your
own.
•Do not introduce any changes in the appliance nor modify it.
1.3 Intended Use

Safety
6 / 22 105737
EN
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
–Preparing and heating-up foods with the use of suitable cookware.
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
–Heating of rooms.
–Heating-up flammable, hazardous to health and volatile, etc. liquids and
materials.

General information
105737 7 / 22
EN
2 General information
2.1 Liability and Warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
–failure to observe instructions,
–unintended use,
–technical alterations introduced by the user,
–usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright Protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of Conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.

Transport, Packaging and Storage
8 / 22 105737
EN
3 Transport, Packaging and Storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
–in closed rooms;
–in dry and dust-free surrounding;
–away from aggressive agents;
–in a location protected against sunlight;
–in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.

Technical Data
105737 9 / 22
EN
4 Technical Data
4.1 Technical Specifications
Name:
Induction cooker IK 70DP
Art. No.:
105737
Material:
stainless steel
Heating plate material:
glass
Number of hobs:
2
Heating plate dimensions (W x D), in mm:
335 x 565
Front hob diameter, in mm:
245
Rear hob diameter, in mm:
245
Front hob max. output:
3500 W
Front hob max. output with power switch-on:
5000 W
Rear hob max. output with power switch-on:
2000 W
Rear hob max. output:
3500 W
Power levels:
10 + 1
Max. load-bearing capacity, in kg:
30
Power supply:
7 kW / 400 V / 50 Hz
Dimensions (W x D x H), in mm:
410 x 700 x 145
Weight in kg:
16,2
We reserve the right to implement technical modifications!

Technical Data
10 / 22 105737
EN
Version / Characteristics
•Equipment connection: 3 NAC
•Type of hobs: induction
•Arrangement of hobs: one after another
•Control: output
•Cookware detection
•Digital display
•Protection against overheating
•Control: electronic, knob
•Dust filter and grease filter
Overheating Protection
The appliance is equipped with overheating protection. When the critical
temperature is exceeded, the appliance will switch off for safety reasons.
ATTENTION:
Heating up an empty pot or frying pan activates the overheating protection
system; an audio signal sounds and the appliance turns off.
The digital display shows 'E2'.
Never place empty cookware on the hob.
When overheating protection is activated and the 'E2' error message is
displayed, remove cookware from the hob and leave the appliance for a few
minutes to cool down.
Then, you may start using the appliance again.

Technical Data
105737 11 / 22
EN

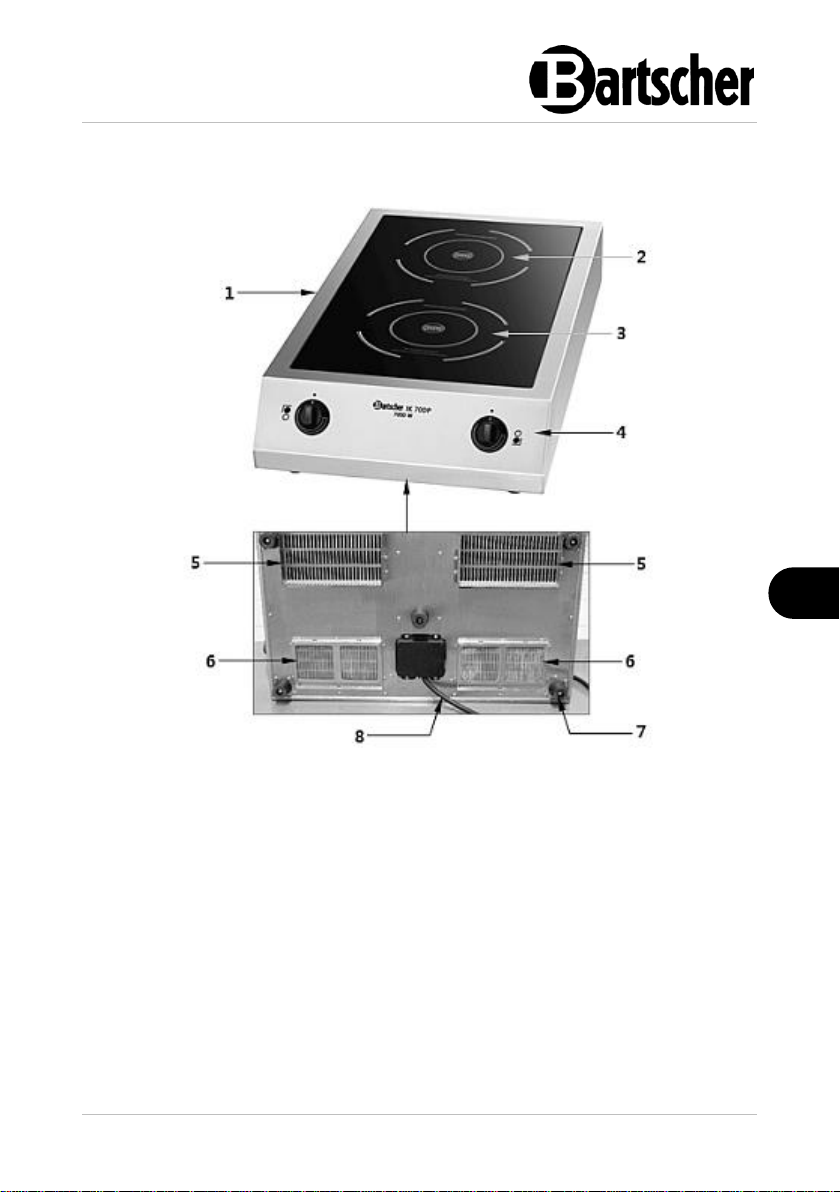

4.2 List of Components of the Appliance
1. Housing
2. Rear hob
3. Front hob
4. Control panel
5. Ventilation openings
6. Dust filter and grease filter (2 pcs)
7. Feet (5x)
8. Power cord

Installation and operation
12 / 22 105737
EN
4.3 Functions of the Appliance
The induction cooker is intended for preparation and heating of foods using
appropriate cookware. Owing to output switch-on functionality, the front hob may be
set for 5,000 W output.
5 Installation and operation
5.1 Installation
CAUTION!
Incorrect installation, positioning, operation, maintenance or misuse of
the appliance may lead to personal injury or property damage.
Positioning and installation, as well as repairs may be performed by
authorised technical service only and in compliance with the applicable
national law.
Unpacking / Positioning
•Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
•If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
•Be careful not to damage the rating plate and warning labels fixed on the
appliance.
•Never place the appliance in humid or wet environment.
•Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
•The appliance should be placed on surfaces that are:
–even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;

Installation and operation
105737 13 / 22
EN
–sufficiently large, and thus enabling usage of the appliance with no
problems;
–easily accessible;
–well ventilated.
•Maintain sufficient clearance from table edges. The appliance might turn over
and fall down.
•Do not place the appliance in the vicinity of devices or objects that are sensitive
to magnetic fields (e.g. radio, television, etc.).
•Leave at least 5 -10 cm clearance from flammable walls and other objects.
5.2 Electrical Connection
•Electrical connection of the appliance to mains power supply must be executed
by a qualified electrician, according to international, national and local
regulations in force.
•The induction cooker is equipped with power cord. It must be connected with a
plug or directly into the mains wall socket.
•Do not use the appliance with an external timer or remote control.

Installation and operation
14 / 22 105737
EN
5.3 Operation
Method of operation of heating plates
In induction cookers the electric voltage is applied to a conductive coil under the
glass. This generates magnetic field, which being a physical effect, heats the
bottom of a cookware directly.
This translates to savings of time and energy, as —contradictory to traditional
heating areas —there is no heating up of a heater and then of the glass heating
plate.
Another advantage of the technical features described above is the very short
cooking time.
Additionally, inflow of heat changes instantly with every change of settings and it
may be controlled precisely. The induction heating plate reacts to changes in
settings as fast a gas cooker, for the energy is delivered immediately to a pot,
without the need to prior heating up of other materials.
The induction technology combines the speed of reaction with a basic benefit of the
current, making it possible to precisely control heat inflow.
Suitable Cookware
•Iron cookware
•Enamelled iron cookware
•Steel or enamelled cast iron pots/pans
•Cast iron pots/pans
•Cookware made of 18/0 stainless steel
and aluminium if marked as suitable for
induction (mind the description of the
cookware)
Due to a specific way the induction plate operates,
only cookware with a bottom subject to
magnetization is suitable.
To obtain better results, use only pans/pots with a
diameter of 12–28 cm.

Installation and operation
105737 15 / 22
EN
Example:
Induction cooker cookware, Bartscher 9-piece set of cookware
Chrome-nickel steel, anti-drip edges, non-heating handles
4 pots with lids
2.0 litre, 16 cm diameter, H 10.0 cm
2.7 litre, 18 cm diameter, H 11.0 cm
5.1 litre, 24 cm diameter, H 11.5 cm
6.1 litre, 20 cm diameter, H 20.0 cm
1 pan
2.8 litre, 24 cm diameter, H 6.5 cm
Art. No.: A130442
Not Suitable Cookware
•Containers with bulged bottoms
•Aluminium, brass, copper cookware
unless they are clearly indicated as
suitable for induction
•Pots/pans with a diameter below
12 cm
•Cookware with feet
•Ceramic cookware
•Glass cookware
Before Use
1. Before use, clean the appliance, observing instructions in section 6 “Cleaning”.
2. Dry the appliance thoroughly.
3. Fit the dust fat and grease filter from the bottom of the appliance.
The dust filter and grease filter are to protect the body from dirt and grease sucked
by the fan together with the air.
ATTENTION!
The appliance without filters cannot be connected to the power supply and
started.
4. Place appropriate cookware with food in the middle of the selected hob.
5. Execute the required settings according to indications below.

Installation and operation
16 / 22 105737
EN

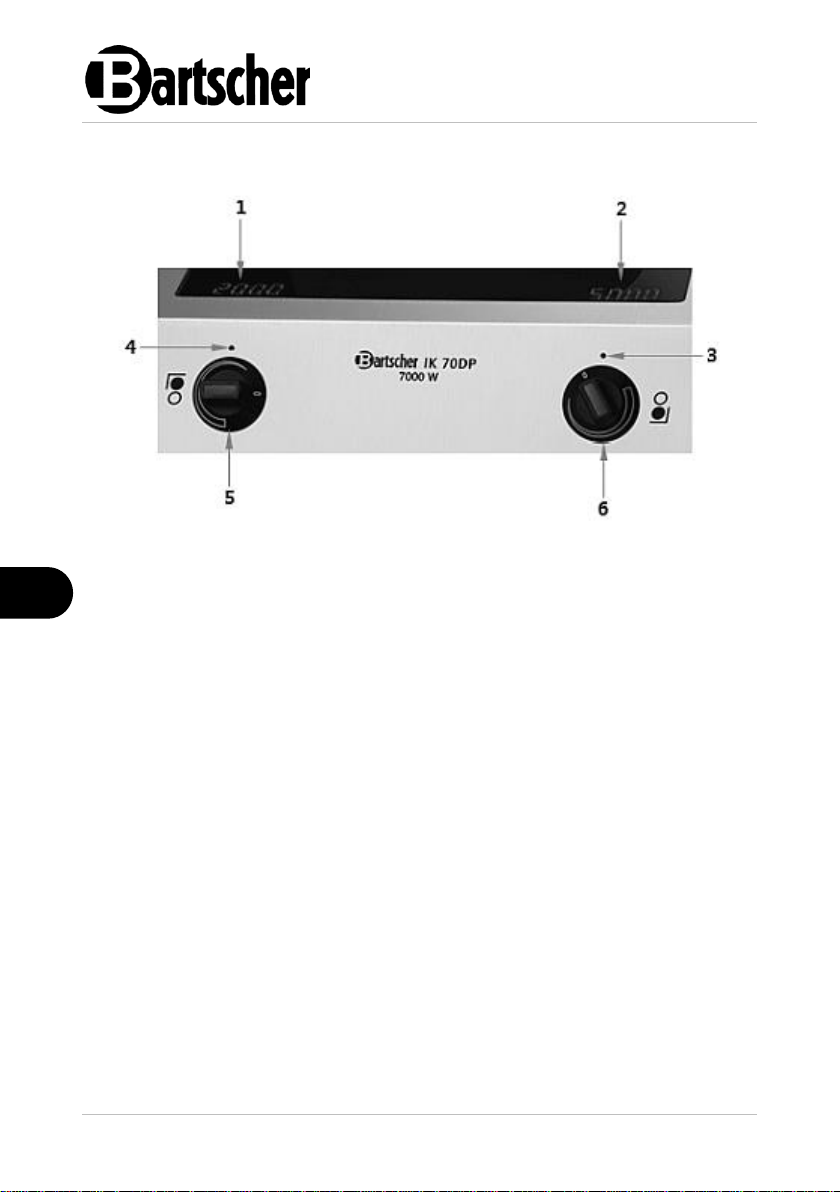

Control Elements / Displayed Messages
1. Rear hob digital display
2. Front hob digital display
3. Indicator of front hob set value
4. Indicator of rear hob set value
5. Rear hob adjustment knob
6. Front hob adjustment knob

Installation and operation
105737 17 / 22
EN
Appliance Start-up
1. Before you start the induction cooker, set both adjustment knobs to OFF
position (rotate '0' marking of the adjustment knob to the set value indicator).
Output Settings
1. Turn the relevant hob adjustment knob to the required output level (setting
range of 1–10).
The following output data indicate output levels that may be set.
Front heating plate
(Right adjustment hob)
Rear heating plate
(Left adjustment hob)
800 W, clocked
800 W, clocked
1,800 W
1,800 W
2,000 W
2,000 W
2,200 W
2,200 W
2,400 W
2,400 W
2,600 W
2,600 W
2,800 W
2,800 W
3,000 W
3,000 W
3,200 W
3,200 W
3,500 W
3,500 W
5,000 W
(2,000 W)
NOTE:
The output level data set forth above may vary for different types of
cooking pots and pans.
•Power division is set in a way making it possible to power up hobs up to
3,500 W.
•To use the maximum output of the appliance, both hobs should be used. Then,
it is possible to use the rear hob with the power of 2,000 W, and the front hob
with the power of 5,000 W. When the output level of the front hob is set at
5,000 W, the rear hob will automatically switch to 2,000 W.
•The output set each time is shown in digital display of respective hob:
–left-hand side —for rear hob
–right-hand side —for front hob

Cleaning
18 / 22 105737
EN
•To use only the front hob with the output of 5,000 W, rotate the left adjustment
knob for the rear hob by one level backwards (anti-clockwise).
•Make sure that the bottom of the pan does not rub against the hob surface,
although the scratched surface does not deteriorate functionality.
Switching the Appliance Off
•When you finished cooking, set both adjustment knobs to OFF positions (rotate
'0' marking of the adjustment knob to the set value indicator).
When the appliance has been switched off, the fan continues to work for approx. 1
minute to cool down the appliance and protect it against overheating.
NOTE:
If there are no new settings introduced during operation, the appliance will
switch off automatically after 2 hours.
6 Cleaning
6.1 Safety Instructions for Cleaning
•Before cleaning, disconnect the appliance from the power supply.
•Leave the appliance to cool down completely.
•Make sure water does not enter the appliance. Do not immerse the appliance in
water or other liquids during cleaning. Do not clean the appliance with a
pressurized water jet.
•Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp
or pointed implements may damage the appliance, and when in contact with live
parts, they may cause electric shock.
•For cleaning, do not use any scouring agents that contain solvents nor corrosive
cleaning agents. They may damage the surface.
